Prima Power Genius Laser Cutting Machine 4020
$13,550.00-15,800.00

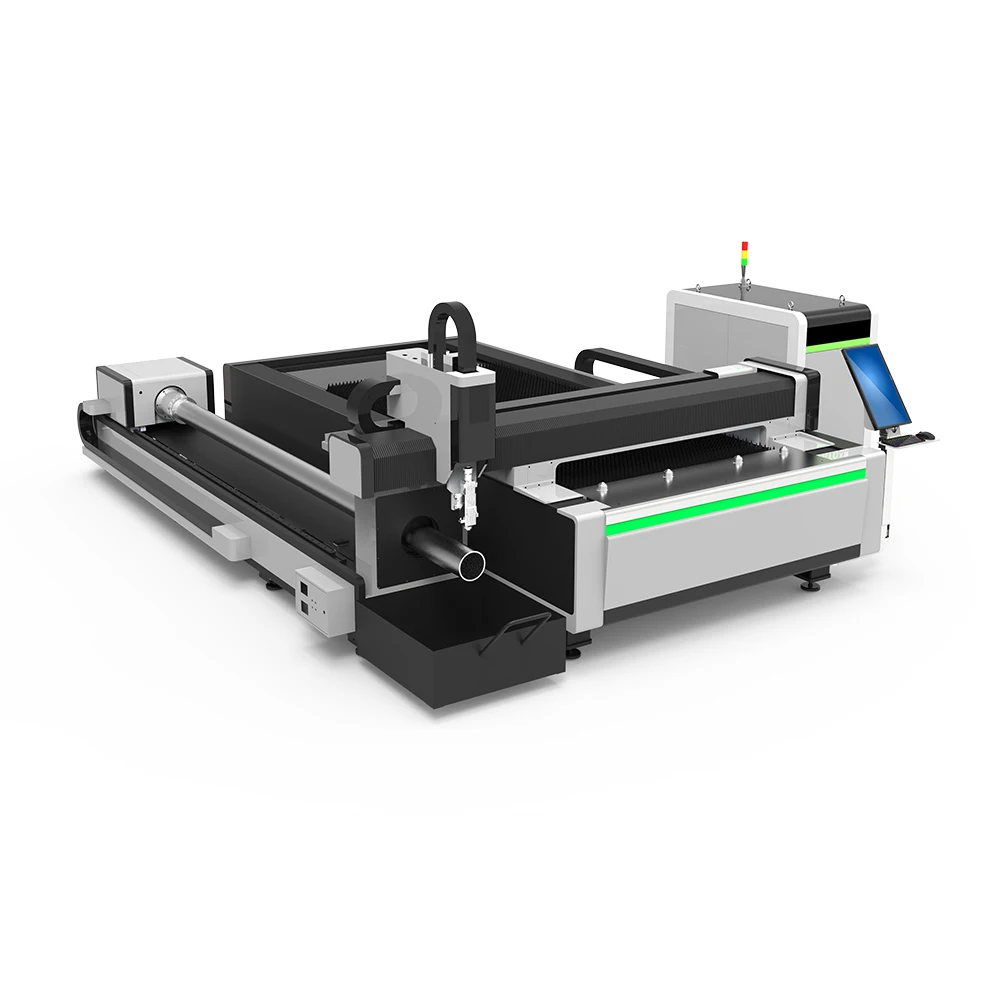

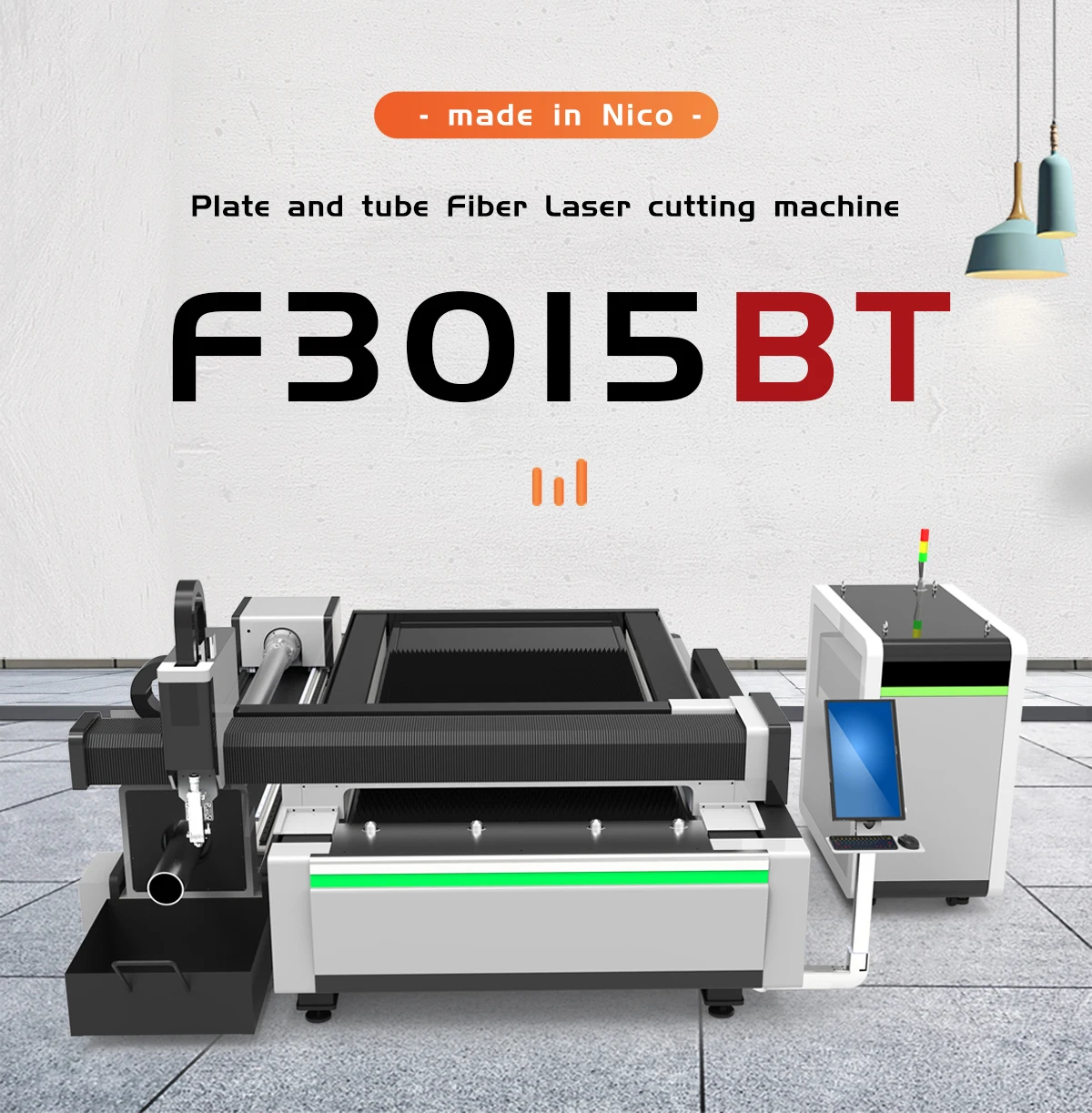

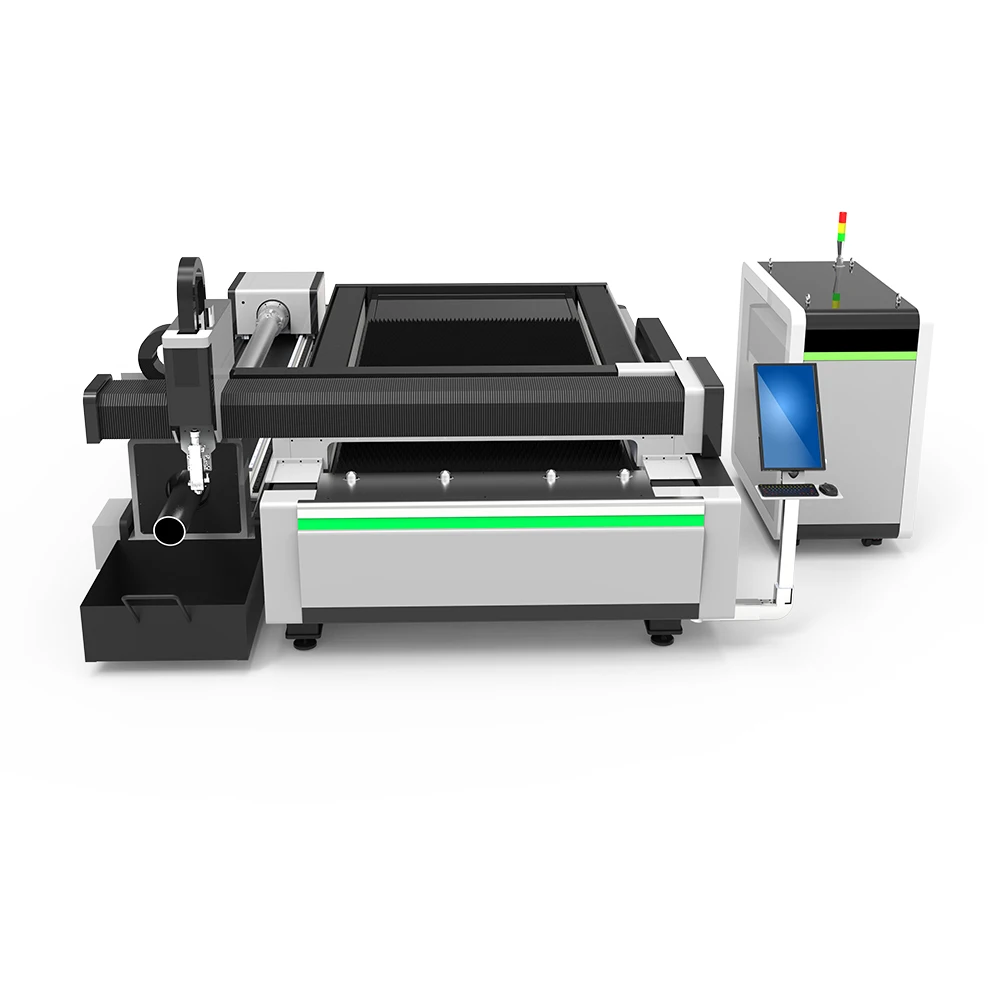

3015BT fiber laser cutting machine price for metal plate and pipes laser cutter
- Category: >>>
- Supplier: Shandong Nico Laser Technology Co. Ltd.
Share on (1601238541547):
Product Overview
Description
Type | F3015BT | |||||||||||||||
Laser type | Fiber laser | |||||||||||||||
Laser working medium | Fiber | |||||||||||||||
Laser wavelength | 1060-1080 nm | |||||||||||||||
Laser power | 6000W(MAX brand) | |||||||||||||||
Working area | 1500x3000mm/1500x6000mm | |||||||||||||||
Maximum acceleration | 1G | |||||||||||||||
Clamping range of pipe cutting machine chuck | Square tube and circular tube:20mm~240mm | |||||||||||||||
Pipe cutting machine chuck bearing | 300kg | |||||||||||||||
Maximum speed of pipe cutting machine chuck | 75r/min | |||||||||||||||
Maximum pipe length of pipe cutting machine | 3000mm/6000mm | |||||||||||||||
Positioning accuracy | ±0.05mm | |||||||||||||||
Repeatability | ±0.03mm | |||||||||||||||
Transmission way | Screw drive/rack drive | |||||||||||||||
Cutting thickness | Carbon steel22-25mm:Stainless steel 14-16mm:Aluminum 10-14mm;Yellow copper10-14mm | |||||||||||||||
Control system | CYPCUT FSCUT3000S | |||||||||||||||
Aiming and positioning | Red light | |||||||||||||||
Cooling way | Water cooling | |||||||||||||||
Working voltage | 380V 3P 50HZ | |||||||||||||||
Machine totally power | 42KVA | |||||||||||||||
Machine outlook dimension | 8100mm*3700mm*2000mm(1560 SlZE) | |||||||||||||||
Machine gross weight | About 5T(1560 SIZE) | |||||||||||||||
Maximum load capacity of work platfomm | 1600KG(1560 SIZE) | |||||||||||||||

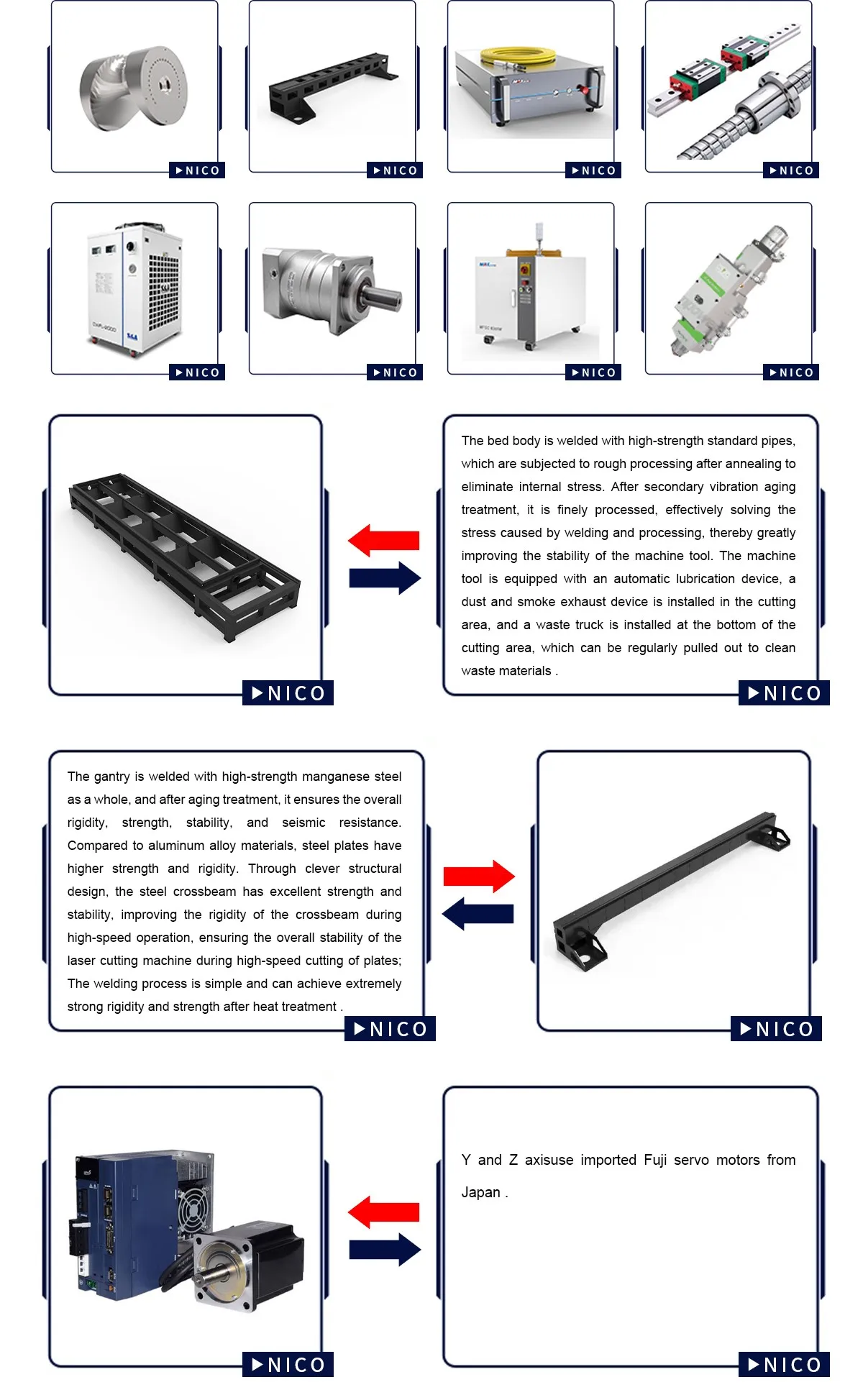

1. The bed is welded with high-strength steel plates, with high accuracy, long service life, beautifulappearance, and compact structure.
2. The gantry is welded with high-strength manganese steel as a whole, and after aging treatment,it ensures the overall rigidity, strength, stability, and seismic resistance
3. The air duct adopts a butterfly valve damper, which opens and closes without noise and ismore environmentally friendly; Butterfly valve main control, left and right separation of the exhaustsystem, small partition, concentrated suction, strong suction, smooth smoke exhaust.4. The front and rear of the pipe machine are self centering pneumatic chucks, with the frontchucks using double row rollers, which have a more uniform clamping force compared to singlerow rollers, reducing the impact of pipe deformation and swing on cutting accuracy. Pneumaticclamping maintains the same air pressure after clamping, and the clamping force is large andconstant. The pipe is not loose or slippery, and the full stroke clamping claw does not need tobe adjusted multiple times.
5. Unique custody device - variable diameter wheel structure for dragging material. While thepipe is being fed and rotated, the custody device always maintains contact with the surface ofthe pipe. The support force is set according to the pipe specifications, ensuring effective supportand improving processing accuracy.
2. The gantry is welded with high-strength manganese steel as a whole, and after aging treatment,it ensures the overall rigidity, strength, stability, and seismic resistance
3. The air duct adopts a butterfly valve damper, which opens and closes without noise and ismore environmentally friendly; Butterfly valve main control, left and right separation of the exhaustsystem, small partition, concentrated suction, strong suction, smooth smoke exhaust.4. The front and rear of the pipe machine are self centering pneumatic chucks, with the frontchucks using double row rollers, which have a more uniform clamping force compared to singlerow rollers, reducing the impact of pipe deformation and swing on cutting accuracy. Pneumaticclamping maintains the same air pressure after clamping, and the clamping force is large andconstant. The pipe is not loose or slippery, and the full stroke clamping claw does not need tobe adjusted multiple times.
5. Unique custody device - variable diameter wheel structure for dragging material. While thepipe is being fed and rotated, the custody device always maintains contact with the surface ofthe pipe. The support force is set according to the pipe specifications, ensuring effective supportand improving processing accuracy.
Packaging & Shipping
FAQ
Q: Can you supply OEM or ODM?
A: Of course we can supply it. We are manufacturer, we can manufacture the equipments according to your exactly requirements.
Q: How Long is your production cycle? A: usually 25-50 business days. The exact delivery time depends on the quantity and your
order time.
Q: What can you buy from us?
A：Laser cutting machine, marking machine, CNC router, laser welding machine, cleaning machine.
Q: How is the payment?
A: T/T, L/C or other formal import and export payment method.
Q: How Long is your warranty?
A: Laser 2 years; whole machine one year.
Q: if we have any problems in future production, will you help us?
A: if necessary, you can contact me via mobile phone, WhatsApp,etc. . We are at your service. We will solve your problem as soon as possible.
A: Of course we can supply it. We are manufacturer, we can manufacture the equipments according to your exactly requirements.
Q: How Long is your production cycle? A: usually 25-50 business days. The exact delivery time depends on the quantity and your
order time.
Q: What can you buy from us?
A：Laser cutting machine, marking machine, CNC router, laser welding machine, cleaning machine.
Q: How is the payment?
A: T/T, L/C or other formal import and export payment method.
Q: How Long is your warranty?
A: Laser 2 years; whole machine one year.
Q: if we have any problems in future production, will you help us?
A: if necessary, you can contact me via mobile phone, WhatsApp,etc. . We are at your service. We will solve your problem as soon as possible.
