Product Overview
Description

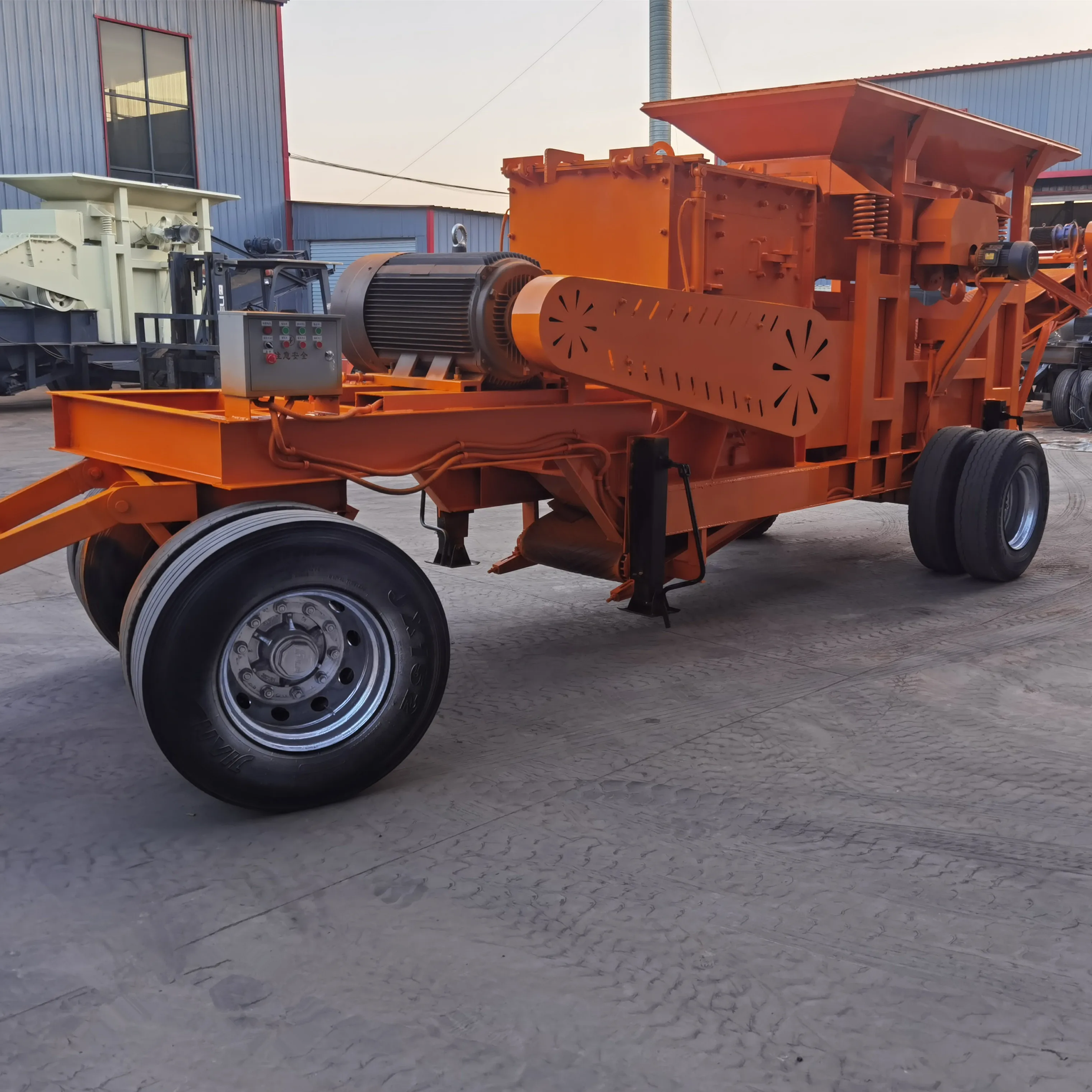

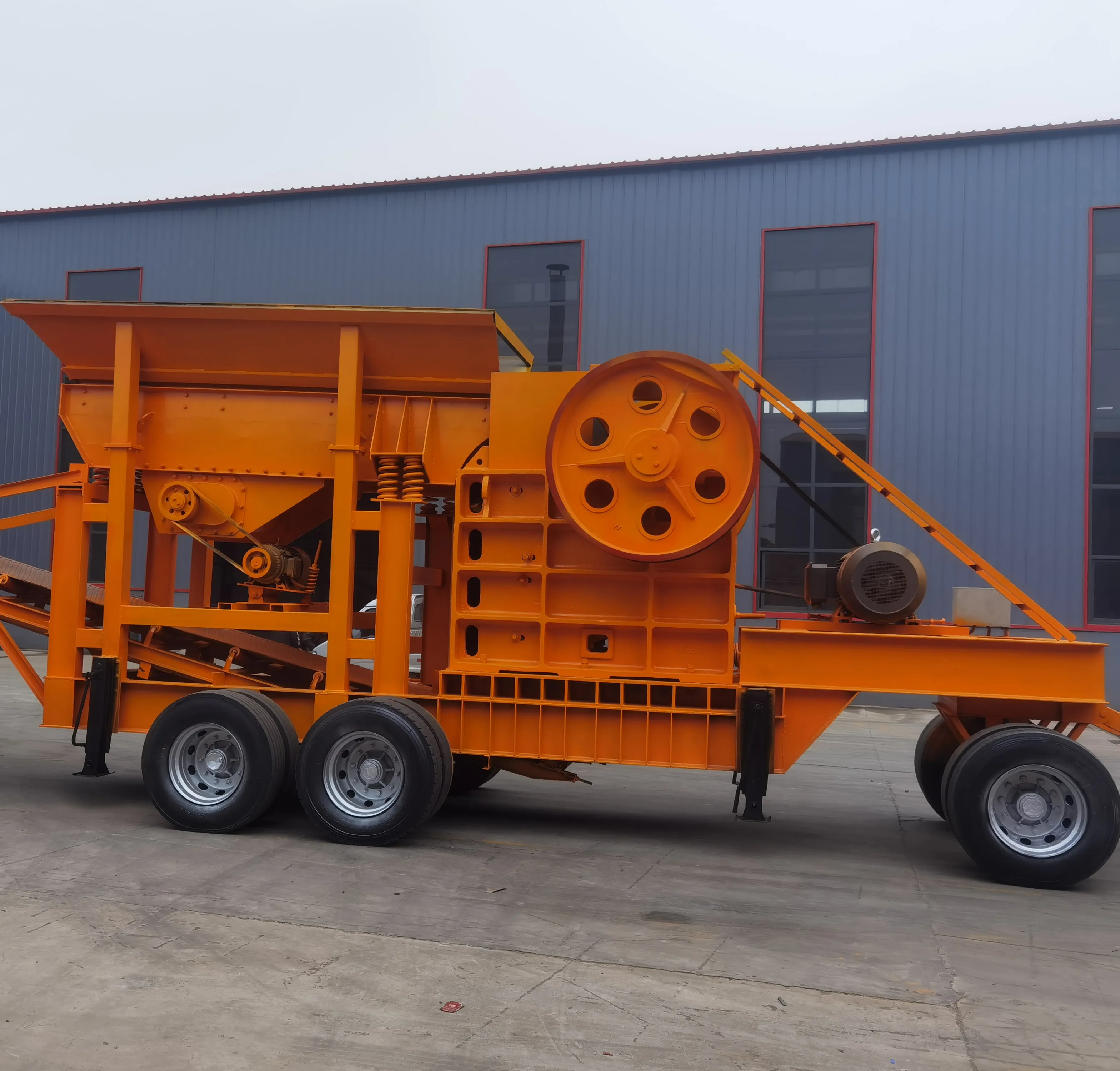

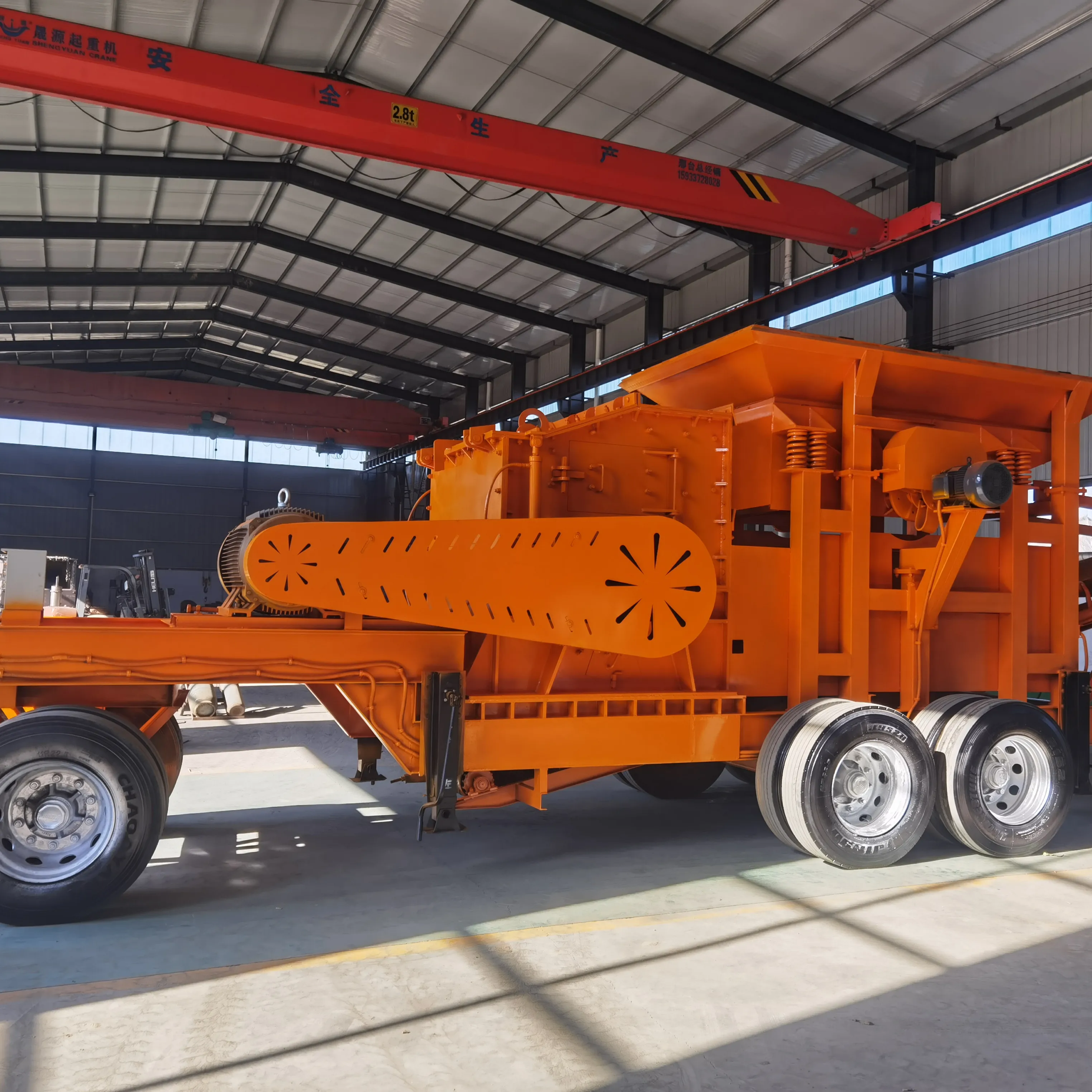

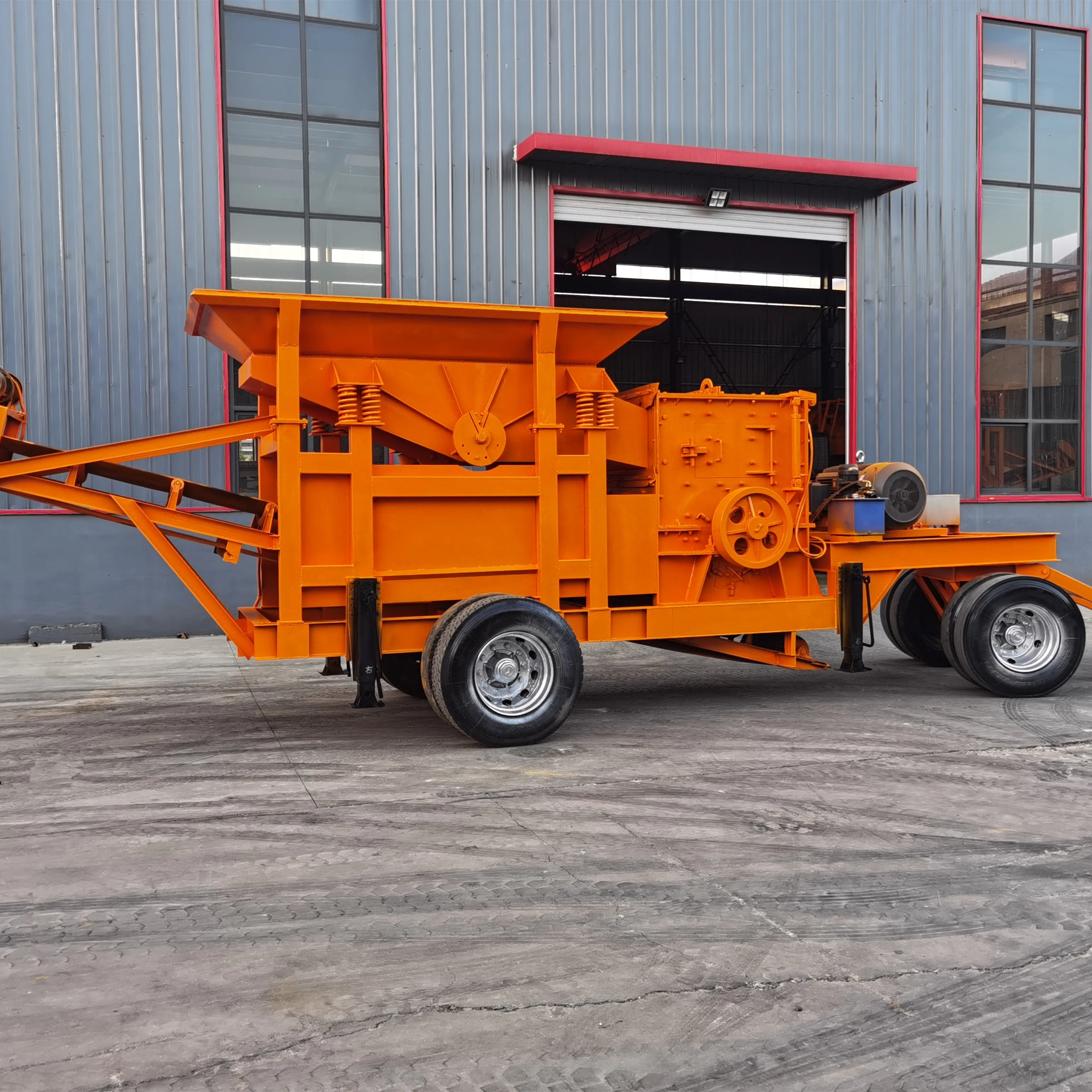

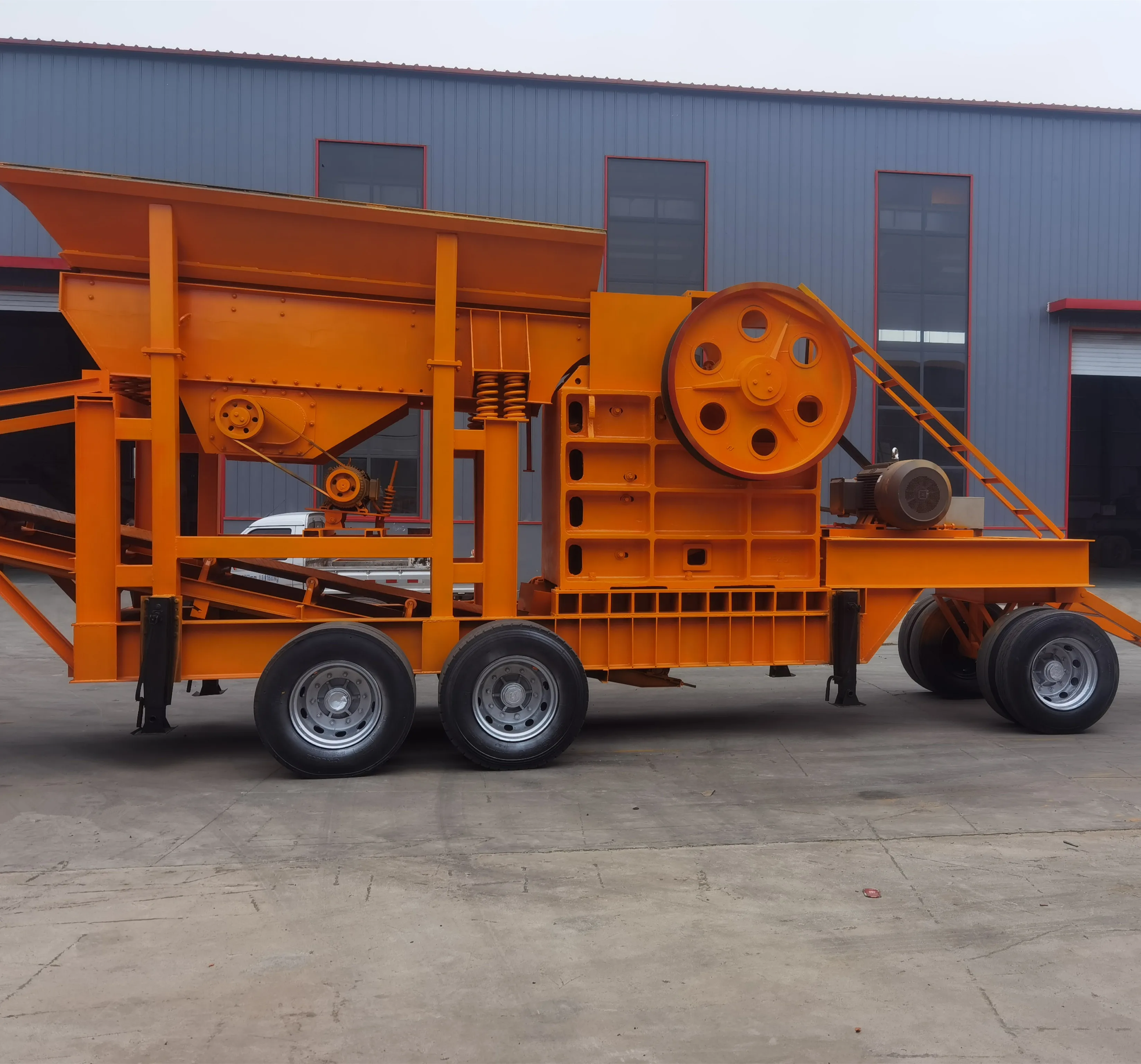

Mobile Stone Crusher Mobile Crushing Machine
Product Description of Mobile Crusher:
Mobile crusher has been widely used. It expands the usage scope of crushing & screening operation. To remove customers’ operation obstacles caused by space and environment is our fist solution. To supply efficient and cheap crushing &screening system is our responsibility. The mobile crushing plant can be used on various crushing and screening spots, the customer can select one set or several different usage station according to requirements. We can also design kinds of mobile plants to meet special requirement.
Features of Mobile Crusher:
1.Several machines are installed together with trailer, the plant area is very small .
2. Convenient for the trailer to travel on ,rough and terrible road in the crushing area.
3. Belt conveyor under the machine is installed together on the vehicle.
4. Transportation cost of material is reduced.
5. Motors or diesel engine are on the trailer.
Technical Data of Mobile Crusher:
| Model | 800×800 | 800×1000 | 1000×1200 | 1200×1200 | 1200×1500 | 1400×1600 |
| Motor Power | 90kw×4G | 110kw×4G | 132kw×4G | 160kw×4G | 185kw×4G | 250kw×4G |
| Diesel Power | 195HP | 195HP | 260HP | 330HP | 330HP | 400HP |
| Hopper | 3500×1800×8mm | 3600×2200×8mm | 3600×2200×8mm | 3800×2200×8mm | 3800×2200×8mm | 4000×2400×10mm |
| Hammerhead Weight | 15kg | 15kg | 20kg | 36kg | 36kg | 55kg |
| Total Weight | 10t | 12.5t | 14t | 19t | 21t | 26t |
| Belt | 7×0.8m | 8×0.8m | 8×1m | 8×1m | 8×1m | 9×1m |
| BelT Conveyor Power | 5.5kw | 5.5kw | 7.5kw | 7.5kw | 7.5kw | 7.5kw |
| Tyre Model×Number | 1100×8pcs | 1100×8pcs | 1100×8pcs | 1000×12pcs | 1100×12pcs | 1100×12pcs |
| Sand Capacity | 30t | 45t | 55t | 65t | 80t | 100t |
| Stone Capacity | 50t | 70t | 80t | 90t | 120t | 180t |
| Overall Size | 10*2.8*3.5m | 11*2.8*3.5m | 11.5*2.8*3.5m | 12*3*3.6m | 12*3*3.6m | 13*3.2*3.7m |
Please Click Here To Contact Us For Detailed Quotation!
Packing & Delivery

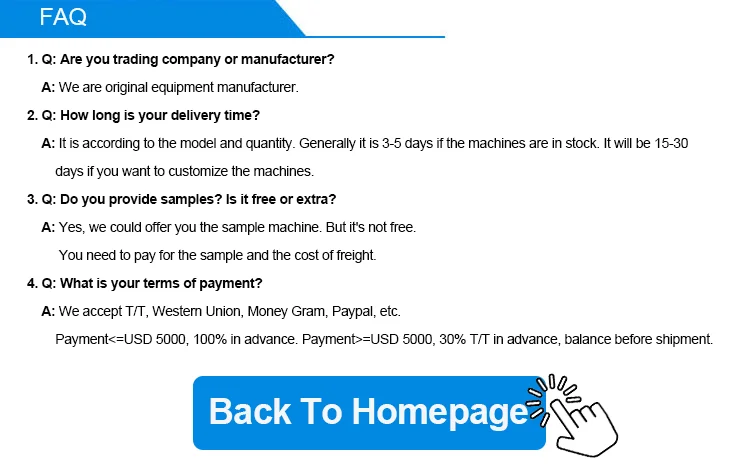

FAQ
