Newest Popular OEM/ODM Bathroom Element 30L 50L 80L 100L Vertical Water Heater Boiler 230V Electric Storage Water Heater
- Category: >>>
- Supplier: Foshan Shengyu Thermal Energy Technology Co. Ltd.Foshan Ltd.
Share on (1601238600928):
Product Overview
Description
Products Description

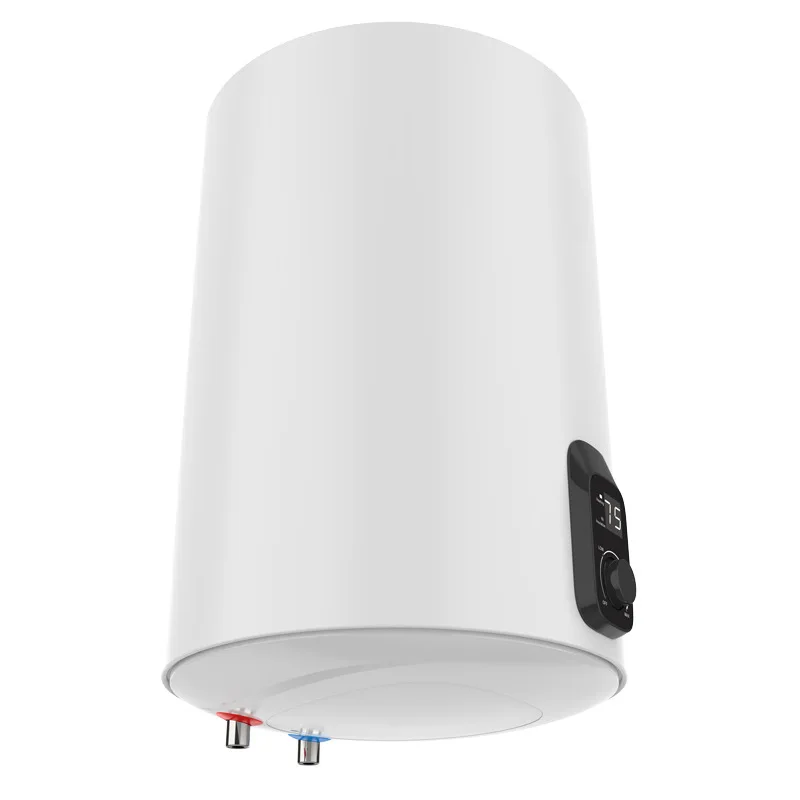

Newest Popular OEM/ODM Bathroom Element 30L 50L 80L 100L Vertical Water Heater Boiler 230V Electric Storage Water Heater
Installation | Vertical Installation | |||||||||
Certificate | CE/CB approval | |||||||||
Model | SVb15-30G5D | SVb15-50G5D | SVb15-80G8D | SVb15-100G8D | ||||||
Rating Capacity | 30L | 50L | 80L | 100L | ||||||
N.W | 11.30 | 14.60 | 22.10 | 25.80 | ||||||
G.W | 13.00 | 16.60 | 24.80 | 28.60 | ||||||
Rated Voltage & Frequency | 230V /50Hz | |||||||||
Rated Power | 1500W | |||||||||
Rated Pressure | 0.75 MPa | |||||||||
Rank Waterproof | IPX4 | |||||||||
Net Size（mm） | Ø390*521 | Ø390*725 | Ø460*790 | Ø460*940 | ||||||
Packing Size（mm） | 445*445*630 | 445*445*745 5 | 565*525*848 | 565*525*998 | ||||||
Loading quantity | QTY(PCS） | |||||||||
QTY/40'HQ | 521 | 440 | 258 | 220 | ||||||

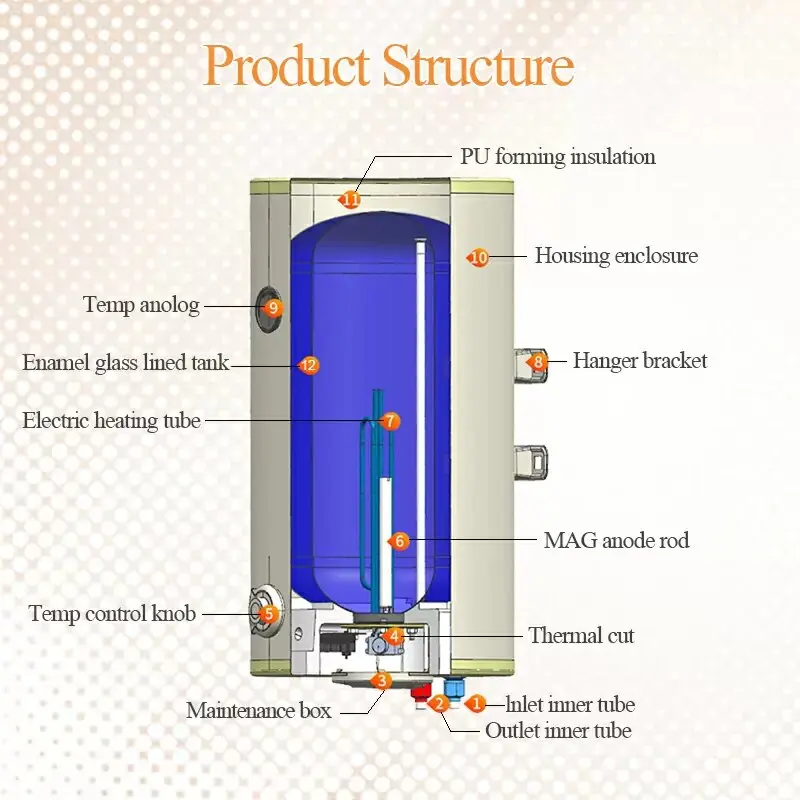

Features | ||||||||||
Outer Tank | 0.4mm cold rool steel material, Metal Body-Spray white color | |||||||||
Inner Tank | Blue Enamel coated glass lined cold roll steel | |||||||||
Thickness of Enamel coating | 0.25~0.65mm | |||||||||
Enamel coating type | Advanced wet method enamel technique | |||||||||

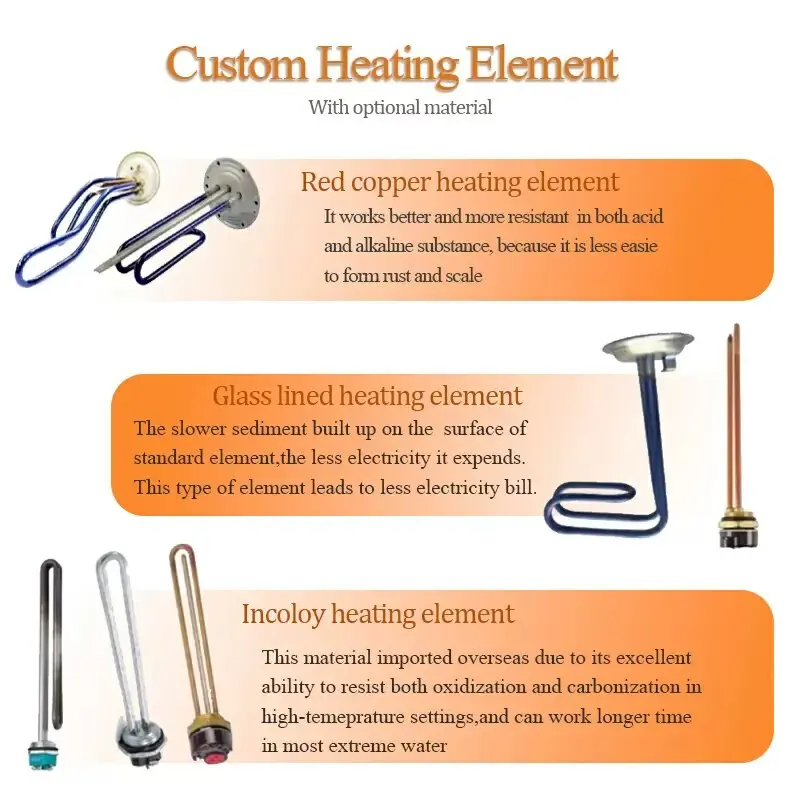

Heating Element | S/S 316L Heating Element -durable and with longer lifetime | |||||||||
Capillary type Thermostat | (30~75℃)±5℃-automatic temperature control | |||||||||
Capillary type Thermal cut out | 93℃±3℃--automatic cut off for overheat protection | |||||||||
Power cable and Plug | white color power cable and BS Plug | |||||||||
Anode rode | φ22x160mm-Keep longer lifetime of tank | |||||||||
Safety valve | 0.75Mpa Multi-functional safety valve-over pressure protection | |||||||||
Insulation material | polyurethane--environment-friendly NONE CFC injection | |||||||||
Average Insulation thickness | 20mm | |||||||||
Warranty | 3 years warranty on inner tank | |||||||||

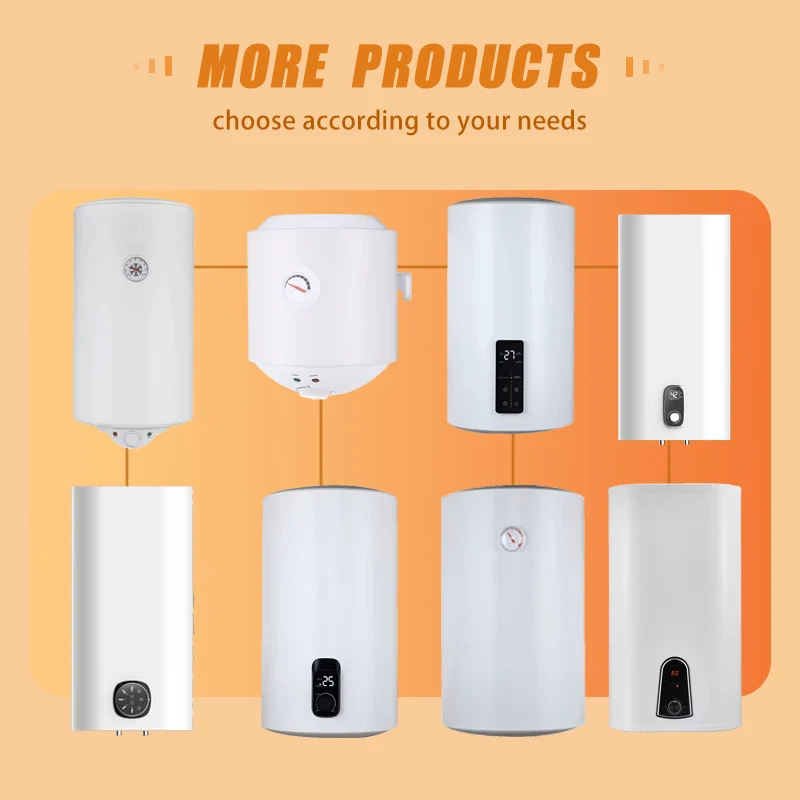

Recommend Products

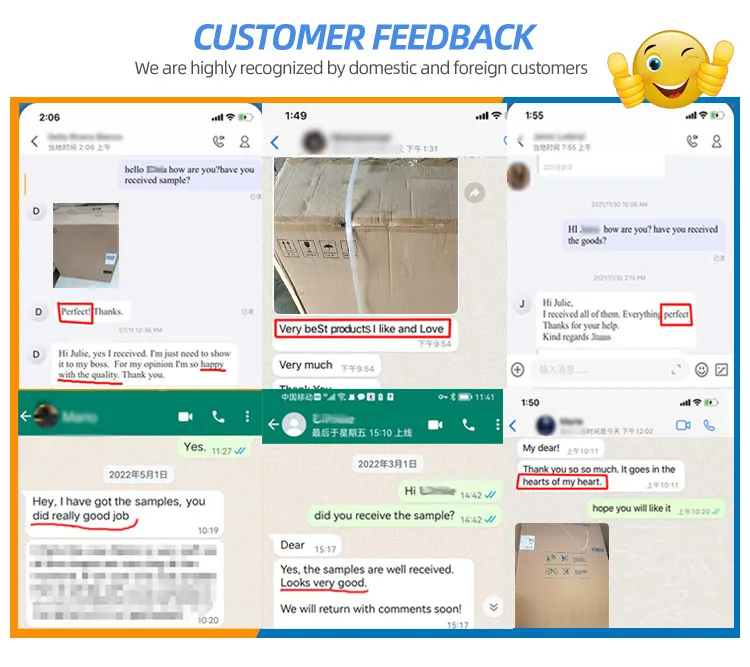

Customer Feedback

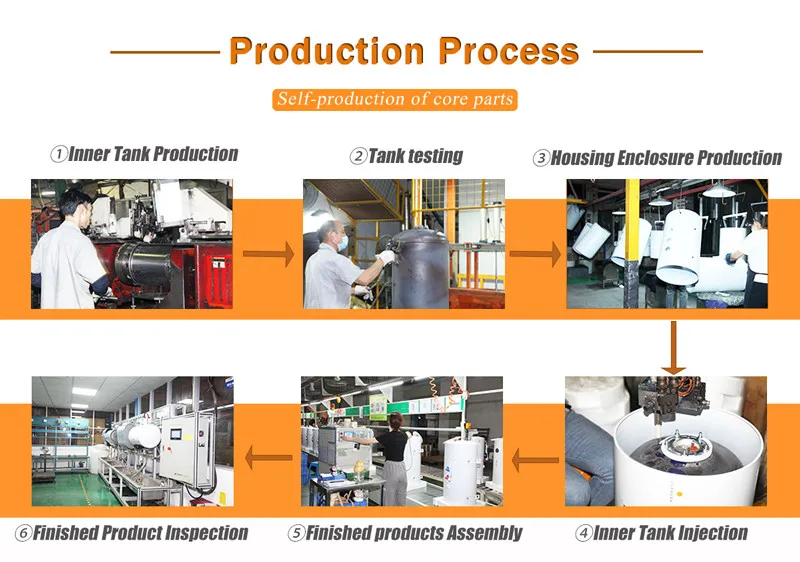

Company Profile
Global Customers
Testing and certification
FAQ
Q1 Are you a manufacturer?
A: Yes, we are a professional Electric Water Heater manufacturer with rich experience and complete R&D,production,sales and
service supply.
Q2: What is your main product?
Answer: Our main products include DC variable frequency heat pumps, air source heat pump water heaters, swimming pool heat
pumps,and EVI heat pumps in cold areas.
Q3: How to place an order?
Answer:Please send us an inquiry or contact us through online services; after receiving your inquiry, we will reply to you
Catalogs,quotations and other information you need.
Q4: Do you provide OEM/ODM customized manufacturing services?
Answer: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce European standard heat pumps under your brand
according to yourspecial needs.
Q5: Can I apply to become your heat pump distributor/distributor?
A: Yes, we are currently looking for more heat pump distributors/distributors worldwide, who can distribute our heat pump products
in local countries/regions.
Q6： I need to buy in large quantities. Can you provide sample service?
Yes, we can provide sample service, and we have engineers to help you solve installation problems
A: Yes, we are a professional Electric Water Heater manufacturer with rich experience and complete R&D,production,sales and
service supply.
Q2: What is your main product?
Answer: Our main products include DC variable frequency heat pumps, air source heat pump water heaters, swimming pool heat
pumps,and EVI heat pumps in cold areas.
Q3: How to place an order?
Answer:Please send us an inquiry or contact us through online services; after receiving your inquiry, we will reply to you
Catalogs,quotations and other information you need.
Q4: Do you provide OEM/ODM customized manufacturing services?
Answer: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce European standard heat pumps under your brand
according to yourspecial needs.
Q5: Can I apply to become your heat pump distributor/distributor?
A: Yes, we are currently looking for more heat pump distributors/distributors worldwide, who can distribute our heat pump products
in local countries/regions.
Q6： I need to buy in large quantities. Can you provide sample service?
Yes, we can provide sample service, and we have engineers to help you solve installation problems
