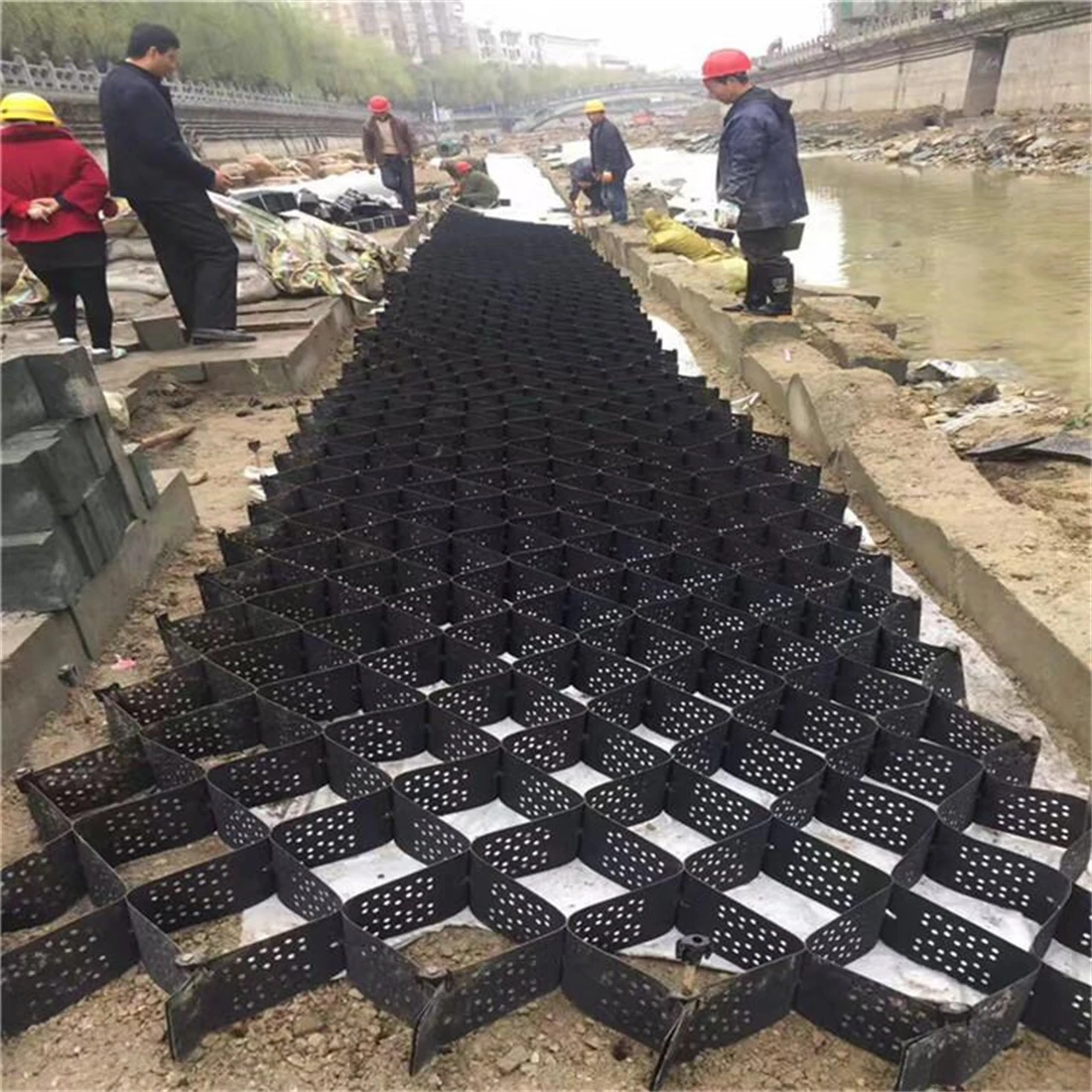

factory low price HDPE Black Driveway Grid Gravel Geocell for Gravel Driveway Paver Slope Protection Geocell Erosion Control
- Category: >>>
- Supplier: Taian Lin Yuan Engineering Materials Co. Ltd.
Share on (1601238601083):
Product Overview
Description
Product Description
Lin Yuan Geocell is a flexible three-dimensional, honeycomb like structures made from high-density polyethylene(HDPE) strips whichare ultrasonically bonded together to form an extremely strong configuration. Lin Yuan Geocell System can be filled with a widerange of material: aggregate, concrete, sand, soil, etc.
Lin Yuan Geocell is engineered for soil stabilization applications, it is used to help improve the performance of standard
construction materials and erosion-control treatments.
construction materials and erosion-control treatments.
Product Name | HDPE Geocell |
Cell Depth | 50, 75, 100, 125, 150, 200mm |
Weld Spacing | 330, 356, 400, 445, 660, 712mm |

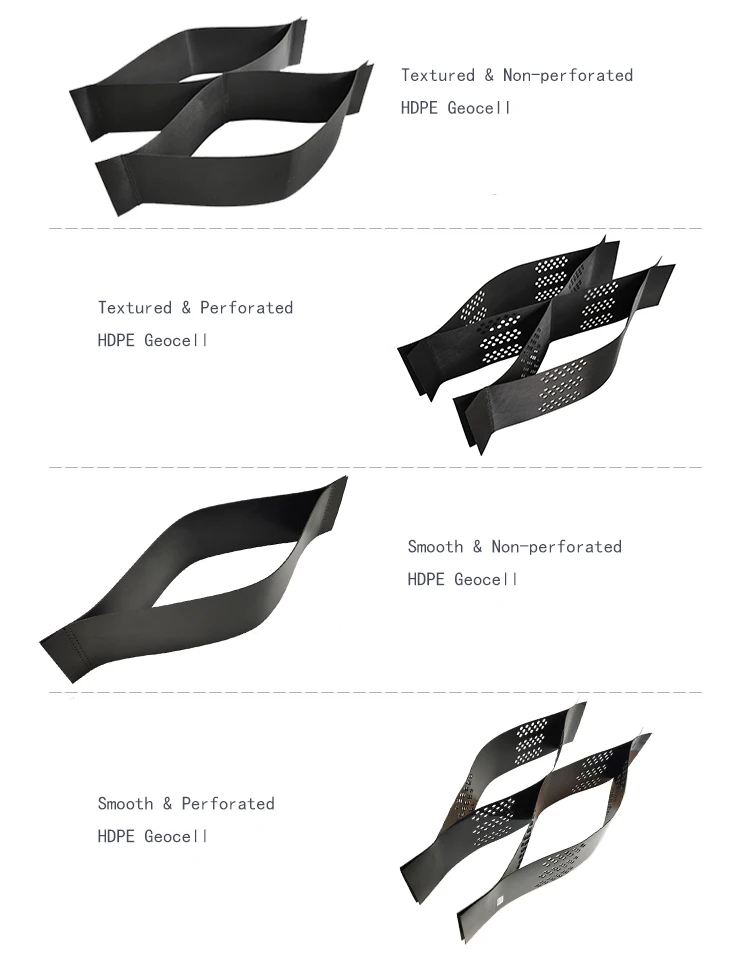

Thickness(Textured) | 1.5, 1.52, 1.6mm |
Thickness(Smooth) | 1.1, 1.2mm |
Colour | Black, Sandy, Green |
Standard | ASTM, ISO |

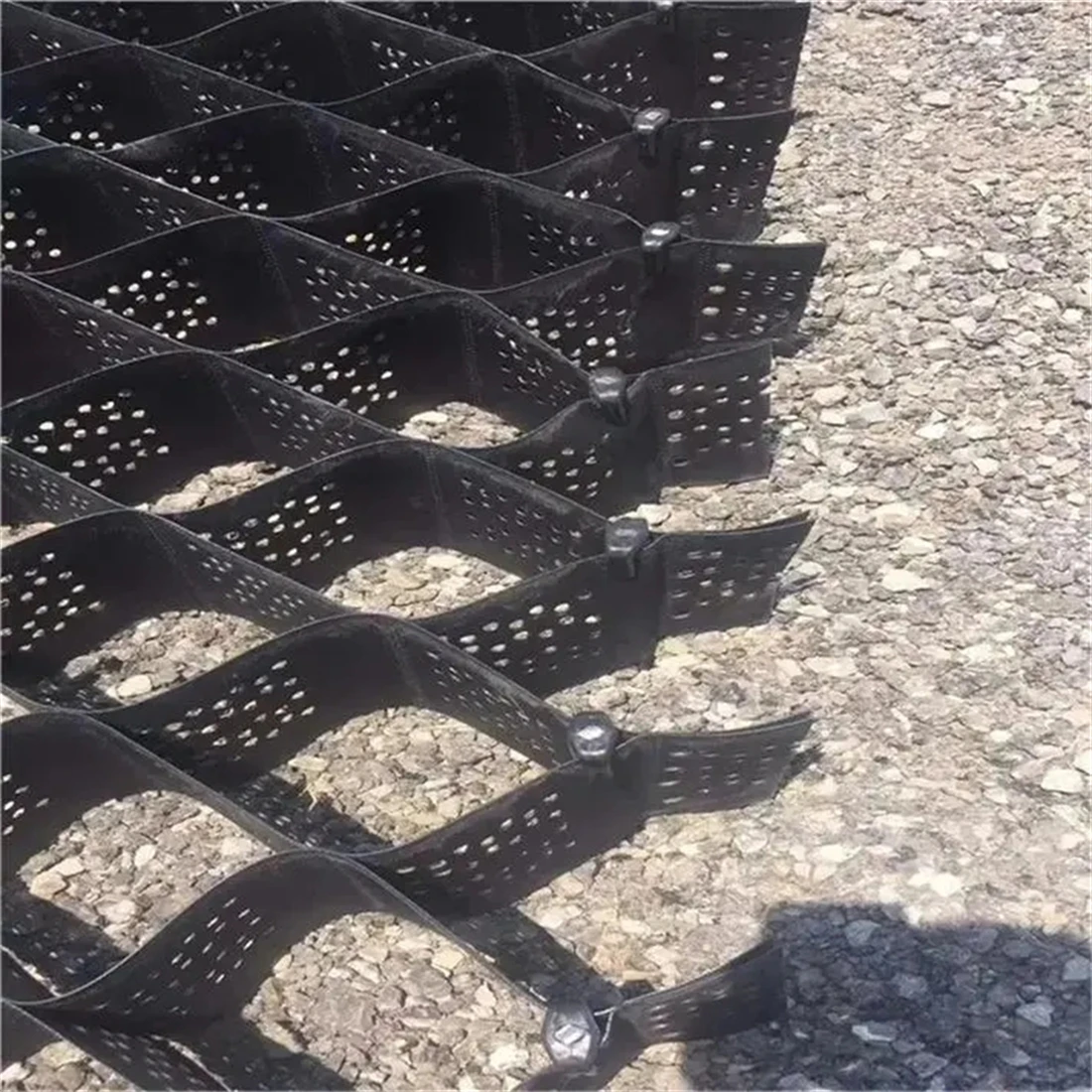

Product Display

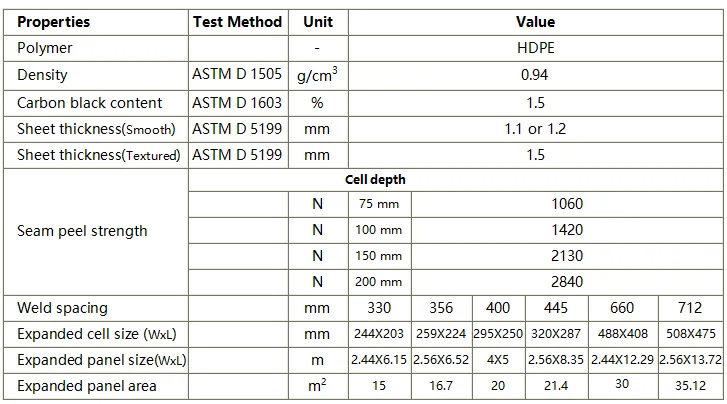

Specification
Application

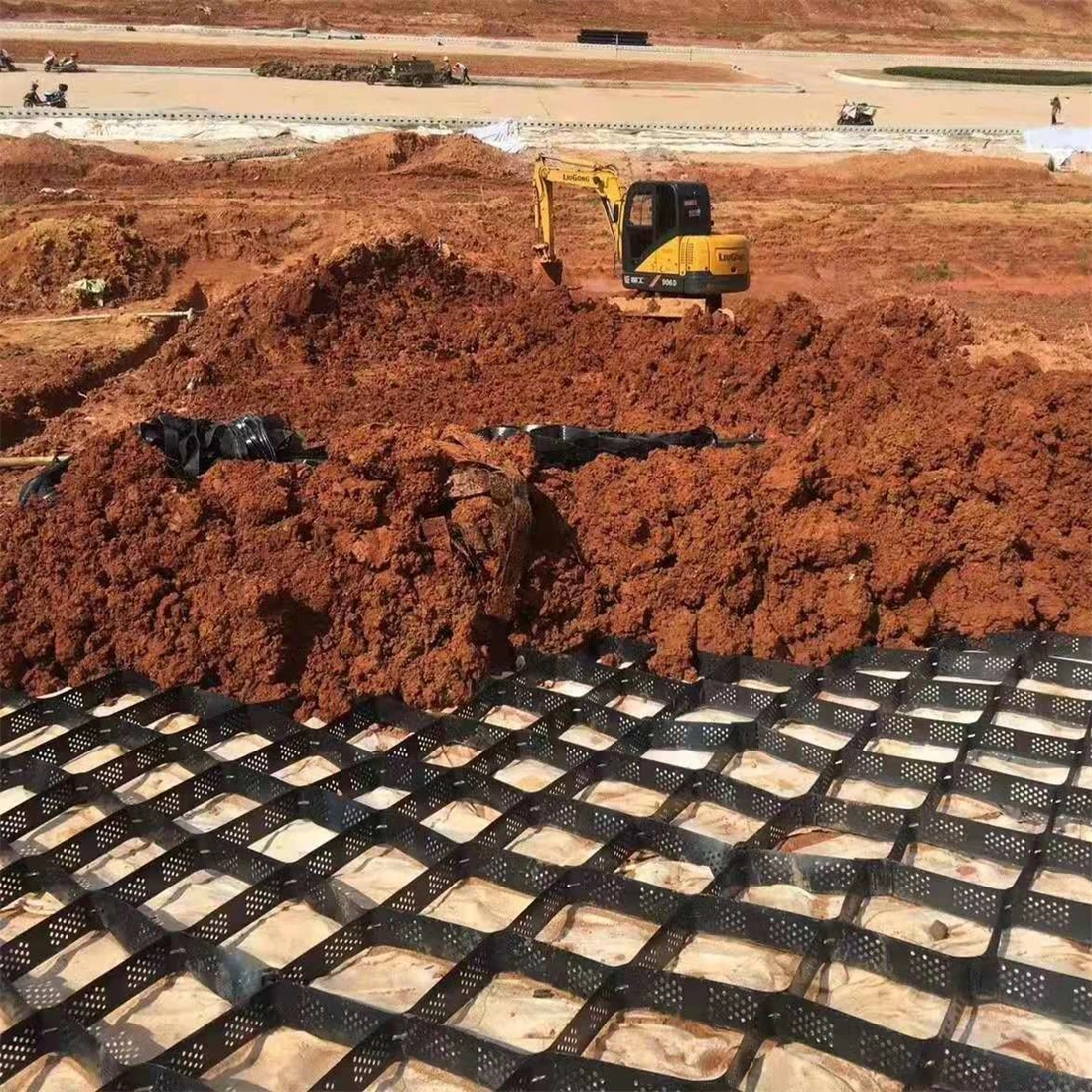

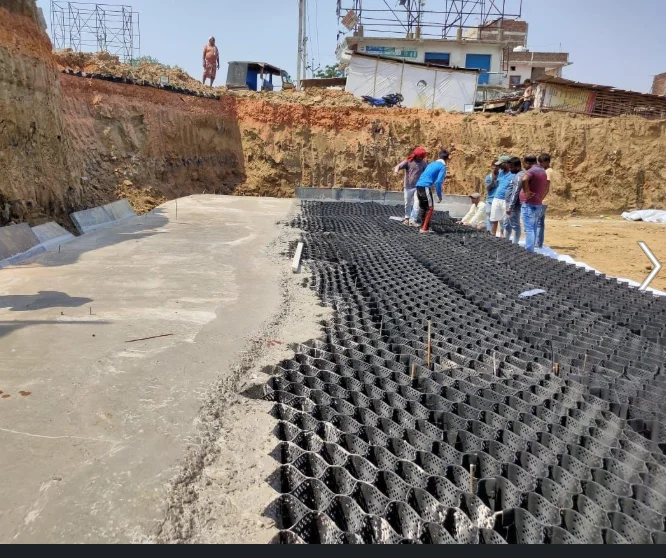

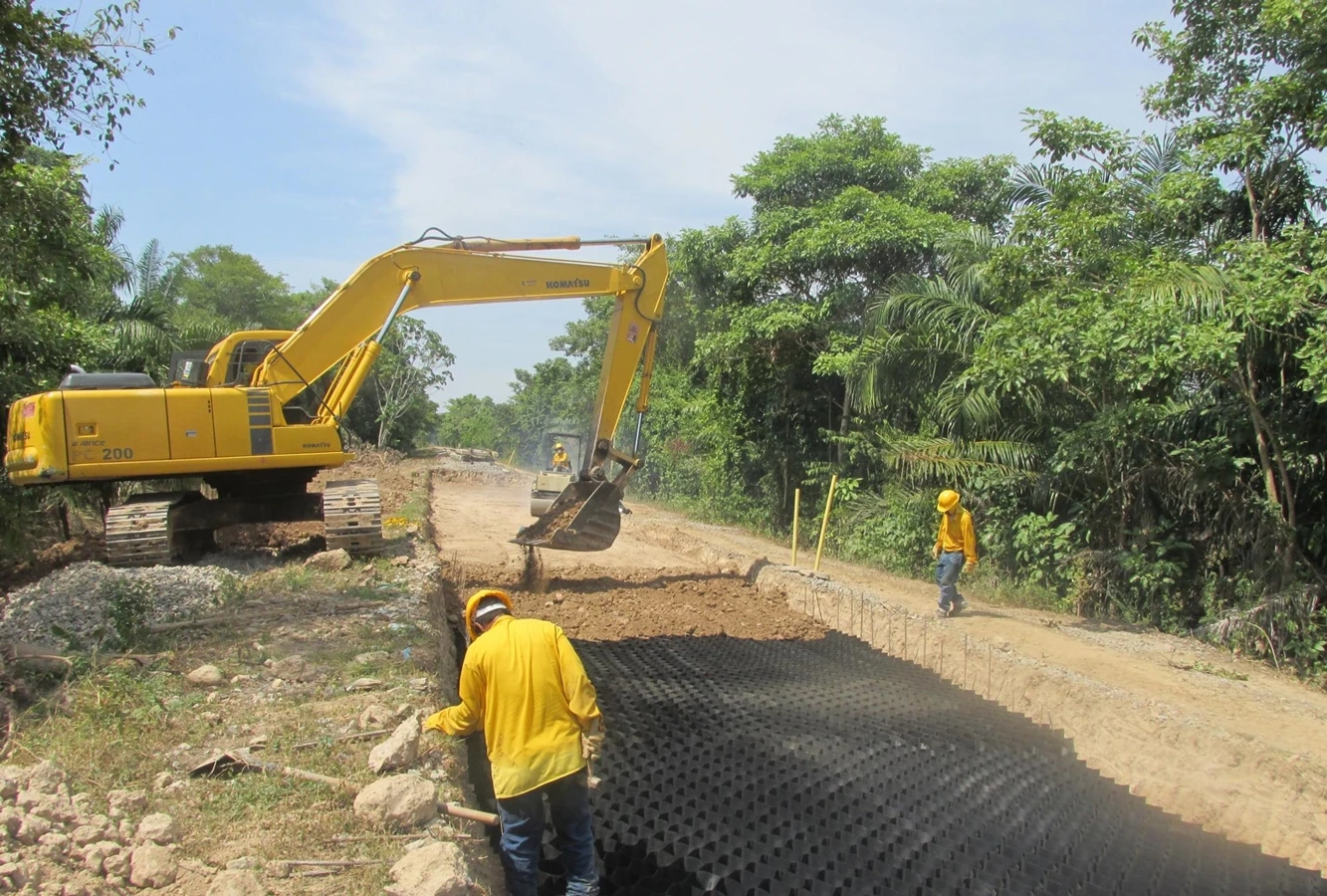

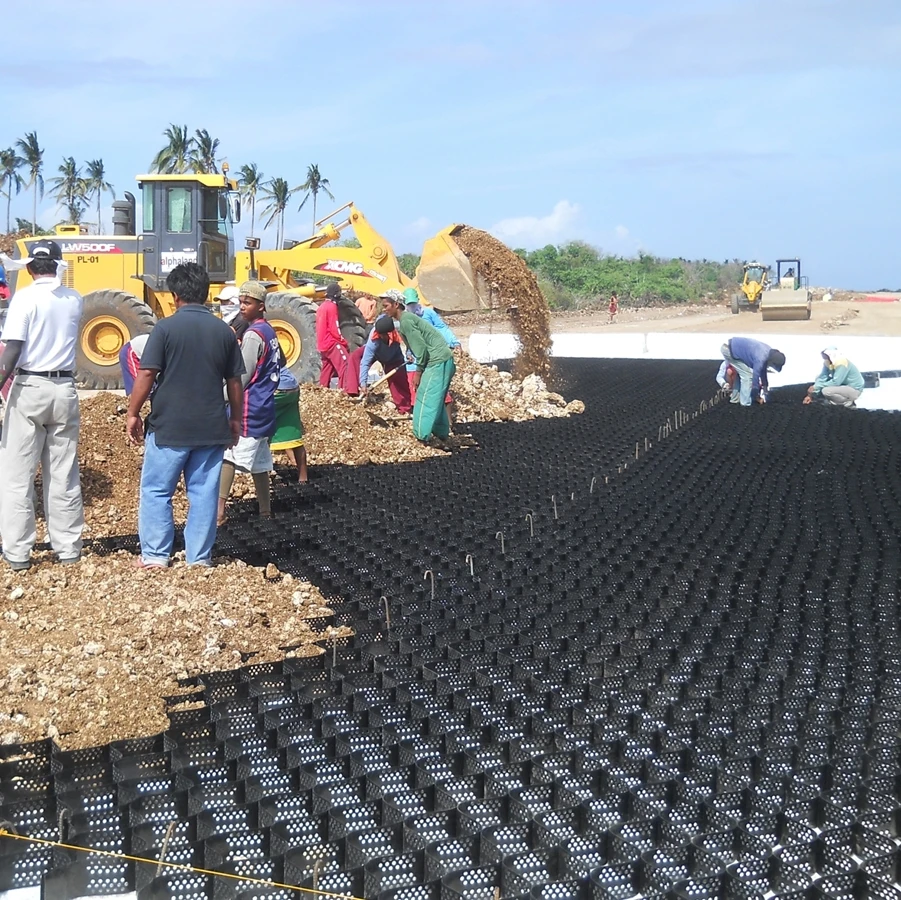

Load Support
Cellular Confinement Systems have been used to improve the performance of both paved and unpaved roads by reinforcing the soil in the subgrade-base interface or within the base course. The effective load distribution of geocell creates a strong,stiff 3D cellular mattress which can reduce vertical differential settlement into soft subgrades, improves shear strength, and enhances load-bearing capacity, while reducing the amount of aggregate material required to extend the service life of roads.

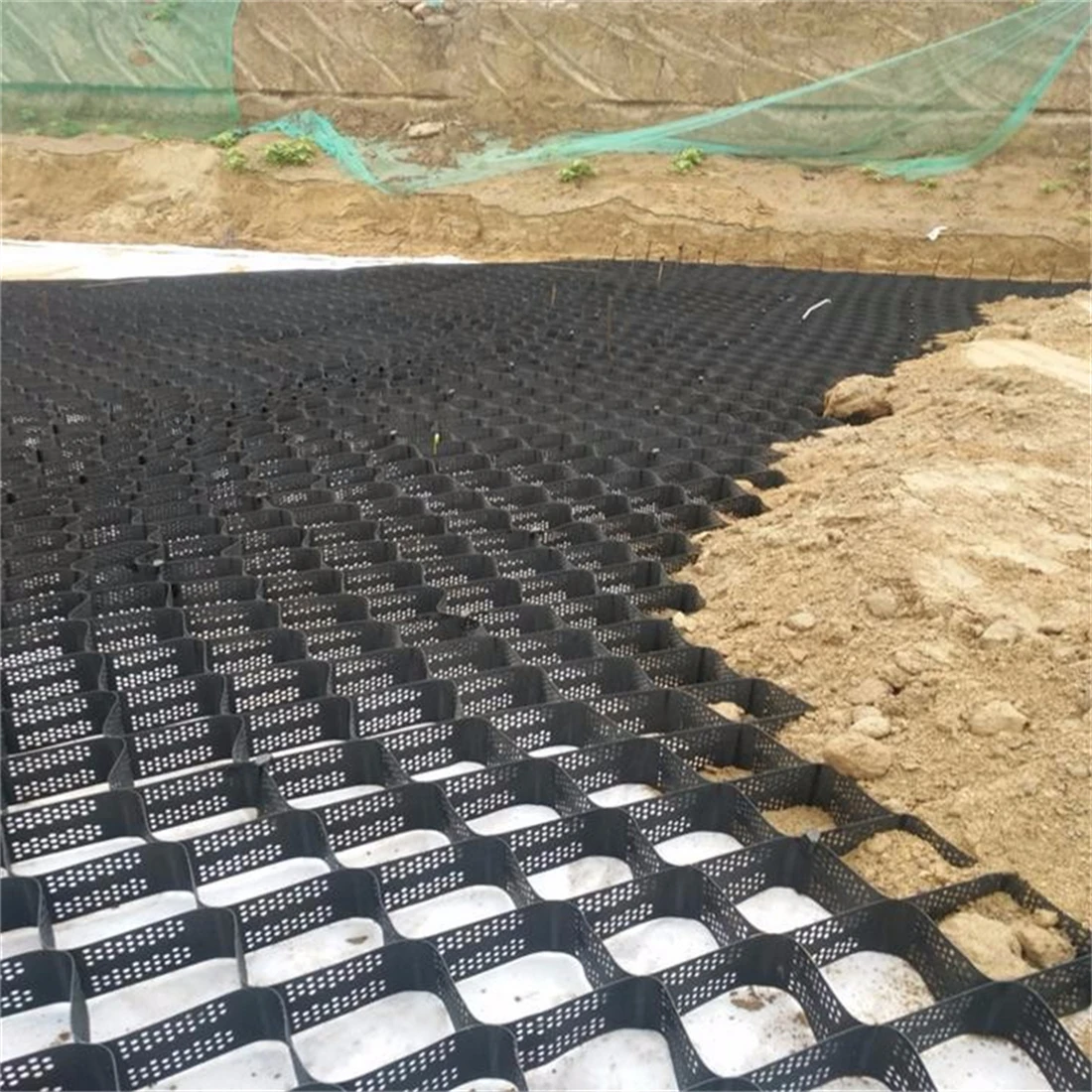

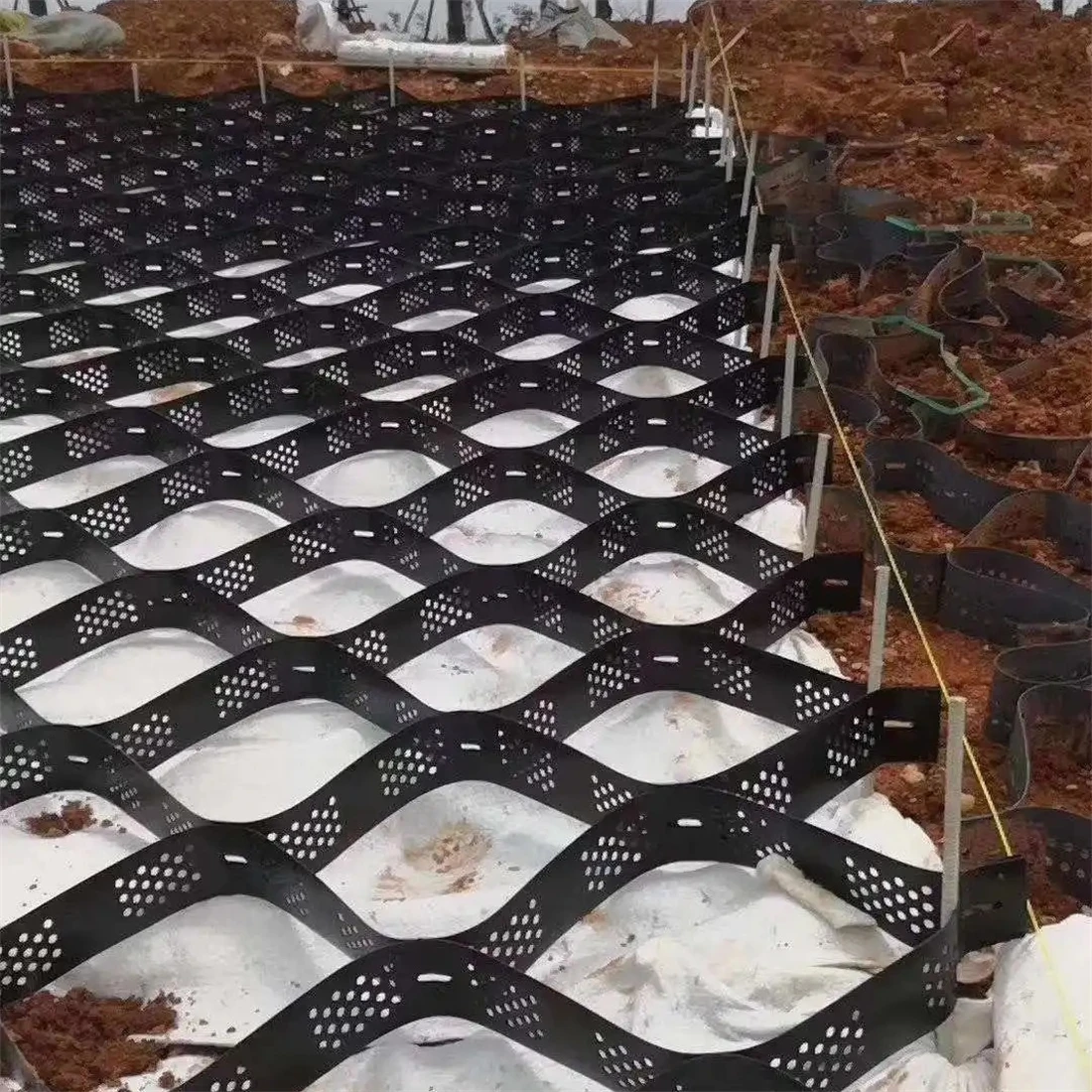

Ground Stabilisation
Cellular Confinement Systems strengthen the aggregate infill, thereby simultaneously enabling the use of poorly graded inferior material for infill as well as reducing the structural support layer thickness.Typical stabilisation applications include reinforcement of base and subbase layers in flexible pavements, including: roads, railway substructure and ballast confinement; working platforms in intermodal ports; airport runways.

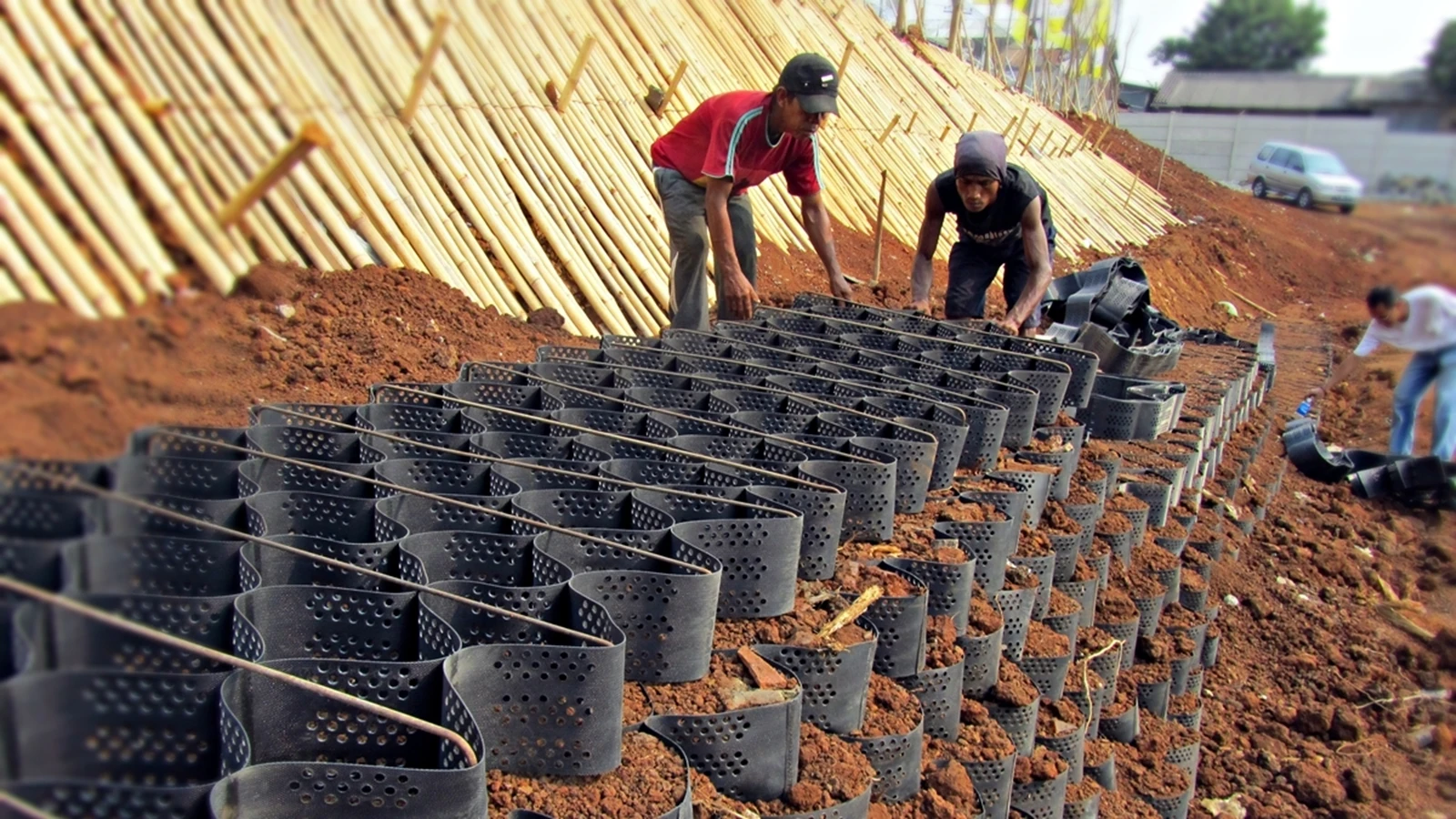

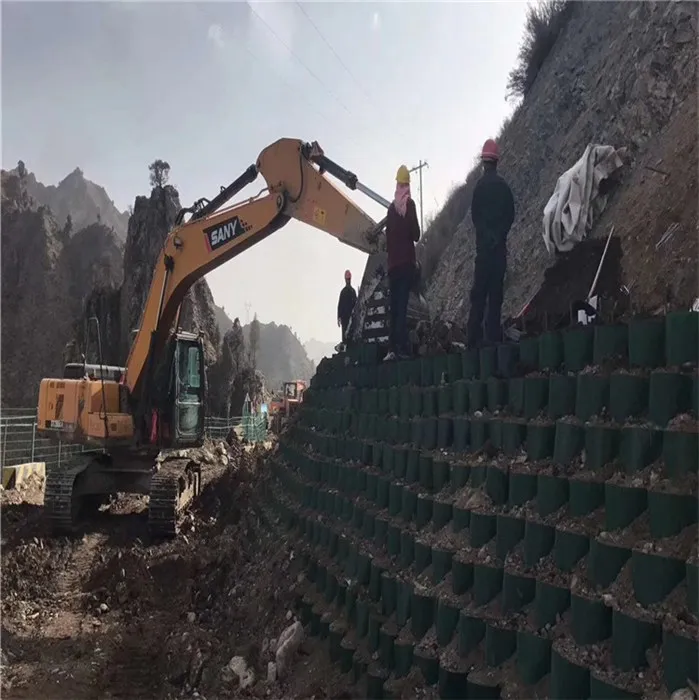

Retaining Wall
Cellular Confinement Systems provide steep vertical mechanically stabilized earth structures (either gravity or reinforced
walls) for steep faces, walls and irregular topography
walls) for steep faces, walls and irregular topography

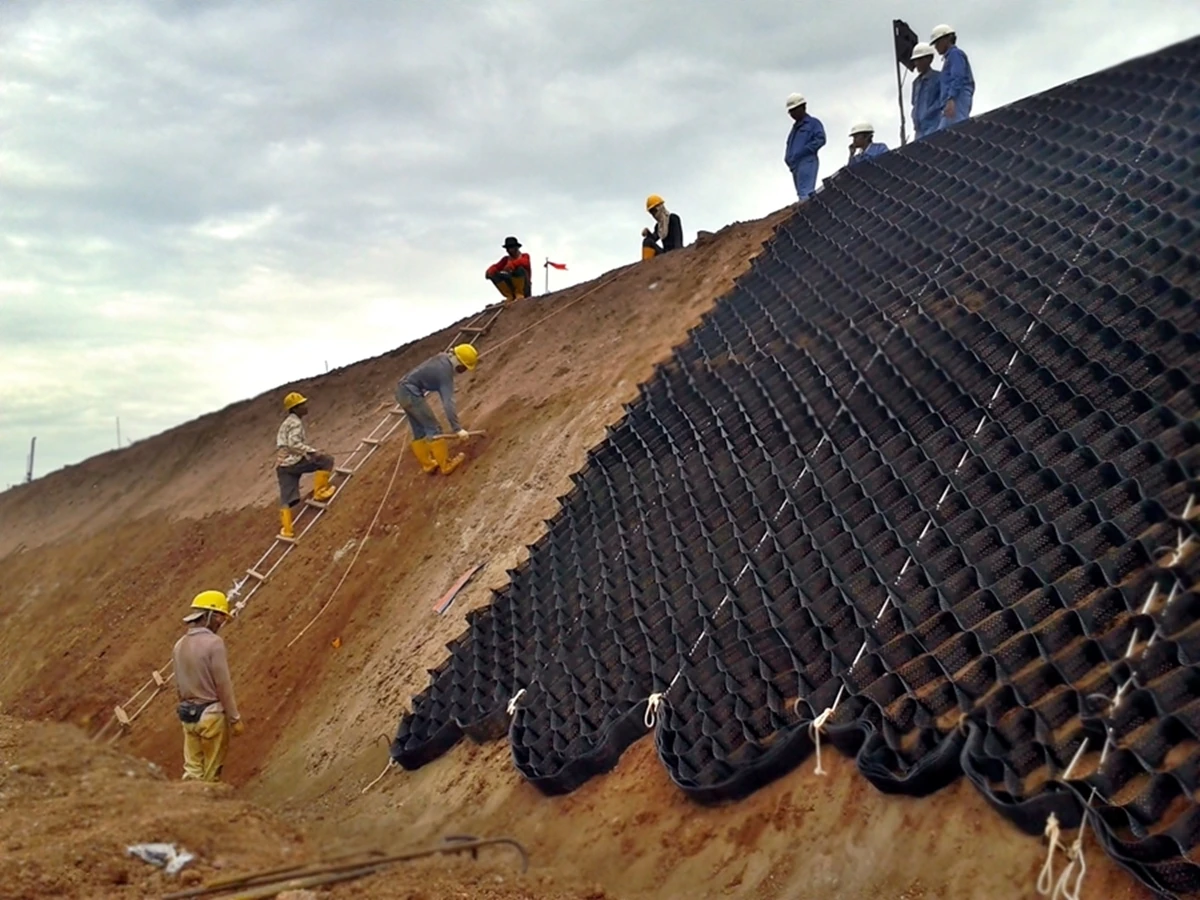

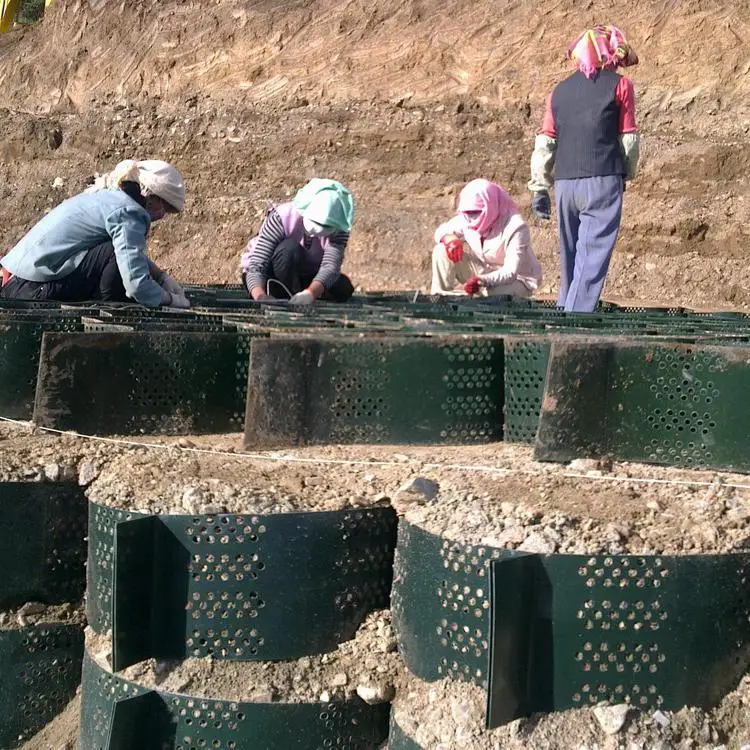

Slope Pretection
The three-dimensional lateral confinement of Cellular Confinement Systems along with anchoring techniques ensures the long-term stability of slopes using vegetated topsoil, aggregate or concrete surfacing

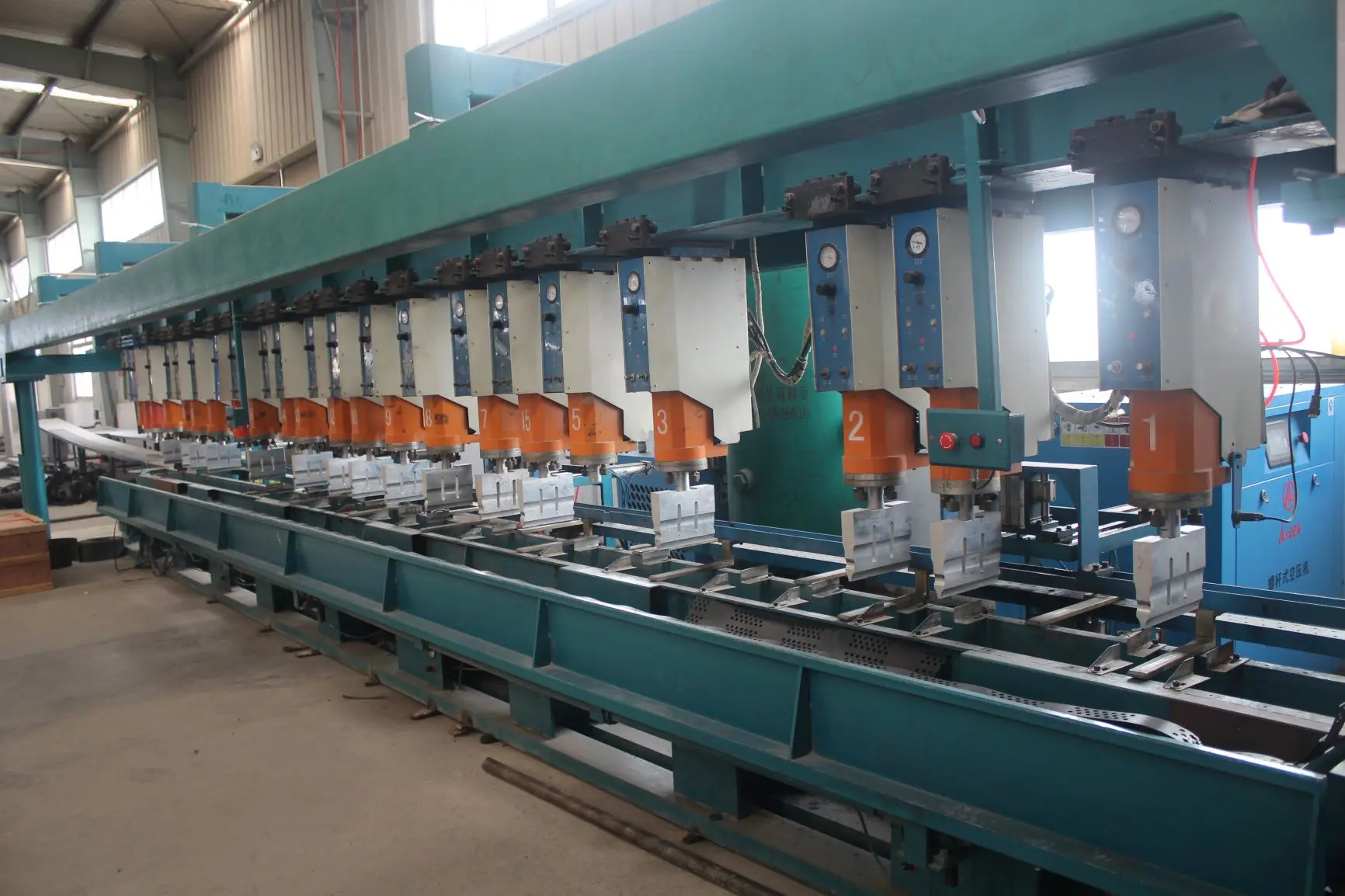

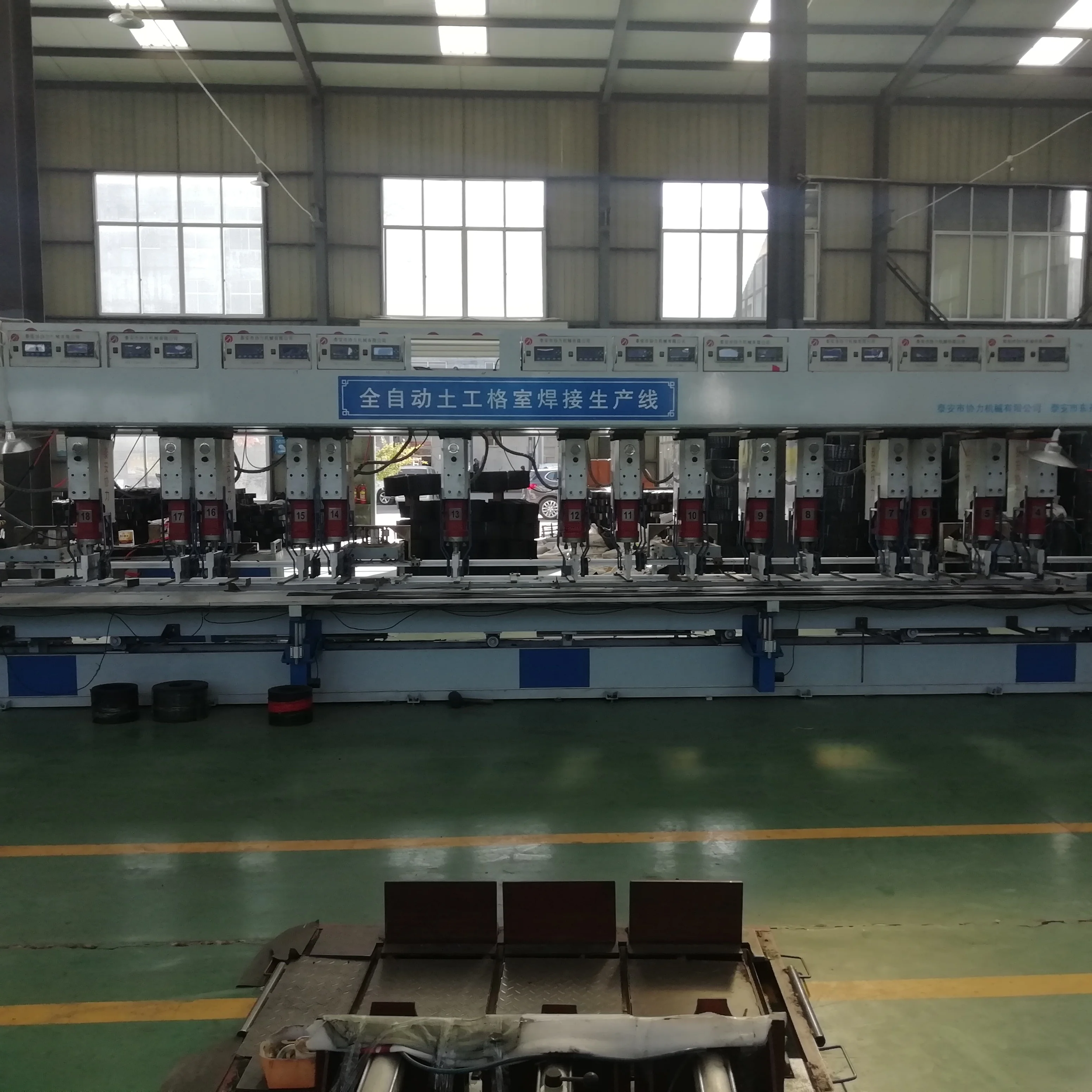

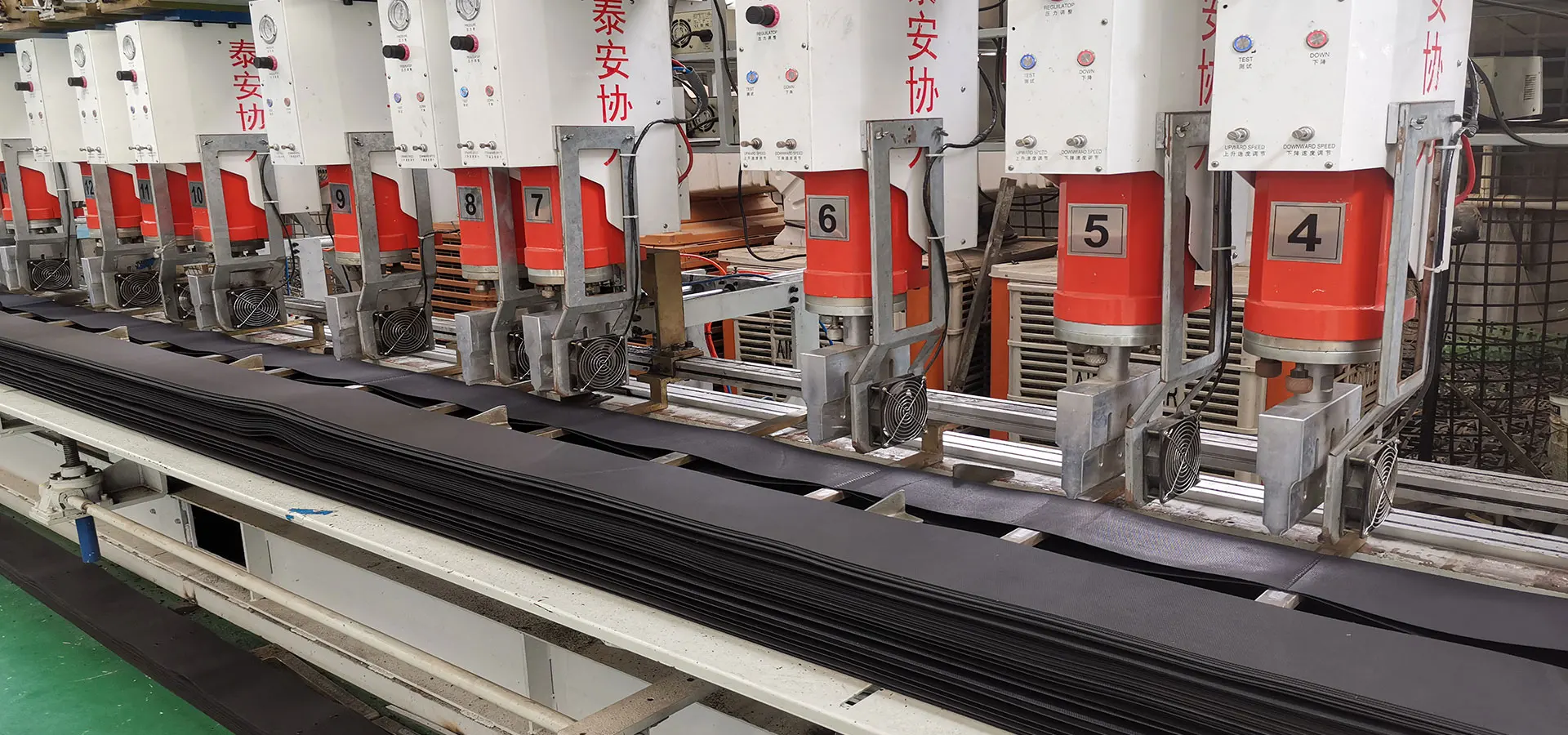

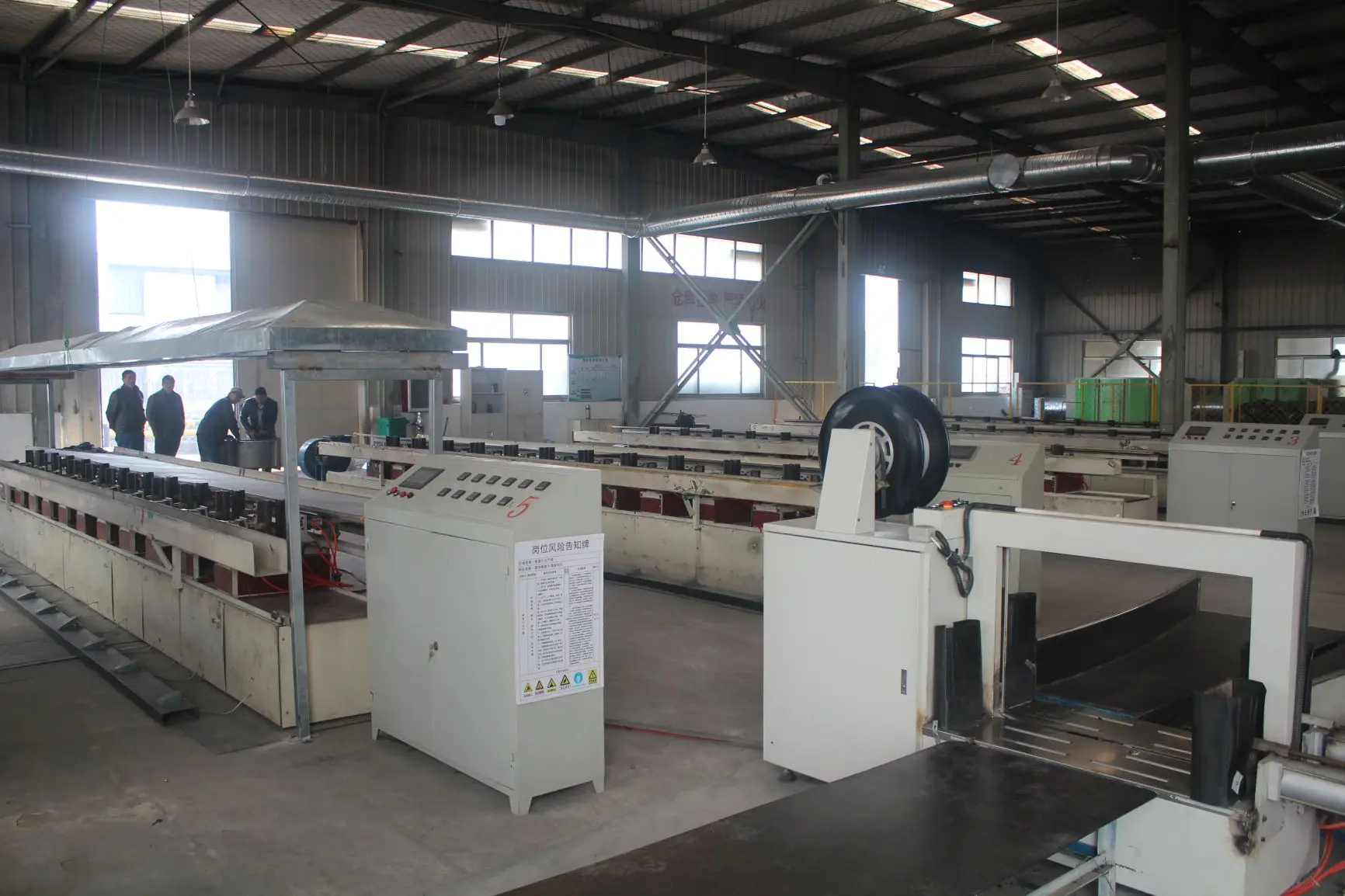

Company Introduction
Company Introduction
Taian Lin Yuan Engineering Materials Co., Ltd., established in 2014. We are focusing on earthwork materials and many relevent products. We always offer customization to every customer for different demands, which means we can offer different width and length. different materials quality, different using fields. Our products include Polyester warp knitting geogrids, glass fiber geogrids, plastic geogrids, geotextiles, geomembrane, composite geomembrane, new three-dimensional geogrids, geogrids etc. Which can be applied to a wide ranges like Railway, highway subgrade reinforcement, water conservancy dam reinforcement, tunnel, subway and other engineering fields. Our annual outputs have exceeded 300 million square meters, exporting to more than 30 countries.
Engineering materials products are mainly used in highway, railway, water conservancy, electric power, water and soil conservation and environmental greening and other infrastructure areas, has been widely applied to tongsan expressway, shanghai-hangzhou inter-city railway, basis of high-speed railways, the qinghai-tibet railway, beijing-shanghai expressway, the beijing-shanghai high-speed railway, mansion deep railway, Shi Wuke designed, shanghai-nanjing intercity railway and hangzhou customer designed, an hundreds of national key projects such as railway; The company has successively won the bidding of various national key projects; Our products are well known by the engineering experts and the majority of users; We are using complete and scientific quality management system. Please trust us!
Packaging &Shipping
Packaging: Strips packaging or Pallet Packaging
Lead time: Winthin 10-15 days after receiving the deposit payment
Producing capacity: Two 40FCL per week
Lead time: Winthin 10-15 days after receiving the deposit payment
Producing capacity: Two 40FCL per week
