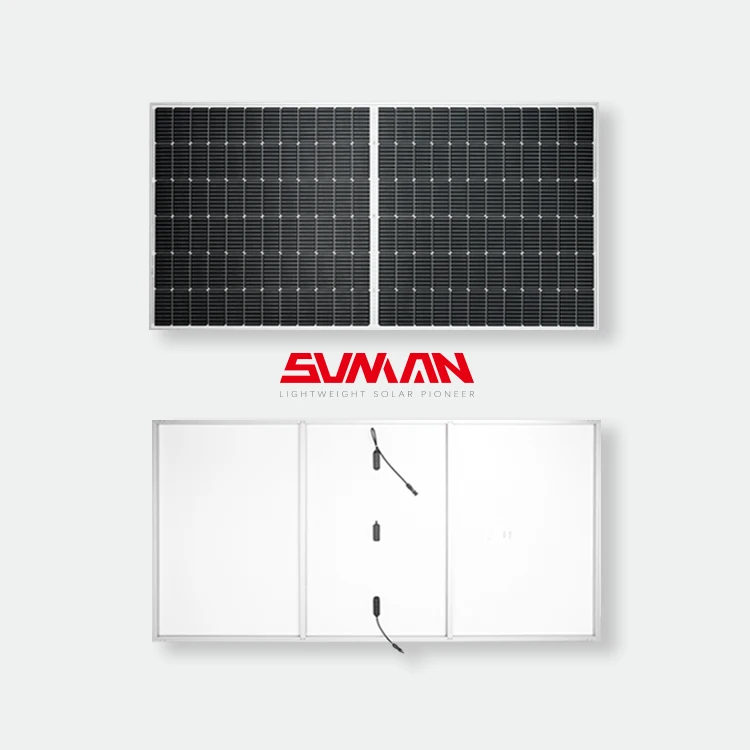

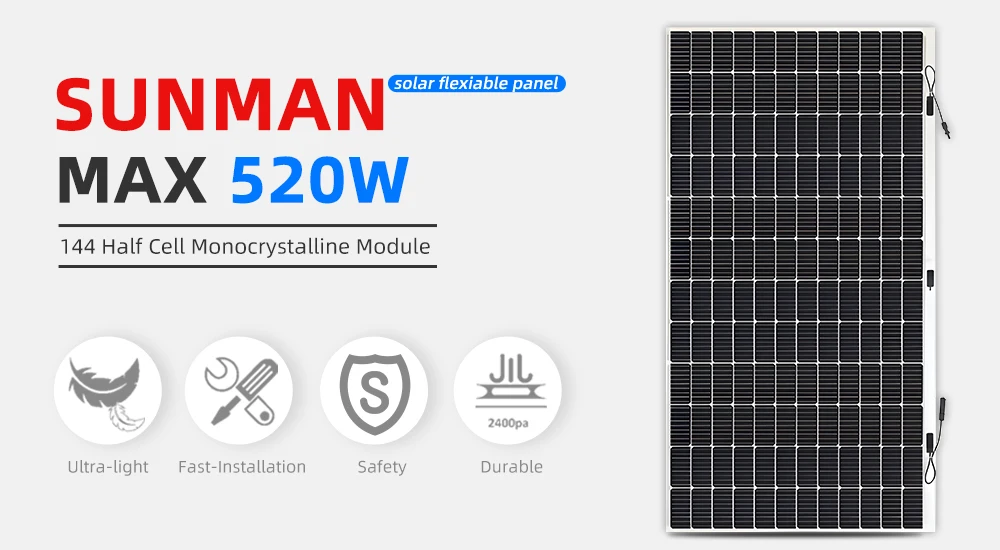

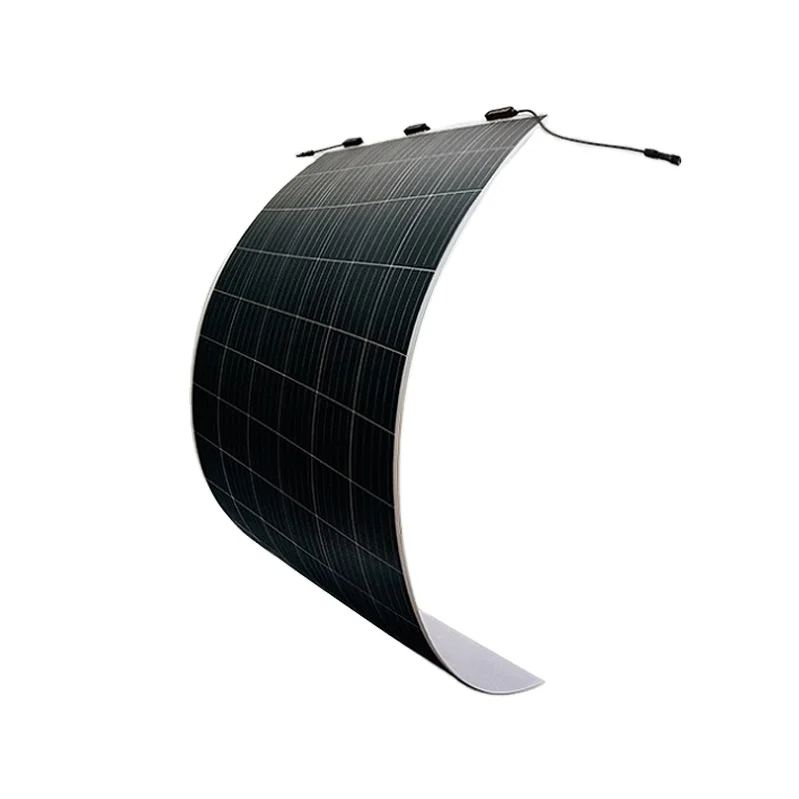

STC | SMF520J-12X12UW |
Maximum Power ( Pmax ) | 520 |
Maximum Power Voltage ( Vmp ) | 42.3 |
Maximum Power Current ( Imp ) | 12.31 |
Open-circuit Voltage ( Voc ) | 49.5 |
Short-circuit Current ( Isc ) | 13.56 |
Module Efficiency (%) | 19.3 |
Operating Temperature | -40℃ to 85℃ |
Maximum System Voltage | 1000V DC(IEC) |
Maximum Series Fuse Rating | 25A |
Application Class | Class A |
Power Tolerance | 0/+5 W |
Weight | 7.8KG |

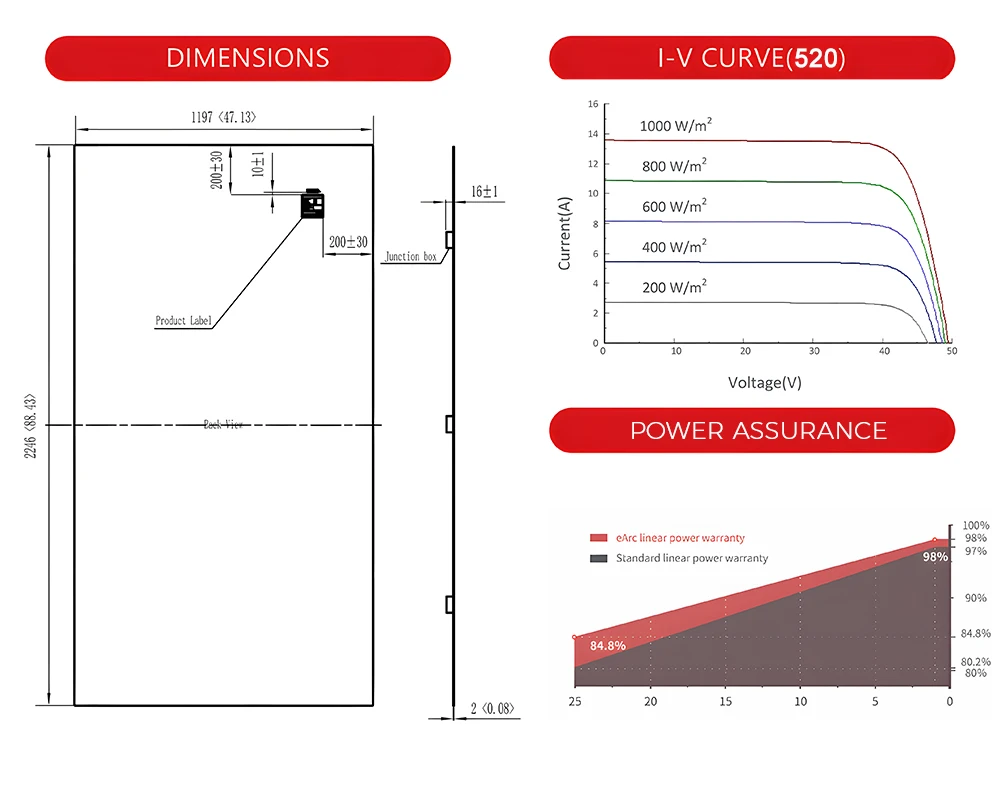

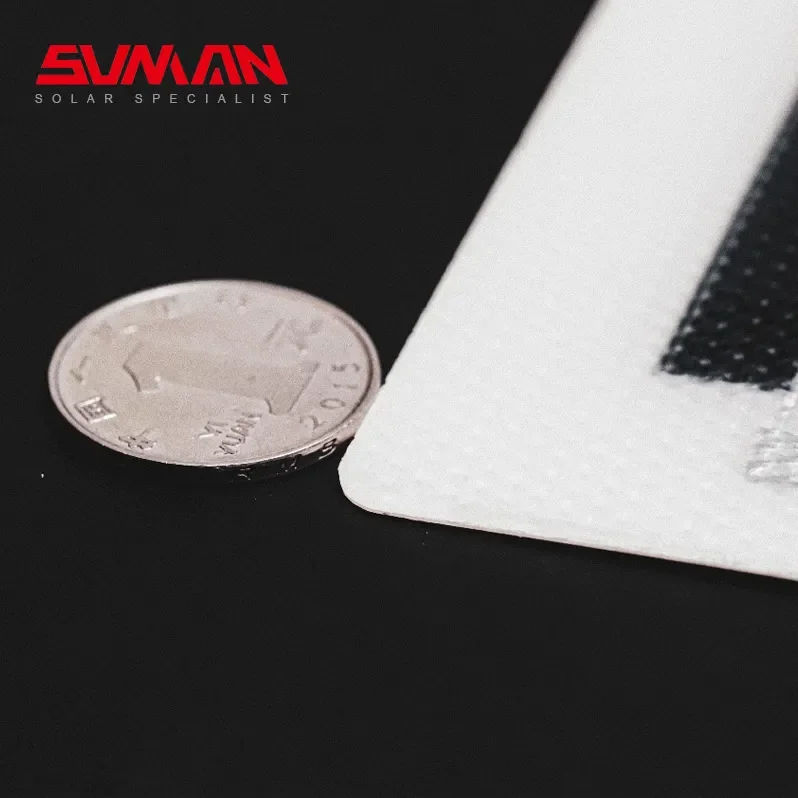

Size | 2246*1197*2mm |
STC: Irradiance 1000W/m2,Cell temperature 25℃,AM=1.5 | Tolerances of Pmax,Voc and Isc are within ±5% |
