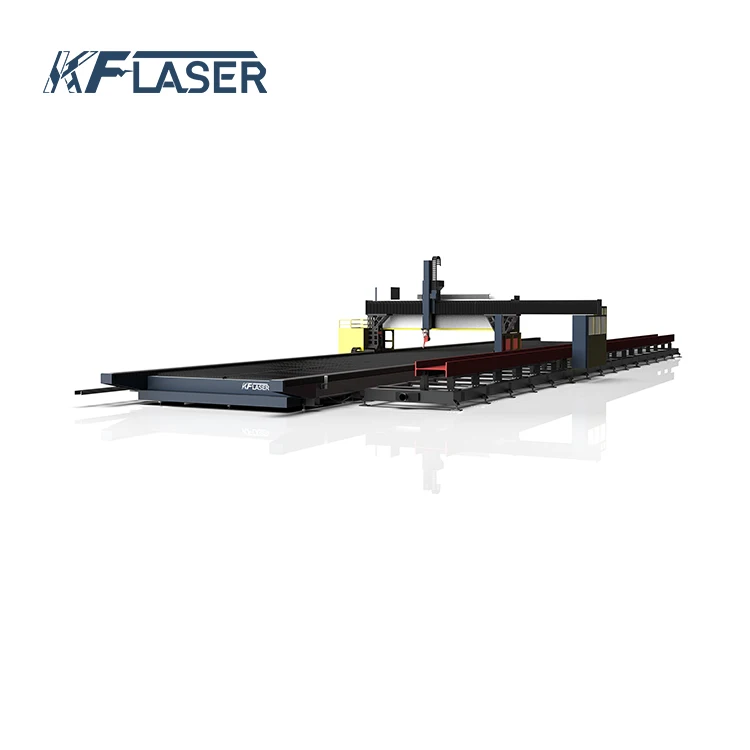

H Beam 5 Axis Laser Cutting Machine Head Steel Structure Adjustable Angle Laser Bevel Cutting Machine Price Tube For Metal

Share on (1601238641352):


Price:$79,000.00 - $81,000.00

Quantity:


Product Overview

Description



Product Description

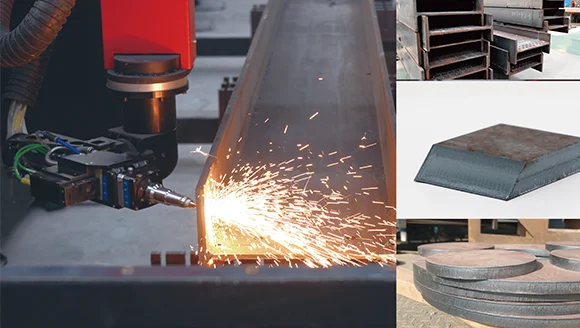

Three-dimensional five-axis cutting
❏One-step forming, can meet the functions of punching, cutting and beveling

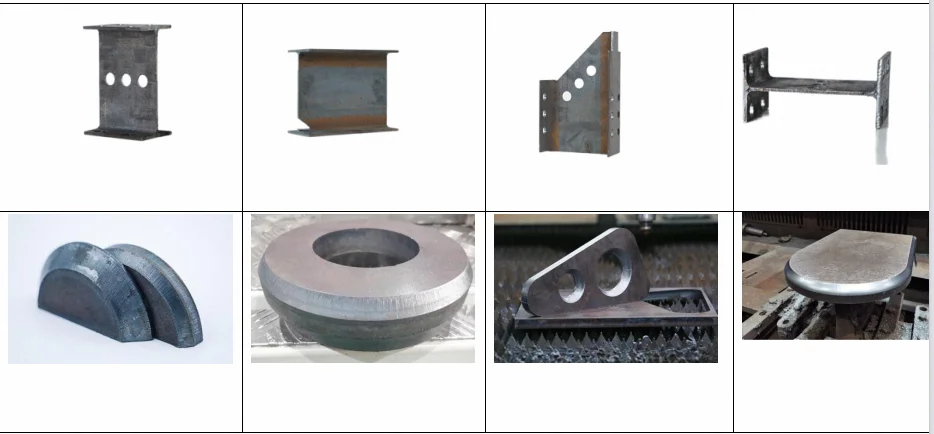

❏Can cut H-beam/C-beam/I-beam and large-format carbon steel bevel cutting
❏Excellent solution for structural steel industry






Heavy-duty welded bed frame:
❏Precision Carbon Dioxide Shielded Welding

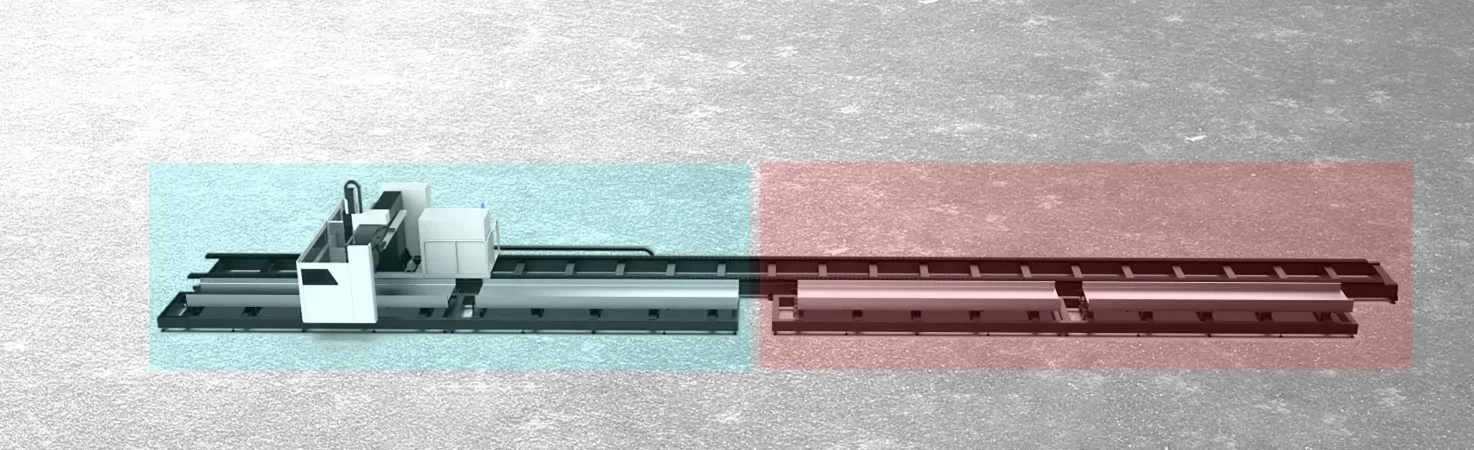

❏Double-station lathe
❏Sheet metal working area:24000*3500mm
❏H-beam width range:200-1000mm
❏H-beam processable length:24000mm

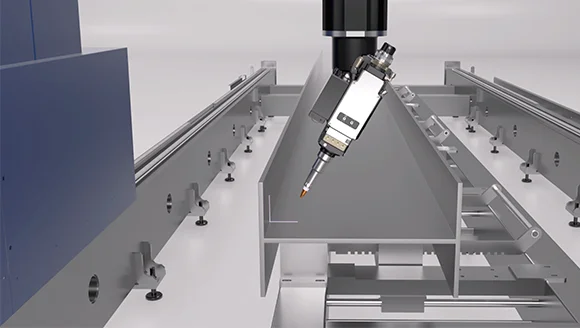

Boci laser head
❏Auto Focus head
❏Modular design for easy maintenance
❏Dual water cooling circuits
❏IP65 rated dustproof
❏Unique dust removal design




Bochu Bus controller 9200
❏high power bus systems
❏Support three-dimensional five-axis cutting
❏Simple to use and easy to maintain

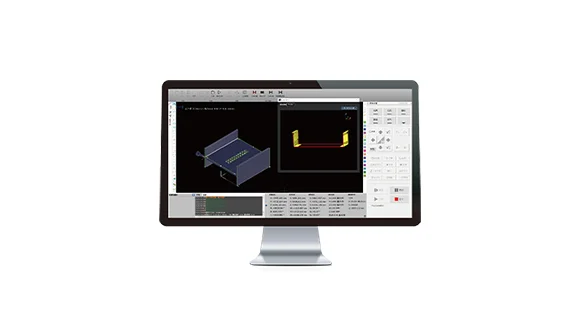

❏Standard H steel nesting software

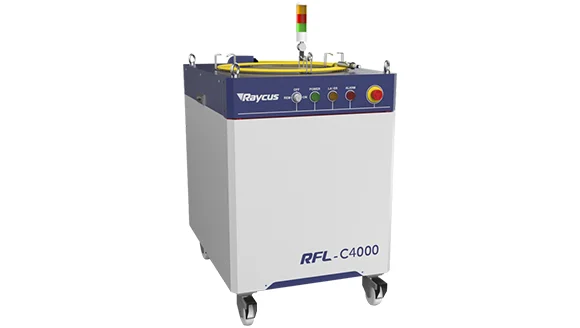

Raycus laser generator
❏High brand recognition
❏High beam quality
❏Compact construction
❏High photoelectric conversion efficiency
❏Center wavelength 1080±5 nm
❏100000 hour service life

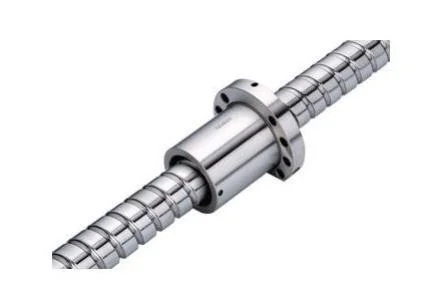

Z axis ball screw transmission
❏High transmission precision, accurate position control
❏Ball drive, low friction resistance, transmission efficiency up to 95%.
❏Long service life and low maintenance costs

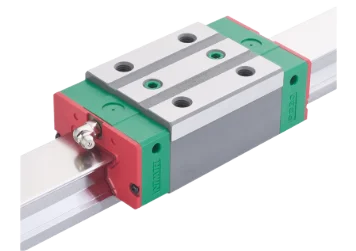

Taiwan Hiwin Linear rails
❏High durability, low wear and high precision
❏Low frictional heat for high speed
❏Shock and vibration resistant for stable operation

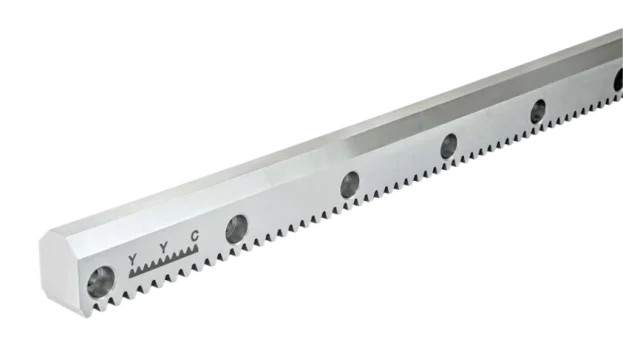

YYC gear
❏High transmission precision, accurate position control
❏Ball drive, low friction resistance, transmission efficiency up to 95%.
❏Long service life and low maintenance costs

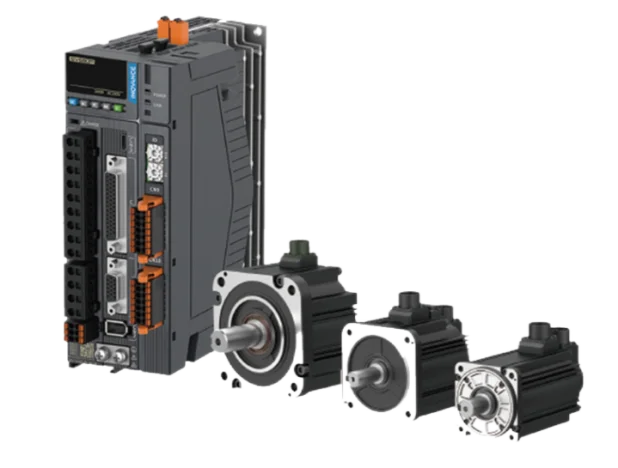

Inovance servo motor
❏3% increase in motor energy savings
❏Frameless permanent magnet motor direct drive with 25% higher energy efficiency
❏10% volume reduction

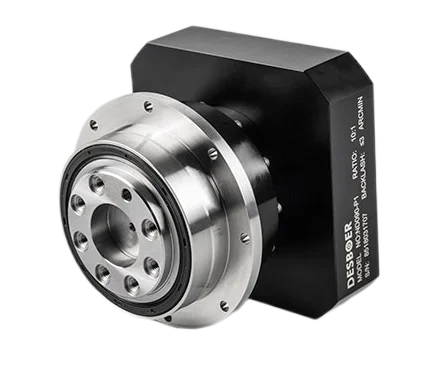

DESBOER/Italy MOTOVARIO
❏New generation of planetary gearboxes
❏High precision and torsional stiffness
❏High reliability, low noise, long life, maintenance-free

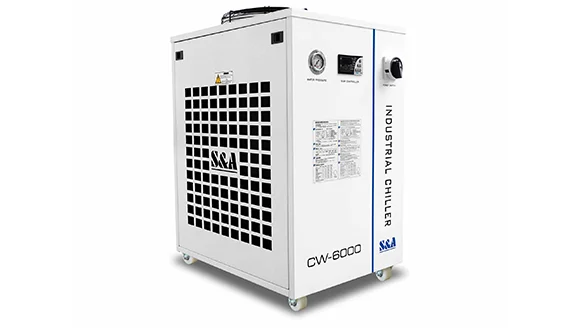

S&A/Hanli water chiller
❏Dual cooling circuits
❏Active heat dissipation
❏Temperature stability: ±0.5°C
❏Temperature control range: 5°C ~35°C
❏Refrigerant: R-410a

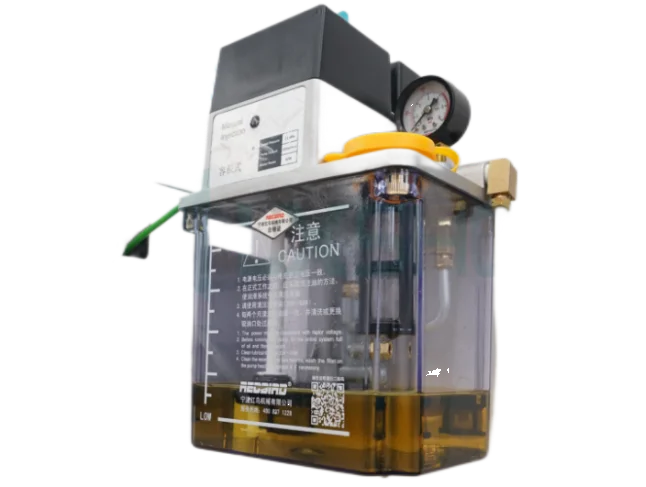

ATC Oil lubrication
❏Automatic lubricating oil system
❏Controller for precise control of oil quantity
❏Automatic lubrication protects equipment operation

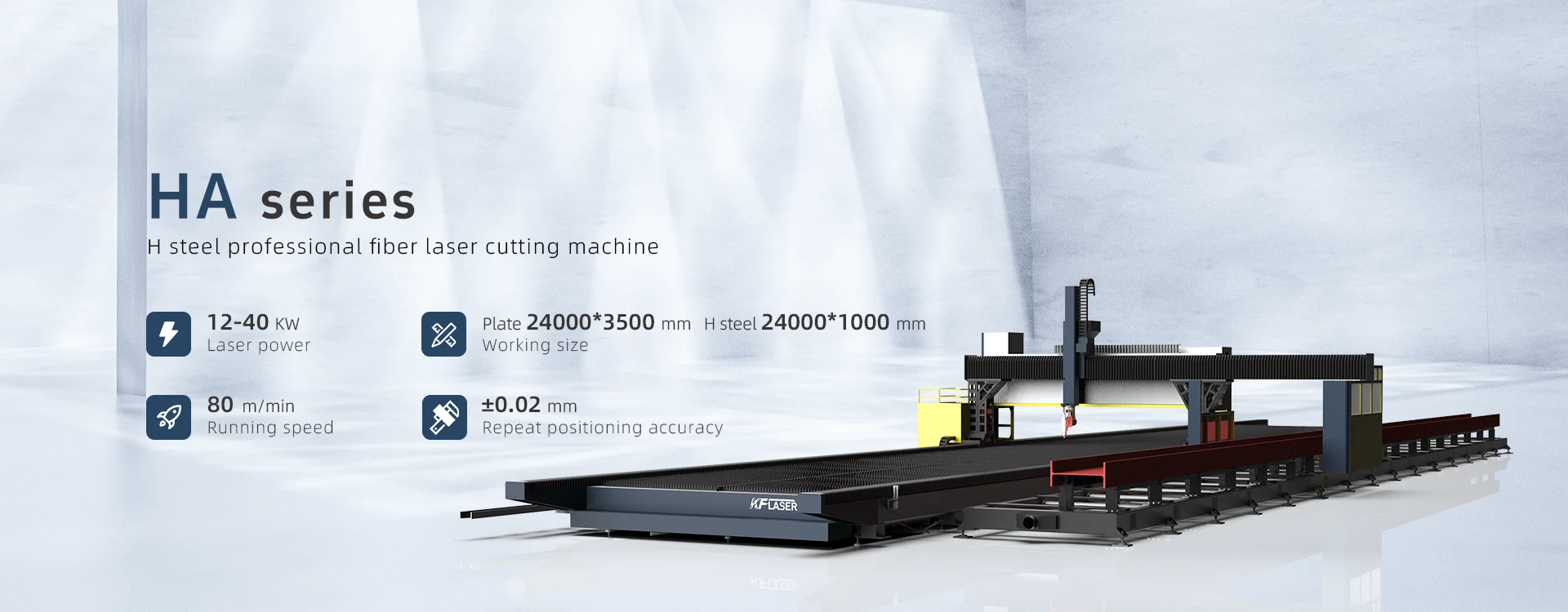

Model
HA
Sheet metal working area
24000*3500mm
H-beam width range
200-1000mm
H-beam processable length
24000mm
Power support
12000-40000W
Maximum Idle Running Speed
100m/min
Maximum idle acceleration
1.0G
Repeat positioning accuracy
±0.02mm
Working voltage
380V 3PH
Flexible processing size
Size support customization






Purchase Process




After- Service Process




FAQ


Q: How can I choose the most suitable machine?
A: In order to recommend you the most suitable machine model, just tell us below information
1)What is your material
2)The size of material
3)The thickness of material

Q: Payment terms?
A:1)Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.
2)We start making standardized machines after receiving 30% of the payment, inspect the machines after completion, and finally
collect the 70% balance before shipping.

Q:How to install, use and after-sales?
A:1)We provide free training in our factory
2)We provide free online after-sales service
3)We have complete installation instructions and video tutorials
4)Door-to-door service charges are based on region and aircraft model
5)Provide three-year warranty, except for consumable parts, direct replacement for non-human damage

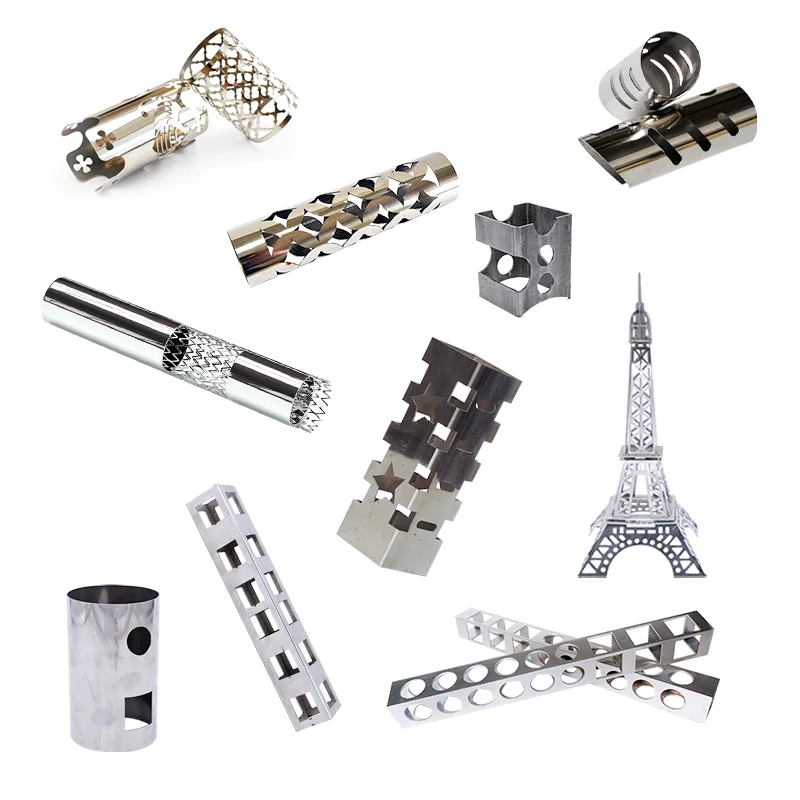

Application Industry
