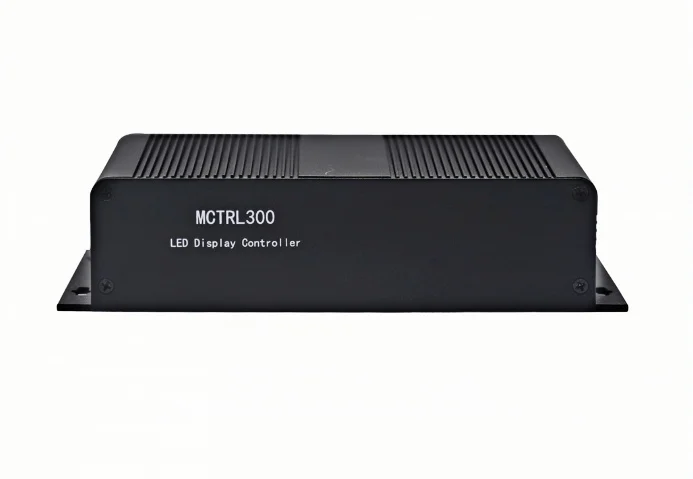

Novastar LED Display Controller Send Box Indoor Outdoor LED Mctrl300 Accessories For Screen Controller Box
MCTRL300 is NovaStar’s independent control card from the M3 Series, and supports audio and video input. The M3 undertakes encoding
and data processing, sending the audio and video to the display. A single card supports maximum loading capacity of 2048×668@60Hz.
It communicates with PC via USB port for convenience.
* DVI video input
* Audio transmission
* Dual-Ethernet output, with dual-Ethernet cable hot backup and multiple controller hot backup
* USB port control, for cascading and control of multiple units
1.3 million pixel loading capacity, with resolutions of 1280×1024@60Hz, 1024×1200@60Hz, 1600×848@60Hz, 1920×712@69Hz,
2048×668@60Hz and Maximum height: 3840; Maximum height:3840
1 light sensor interface, adjust the screen brightness automatically
Independent power supply
Certifications: CE, RoHS, EAC, FCC, IC
and data processing, sending the audio and video to the display. A single card supports maximum loading capacity of 2048×668@60Hz.
It communicates with PC via USB port for convenience.
* DVI video input
* Audio transmission
* Dual-Ethernet output, with dual-Ethernet cable hot backup and multiple controller hot backup
* USB port control, for cascading and control of multiple units
1.3 million pixel loading capacity, with resolutions of 1280×1024@60Hz, 1024×1200@60Hz, 1600×848@60Hz, 1920×712@69Hz,
2048×668@60Hz and Maximum height: 3840; Maximum height:3840
1 light sensor interface, adjust the screen brightness automatically
Independent power supply
Certifications: CE, RoHS, EAC, FCC, IC
Electrical Specifications | Inputvoltage | AC 100V-240V~50/60Hz | |
Rated power consumption | 3.0W | ||
Operating Environment | Temperature | -20℃ to +60℃ | |
Humidity | 10%RH to 90%RH,non-condensing | ||

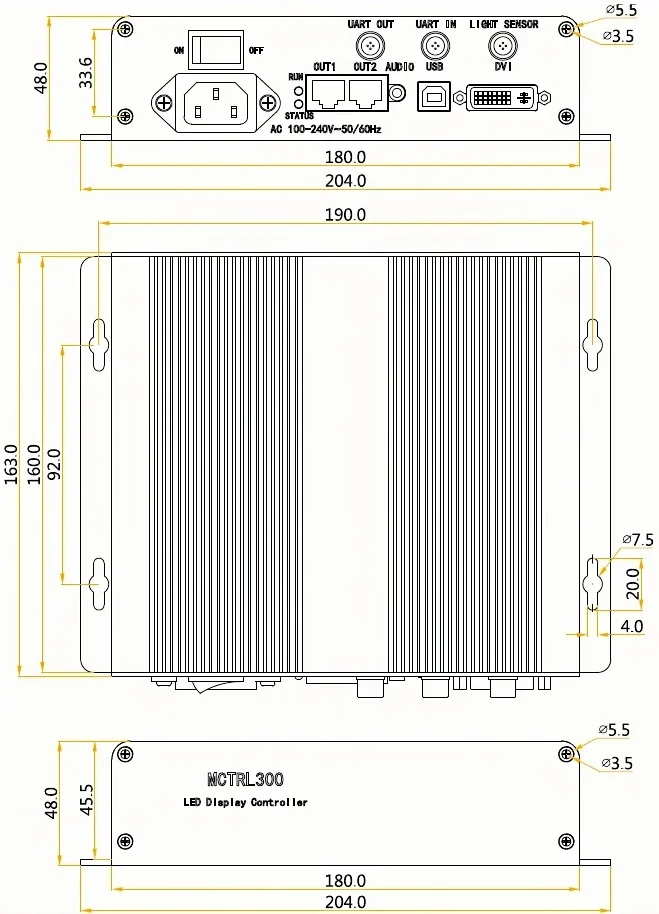

Physical Specifications | Dimensions | 204.0 mm×160.0 mm ×48.0 mm | |
Net weight | 1.04 kg Note:It is the weight of a single device only. | ||
Packing Information | Cardboard box | 280 mm×210 mm ×120 mm | |
Accessories | 1x Power cord,1x Cascading cable (1 meter),1xUSB cable, 1xDVI cable | ||
Certifications | EAC,RoHS,CE,FCC,IC,PFOS,CB | ||
Packaging & Shipping
Above Shipping Methods for your option.
We will suggest according to screen size and address.
Why Choose Us
FAQ
Q1: How could I get the right quotation at the soonest?
A1: Tell us below info:
A1: Tell us below info:
Your application. (Indoor or outdoor？ Fixed or Event temporary use? Front access or rear?)
Dimension (Width & Height)
Control method (Computer Synchronous solution? or Asynchronous solution with which remote control is available)
Material brand requested if you have. (Especially LED lamp / Driving IC/ Power supply units)
Shipping address if you need freight cost. ( Air or sea or DDP?)
Q2: What’s your delivery time?
A2: Standard delivery time is 15 working days. As to huge amount project, pls contact us for exact evaluation.
If there is stock, we could ship within 7 days. Feel free to tell if you have urgent requirement.
Q3: What’s your payment term?
A3: You can pay by T/T or credit card in Alibaba trade assurance. 50% before production, 50% before shipping.
Q4: How many years warranty do you offer?
A4: We offer 2-3 years warranty for modules and display body for different products, 1 year warranty for other spare parts.
Dimension (Width & Height)
Control method (Computer Synchronous solution? or Asynchronous solution with which remote control is available)
Material brand requested if you have. (Especially LED lamp / Driving IC/ Power supply units)
Shipping address if you need freight cost. ( Air or sea or DDP?)
Q2: What’s your delivery time?
A2: Standard delivery time is 15 working days. As to huge amount project, pls contact us for exact evaluation.
If there is stock, we could ship within 7 days. Feel free to tell if you have urgent requirement.
Q3: What’s your payment term?
A3: You can pay by T/T or credit card in Alibaba trade assurance. 50% before production, 50% before shipping.
Q4: How many years warranty do you offer?
A4: We offer 2-3 years warranty for modules and display body for different products, 1 year warranty for other spare parts.
