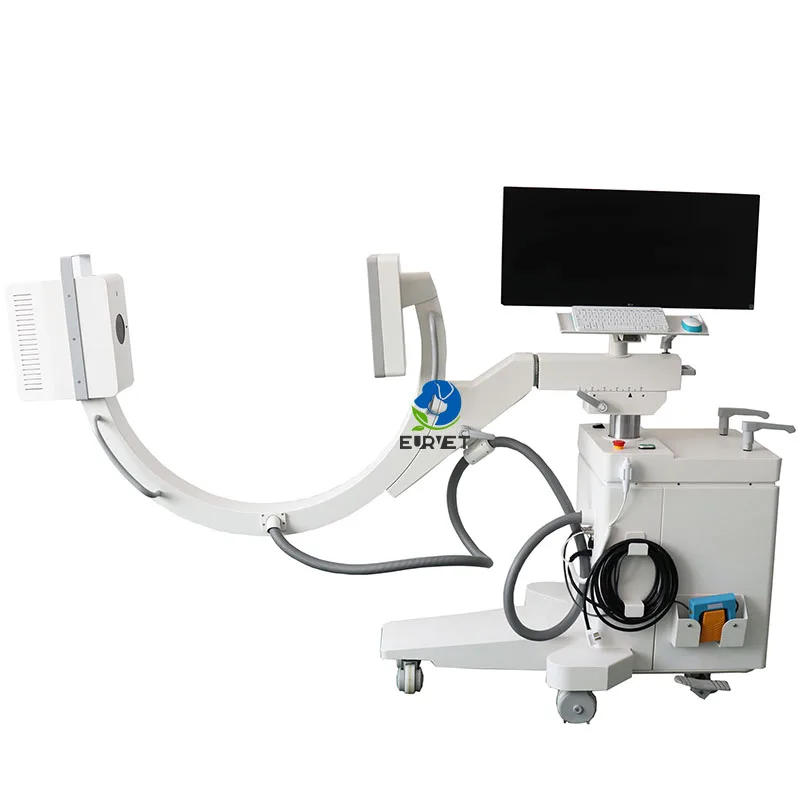

EUR VET High quality 5KW C Arm X Ray Machine factory Price Veterinary Equipment Medical Digital C Arm Machine C arm DR System
- Category: >>>
- Supplier: Hefei Eur Vet Technology Co. Ltd.Hefei Ltd.
Share on (1601238786778):
Product Overview
Description
EUR VET High quality 5KW C Arm X Ray Machine factory Price Veterinary Equipment Medical Digital C-
Arm Machine C-arm DR System
EURVET is a professional one-stop solution manufacturer and exporter for veterinary clinics and shops with more than 20 years of experience. We have supplied products to thousands of veterinary clinics and shops all over the world.
Technical Parameters | ||||||||
Model | INC-5KW-C-arm | |||||||
Output power | 5KW | |||||||
Current of fluoroscopy | 0 3-6 3mA | |||||||
Current of radiography | 0 1-100mA | |||||||
Voltage | 40kV-125kV | |||||||
Focal Spot value | 0 3mm /0 6mm | |||||||
Rotating anode speed | 2800rmp | |||||||
Anode heat storage | 300KHU | |||||||
Housing Heat Storage Capacity | 1200KHU | |||||||
Size | 21*21cm | |||||||
Detector Technology | Amorphous Silicon | |||||||
Scintillator | CsI | |||||||
Image resolution | 2 5lp/mm | |||||||
Frame rate | MAX 30frames/sec | |||||||
Features：
◆With a compact appearance, and easy to operate.
◆High -frequency generator emits high-quality and hard x-rays with strong penetrability.
◆21cm*21cm flat panel detector, which has bigger image size than image intensifier.
◆Amorphous silicon flat panel makes the surgery more accurate for the clinical operation due to high density resolution and spatial resolution.
◆High stability oil-cooled heat-resistant combined tube, support long-time image acquisition in surgery, satisfy the requirement of long-time operation.
◆34’’ monitor project real-time video and reference images simultaneously for quicker diagnosis and inference .
◆Microcomputer control system with self-diagnostic function and automatic protection.
◆Modular design offers error codes and reset button.
◆Double CPU control improves the stability and safety of the equipment.
◆Large opening design provides larger free diagnosis spaces, and maximizes the efficiency of surgery environment.
◆Hand switch, foot switch and remote control make sure that you could do exposure inside and outside the operating theatre.
◆PACS connectivity with DICOM 3.0 is convenient to send, receive and print images.
◆High -frequency generator emits high-quality and hard x-rays with strong penetrability.
◆21cm*21cm flat panel detector, which has bigger image size than image intensifier.
◆Amorphous silicon flat panel makes the surgery more accurate for the clinical operation due to high density resolution and spatial resolution.
◆High stability oil-cooled heat-resistant combined tube, support long-time image acquisition in surgery, satisfy the requirement of long-time operation.
◆34’’ monitor project real-time video and reference images simultaneously for quicker diagnosis and inference .
◆Microcomputer control system with self-diagnostic function and automatic protection.
◆Modular design offers error codes and reset button.
◆Double CPU control improves the stability and safety of the equipment.
◆Large opening design provides larger free diagnosis spaces, and maximizes the efficiency of surgery environment.
◆Hand switch, foot switch and remote control make sure that you could do exposure inside and outside the operating theatre.
◆PACS connectivity with DICOM 3.0 is convenient to send, receive and print images.
High performance x-ray tube emits X-rays in pulsed mode with modulated power to suit every procedure type Excellent dose/image quality ratio.
X-ray emission controlled by either a foot switch or a multi-function hand switch.
5 KW Powerful generator

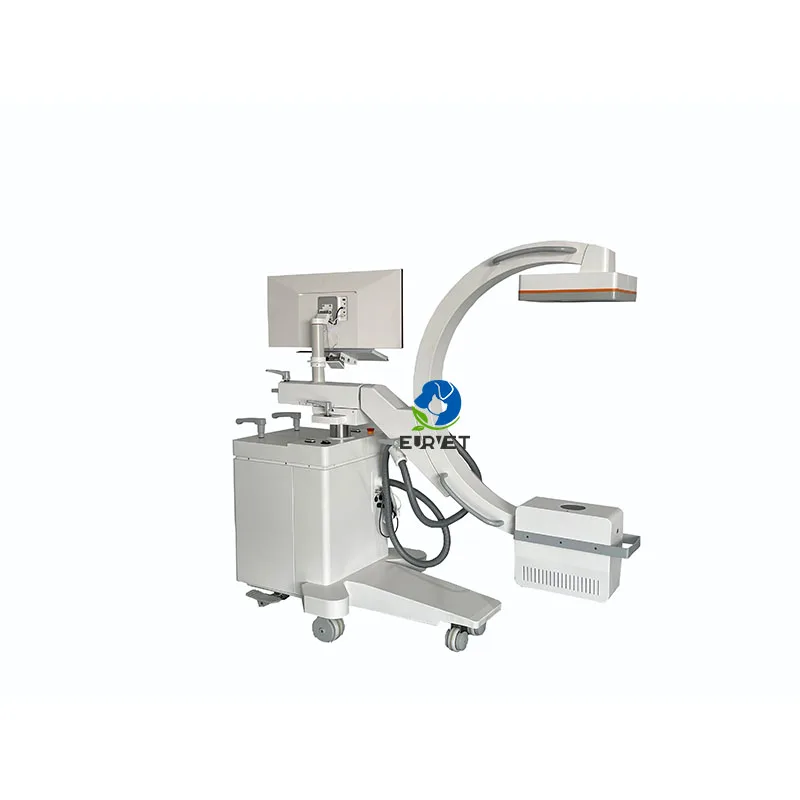

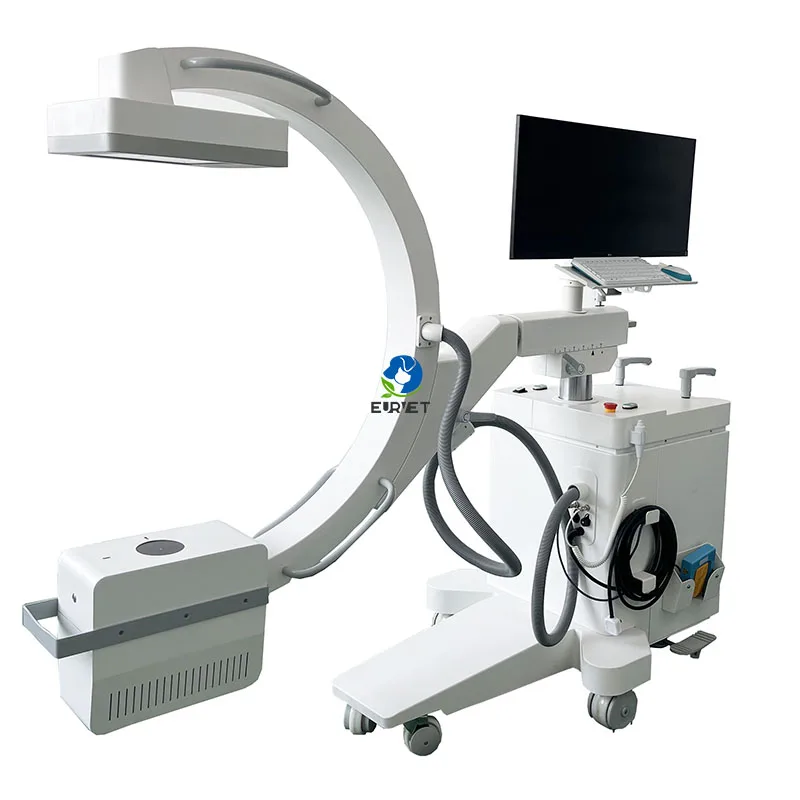

Large diameter, lightweight mobile C-
arm for easy access to the operating
table Operators will appreciate the
effortless, fast and accurate
positioning around the patient The 2-
in-1 solution makes it easy to move
within and between operating rooms.
laser localizer and 210mm x 210mm
flat penel detector for high-resolution
images.

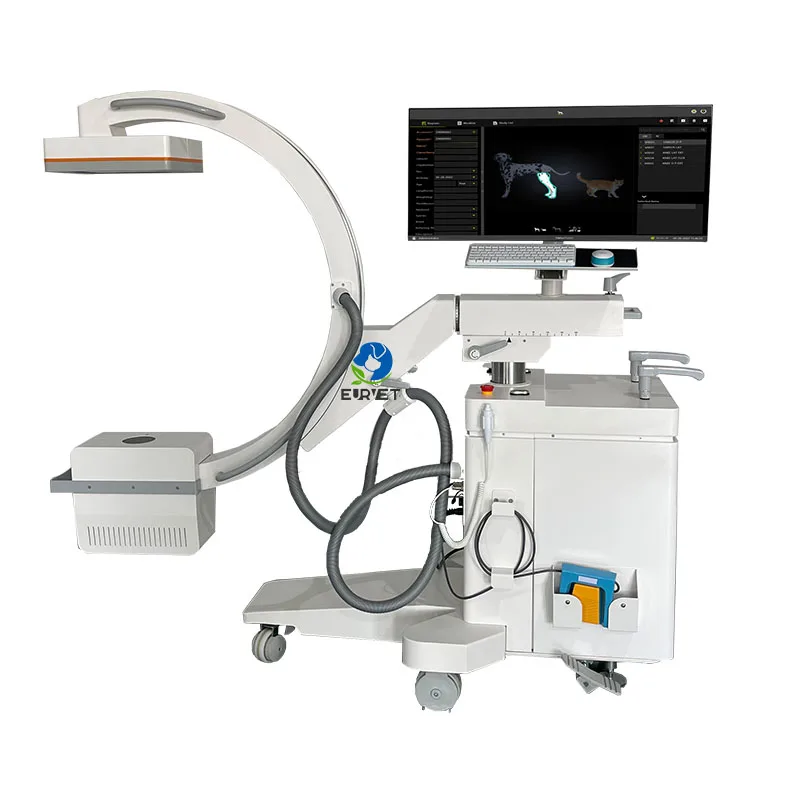

34‘’monitor project real-time video and reference
images simultaneously for quicker diagnosis and
inference.
