3kw low speed generator permanent magnet alternator generator for wind power
- Category: >>>
- Supplier: Jiangsu DHC Environmental Si-Tech Co. Ltd.Jiangsu Ltd.
Share on (1601238900760):
Product Overview
Description
Product Description

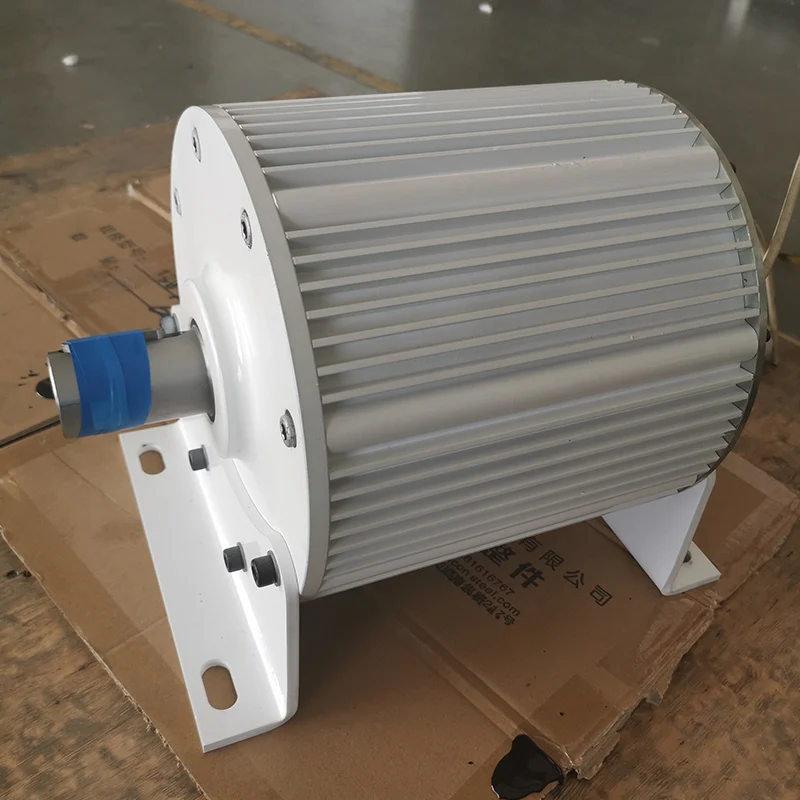

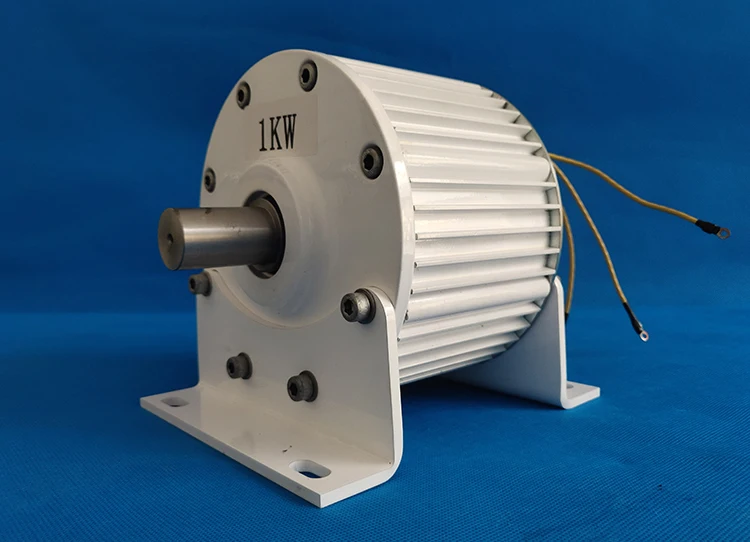

3kw low-speed generator permanent magnet alternator generator for wind power
Rare earth permanent magnet three-phase alternator is a new type of permanent magnet generator, which has a series of advantages such as small size, light weight, high efficiency, and good characteristics.
Our horizontal wind generators generally use permanent magnet generator, which has a simple structure, low failure rate, and long service life.
Technical Parameter
Model | ESL-1000 | ESL-2000 | ESL2-3000 | ESG-5000 | |||
Rated power | 1000w | 2000w | 3000w | 5000w | |||
Rated voltage | 24v/48v/96v/120v/220v/240v/380v (Accept customization) | ||||||
Rated speed/hz | 500rpm/50hz | 500rpm/50hz | 333rpm/50hz | 300rpm/50hz | |||
Generator diameter | 190mm | 190mm | 235mm | 350mm | |||
Generator length | 136mm | 197mm | 225mm | 185mm | |||
Shaft diameter | 30mm | 35mm | 40mm | 50mm | |||
Generator type | Rare earth permanent magnet three-phase alternator | ||||||
Rated torque | 19.1N*m | 38.2N*m | 87 N*m | 160 N*m | |||
The number of poles | 12 | 12 | 18 | 20 | |||
Conversion efficiency | ≥90% | ||||||
Insulation class | F | ||||||
Magnetic steel material | Rare earth neodymium NdFeB | ||||||
Temperature rises | ＜70℃ | ||||||
Operating temperature | -40℃-120℃ | ||||||
Lubrication method | Grease is added | ||||||
Service life | ≥25 years | ||||||

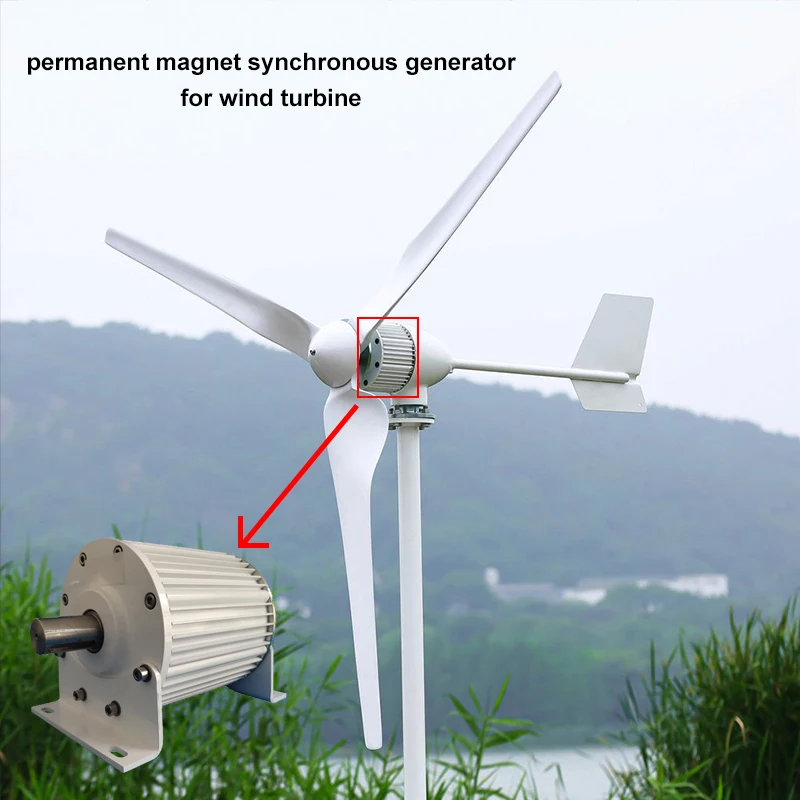

3kw low-speed generator permanent magnet alternator generator for wind power
Compared with traditional generators, permanent magnet synchronous generators do not require collector rings and brush devices, have a simple structure, and reduce the failure rate.
After using rare earth permanent magnets, the air gap magnetic density can be increased, and the motor speed can be increased to the optimal value, improving the power to mass ratio.

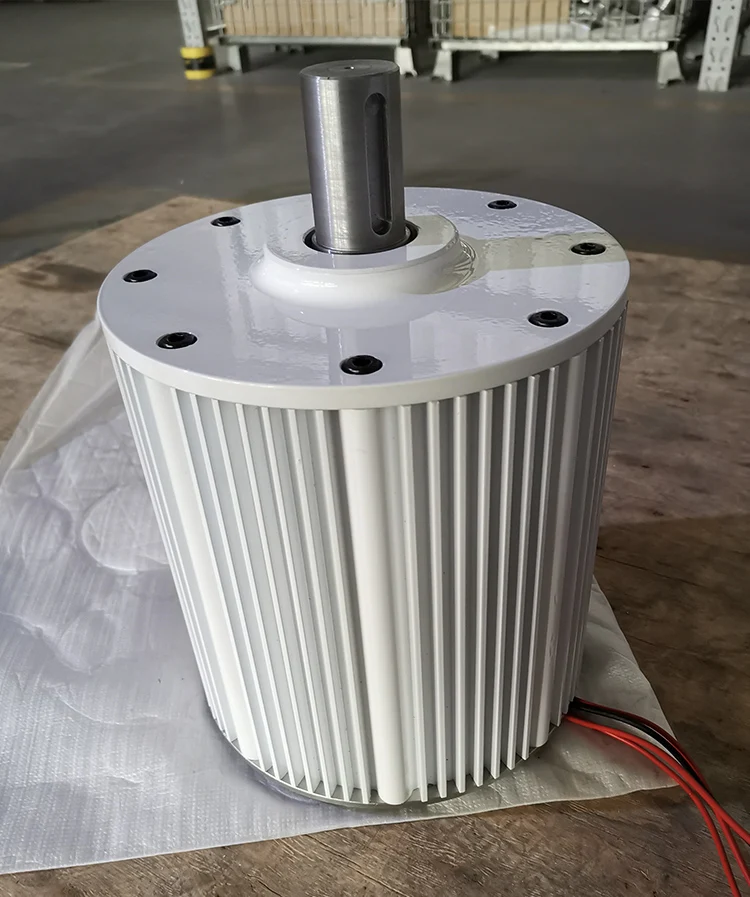

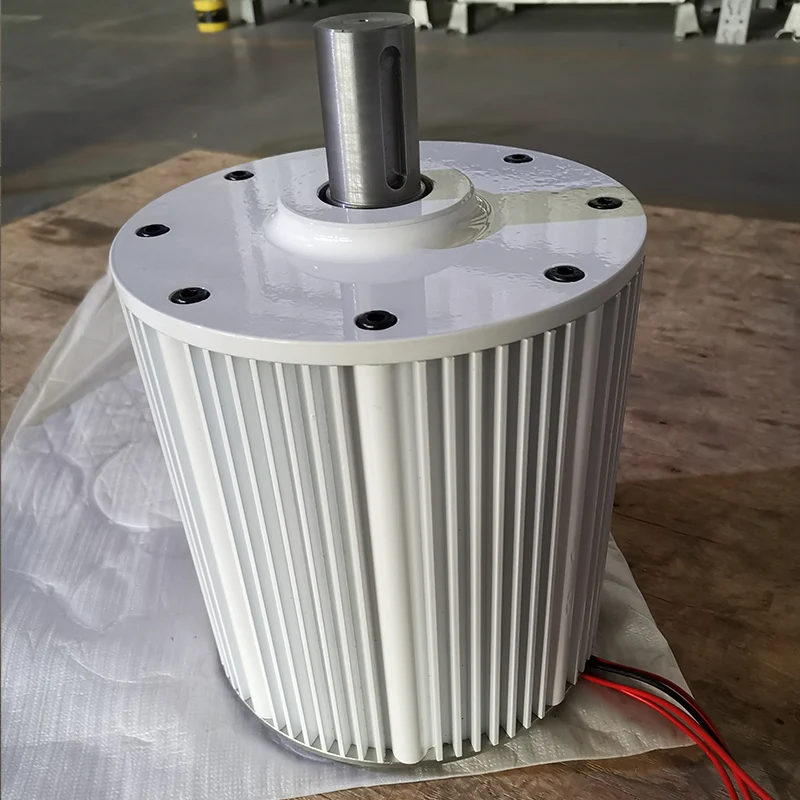

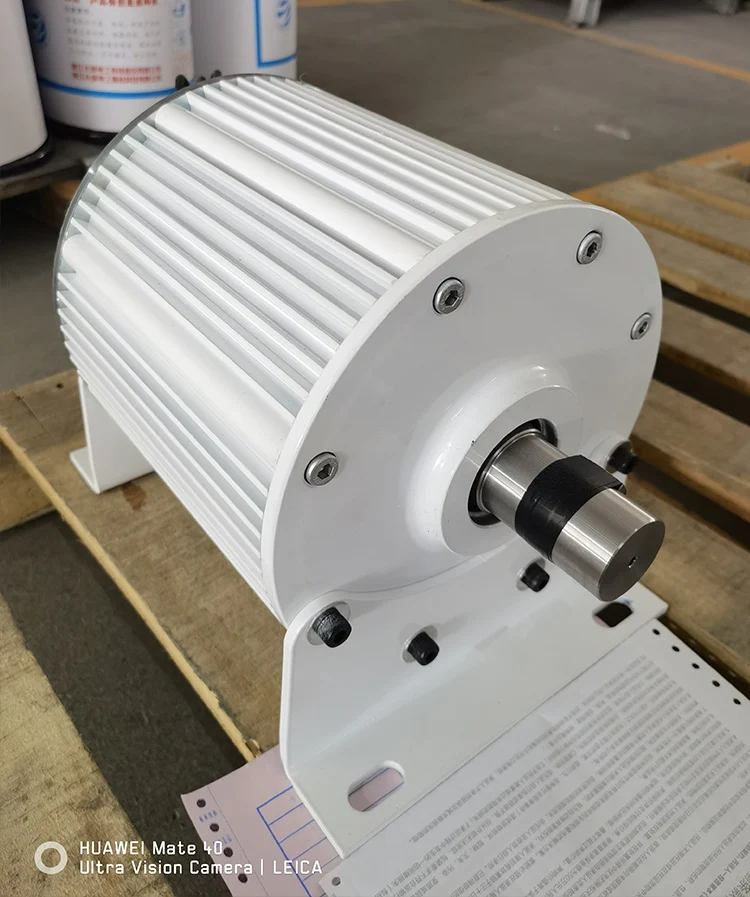

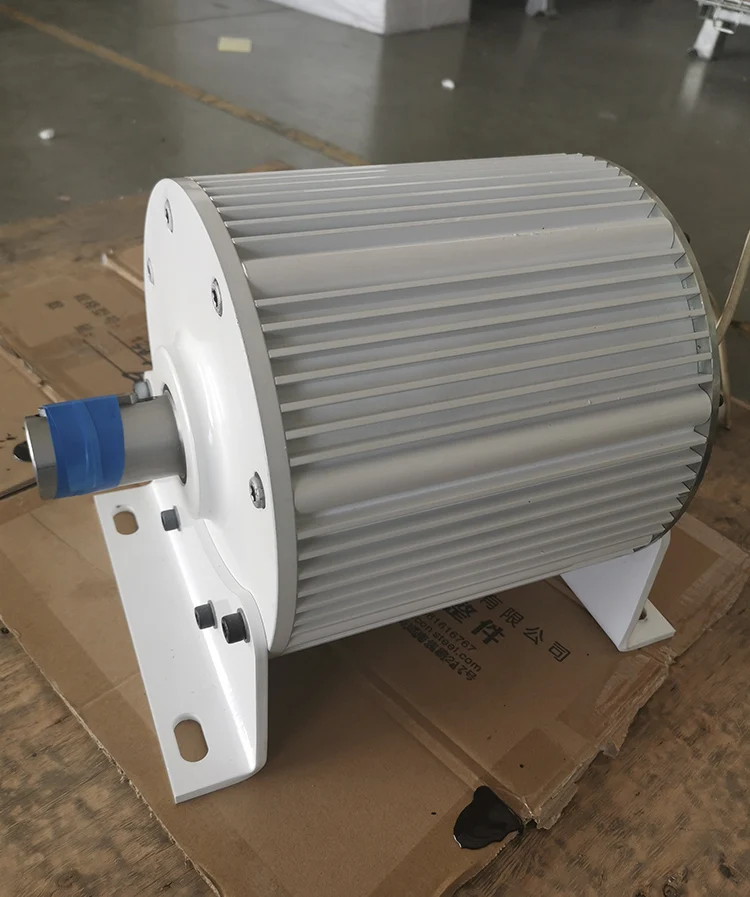

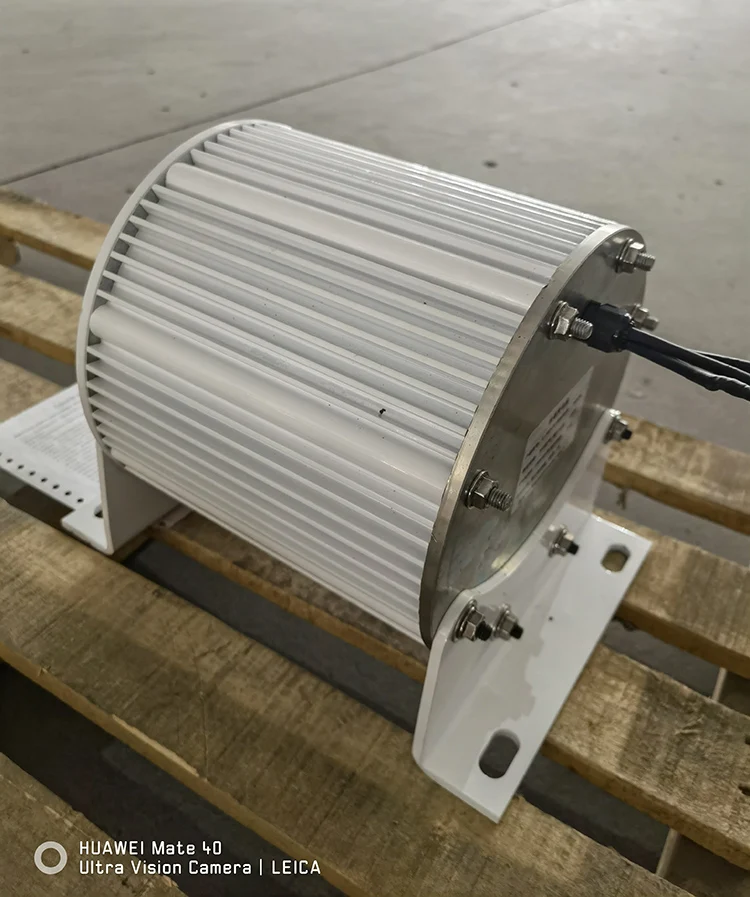

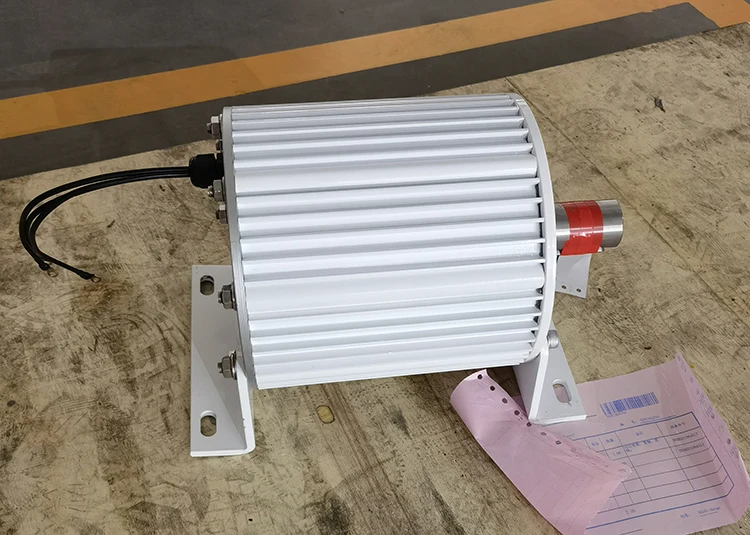

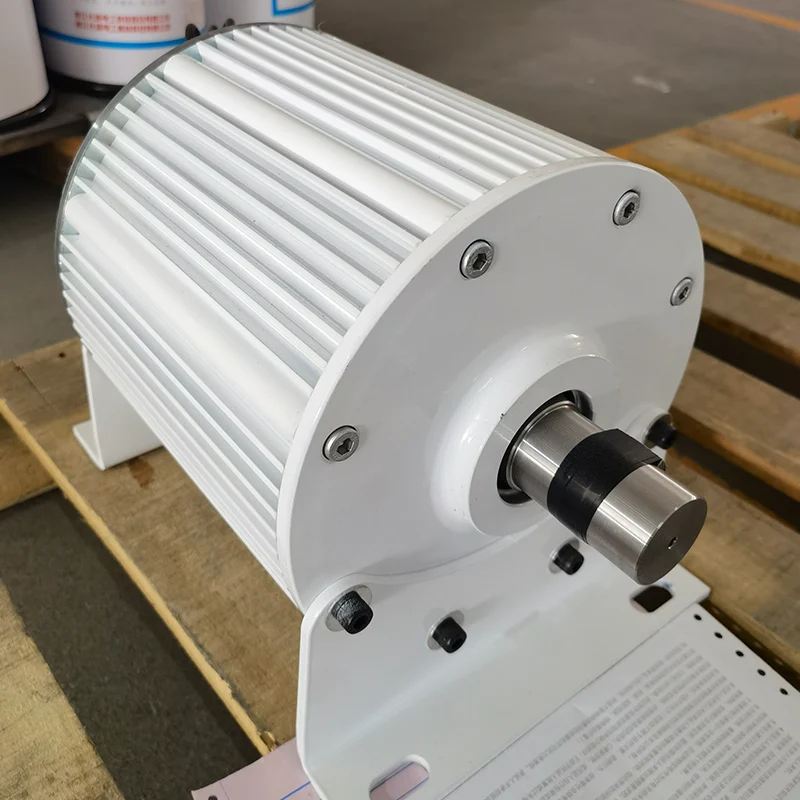

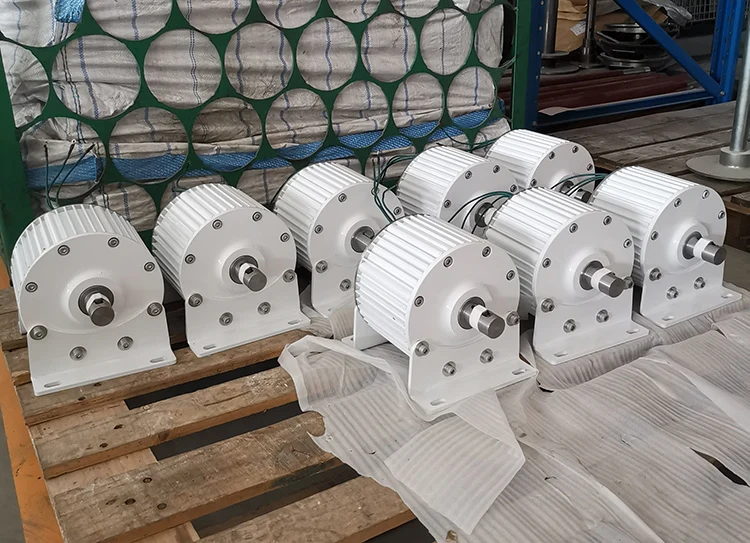

Details Images
Recommend Products

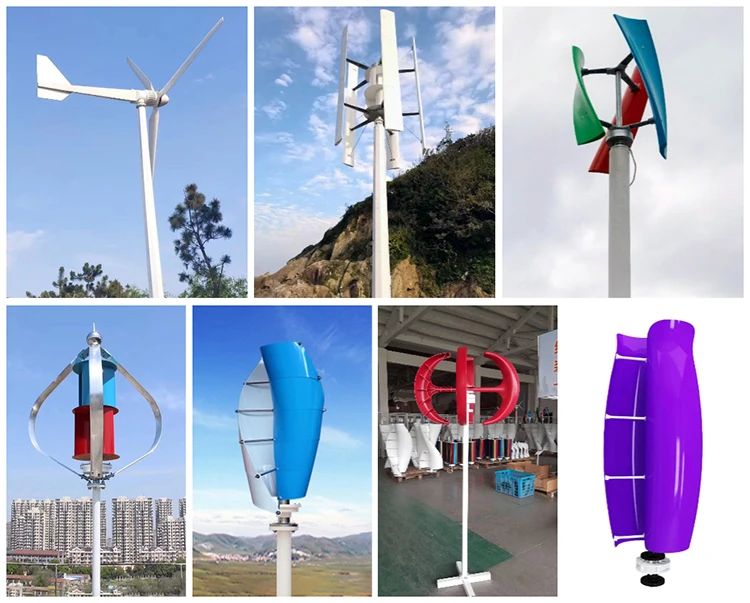

All types of our wind generator
We mainly have several types of wind turbine generator above, as well as solar wind turbine system.

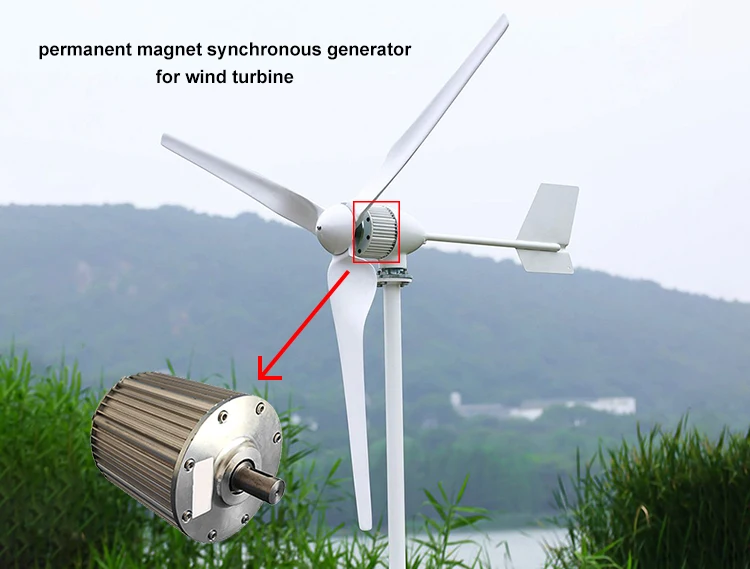

The working principle of a wind turbine is relatively simple. The wind rotor rotates under the action of the wind, which converts the kinetic energy of the wind into the mechanical energy of the wind rotor shaft, and the generator rotates to generate electricity under the drive of the wind rotor shaft.
The working principle of a wind turbine is relatively simple. The wind rotor rotates under the action of the wind, which converts the kinetic energy of the wind into the mechanical energy of the wind rotor shaft, and the generator rotates to generate electricity under the drive of the wind rotor shaft.

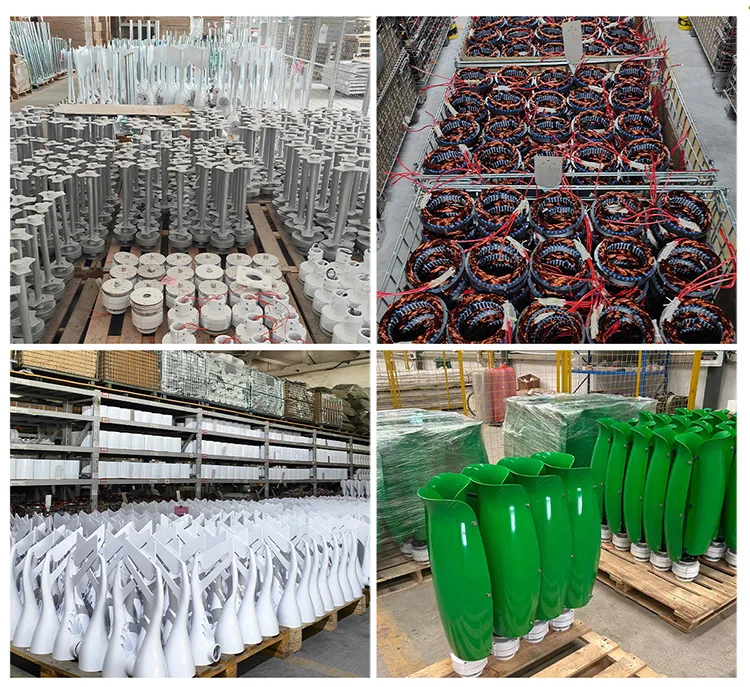

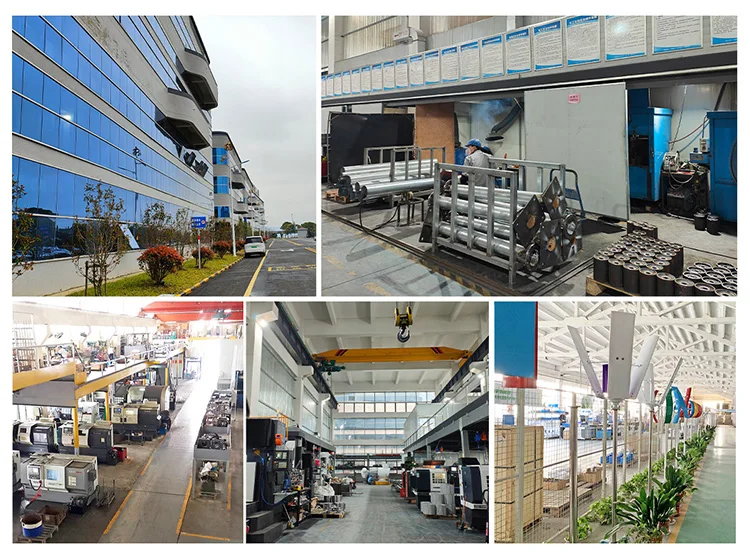

Company Profile
Jiangsu DHC environmental SI-Tech Co.,Ltd,
Jiangsu DHC Environment Si-Tech Co.，Ltd. was founded in 2016 and is located in Suzhou City, Jiangsu Province. We are dedicated in environmental protect area and new energy products, and launched our own brand: Ever Saving and Qianyue, aiming at protecting the environment and saving energy. We have a wealth of industry experience and are a reliable supplier. Our cooperation factory has advanced production equipment and skilled front-line employees. The products are more safer and durable, with better appearance design, distinctive materials.

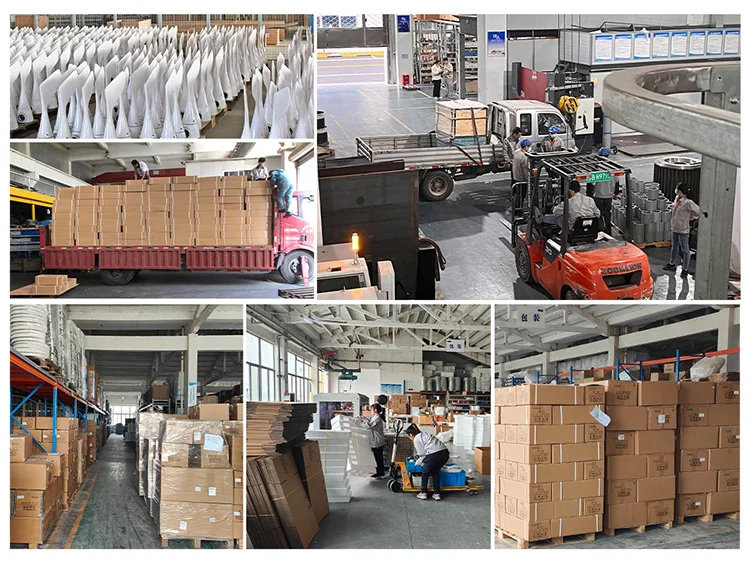

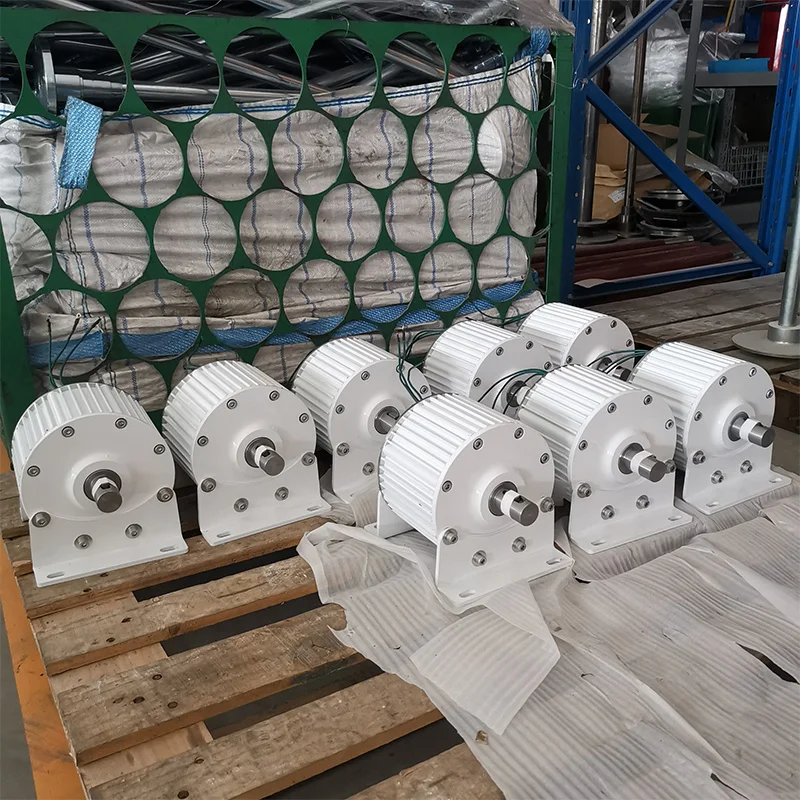

Packing & Delivery
Knowing that the development of the company depends on the innovation and quality of the products, we have established a quality management system to meet the requirements of the international quality management system. With continuously releasing the original innovations according to the market and customer needs, our company always maintains the novelty and innovative products to take the customer's thoughts and urgency into consideration. Providing excellent service for customers and meeting customer needs are our eternal pursuit!
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Business Card
Do you need solutions for permanent magnet generator?
Just send inquiry and express your requirement, DHC technical engineer always at your service!
