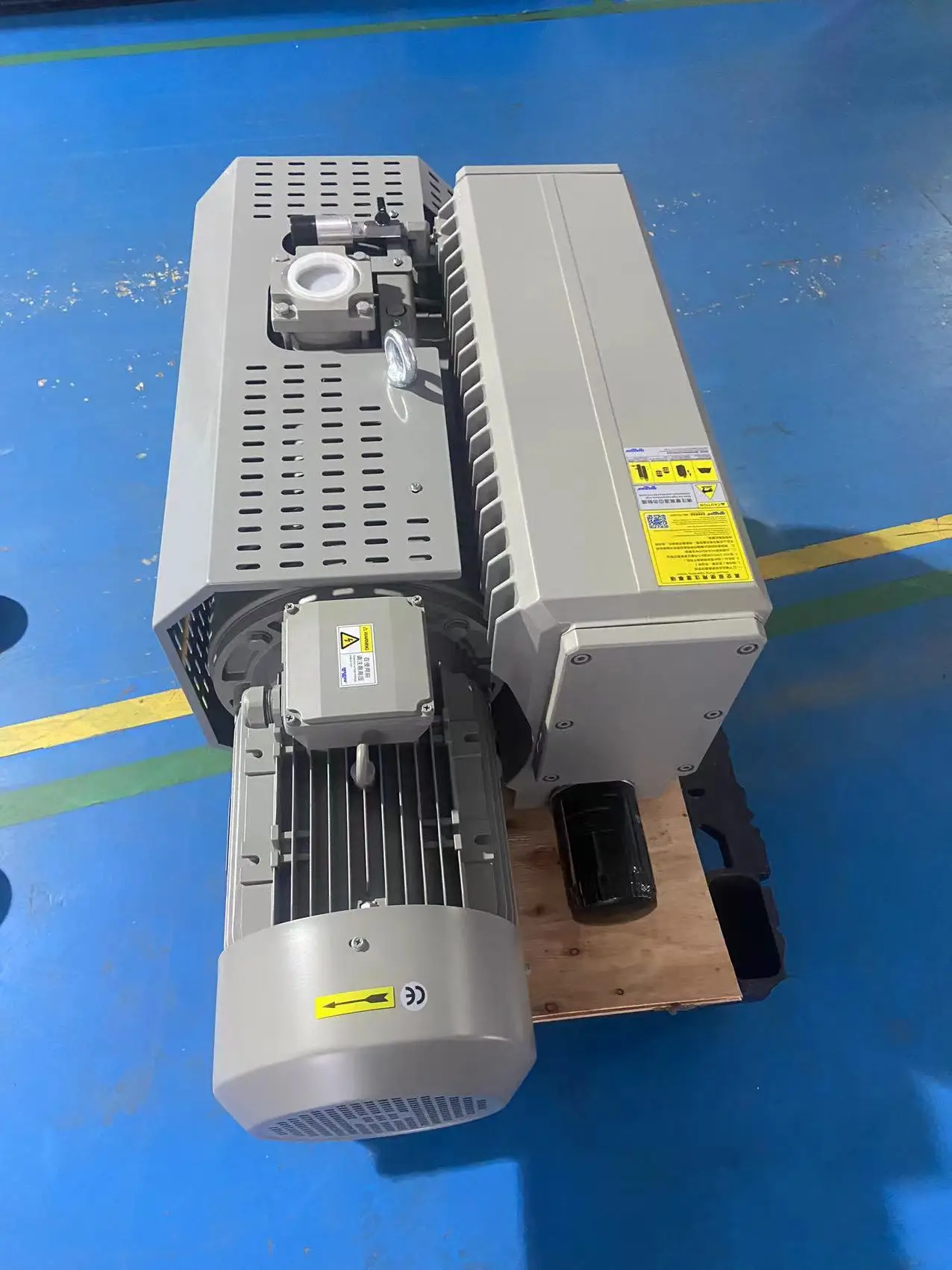

4kw Oil lubricated Rotary Vane Vacuum pump for medical vacuum system
- Category: >>>
- Supplier: Changsha Skyfavor Medical Devices Co. Ltd
Share on (1601239021075):
Product Overview
Description
Products Description
MEDICAL VACUUM SYSTEM
Medical vacuum system consists of vacuum pumps, receiver tank, control panel, pipes, valves and base, etc. which is fully meet with NFPA 99 and also manufactured in ISO9001, ISO14001, ISO13485, ISO45001 system. The vacuum pump is available in both oil-lubricated rotary vane and oil-free claw type.
The system is skid mounted with compact component layout, easy for use, installation and maintenance.
Up to six vacuum pumps can be connected in one system to meet hospital flow demand.
Each vacuum pump is equipped with filter, unloading valve, check valve and temperature sensor, to ensure the reliability and quality.
The system is skid mounted with compact component layout, easy for use, installation and maintenance.
Up to six vacuum pumps can be connected in one system to meet hospital flow demand.
Each vacuum pump is equipped with filter, unloading valve, check valve and temperature sensor, to ensure the reliability and quality.

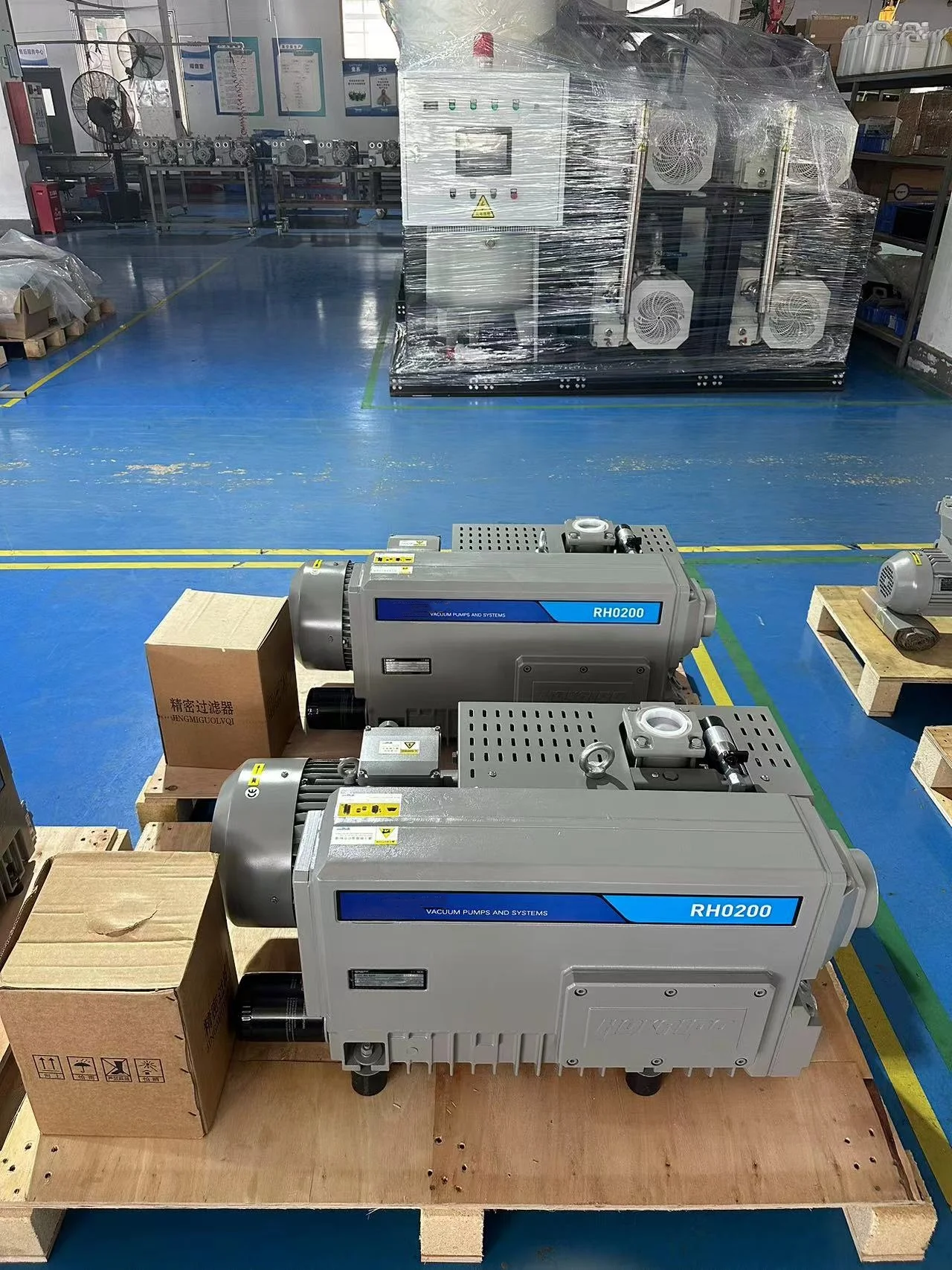

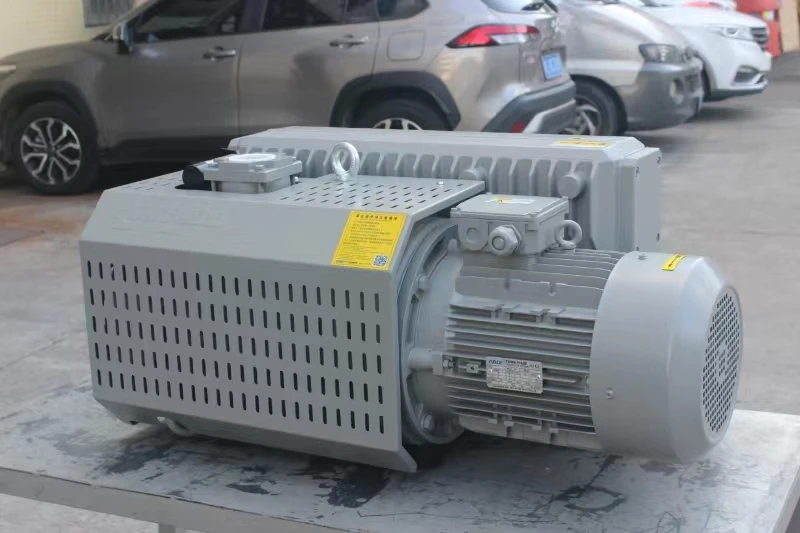

Oil-lubricated rotary vane vacuum pump

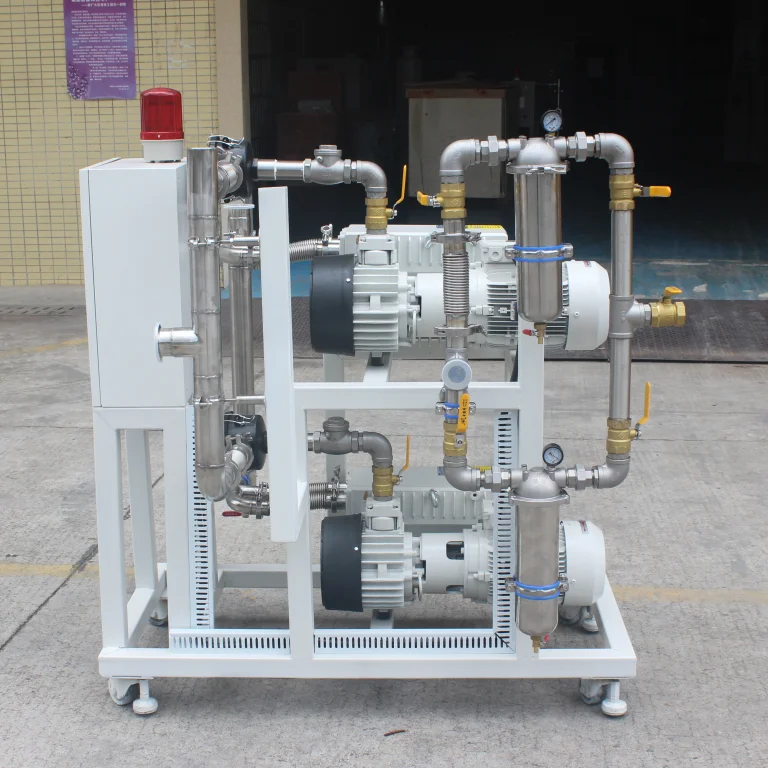

Duplex Oil-free claw vacuum pump System
Hospital Medical Oil-free screw vacuum pump
Recommend Products
Details Images
Horizontal type tank vacuum system
Vacuum pump
Vertical type tank vacuum pump
Split type medical vacuum system

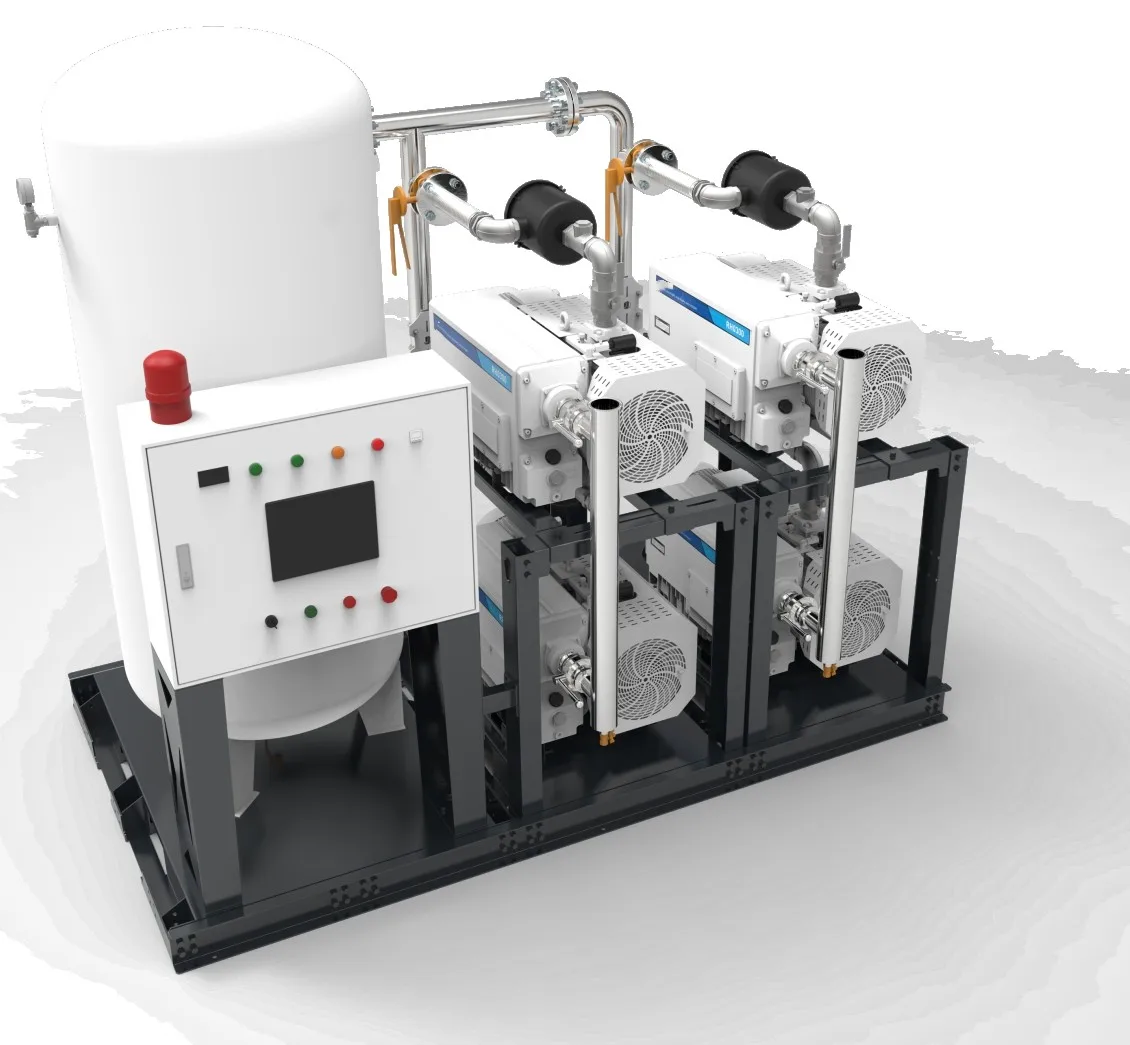

Intergrated skid-mounted vacuum system
Vacuum pump
oil free claw pump
Oil lubricated rotary vane vacuum pump
Medical Vacuum System - MEDYV Series
Oil-lubricated rotary vane vacuum pump
System | Model No. | Each pump | Pumping speed | Touch screen |
KW | m³/h | inch | ||
Duplex | MEDYV ROT-3.0D | 3 x 2 | 100 | 7 |
MEDYV ROT-5.5D | 5.5 x 2 | 200 | 7 | |
MEDYV ROT-7.5D | 7.5 x 2 | 300 | 7 | |
Triplex | MEDYV ROT-6.0T | 6 x 3 | 200 | 7 |
MEDYV ROT-11T | 11 x 3 | 400 | 7 | |
MEDYV ROT-15T | 15 x 3 | 600 | 7 |
Oil-free claw vacuum pump
System | Model No. | Each pump | Pumping speed | Touch screen |
KW | m³/h | inch | ||
Duplex | MEDYV CLAW-3.0D | 3 x 2 | 100 | 7 |
MEDYV CLAW-4.0D | 4 x 2 | 180 | 7 | |
MEDYV CLAW-5.5D | 5.5 x 2 | 250 | 7 | |
MEDYV CLAW-7.5D | 7.5 x 2 | 360 | 7 | |
Triplex | MEDYV CLAW-3.0T | 3 x 3 | 200 | 7 |
MEDYV CLAW-4.0T | 4 x 3 | 360 | 7 | |
MEDYV CLAW-5.5T | 5.5 x 3 | 500 | 7 | |
MEDYV CLAW-7.5T | 7.5 x 3 | 720 | 7 |
Oil-free screw vacuum pump
System | Model No. | Each pump | Pumping speed | Touch screen |
KW | m³/h | inch | ||
Duplex | MEDYV SCREW-4.0D | 4 x 2 | 110 | 7 |
MEDYV SCREW-5.5D | 5.5 x 2 | 150 | 7 | |
MEDYV SCREW-7.5D | 7.5 x 2 | 280 | 7 | |
Triplex | MEDYV SCREW-4.0T | 4 x 3 | 220 | 7 |
MEDYV SCREW-5.5T | 5.5 x 3 | 300 | 7 | |
MEDYV SCREW-7.5T | 7.5 x 3 | 560 | 7 |
Remark:
1. The vacuum plant is operated at an ambient temperature of 0-40 °C. Please contact our company for special environmental temperature requirements.
1. The vacuum plant is operated at an ambient temperature of 0-40 °C. Please contact our company for special environmental temperature requirements.
2. System capacity measured at pressure -60kPa.
3. System capacity is for working vacuum pump, not including the vacuum pump on standby.
4. The receiver tanks are generally configured as 200L, 300L, 500L, 1000L, 2000L, 3000L. Other specifications can be configured according to the specific use and requirements of the customer.
5. Above configurations are for regular, if any other specifications, please contact our staff.
Vacuum System Rotary Vane Vacuum Plant
The oil-lubricated vacuum pump is a durable long-life pump that has been used for many years in hospital
and clinics. The use of oil facilitates higher efficiency of the pump, lower operating temperatures, and lower sound levels. Oil-sealed rotary vane pumps are ideal for most hospital applications.
and clinics. The use of oil facilitates higher efficiency of the pump, lower operating temperatures, and lower sound levels. Oil-sealed rotary vane pumps are ideal for most hospital applications.
Oil free Claw Type Medical Vacuum System
Our claw vacuum pumps are 100% free of oil and contact during operation. This makes the pump particularly low-maintenance.
The two claw rotors of the vacuum pump rotate in opposite directions to each other in the cylinder. Caw technology ensures a high degree of efficiency and low energy consumption.
The two claw rotors of the vacuum pump rotate in opposite directions to each other in the cylinder. Caw technology ensures a high degree of efficiency and low energy consumption.
Specifications
* Compact design, simple structure, easy to operate and maintain, low operating cost
* Can work continuously for a long time under high pressure with low noise
* No contact between the rotor and pump cavity, no friction, and long service life
* Completely tested before shipment
* Compact design, simple structure, easy to operate and maintain, low operating cost
* Can work continuously for a long time under high pressure with low noise
* No contact between the rotor and pump cavity, no friction, and long service life
* Completely tested before shipment
Company Introduction
SkyFavor Medical Devices Co., Ltd
Built in 2015, SkyFavor Medical is located in Changsha, factory is located in Ningbo, China, covering more than 20000 squaremeters. We are a high-tech enterprise mainly engaged in the development, production and marketing of medical solution for Gas Pipeline System. Products include oxygen plant, air compressing system, medical vacuum system, medical gas manifold, gas alarm, zone valve box, bed head unit, OT control panel, gas outlet, oxygen flow meter, oxygen regulator, suction regulator, etc.
We have core technology management process, experienced market, fast and efficient manufacturing and processing capabilities and
rich supporting processing and manufacturing resources.
rich supporting processing and manufacturing resources.
Customers are all over the world, especially southeast Asia, Mid East, Latin America, East Europe, Africa and other regions.
Efficient technology support, high quality products and best service have been recognized by our customers.
Efficient technology support, high quality products and best service have been recognized by our customers.
Hospital Successful Cases
Automatic manifold in Thailand hospital
OT control panel and medical pendant in Indian hospital
Medical vacuum pump and air compressor in Mexico
Medical gas alarm in Dominica hospital
Medical gas outlets in India
Medical vacuum pump and air compressor in Mexico
Bed head panel in Chile
Automatic manifold in Ghana
Manual manifold in Kenya
Skyfavor products cooperated with Ministry of Health
Skyfavor products cooperated with UNITED NATIONS CHILDRENS FUND
Project in Ghana hospital
Project in Ecuador hospital
Manual manifold in Kenya

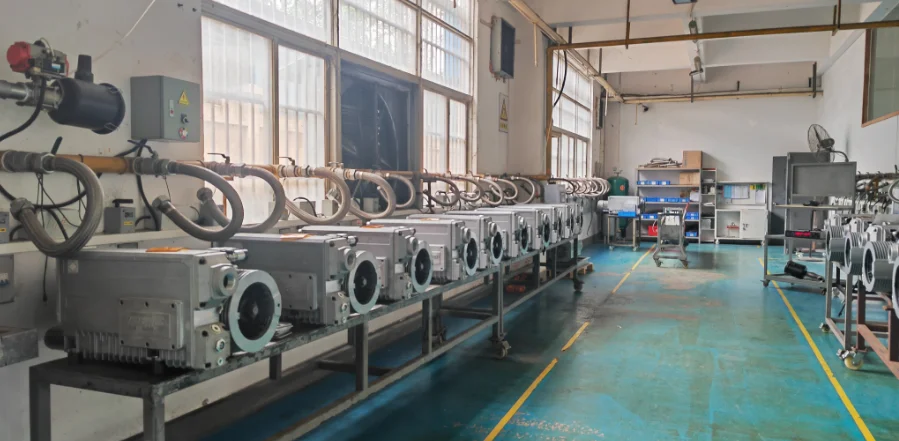

Exhibition & Factory Visiting
Skyfavor attend Medic East Fair in Kenya
Skyfavor attend TIHE in Uzbekistan
Skyfavor attend Arab Health in Dubai
Skyfavor attend CMEF shanghai
Skyfavor visti Dubai customers
Thailand customers visit our air pant and vacuum system
Dubai customers visit our vacuum and air plant system
Technical meetings with customers
Skyfavor visti customers in Kenya
Certifications
FAQ
1. Can you do OEM or ODM service for the vacuum pump system?
Yes. Please send us the detail requirements, we can do according to your request. Like the capacity, working pressure, electric power voltage and hz, tank, etc.
2. What is the MOQ of Medical Rotary Vane Vacuum Pump?
1 set is also OK.
3. What is the delivery time of Medical Oil-lubricated Rotary Vane Vacuum Pump for Hospital？
Generally one month.
Please check delivery time before ordering.
4. What is the package of the medic gas manifold?
Wooden box which can protect the manifold medical from cratches, etc.
