Sunpal High Voltage Lifepo4 Lithium Battery 50kWh 100kWh Battery Lithium Energy Storage Container
- Category: >>>
- Supplier: Sunpal Solar Co. Ltd.
Share on (1601239055454):
Product Overview
Description
Product Description

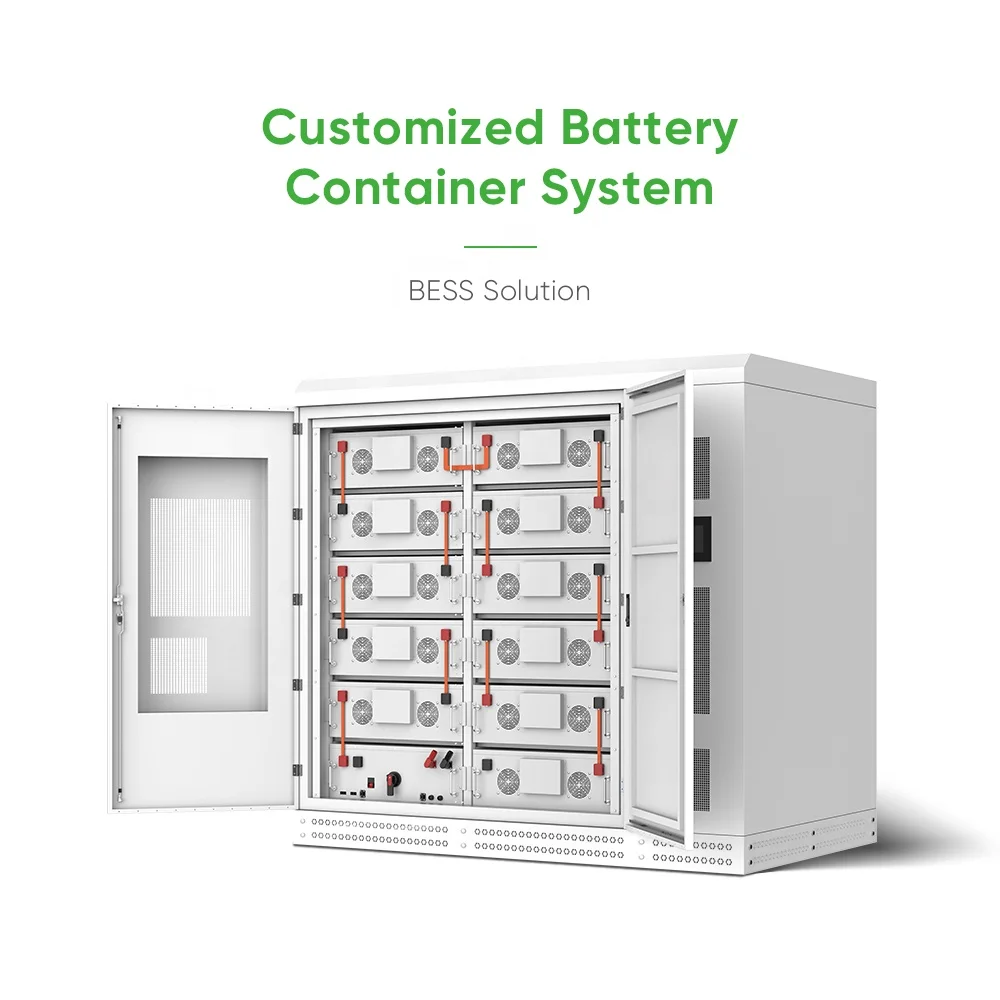

Sunpal Containerized Battery Solar Power Storage Plants
100kw+200kwh Containerized Battery Solar Power Storage Plants are suitable for use in public buildings, communities, medium and large enterprises, utility-scale storage systems, off-grid systems, electric vehicles and backup systems. The storage system's container allows you to store energy generated through a wind turbine, photovoltaic, or CHP. Because of their long lifetime, the storage containers can also be used for peak shaving, thus reducing power bills.
Product Features
Technical specifications
Model | 100KW/120KW-215kWh/250kWh | Note | ||
Systemparameter | ||||
Battery nominal voltage | 768V. DC | Battery side | ||
Battery voltage range | 672V ~ 864V. DC | Battery side | ||
Battery system configuration | 240S1P | Battery series and parallel connection mode | ||
PCS distribution power | 120kW | Matched inverter power | ||
AC output terminal voltage | 400V@AC ± 5% | Output AC side | ||
MPPT Power | 60KW (250 - 850VDC) | Recommend Range | ||
PV input range | 200 - 1000V/200A | Max . power 85kW | ||
Nominal capacity of battery system | 215kWh | |||
Dischargeable capacity of battery system | ≈ 200kWh | 90%DOD | ||
System efficiency | ≥ 90%@AC | |||
Overall dimensions | 2200mm*1364mm*2051mm | Include air - conditioner size | ||
Protection level | IP55 | |||
Operating temperature range | - 20 ~ 50 ℃ | |||
Operating humidity range | ≤ 95% (No condensation) | |||
Maximum working altitude | 2000m | |||
Cooling method | Air - cooling | |||
Fire suppression system | Aerosol | |||
System communication protocol | Modbus - RTU/TCP/CAN | |||
Cell parameter | ||||
Cell type | Lithium Iron Phosphate (LiFePO4) | |||
Cell nominal voltage | 3.2V | |||
Cell nominal energy | 896Wh | |||
Rated work rate | 0.5C | |||
Rated work current | 140A | |||
Module parameter | ||||
Configuration | 1P24S | |||
Module nominal voltage | 76.8V | |||
Module nominal energy | 21.5kWh | |||
Module dimensions | 792mm*710mm*255mm | |||
Weight | About 180KG | |||
AC side parameters | ||||
STS transfer switch power | 240kW | |||
On&off grid time | ≤20ms | |||
System devices list | ||||
Battery system | 10 sets of battery module with shelf | |||
EMS management system | 1 Set | |||
BMS Management System | 1 Set | |||
PCS with MPPT controller | 1 Set | |||
Fire suppression system | 1 Set | |||
Air-cooling unit | 1 Set | |||

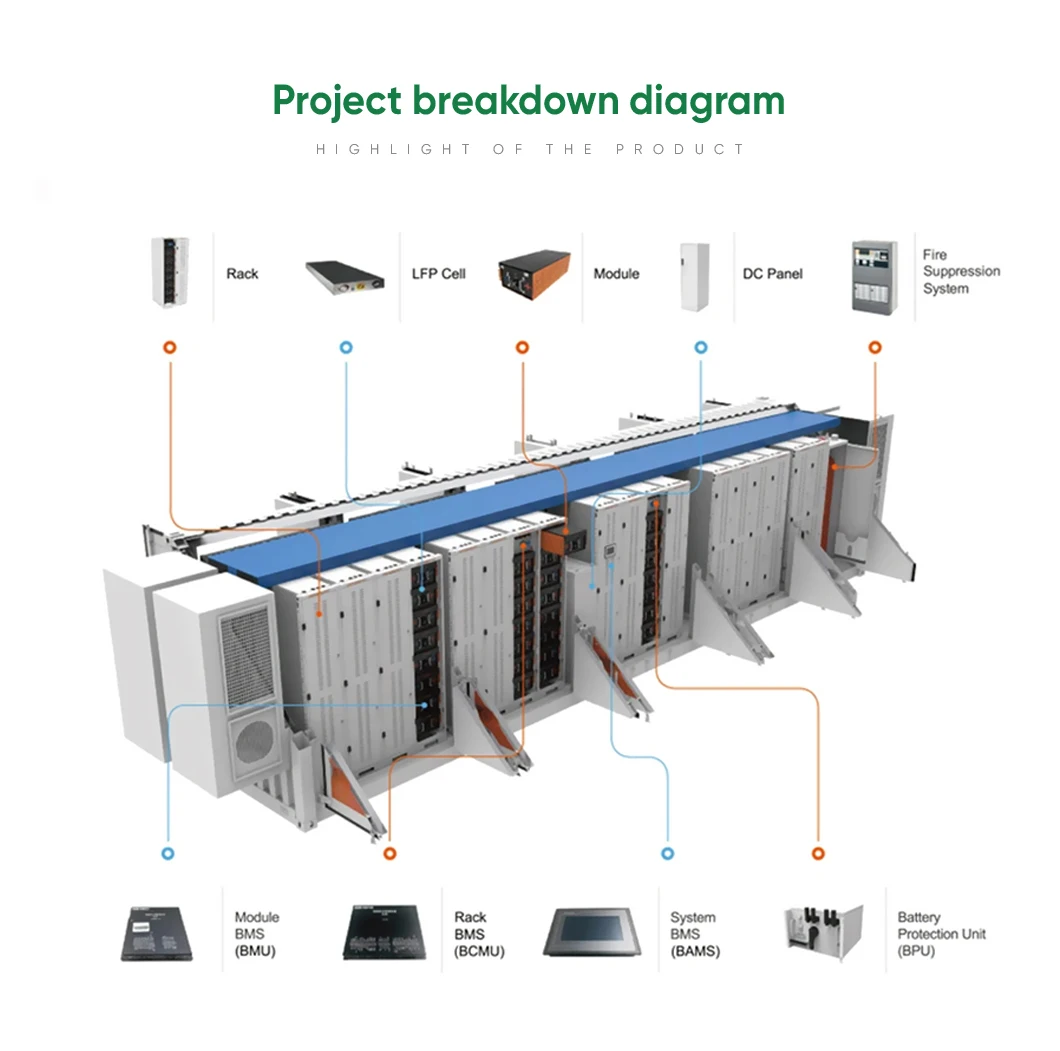

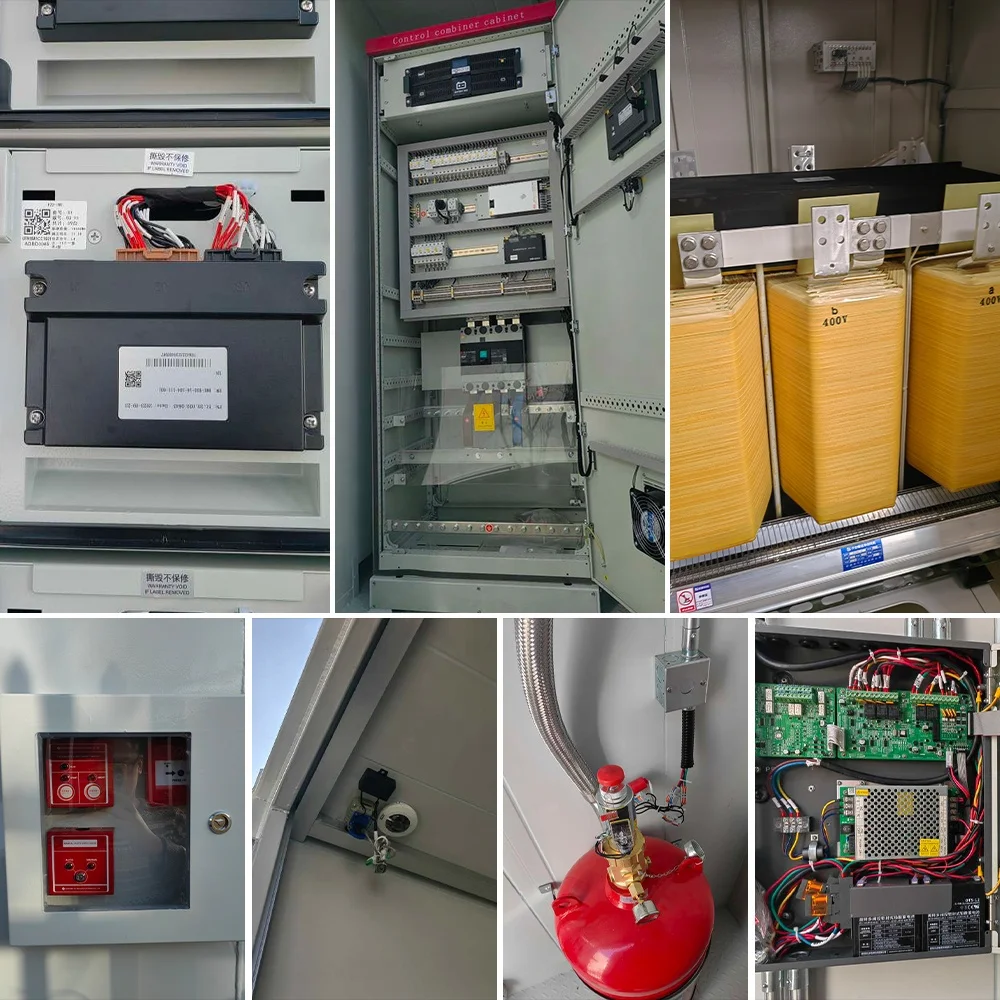

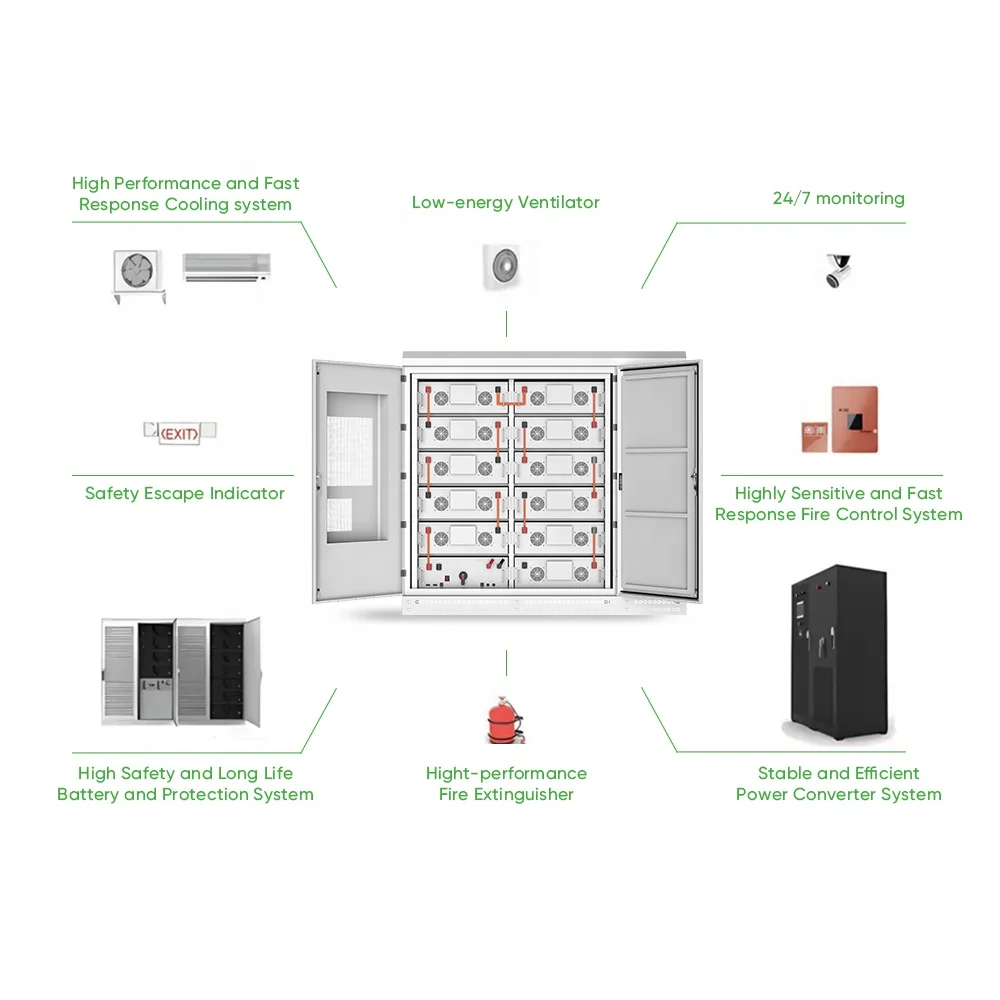

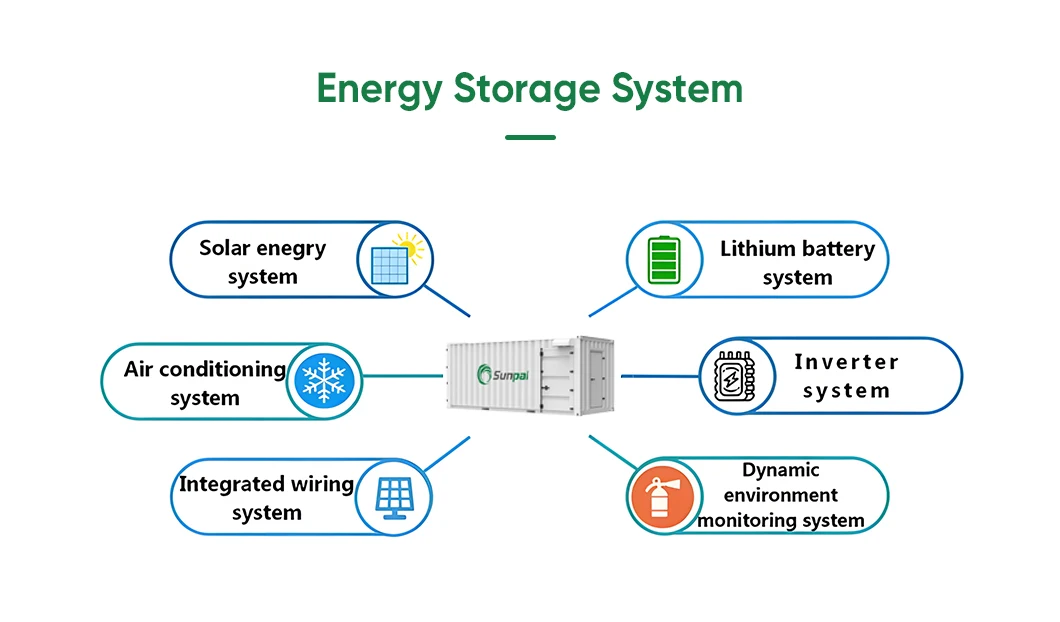

System composition
Three-layer architecture of battery system(BMU/BMS/MBMS)MBMS: collects all the states and parameters of the battery system, and communicates and adjusts with PCS and EMS BMS system will implement the following parameter control.
Certification
Our products have been exported to more than 60 countries and have multiple certifications in these countries, including CE, CSA,UL, and TUV series certificates. Our solar power system fully comply with local usage and sales requirements and comply with local grid tied policies.

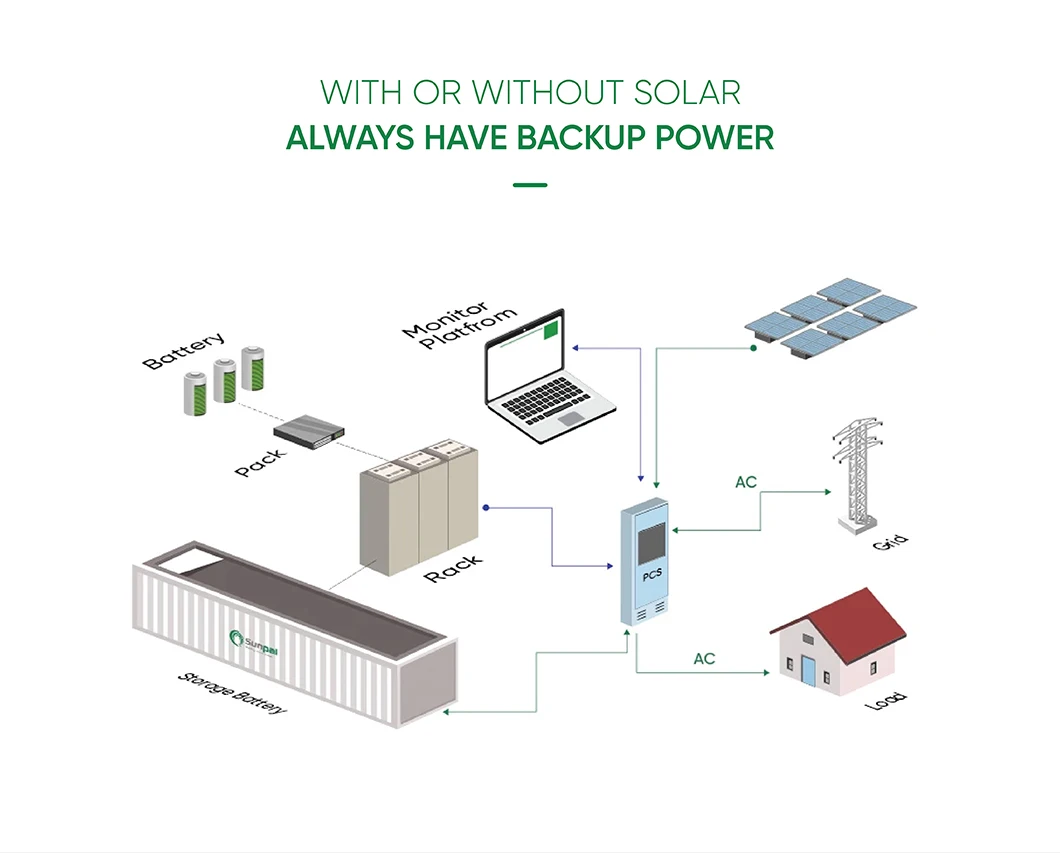

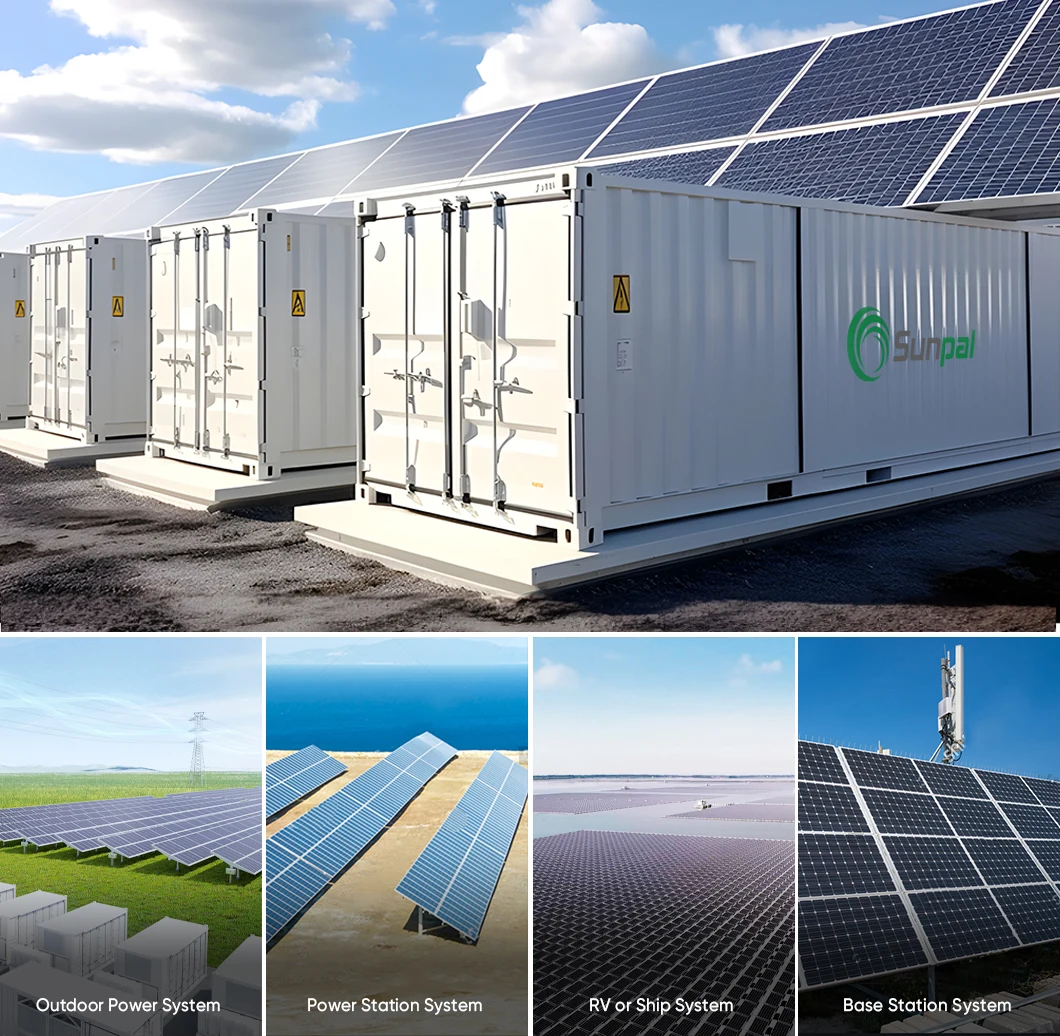

Application

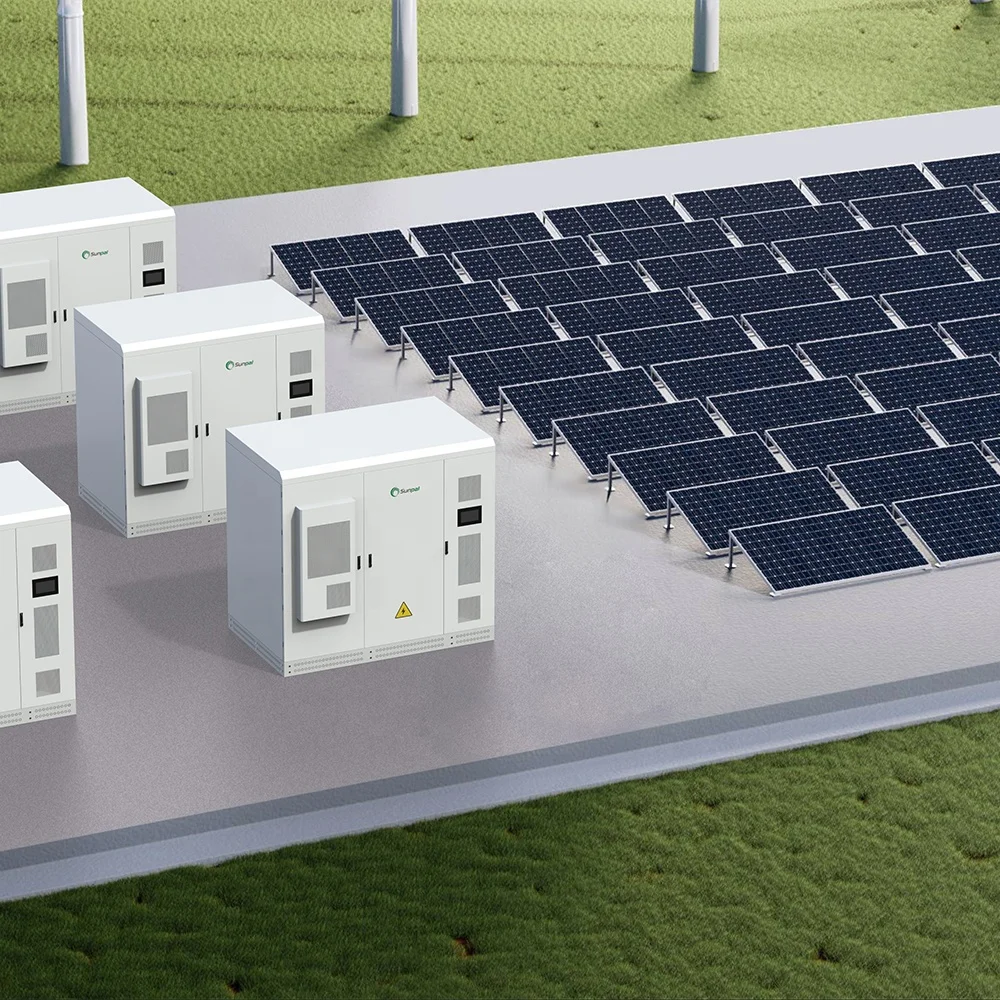

ESS Container Battery
Our containerised energy storage system (BESS) is the perfect solution for large-scale energy storage projects. The energy storage containers can be used in the integration of various storage technologies and for different purposes.
The battery energy storage system (BESS) containers are based on a modular design. They can be configured to match the required power and capacity requirements of client’s application.

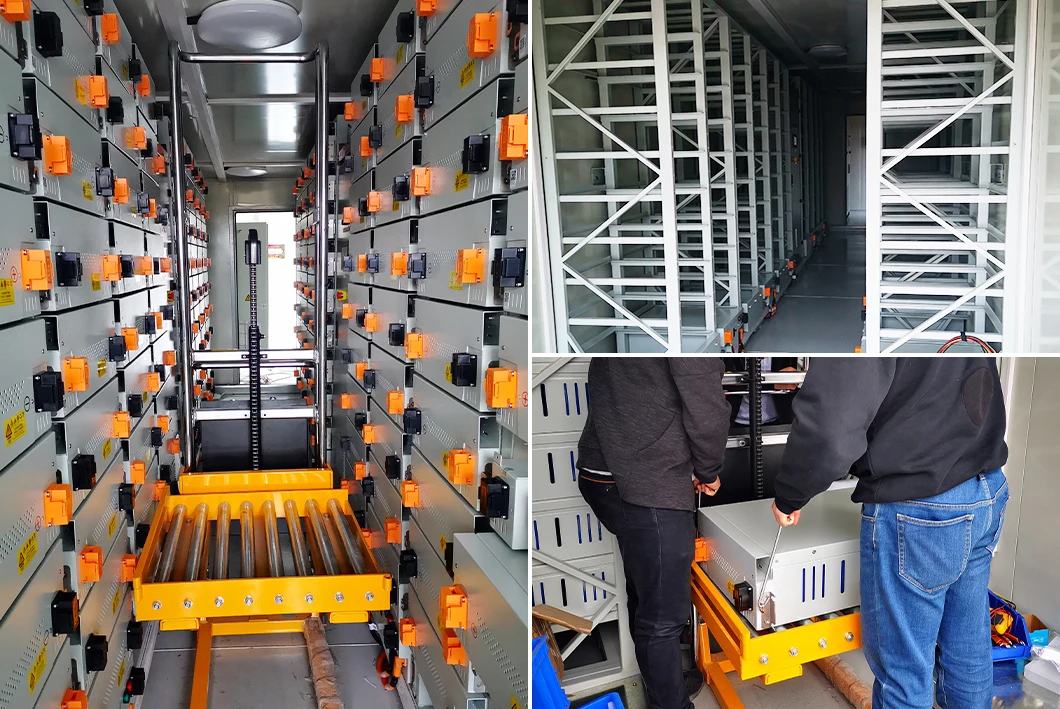

Project Case

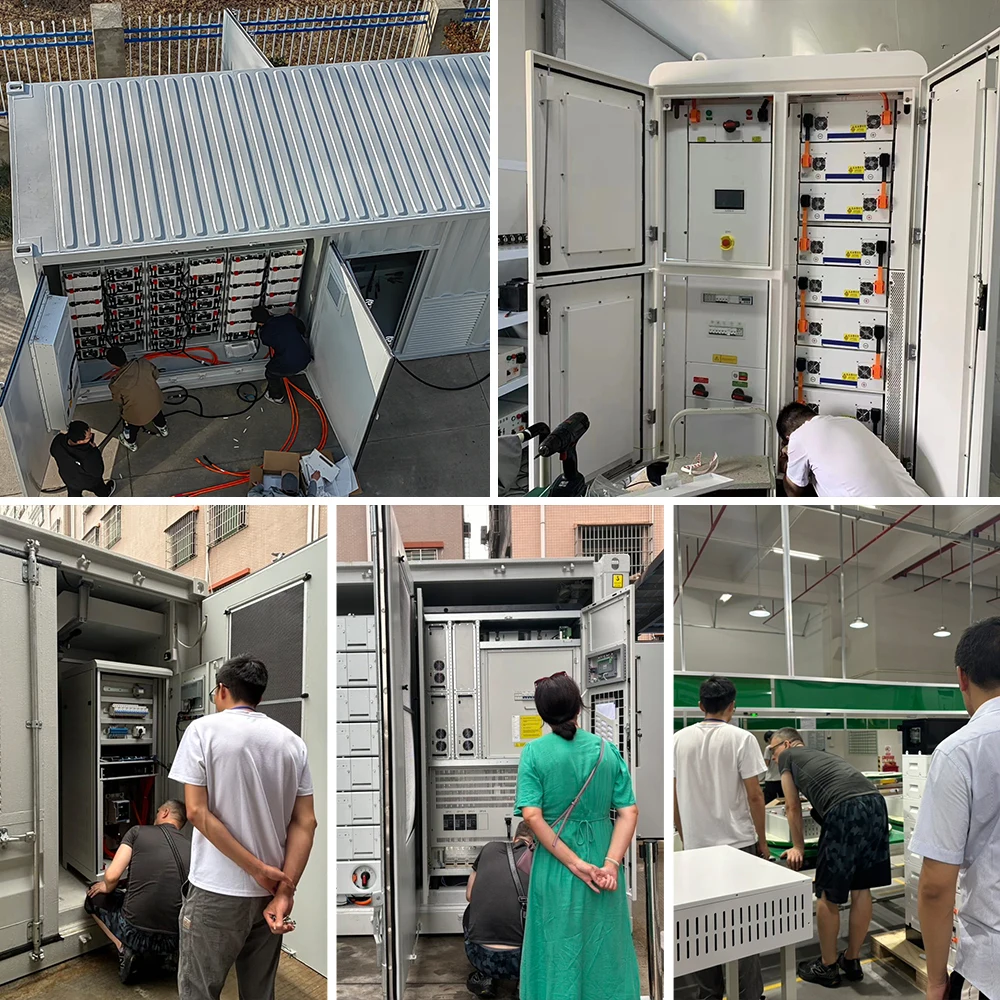

Sunpal visit cooperative customers
