OKAF Mobile Solar Monitoring Trailer 4G Network HD PTZ Camera Solar CCTV Security Tower
- Category: >>>
- Supplier: Shenzhen Okaf Technology Co. LTD
Share on (1601239060474):
Product Overview
Description
Product Description

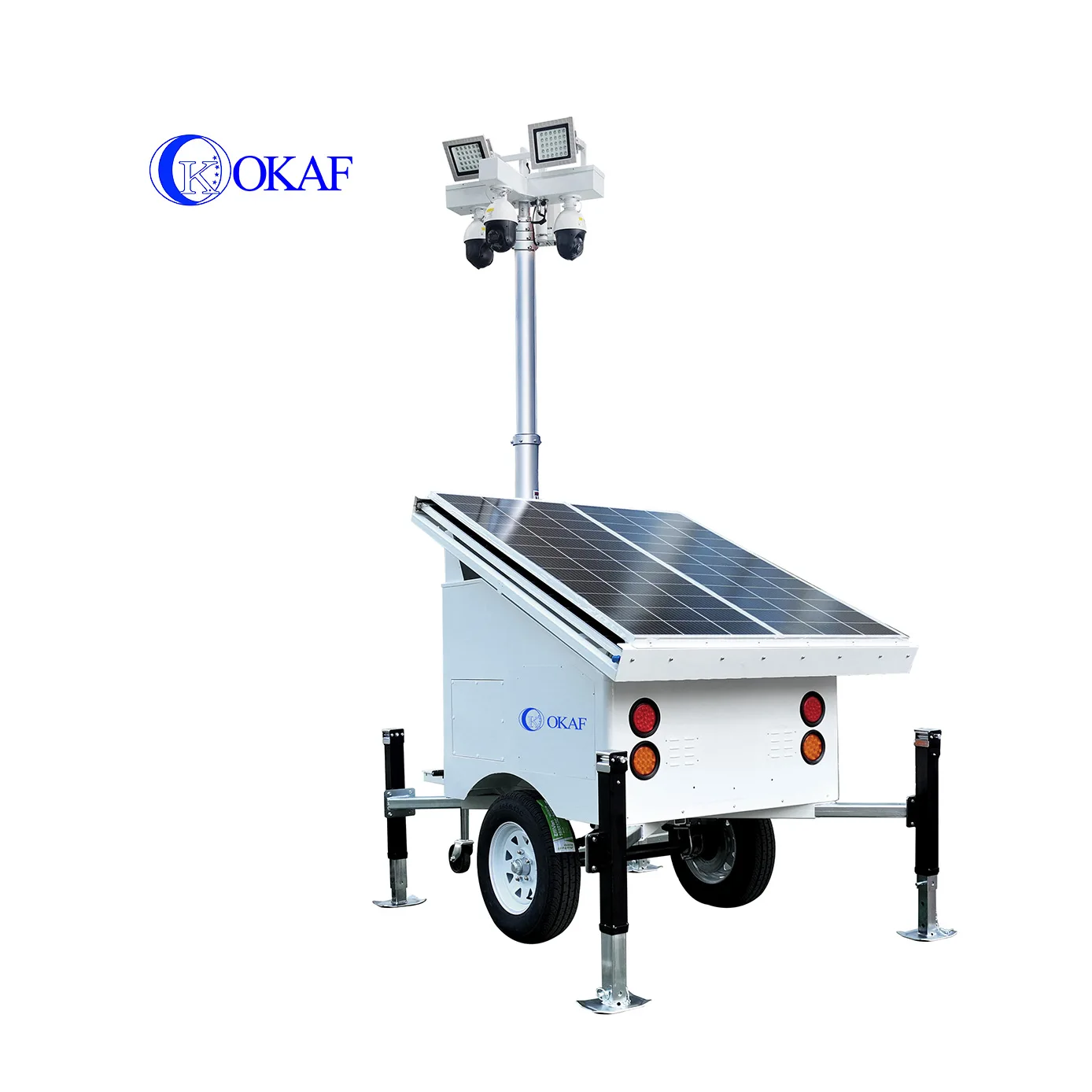

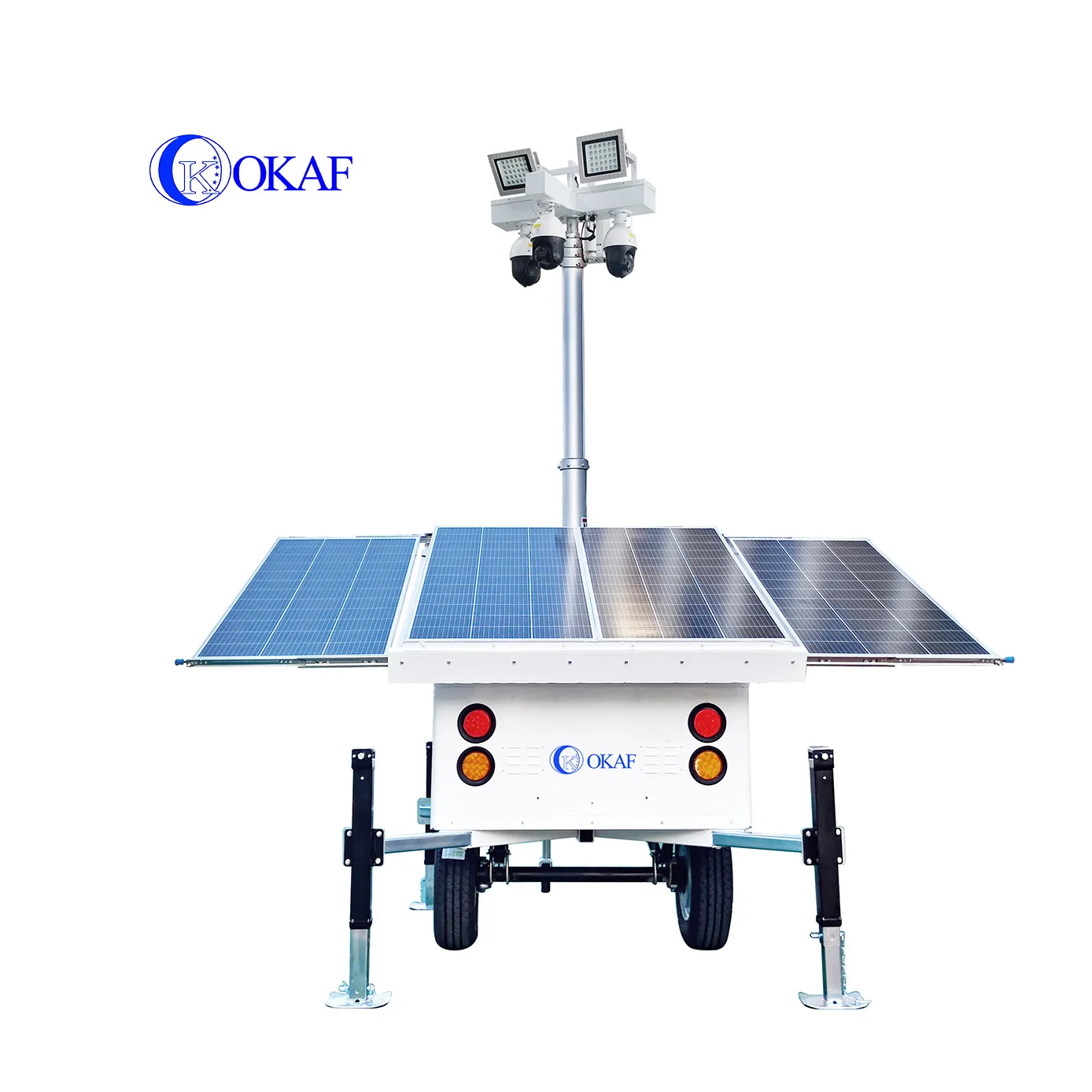

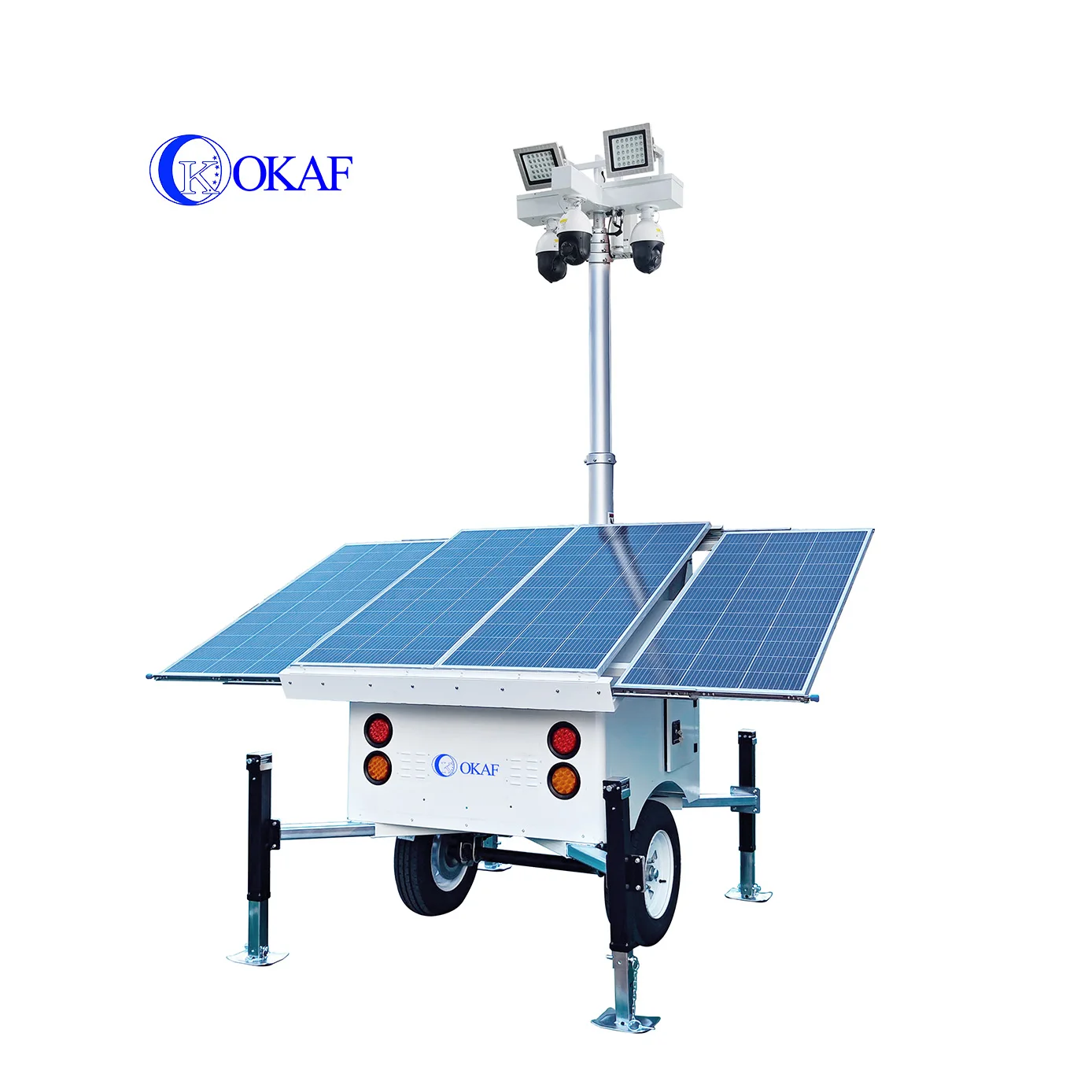

Mobile solar cctv surveillance camera trailer construction site monitoring security camera tower

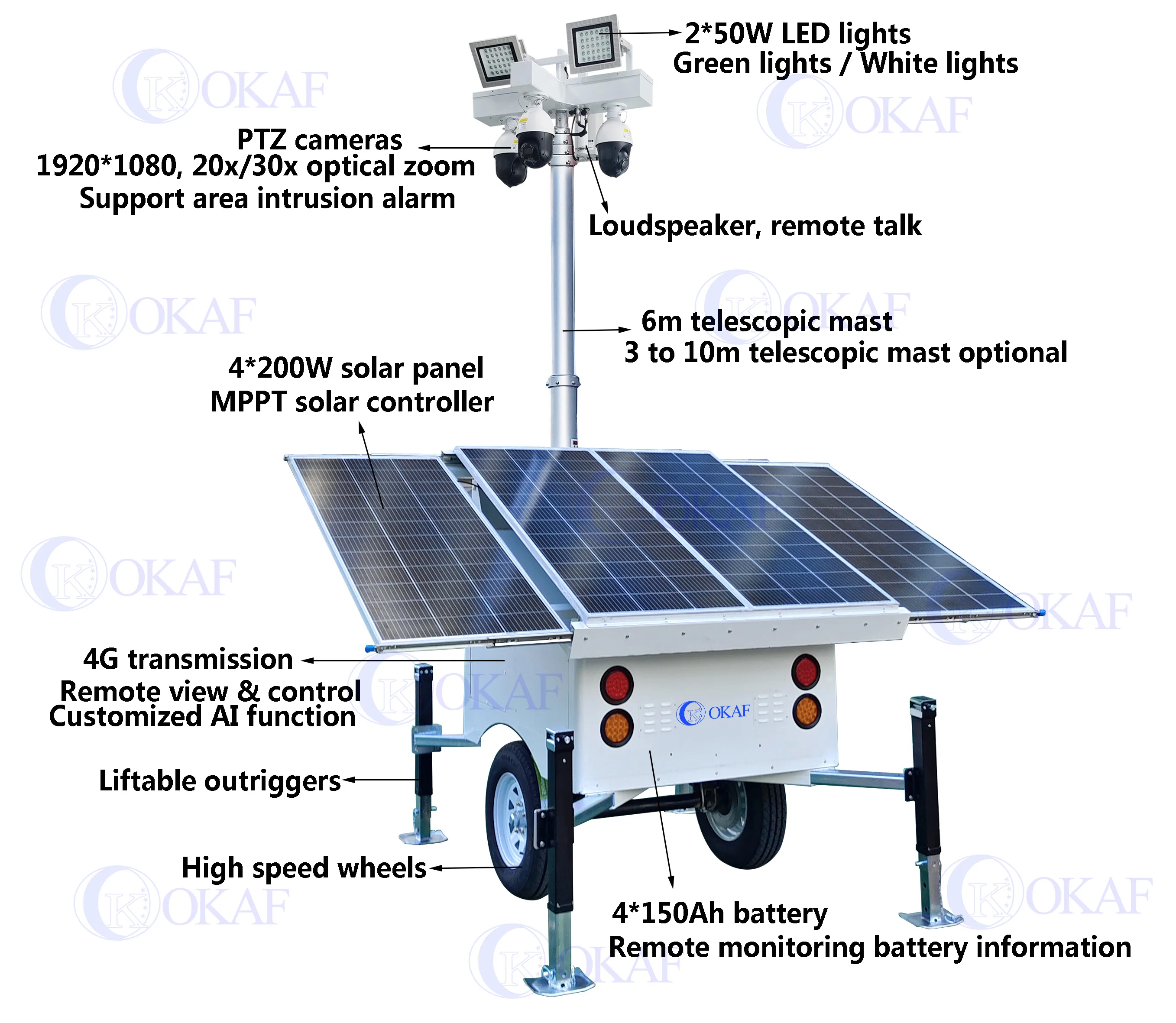

System components OKAF solar power security camera trailer OK-PR07 including Trailer body, HD PTZ cameras, Solar Power, Battery power, auto lifting system and 4G transmission system. The material of trailer body is mental or stainless steel according to customer's requirement.It is come with the big wheels for driving on road. It is perfect for a tow. The outriggers make the trailer stand well and more stable. The system running times about 3~5 days according to battery capacity. Telescopic mast height 3~10m available, realized 360 degree no blind angle surveillance.
Features of OKAF Mobile Solar surveillance security camera tower
♦ Rapid deployment. One can complete the system within 5 minutes to meet emergency need.
♦ Front-end 360° no blind angle monitoring, equipment is mobile, more flexible to use.
♦ No need to set points and wiring, reduce the cost of deployment.
♦ No need to disassemble,easy to use and operate.
♦ 22-inch high-definition local display, wireless and local professional control keyboard.
♦ Thickened metal body, galvanized rust-proof bracket, more durable equipment.
♦ Battery last long time, the system can run for 5-7 days after one charge.
♦ Alternate charging optional,support solar and mains 220V input charging.
♦ 4G,and LTN multiple signal transmission modes, data transmission is safe and smooth.
♦ Support drone video access and local display and software platform viewing.
♦ Supports intelligent detection of area intrusion detection, cross-border detection, motion detection, etc.
♦ Support license plate capture and retrieval, mixed line detection, multi-scene cruise detection, cloud storage service functions
♦ High scalability, multi-functional installation platform, can increase anti-drones system, drone tracking system, drone relay acceptance, etc.
♦ Scalable AI intelligent algorithms: hard hats, reflective clothing, people counting, face recognition, license plate
recognition, and IoT sensor modules: temperature and humidity, PM2.5, noise, air pollution, dust detection and other functional modules.
♦ Various anti-theft measures, built-in GPS positioning, vibration sensor, sound alarm, car lock, etc., to ensure system security.
♦ Back-end mobile control, view data and issue instructions anytime and anywhere.
♦ Auto lifting telescopic mast, 3 meter to 10 meter is available.
♦ Support customized AI function: Face recognition, helmet detection, jacket detection, smoking detection etc.
APPLICATIONS
OKAF mobile solar security tower aims to solve challenges facing security personnel, such as:
♦ Construction site security
♦ Oil and Gas site security
♦ Road construction monitoring
♦ Traffic monitoring
♦ Law enforcement mobile surveillance
♦ Ports and harbors monitoring
♦ Airports security
♦ Incident areas
♦ Vacant property management
♦ Border security
♦ Business and parking lot security
♦ Public events safety
♦ Oil and Gas site security
♦ Road construction monitoring
♦ Traffic monitoring
♦ Law enforcement mobile surveillance
♦ Ports and harbors monitoring
♦ Airports security
♦ Incident areas
♦ Vacant property management
♦ Border security
♦ Business and parking lot security
♦ Public events safety

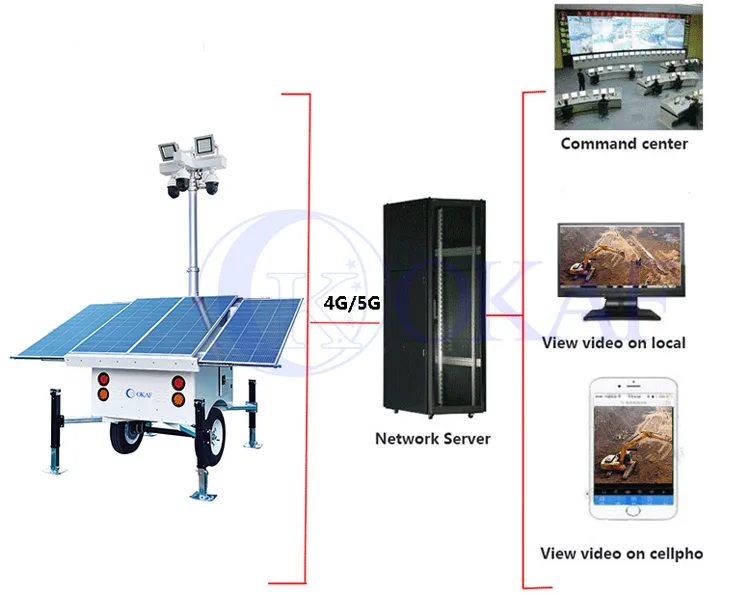

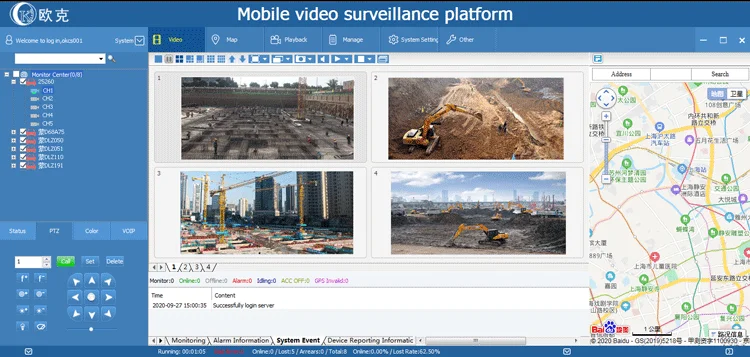

View real time video on PC or cellphone
Advantages of OKAF Mobile Solar CCTV Trailer
Advantages of the Mobile solar cctv trailer
•Support area intrusion alarm.
•Support motion detection.
•Support two way audio.
• Provide mobile APP for online real time video viewing and Camera control.
• Front end data mobile acquisition equipment.
• Wireless transmission equipment.
• GPS positioning device.
• Back end storage and control system.
• The high-speed trailer is equipped with an automatic lifting mast (the lifting of the mast and the zoom rotation of the camera can be controlled by the wireless remote control and RS485.
• Compatible with traditional wired transmission mode (network cable, optical fiber, etc.)
• Local and cloud storage at the same time, with local storage capacity up to 2T
• Support simultaneous control of PC terminal and handheld mobile terminal.
• Retractable outrigger, more stable.
• Various power supply measures (battery, solar power supply, AC charging).
• Alarm device.
• Equipped with the latest wireless bridge technology, the sight distance transmission distance is up to 10km, and the non sight distance transmission distance is up to 50km.
•Support motion detection.
•Support two way audio.
• Provide mobile APP for online real time video viewing and Camera control.
• Front end data mobile acquisition equipment.
• Wireless transmission equipment.
• GPS positioning device.
• Back end storage and control system.
• The high-speed trailer is equipped with an automatic lifting mast (the lifting of the mast and the zoom rotation of the camera can be controlled by the wireless remote control and RS485.
• Compatible with traditional wired transmission mode (network cable, optical fiber, etc.)
• Local and cloud storage at the same time, with local storage capacity up to 2T
• Support simultaneous control of PC terminal and handheld mobile terminal.
• Retractable outrigger, more stable.
• Various power supply measures (battery, solar power supply, AC charging).
• Alarm device.
• Equipped with the latest wireless bridge technology, the sight distance transmission distance is up to 10km, and the non sight distance transmission distance is up to 50km.
• Support customized AI function such as face recognized , smoking detection, safety helmet detection, jacket detection.
TECHNICAL DATA
Camera parameters | ||
Model | HD PTZ cameras | |
Resolution | 1920×1080P | |
Frame rate | 25/30 fps | |
Audio video compression | H.264/H.265 | |
Optical zoom | 20X /30x optical zoom | |
Rotation Speed | Pan preset speed | |
Pan/Tilt range | Pan: 360°，Tilt: ＋25°～－90° | |
IR distance | 60 meter | |
Network port | RJ45 10Base-T/100Base-TX PoE(IEEE802.3af) | |
Audio mode | External active microphone or linear input, linear output | |
Network protocol | IPv4, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, TCP,UDP, IGMP, ICMP, ARP | |
Dual stream | Support | |
Video output | BNC & RJ45 output | |
Video parameters | ||
Video input | 4 channels network 1080P, Aviation connector | |
Video output | 1 way Composite Video Output +1 CH VGA output, 1.0Vp-p, 75Ω | |
Preview function | 1 way 、4 screen splicing preview，support manual/ Event trigger full screen display function | |
Video resolution | Support 1080P、720P、D1、HD1、 CIF optional , support up to 4 way 1080P. | |
Audio input | 4 way，Aviation connector | |
Audio output | 1 way | |
Compression format | G.711, rate 8KB/s | |
Alarm Output | 2 way switch output linkage sound and light alarm, cut off oil, etc. | |
Communication interface Communication | 2-way RS232, expandable credit card machine, fuel sensor, LED advertising screen, etc. | |
2 way 485 interface，Expandable PTZ | ||
interface | 2way CAN bus interface | |
Wireless transmission | Support built in 3G wireless transmission function. WCDMA, CDMA2000,TD-SCDMA compatible GPRS, EDGE； | |
Built-in 4G wireless transmission function, TDD-LTE, FDD-LTE | ||
Positioning | Support built-in GPS / BD module, can report to the standard platform | |
Hard disk | Supports large-capacity 2.5-inch hard disk (up to 2T) | |
Input voltage | DC:+8V ~ +38V | |
Power supply | 100Ah / 200AH /400Ah rechargeable lithium battery optional | |
Solar power 3*120W / 3*200W /3*300W /3*400W or more power | ||
Project | Test conditions | |
Height | 6 meter（can be customized according customer requirements) | |
Wind resistance | Class 8 winds work normally Class 12 winds are not destroyed | |
Low temperature storage | -55 ℃ | |
Low temperature work | -40℃ | |
High temperature storage | 70℃ | |
High temperature work | 55℃ | |
Humidity | Less than 90%（temperature 25°） | |
Rain | 6mm/min continuous 1h | |
Rated load | Lifting ≤120N | |
Lifting speed | Average speed 4m/min | |
Safety | Self-locking at any height | |
COMPANY PROFILE
Shenzhen Okaf Technology Co., Ltd has specialized in CCTV surveillance products such as mobile surveillance trailer, vehicle PTZ Camera, 4G deployment dome PTZ camera, telescopic mast and security robot since 2005. It is one of the most professional CCTV surveillance system developer & manufacturer in China nowadays. Our main products apply to public security departments such as: vehicle PTZ Camera, 4G deployment dome camera, vehicle mobile lifter, vehicle mobile lighting devices, dynamic forensics system, highway patrol and rescue system, fire emergency rescue system, urban management law enforcement system, mobile commanding system, operation commanding system etc.
FAQ
Q1. Could the mobile solar cctv trailer use my own cameras ?
A1. Yes. We could provide the mobile solar trailer with internal or external cable, when you receive the equipment, you just need to install your camera on it.
Q2. How long can your solar cctv trailer last after a full charge ?
A2. The running time of the mobile cctv trailer with lights depends on the battery capacity and solar power capacity. You could tell us how many days you want the equipment last, then we would provide suitable solution with the suitable battery and solar panel.
Q3. What's the advantages of this equipment ?
A3. All in one design, no need to disassemble, easy to install and use, easy to operate.
• Rapid deployment, one person can complete the system erection in 2 minutes,meet emergency need.
• Solar power supply ensure the longer life time.
• A variety of anti-theft measures, built-in GPS positioning system.
• Real time video and voice recording.
Q4. Does your software free use ?
A4.: Sure. Our software is free use forever. And our sever could be free used for a year.
A1. Yes. We could provide the mobile solar trailer with internal or external cable, when you receive the equipment, you just need to install your camera on it.
Q2. How long can your solar cctv trailer last after a full charge ?
A2. The running time of the mobile cctv trailer with lights depends on the battery capacity and solar power capacity. You could tell us how many days you want the equipment last, then we would provide suitable solution with the suitable battery and solar panel.
Q3. What's the advantages of this equipment ?
A3. All in one design, no need to disassemble, easy to install and use, easy to operate.
• Rapid deployment, one person can complete the system erection in 2 minutes,meet emergency need.
• Solar power supply ensure the longer life time.
• A variety of anti-theft measures, built-in GPS positioning system.
• Real time video and voice recording.
Q4. Does your software free use ?
A4.: Sure. Our software is free use forever. And our sever could be free used for a year.
