Experience unparalleled control with the Sunny 512 console designed to enhance your lighting design and create stunning event
- Category: >>>
- Supplier: Guangzhou Shengyi Photoelectric Equipment Co. Ltd.
Share on (1601239063021):
Product Overview
Description
Product Description
DMX512/1990 standard, 512 DMX control channels
4 output with optical isolated withstand 2000Vrms.
1600 chase steps max imum.48 chases - up to 99steps each. Speed and cross time of each step can beset separately. Speed adjustable by music active ormanual mode
15 environment programs to output the combination,which are composed of different scenes, chases andmanual output quickly
The Data auto-saves. (Through the electronicmemory storage and it can be changed freely
16 sliders for channel, 1 slider for speed control.
High performance switching power supply, withextremely low power harmonious distortion andwide range of voltage, suit for the requirement ofdifferent country simultaneously
16Bit control for absolutely precise movement.
Packing: 2pcs/CTN @ 61.5 X 53.5 X 42 CM
Gross weight: 18.7 kg
4 output with optical isolated withstand 2000Vrms.
1600 chase steps max imum.48 chases - up to 99steps each. Speed and cross time of each step can beset separately. Speed adjustable by music active ormanual mode
15 environment programs to output the combination,which are composed of different scenes, chases andmanual output quickly
The Data auto-saves. (Through the electronicmemory storage and it can be changed freely
16 sliders for channel, 1 slider for speed control.
High performance switching power supply, withextremely low power harmonious distortion andwide range of voltage, suit for the requirement ofdifferent country simultaneously
16Bit control for absolutely precise movement.
Packing: 2pcs/CTN @ 61.5 X 53.5 X 42 CM
Gross weight: 18.7 kg
Detailed Images

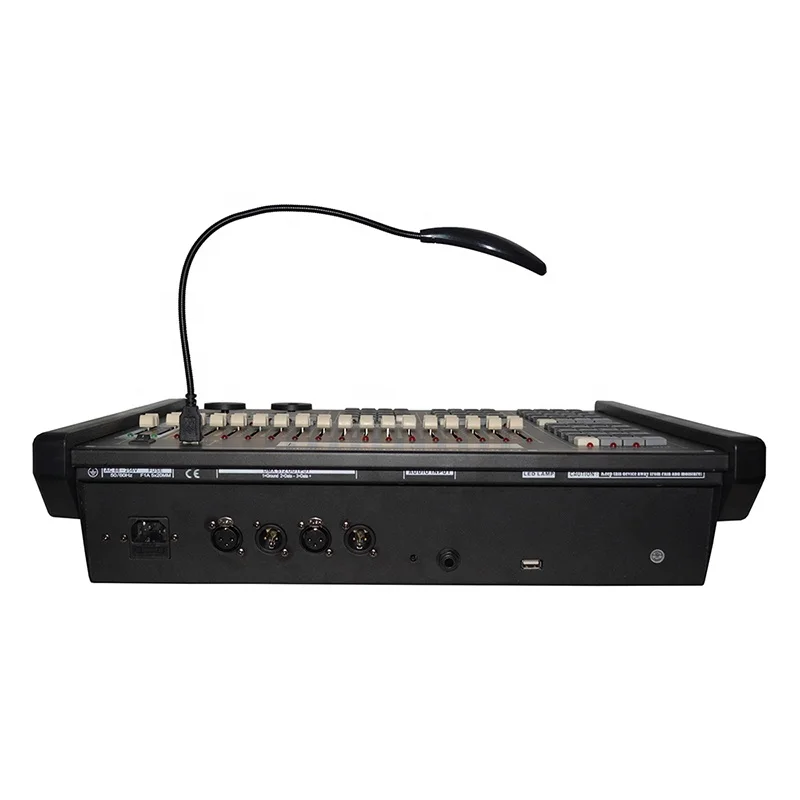

* There are 4 optical isolated DMX512 output sockets, which output same signal.
* Audio signal input socket is a ¼” mono socket with 0dB input level. When the plug is
connected, music trigger signal comes from audio input signal. When the plug is pulled out,
music trigger signal comes from the environment sound picked by the internal microphone.
* Keep pressing RESET button and switch ON console. Release RESET button when ** on
right bottom of display. It means console have been reset to factory default setting.
* Audio signal input socket is a ¼” mono socket with 0dB input level. When the plug is
connected, music trigger signal comes from audio input signal. When the plug is pulled out,
music trigger signal comes from the environment sound picked by the internal microphone.
* Keep pressing RESET button and switch ON console. Release RESET button when ** on
right bottom of display. It means console have been reset to factory default setting.
2. INTRODUCTION
User manual of lighting fixture will indicate it is 8Bit X/Y or 16Bit X/Y and the attribute
of the corresponding channel.
1. Press SET X/Y key, the indicating light will ON to enter X/Y set state.
2. Use lighting fixture number plate to choose lighting fixture otherwise the setting will
valid for all 32 groups lighting fixtures
3. Use modulation wheel to choose target edit item.
4. Use modulation wheel to choose the value of the corresponding channel, range: .1-16,
of the corresponding channel.
1. Press SET X/Y key, the indicating light will ON to enter X/Y set state.
2. Use lighting fixture number plate to choose lighting fixture otherwise the setting will
valid for all 32 groups lighting fixtures
3. Use modulation wheel to choose target edit item.
4. Use modulation wheel to choose the value of the corresponding channel, range: .1-16,
BEFORE USE
* Before you start using this unit,please check if there is no transportation damage.Should there be any,do not use the device
and consult your dealer first.
* This device has left our factory in absolutely perfect condition and well packed. In order to maintain this condition and to
ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in
this manual.
* The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modification to the device.
* Please consider that damages caused by manual modifications to the device are not subject to warranty.
and consult your dealer first.
* This device has left our factory in absolutely perfect condition and well packed. In order to maintain this condition and to
ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in
this manual.
* The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modification to the device.
* Please consider that damages caused by manual modifications to the device are not subject to warranty.
Product video
Packing&Shipping
Flight case packing 1/1pcs for wooden case packing /pallets/wooden case packing with cartons
