JK9915 Intelligent Automatic Button Attaching Machine
- Category: >>>
- Supplier: Hangzhou Anysew Garment Equipment Co. Ltd.
Share on (1601239074361):
Product Overview
Description
Application scope
Jeans,cotton clothing,baby clothing, luggage,leather,down jacket, automotive industry, rainproof.

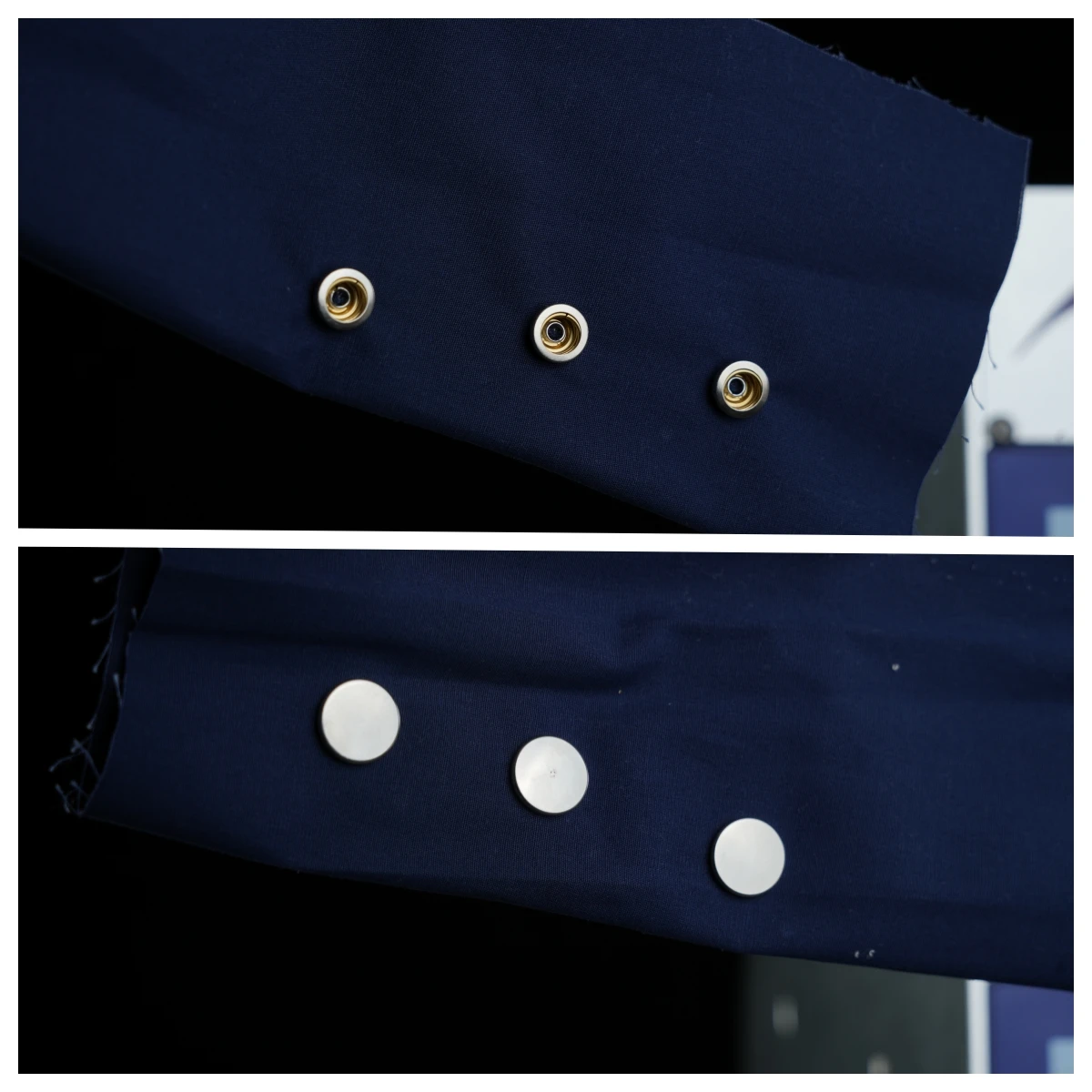

Applicable Scope of Snap Button (mm)
Top button (outer diameter) : 5mm-22mm
Bottom button (outer diameter): 5mm-17mm
Product Description

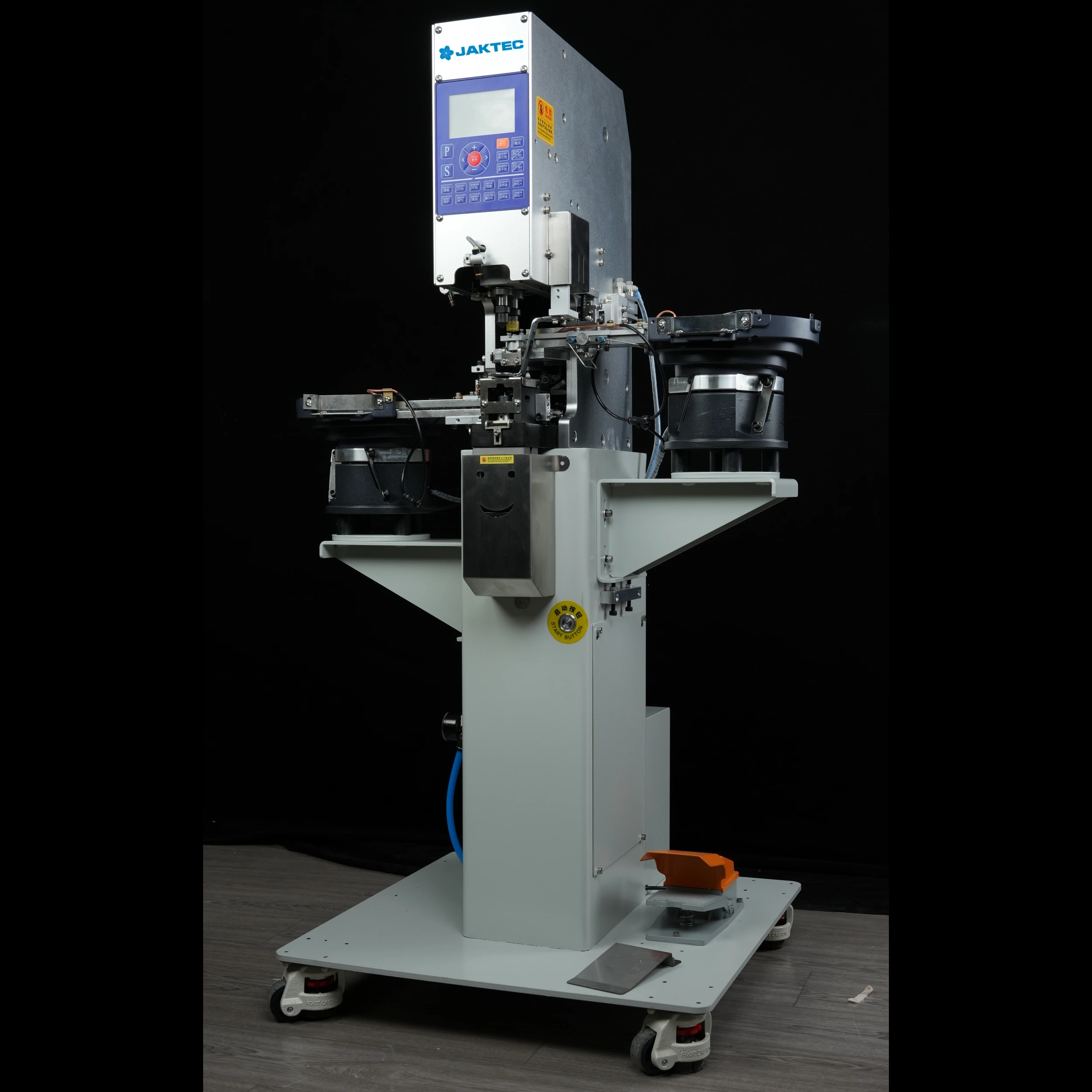

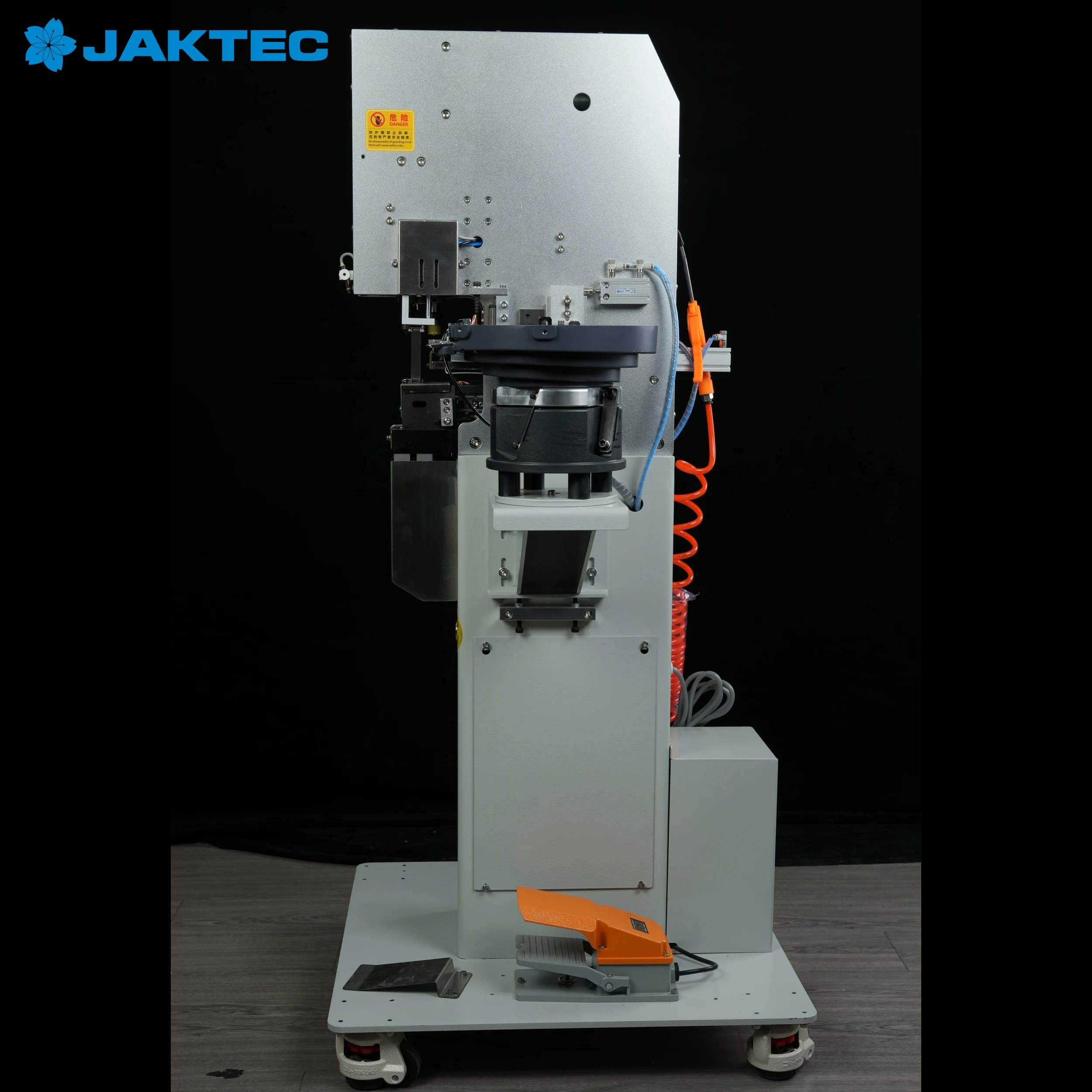

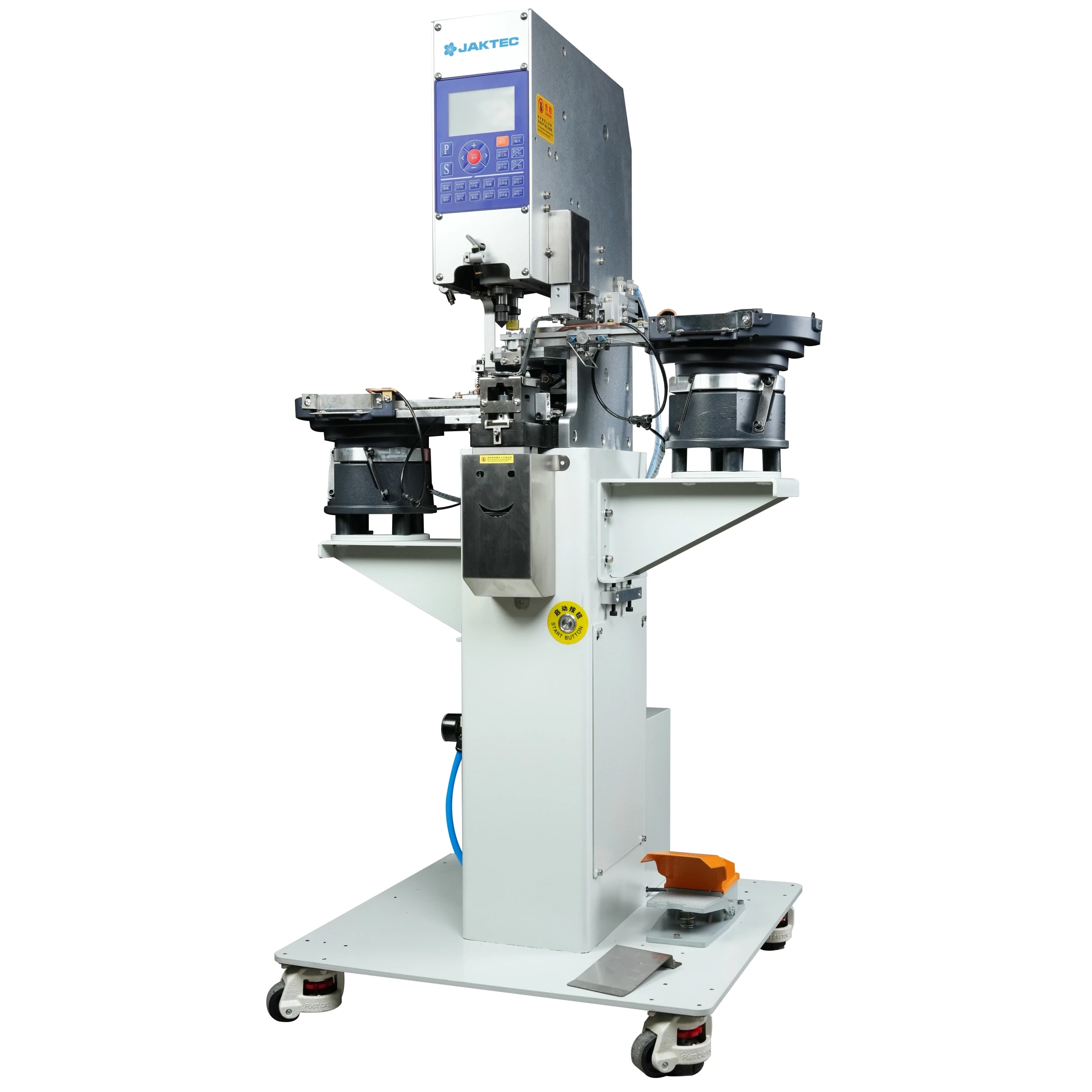

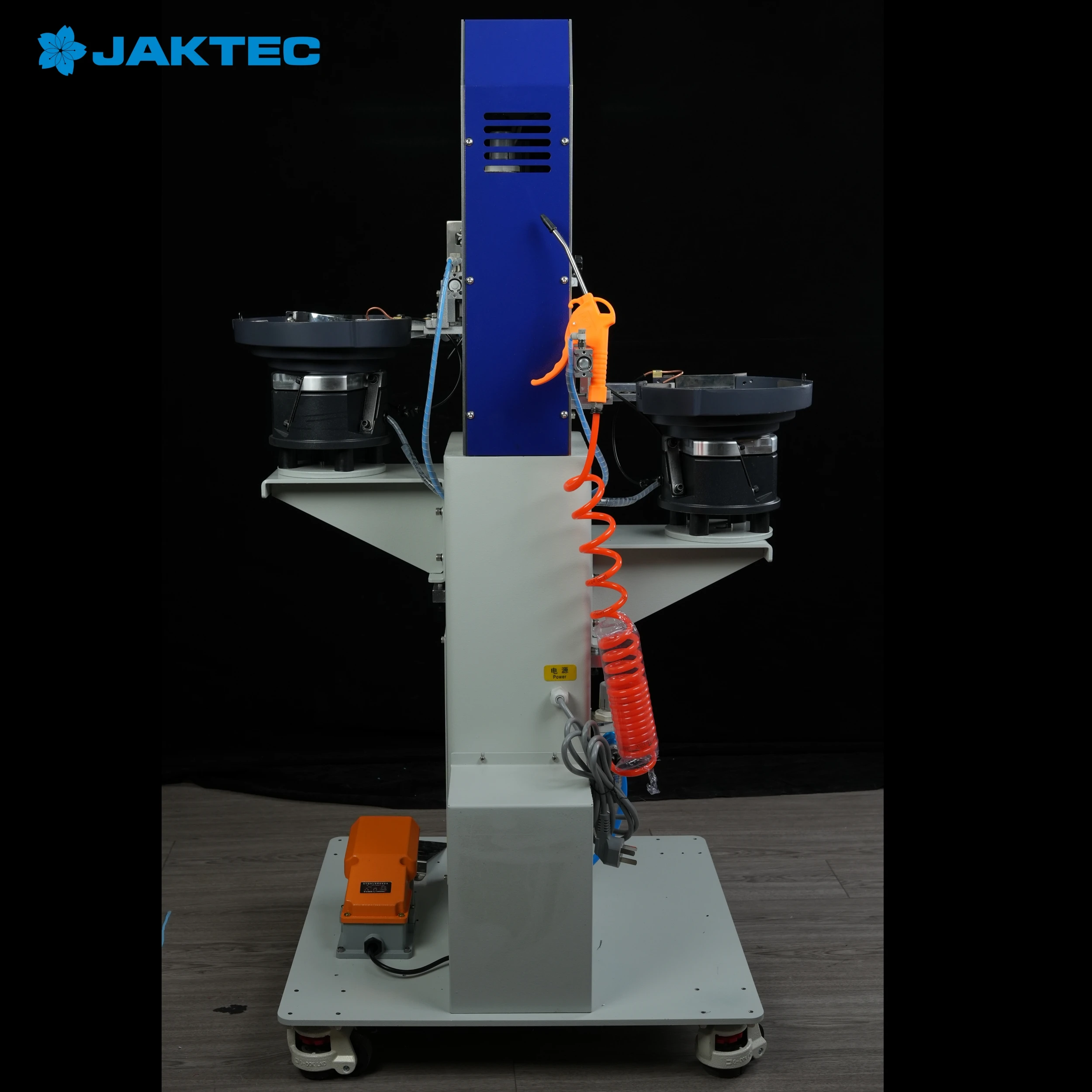

JK9915 Intelligent snap Button attaching sewing Machine with automatic feeding device
Features:
1.Debug can achieve external operations
The upper and lower pushrods are all externally designed, which improves the ease and efficiency of commissioning.
2.Track adjustment
Compatible with more than 95% of snap buttons in the market, the track can be adjusted according to the button size
3.Machine with multiple functions
Common molds in the market, easy to replace
4.Intelligent and safe
Automatic button feeding and circular protection ring reduce and avoid accidents; the upper and lower buttons are fed simultaneously, with the characteristics of quick adjustment and riveting of button holes, and safe operation.
The upper and lower pushrods are all externally designed, which improves the ease and efficiency of commissioning.
2.Track adjustment
Compatible with more than 95% of snap buttons in the market, the track can be adjusted according to the button size
3.Machine with multiple functions
Common molds in the market, easy to replace
4.Intelligent and safe
Automatic button feeding and circular protection ring reduce and avoid accidents; the upper and lower buttons are fed simultaneously, with the characteristics of quick adjustment and riveting of button holes, and safe operation.
5.Machine with multiple functions
Multiple motors instead of cylinders greatly reduces the dependence on air pressure; The push rod adopts a new elastic design to avoid the deformation of the push rod caused by repeated feeding.
6.Time saving and efficient
Continuous punching and punching,two-in-one punching and buttoning actions.
Multiple motors instead of cylinders greatly reduces the dependence on air pressure; The push rod adopts a new elastic design to avoid the deformation of the push rod caused by repeated feeding.
6.Time saving and efficient
Continuous punching and punching,two-in-one punching and buttoning actions.
Model | JK9915 |
Air Pressure | 0.4～0.5 Mpa |
Power | 950w |
Volume（CM） | 125cm*85cm*58cm |
Operation depth(MM) | ≥140mm |
Speed | 60+pcs/min |
Voltage | 220V |
Stamping drive method | electric |
Net weight | 130KG |
Gross weight | 160KG |
