Quality Assurance Commercial 2KW 100L 500L Floor Mounting Electric Hot Water Heater Boiler Cylinder Tank Storage Water Heater
- Category: >>>
- Supplier: Foshan Shengyu Thermal Energy Technology Co. Ltd.
Share on (1601239088347):
Product Overview
Description
Products Description
Quality Assurance Commercial 2KW 100L-500L Floor Mounting Electric Hot Water Heater Boiler Cylinder Tank Storage Water Heater
Model | SLm20-100GD | SLm20-200GD | SLm20-300GD | SLm20-400GD | SLm20-500GD | |||||
Capacity | L | 100 | 200 | 300 | 400 | 500 | ||||
Inner tank diameter | mm | Φ400 | Φ470 | Φ575 | Φ645 | Φ645 | ||||
Product diamter | mm | Φ450*1114 | Φ520*1516 | Φ620*1520 | Φ710*1576 | Φ710*1926 | ||||
Inner tank material | mm | Cold rolled enamel steel | ||||||||
Electric Power | kw | 2.0kw,230v,50Hz | ||||||||
Adjustable temperature range | 49℃-82℃ | |||||||||
Max.working pressure | bar | 8 | 8 | 8 | 8 | 8 | ||||
Max.testing pressure | bar | 10 | 10 | 10 | 10 | 10 | ||||
Protective cut temperature | ℃ | 97 | ||||||||
Main power line size | 3*1.5㎜²*2m | |||||||||
Heating loss | W/K | 0.85 | 0.92 | 1.29 | 1.82 | 2.12 | ||||
Standing loss | W | 35 | 38 | 45 | 51 | 65 | ||||
ERP Class | B | B | B | B | B | |||||
Optional spare parts | T&P valve(1.0Mpa/99℃),Safety valve,nagetive pressure valve | |||||||||
Mg.Anode rod | mm | Φ22*300 | ||||||||
Water connection | NPT 3/4":Cold inlet,hot outlet,drain hole,T&P valve hole,MAG rod hole | |||||||||
Packing size | mm | L:480 | L:550 | L:655 | L:745 | L:745 | ||||
W:480 | W:550 | W:655 | W:745 | W:745 | ||||||
H:1190 | H:1595 | H:1595 | H:1650 | H:2000 | ||||||
Description:
· Enamelled thick-walled boiler casing
· T&P valve included,over-heat protection

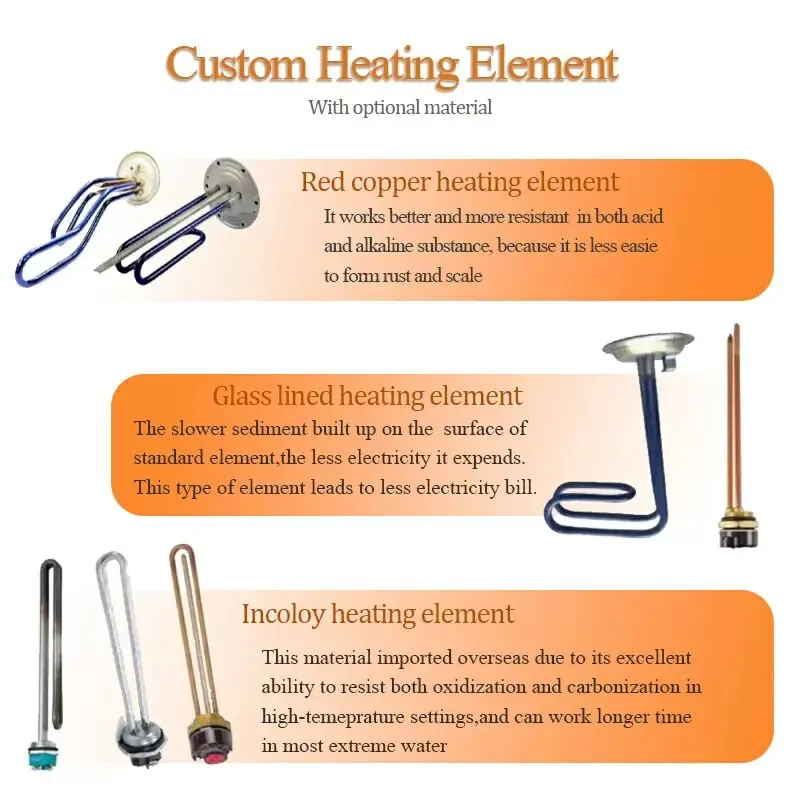

· 1 inch thread type incoloy 840 electric heating tube
· 5-year warranty for inner tank leakage
· Wet heating element directly immersed in water
· Adjustable thermostat from 35 to 82 °C
· Available with 110V or 230 V single phase
· Max. operating pressure (DHW) 6 bar
· Connection sanitary installation G 3/4’’ M
· Heating time from 10 to 60°C in 5.5 hours
· IP protection : IPX4
Features:
· Floor mounted cylinder for central DHW heating
· Simple temperature selection from 35-82 °C with adjustment on the appliance
· Rapid heat-up button for demand-dependent heating
· Low standby energy consumption
· Blue enamel coating for a long service life
· Enamelled thick-walled boiler casing
· T&P valve included,over-heat protection
· 1 inch thread type incoloy 840 electric heating tube
· 5-year warranty for inner tank leakage
· Wet heating element directly immersed in water
· Adjustable thermostat from 35 to 82 °C
· Available with 110V or 230 V single phase
· Max. operating pressure (DHW) 6 bar
· Connection sanitary installation G 3/4’’ M
· Heating time from 10 to 60°C in 5.5 hours
· IP protection : IPX4
Features:
· Floor mounted cylinder for central DHW heating
· Simple temperature selection from 35-82 °C with adjustment on the appliance
· Rapid heat-up button for demand-dependent heating
· Low standby energy consumption
· Blue enamel coating for a long service life
Recommend Products
Customer Feedback
Company Profile
Global Customers
Testing and certification
FAQ
Q1 Are you a manufacturer?
A: Yes, we are a professional Electric Water Heater manufacturer with rich experience and complete R&D,production,sales and
service supply.
Q2: What is your main product?
Answer: Our main products include DC variable frequency heat pumps, air source heat pump water heaters, swimming pool heat
pumps,and EVI heat pumps in cold areas.
Q3: How to place an order?
Answer:Please send us an inquiry or contact us through online services; after receiving your inquiry, we will reply to you
Catalogs,quotations and other information you need.
Q4: Do you provide OEM/ODM customized manufacturing services?
Answer: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce European standard heat pumps under your brand
according to yourspecial needs.
Q5: Can I apply to become your heat pump distributor/distributor?
A: Yes, we are currently looking for more heat pump distributors/distributors worldwide, who can distribute our heat pump products
in local countries/regions.
Q6： I need to buy in large quantities. Can you provide sample service?
Yes, we can provide sample service, and we have engineers to help you solve installation problems
A: Yes, we are a professional Electric Water Heater manufacturer with rich experience and complete R&D,production,sales and
service supply.
Q2: What is your main product?
Answer: Our main products include DC variable frequency heat pumps, air source heat pump water heaters, swimming pool heat
pumps,and EVI heat pumps in cold areas.
Q3: How to place an order?
Answer:Please send us an inquiry or contact us through online services; after receiving your inquiry, we will reply to you
Catalogs,quotations and other information you need.
Q4: Do you provide OEM/ODM customized manufacturing services?
Answer: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce European standard heat pumps under your brand
according to yourspecial needs.
Q5: Can I apply to become your heat pump distributor/distributor?
A: Yes, we are currently looking for more heat pump distributors/distributors worldwide, who can distribute our heat pump products
in local countries/regions.
Q6： I need to buy in large quantities. Can you provide sample service?
Yes, we can provide sample service, and we have engineers to help you solve installation problems
