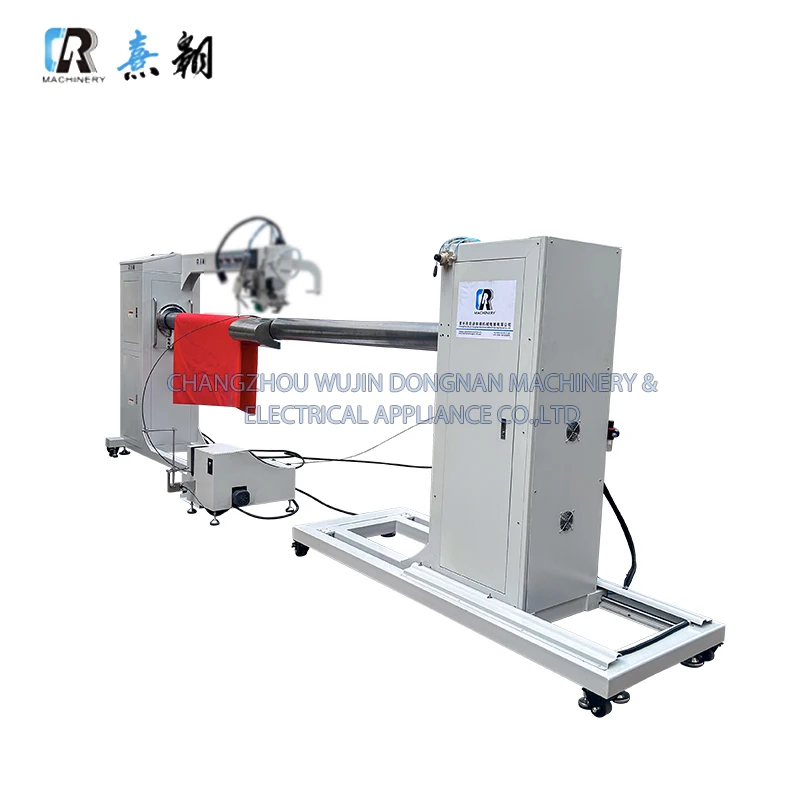

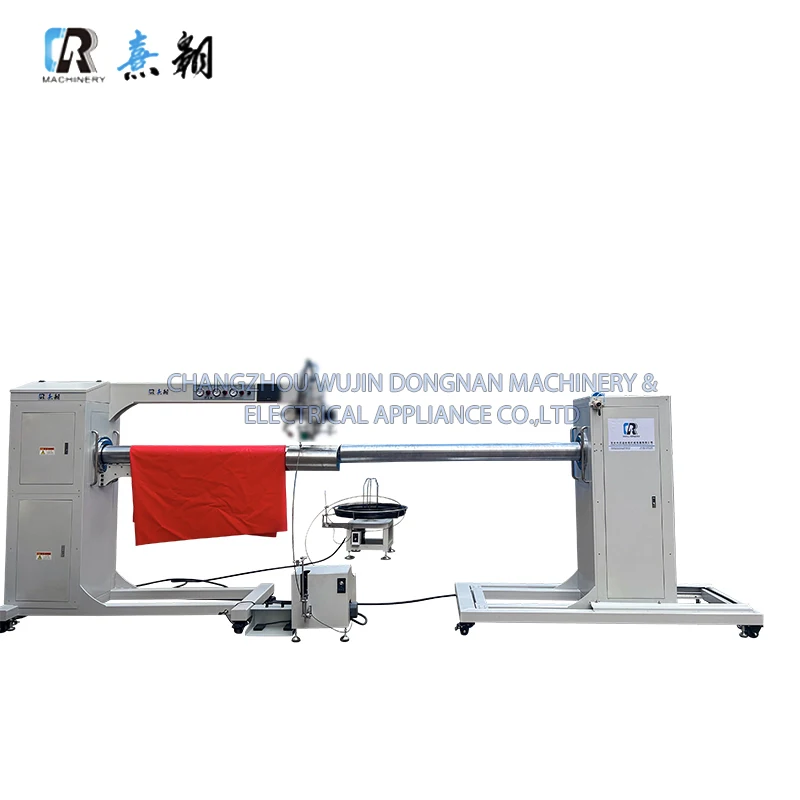

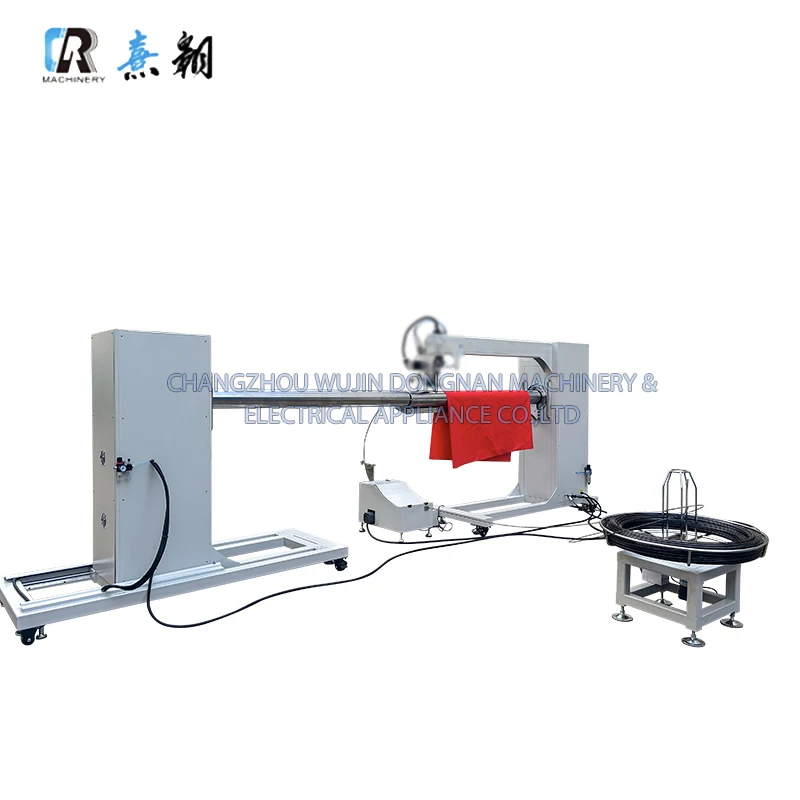

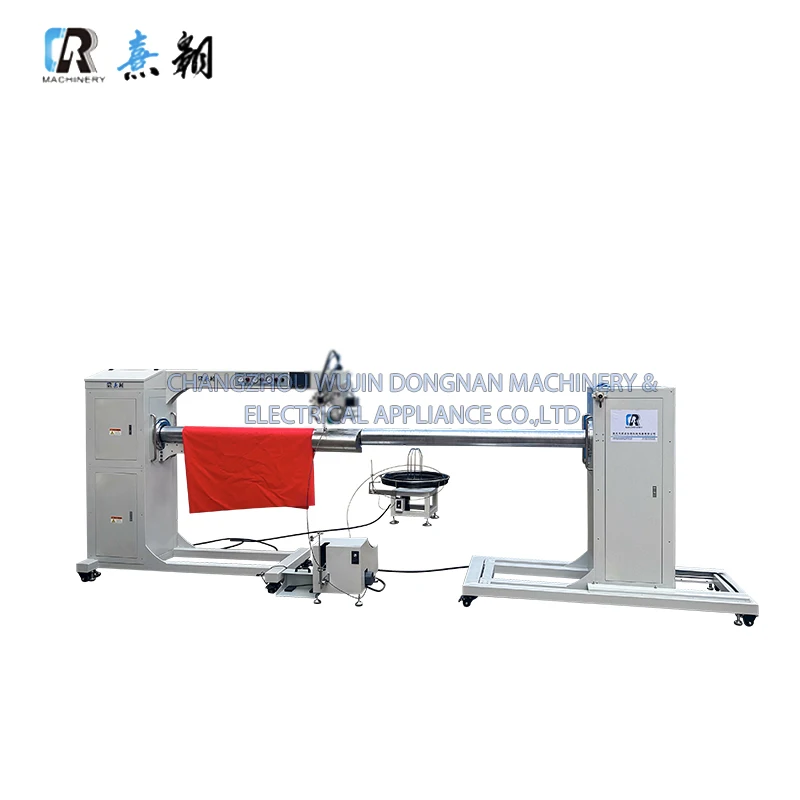

Hot Air Ducting Welder machine with Reinforced Tape PVC Ventilation Hose Making Machine

Share on (1601239126099):


Price:$39,000.00 - $45,000.00

Quantity:


Product Overview

Description



Products Details




Feature

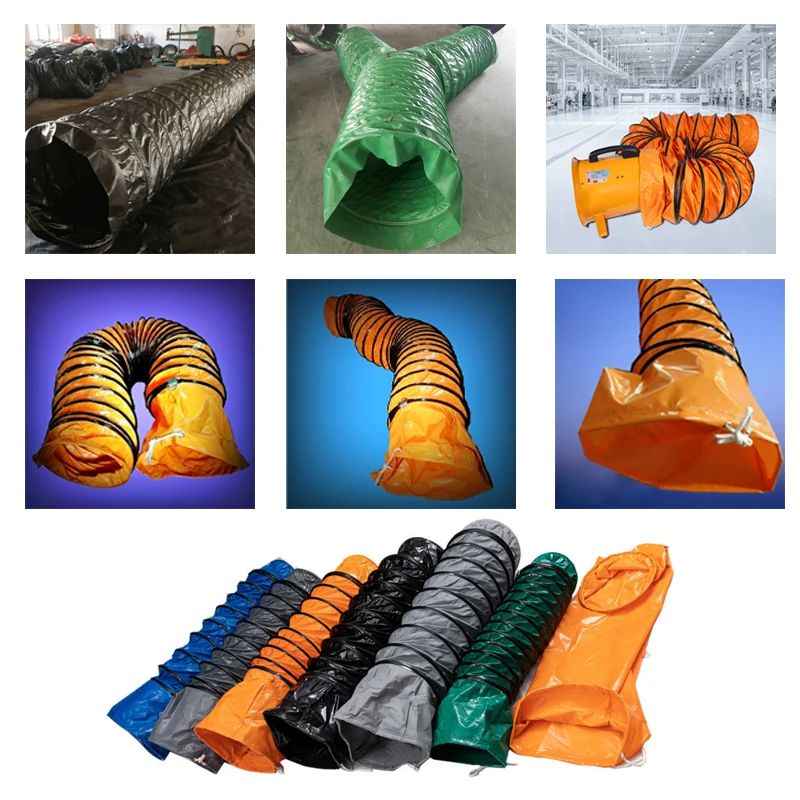

It is used to produce negative pressure ventllation pipes with a diameter of 300mm-1200mm and a maximum finished length of about 10M. The finished product can be applied to places such as mines and tunnels that require negative pressure ventilation. The equipment can realize automatic conveying of tape and steel wire, hot air welding, pitch and other functions.Production parameters such as welding production speed, tape steel conveying speed, and welding temperature can be set through the touch screen,The main and auxiliary axes are respectively equipped with servo motors to control rotation, and the finished side host can be translated by air, which is convenient for personnel to unload the finished products. High degree of automation, low technical requirements for operators, low work intensity, can significantly improve production efficiency.It is used to produce negative pressure ventllation pipes with a diameter of 300mm-1200mm and a maximum finished length of about 10M. The finished product can be applied to places such as mines and tunnels that require negative pressure ventilation. The equipment can realize automatic conveying of tape and steel wire, hot air welding, pitch and other functions.
Production parameters such as welding production speed, tape steel conveying speed, and welding temperature can be set through the touch screen.
The main and auxiliary axes are respectively equipped with servo motors to control rotation, and the finished side host can be translated by air, which is convenient for personnel to unload the finished products. High degree of automation, low technical requirements for operators, low work intensity, can significantly improve production efficiency.



Parameter


Product Name
PVC Hot Air Flexible Reinforced Ducting Welding Machine
Model
CR-FX50 PLUS
Power Consumption
AC 220V 50/60 Hz
Rated Power
4KW
Rated curren
20A
Woking Speed
1m-10m/min
Working pressure
0.4-0.5Mpa
Width of sealing
30-50mm
Finished duct length
10m
Hot Air Temperature
up to 750 °CC
Machine size
7000*1000*2200mm
Net weight
1500-2000KG


Application


CR-FX50 PLUS is specifically designed to weld flexible mine ventilation reinforced ducting or tubing.
This machine will weld reinforced tubes from 300MM to 1200MM diameter and can easily add a wear strip to the outside of Tube
