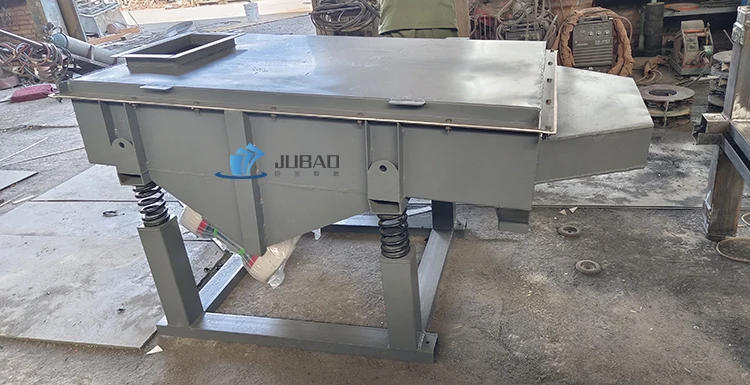

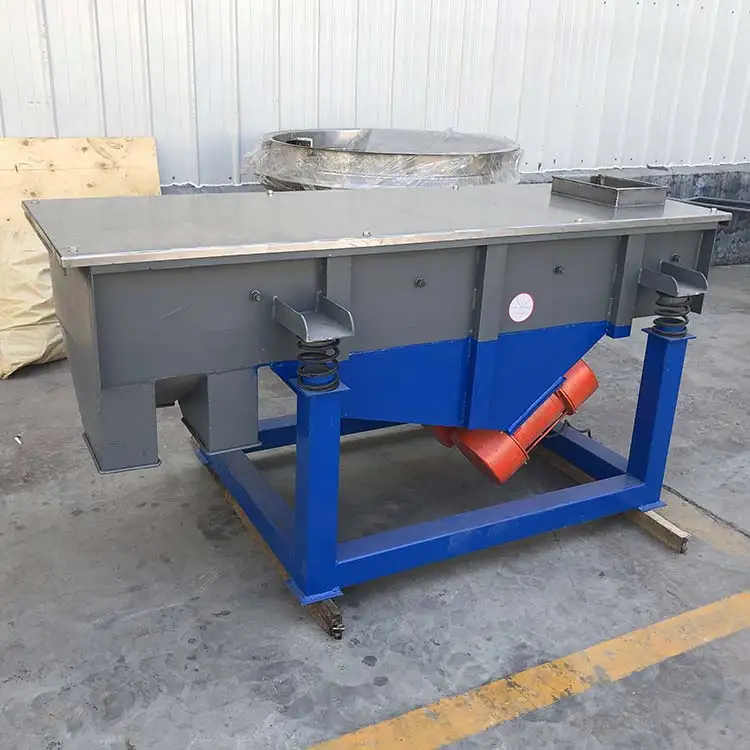

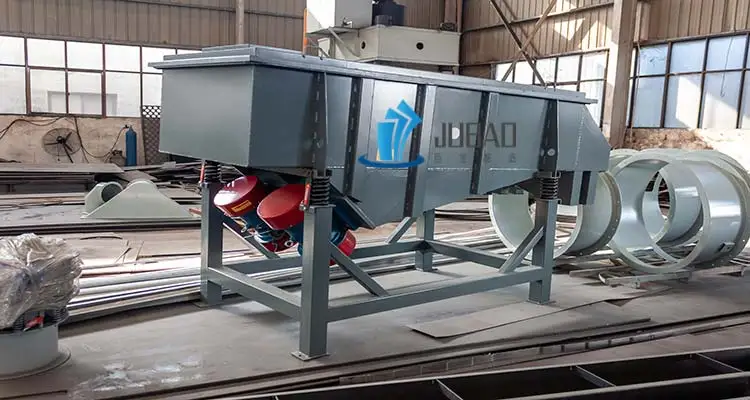

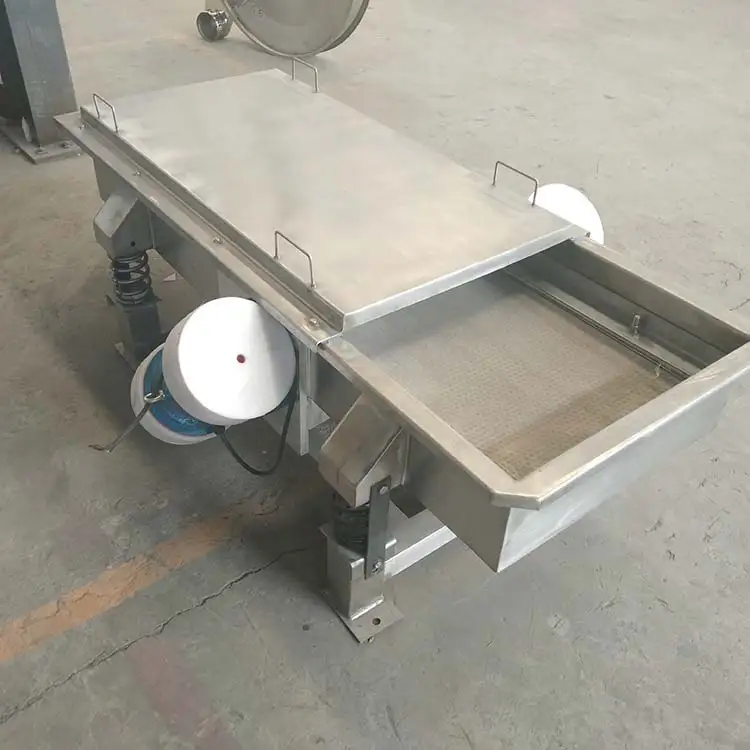

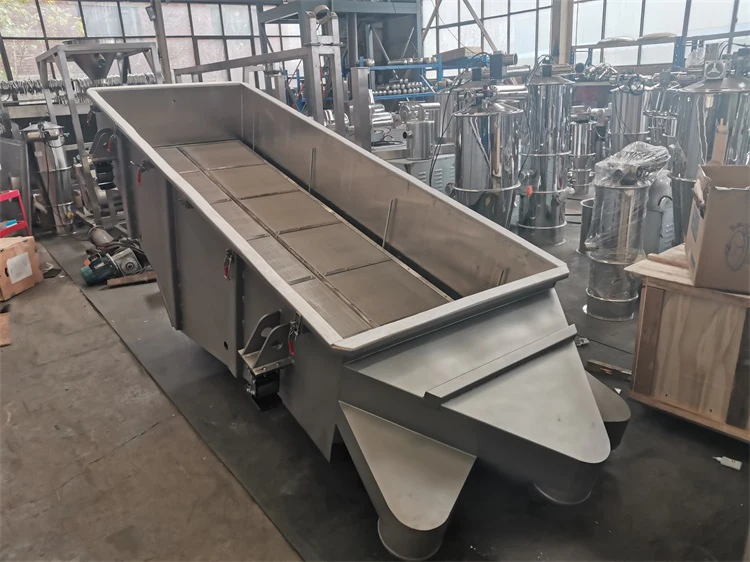

Steel linear motion enclosed light screen

Linear vibrating screen is a commonly used closed light vibrating screen equipment, which is operated by double vibrating motor drive. The material on the screen surface for a jump type of linear movement, through the multi-layer screen to produce different specifications of the sieve and sieve under the material
Linear vibrating screen is widely used in many industries because of its efficient and stable performance, and is an ideal choice for screening and grading materials.




Features of linear vibrating screen
1. Linear Motion: vibrating screen machines operate with a linear motion, where the material moves in a straight line on the sieve surface. This motion helps to effectively separate and classify the materials.
2. High Screening Efficiency: Linear vibrating sieves are renowned for their high screening efficiency. They use a mesh or perforated plate screen surface that allows fine particles to pass through w.
3. Adjustable Vibration Parameters: Linear vibrating sieves often have adjustable vibration parameters such as vibration amplitude and frequency. This adjustability enables operators to optimize the screening process for different materials, improving overall efficiency.
4. Multiple Screening Decks: vibrating screen machines can be designed with multiple screening decks stacked on top of each other.








Model
Layer
Screening
Mesh size
Particle
 Size
Capacity
Power
Double
Area(mm)
(mm)
(mm)
(t/h)
(kw)
Amplitude (mm)
DZSF-612
1 to 5
600*1200
0.02-20
≤20
≤3
0.37×2
6 to 10
DZSF-520
1 to 5
500*2000
0.02-20
≤20
≤5
0.37×2
6 to 10
DZSF-525
1 to 5
500*2500
0.02-20
≤20
≤8
0.37×2
6 to 10
DZSF-1020
1 to 5
1000*2000
0.02-20
≤20
≤12
0.75×2
6 to 10
DZSF-1025
1 to 5
1000*2500
0.02-20
≤20
≤16
0.75×2
6 to 10
DZSF-1030
1 to 5
1000*3000
0.02-20
≤20
≤20
1.1×2
6 to 10
DZSF-1224
1 to 5
1200*2400
0.02-20
≤20
≤23
1.5×2
6 to 10
DZSF-1525
1 to 5
1500*2500
0.02-20
≤20
≤28
1.5×2
6 to 10
DZSF-1530
1 to 5
1500*3000
0.02-20
≤20
≤32
2.2×2
6 to 10
More models can be customized based on your need














Details Images




Application








Company Profile




Located in China's vibration screening industry base (Xinxiang city), Jubao Intelligent Manufacturing Co.ltd. has become a leading enterprise in screening industry after over 10 years' fast development. Every year, Jubao provides more than 2000 sets screening equipment and systems to hundreds of customers in China and around the world. Mass production, Fast delivery, Stable quality, Affordable price and Intimate service has become the labels of Jubao. Jubao Intelligent Manufacturing-your excellent option for sieving, dust-free conveying and Intelligent integrated solution!














FAQ


Q1：How to provide us the detailed need.( important!!)
A1：
1. Material (name) that you want to process, with the bulk density, water content(%).
2.The necessary process capacity (per hour)
3.Material contact part, SS304, SS316L and Q235 for option.
4.The different dimension of the machine can be designed for you.
5.Additional parts, like the Mobile wheel and noise-proof base, can be easily fixed and maintained.

The proper selection of vibrating screen depends on the material, mesh size, output
required, method of input etc:
1. Name of material: _____
2. Moisture:_____%
3. Specific gravity:_____t/m3
4. Capacity:________kg/ hour
5. Screen layer:_______
6. Screen mesh size:______ mesh . ______ mesh. ______ mesh
7. Voltage:______V, Frequency:______HZ, ______phase
8. All 304 stainless steel or contact part 304 stainless steel or all carbon steel?
