F46 plastic transparent pipe FEP PFA Transparent Tube, Transparent PFA Tube Superior PFA FEP Hose

Product Overview

Description

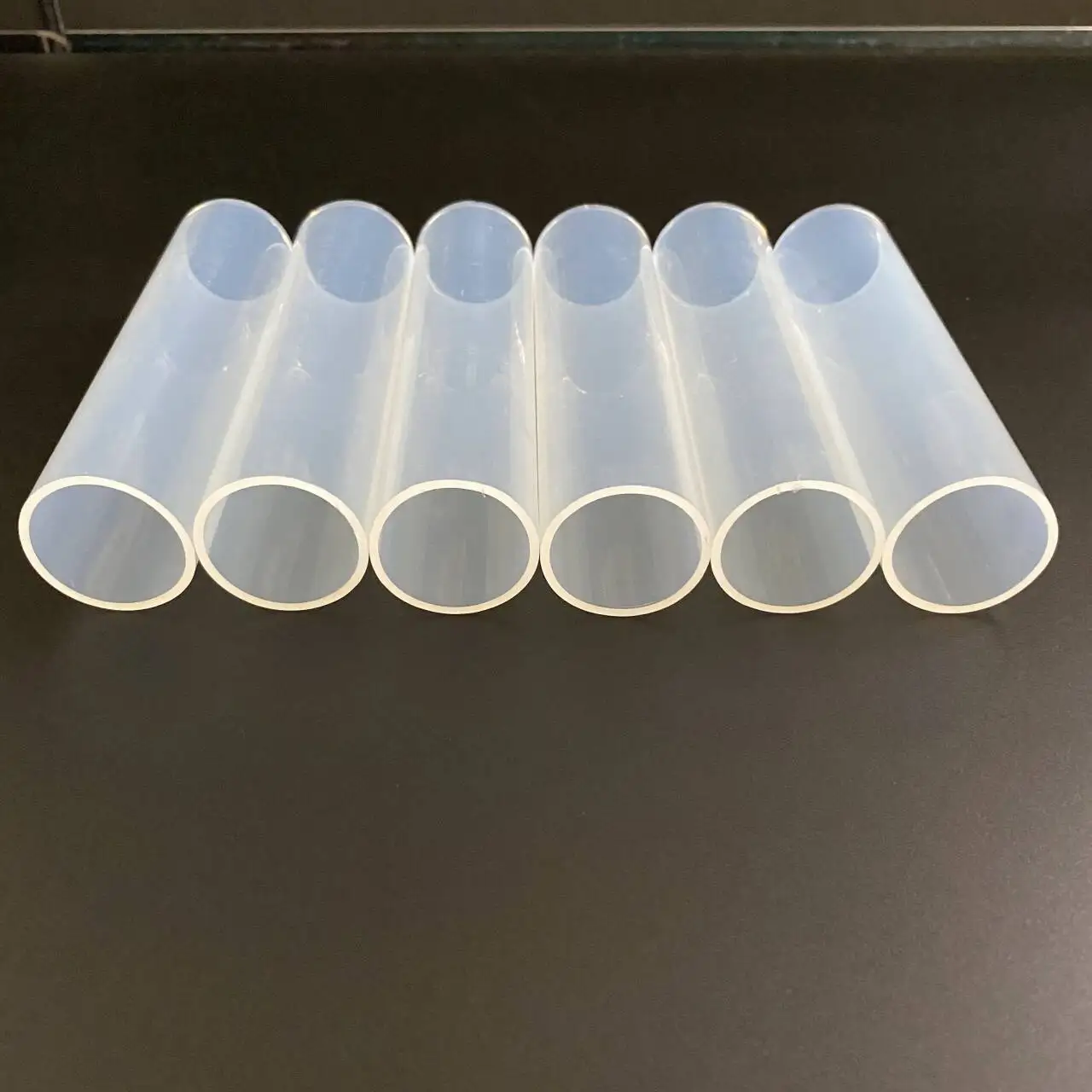

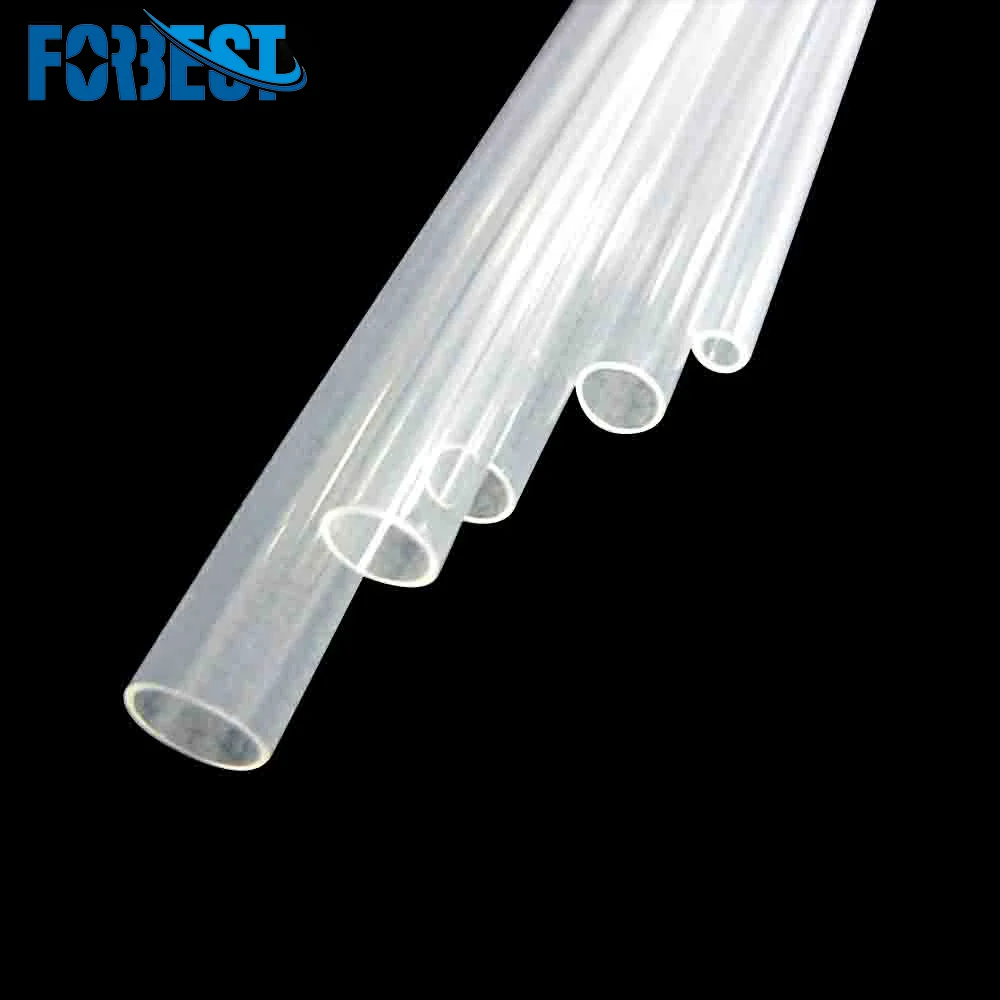

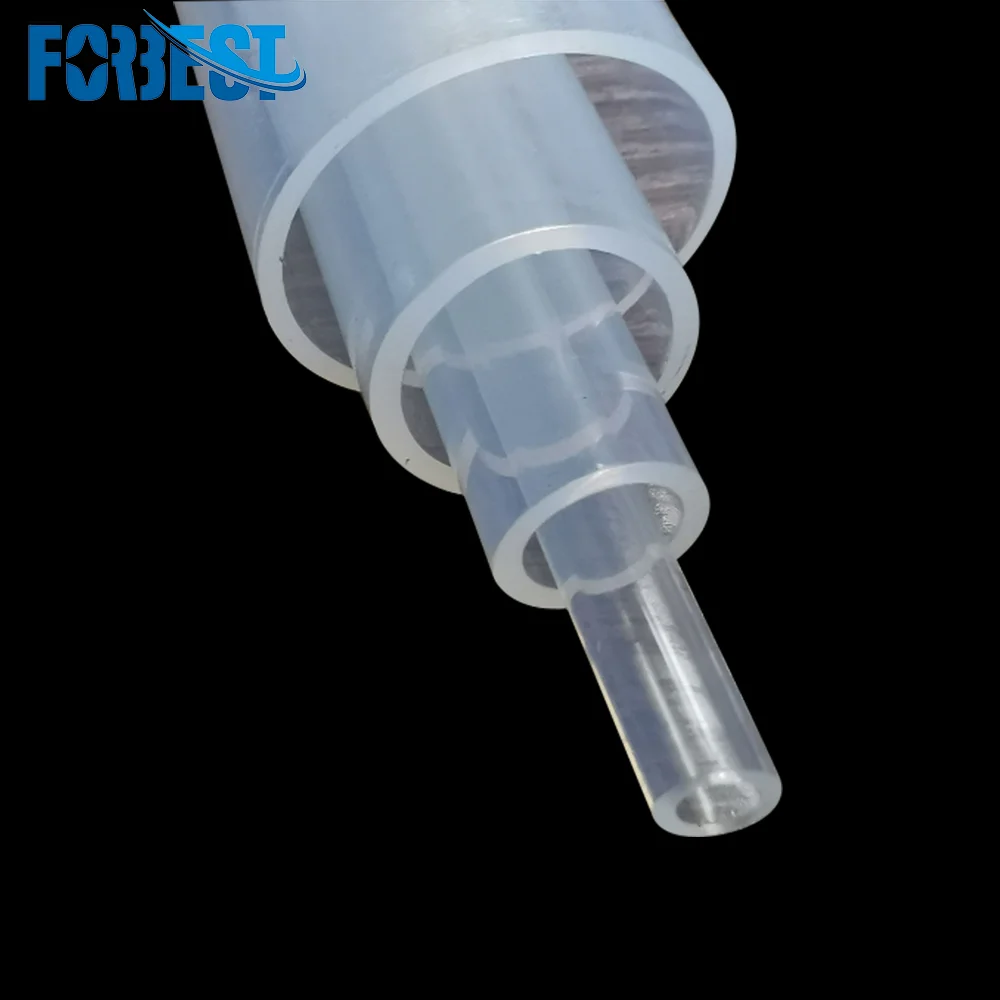

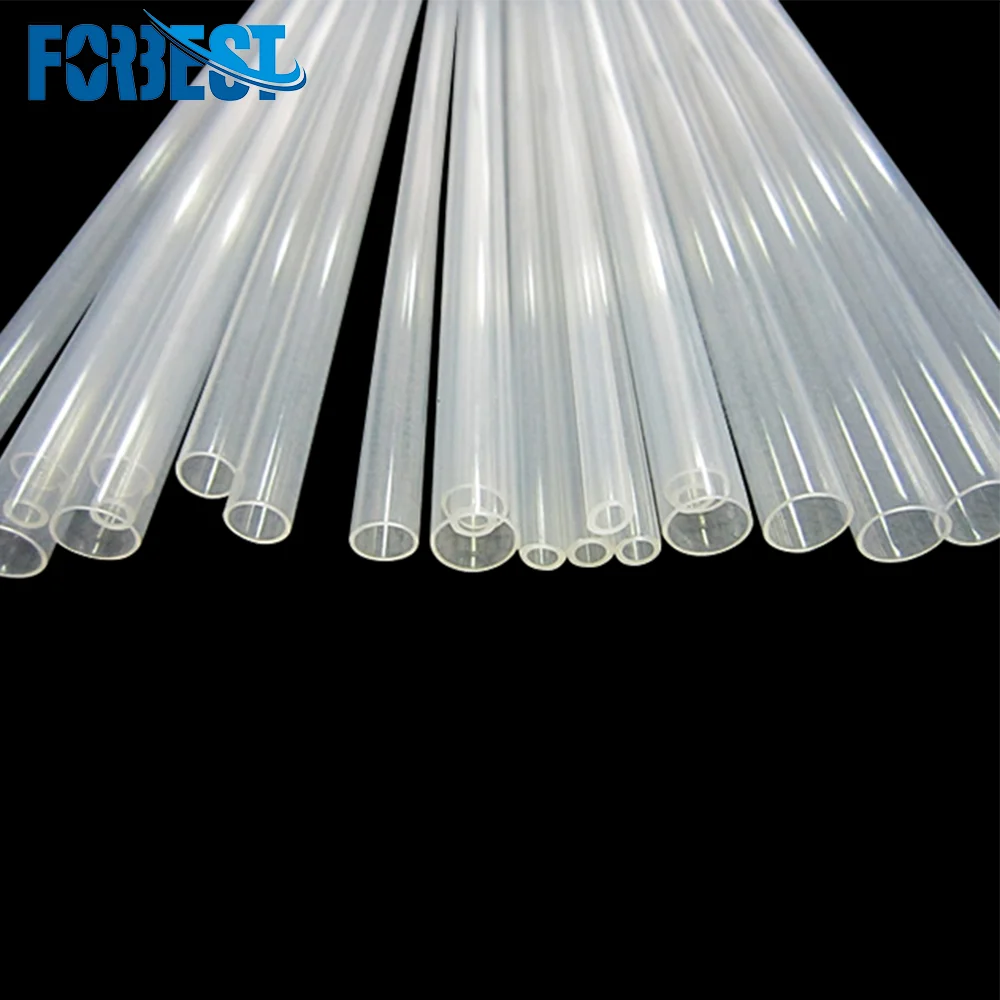

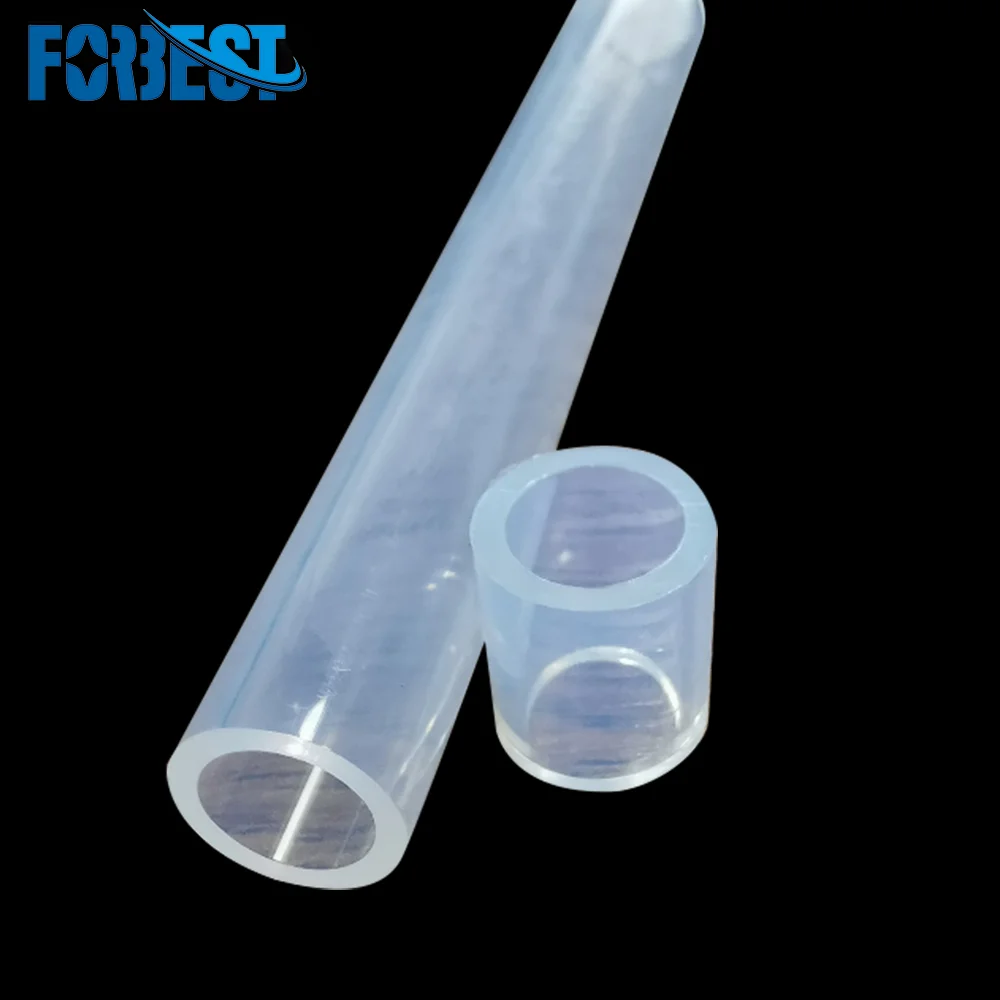

F46 plastic transparent pipe FEP PFA Transparent Tube, Transparent PFA Tube Superior PFA FEP Hose



Physiological

High transparency

Low refractive index in all plastics

Weather resistance

Long-term exposure to ozone and sunlight

Easy secondary processability

Can be self-sealing, self-welding, can be turned over, Can be

made to coil



Transparent FEP tubing is a highly versatile and reliable material that offers a wide range of applications in many different industries. This tubing is known for its excellent chemical resistance, high temperature resistance, and outstanding electrical insulating properties, making it a popular choice for a variety of different applications.

One of the most significant advantages of transparent FEP tubing is its transparency, which allows for easy visual inspection of fluid flow or any potential buildup or contamination within the tubing. This feature is particularly crucial in industries where hygiene is a top concern, such as the pharmaceutical and food industries.



 Usage:

· 1-Photovoltaic solar cell module cleaning tube

  2-Semiconductor manufacturing equipment

  3-Heat exchanger, steam piping

  4-High-purity reagent delivery tube

  5-Various corrosive media (harsh solvents) pipelines

  6-Import and export flexible hoses for bipolar ion membrane

caustic soda production

  7-Various frequency wire and cable sheaths, slot insulation

tubes

  8-For air conditioning wiring harness assembly

  9-Full-wrapped plastic O-ring seal tube

 10-Utilization characteristics:

 11-· High and low temperature resistance

  -200 ~ 200 ℃,

 12-· Non-sticky, fight water, fight oil

 13- No fouling and stagnation inside and outside the pipe wall

·14- Electrical reliability, high insulation

 15-Dielectric constant of 60HZ-60MHZ at high and low

temperature is 2.1

 16- Even if the surface is flashed and damaged, it will not

produce conductive tracks.

· Corrosion resistance

17-Only elemental fluorine and alkali metals work with it at high

temperature, and it has no effect on all other concentrated and

dilute inorganic organic acids, alkalis and esters.

18· Low absorption

Low absorption rate <0.01%

19-Incombustibility

20-Does not burn in the air. (Oxygen Index> 95vol.%)

Specification :

Outer Diameter * Inner Diater	Outer diameter * Inner Diameter	Outer Diameter *Inner Diameter	Outer Diameter * Inner Diameter
2*1	10*8	22*20	50*46
3.2*1.6	10*9	25*22	60*54
4*3.2	12*10	32*25	80*70
5*4	12*11	32*28	90*80
6*3	16*12	32*29	100*90
6*4	16*13	36*32	110*100
8*6	16*14	36*30	120*110
8*7	20*16	40*34	130*120
10*7	20*18	40*36	140*130





FAQ



Q1 Is free samples available?

We can supply our stock free sample (also can as your requirement),the shipping cost may need on your side

Q2 What' s your MOQ?

The general MOQ is 100M ,in fact any order quantity is welcome ,so please feel free place an Trial order to us.

Q3 How & When will you deliver the goods?

We have strong cooperation with DHL, TNT, UPS, FedEx and Professional forwarder

Lead time is within 5-7workdays(or can be earlier)upon your paymant
