Price:$15,000.00 - $25,000.00

Quantity:


Product Overview

Description



Hdd Drilling Machine Horizontal Directional Drill Rigs Machine For Sale


Product Paramenters


Model
YG100A
YG130A
YG160A
YG200A
Drilling Depth
100M
130M
160M
200M
Max Drilling Diameter
400mm
600mm
750mm
900mm
Power
55kw
93kw
100kw
113kw
Engine
Diesel
Diesel
Diesel
Diesel
Weight
2700kg
3650kg
4750kg
8200kg
Dimension(mm)
3800*1600*1800
4200*1650*1980
465*1670*2040
6750*2050*2400
Please contact the sales staff for more parameters and model information!




Specification




Horizontal directional drilling machine

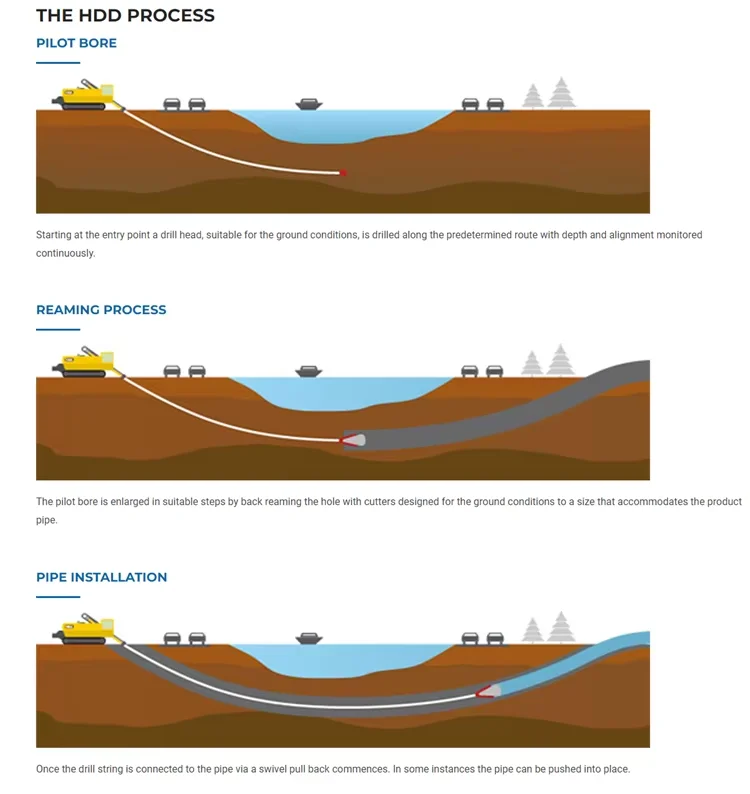

1. No ground surface excavation, suitable for urban construction, A construction machine that lays a variety of underground utilities (pipes, cables, etc.). It is widely used in the construction of flexible pipelines for water supply, electricity, telecommunications, natural gas, gas, and oil. Most non-hard rock areas can be constructed. The working environment temperature is -15℃~+45℃. Horizontal orientation technology: a new construction technology that combines the orientation technology of the petroleum industry with the traditional pipeline construction method.
2. Advantages: Fast construction speed, high construction accuracy, low cost, etc. High degree of automation, self-adaptive hard rock operation, self-contained anchoring system, automatic drill pipe stacking and extraction, automatic drill pipe link lubrication, electric shock prevention system and other automatic operation functions, ultra-depth directional monitoring, wide application range, is the future of drilling rigs trend. 3. Drilling: Suitable for steel pipes and PE pipes with pipe diameters of φ300~φ1200mm, and the maximum pipe laying length can reach 1500m. It is suitable for various soil conditions from soft soil to hard rock and has broad application prospects.




Product Description

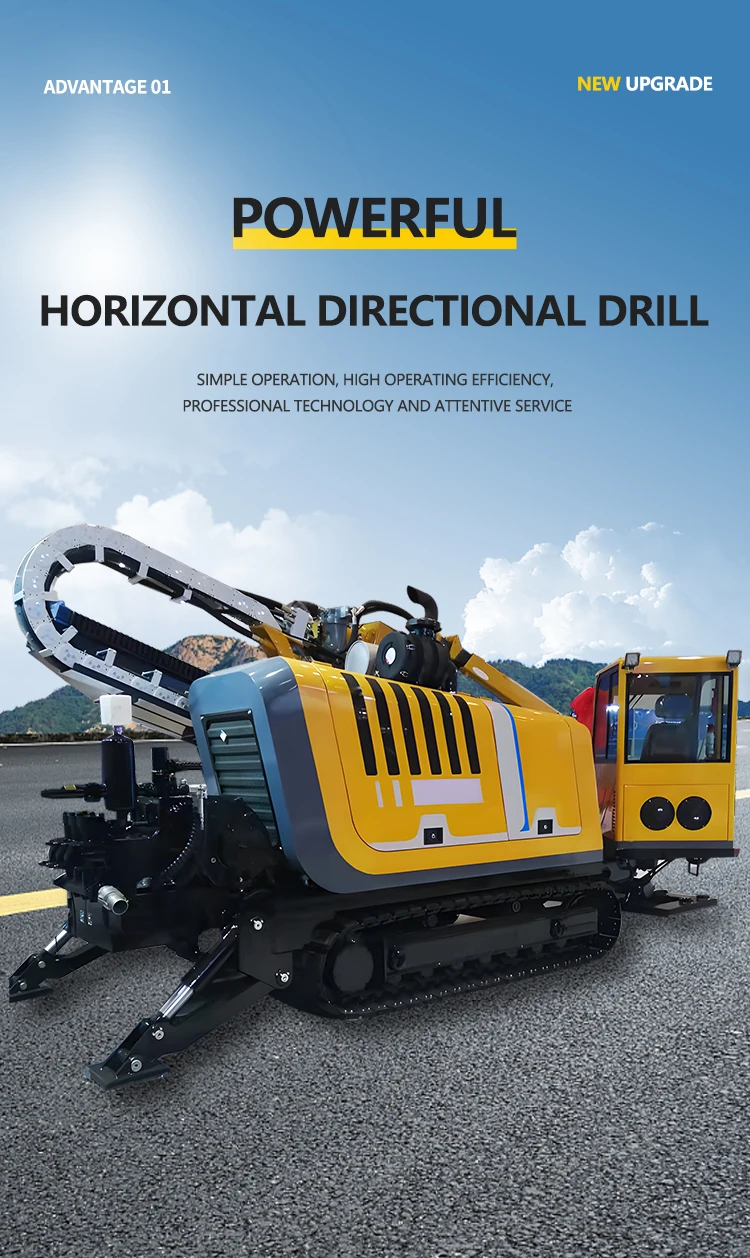

Horizontal directional drilling machine
Horizontal directional drill rig is driven with full hydraulic system, propelled with its own crawlers. Driven with duplex zero motors, the rotator could drill with two speeds with an advanced and compact structure, adopting chain feeding system driven by motor, the motor could move stably and reliably, the mast could be adjusted for the angle of drilling holes from 8°to 16°. The overall unit is in low center of gravity and good stability with graceful structure, an auxiliary crane equipped to the horizontal directional drill rig, a comfortable operation circumstance provided for the operator.
Basing on the idea of purchasing internationally, the main matching parts and auxiliary equipments, such as diesel engine, hydraulic pumps, valves, motors, reducer and key hydraulic accessories are all adopted in famous brand at home and abroad.




Packing & Delivery




Company Profile

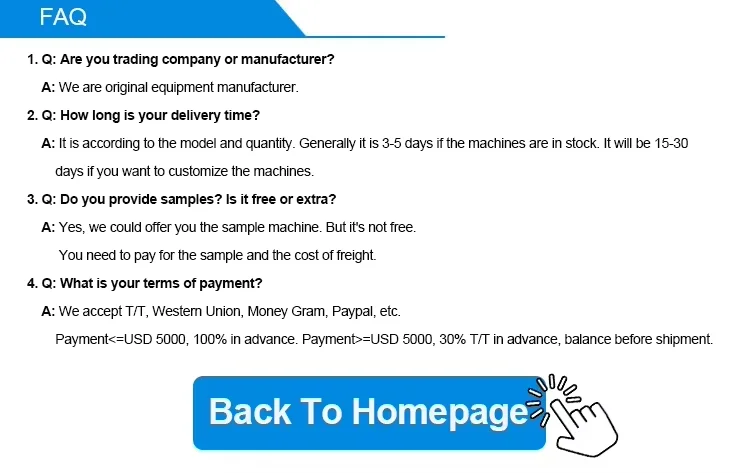

FAQ
