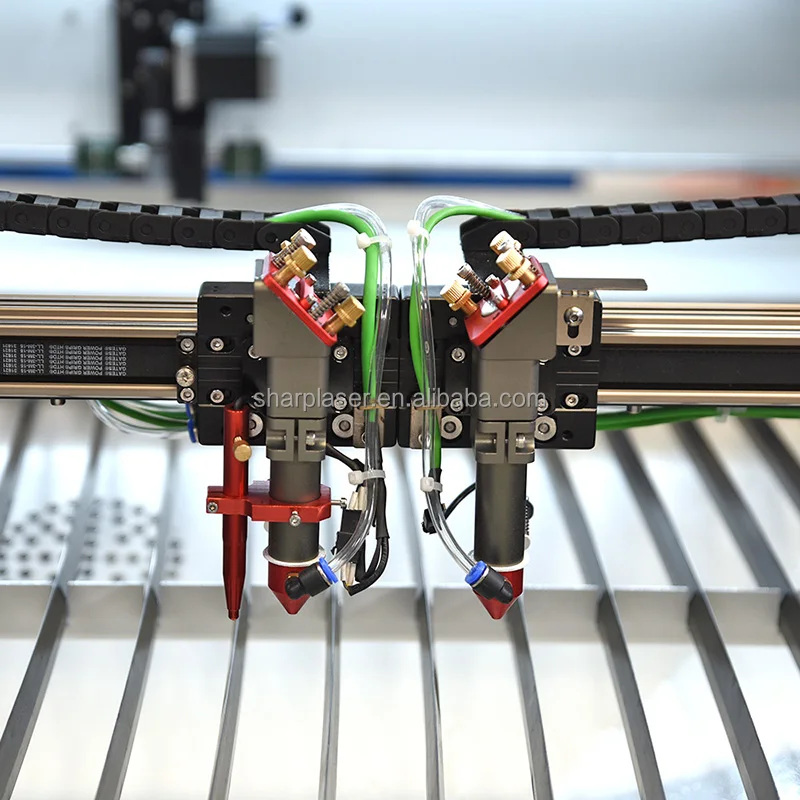

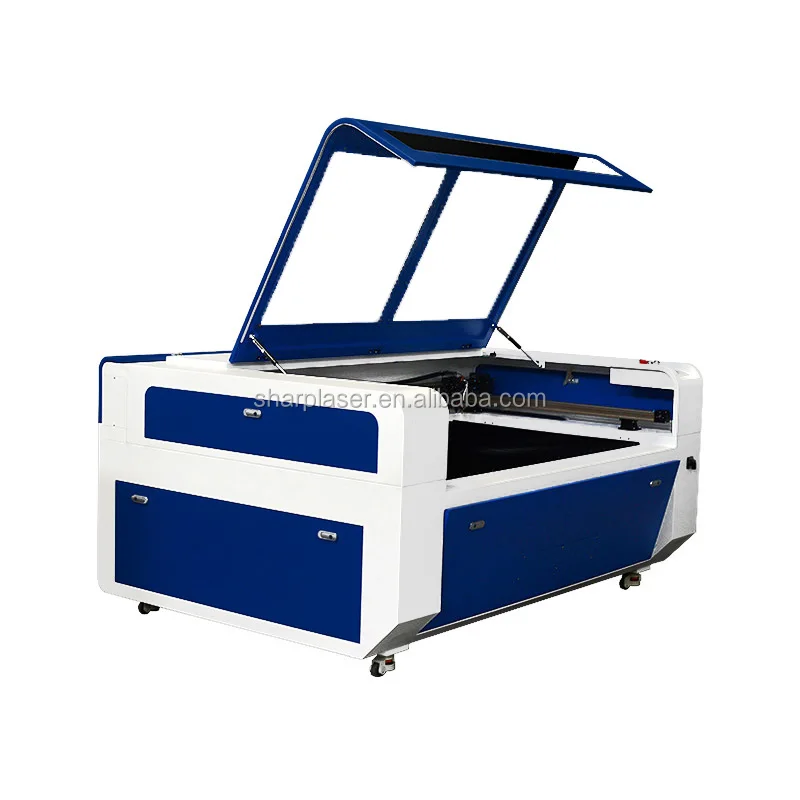

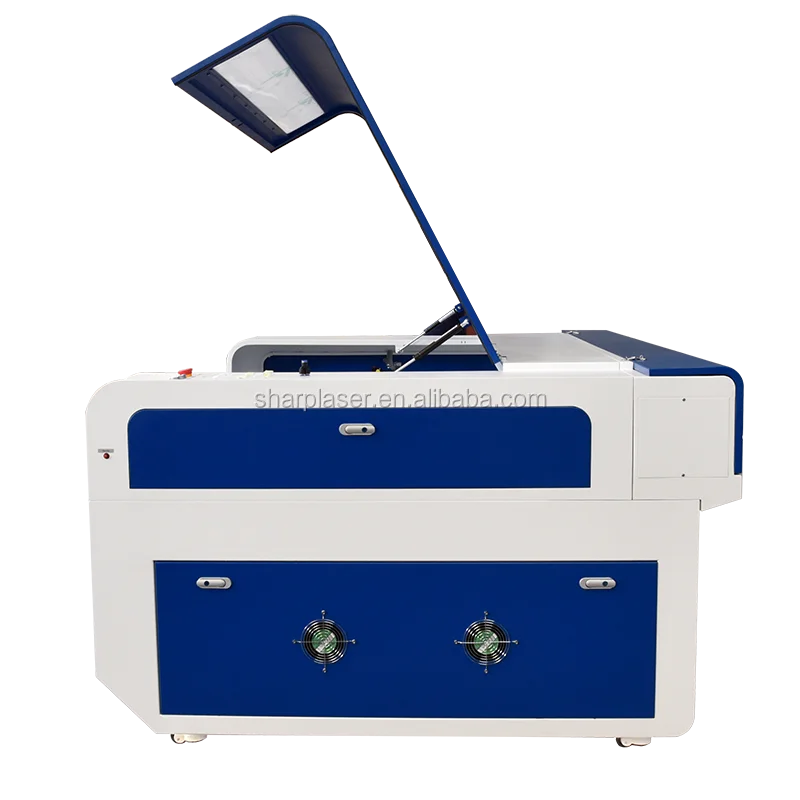

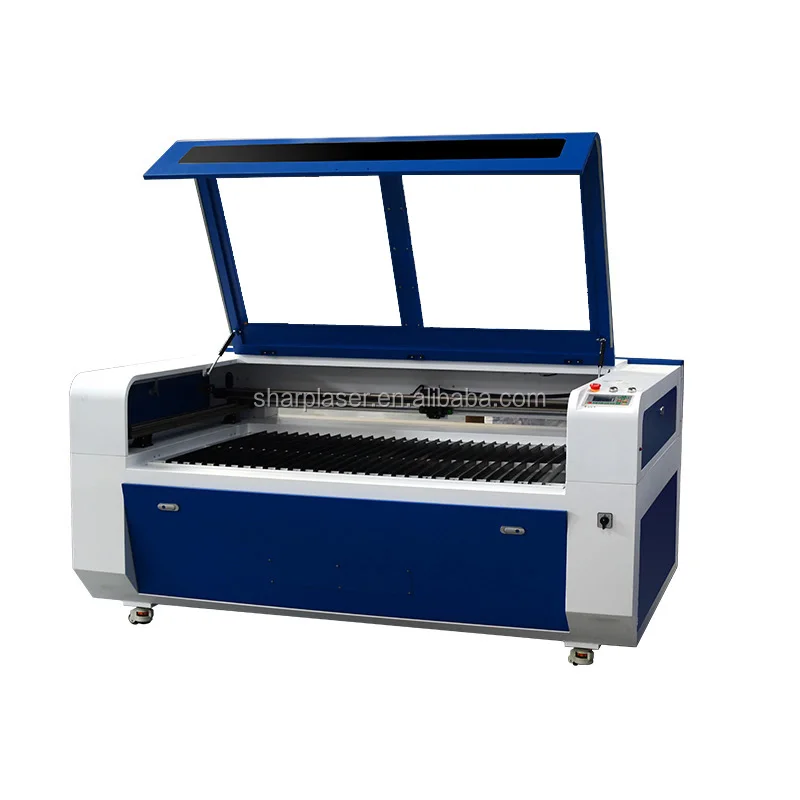

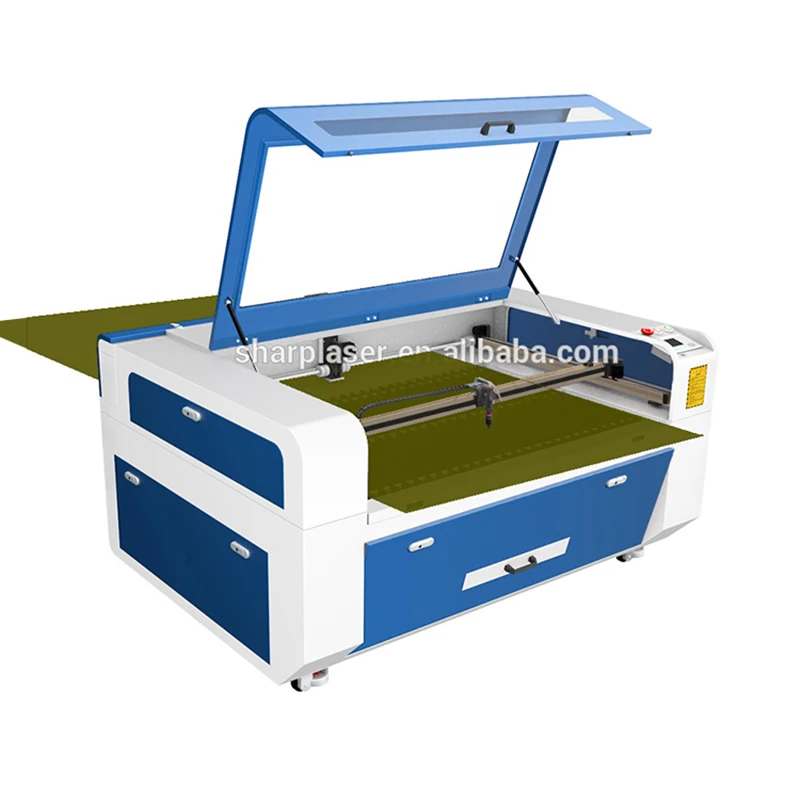

1610 1810 co2 laser cutting machine dual head

Product Overview

Description

co2 laser cutting engraving machinehina 100w 150 watts 1390 co2 plywood mdf wood stencil jigsaw puzzle paper cake toppers acrylic letter laser cutting machine price for sale plastic sheet balsa wood with rdworks v8

The laser cutter is CO2 standing laser cutting machines designed for efficient processing of plastics, wood, textiles and many more. Available in different workstations sizes with several power options, these laser cutting systems provide high-quality results at maximum speed.



RDWORKS V8 Program with 14 languages

what material can the laser handle?
Material	Engrave	cut
Acrylic	√	√
Glass	√	×
Laminates	√	√
Leather	√	√
Paper	√	√
Plastics	√	√
Stone	√	×
Textiles	√	√
Wood	√	√
Metal	x	×



Parameter
Name	CO2 laser engraving cutting machines
Model	CC0906/CC1409/CC1610
Working area	900*600/1400*900mm/1600*1000mm
Laser power	80w,100w,130w,150w
Laser type	CO2 laser tube,RECI  brand,>10000 hrs service life

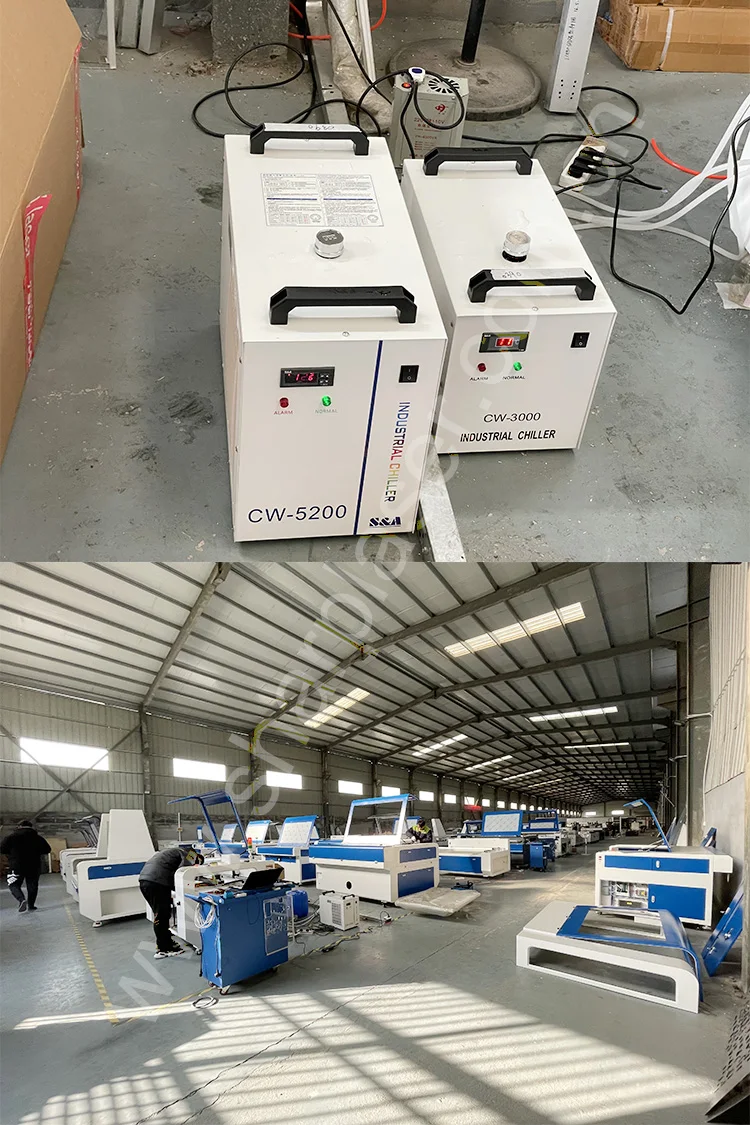

Cooling ways	Water cooling
Engraving speed	0-60000mm/min
Cutting speed	0-40000mm/min
Laser output control	0-100% controlled by software
Min engraving size	English letters,1*1mm
Scanning resolution	4000DPI
Locating accuracy	≤0.01mm
Controlling software	DSP controlling system,RDWORKS V8
Format supported	DST,PLT,DXF,AI,LAS,BMP,JPG,PNG,etc
Software environment	Windows xp/7/8/10
Compatible software	Coreldraw,Autocad
Color separation output	Yes
Slope engraving	Yes
Driving system	High precision stepper motor with belt
Auxiliary accessories	Exhaust fan,fume tubes,air pump
Working table	Blades table or Honey comb
Applicable materials	Acrylic,wood,plywood,MDF,glass,stone,plastic,rubber ,leather
Working environment        Temperature	0-45℃,Humidity5-95%(no condensate water.)
Power supply	110v/220v,50hz/60hz
Weight	360kg
Dimension	180*130*110cm





 This machine can use Wifi control, no need the wire to connect the computer.  So one computer can control many machines . Applicable materials:wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.Applicable industries:advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry.
