China manufacturer Trommel drum screen for solid waste separation separating for size screening, mineral screen trommel for sale

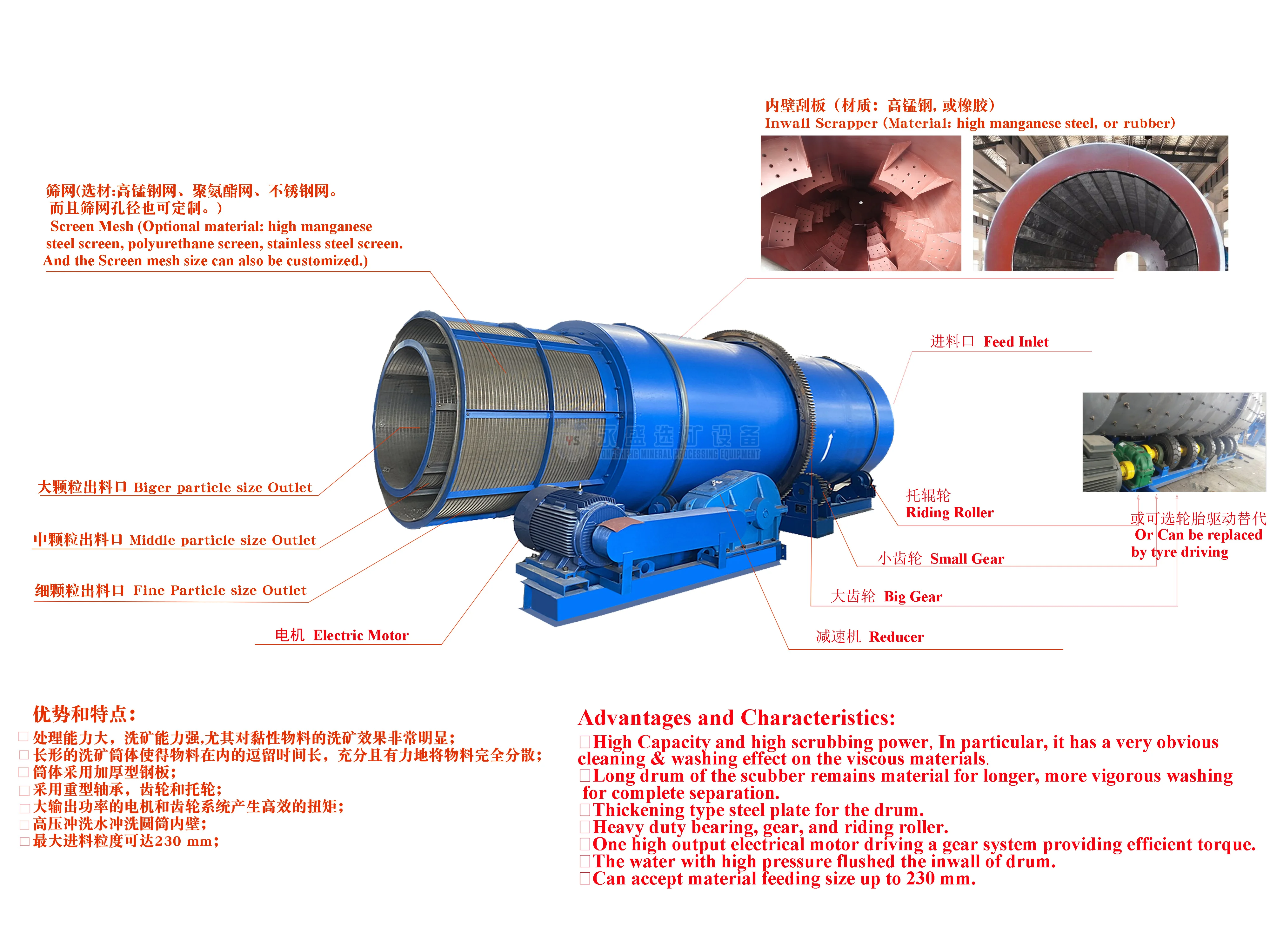

The rotary scrubber is an autogenous rotating drum scrubber, utilizing pebbles and rocks within The feed source to fracture and disintegrate clays, Agglomerates and soft oxides.
The scrubber spins slowly, similar to a giant washing machine. It churns The fines and oversize and water together, Vigorously breaking up the soil matrix as well as liberating the target mineral from tough clay, schist 's and rock.
Disintegrated material is homogeneously slurried within the drum,Whilst the autogenous load is retained within the drum by reverse flights located at the drum discharge end, Slurry and washed oversize overflows the drum discharge throat to the concentric exitTrommels. This material is then passed on to the downstream process equipment which can be in various forms to the as centrifugal Concentrator, spiral chute, jig etc.
Application & Structure
The slurry material feeds into the drum where it is vigorously scrubbed, the soil matrix is broken up and the taaarget mineral is released. The material is then screened through the rotating screen and waste is ejected. The screened material is then passed on to the concentrating modules for upgrading.
Technical Parameters
Model | Drum Size (m) | Screen size (mm) | Feeding size (mm) | Water pressure (Mpa) | Every ton of ore water required (M3/t) | Capacity (t/h) | Rotation speed (r/min) | Power (KW) | Weight (KG) |
RXT1030 | Φ1.0×3.0 | ≥5 | ≤100 | 0.4~0.5 | 1.5~4 | 20-30 | 25~28 | 15 | 4800 |
RXT1230 | Φ1.2×3.0 | ≥5 | ≤100 | 0.4~0.5 | 1.5~4 | 30-50 | 23~25 | 18.5 | 5800 |
RXT1530 | Φ1.5×3.0 | ≥5 | ≤150 | 0.4~0.5 | 1.5~4 | 70~90 | 18~22 | 22 | 6200 |
RXT1545 | Φ1.5×4.5 | ≥5 | ≤150 | 0.4~0.5 | 1.5~4 | 80~120 | 18~22 | 30 | 6900 |
RXT1560 | Φ1.5×6.0 | ≥5 | ≤150 | 0.4~0.5 | 1.5~4 | 90~130 | 18~22 | 37 | 8300 |
RXT1845 | Φ1.8×4.5 | ≥5 | ≤170 | 0.4~0.5 | 1.5~4 | 100~130 | 20~21 | 45 | 11800 |
RXT1860 | Φ1.8×6.0 | ≥5 | ≤170 | 0.4~0.5 | 1.5~4 | 110~140 | 20~21 | 45 | 12800 |
RXT2060 | Φ2.0×6.0 | ≥5 | ≤210 | 0.4~0.5 | 1.5~4 | 120~160 | 19~20 | 55 | 14800 |
RXT2265 | Φ2.2×6.5 | ≥5 | ≤230 | 0.4~0.5 | 1.5~4 | 160~180 | 19~20 | 55 | 16500 |

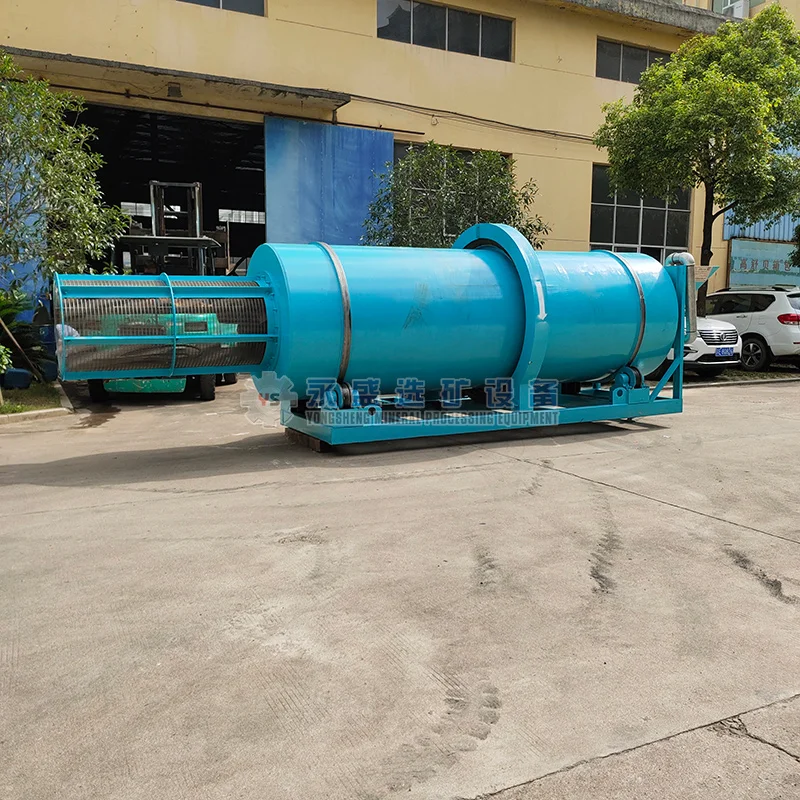

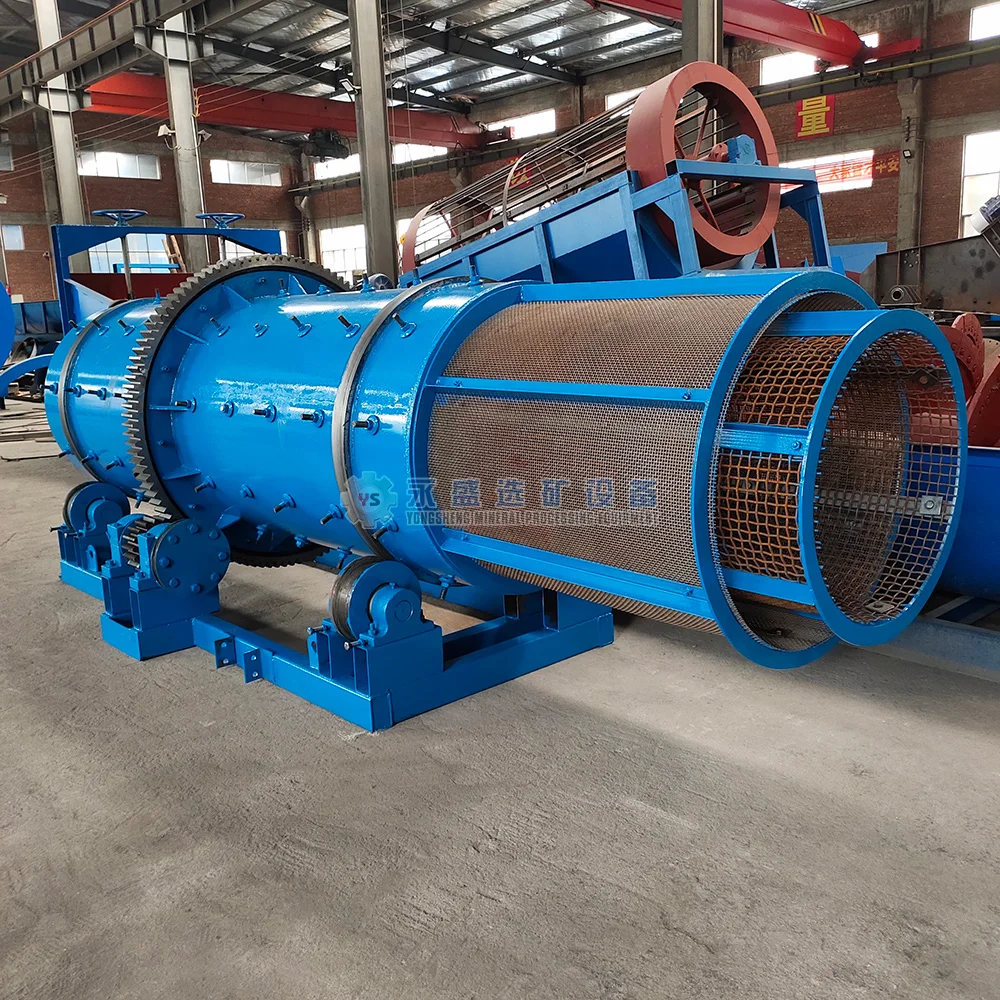

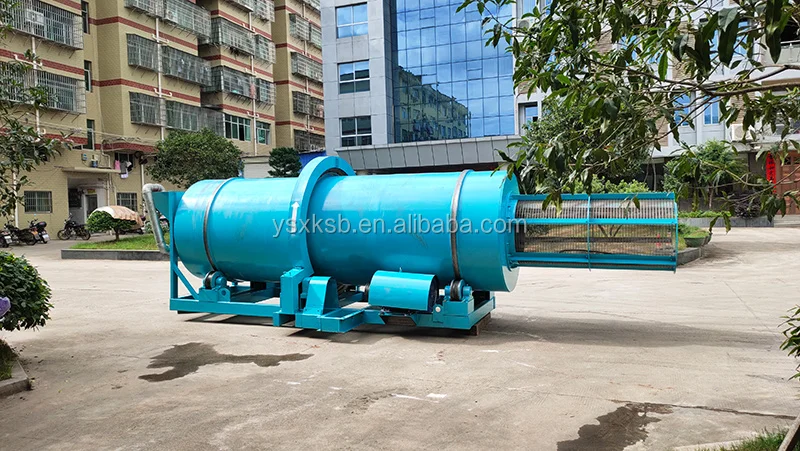

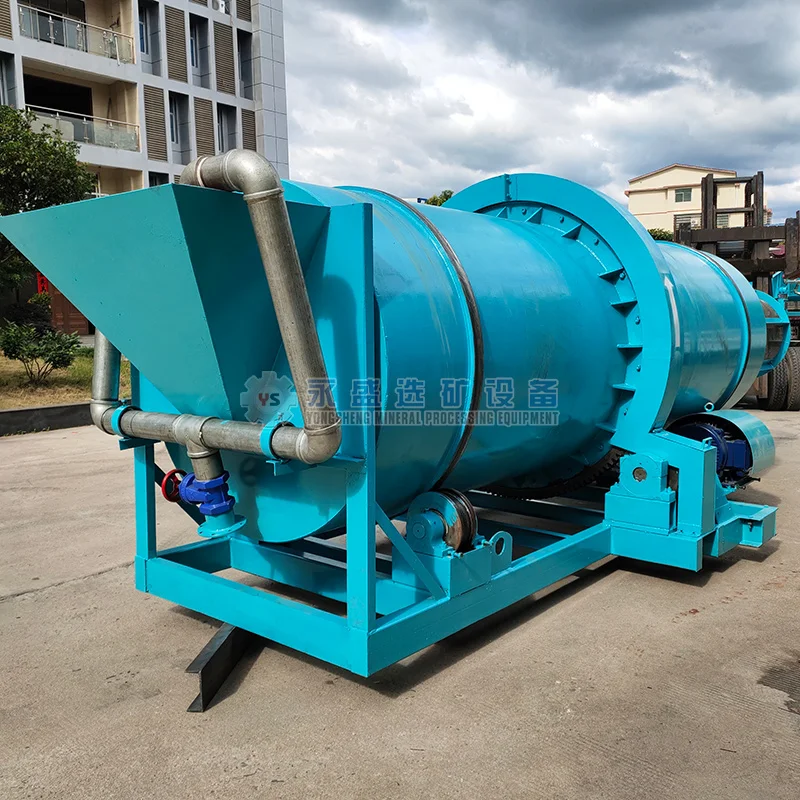

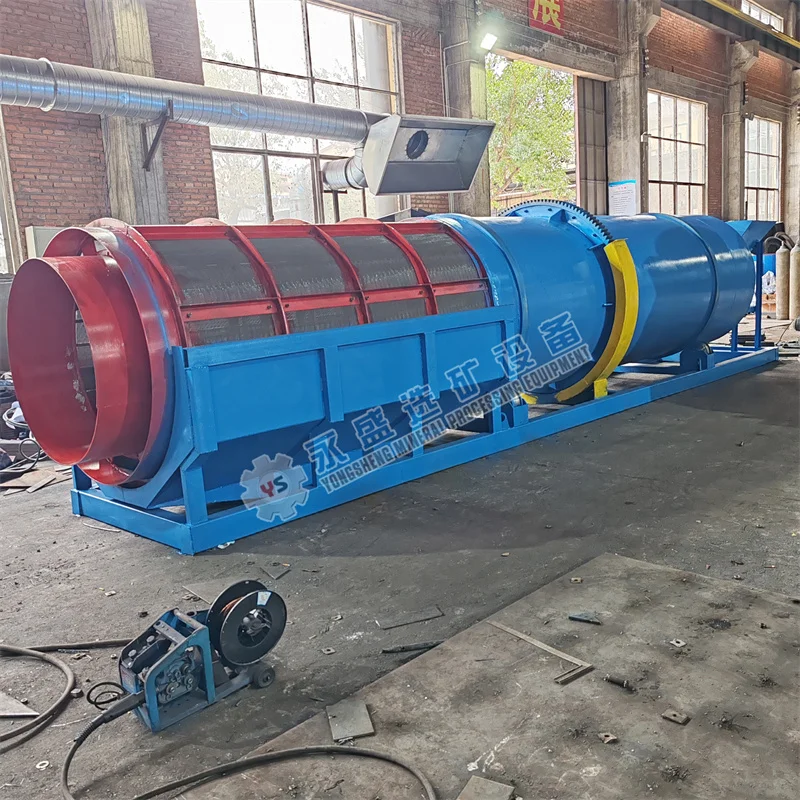

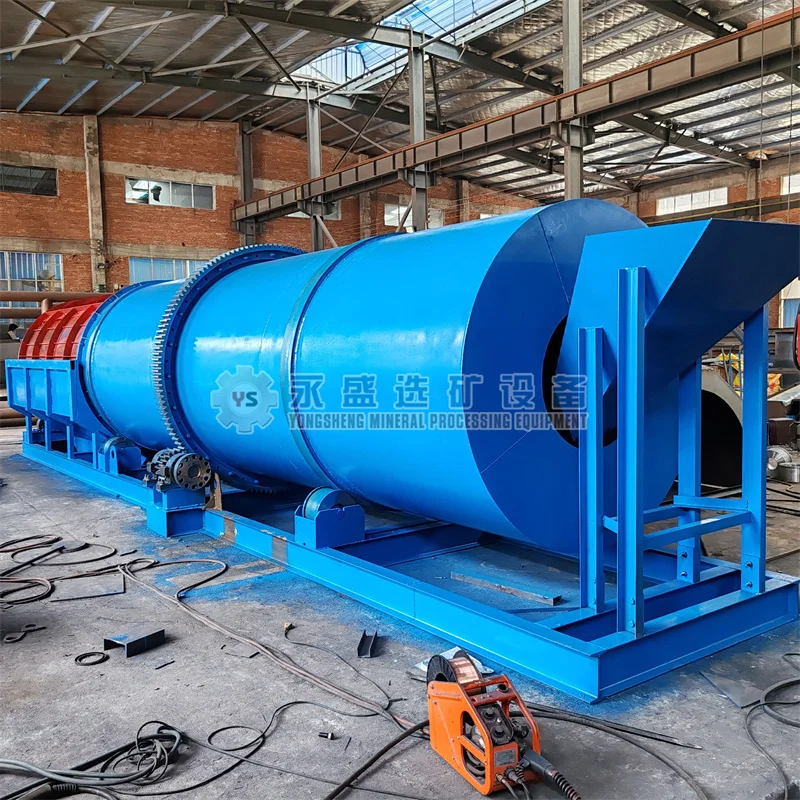

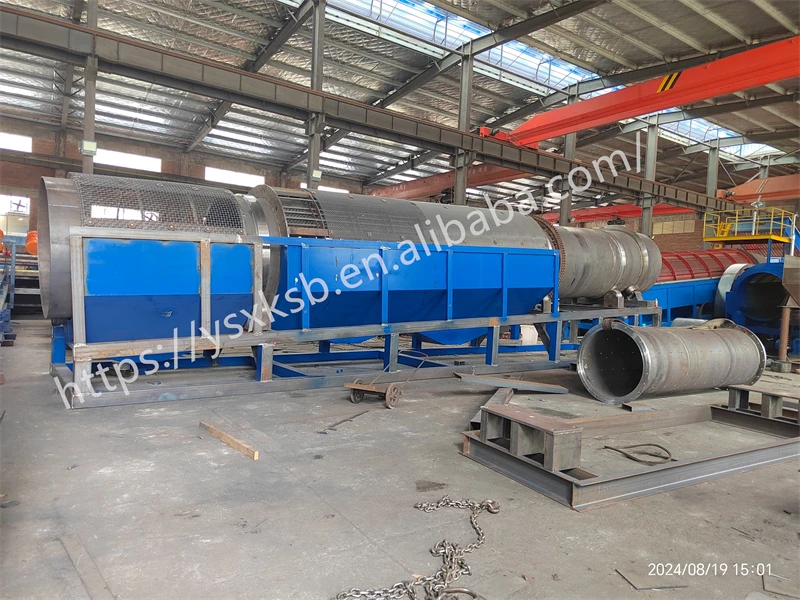

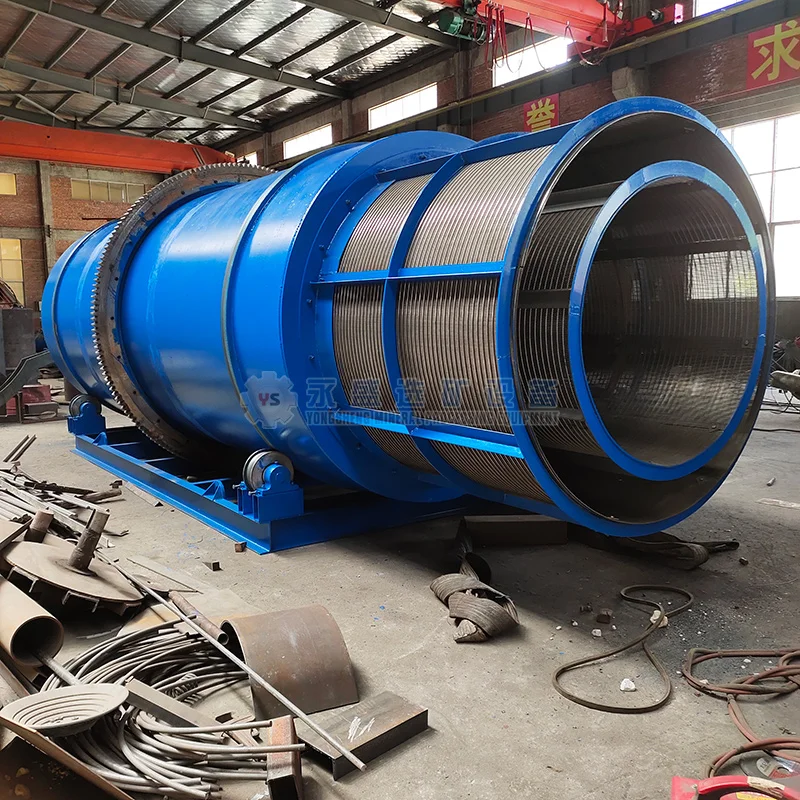

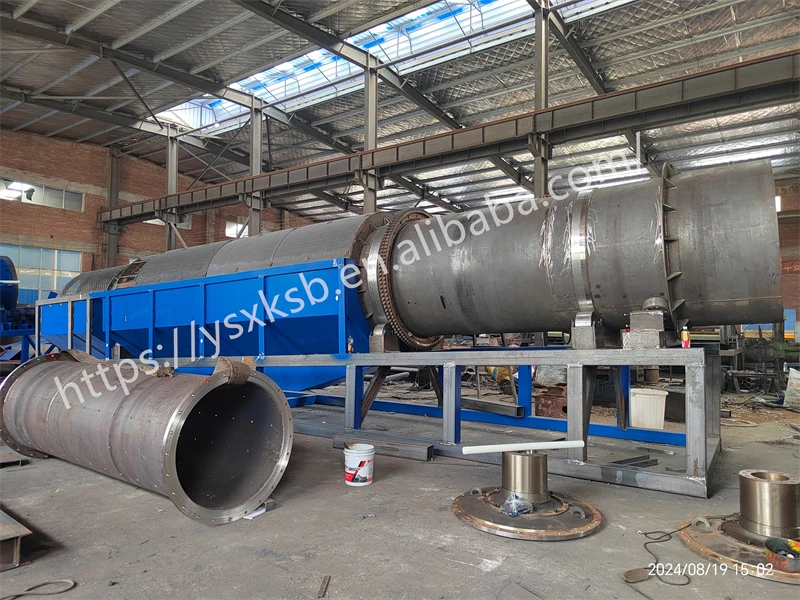

Detailed Image
Related Products
Contact Me
Our Service
Q: What is the payment terms ?
A: 1.30% prepayment by T/T , after the seller finish the production process and buyer verify the machine , 70% balance should paid before delivery.
Q: How long is the delivery time of your machine?
A: 1. The delivery time is within 20-30 working days. However, many machince we have many in stock!
2. But if the project is very large and clients have some special requirement about the equipment, the delivery time will be
extened.
Q: How long will the shipment takes ? (roughly)
A: 1. Africa : 30-45 days
Asia : 5-25 days
America : 15-40 days
Europe : 30-40 days
Q: How long is the warranty period about machine?
A: 1. Our machine warranty period is 1 year.
2. Wearing parts and problem coursed by worker's wrong operation are not included.
Q: Can you provide me a solution and quotation?
A: Of course. Please give us your details about project, raw material, the capacity, max feeding size, the output size, the usage of final products, etc.
A: 1.30% prepayment by T/T , after the seller finish the production process and buyer verify the machine , 70% balance should paid before delivery.
Q: How long is the delivery time of your machine?
A: 1. The delivery time is within 20-30 working days. However, many machince we have many in stock!
2. But if the project is very large and clients have some special requirement about the equipment, the delivery time will be
extened.
Q: How long will the shipment takes ? (roughly)
A: 1. Africa : 30-45 days
Asia : 5-25 days
America : 15-40 days
Europe : 30-40 days
Q: How long is the warranty period about machine?
A: 1. Our machine warranty period is 1 year.
2. Wearing parts and problem coursed by worker's wrong operation are not included.
Q: Can you provide me a solution and quotation?
A: Of course. Please give us your details about project, raw material, the capacity, max feeding size, the output size, the usage of final products, etc.
