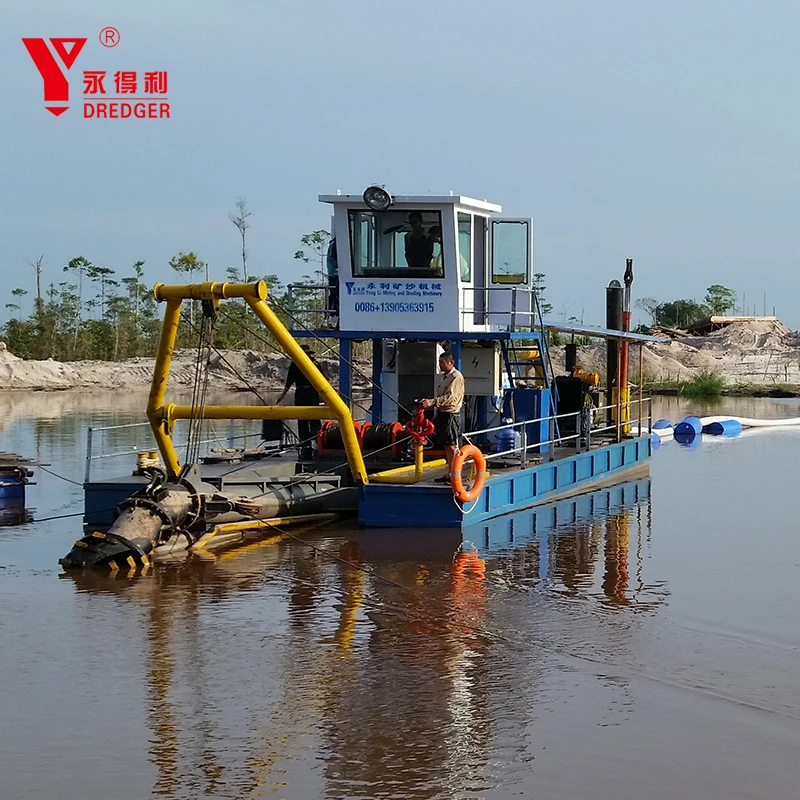

High quality 6 Inch Hydraulic System Cutter Suction Dredger With Clear Water Flow 300cbm/hr
- Category: >>>
- Supplier: Qingzhou Yongli Mining And Dredging Machinery Co. Ltd.
Share on (1601239669164):
Product Overview
Description
High quality 6 Inch Hydraulic System Cutter Suction Dredger With Clear Water Flow 300cbm/hr
Our Company
About company
Main products: cutter suction dredger, gold dredger, diamond dredger, gold washing plant, sand dredger and other mining equipment. We are located in Qingzhou city with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including gas cutting machine, automatic welding machine, electric welder and other equipments.
Model List
Model | Slurry capacity | Dredging depth | Discharge distance | Total power |
CSD-200 | 500m³/h | 10m | 500m | 224kw |
CSD-250 | 800m³/h | 12m | 800m | 351kw |
CSD-300 | 1200m³/h | 12m | 1000m | 648kw |
CSD-400 | 2200m³/h | 15m | 1000m | 806kw |
CSD-450 | 3000m³/h | 15m | 1000m | 1007kw |
CSD-500 | 3500m³/h | 15m | 1500m | 1193kw |
CSD-550 | 5000m³/h | 15m | 1500m | 1640kw |
CSD-650 | 6000m³/h | 15m | 1500m | 2446kw |
Products Description

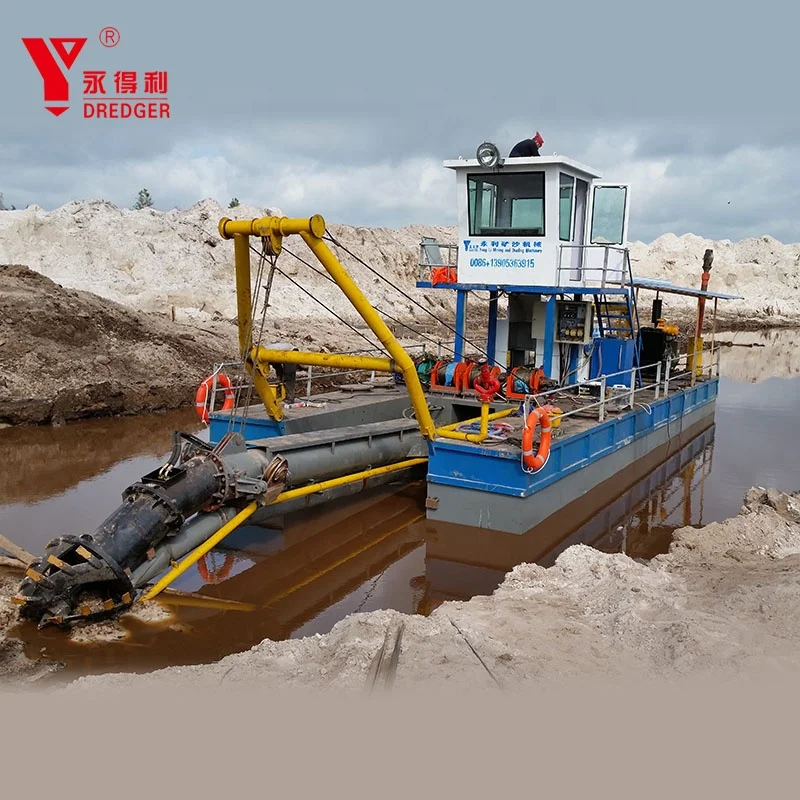

6 Inch Cutter Suction Dredger
Parameter：
*Slurry capacity:45-60m³/h
*Concentraction:15-20%
*Discharge distance: 300m
*Water flow: 300m3/h
*Length overall: 35m
*Slurry capacity:45-60m³/h
*Concentraction:15-20%
*Discharge distance: 300m
*Water flow: 300m3/h
*Length overall: 35m
* Depth: 1.50m
*Dredging depth:20m
*Dredging depth:20m
*Breadth: 4.77m
*Total power:261kw(optional)
*Cutter shaft power:22kw
*Total power:261kw(optional)
*Cutter shaft power:22kw
Remark：Can be customized according to customer requirements
Details Images

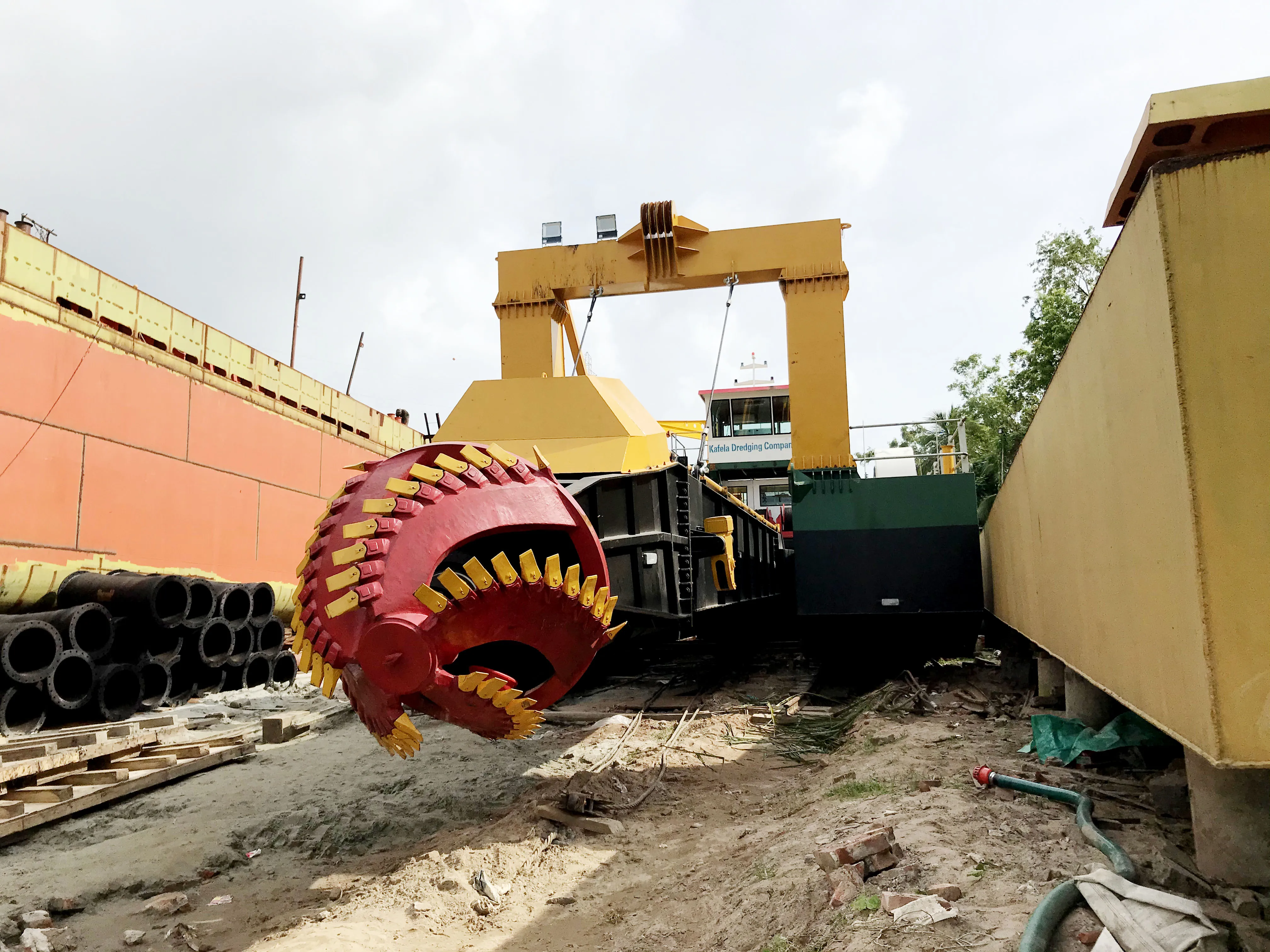

Diameter:850mm
shaft power:22kw
RPM:0-33 r/min
Cutter blade material:ZG16SiMn
Cutter blade amont: 5 Pcs
Cutter teeth material: K10.40Cr
Cutter teeth amount: 30 Pcs
Remark:cutter teeth can be replaced
Maker: Weichai
Power:176KW
RPM :1800r/min
Power:176KW
RPM :1800r/min
No. of cylinders: 6
Fuel consumption: 200g/kw.h
Lub. Oil Consumption: 1.0g/kw.h
Remark: can be selected by customer's requirement

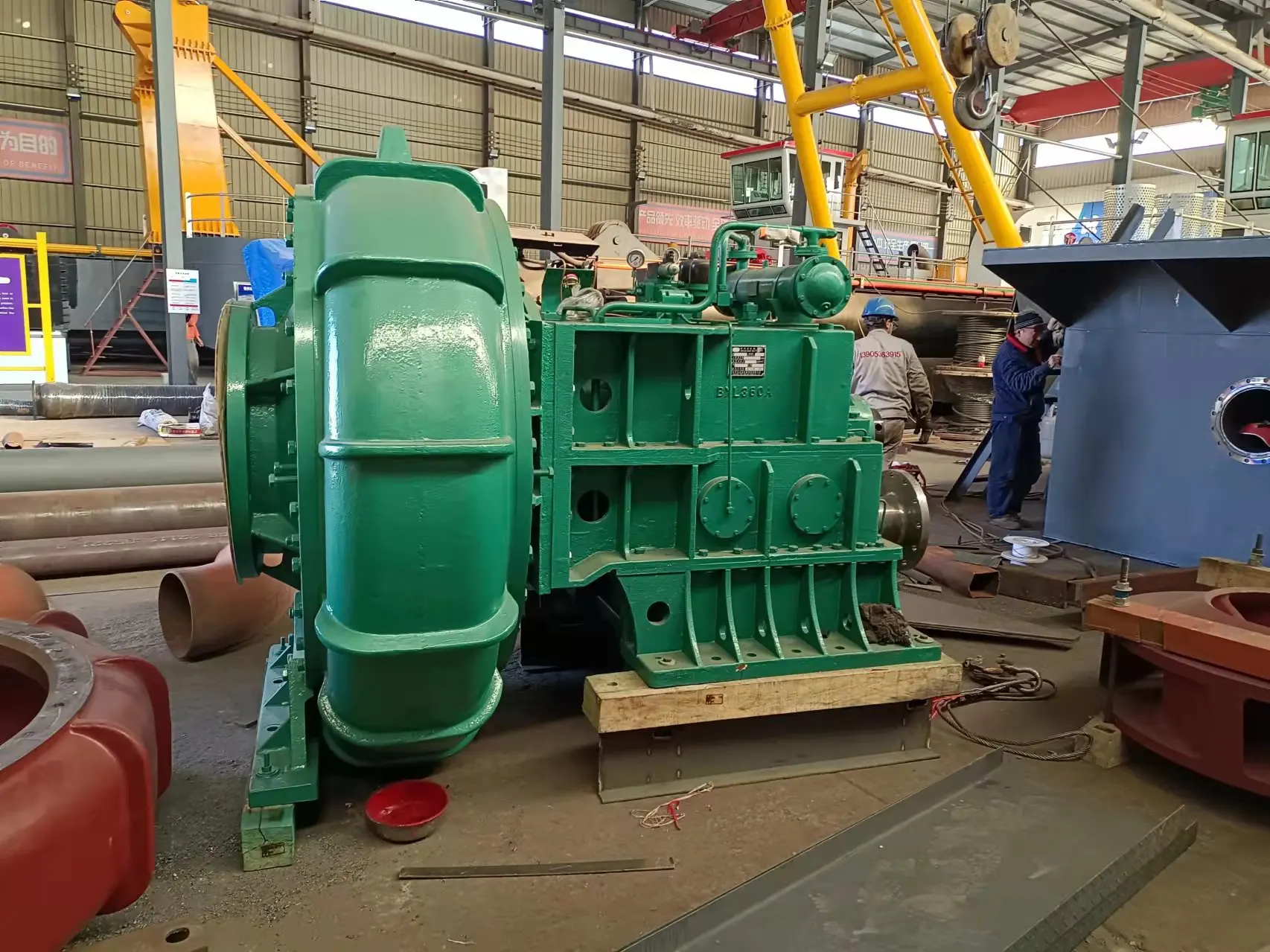

Dredging pump
Maker：Shijiazhuang
Water flow :300m³/h
Max. dia.Granule : 80 mm
Diameter of suction：150mm
Diameter of Discharge：150mm
Max. dia.Granule : 80 mm
Diameter of suction：150mm
Diameter of Discharge：150mm
Head: 35m
Speed: 1130rpm
Pump shaft power: 90kw
Remark: can be selected by customer's requirement
Deck thickness: 6mm
Bottom Plate thickness: 8mm
Side Plate thickness: 6mm
Front Plate thickness: 10mm
Back Plate thickness: 8mm
Bottom Plate thickness: 8mm
Side Plate thickness: 6mm
Front Plate thickness: 10mm
Back Plate thickness: 8mm
Remark: can be selected by customer's requirement

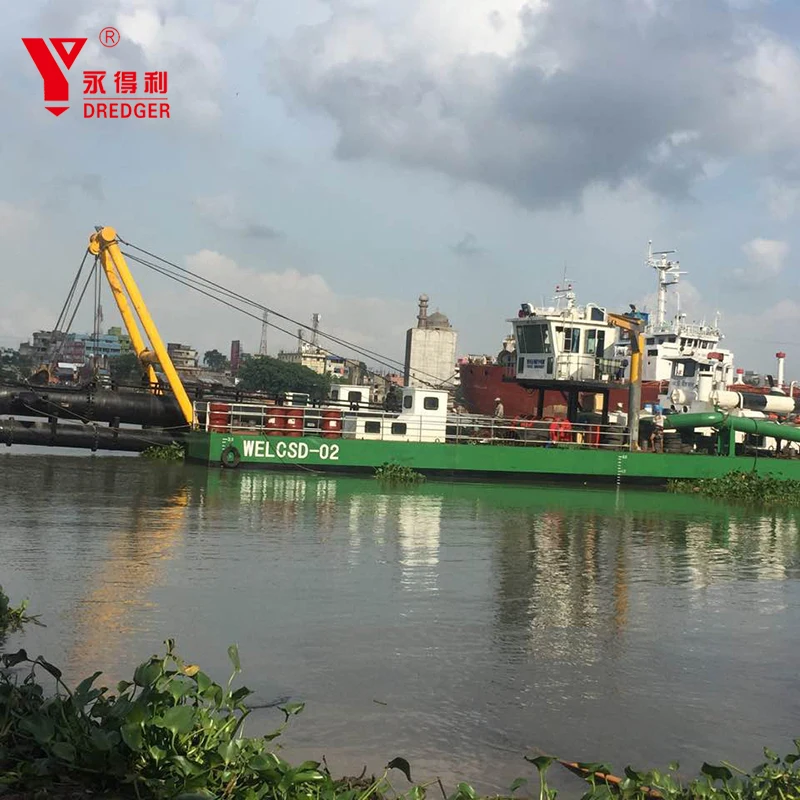

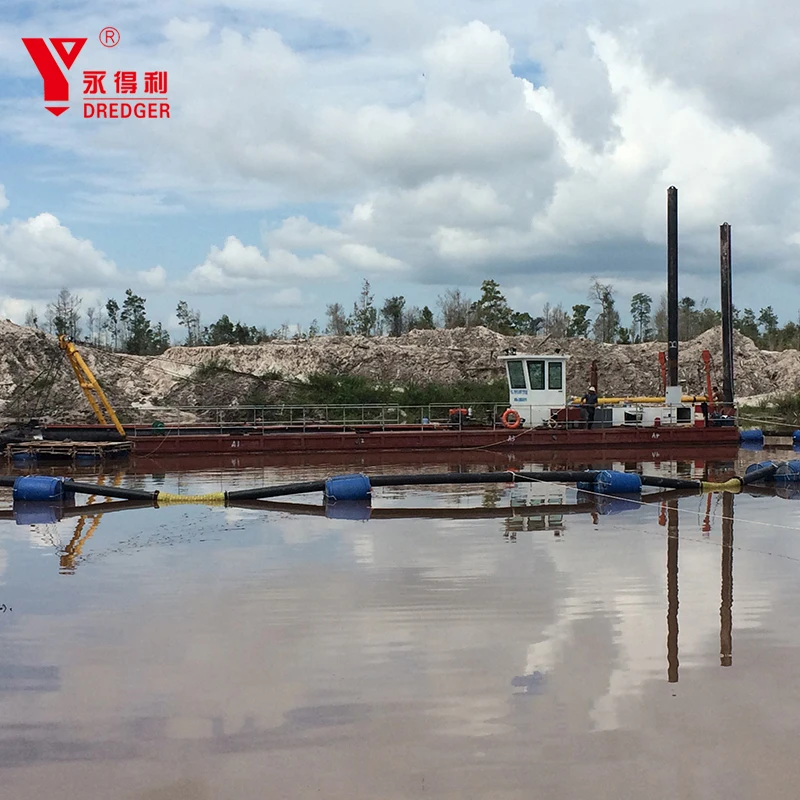

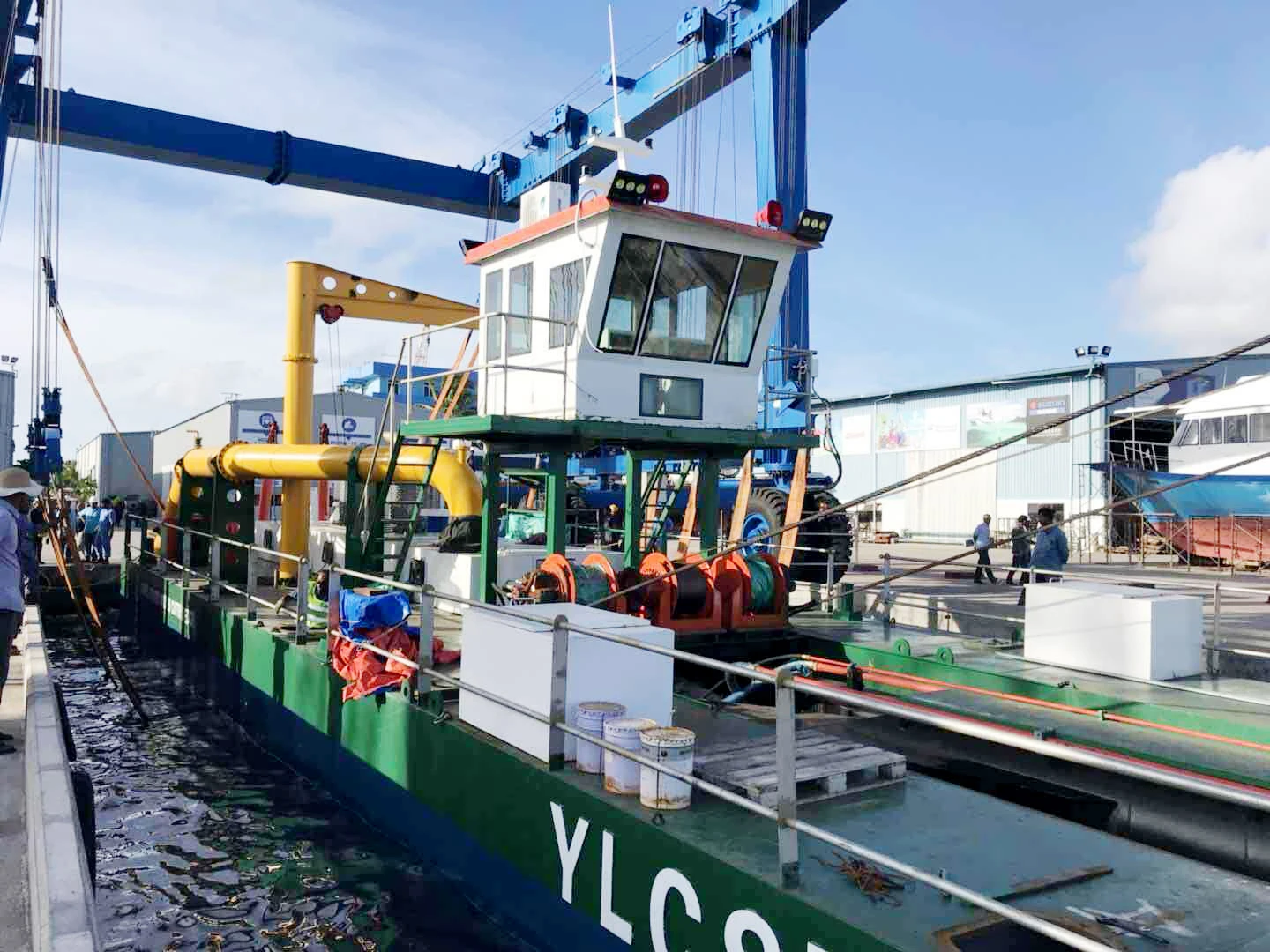

Customer Photos

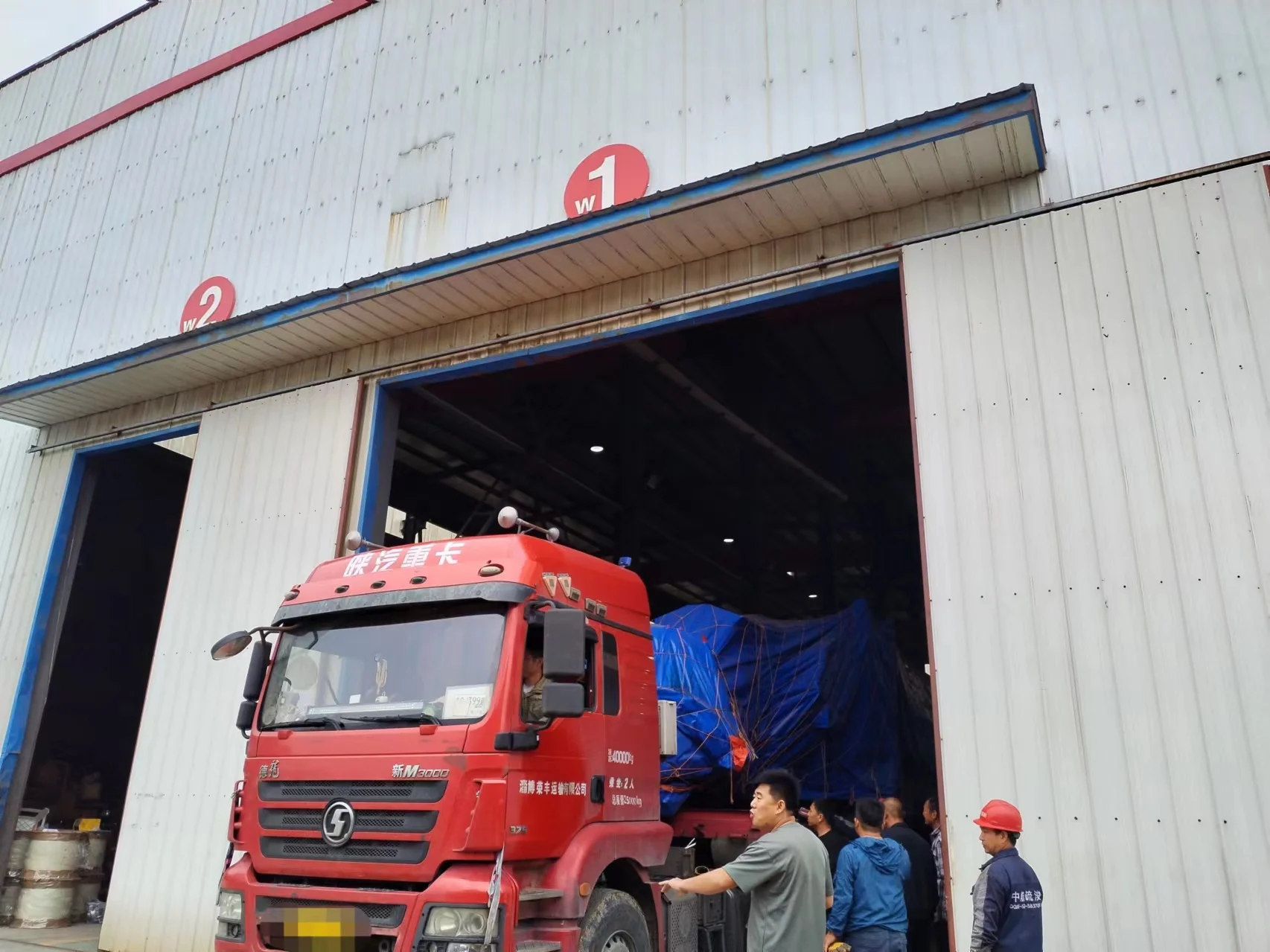

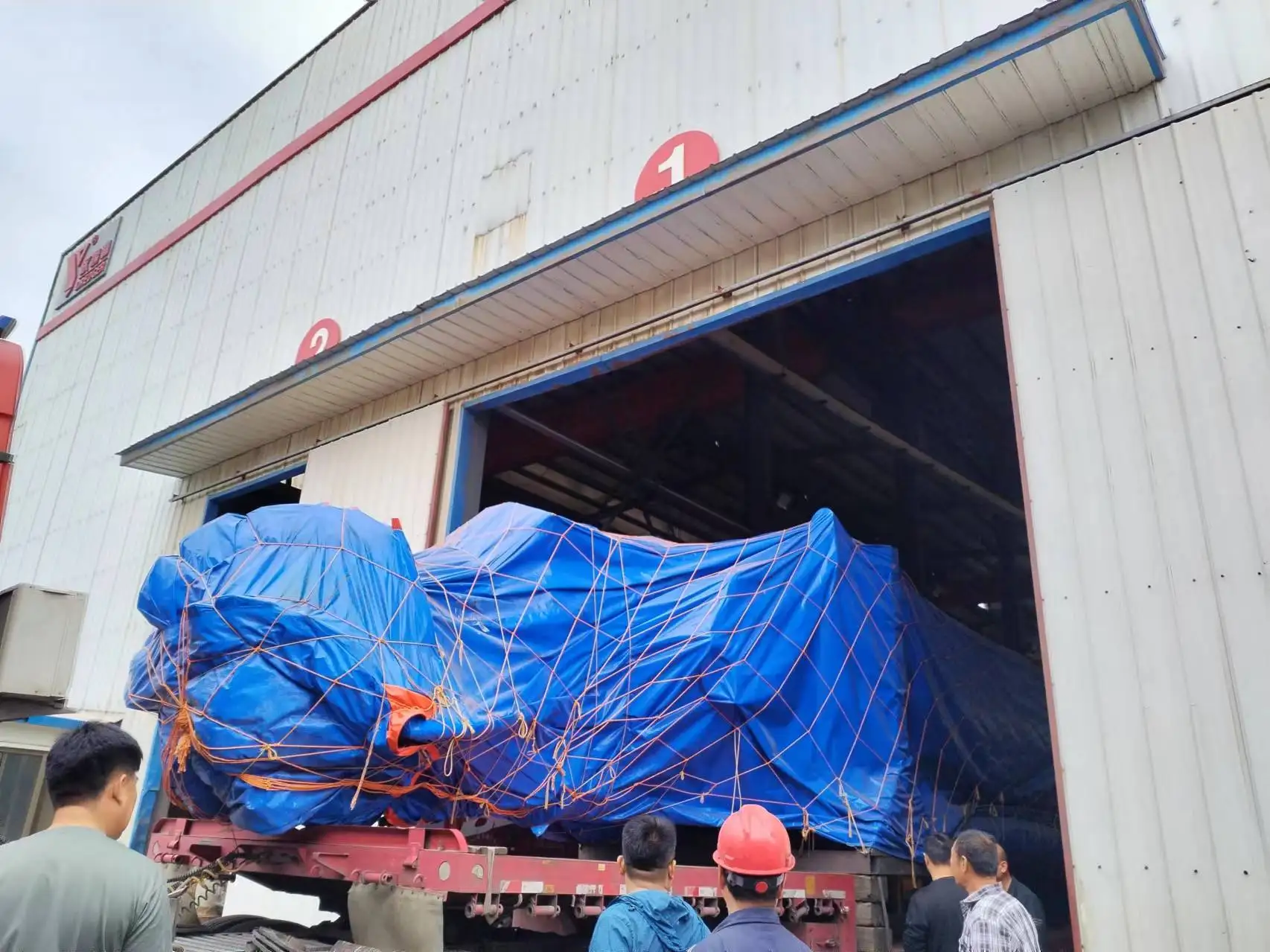

Packing and Transport
Remark: cutter suction dredger is dismantled, box-like structure, which can be transported easily by trucks on road or by ship on the sea.
Certifications
Why Choose Us
Yongli will do the best in the field and one of the most important things is providing after-sales service and support. We promise to provide every customer with the highest level of service and 24/7 support to make sure that every machinery will run properly and every customer will be fully satisfied.
The following service can be provided by our high-quality team:
------ Signing a long-term after-service agreement with customers;
------ rational and practical design according to clients' project needs and requirements;
------ Engineers will be sent for installation, testing and commissioning of new machine;
------ Operation service & maintenance guidance (Training of new operators);
------ Troubleshooting & diagnosis;
------ Replacement suggestions & spare parts with competitive price;
------ Life time after sales service for all customers.
The following service can be provided by our high-quality team:
------ Signing a long-term after-service agreement with customers;
------ rational and practical design according to clients' project needs and requirements;
------ Engineers will be sent for installation, testing and commissioning of new machine;
------ Operation service & maintenance guidance (Training of new operators);
------ Troubleshooting & diagnosis;
------ Replacement suggestions & spare parts with competitive price;
------ Life time after sales service for all customers.
