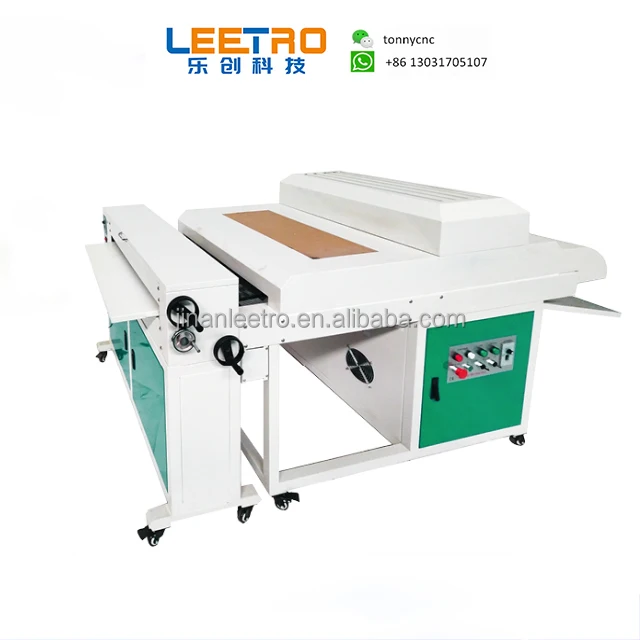

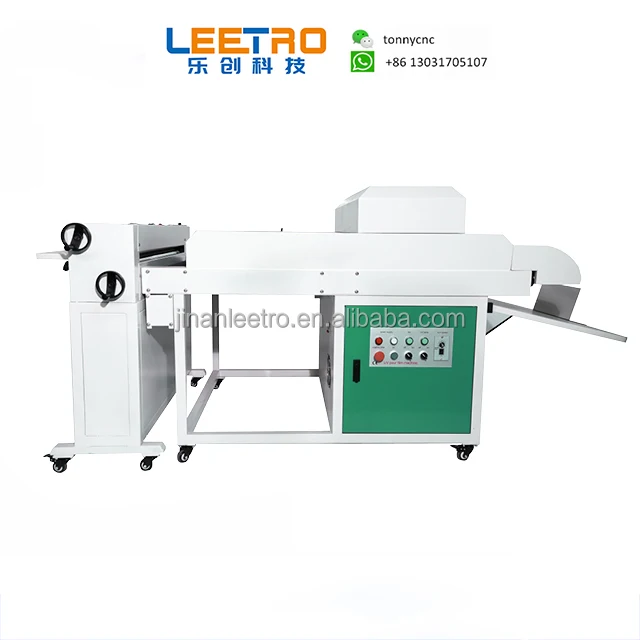

35' UV Printing Coating Machine UV Laminating Machine 900
- Category: >>>
- Supplier: Jinan Leetro Technology Co. Ltd.
Share on (1601239678292):
Product Overview
Description
Product Description

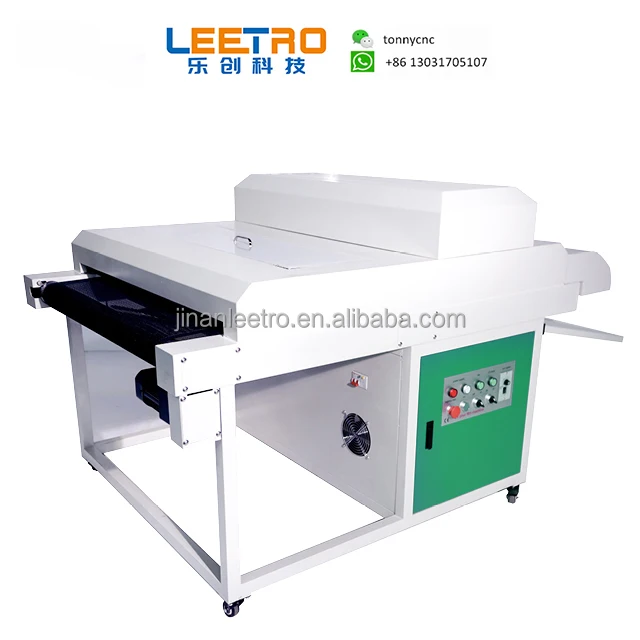

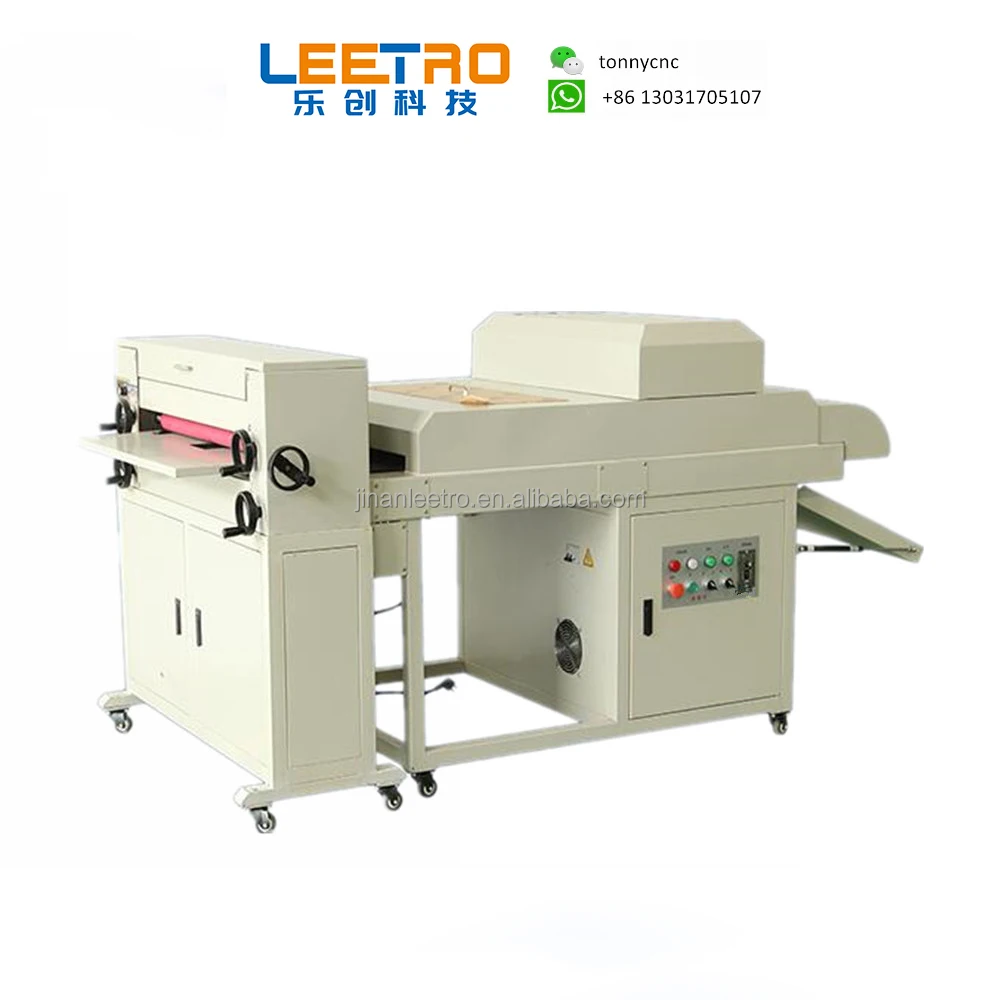

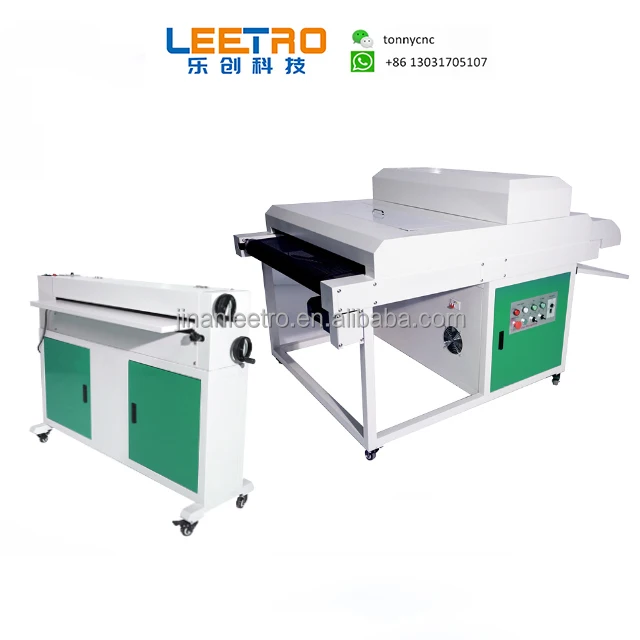

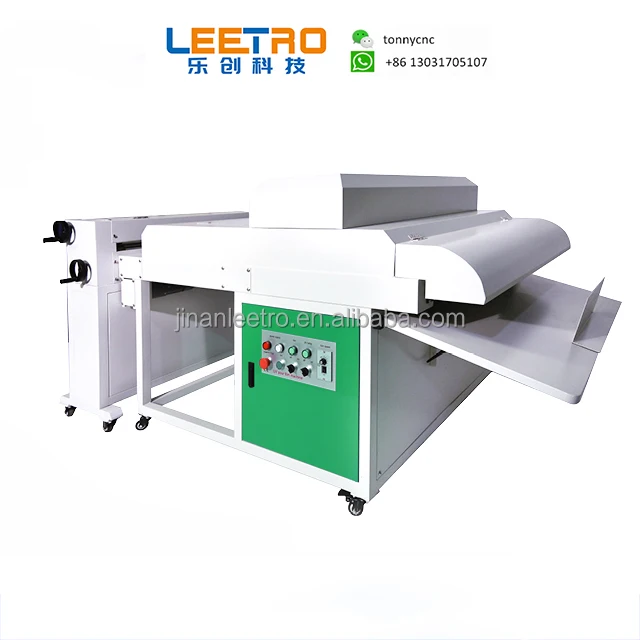

GS-900 UV COATING MACHINE
UV coating machine is designed for smooth and even layer of curing on the photos , more transpreant , scratchproof ,waterproof .
replace the traditional techniques of cold laminating , reduce the cost and high productions .
replace the traditional techniques of cold laminating , reduce the cost and high productions .
Product Name | GS-900 UV COATING MACHINE | |
Max. laminating width (mm) | 900 | |
Max. laminating speed (m2/hr) | 200-550 | |
Max. laminating thickness(mm) | 0.1-3 | |
Max. coating thickness (mm) | 0.1-0.3 | |
Drying way | Ultraviolet - curable | |
Power rating(KW) | 4.5 | |
Machine noise(db) | <60 | |
Packing | standard wooden case | |
Packing dimensions(mm) | 1900*1150*1100 | |
Weight (kg) | 450 | |
Packing Volume | 3 | |
Power supply | 220V\\50Hz |
Product Usage
Powder cleaner
-- Manual feeding table
-- with double-brusher roller to clean effectively on photo paper.
-- with double-brusher roller to clean effectively on photo paper.

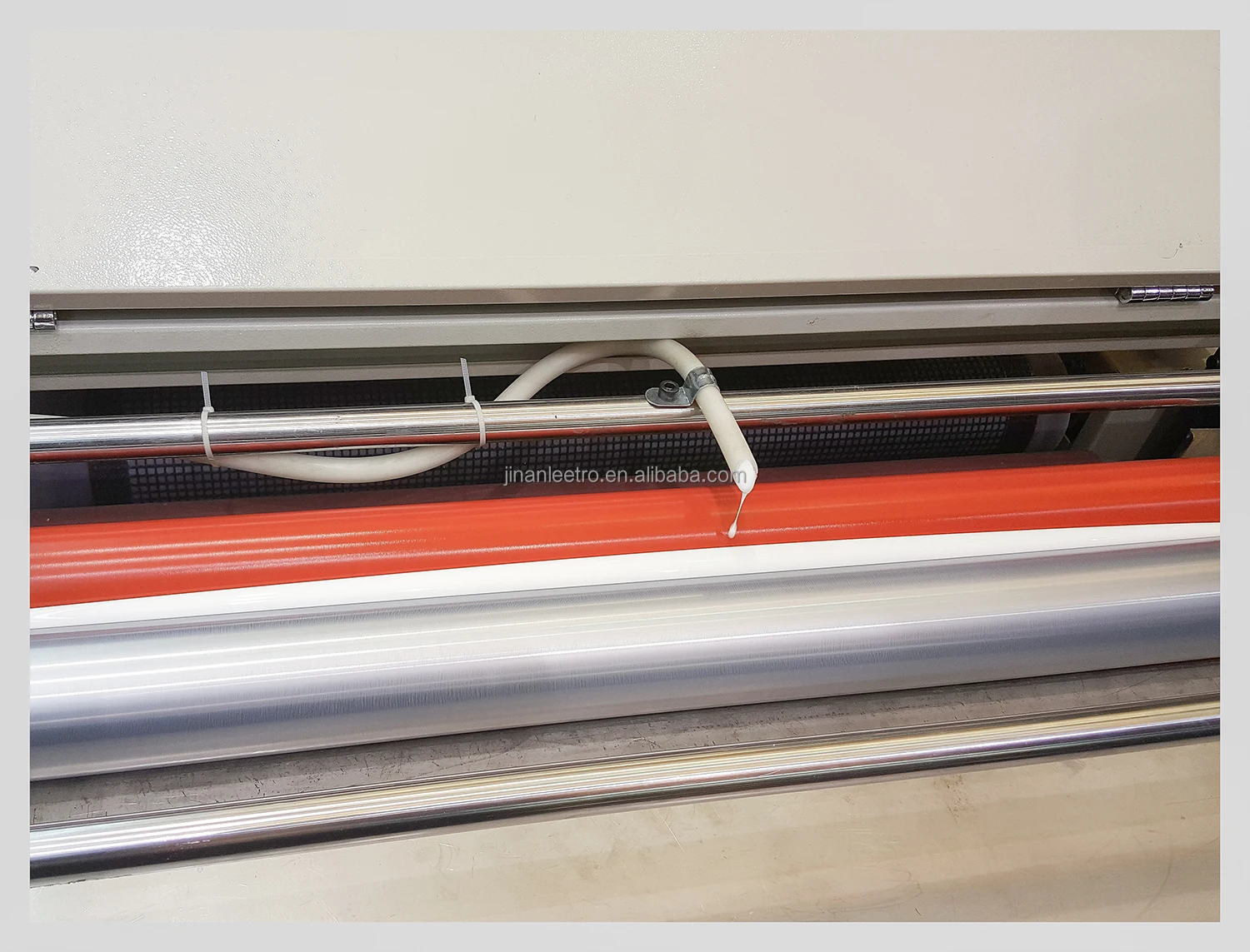

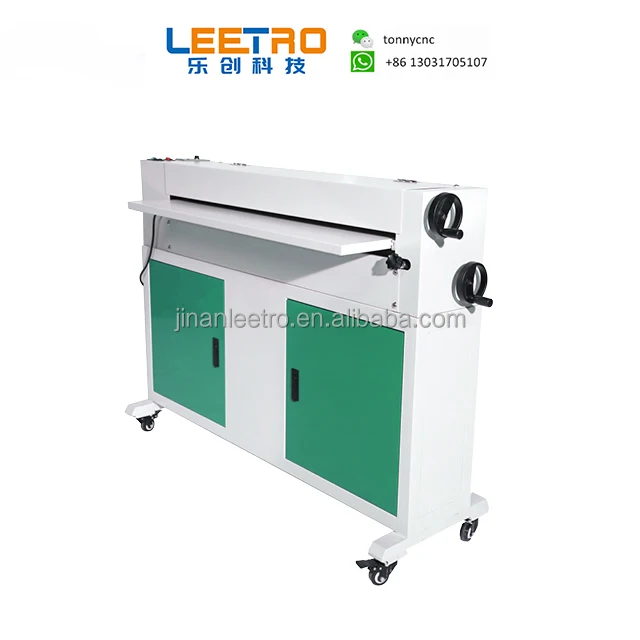

UV Coating unit
-- high sensitivity system which guarantees smooth coating to thick and thin paper.

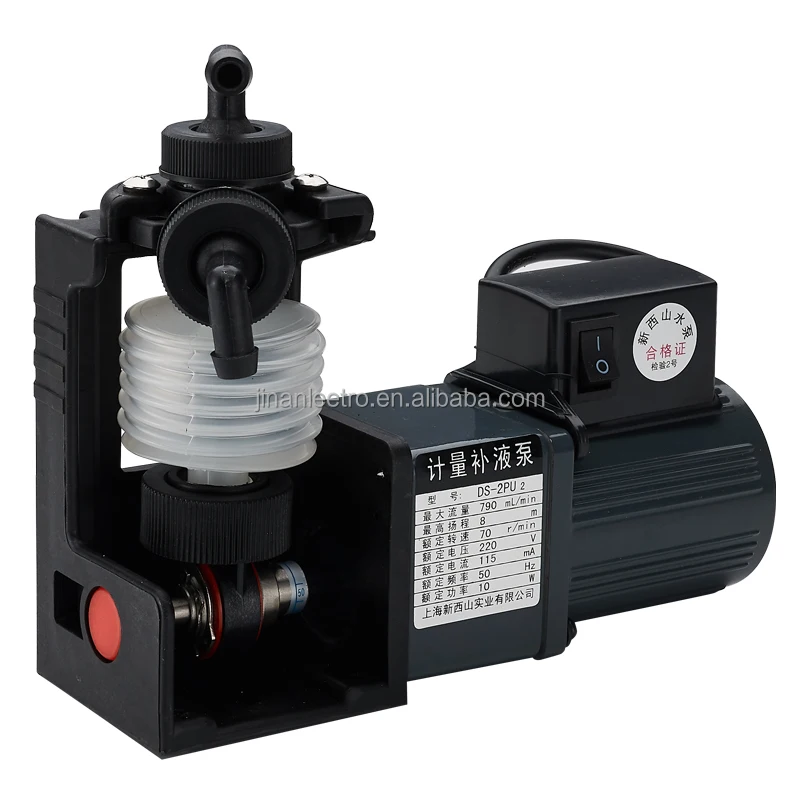

--Micro adjustor equipped to control oil usage and coating quality is convenient for users to adjust upon application needs.
-- Paper winding protector: when paper sticks and wraps the coating roller,the protector will stop the machines running and the
buzzer rings at the same time.

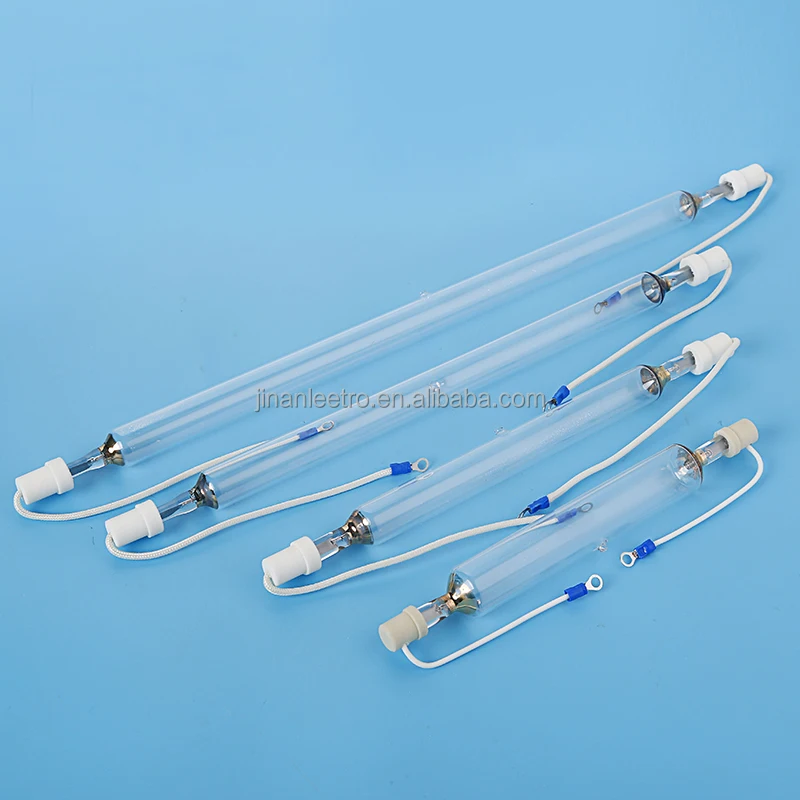

UV drying unit
--UV radiation makes UV oil hard and wear-resistant, and paper surface will be much glossier.
-- Fast cooling system equipped to prevent paper curvature

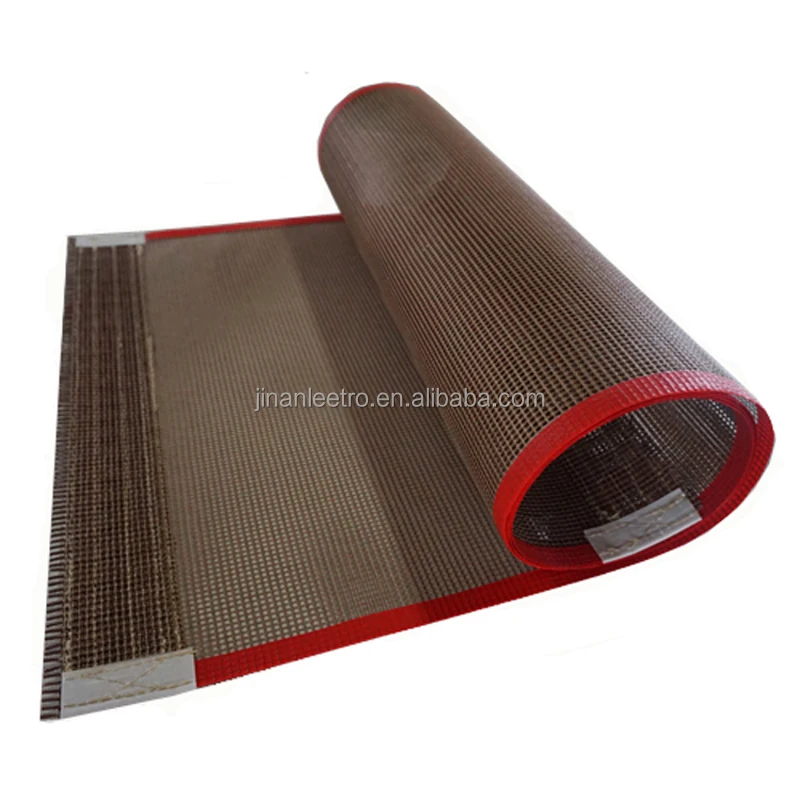

-- Mesh Teflon belt conveyor is equipped with air aspirator to guarantee paper conveyed steadily.
-- Fast cooling system equipped to prevent paper curvature
-- Mesh Teflon belt conveyor is equipped with air aspirator to guarantee paper conveyed steadily.
Simple receiving table
Characteristics
Roll coating variable speed control
recyclable laminating liquid – free clean and low cost
Coating speed can be adjusted
powering off protection system in the high temperature
UV ultraviolet lamp radiation protection
the photo coated can be dustproof,waterproof,scratch-resistance,uv-resistance
Humanized design, more convenient for clients
liquid scraper unique features, back of photo is clean
High speed,shorten the drying time
recyclable laminating liquid – free clean and low cost
Coating speed can be adjusted
powering off protection system in the high temperature
UV ultraviolet lamp radiation protection
the photo coated can be dustproof,waterproof,scratch-resistance,uv-resistance
Humanized design, more convenient for clients
liquid scraper unique features, back of photo is clean
High speed,shorten the drying time
