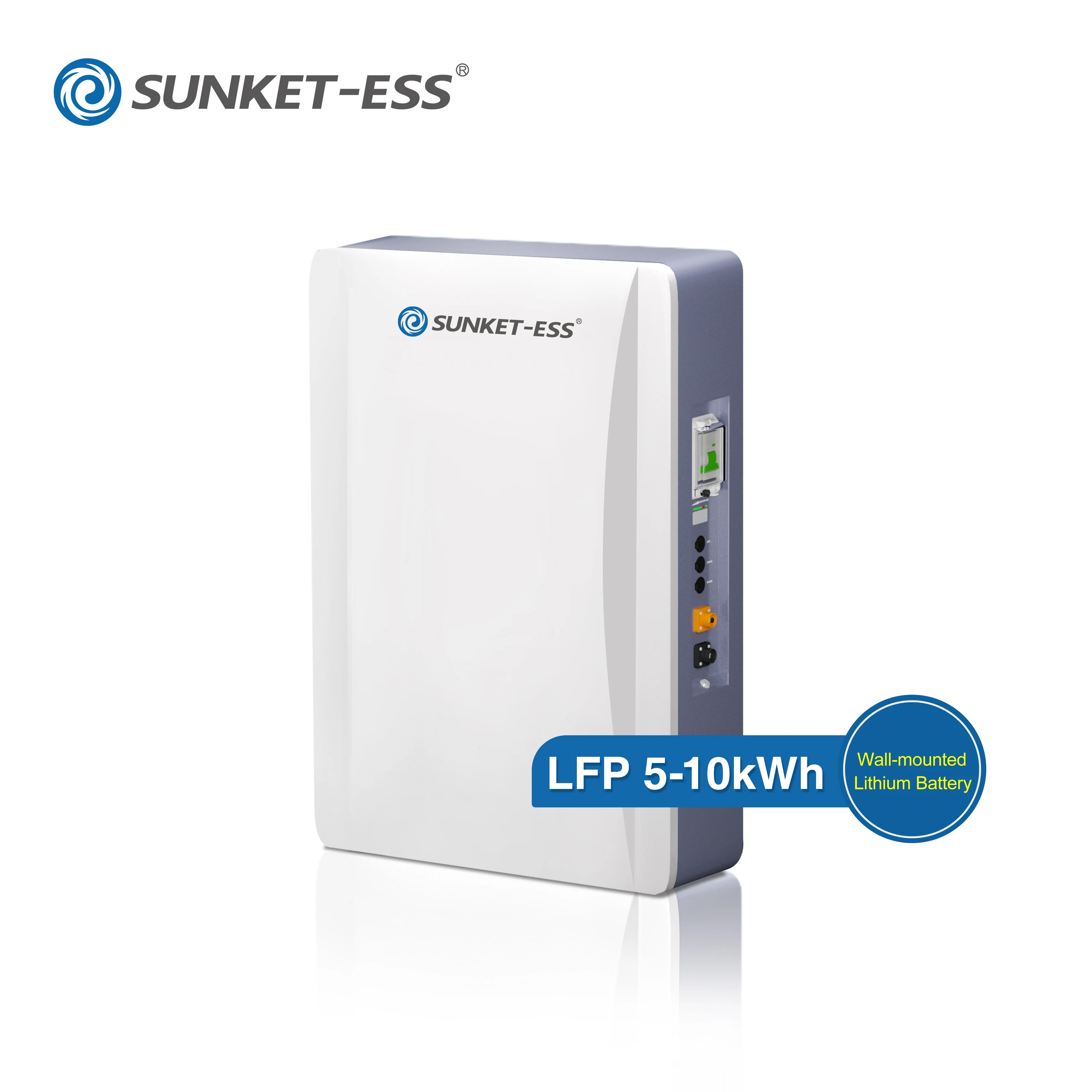

48V 51.2V Lifepo4 Battery 100ah 200ah 5kwh 10kwh European stock Residential Storage low voltage Lithium Ion Battery
- Category: >>>
- Supplier: Wuxi Sunket New Energy Technology Co. Ltd.
Share on (1601239728876):
Product Overview
Description
Technical specifications

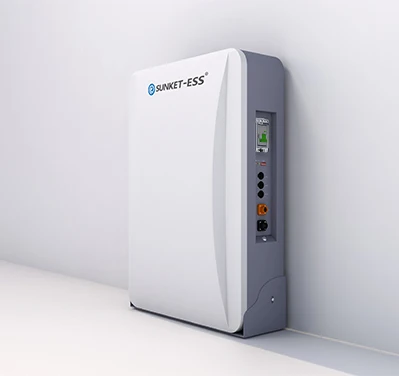

Sunket Lithium Battery with compact design, convenient setting buttons, and ready-to-install cables and accessories.And Sunket Lifepo4 battery can be installed in parallel with a combiner box to provide protection, and its integrated BMS communication protection is perfectly suited for hybrid and off-grid inverters!
Application

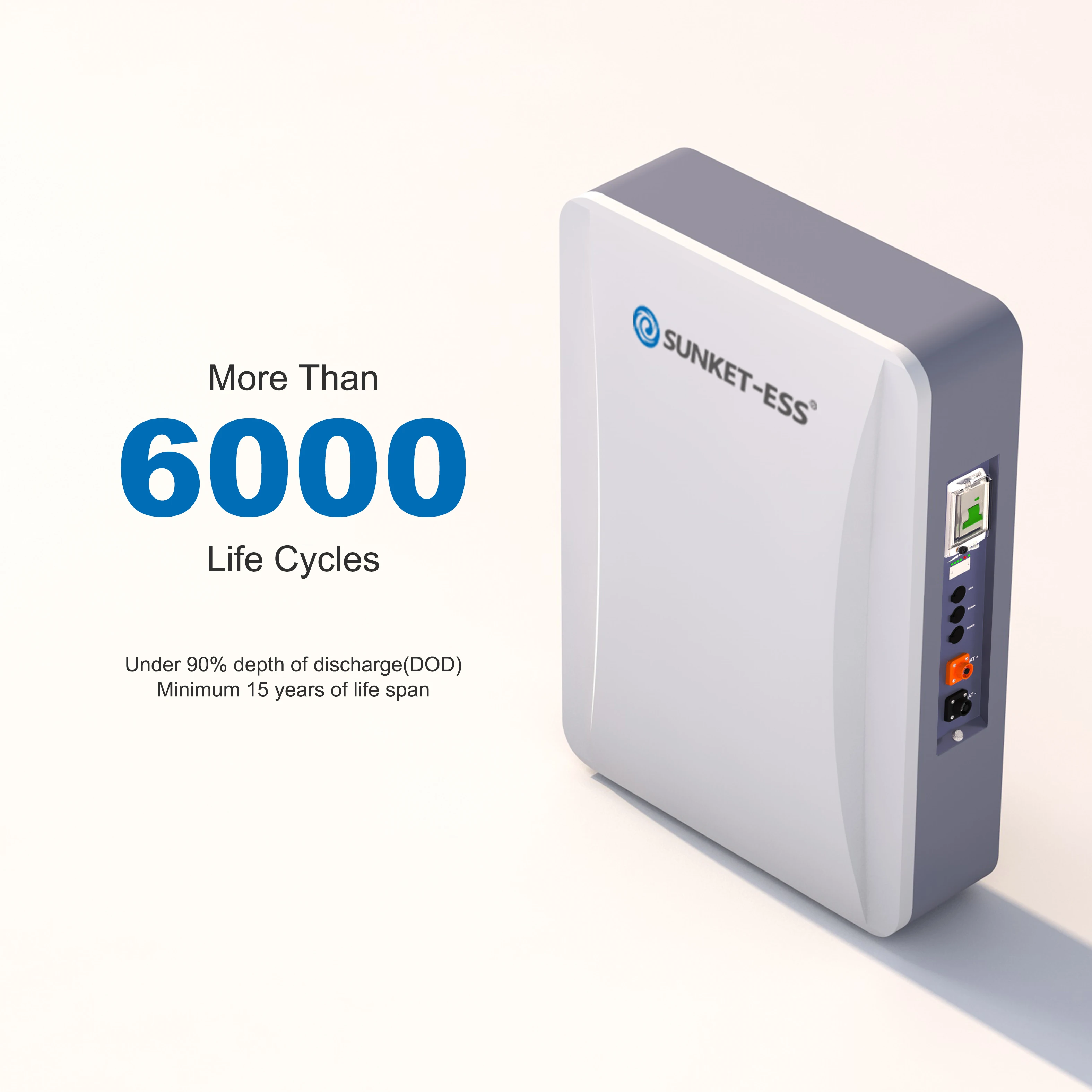

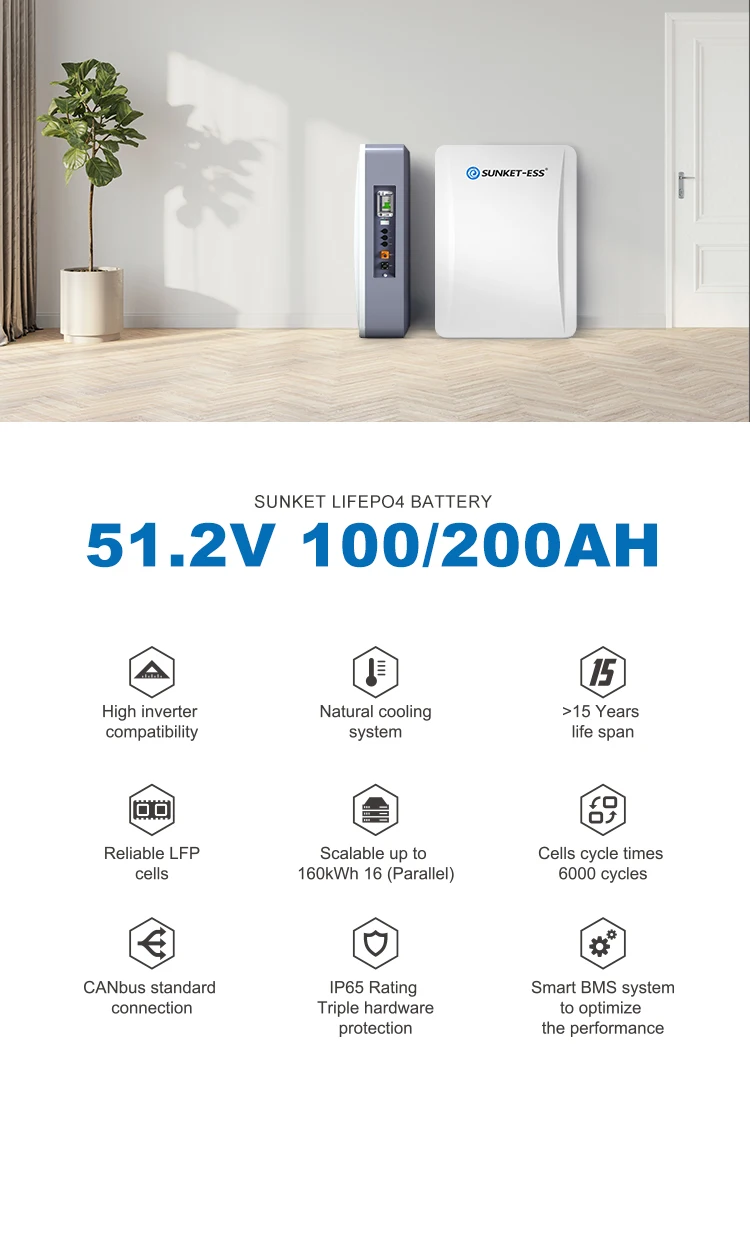

Sunket Lithium lon Power Wall series are widely used in Solar System for residential and commercial use. With more than 6000 times deep cycle.Modular design allows expansion at any time. Sunket power wall has won global approval!
The built-in battery management system integrates multi-level safety functions, including overcharge and deep discharge protection, voltage and temperature observation,overcurrent protection, battery monitoring and balancing, and thermal protection.
Electrical Characteristics | ||||
Module Type | LFP 5kWh/LV | LFP 10kWh/LV | ||
Nominal Capacitance | 100Ah | 200Ah | ||

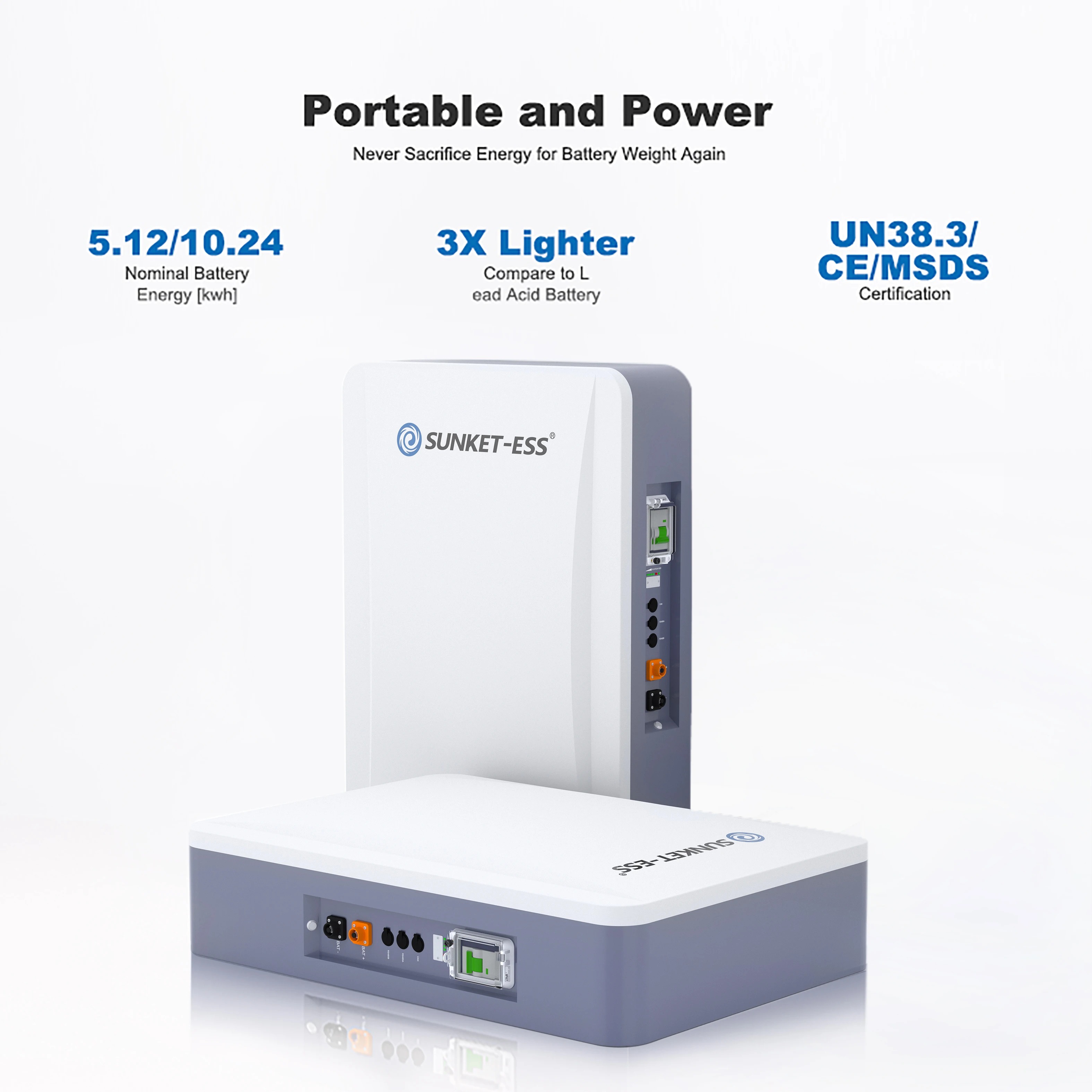

Total Energy* | 5.12kWh | 10.24kWh | ||
Usable Energy(DC)* | 4.6kWh | 9.2kWh | ||
Nominal Dis-/Charge Power | 2.5kW | 5kW | ||
Peak Power(Only Discharge) | 2.9kW for 3 seconds | 5.8kW for 3 seconds | ||

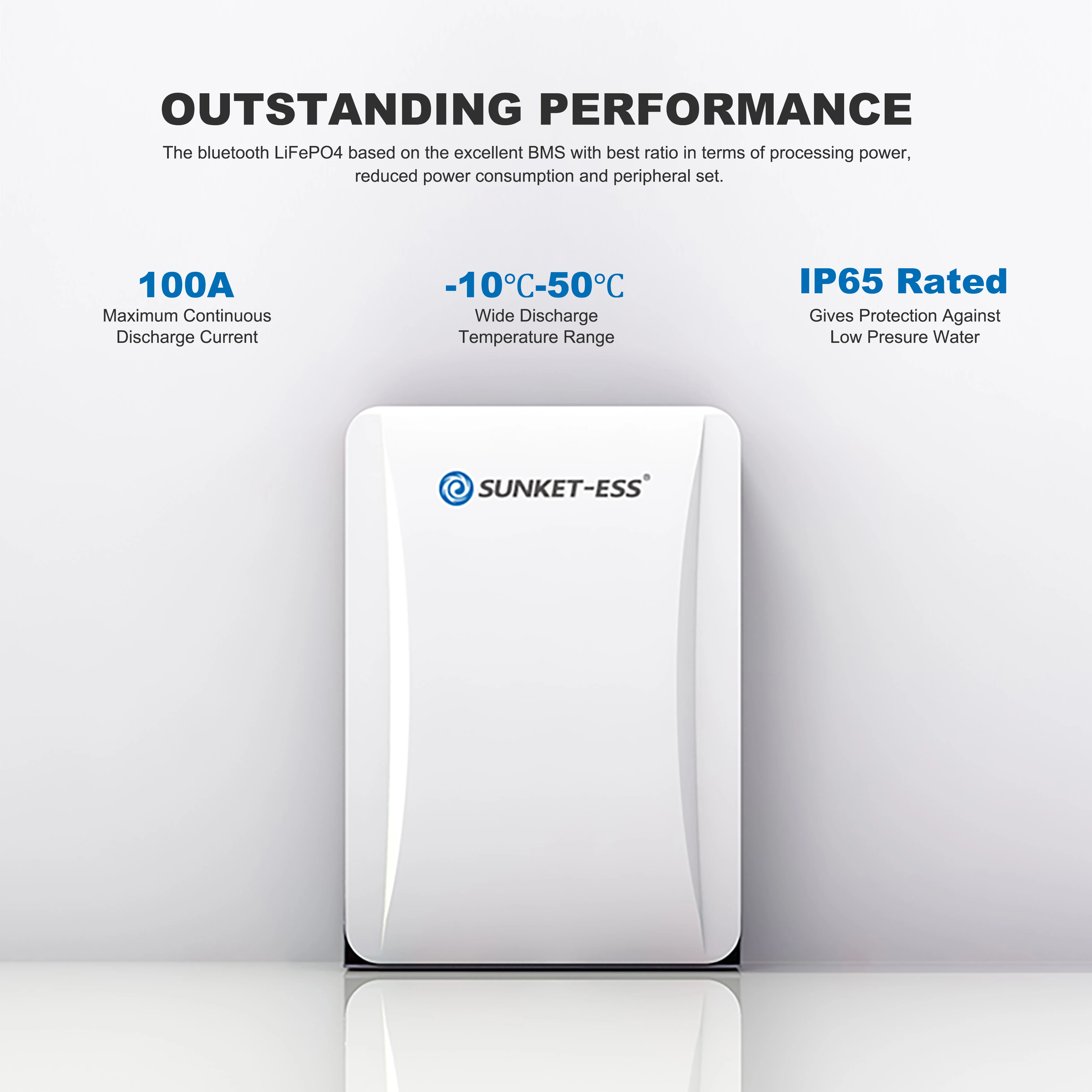

Constant Current(only Discharge) | 50A | 100A | ||
Voltage | 48~56Vd.c | 48~56Vd.c | ||
Nominal Voltage | 51.2Vd.c | 51.2Vd.c | ||
Max. Charge Voltage | 59.2V+0.5V d.c | 59.2V+0.5V d.c | ||
Weight | 65kg | 116.5kg | ||
Dimension(mm) | 490(550)*650(700)*196(216)mm | 585(645)*940(995)*205(225)mm | ||
Safety | CE,UN38.3,IEC62619,IEC63056 | CE,UN38.3.IEC62619.IEC63056 | ||
Max.recommended DOD | 90% | |||
Operating Condition | Indoor or outdoor | |||
Operating Charge | From 0~45℃ | |||
Temperature Discharge | From -10~50℃ | |||
Humidity | 4~100% (No condensed water) | |||
Pollution Degree | 3 | |||
Over Voltage Category | II | |||
Cooling Type | Natural cooling | |||
Case Material | Metal+Plastic | |||
IP rating | IP 65 | |||
Protective Class | I | |||
Max.Number of Parallel | 16 | |||
Warranty | 10 years | |||
Life Span | >15 years | |||
Communication | CAN/RS485 | |||
Protection Mode | Triple hardware protection | |||
Battery Protection | Over-current/Over-voltage/Short circuit/ Under-voltage | |||
Hazardous Material Classification | 9 | |||

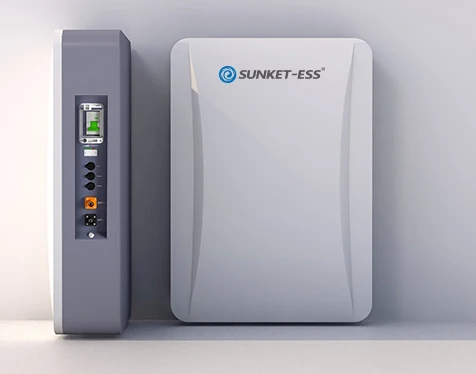

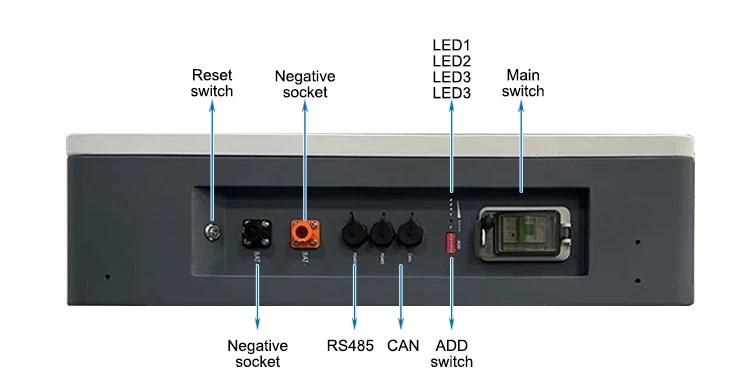

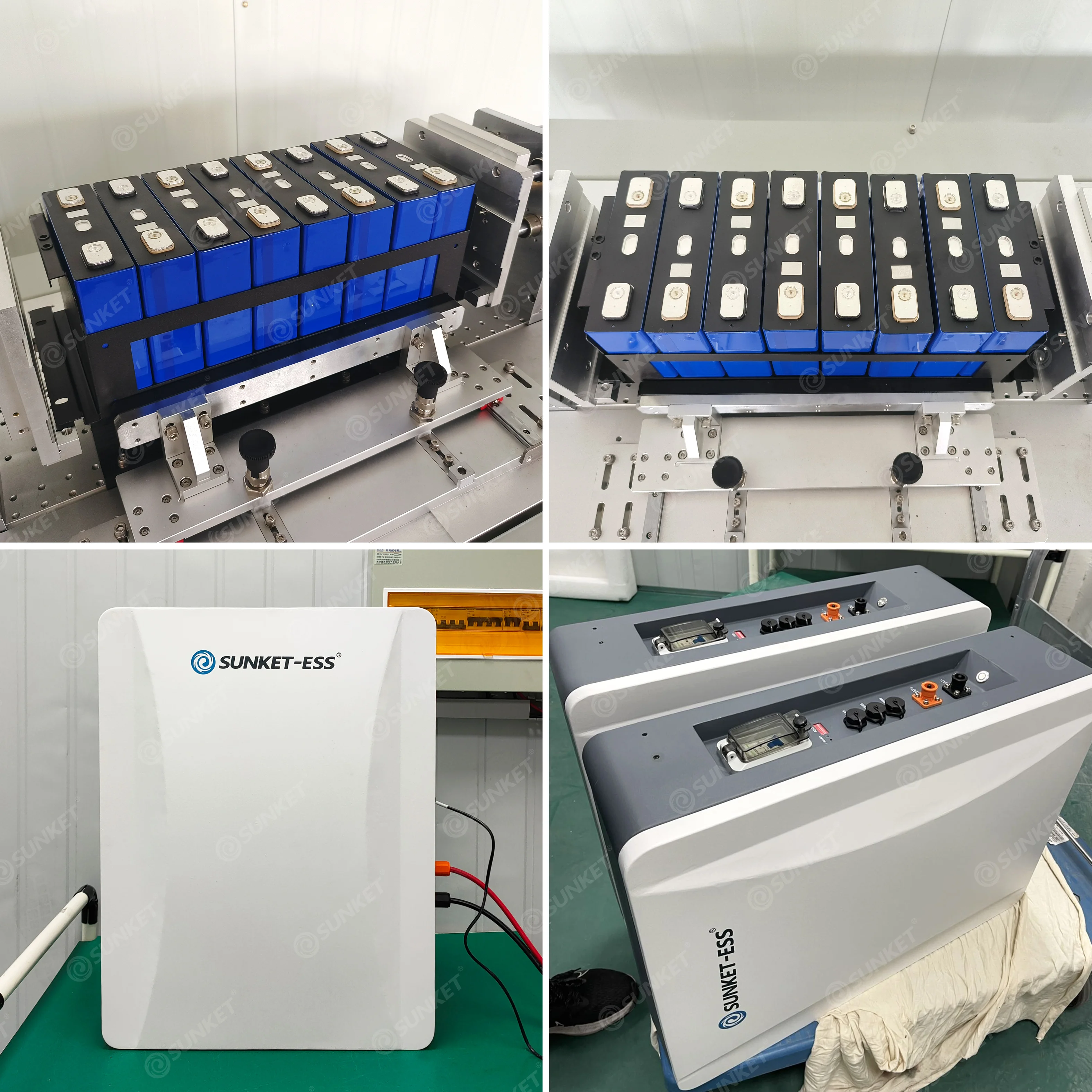

Product Details

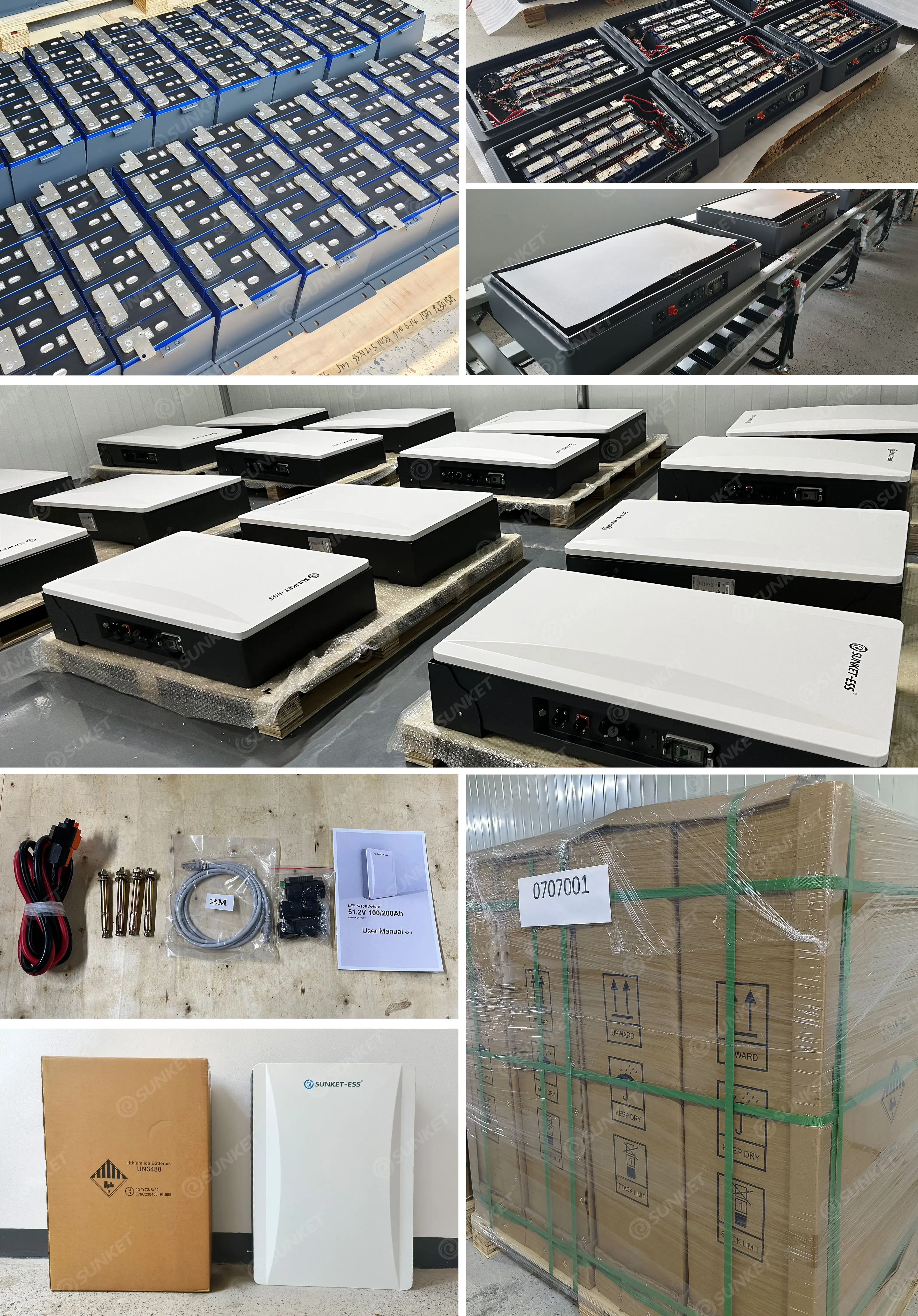

Product Packaging
Certificate

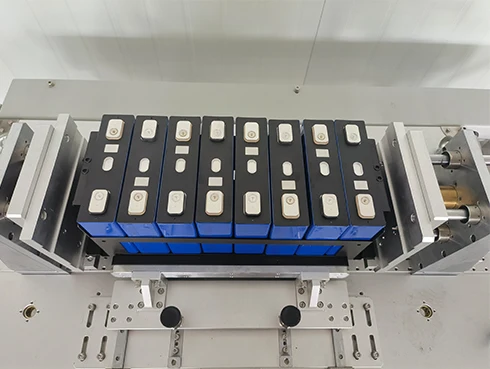

Sunket Factory

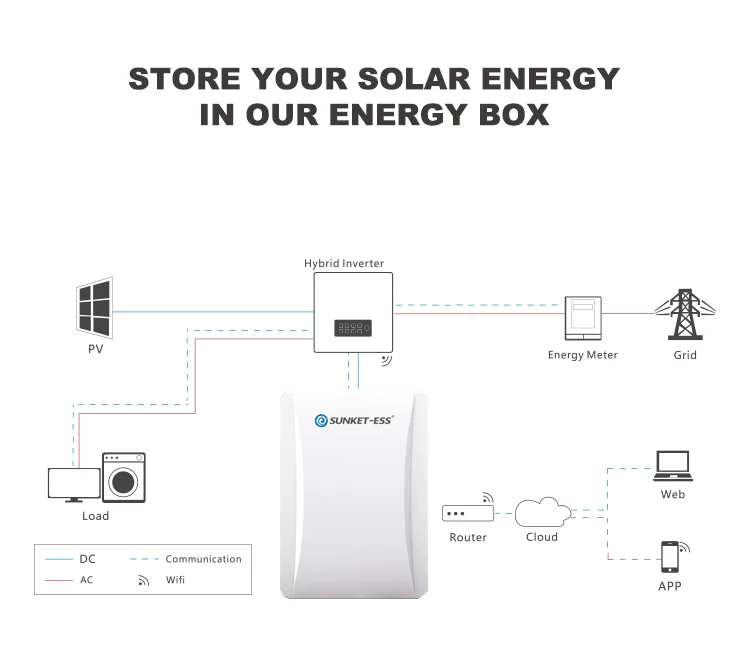

Working Principle
