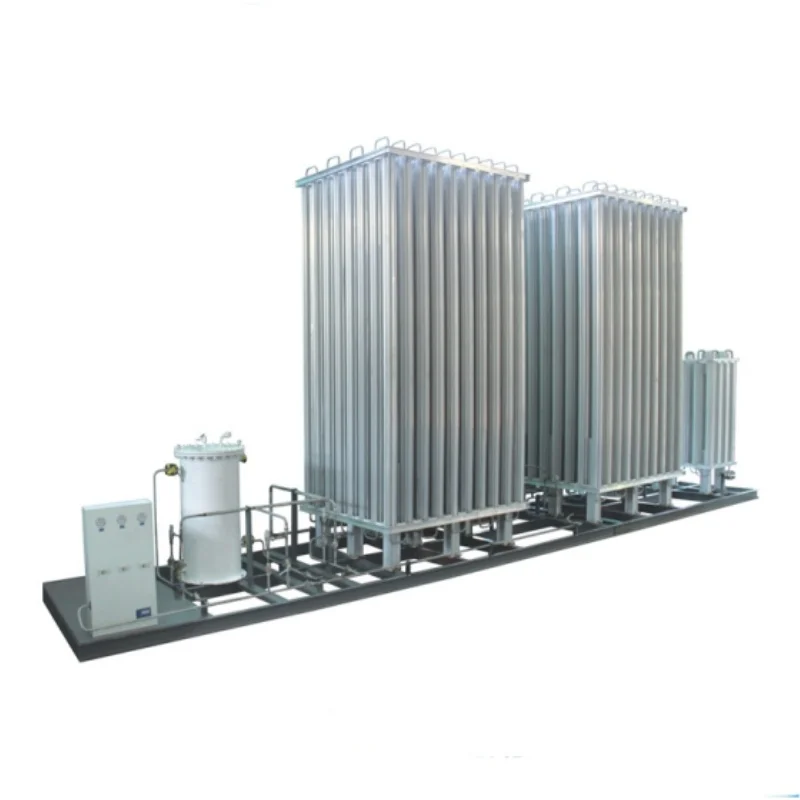

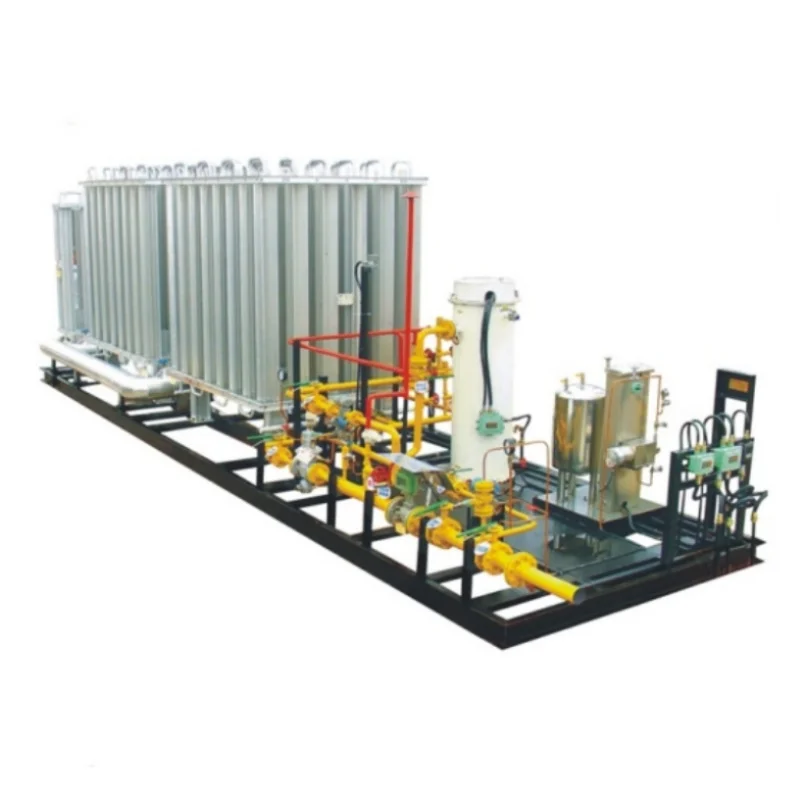

Large Flow Cryogenic Liquid Cylinder Filling Pump Unit with Vaporizer
- Category: >>>
- Supplier: WOBO Industrial Group Inc
Share on (1601239752882):
Product Overview
Description
Cryogenic Pump Skid for Oxygen, Nitrogen, Argon, and LNG Dewar Bottles - Pressurization and Gas Filling System Pump Skid
New Technology Oxygen Argon Nitrogen LNG Cylinder Pump End Suction Liquid Pump Skid For Lab
Product Description

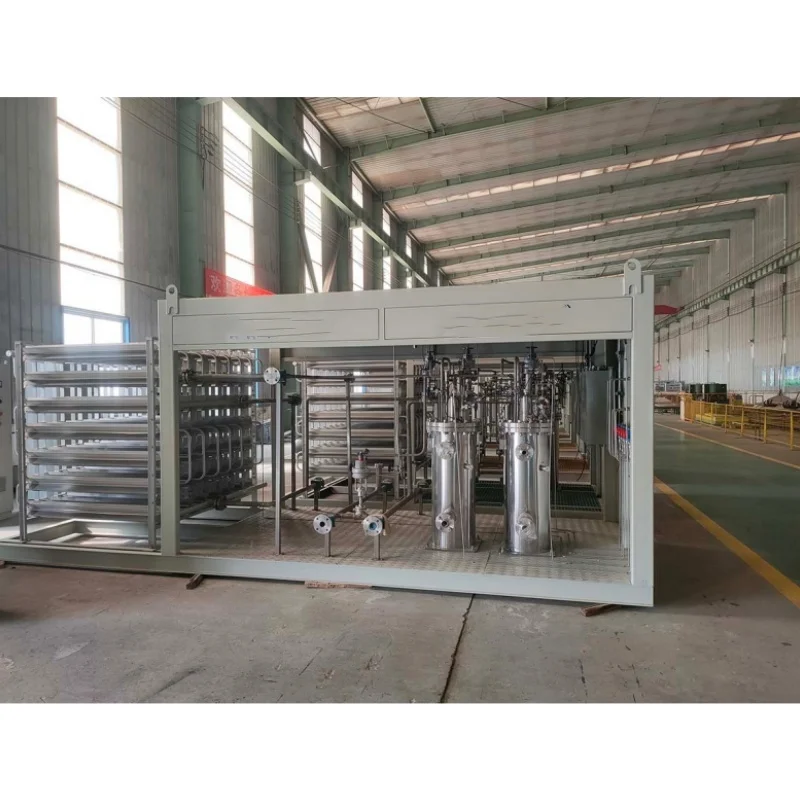

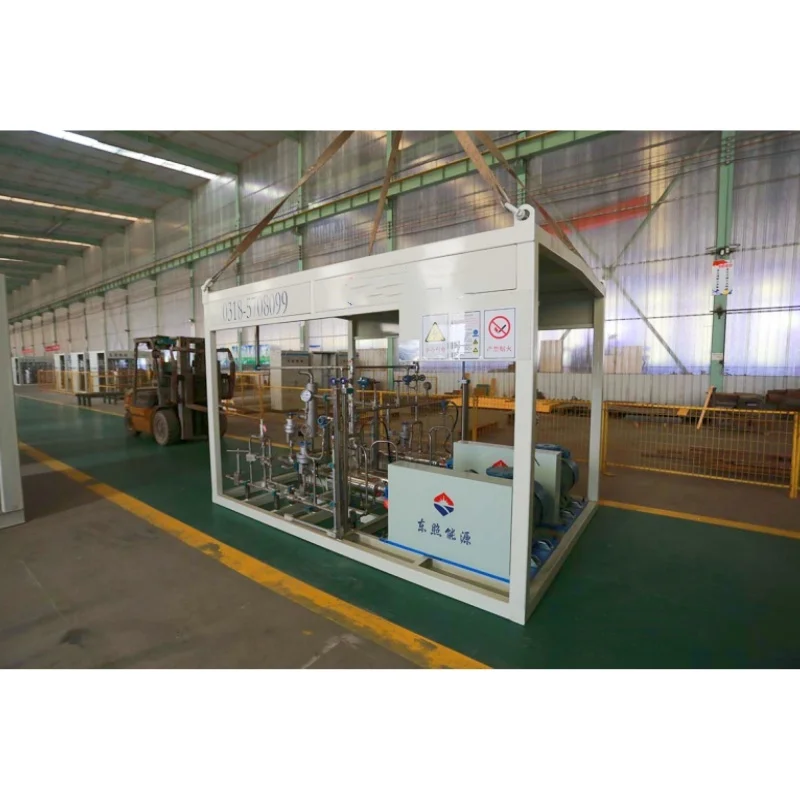

Cryogenic Pump Skid
A cryogenic pump skid is specialized equipment designed for transferring, boosting, and metering cryogenic liquids in low-temperature environments. It is widely used in the handling and transportation of liquefied natural gas (LNG), liquid nitrogen (LN2), liquid oxygen (LOX), and other cryogenic liquids. This equipment combines advanced cryogenic technology with precise mechanical design to ensure efficient operation and reliability under extreme conditions.
Booster Vaporization Skid
LNG Submersible Pump Skid
LNG High-Pressure Vaporization Skid
Mobile LNG Refueling Skid
L-CNG High-Pressure Filling Skid
Pressure Regulation and Metering Skid
LNG Filling Pump Skid
L-CNG High-Pressure Pump Skid
Loading and Unloading Skid
Cryogenic Plunger Pump Skid
Product Paramenters
Specification | Details |
Type | Skid-mounted / Variable Frequency Drive |
Pump | Single Pump (or Dual Pump, optional) |
Design Temperature | -196°C |
Medium | LN2 (Liquid Nitrogen) |
Inlet Pressure | 0.2~1.6 MPa |
Maximum Operating Pressure | 0~25.0 MPa |
Flow Rate | 1500~2000 L/H |
Motor Parameters | 380V/50HZ/3-PH |
Control Method | Auto-stop / Manual Start |
Performance Features:
Integrated Design: Combines pump, auxiliary heating gas, vaporizer, valves, and other equipment in one unit.
Optimized Piping: Enhances space utilization and reduces overall size.
Mobile Operation: Easy to transport for on-site tasks.
High-Pressure Capability: Boost pressure up to 35 MPa, suitable for various applications.
Safety Features: Equipped with sensors for overpressure pump shutdown and temperature protection.
Diesel Generator: Provides sufficient power for all integrated equipment.
Control Panel: Integrated control cabinet for convenient on-site operation.

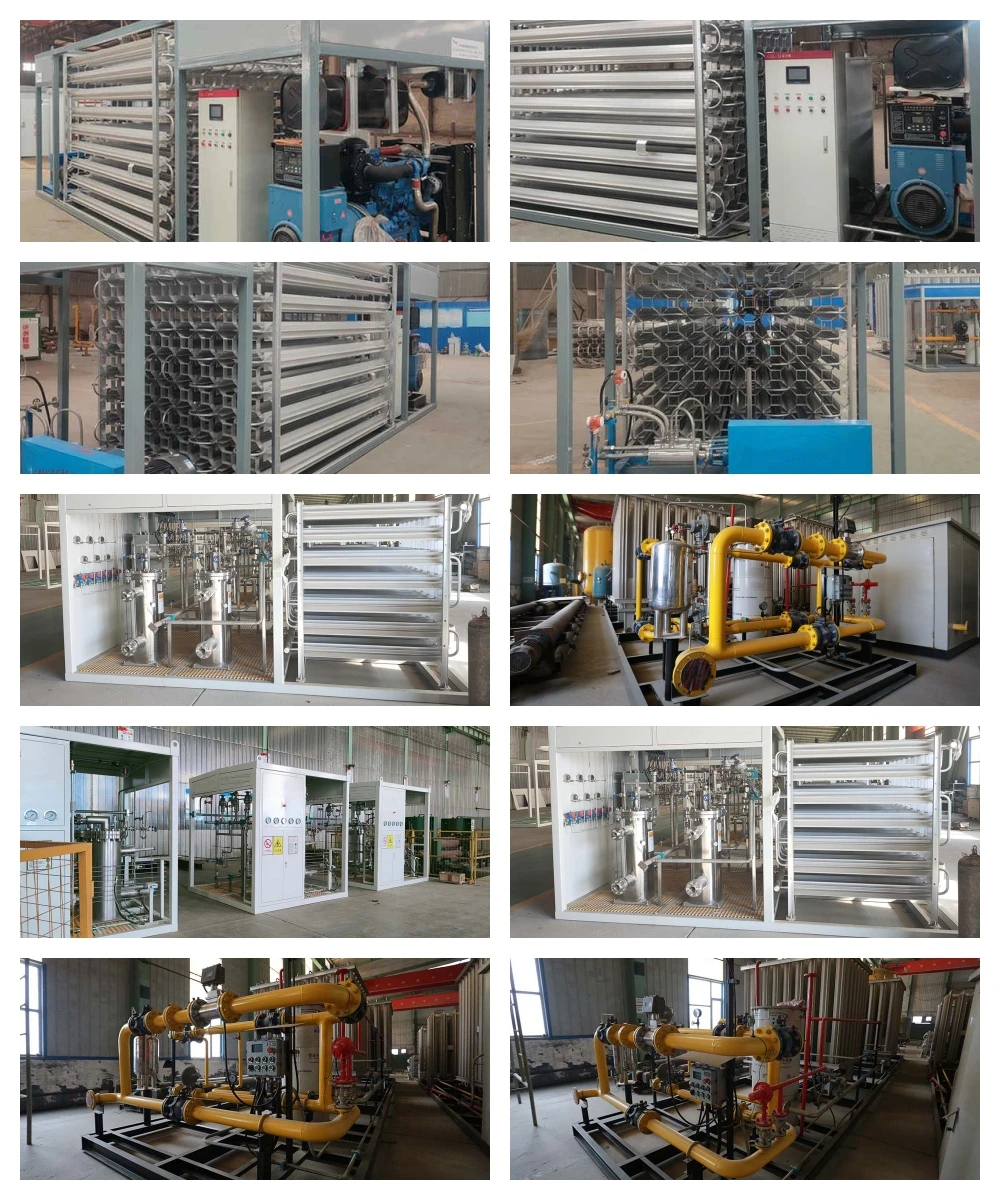

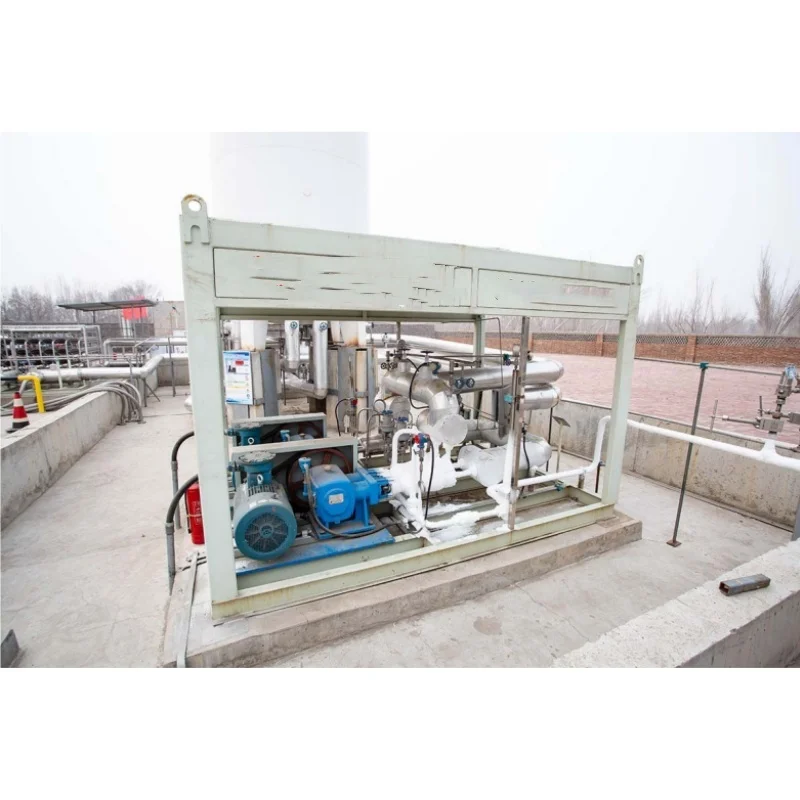

Project Case

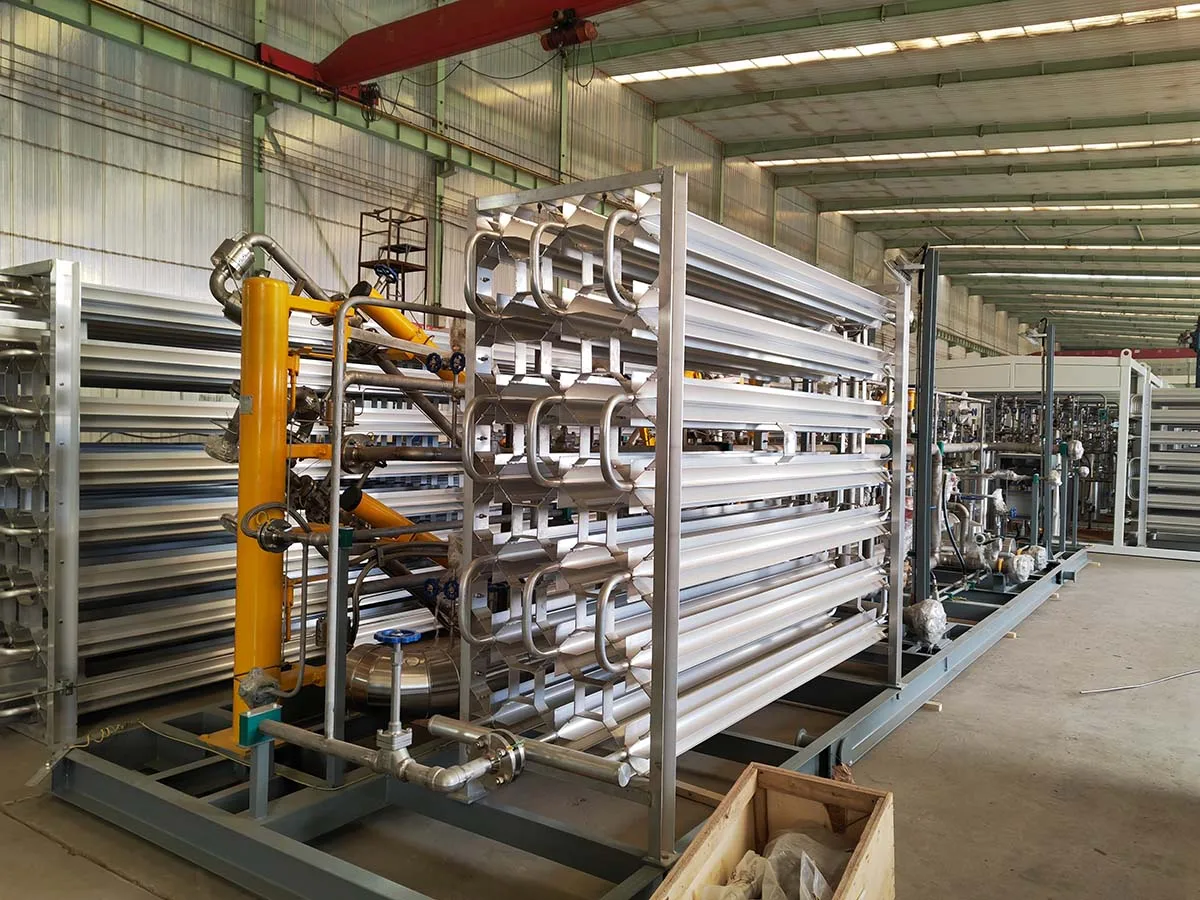

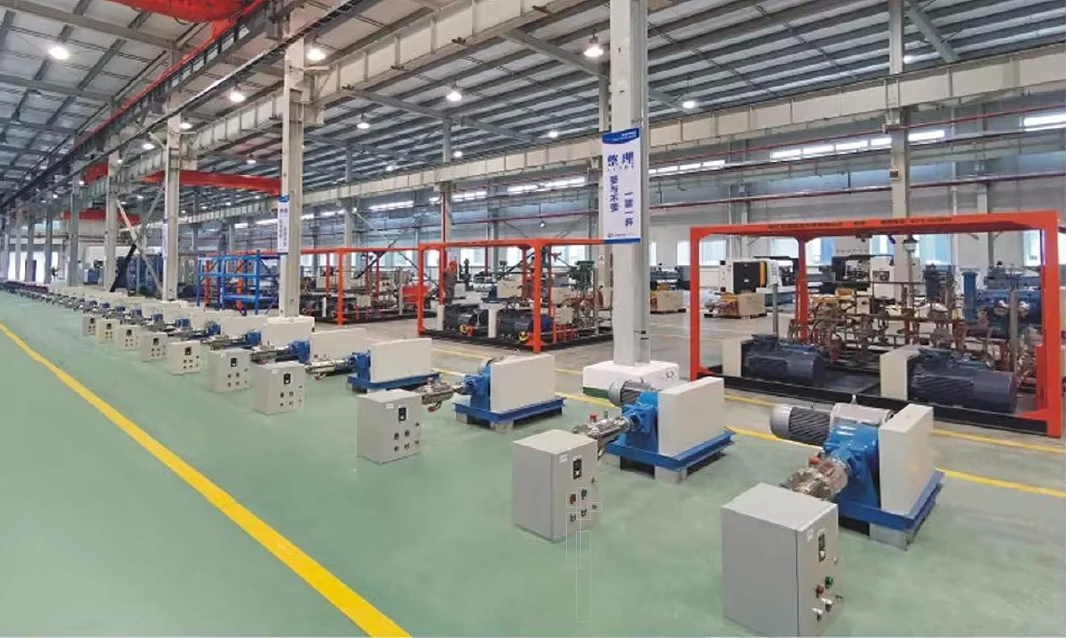

Workshop Show
Company Profile
Wobo's products cover the fields of new energy, energy, metallurgy, petrochemical, electronics, food, machinery, building
materials, medicine, new materials, petrochemical, chemical fiber, heat treatment, glass, national defense and aerospace, and are sold to more than 100 countries and regions. We strive to provide products with the highest quality and service, and complete with the highest standards. All our products have undergone rigorous testing, and now we have obtained CE,ISO,ASME . Our goal is 100% customer satisfaction,we will provide high-quality productsand value-added services.
materials, medicine, new materials, petrochemical, chemical fiber, heat treatment, glass, national defense and aerospace, and are sold to more than 100 countries and regions. We strive to provide products with the highest quality and service, and complete with the highest standards. All our products have undergone rigorous testing, and now we have obtained CE,ISO,ASME . Our goal is 100% customer satisfaction,we will provide high-quality productsand value-added services.
