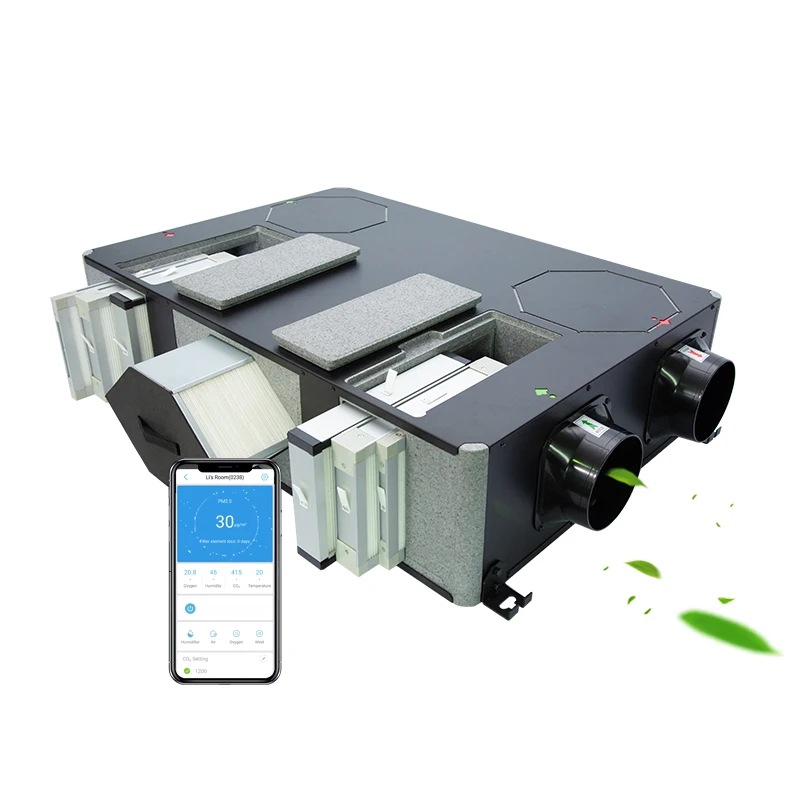

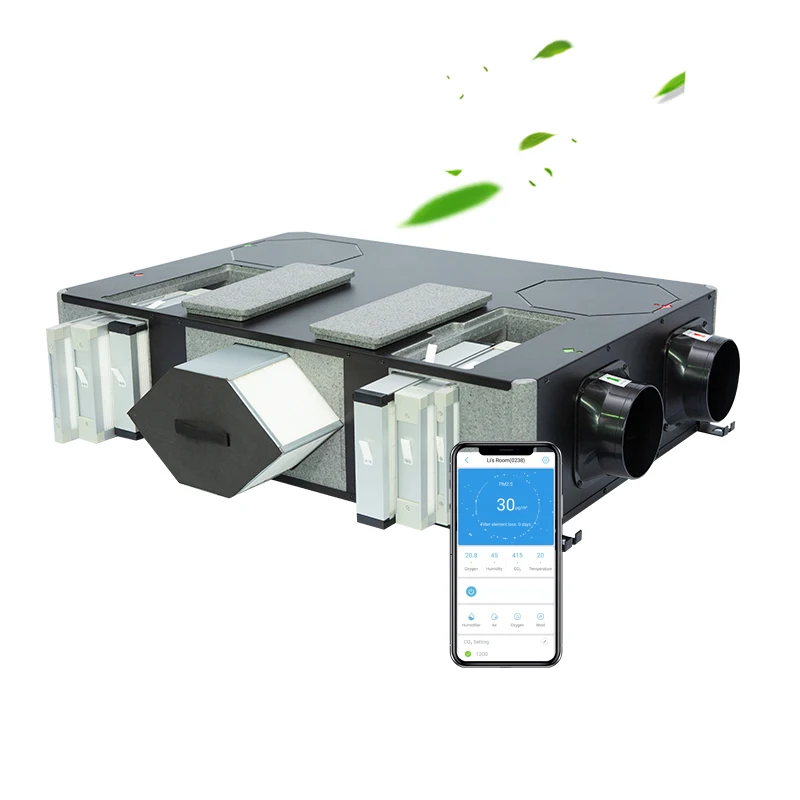

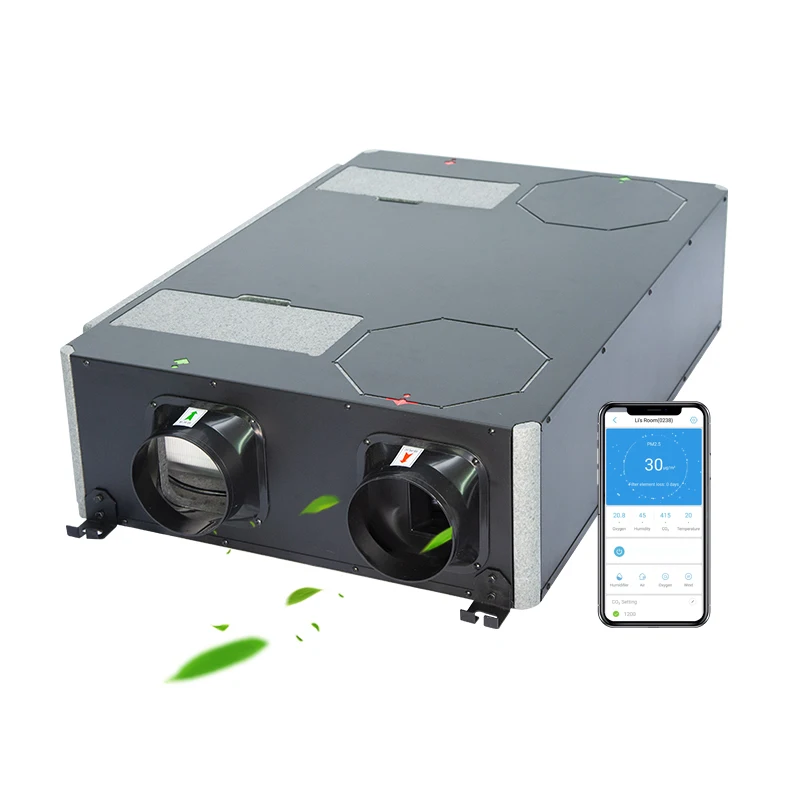

High Heat Recovery Efficiency Energy Recovery Ventilator with Tuya Wifi Module Easy to Install
- Category: >>>
- Supplier: Sichuan Guigu Renju Technology Co. Ltd.
Share on (1601239761846):
Product Overview
Description
About us
1.Have 2 plants meet the capacity demands 2.Possess 80 patents certificates
3. 11 years experience HVAC industry 4. Have strong R&D and HVAC design team
5. Free installation plan design service 6.A full set of ventilation system installation pipe fitting supply
7.Have 2 laboratories(national approved enthanlpy and 30m³ laboratory
8. Duilt a sound certificate system of ISO9001, ISO 14001， ISO45001， CE certificate and other product certification system.
Specification & Dimensions
Item | TFKC-025(A6-1D2) Ceiling Mounted ERV Pre-cooling and pre-heating ventilation system |
Warranty | 1 year |
After-sale Service | Online technical support, Free spare parts |
Project Solution Capability | Provide overall solution |
Application | Hotel/School/Commercial building/Real estate project |
Design Style | Modern |
Place of Origin | China |
Model Number | TFKC-025(A6-1D2) |
Size | 990*710*255mm |
Air Flow(m³/h) | 250 m³/h |
Install type | Celling |

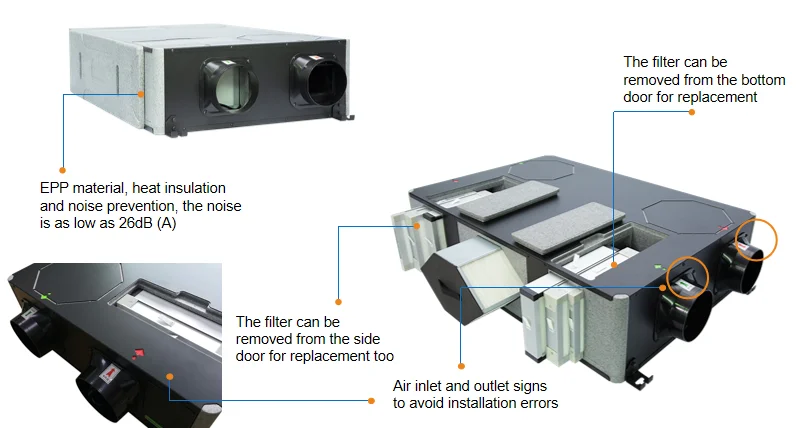

Maintenance | Bottom /Side door |
Heat Recovery Type | Enthalpy exchanger |
Heat Recovery Efficiency(%) | 75%-80% |
Power Voltage(V)/Frequency(HZ) | 210-240/50HZ |
Noise | 31dB(A) |
OEM/ODM | Accept |
Functional Details Description

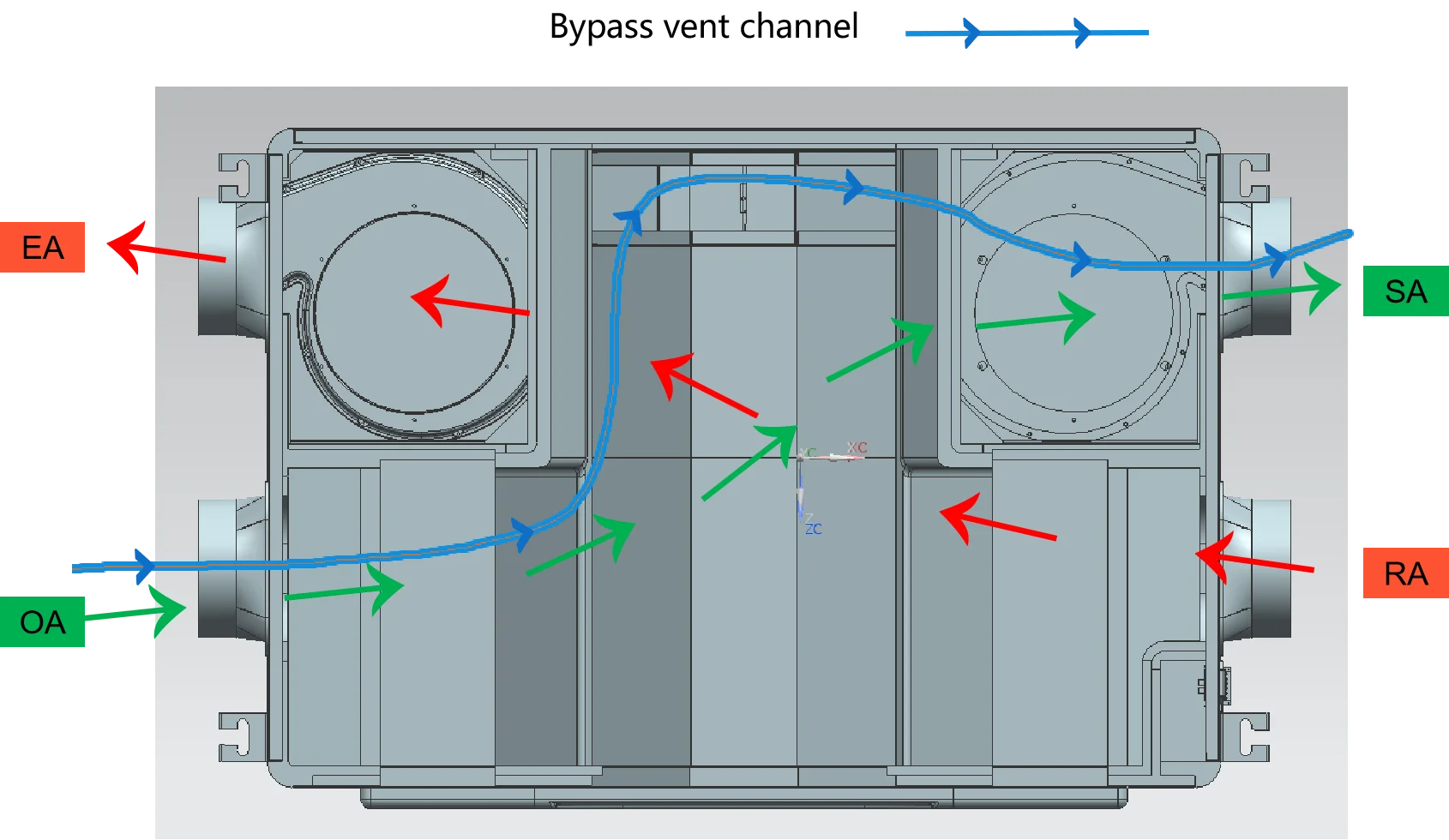

Bypass function
When the outdoor temperature is suitable, avoid the enthalpy heat exchange core, the outdoor air is directly input into the room through the bypass channel, the wind resistance is small, and the outdoor air can quickly enter the room. When the outdoor temperature is too high or too low, the bypass is auto closed, the fresh air and exhaust air exchange heat to achieve energy recovery.

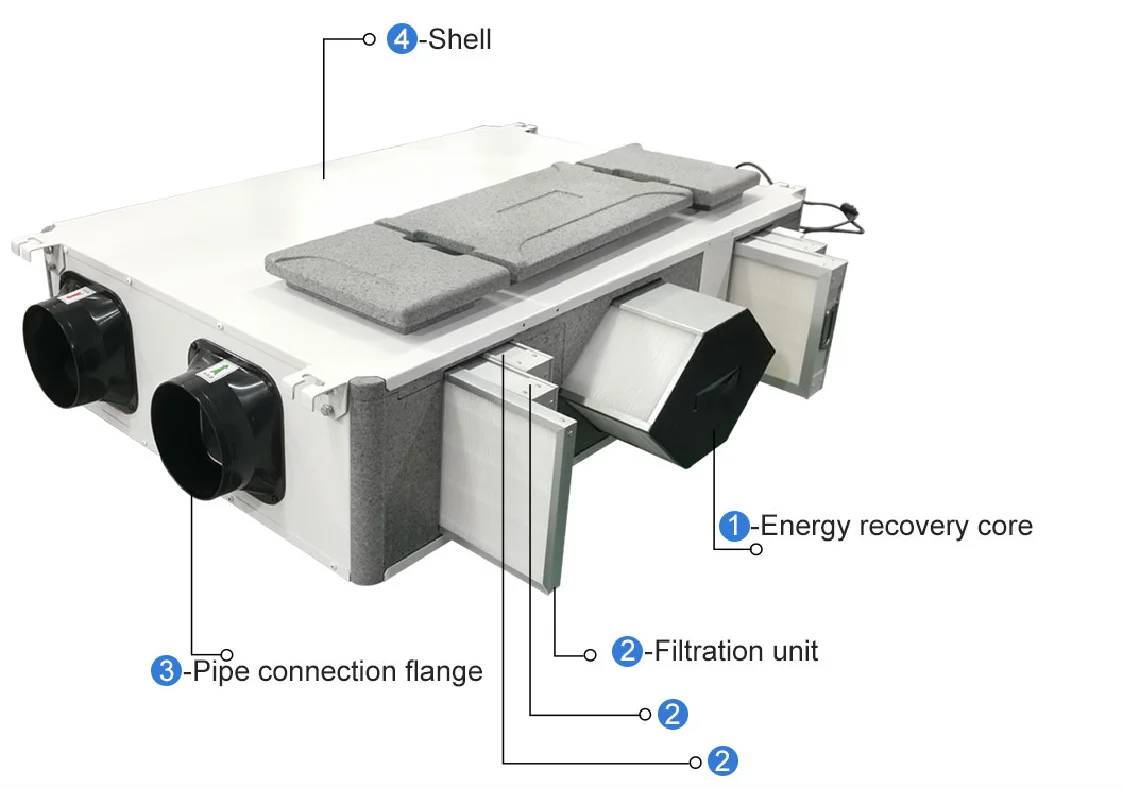

Products Features

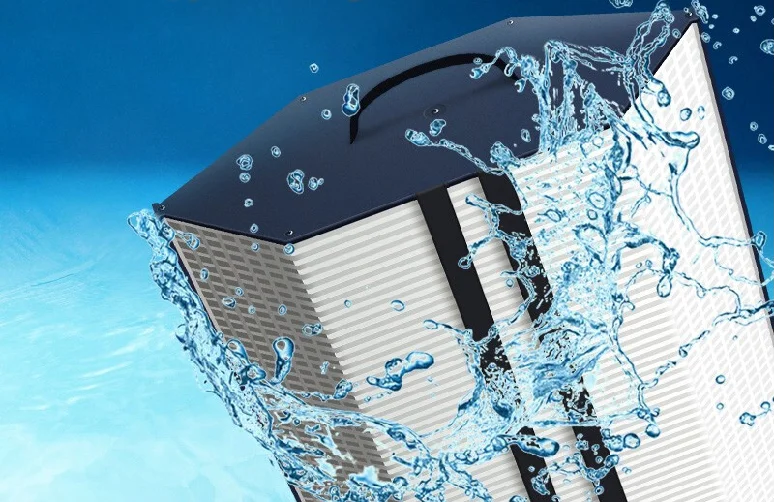

The energy/heat recovery core (enthalpy exchanger) is made of ER paper, featuring high moisture permeability, good air tightness, good tear resistance and aging resistance. The gaps between the fibers are so small that only water molecules with small diameters can pass through, not odor molecules with large diameters. In this way, temperature and humidity can be recovered smoothly, preventing pollutants from seeping into the fresh air.
Main Feature:
The heat recovery efficiency is up to 85%
Enthalpy efficiency is up to 76%
Effective air exchange rate above 98%
Selective molecular osmosis
Flame retardant, antibacterial and mildew resistance.

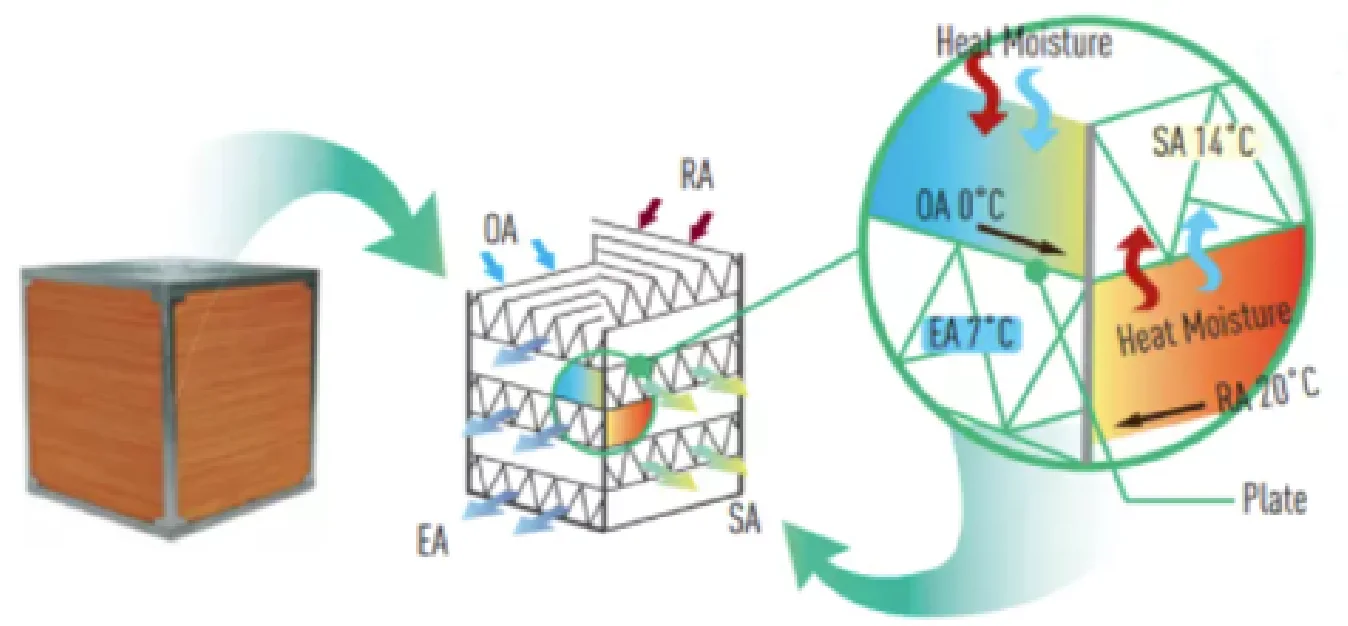

Working principle:
The flat plates and the corrugated plates form channels for suction or exhaust air stream. the energy is recovered when the two air steams passing through the exchanger crossly with temperature difference.
Enthalpy efficiency is up to 76%
Effective air exchange rate above 98%
Selective molecular osmosis
Flame retardant, antibacterial and mildew resistance.
Working principle:
The flat plates and the corrugated plates form channels for suction or exhaust air stream. the energy is recovered when the two air steams passing through the exchanger crossly with temperature difference.

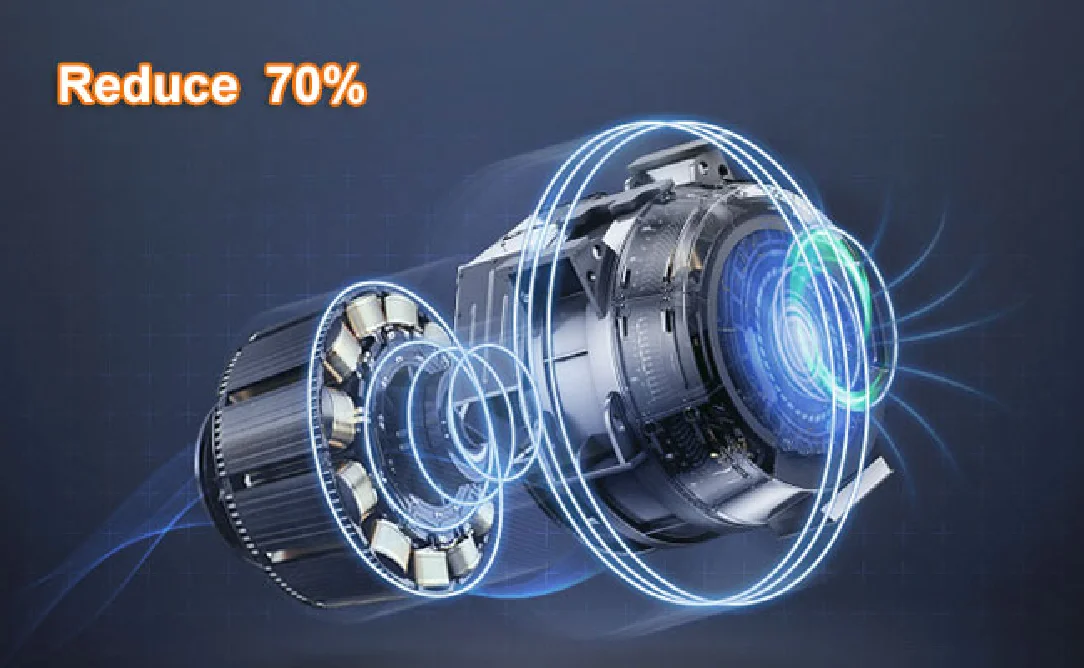

Higher Energy Efficiency and Ecology by Powerful Motors
The high-efficiency brushless DC motor is built into the Smart energy recovery ventilator, which can reduce the power consumption by 70% and save energy significantly. VSD control is suitable for most engineering air volume and ESP requirements.
Energy/heat recovery ventilation technology
Fresh air + energy recovery = Reduce operating costs for cooling or heating systems
Energy recovery ventilation (ERV) is the process of energy recovery in residential and commercial HVAC systems, by exchanging energy from the exhausted air of a building or space, to process ventilated air entering the room.

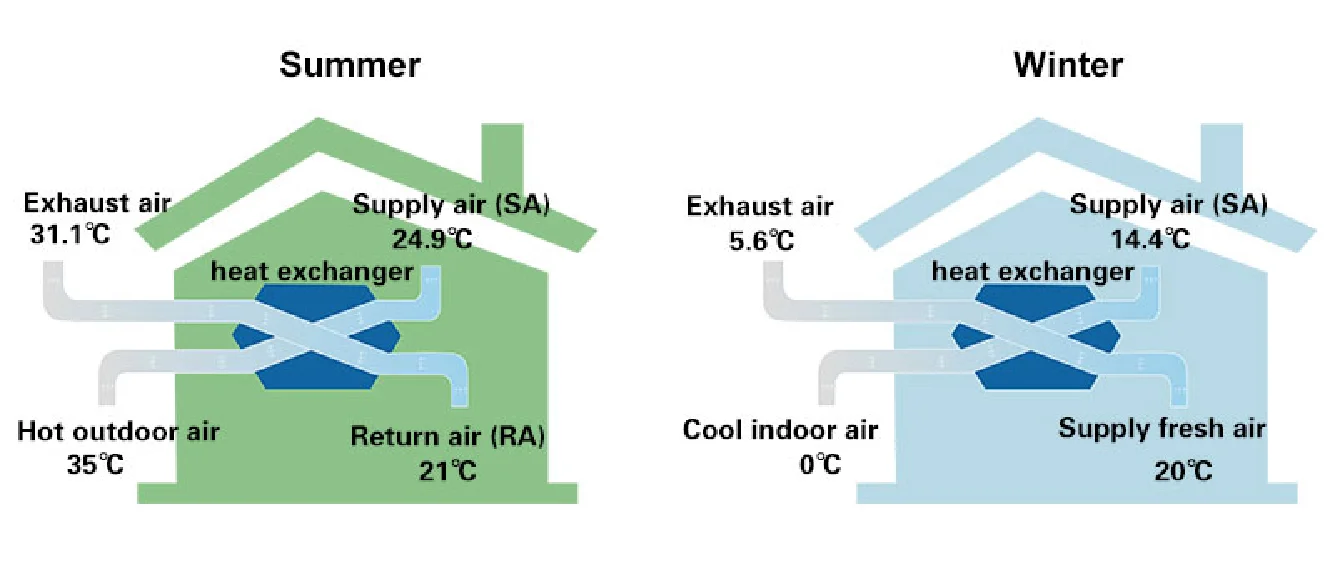

In the hot season, the system precools and dehumidifies the fresh air, humidify and preheat in the cold season.
The benefits of using energy recovery are the ability to meet ASHRAE ventilation and energy standards while improving indoor air quality and reducing the total capacity of HVAC units.
Energy recovery ventilation (ERV) is the process of energy recovery in residential and commercial HVAC systems, by exchanging energy from the exhausted air of a building or space, to process ventilated air entering the room.
In the hot season, the system precools and dehumidifies the fresh air, humidify and preheat in the cold season.
The benefits of using energy recovery are the ability to meet ASHRAE ventilation and energy standards while improving indoor air quality and reducing the total capacity of HVAC units.
Controller
The functions of intelligent controller are suitable for various project requirements.
- Various fan speed control to offer different supply air volume and ESP
- Temperature display to monitor indoor and outdoor temperature constantly
- Power to auto restart allow ventilator recover automatically from power cut down
- CO2 concentration control
- Humidity sensor to control indoor humidity
- RS485 connectors available for BMS central control
- External control and on/error signal output to allow administrator monitor and control the ventilator easily
- Filter alarm to remind user cleaning the filter in time
- Working status and fault display-Tuya APP control

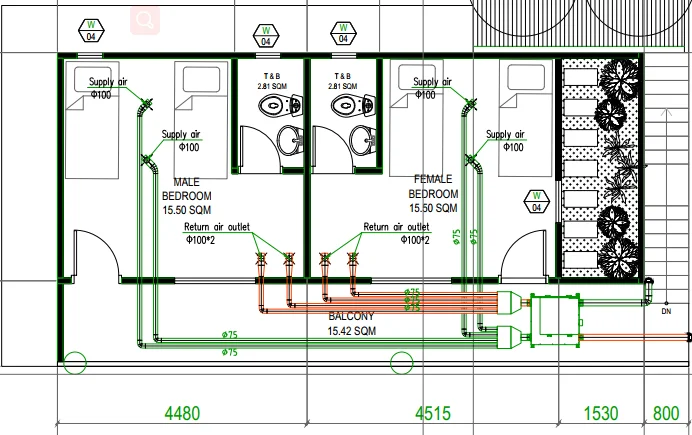

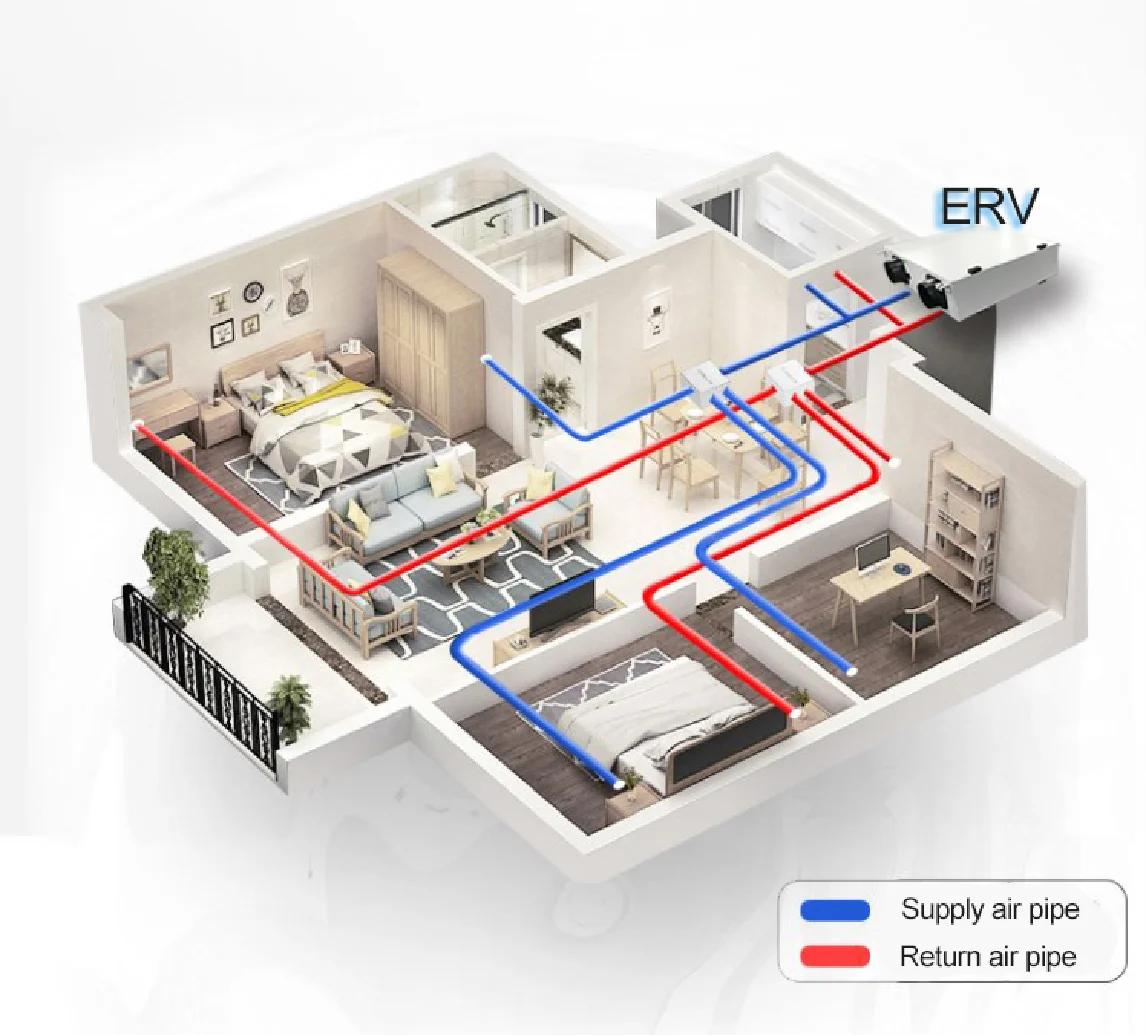

Installation and pipe layout diagram
We can provide free pipe layout design according to the customer‘s house type.
