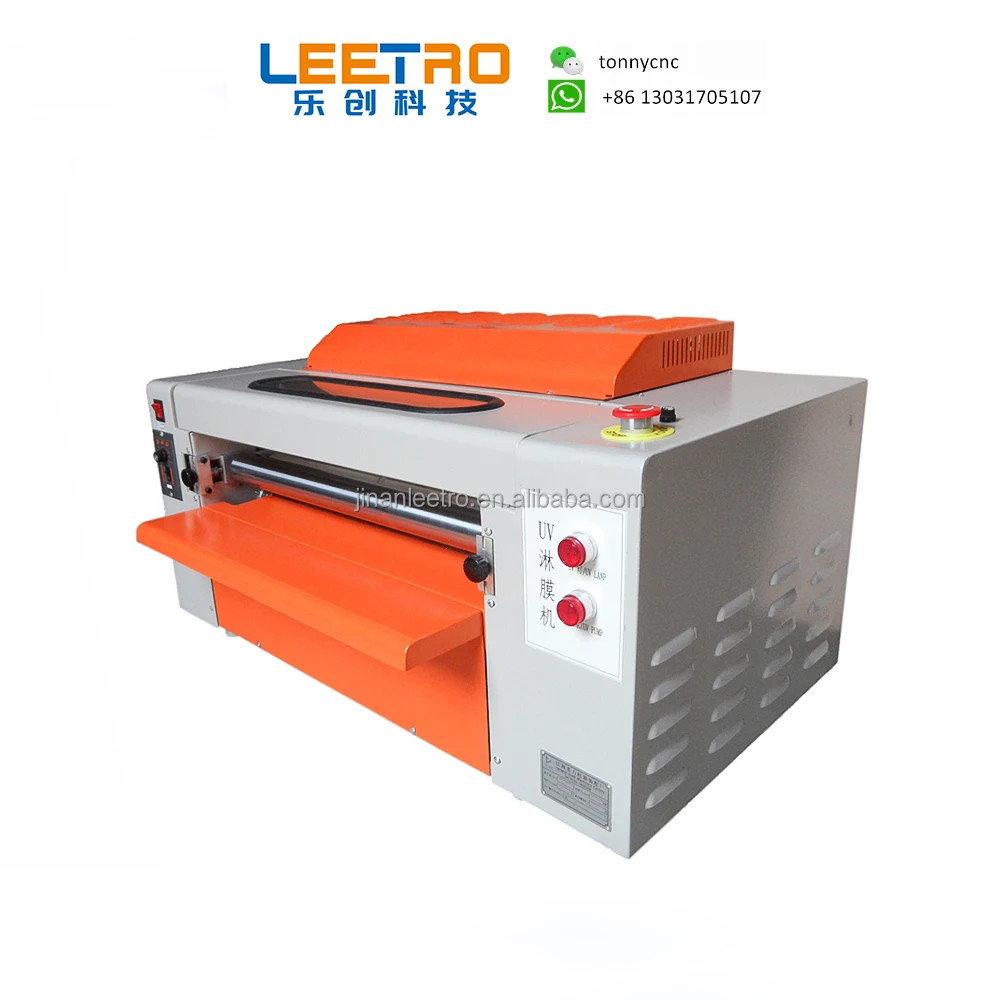

GS D650 desktop UV coating machine China mini uv varnish photo paper coating machine
- Category: >>>
- Supplier: Jinan Leetro Technology Co. Ltd.
Share on (1601239768049):
Product Overview
Description
Product Description
Desktop series coating machine is a new and easy-to-operate compact industrial-specific laminating machine, equipped with a
screw-type adjusting device and an automatic circulation replenishing system, and is specially designed for laminating small
batches of digital prints. Its adjustable laminating system (the machine has a built-in laminating roller set), and its layout and
performance can be applied to laminating operations of various thin-plate materials-all kinds of digital printing paper laminating
and offset printing paper laminating. The maximum performance of the machine is 12m/min per hour.
screw-type adjusting device and an automatic circulation replenishing system, and is specially designed for laminating small
batches of digital prints. Its adjustable laminating system (the machine has a built-in laminating roller set), and its layout and
performance can be applied to laminating operations of various thin-plate materials-all kinds of digital printing paper laminating
and offset printing paper laminating. The maximum performance of the machine is 12m/min per hour.
Product Name | GS-D650 DESKTOP UV COATING MACHINE |
Max. laminating width (mm) | 650 |
Max. laminating speed (m2/hr) | 0-500 |
Max. laminating thickness(mm) | 0.1-2 |
Max. coating thickness (mm) | 0.1-0.3 |
Drying way | Ultraviolet - curable |
Power rating(KW) | 2.3 |
Machine noise(db) | <60 |
Packing | standard wooden case |
Packing dimensions(mm) | 940*730*640 |
Weight (kg) | 100 |
Packing Volume | 0.3 |
Power supply | 220V\\50Hz |
Product Usage
Powder cleaner
-- Manual feeding table
-- with double-brusher roller to clean effectively on photo paper.
-- with double-brusher roller to clean effectively on photo paper.
UV Coating unit
-- high sensitivity system which guarantees smooth coating to thick and thin paper.
--Micro adjustor equipped to control oil usage and coating quality is convenient for users to adjust upon application needs.
-- Paper winding protector: when paper sticks and wraps the coating roller,the protector will stop the machines running and the
buzzer rings at the same time.
UV drying unit
--UV radiation makes UV oil hard and wear-resistant, and paper surface will be much glossier.
-- Fast cooling system equipped to prevent paper curvature
-- Mesh Teflon belt conveyor is equipped with air aspirator to guarantee paper conveyed steadily.
-- Fast cooling system equipped to prevent paper curvature
-- Mesh Teflon belt conveyor is equipped with air aspirator to guarantee paper conveyed steadily.
Simple receiving table
Sophisticated designs
1. Small footprint, eliminates the need for users to freight costs, the whole space of 0.3 cubic meters.
2. Simple operation, a change in the past complicated operation, heavy machine features.
3. The automatic intelligent circulatory system, reduce consumption and trouble frequently added lamination of liquid fuel.
2. Simple operation, a change in the past complicated operation, heavy machine features.
3. The automatic intelligent circulatory system, reduce consumption and trouble frequently added lamination of liquid fuel.
High-quality interior design
1. Toho speed motors used in Taiwan, the people, or a good electrical and other famous brands electrical components.
2. The conveyor belt made of high quality rubber wheel drive, not wandering deformation, stepless.
3. scraping ink dedicated high elasticity alloy steel scraper blade, customers use the machine more convenient, without daily cleaning the bottom of the photo at the bottom of the stick will not let oil stains. Increase production speed, long life of the machine.
4. The machine adopts worm designed to ensure that between the rubber roller into the same, so that lamination thickness, can be adjusted according to the desired effect.
5. The selection of high quality and efficient lamp, lamp room compulsory heat, extend lamp life, protect the goods will not heat deformation.
6. The cabinet surface spray or paint treatment, beautiful, corrosion-resistant.
7. Low production costs , precision roller design, lamination effect uniform lamination costs 0.35-0.50 yuan / square
2. The conveyor belt made of high quality rubber wheel drive, not wandering deformation, stepless.
3. scraping ink dedicated high elasticity alloy steel scraper blade, customers use the machine more convenient, without daily cleaning the bottom of the photo at the bottom of the stick will not let oil stains. Increase production speed, long life of the machine.
4. The machine adopts worm designed to ensure that between the rubber roller into the same, so that lamination thickness, can be adjusted according to the desired effect.
5. The selection of high quality and efficient lamp, lamp room compulsory heat, extend lamp life, protect the goods will not heat deformation.
6. The cabinet surface spray or paint treatment, beautiful, corrosion-resistant.
7. Low production costs , precision roller design, lamination effect uniform lamination costs 0.35-0.50 yuan / square
Characteristics
Application materials UV Laminating machine widely: as adhesive paper, PP paper, car stickers, flat printed materials, PVC, paper, crystal glass, wood and bamboo materials, leather, acrylic, and other artistic lamination.
1. Coating short curing time, high production efficiency.
2. Coatingspeed Laminating 200-400 square feet per hour, with automatic refilling system, no loss of liquid waste recycling, liquid replacement quick and easy.
3. Coating dustproof and waterproof, wear no scratches, particles, and three-dimensional sense of strong, good toughness. The UV-curable optical isolation, drying speed, security.
5. coated surface after lamination to achieve high hardness, high gloss abrasion effect, finished water, moisture, aging, UV, and non-destructive image, it can be used repeatedly lamination.
6. There are light and matte lamination points, with light lamination liquid leaching out of the effect of the surface bright,
colorful, clear lines, with matt lamination liquid leaching out of the effect of the surface is not reflective, elegant, athletic
appearance.
Widely used in photo prints, print, photo, inkjet, Cheb, book covers, pictures, calendars, cards, product samples, packaging
cartons of surface lamination.
1. Coating short curing time, high production efficiency.
2. Coatingspeed Laminating 200-400 square feet per hour, with automatic refilling system, no loss of liquid waste recycling, liquid replacement quick and easy.
3. Coating dustproof and waterproof, wear no scratches, particles, and three-dimensional sense of strong, good toughness. The UV-curable optical isolation, drying speed, security.
5. coated surface after lamination to achieve high hardness, high gloss abrasion effect, finished water, moisture, aging, UV, and non-destructive image, it can be used repeatedly lamination.
6. There are light and matte lamination points, with light lamination liquid leaching out of the effect of the surface bright,
colorful, clear lines, with matt lamination liquid leaching out of the effect of the surface is not reflective, elegant, athletic
appearance.
Widely used in photo prints, print, photo, inkjet, Cheb, book covers, pictures, calendars, cards, product samples, packaging
cartons of surface lamination.
