Alstom Optipow 105 & 135 Buna N Rubber Red Membrane V4549902 0100
- Category: >>>
- Supplier: Qingdao Star Machine Technology Co. Ltd.Qingdao Ltd.
Share on (1601239901557):
Product Overview
Description
Product Overview

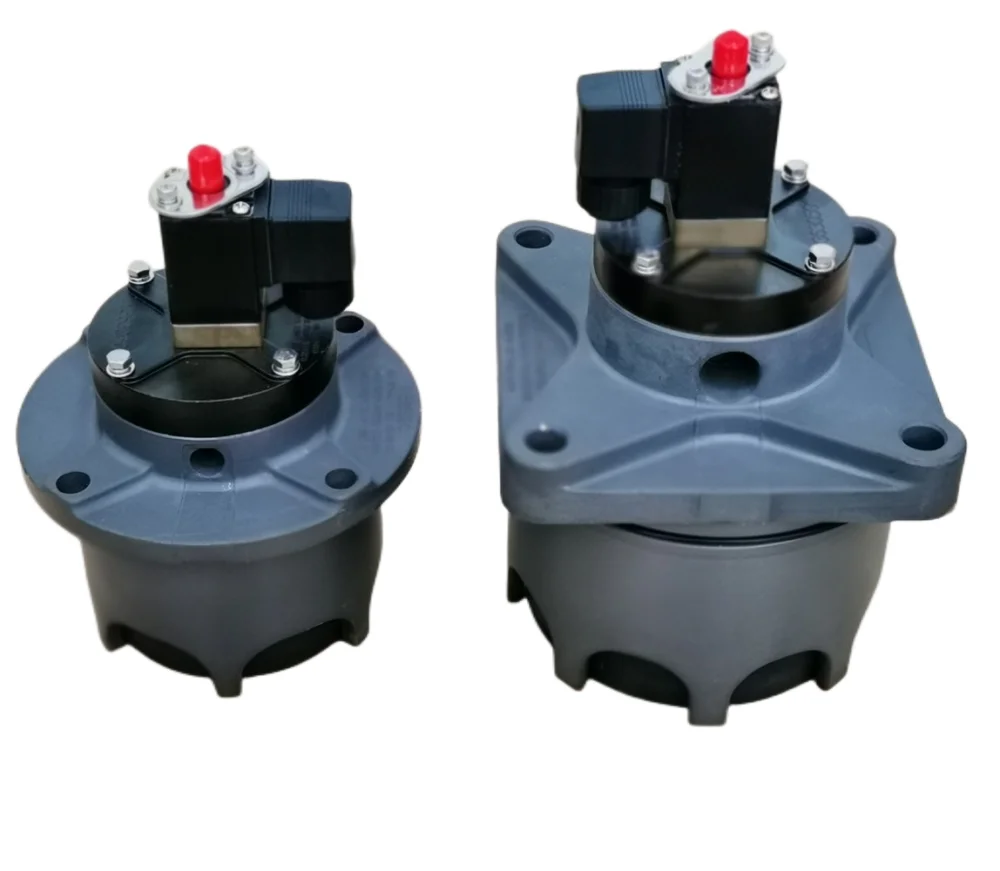

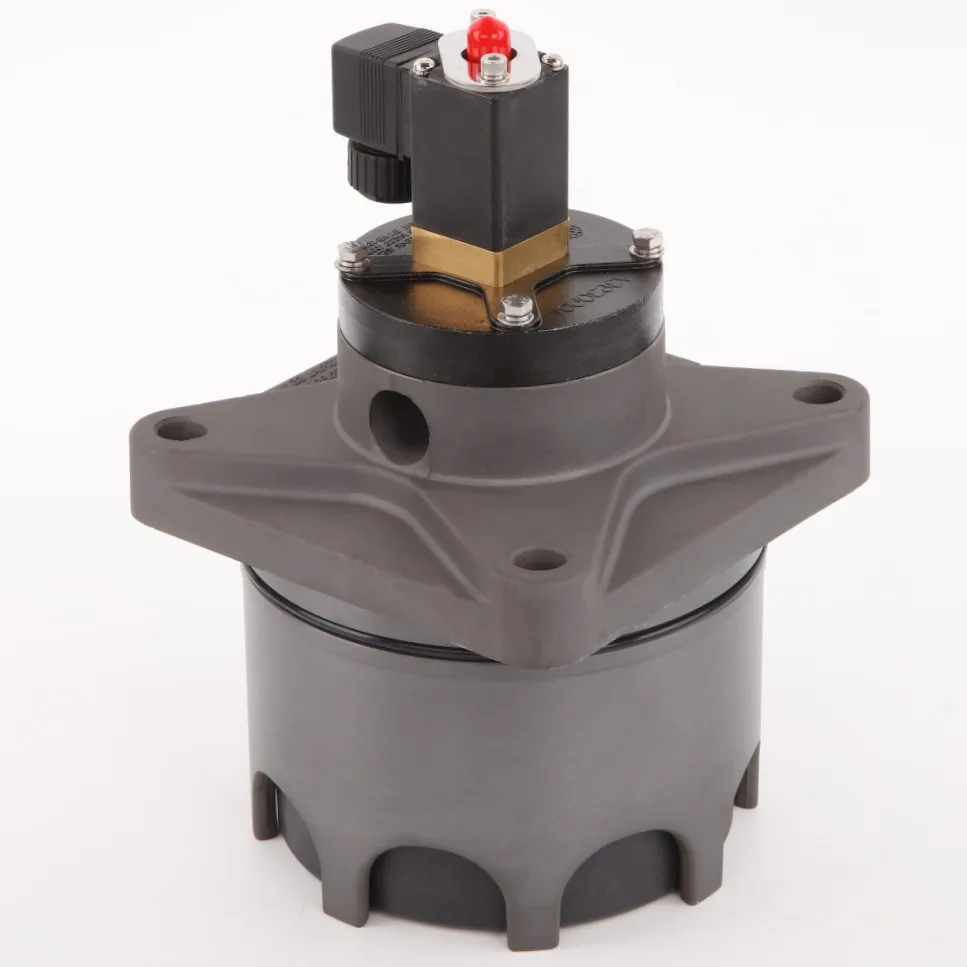

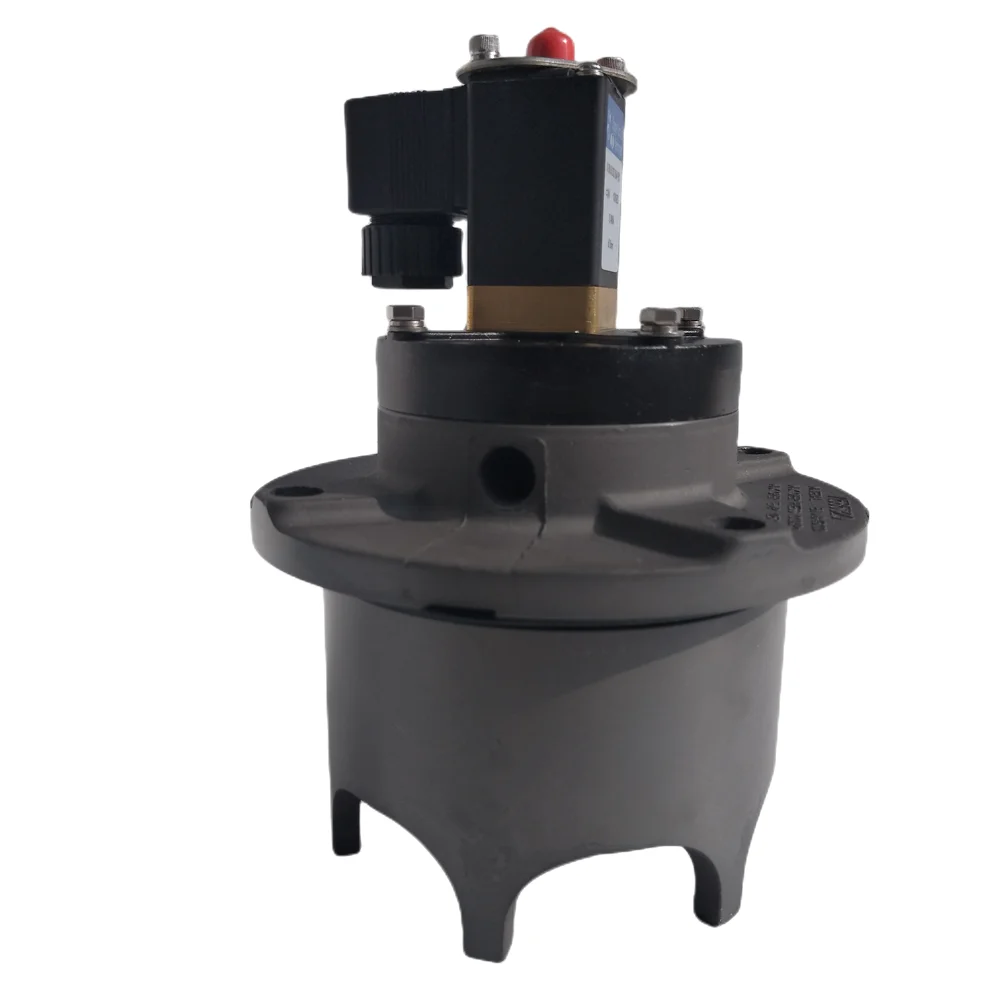

OUR OPTIPOW PULSE JET VALVE
The compact pulse valve fort he Optipulse fabric filters of different types.
1.Is a result of many years of experiences with in the fabric filter technology area.
2.Is quick acting with high efficiency.
3.Has small dimensions,the figure after the name stands fir the diameter of the plunger.
4.Is primarily designed to be used in combination with circular pressure tank.
5.Is easy to install and make service to.
6.Has a very robust design,designed for normal use at air pressure up to 600kPa(6bar).Normal max operating temperature(compact pulse valve)50°C.
7.Longer Service Life,More than Twice Service Life in the Same Industry .One Year Free Quality Assurance Service.
1.Is a result of many years of experiences with in the fabric filter technology area.
2.Is quick acting with high efficiency.
3.Has small dimensions,the figure after the name stands fir the diameter of the plunger.
4.Is primarily designed to be used in combination with circular pressure tank.
5.Is easy to install and make service to.
6.Has a very robust design,designed for normal use at air pressure up to 600kPa(6bar).Normal max operating temperature(compact pulse valve)50°C.
7.Longer Service Life,More than Twice Service Life in the Same Industry .One Year Free Quality Assurance Service.
FEATURES AT A GLANCE
Operating Temperature :
-40°C-130°C
Multi Voltage Selectable:
DC24V, AC100V50/60Hz, AC120V60Hz,
AC110V50/60Hz,AC220V50Hz
Activing Life:
More than 1000000 Pulses
Interchange:
Alstom Jet Valve, optipow135 Fabric Filter
Service:
7*24 Hours Expert Consultation Online
-40°C-130°C
Multi Voltage Selectable:
DC24V, AC100V50/60Hz, AC120V60Hz,
AC110V50/60Hz,AC220V50Hz
Activing Life:
More than 1000000 Pulses
Interchange:
Alstom Jet Valve, optipow135 Fabric Filter
Service:
7*24 Hours Expert Consultation Online
Basic Info
Model NO. | OPTIPOW 135 | Valve Structure | Pilot Membrane Structure |
Power Supply | DC Solenoid Valve | Usage | Drain, Dust Cleaning |
Standard | DIN | Application | Industrial Usage |
Used For | Dust Filter | Trademark | OPTIPOW |
Specification | 4" | Design static pressure | 15 bar (1500 kPa) |
Design temperature | 100 °C | Operating pressure | < 6 bar |
Operating pressure variation | 3 bar unlimited nos | Operation temperature | 50 °C |
Name | PARTS NO. | Fit | Diameter | Thickness | Material | UNIT Weight |

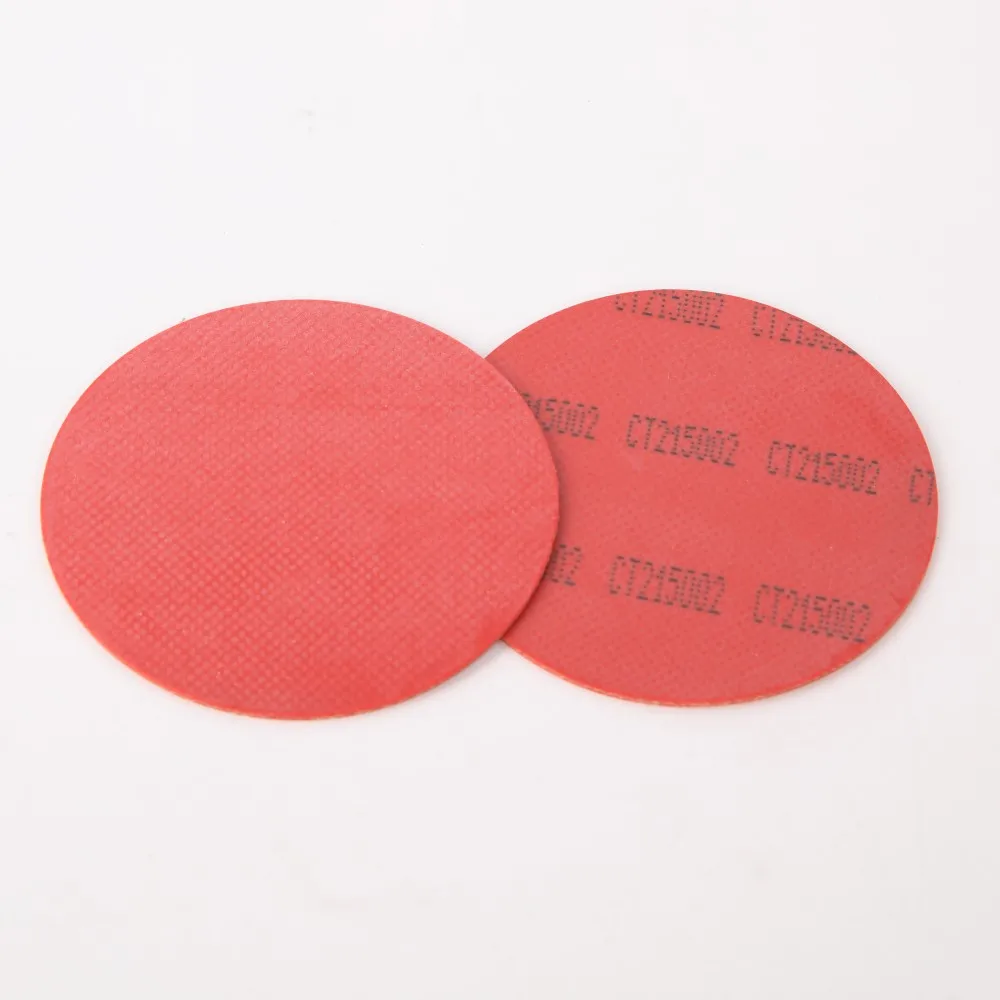

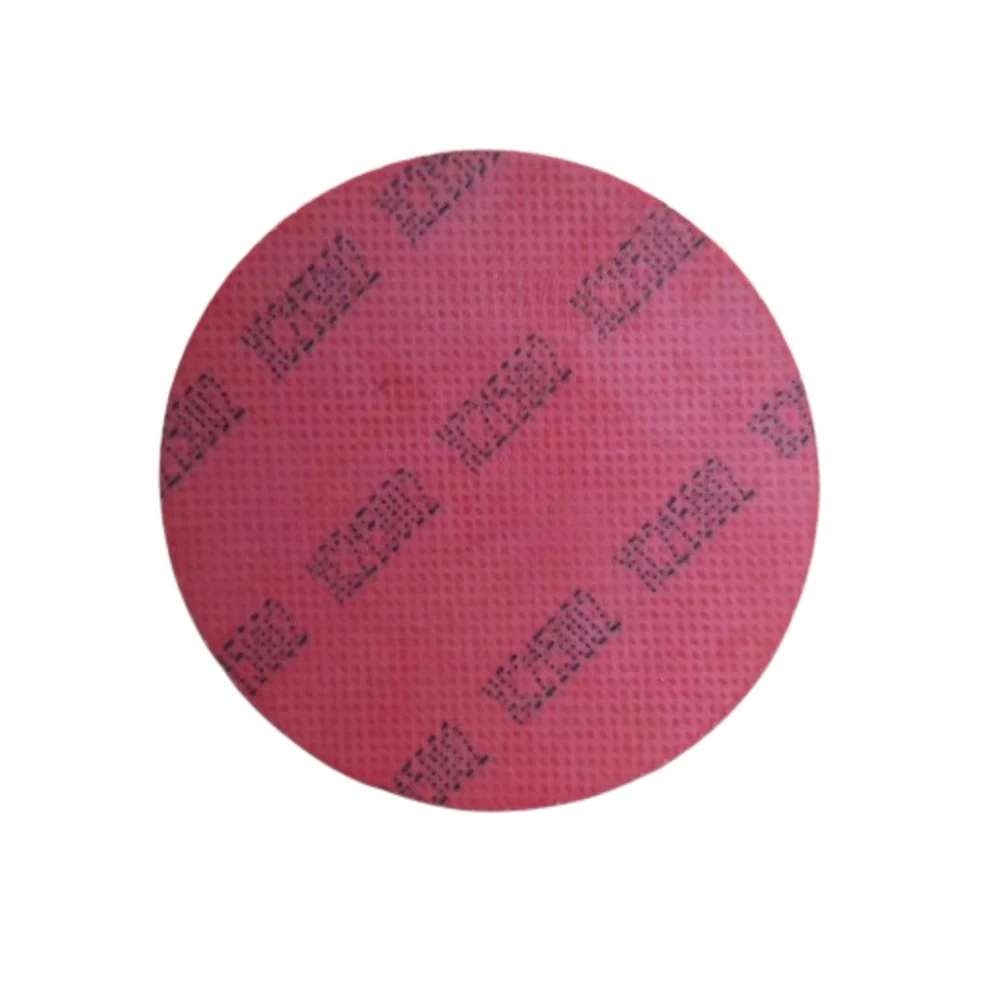

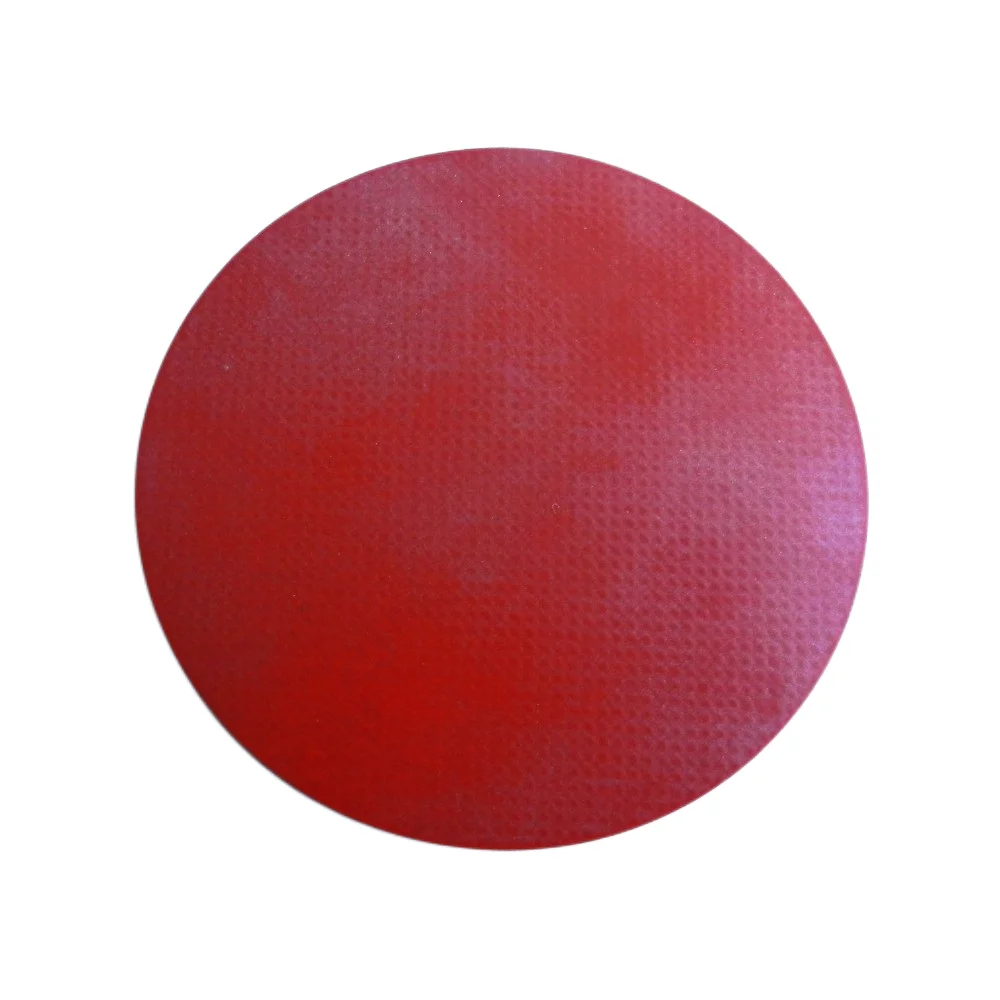

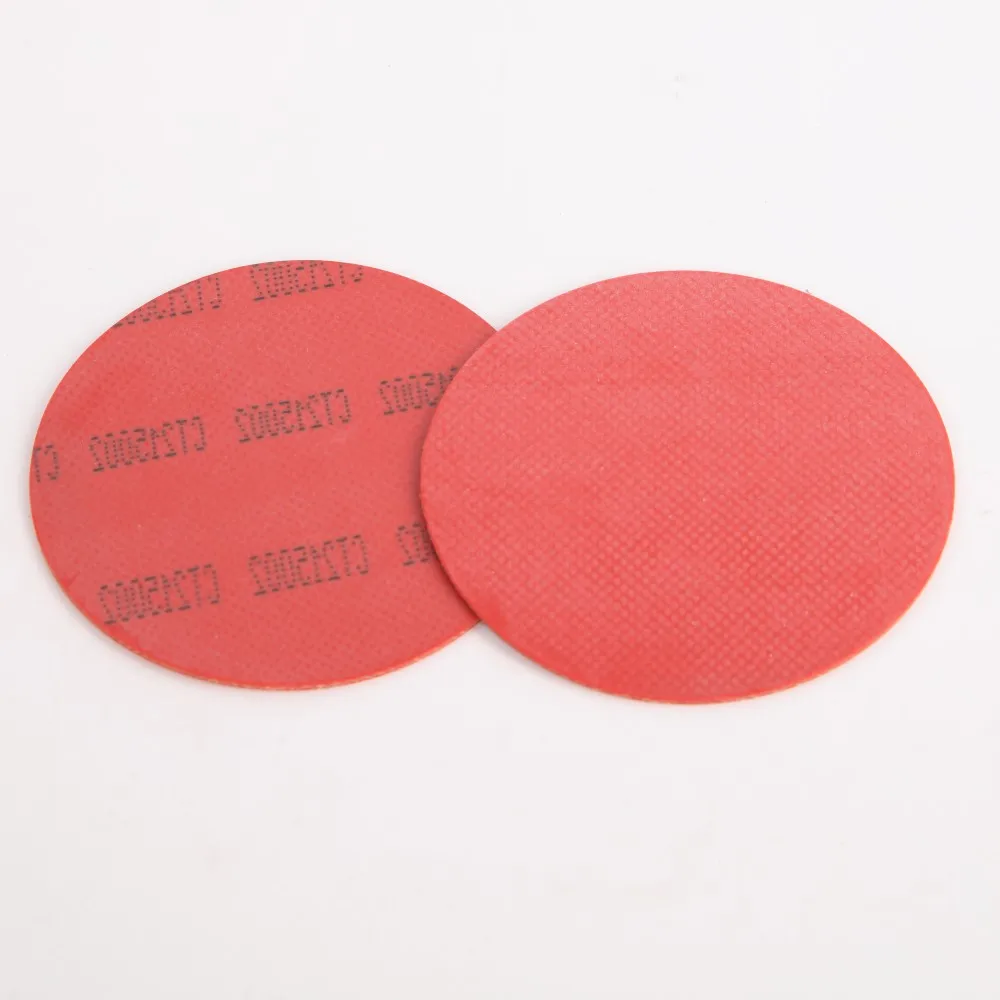

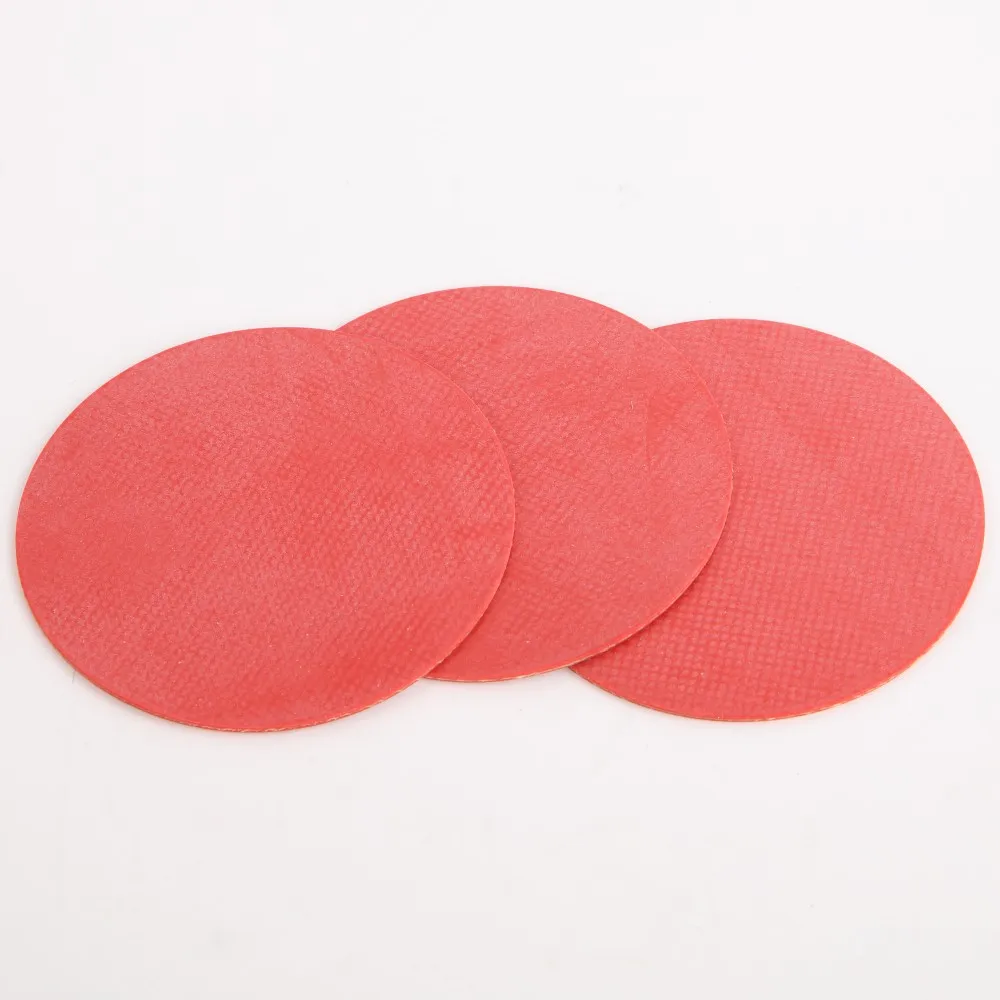

Membrane | V4549902-0100 | Optipow105/135 | 72MM | 1.15MM | Buna-N rubber | 6g |

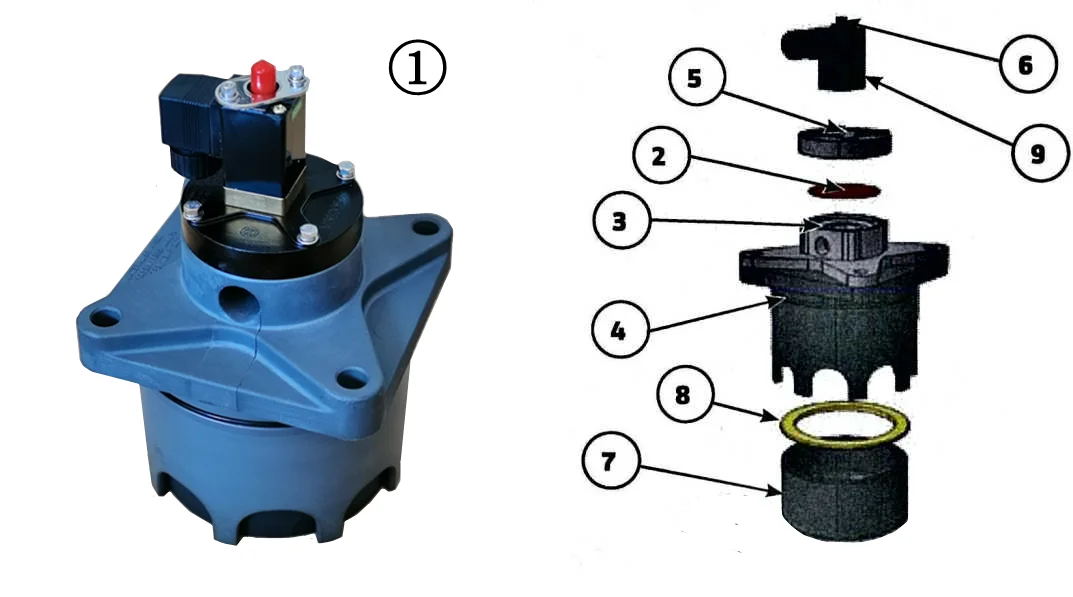

Main Spare Parts for OPTIPOW135 Air Cleaning Valve
Product name | Article number | Pos. no. |
OPTIPOW 135(24V) | V1614718-0100 | ① |
OPTIPOW 135 (100V,50 Hz) | V1614718-0301 | ① |
OPTIPOW 135 (120V, 60Hz) | V1614718-0400 | ① |
OPTIPOW 135 (120V 60Hz UL-CERTIFIED) | V1614718-0700 | ① |

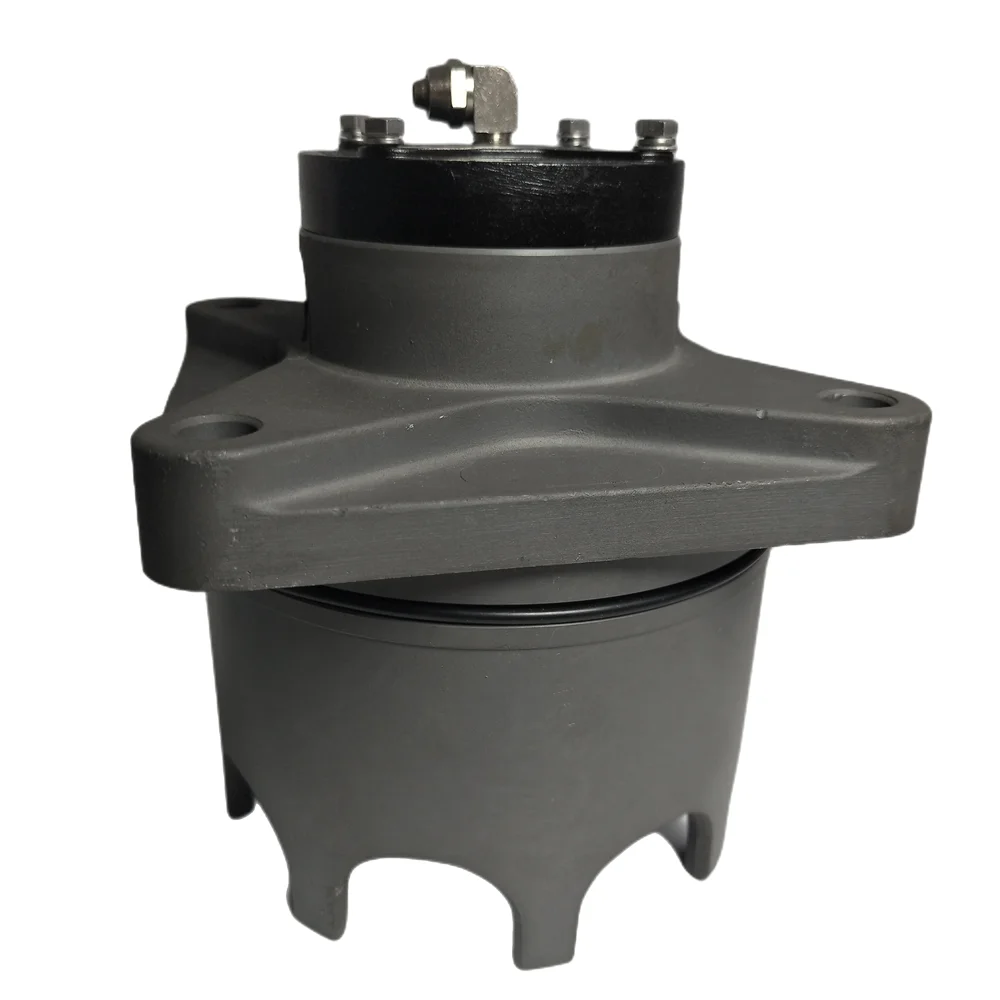

OPTIPOW 135 (without solenoid, revolving 90° C) | V1614718-0800 | 一 |
Membrane | V4549902-0100 | ② |
O-Ring (Fluor rubber 64.5 x 3.1) | 8003-5573 | ③ |
O-Ring (Nitril 70SH 64.5 x 3.1) | 2136-1422 | ③ |
O-Ring (143 x 3.1) | 2136-1441 | ④ |
Pilot cover | V3630501-0100 | ⑤ |
Plate | V3630524-0100 | ⑥ |
Plunger | V3629022-0100 | ⑦ |
Round Washer (SS3576-5-200HV FE/ZN25) | 4903-2146 | 一 |
Rubber Disc | V3640660-0100 | ⑧ |
Solenoid Valve(24 V DC) | V3611471-0100 | ⑨ |
Solenoid Valve (100 V, 60 Hz) | V3611471-0201 | ⑨ |
Solenoid Valve (110 V, 50 Hz) | V3611471-0300 | ⑨ |
Solenoid Valve (110 V, 60 Hz) | V3611471-0200 | ⑨ |
Solenoid Valve (120 V, 60 Hz) | V3611471-0400 | ⑨ |
Solenoid Valve (120V, 60 Hz-UL CERTIFIED) | V3640645-0200 | ⑨ |
Solenoid Valve (230V, 50 Hz) | V3611471-0500 | ⑨ |

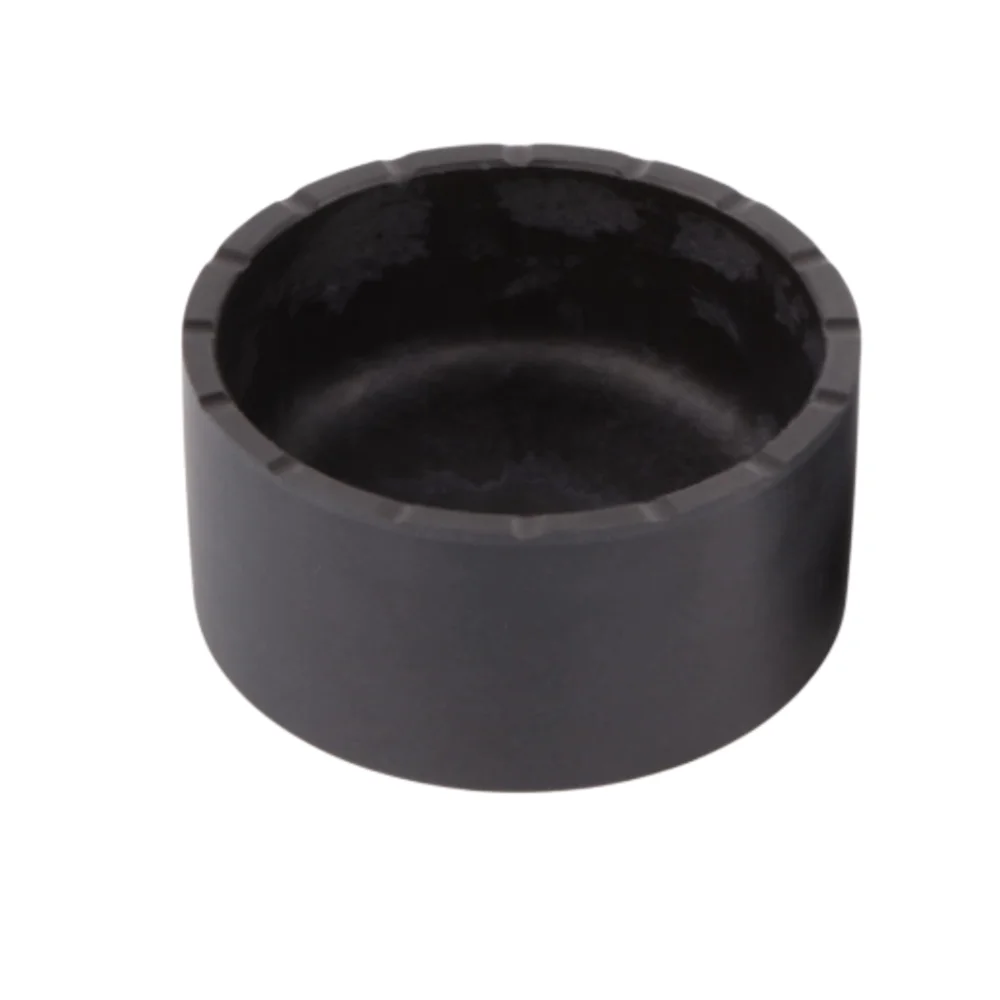

O-Ring 2136-1441 and 2136-142 Rubber Disc Plunger
