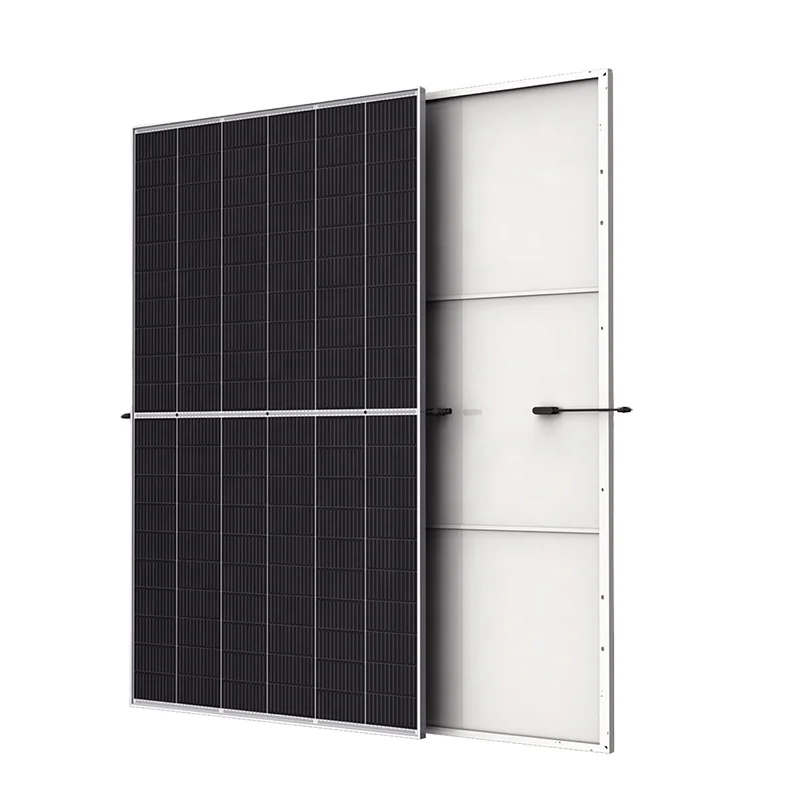

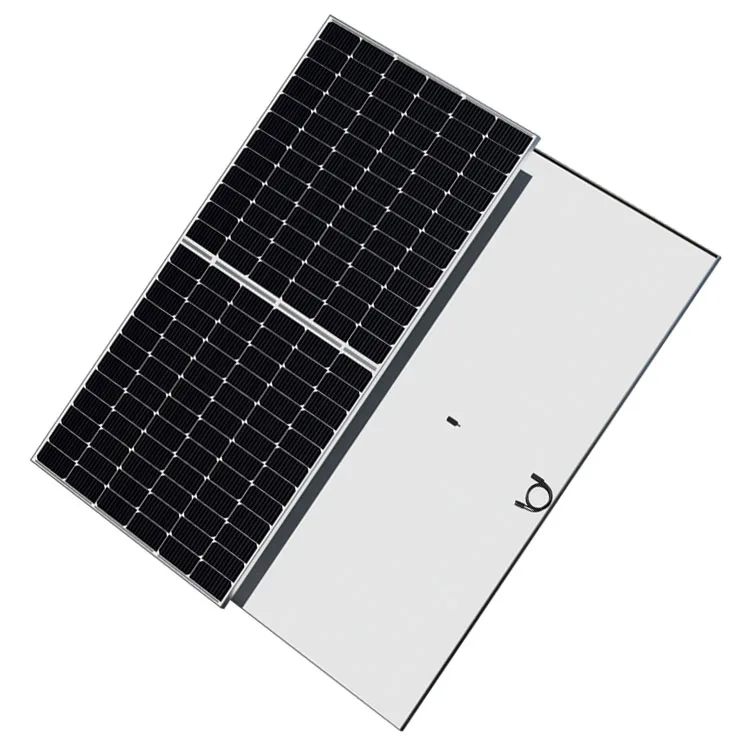

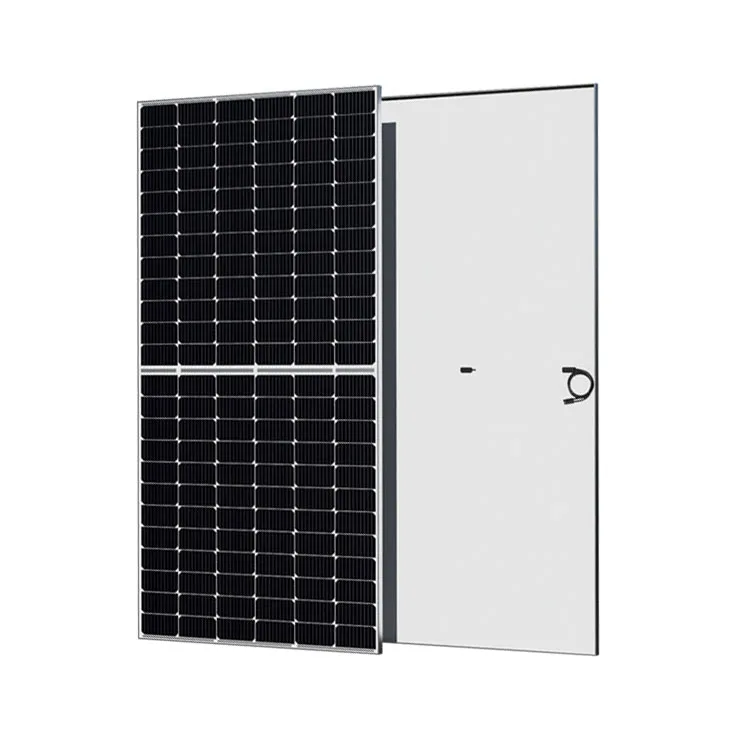

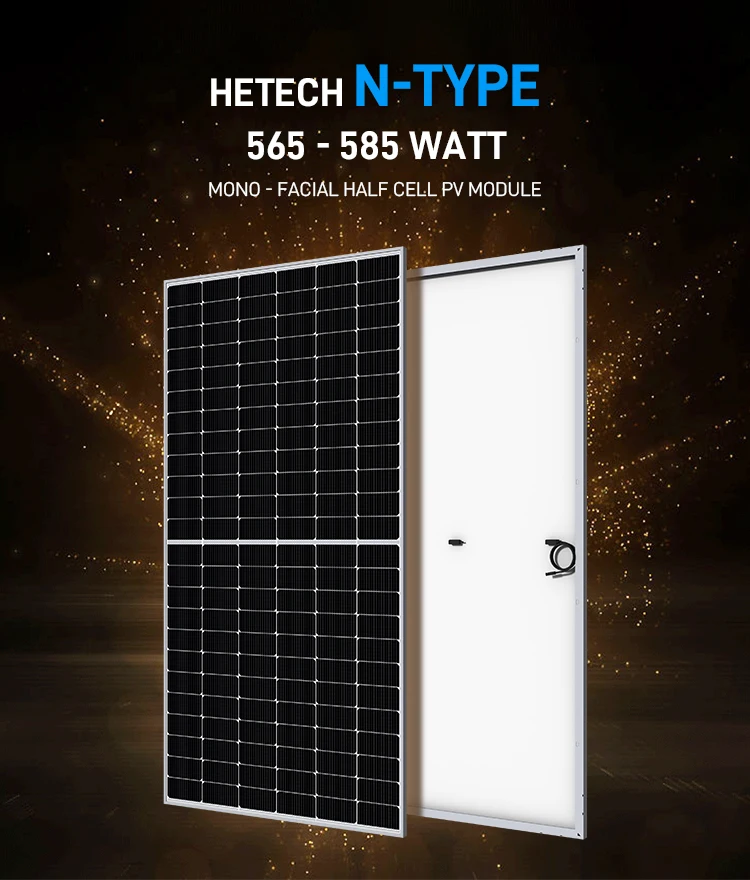

N Type Solar Panels Manufacturing 580w 430w Full Black Panel Europe Warehouse 580w For Home Solar Penal N Type 580w
- Category: >>>
- Supplier: Pingdingshan Sinoshine Energy Co. Ltd.
Share on (1601239939781):
Product Overview
Description
Products Description
Structural Parameters | ||
Cells | 144pcs 182x91mm Monocrystalline solar cells | |

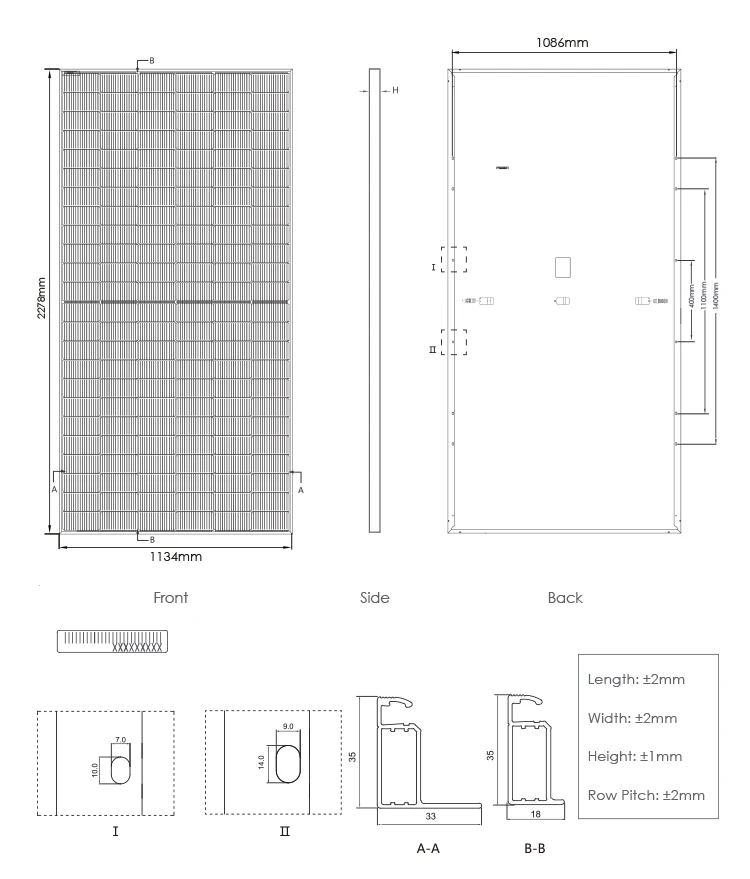

Module Dimension | 2279x1134x35mm(LxWxH) | |
Module Weight | 29.1kg | |
frame | Anodized aluminum profile | |
Junction Box | Rated current:25A,IP68,TUV | |
Cable | Length Negative 400mm/Positive 300mm | |
Connector | Compatible with MC4 | |
STC | ||||||||||
Maximum Power (Pmax) | 565W | 570W | 575W | 580W | 585W | |||||
Maximum Power Voltage (Vmp) | 41.92V | 42.07V | 42.22V | 42.37V | 42.52V | |||||
Maximum Power Current (Imp) | 13.48A | 13.55A | 13.62A | 13.69A | 13.76A | |||||
Open-circuit Voltage (Voc) | 50.60V | 50.74V | 50.88V | 51.02V | 51.16V | |||||
Short-circuit Current (Isc) | 14.23A | 14.31A | 14.39A | 14.47A | 14.55A | |||||
Module Efficiency STC (%) | 0.2187 | 0.2207 | 0.2226 | 0.2245 | 0.2265 | |||||
STC | Irradiance 1000W/m2,cell temperature 25¡AM1.5G | |||||||||
Operating Conditions | ||
Maxi System Voltage | 1000V/1500V DC | |
Temperature range | -40°C~+85°C | |
Series Fuse Rating | 25A | |
NOTC | 45±2℃ | |
Temperature Coefficient of Isc(α-Isc） | +0.033%/℃ | |
Temperature Coefficient of Voc(β-Voc) | -0.29%/℃ | |
Temperature Coefficient of Pmax(Y-Pmp) | -0.39%/℃ | |

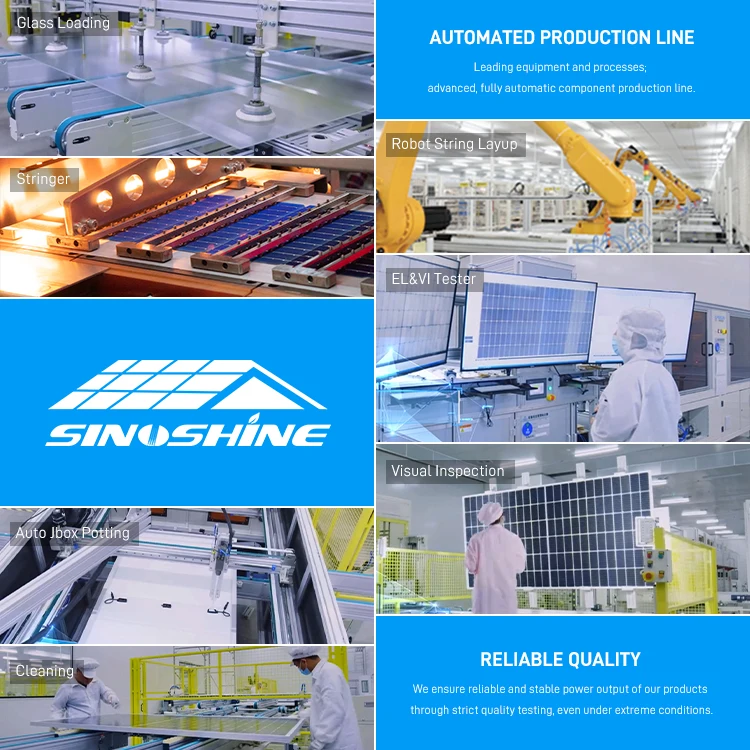

Production line
Why Choose Us
Certifications

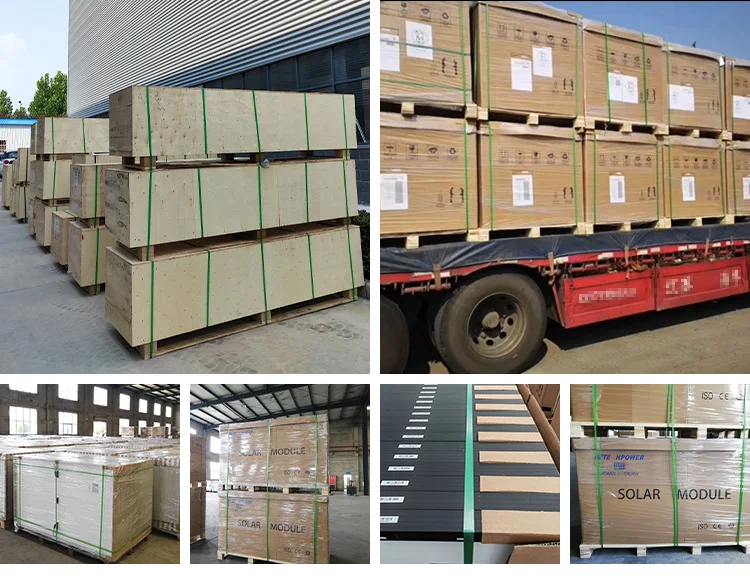

Packing & Delivery

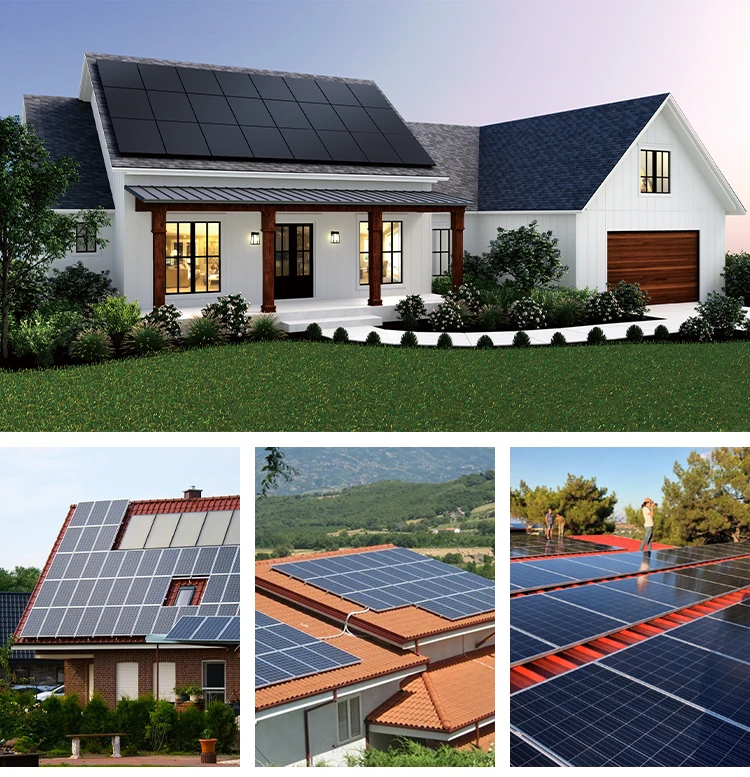

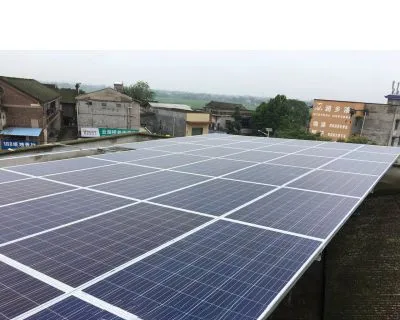

Project Case

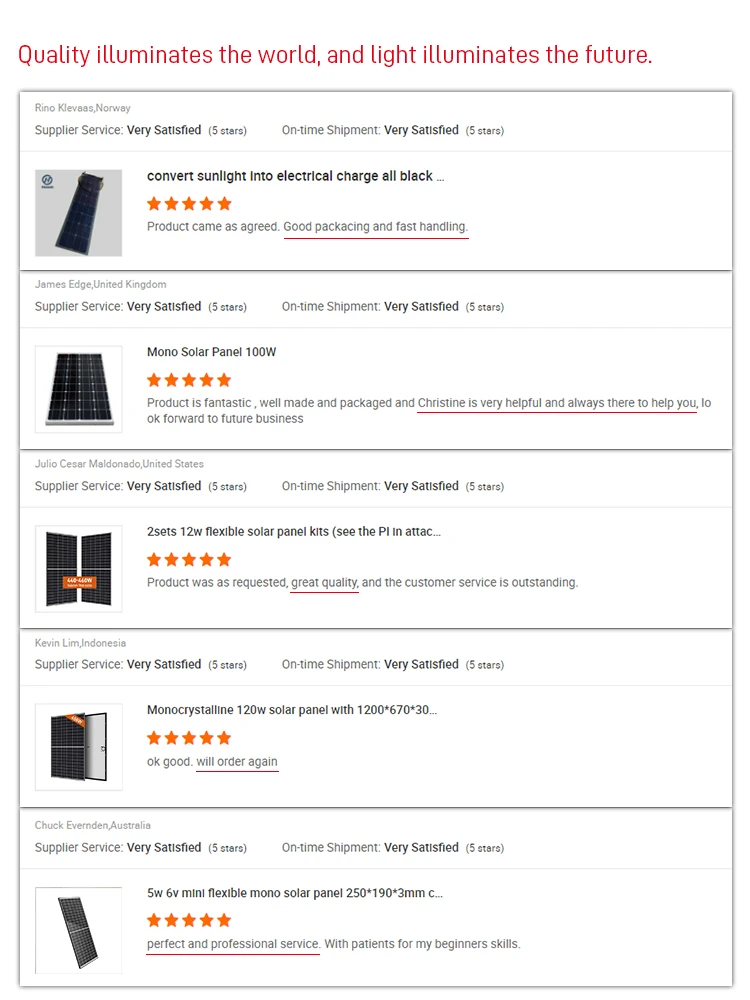

Customer Reviews
