8S 16S 24S 14A Lithium Battery Equalizer Differential Voltage Repair Smart Charge Discharge Active Balance Li ion Lifepo4 LTO

Product Overview

Description

EK-SA-B24S014AR

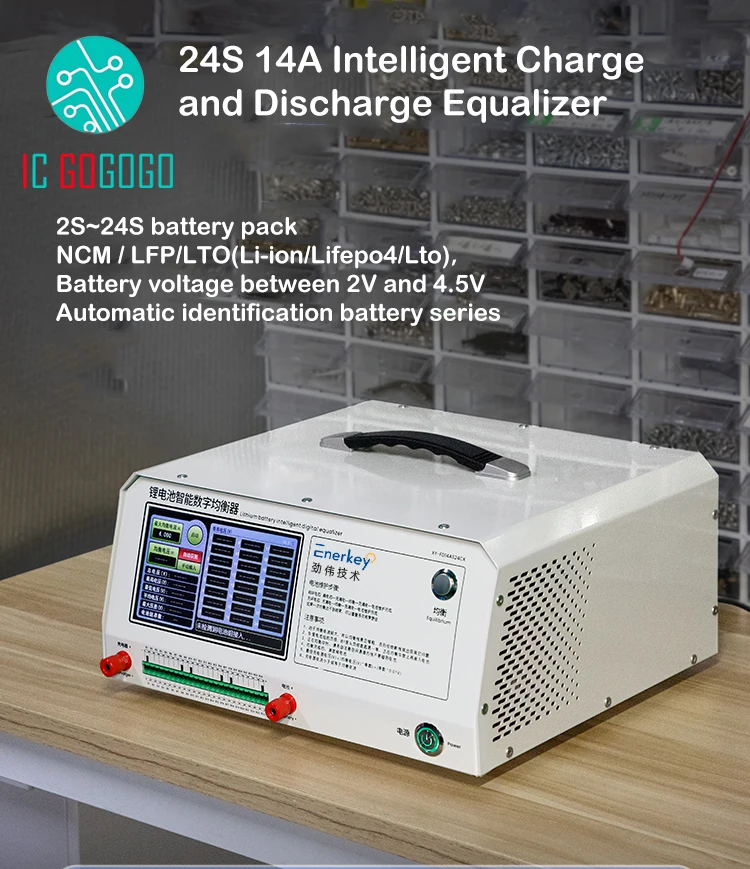

2~24S battery pack range .

NCM / LFP/LTO(Li-ion/Lifepo4/Lto),Battery voltage between 2V and 4.5V.

Voltage measure range: 1V~4.5V.

Voltage measure accuracy : ±(0.08%+0.06%FS)

Current setting range : 0.1A-14A(Can be adjust).

The actual current is related to input voltage, line resistance, temperature, and battery performance.

Support Automatically identify number of battery series .

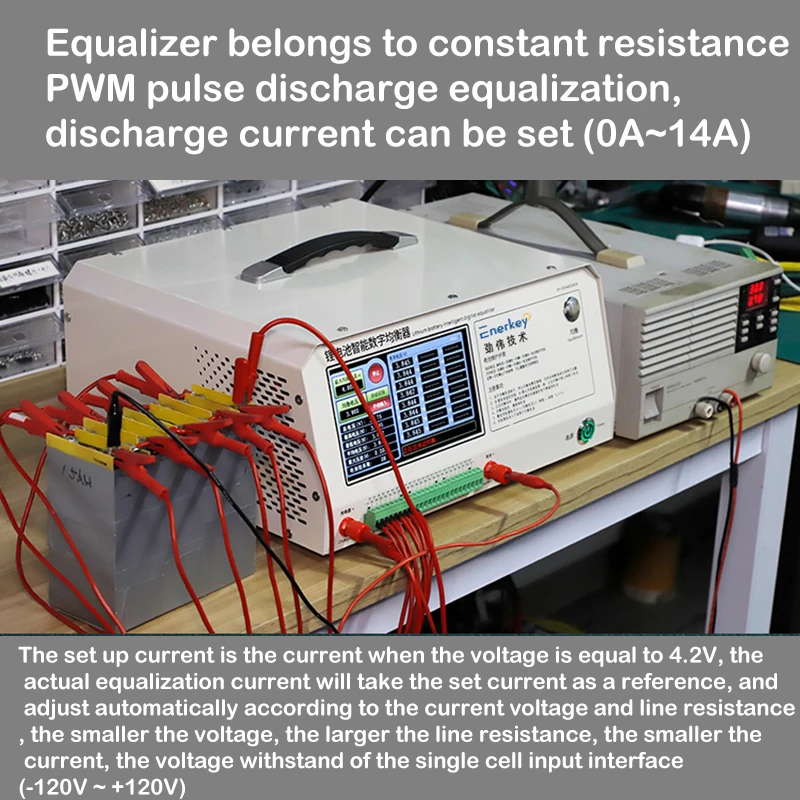

Discharge balance method : PWM pulse discharge method.

Reverse connection protection, over-temperature protection, over-voltage (4.5V) protection, low-voltage (2V) protection, and alarm.

After balancing is completed, it automatically stops and alarms.

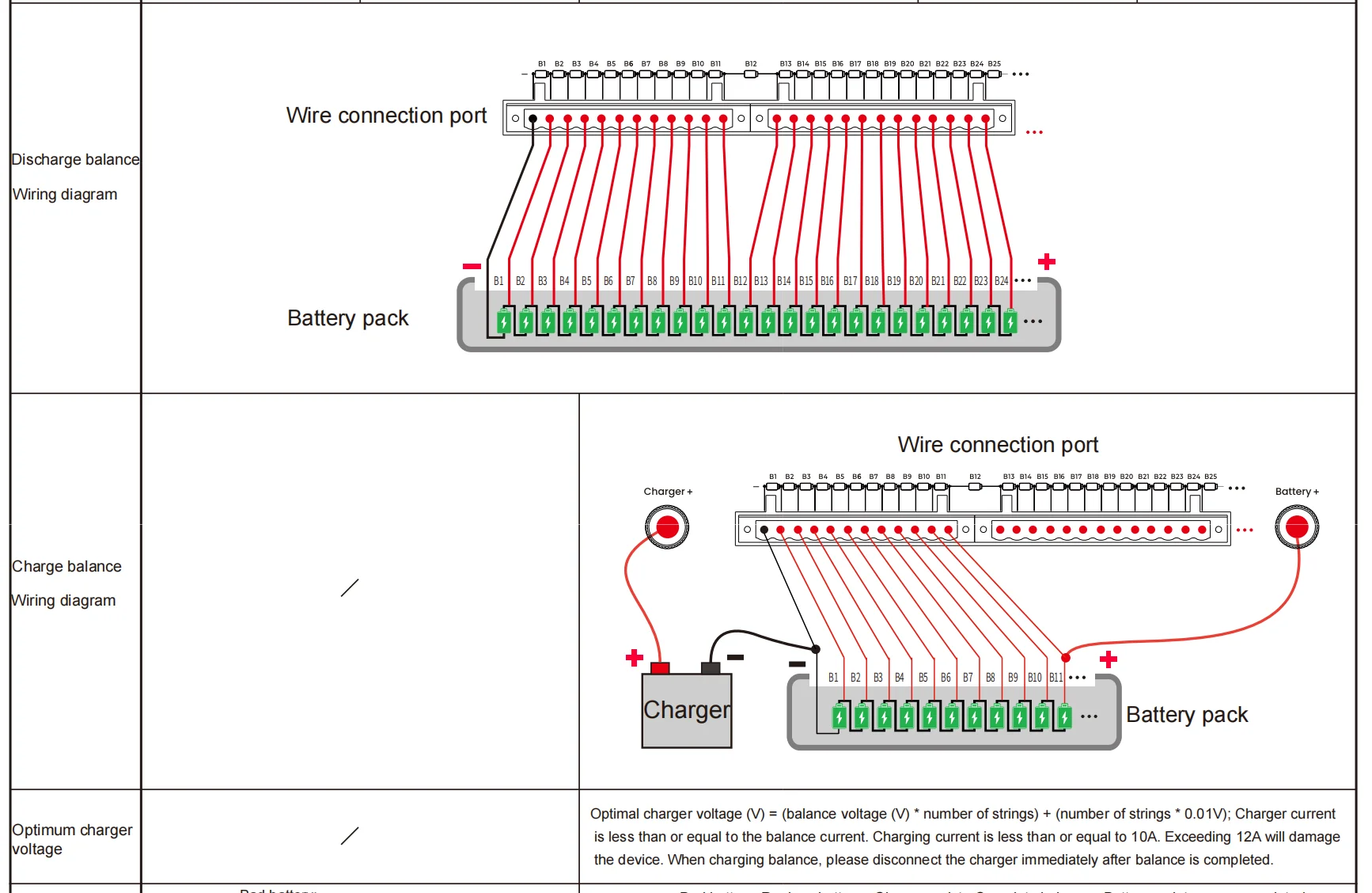

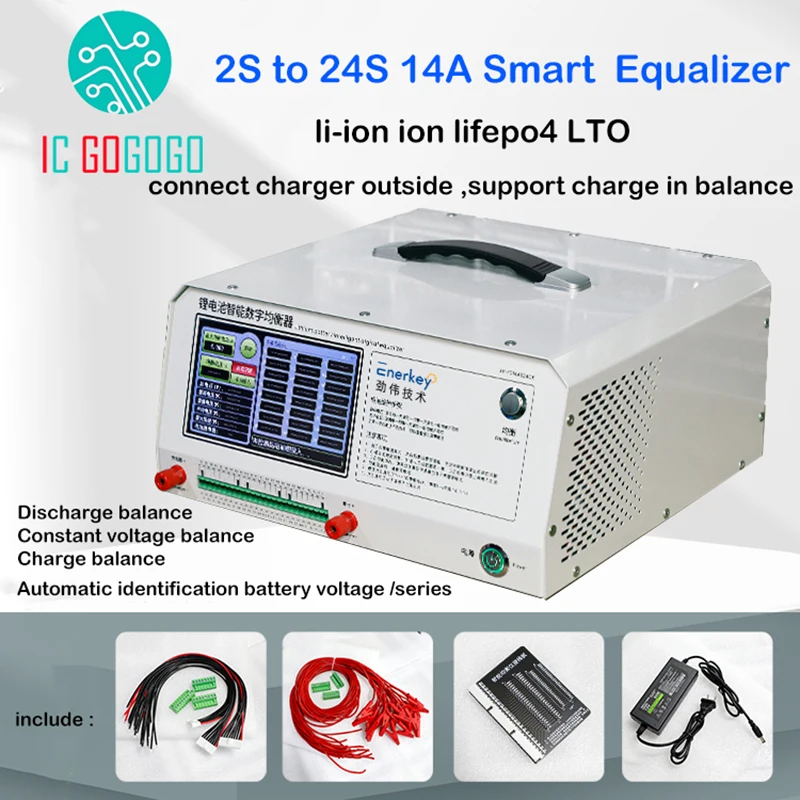

Discharge balance, constant voltage balance, charge balance

(needs an external charger with adjustable non-auto-stop function).

Charging assistance : Need to use an external charger, the charging port withstands voltage ±DC130V.

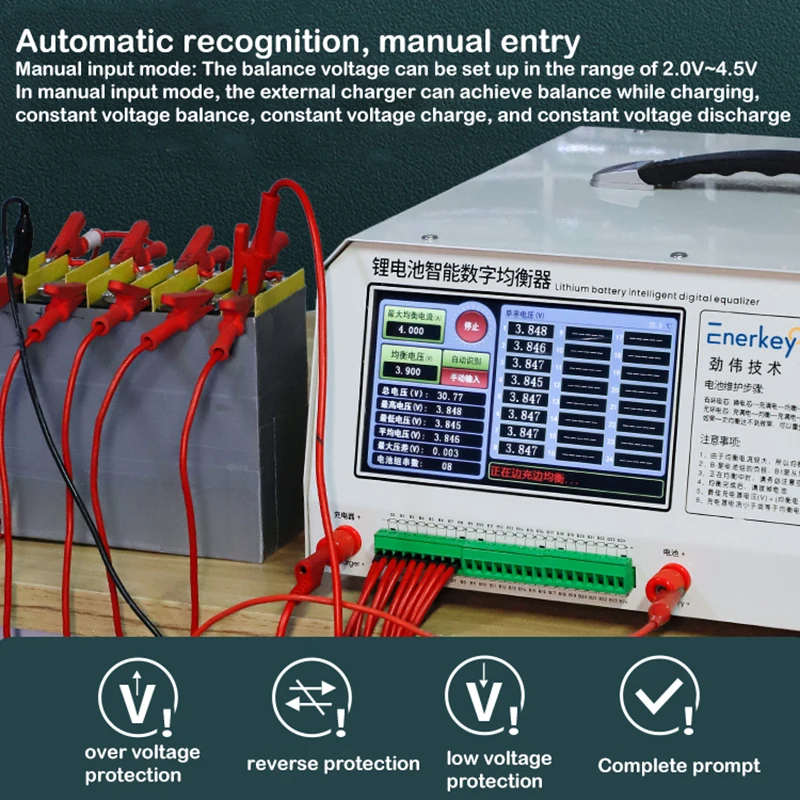

There are two modes: automatic identification mode and manual input mode. The automatic identification mode is based on the lowest voltage string, and all are balanced to the voltage of the lowest voltage string (voltage is aligned downward). The manual input mode is to set the required balanced voltage, and all are balanced to the set voltage value.

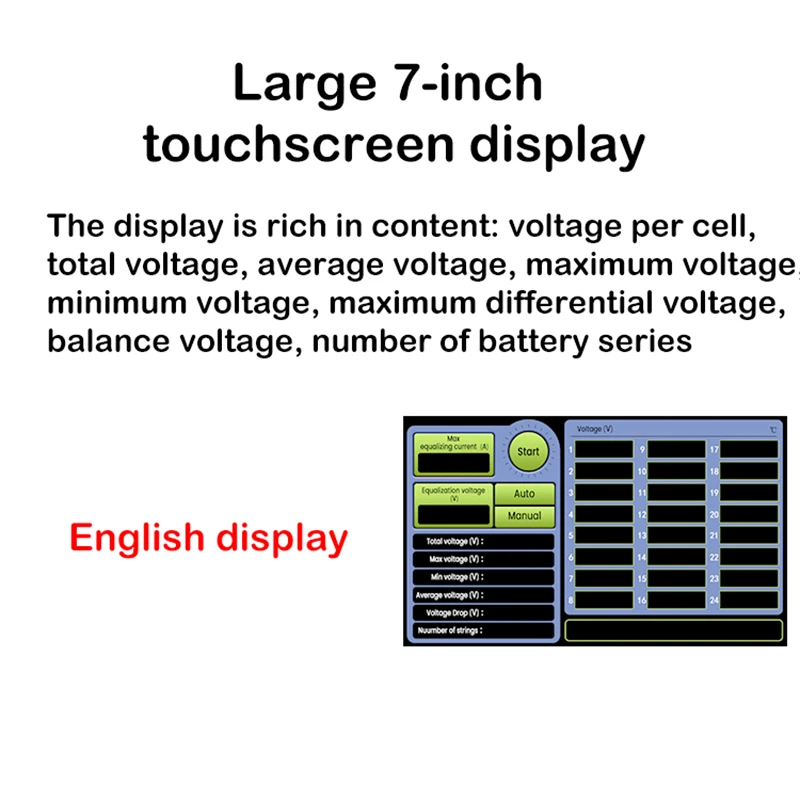

7 inch Display :Balanced voltage, balanced current, voltage per string, total voltage, maximum voltage, minimum voltage, average voltage, maximum voltage difference, number of battery strings, temperature .

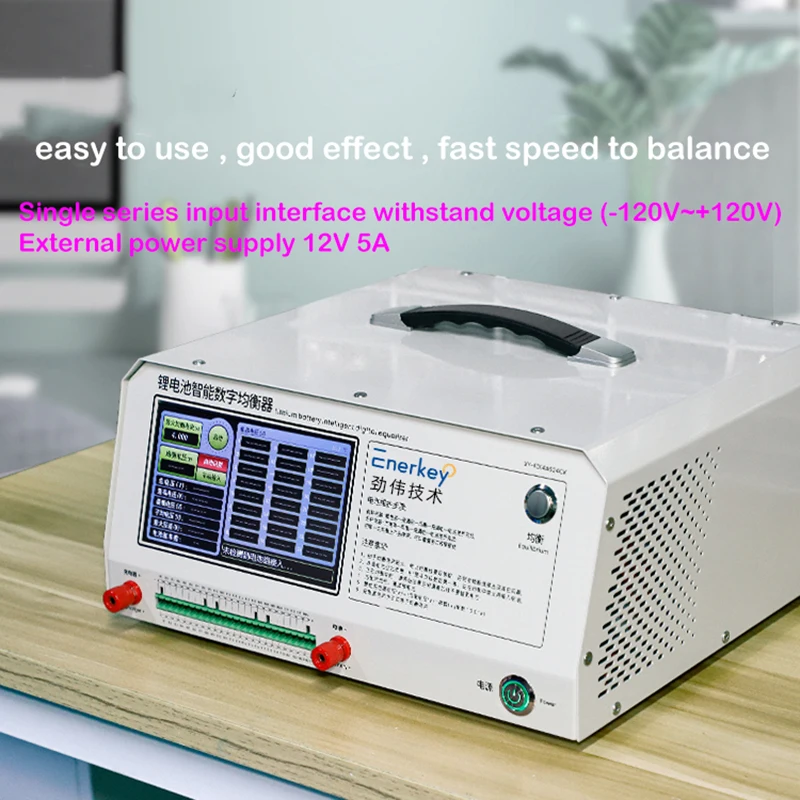

Interface withstand voltage / B- to B24 without voltage -120V~+120V .

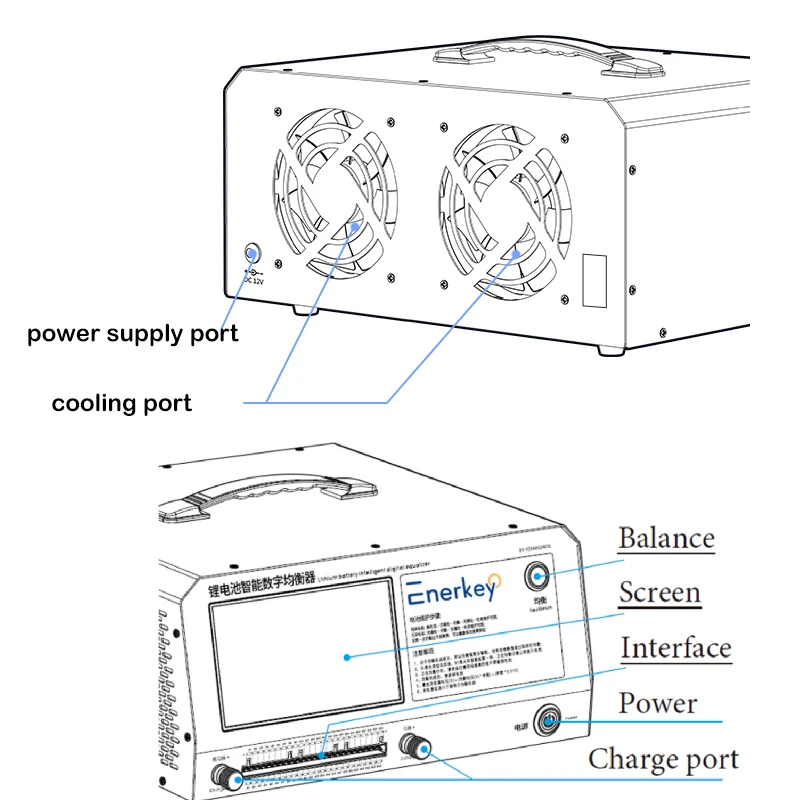

Power supply :DC12V5A
