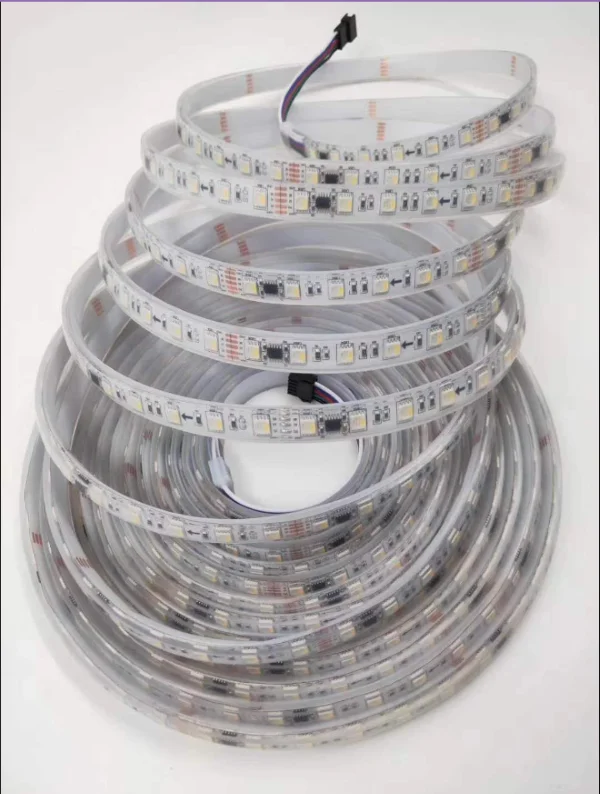

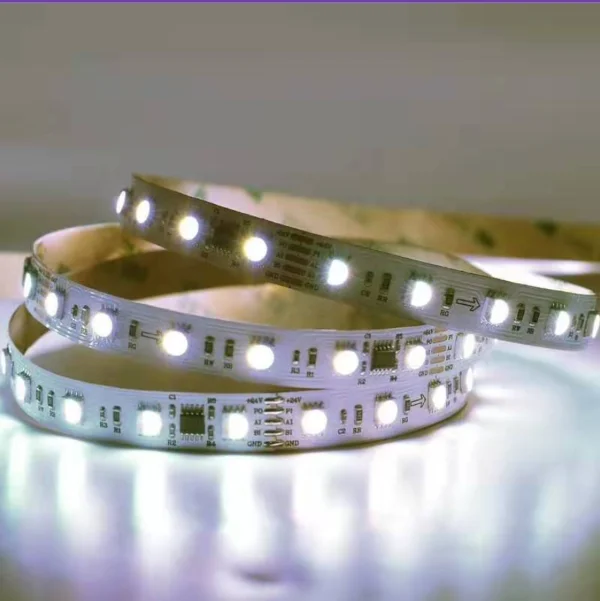

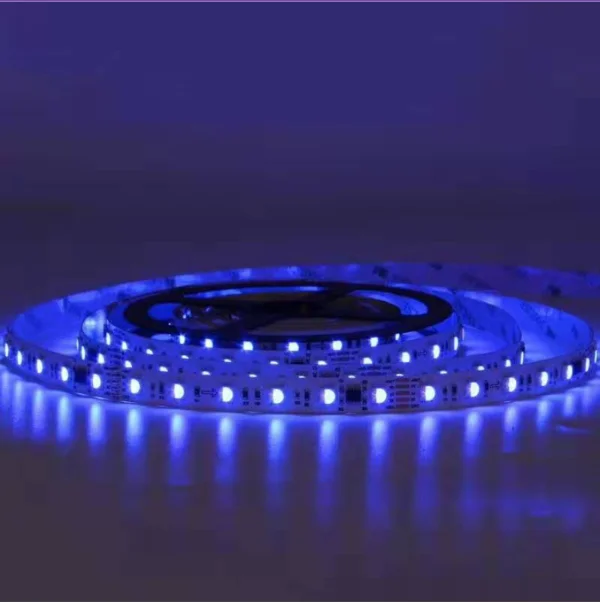

RGBW led DMX digital strip
- Category: >>>
- Supplier: Shenzhen Rose Lighting Technology Co. Ltd.
Share on (1601239964210):
Product Overview
Description
Product Description
Specification
key specification 1. This strip is 24V 60 leds DMX RGBW LED Pixel Digital strip that different with normal SPI led pixel strips. DMX512 led strips protocl is DMX512 that signal is parallel not series. 2. Its advantage is parallel DMX512 signal could avoid LEDs color influenced by the failure of one light in serial connection. 2. Entire DMX RGBW digital led strip has 10 pixels ( 40 channels), 60 RGBW leds in a meter with 12mm width pcb board. 3. Communication between DMX512 RGBW led digital tapes are synchronized perfectly under support of Artnet / DMX512 led controllers. 4. 24V 60 leds DMX RGBW LED Pixel Digital strip need to write DMX address code via DMX address coder / controller. 5. Vivid lighting performance operated by Madrix software, Artnet / DMX512 led controllers. 6. 24V 60 leds DMX RGBW LED Pixel Digital ribbon is flexible , bright, durable and easy for installation. For bare board strip, you can use the 3M adhensive tape on back; For waterproof silicone tube strip, there shipped with flexible silicon brackets and screws, the brackets fit over the waterproof sheath, it would be used to mount the led strips very well. | |
Packing & Delivery
* 2unce PCB board with double cooper layer(hongqi brand 35um copper )
* doublesides membrane cover the pcb board. make sure the copper no drop from the pcb board
* It comes in 1 meters per reel with 5Pin female/male JST SM connector on both end and separated Power / Ground Wires .
Customized length is workable .
* Flexible PCB material . ever 3 LEDcan be cut with 12V; every 6LED cab be cut with 24V;
* 60LEDs/M with 12V . 12V low voltage inputted , don’t over 13V , otherwise you will destroy the entire strip .
* 60LEDs/M with 24V . 24V low voltage inputted , don’t over 25V , otherwise you will destroy the entire strip .
* warranty: 3years
* Original UCS512 C3 IC chip with standard dmx512 signal
* doublesides membrane cover the pcb board. make sure the copper no drop from the pcb board
* It comes in 1 meters per reel with 5Pin female/male JST SM connector on both end and separated Power / Ground Wires .
Customized length is workable .
* Flexible PCB material . ever 3 LEDcan be cut with 12V; every 6LED cab be cut with 24V;
* 60LEDs/M with 12V . 12V low voltage inputted , don’t over 13V , otherwise you will destroy the entire strip .
* 60LEDs/M with 24V . 24V low voltage inputted , don’t over 25V , otherwise you will destroy the entire strip .
* warranty: 3years
* Original UCS512 C3 IC chip with standard dmx512 signal
