Road Mantainance 120TPH Hot Mix Bitumen Machine Asphalt Machine
- Category: >>>
- Supplier: Zhengzhou SINOSUN Machinery Co. Ltd.Zhengzhou Ltd.
Share on (1601240072246):
Product Overview
Description
Road Mantainance 120TPH Hot Mix Bitumen Machine Asphalt Machine
Product Description

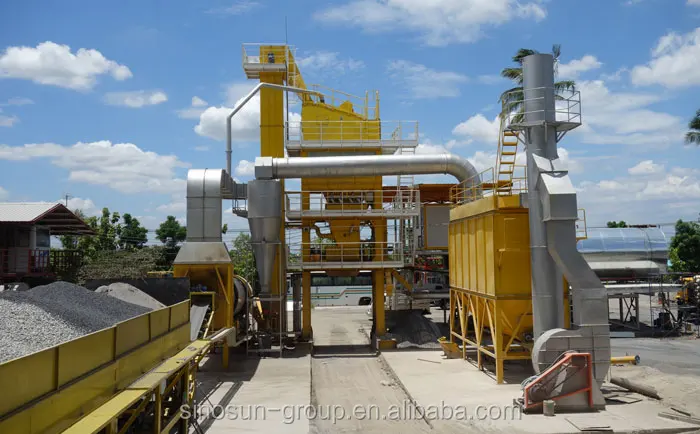

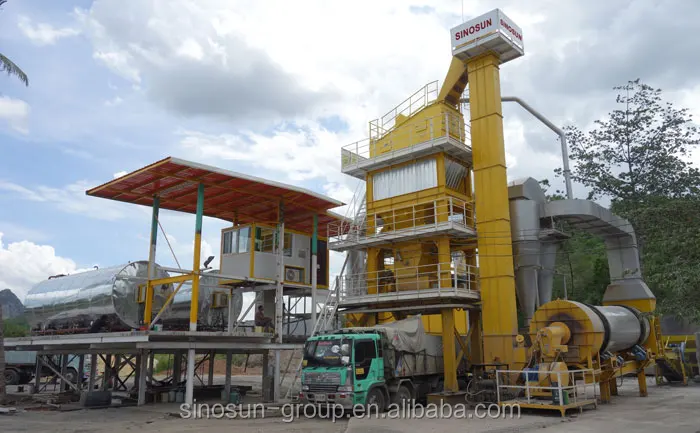

Road construction machinery 120t/h asphalt mixer plant is SINOSUN SAP series SAP-120 stationary batching type hot asphalt mixing machine.
SAP120 120t/h asphalt mixer plant is based on the previous old design, combined with the Italian MARINI design concept, developed a new generation of energy-saving asphalt mixing plant.
SAP120 120t/h asphalt mixer plant characteristics:
1. SAP120 asphalt mixer plant adopts modular structure, 3d drawing software of three-dimensional design, the layout can be combined to form a variety of configuration according to the construction requirements.
2. Smaller occupied working area, compact structure, it solves the difficulties due to lack of space.
3. Simple foundation, easy to be installed and maintenance, easy-transportation and transfer.
4. Rational layout, novel and decent appearance.
5. SAP120 asphalt mixier plant owns more accurate weighing system.
6. Energy saving, environment protection, safe and easy for operate.
7. Main reducers/bearing/air system/weighing/PLC can adopt international famous brand according to the client’s demand.

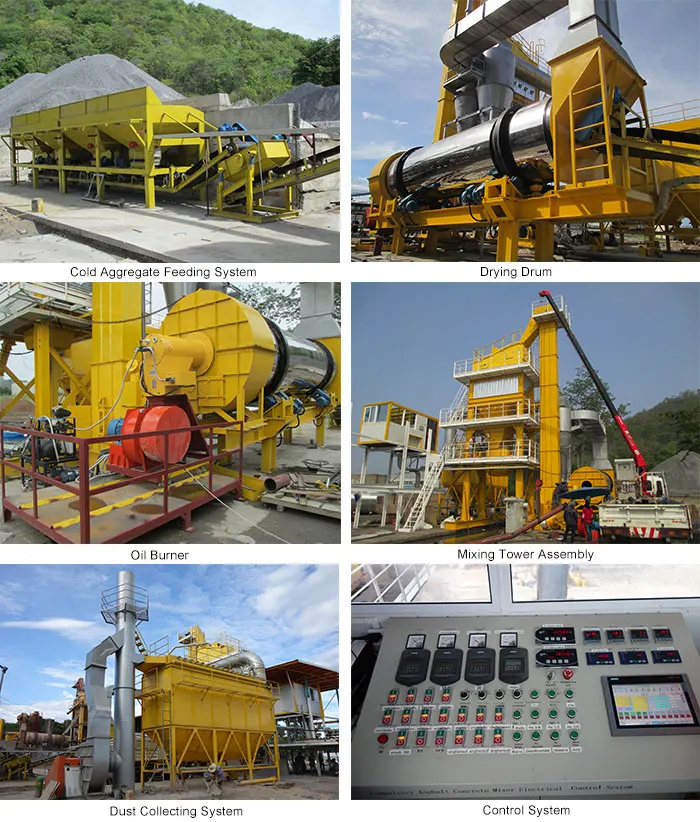

SAP120 120t/h asphalt mixer plant components
Technical Parameters
SAP120 120t/h asphalt plant machine parameters
| Model | SAP120 |
| Installation Power(kw) | 340 |
| Rated Capacity(T/H) | 120 |
| Cold aggregate kinds | 4*8m3 |
| Drying drum Length/Diameter | 8 m * ∅1.8 m |
| No. of screen layers | 4 layers |
| Vibrating screen | Double Italy OLI Brand Vibrator Liner type |
| Mixing period(s) | 45 |
| Capacity of mixer(kg) | 1500 |
| Fuel Consumption | ≤6.5kg/T finished product |
| Fuel type | Heavy oil/Diesel/Coal/Natural gas/Liquefied petroleum gas |
| Dust Collecting Model | Gravity dust collector+ NOMEX Bag House Dust Filter |
| Control method | Manual / Automatic |
| Temperature of finished product(℃) | 140-180 |
| Emission Concentration | ≤20mg / Nm³ |
| Finished product silo | 20/40/60/80/100/120/200T Bottom Type(Optional) |

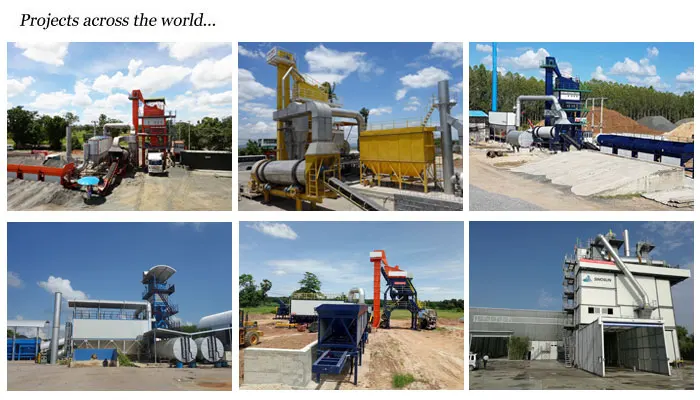

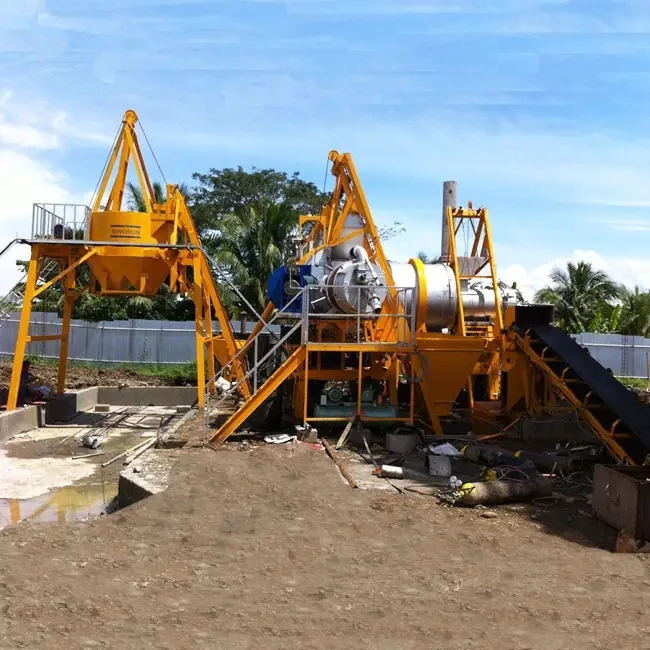

Projects
So far, our asphalt mixing plant products have been widely used in domestic road construction projects. Such as Russia, Romania, Poland, Brazil, the Philippines, Thailand, India, Indonesia, Angola, Saudi Arabia, Algeria, Ethiopia, Peru, Argentina, Chile, Colombia, more than 60 countries and products around the world, Popular with the customers and praise.
Related Products
 |  |  |
| 40-400TPH Stationary Asphalt Plant | 40-160TPH Mobile Asphalt Plant | 20-120TPH Drum Mix Asphalt Plant |
 |  |  |
| 6-10TPH Emulsion Bitumen Plant | 4-10 TPH Bitumen Melting Machine | Bitumen Tank for Asphalt Plant |
Company Information
SINOSUN is one of China’s dominant and professional manufacturers and exporters of Precisioned Asphalt Mixing Plants and related asphalt plant equipment.
We mainly supply:
1.Stationary asphalt mixing plant (SAP series)
2.Recycle asphalt mixing plant (SR series)
3.Mobile asphalt mixing plant ( MAP series)
4.Continuous asphalt mixing plant (CAP series)
5.Twin-shaft asphalt mixing plant (QLB series)
6.Twin-drum asphalt mixing plant (SLB series)
7.Emulsion Bitumen Plant (RH series)
8.Bitumen Melting Machine (DT series)
FAQ
Q:Which countries your equipment have been exported?
A:Thailand, Philippines, Indonesia, Myanmar, Russia, Bangladesh, Kazakhstan, Uzbekistan, Russia, Romania, Somalia, Kenya, Malawi, Nigeria, Togo, Mozambique, Oman, South Africa, America, Peru, Chile, Colombia, Venezuela, Australia, etc.
Q:How many workers are needed to operate one set of asphalt plant?
A:1 loader operator, 1 mechanical, 1 electrician, 1 supervisor ,1 the operator of the whole plant.
Q:How many days are used for installation of one set asphalt plant?
A:Around 20-30 days, according to local situation.
Q:Do you provide overseas erection and training service?
A:Yes, we can send experienced engineers to your country, guide erection and commissioning and train your workers how to operate the plant.
Q:How long is the delivery time?
A:30-40 days, according to different configuration. We promise to delivery on time.
Q:Can you sent me some spare parts freely?
A:Some spare parts will be sent to you together with asphalt plants freely.
Q:How to go to your asphalt plant factory easily?
A:Our city has airport. If by air, you can fly from Guangzhou/Beijing/Shanghai no more than 2 hours. Also you can fly to Zhengzhou, we send car to pick you up there.
Q:Can I visit your factory?
A:Of course. We warmly welcome you to visit our factory. And we provide you great services like airport pick up, hotel booking, etc.
Q:How long is the warranty of your asphalt plant?
A:12 months
Q:What payment terms you accept?
A:We accept T/T, L/C,D/A,D/P, Western Union, MoneyGram and other ways according to the practical situation.
Get the quotation of asphalt mixing plant, welcome contact us at any time.
