8HP Diesel Engine Powered Hydraulic V250 Rock Splitter Wedges for Hot Sale
- Category: >>>
- Supplier: Zhengzhou Vantage Machinery Co. Ltd.
Share on (1601240109067):
Product Overview
Description
Product Overview
Wedge Type Hydraulic Splitter
Rock splitter is a new type of rock-breaking equipment. Its design is inspired by our common hydraulic jack.
Using a rock splitter requires a larger hole diameter than a hand-held rock splitter (typically 40mm, 42mm, 46mm).
It can used for concrete breaking, construction, mining, piling head demolition works.
PRODUCT SPECIFICATIONS
Model | VA-250 | VA-350 | VA-450 |
Wedge Length | 250mm | 350mm | 450mm |
Piston Stoke | 90/220mm | 90/220mm | 90/220mm |
Drill Hole Dia. | 40mm | 42mm | 50mm |
Drill Hole Depth | 500mm | 600mm | 700mm |
Splitting Time | 6-20 seconds | 6-20 seconds | 6-20 seconds |
Splitting Force | 500ton | 500ton | 500ton |
Weight | 30kg | 32kg | 35KG |
Technical Parameters of Hydraulic Station | ||||||||||||||||
Engine Type | Power | Fuel Tank Capacity | Working Medium | Working Pressure Mpa | Work Flow（L/Min.） | Compatiable Splitter Numbers | Specifications（mm） | Weight （kg） | ||||||||
Elecric Type | 4KW | 30L | 46/68 Wear-resistant hydraulic oil | 100-120 | 2-13 | 1-6 | 384x280x260 | 75 | ||||||||
7.5KW | 100L | 100-120 | 4-16 | 1-6 | 1150x1050x980 | 135 | ||||||||||
Diesel Type | 8HP | 40L | 100-120 | 2-13 | 1-6 | 1200x1170x800 | 120 | |||||||||
18HP | 100L | 100-120 | 4-16 | 1-6 | 980x830x1250 | 3445 | ||||||||||
FEATURES AT A GLANCE
CUSTOMER CASES

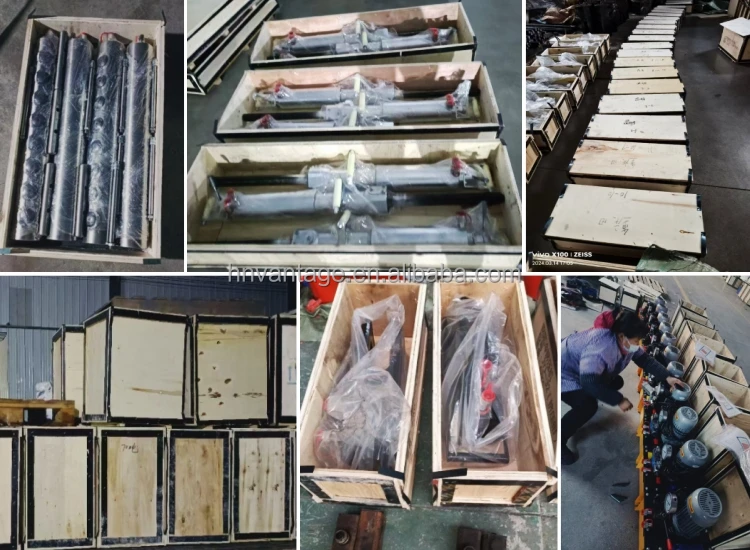

PACKING AND DELIVERY
ABOUT US
Zhengzhou Vantage Machinery Co.,ltd develops and produces high-grade construction and rock mining machinery, the main products are: hydraulic splitting machine, hydraulic pile breaking machine, copper bar cold extrusion machine, steel bar bending machine.
Our goal is to create value for customers, not only get the ideal construction solutions, but also create greater profit value.
Our company has always adhered to the "quality first, customer first, quality service, abide by the contract" purpose, with high quality products, good reputation, quality service, the products sell well in nearly 30 provinces, municipalities, autonomous regions and exported to South America, Southeast Asia, West Asia, Africa and other countries.
Our goal is to create value for customers, not only get the ideal construction solutions, but also create greater profit value.
Our company has always adhered to the "quality first, customer first, quality service, abide by the contract" purpose, with high quality products, good reputation, quality service, the products sell well in nearly 30 provinces, municipalities, autonomous regions and exported to South America, Southeast Asia, West Asia, Africa and other countries.
We are willing to work together with new and old friends, so as to create a brilliant future of China's mining, engineering construction, stone machinery and equipment, and sincerely looking forward to your re-inquiry, patronage!
FAQ
Q1: What are the requirement of the drill hole size and depth for matching your rock splitter?
A1: Drill hole size 40mm, 42mm,46mm, Drill Length 500mm-700mm
Q2: Can I use the rock splitter for areas where blasting method is not allowed？
A2: Yes, our piston splitter features less vibration, shock wave, low-noise, dust, flying debris, etc. during operation.
Whether in densely populated areas or indoors, it can operate without interference.
Q3: How about the safety of this type of piston splitter？
Compared with traditional blasting with the use of detonator and explosives, impact demolition or rock drilling equipment, the splitting method is safer and requires less complicated precautions.
Q4: What about your delivery period?
It depends on the quantity; we have stock available due it is fast moving these days. so 5-10 days maximum.
Q5: Can you supply spare parts with the machine？
We are giving common wearable spares like O-ring and seals. For extra parts like plunger and 120MPA switch valve, we are giving on very best price.

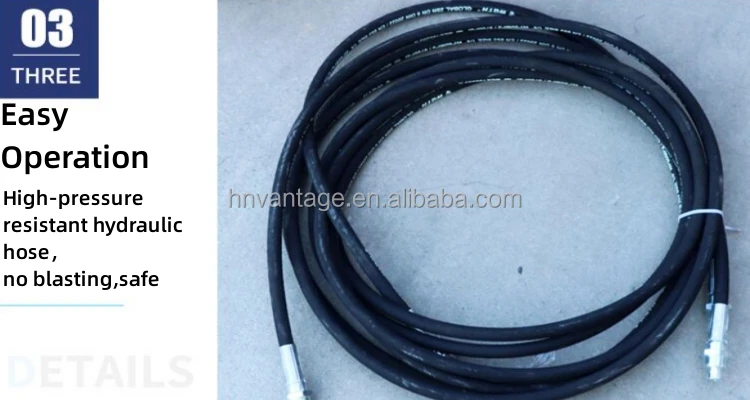

Q6: How long are the hydraulic hoses equipped with the machine?
First, you need select how many piston splitters 1-6 pcs, the hose comprises the main hose and branch hoses, the length shall be decided by the site conditions. Normally, 10mx2 for the main hose, 5meter for each splitter unit.
Q7: What about your payment terms?
T/T, Alibaba Trade Assurance, West Union
Customized Order is also accepted and well made.
