SCULPFUN G9 Enclosed Lazer Engraver Cutter Desktop Hand Held Laser Steel Engraving Machine for Metal Card and Plastic
- Category: >>>
- Supplier: Shenzhen Sculpfun Technology Co. Ltd.
Share on (1601240215973):
Product Overview
Description
Products Description
Notes:Sculpfun only provide hardware and base drivers for operating system , the laser engraver support LaserGRBL ( free) , Lightburn(not free) and other similar edit software like Benbox, GrblController, LiteFire; Support Windows/Linux/Mac operating system.Supported file formats NC, BMP, JPG, PNG, DXF and other image formats.
Product Model | SCULPFUN G9 |
Engraving Size | 105*105mm |
Processing Material Types | metal, plastic, wood, leather, acrylic, stone, ceramic, glass, paper (300+ materials) |
Repeated Positioning Accuracy | 0.0001mm |
Input Power | 108W |
Support File Format | SVG / DXF / JPG / JPEG / PNG / BMP |
Connection Method | WIFI / USB |
Laser Power | 1064nm: 2W 455nm: 10W |
Laser Wavelength | 455nm & 1064nm |
Marking Speed | Infrared laser 2W: 5000mm/s Blue laser 10W: 4000mm/s |
Support System | Android / iOS / Windows / macOS |
Machine Size | 230*195*321mm |
Machine Weight | 7.2kg |
Box Package Size | 297*247*478mm |
Logistics Box Size | 320*260*495mm |
Package Weight | about 10.7kg |
Details Images

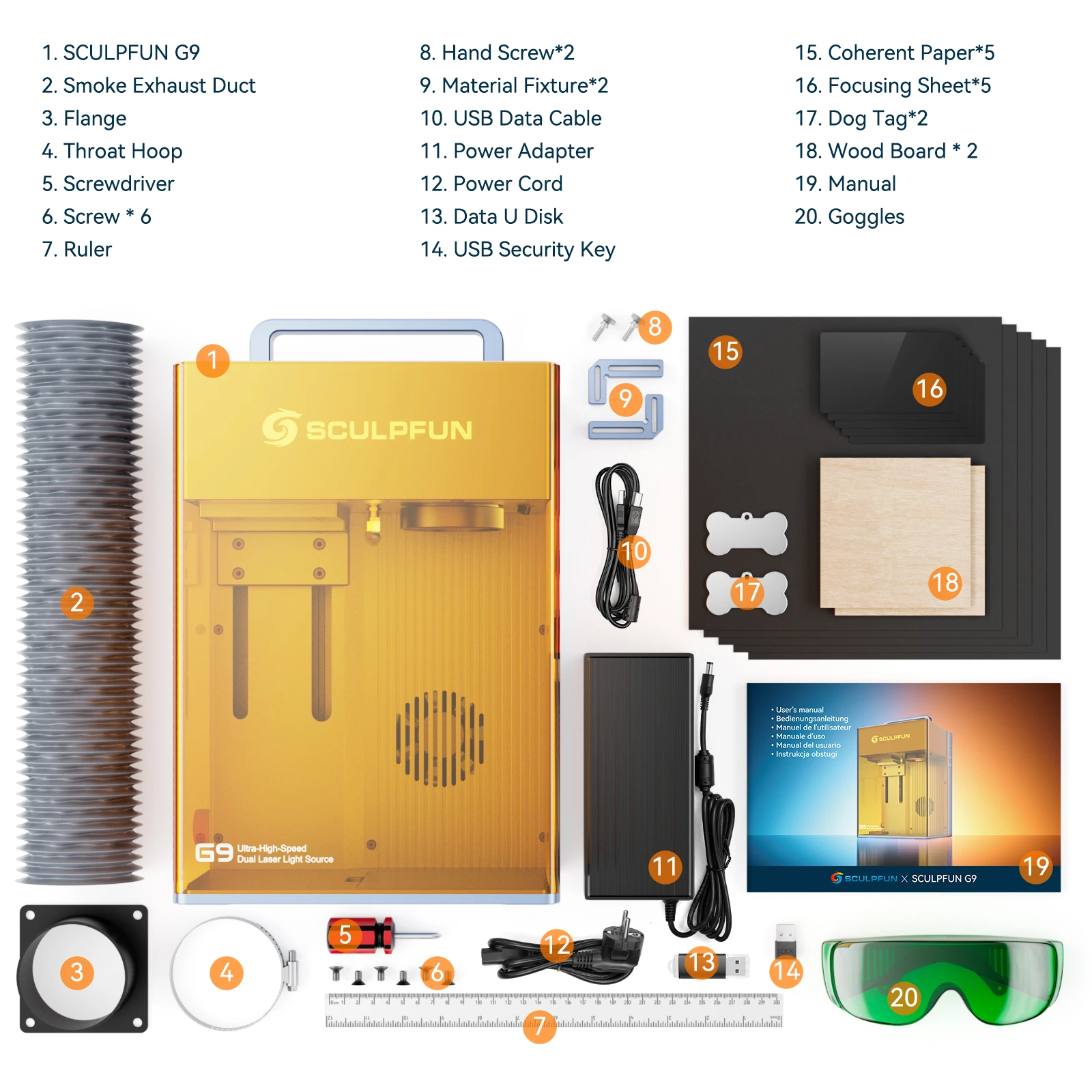

Product packaging
1* | Sculpfun G9 | 1* | Goggles |
2* | Material Clamp | 1* | Throat Hoop |
2* | Hand Screw | 1* | Flange |
1* | Exhaust Duct | 1* | adapter |
2* | wood board | 1* | connection cable |
2* | dog tag | 1* | USB Cable |
1* | screwdriver | 1* | USB Security Key |
6* | screws | 1* | U Disk |
1* | Ruler | 1* | Manual |
5* | Coherent Paper | 5* | Focusing Sheet |
About Us
Certifications
CE
CE
ROHS
FCC
F
IEC
Production Process
Quality Control
Our Advantages
Features:
1. Complies with Class I Laser Safety Standards:
Note: The engraving machine accessories need to be purchased separately!
Sculpfun G9 is a dual laser engraving machine that complies with the class I laser safety standards, which can avoid most safety issues and provide a one-stop solution. Comes with protective cover, there is no need to purchase additional casing or goggles, ensuring superior safety for you. And it is easy and safe to use with the characteristics of enclosed workspace and pre-assembled.
Note: Opening the cover will automatically stop working
2. Dual Laser Light Source Module:
Note: Opening the cover will automatically stop working
2. Dual Laser Light Source Module:
Two wavelengths of laser source is designed in the Sculpfun G9. A Infrared Laser and A Diode Blue Laser make it can work on almost all materials. The 2W 1064nm infrared laser can perform its exceptional ability of metals and plastics engraving, expanding the range of materials to be engraved. The 10W 455nm diode blue laser is suitable to engrave the most common materials such as wood, acrylic, etc. Thus you can use this engraving machine to customize business cards, dog tags, remove rust and so on.
3. Industrial Grade Galvanometer - High Precision Speed:
3. Industrial Grade Galvanometer - High Precision Speed:
The Sculpfun G9 delivers exceptional laser performance by using industrial grade Galvo system. It significantly improves the productivity with 5000mm/s ultra-high speed engraving capability and 10000mm/s preview speed. With a repeated positioning accuracy of up to 0.0001mm and a beam spot as small as 0.01mm, the G9 can achieve high-quality engraving with clarity and precision, showcasing fine details.
4. Fully Enclosed Protective Cover:
4. Fully Enclosed Protective Cover:
G9 laser engraver is equipped with a fully enclosed protective cover, which can effectively filter the laser and smoke can be exhausted through the window by installing a smoke exhaust duct. Additionally, the machine's built-in fan and air purifier effectively purify smoke and smell during the engraving process, ensuring a safe environment for use.
Note: The air purifier needs to be purchased separately!
5. Compact Design:
Note: The air purifier needs to be purchased separately!
5. Compact Design:
The G9 laser marking machine, with its portable design, is an ideal tool for craft shows, bazaars, flea markets, souvenir shops, and other places where you can unleash limitless imaginations and turn them into extra income.
6.User-Friendly Application:
6.User-Friendly Application:
Offering a free powerful smartphone and PC software SGD Laser which has a friendly Interface that helps you perform engraving more easily and satisfy all your creativities. The applications supports rich image editing functions such as multi-layer editing, variable engraving settings and multi-format image import. They can also recommend engraving settings for different materials to achieve high-quality results. In addition, the G9 engraver is also compatible with Lightburn software. With a variety of apps available, it can cater the diverse demands for both professional users and beginners.
7.Multiple Accessories Support:
7.Multiple Accessories Support:
It can be compatible with Air Purifier, G9 Slide Extension Kit and RA Pro Max rotary roller attachments to unlock more possibilities. Paired with the air purifier allows for about 99.97% smoke purification, bringing a more secure working environment to you. The slide extension kit will expand your work area by up to 3.5 times, perfect for batch processing and larger engraving projects. RA Pro Max is a 4-in-1 rotary including roller and chuck for most of the daily use of cylinders and spheres, such as glasses, mugs, baseballs, rings, etc.
Note: The engraving machine accessories need to be purchased separately!
