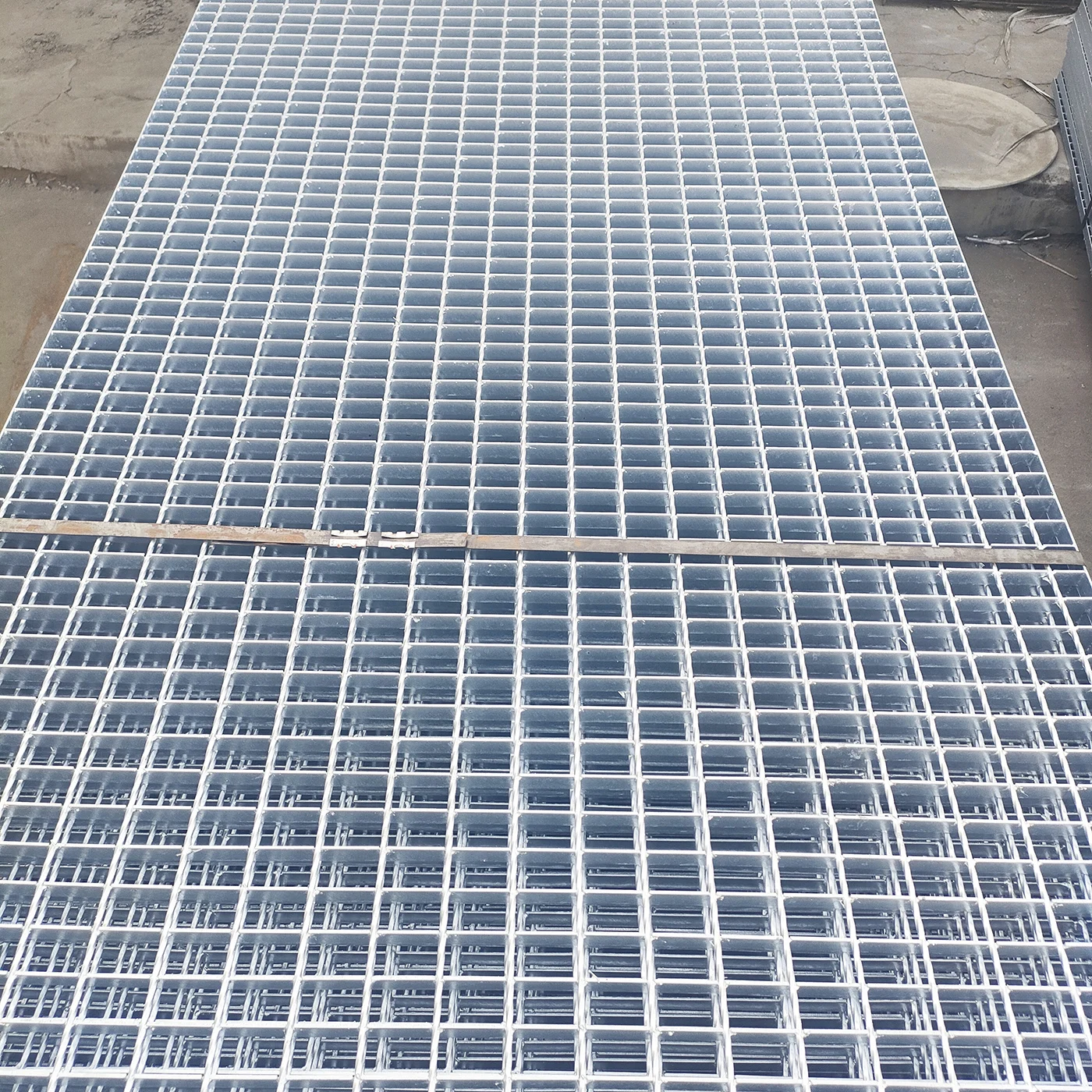

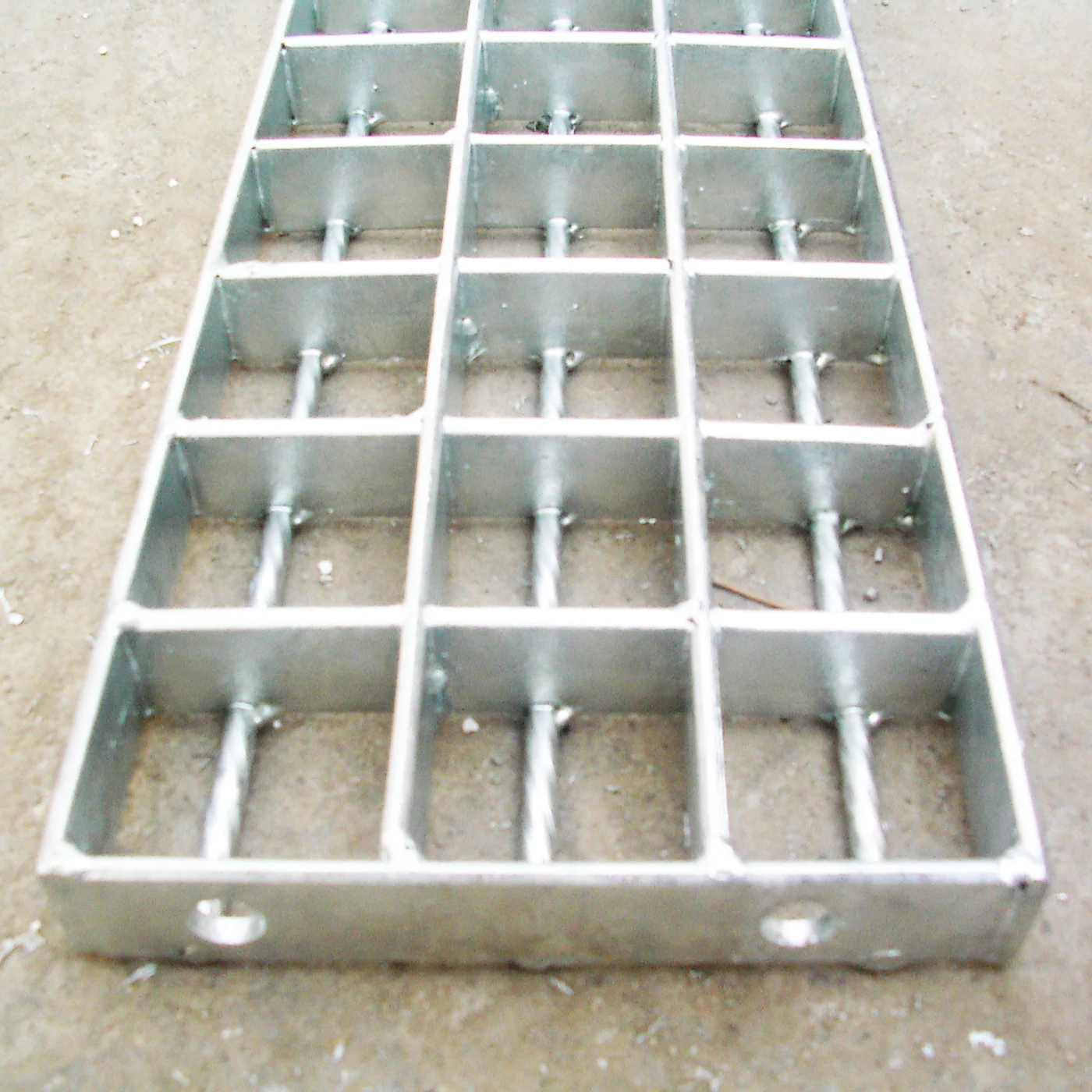

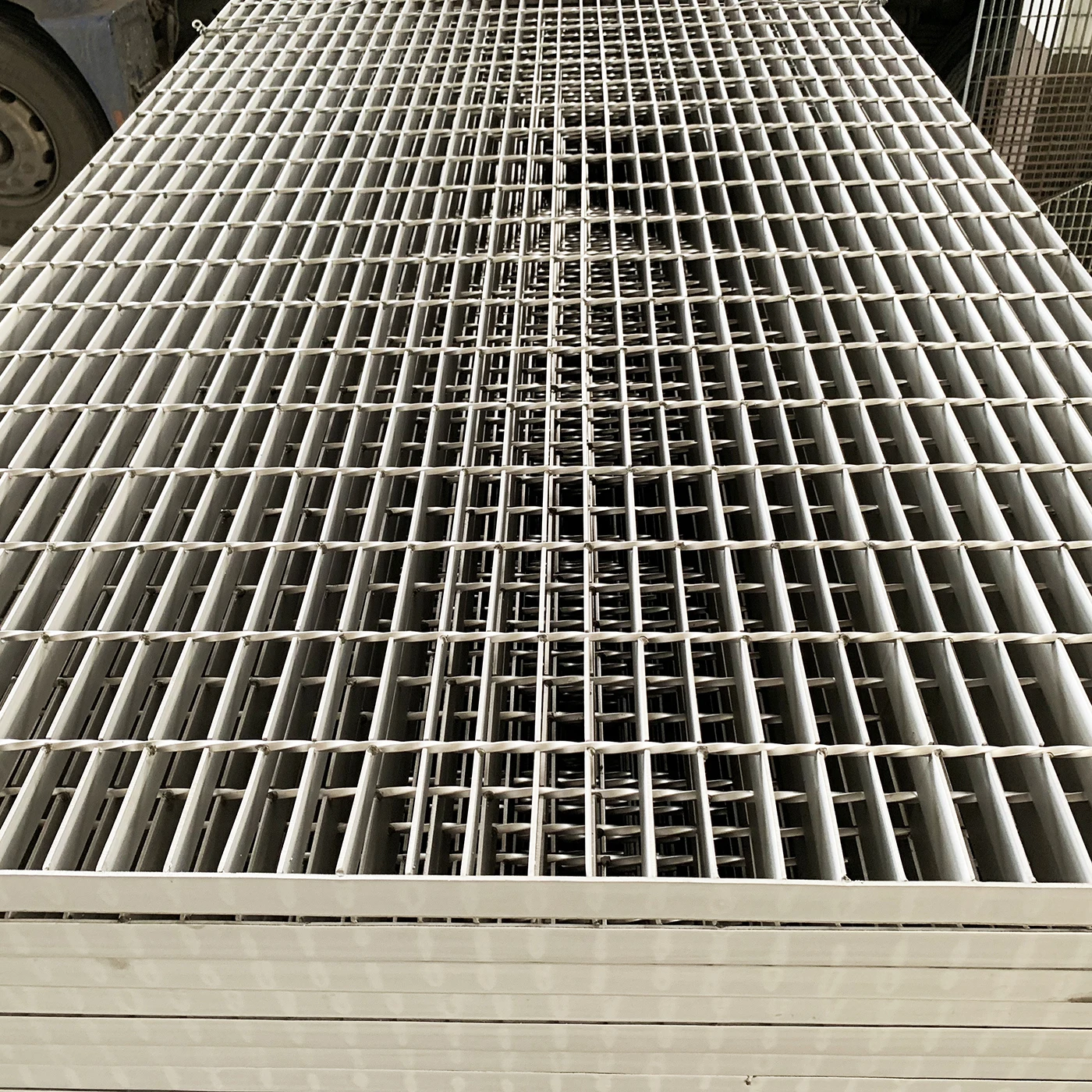

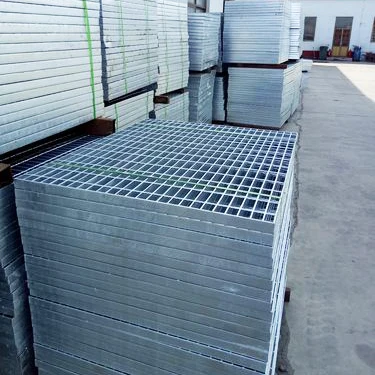

China Factory Supply Hot Dipped Galvanized Steel Grating Hdg Steel Bar Grating Stainless Gi Steel Grating Platform Floor

Product Overview

Description

Wholesale Price Hot Dipped Galvanized Floor Steel Grating Steel Driveway Grates Custom Stainless Steel Grill

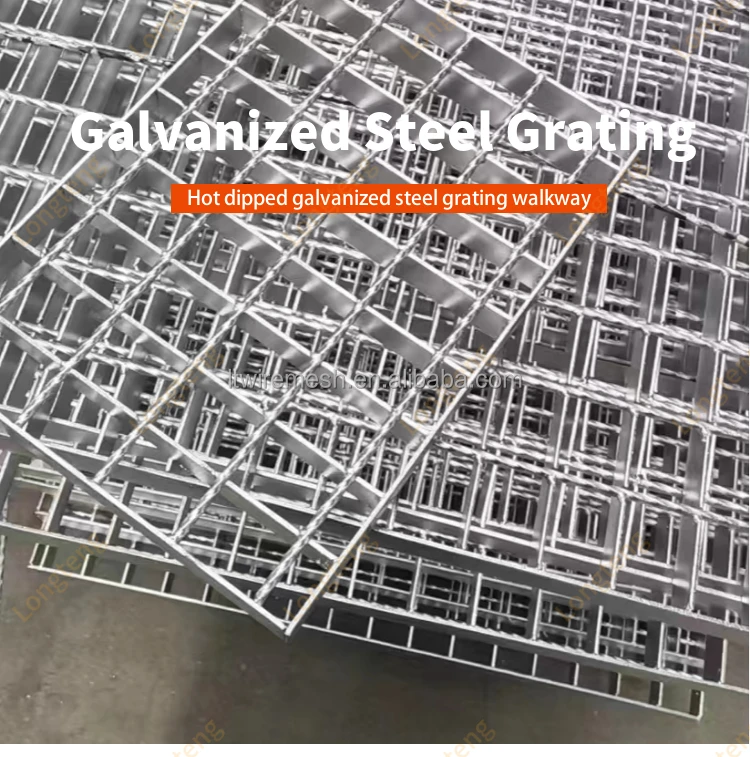

Steel grating is available in varied form suitable for different application and overall load conditions. Hot dip galvanizing or painting can make them in excellent appearance, durability and enhanced economy. Galvanized steel grating is widely used in Power Station, Chemical Industry, Oil & Gas Industry, Boiler Plant, Mining and Refinery, etc.

1. Steel Grating Material

 Mild Steel (Low Carbon Steel) or Stainless Steel

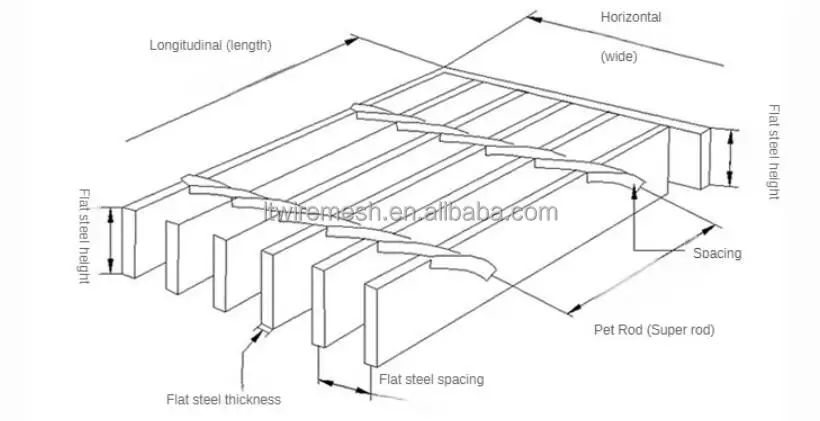

2. Steel Grating Specifications

The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 10;the specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.

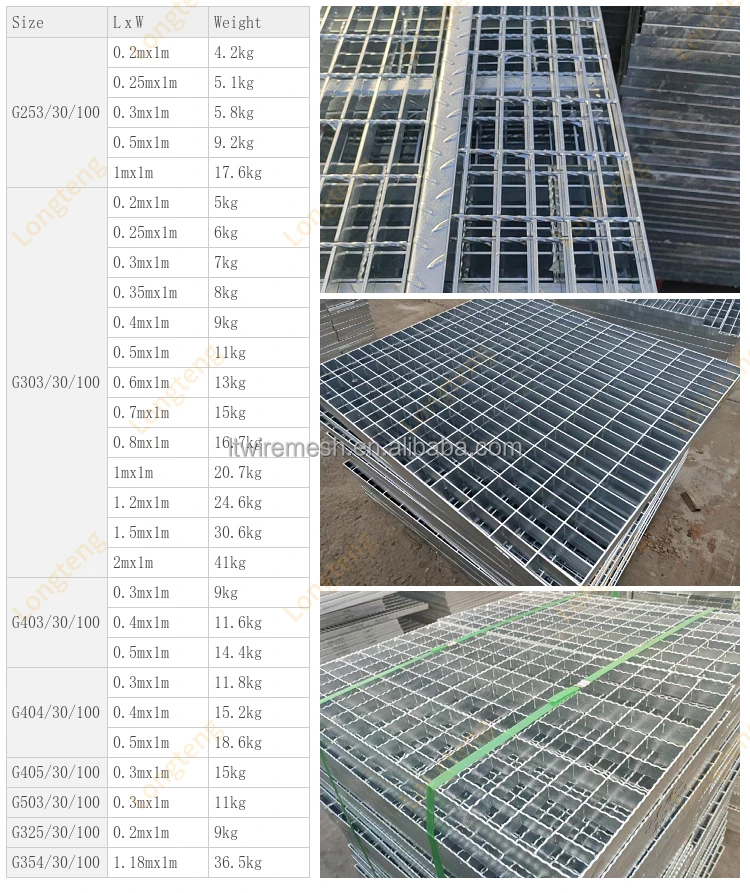

No.	Item	Description
1	Bearing Bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
2	Bearing Bar Pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
3	Twisted Cross Bar Pitch	38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
4	Material Grade	ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel, etc
5	Surface Treatment	Black, self colour, hot dip galvanized, painted, spray coating
6	Grating Style	Plain / Smooth, Serrated /teeth, I bar, serrated I bar
7	Standard	China: YB/T 4001.1-2007,  USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987,  Australia: AS1657-1985, Japan:JIS

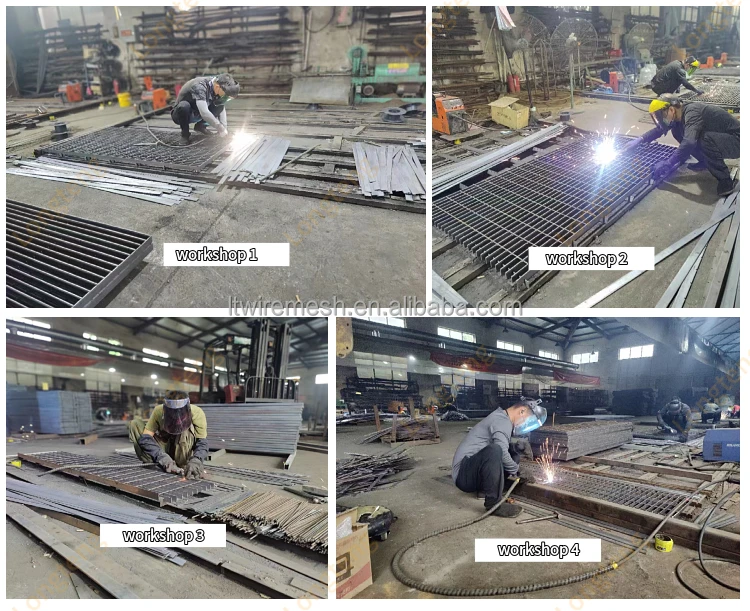

Steel Grating Procedure



Hot-dipped galvanized ,electro-galvanized and spraying brushing and soaking.anti-acid and alkali corrosion capacity the range PH6 to PH12.5,a stable protective film will be formed on the zinc surface.it has good anti-corrosive property

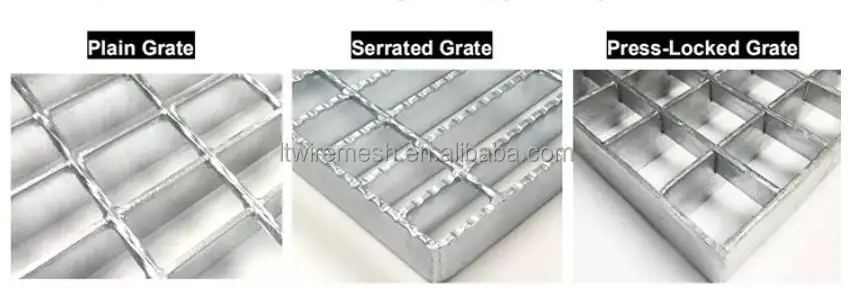

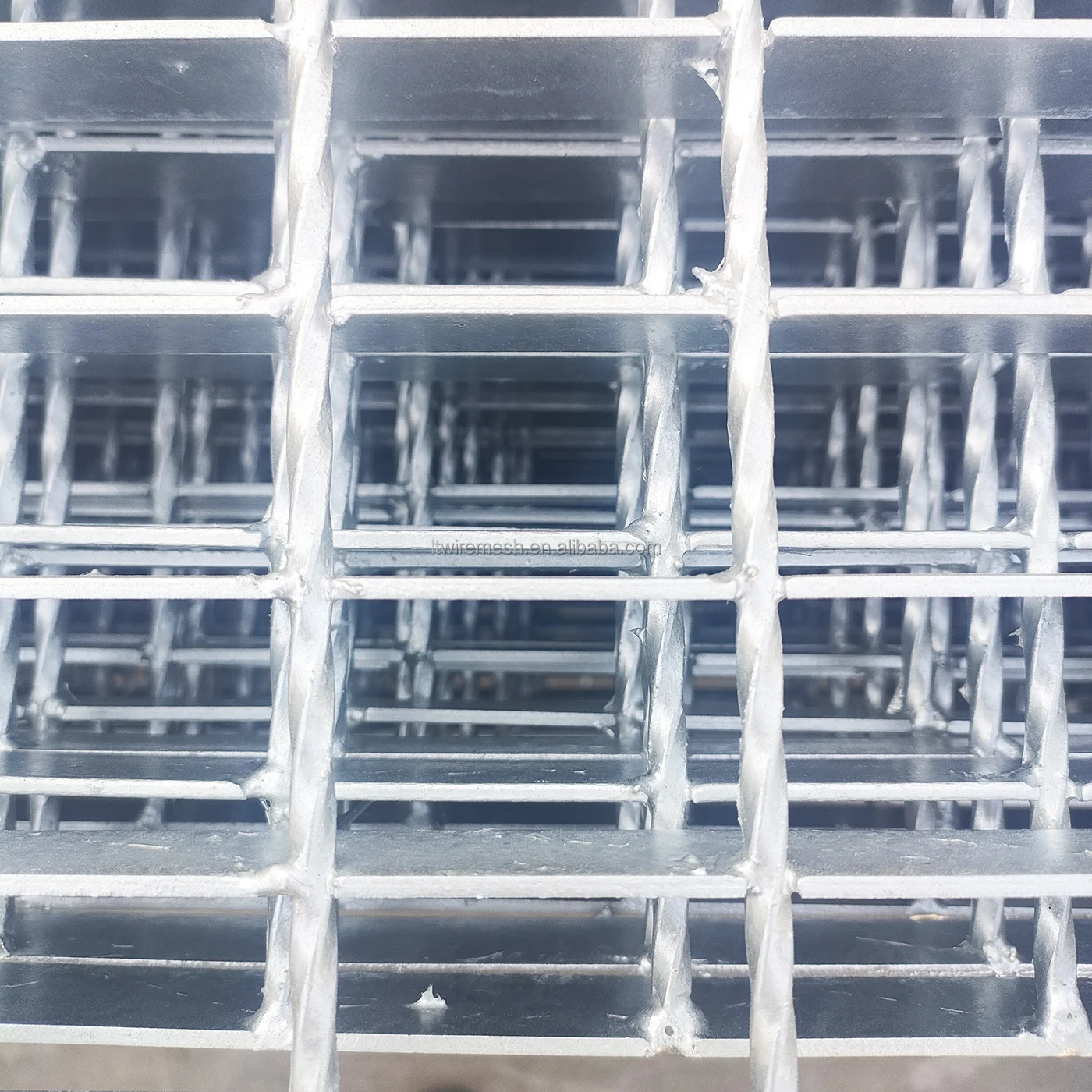

Steel Grating Type



*Flat bar:plain type, plain I type, serrated type, serrated I type;

*Cross bar:round type and square twisted type.



Steel Grating Finishing treatment



*Steel grating untreated: Allowing quicker delivery to customers whom fabricate and galvanize

the grating on their own.

*Galvanized: Hot Dip Galvanizing can give a hygienic and clean maintenance free bright finish.

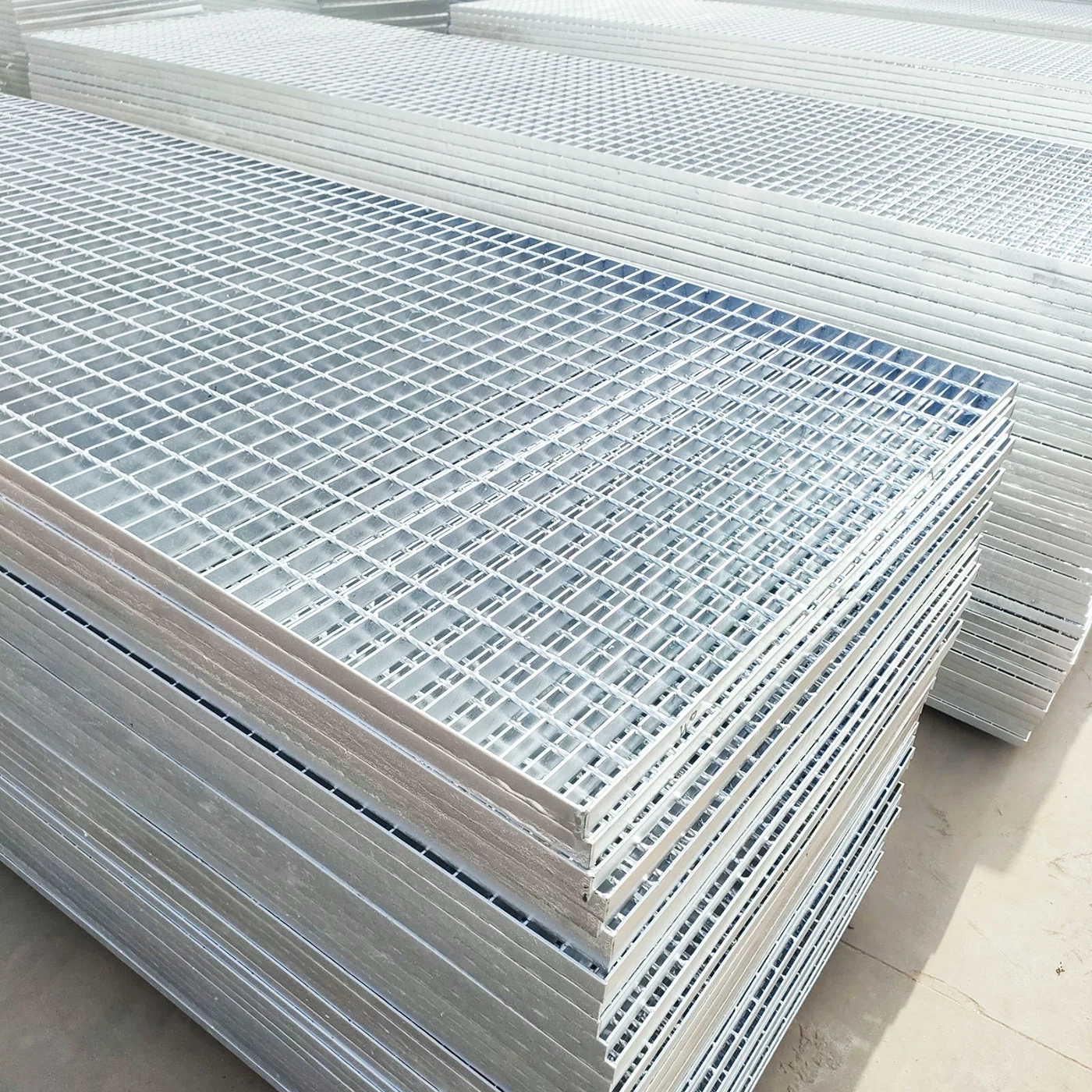

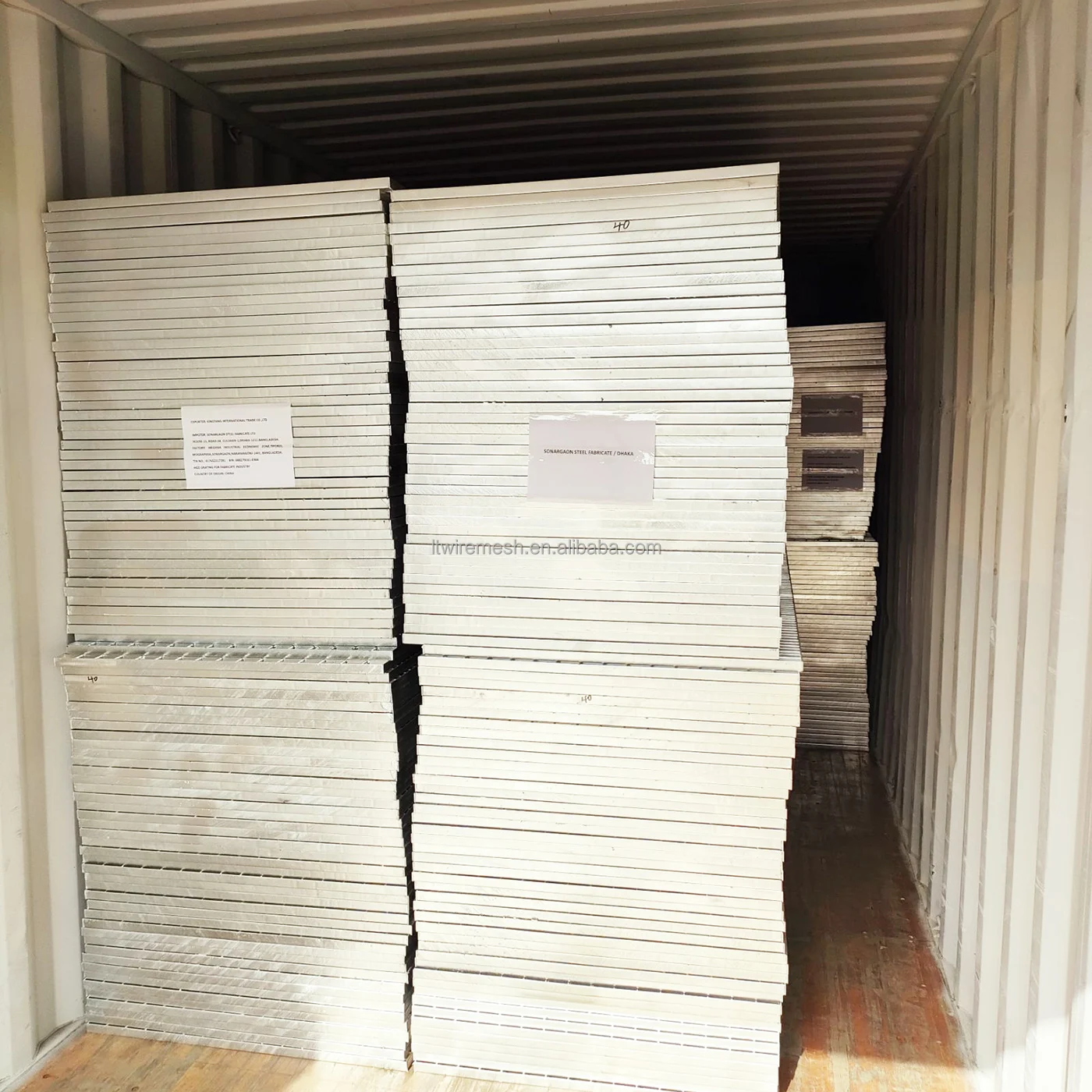

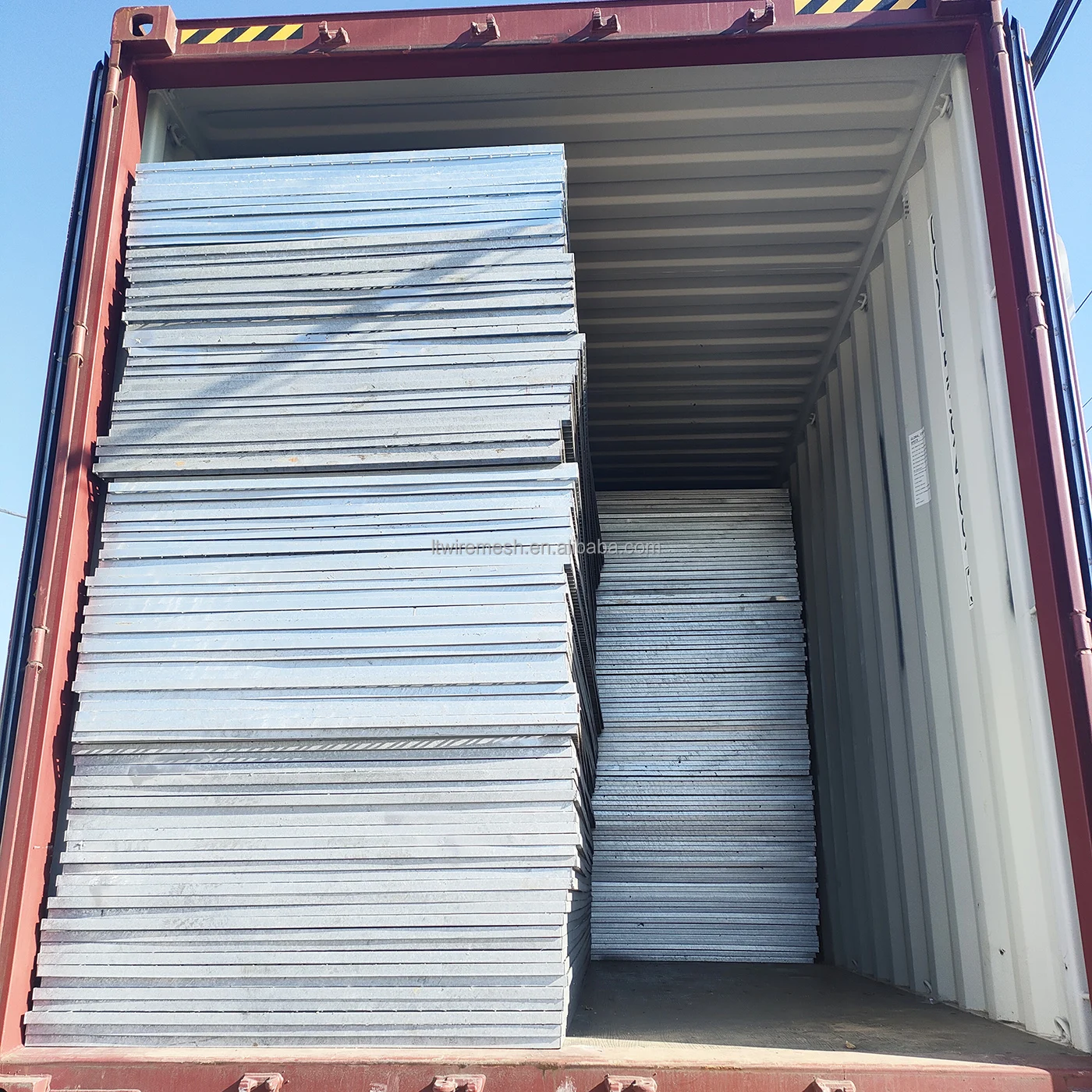

Steel Grating Packing

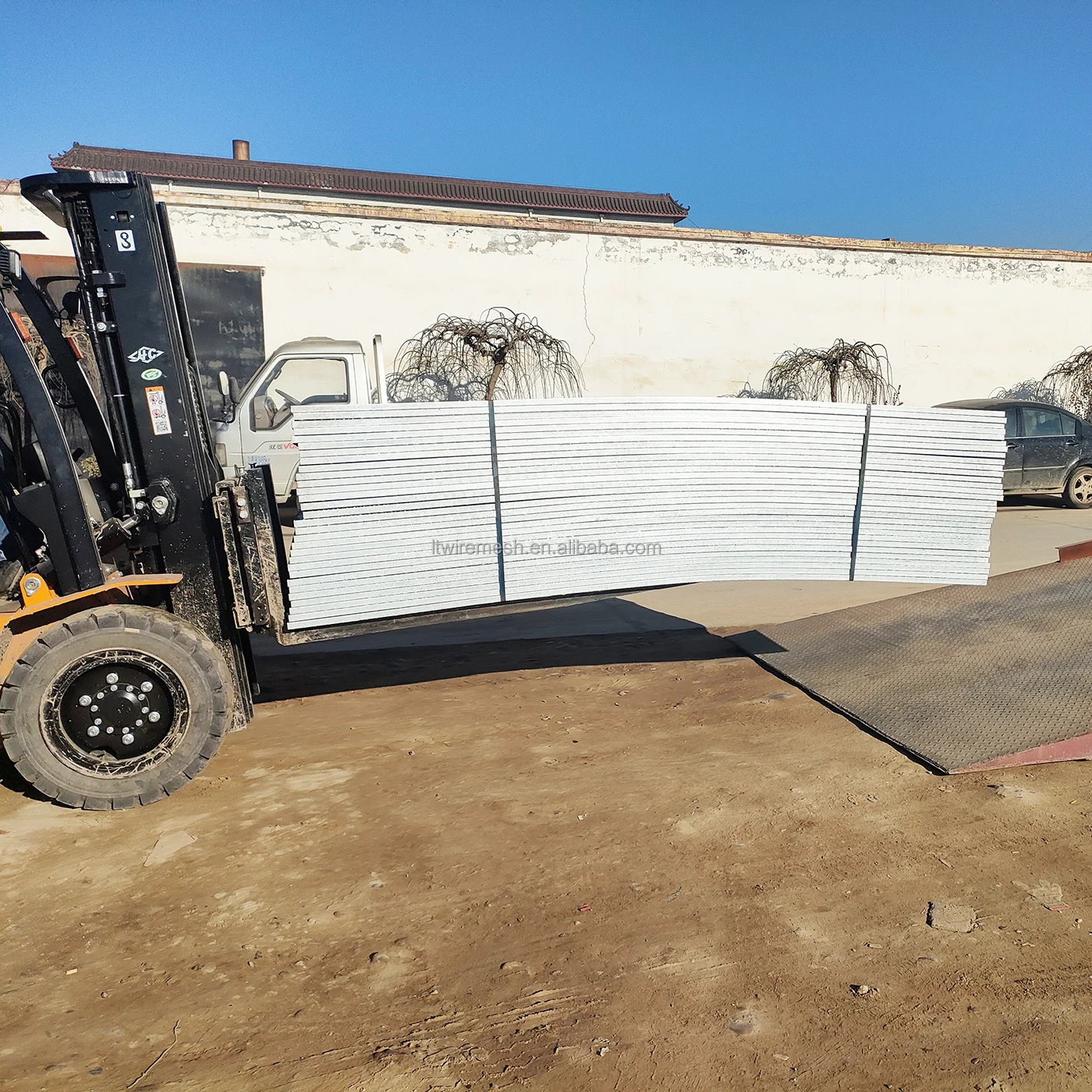

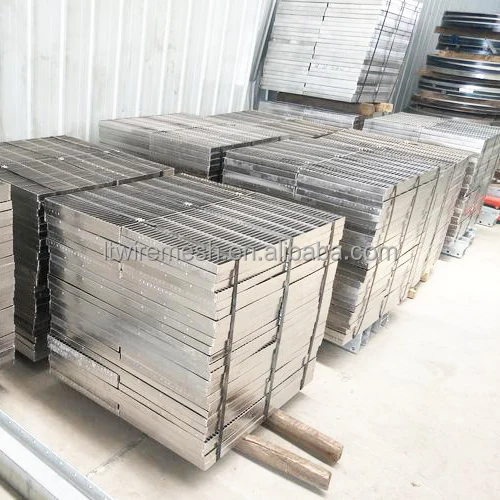

Conditions of steel grating:normally packed in pilling up ways with two pieces of square wood on both upperand bottom sides.there are four or six pieces of M10 long bolt penetrading the gratings and screwing together.it is suitable for loading and unloading by fork-lift and crane.





Steel Grating Standards



*China: YB/T4001.1-2007

*U.S.A.: ANSI/NAAMM (MBG531-88)

*U.K.: BS4592-1987

*Australia: AS1657-1985

*Japan: JJS





Steel Grating Advantage



*Light weight

*High strength

*Great load-bearing capacity

*Economic cost

*Ventilation and light admission

*Modern fashion and attractive appearance

*Non-slip and safety

*Easy cleaning and installation

*Durability

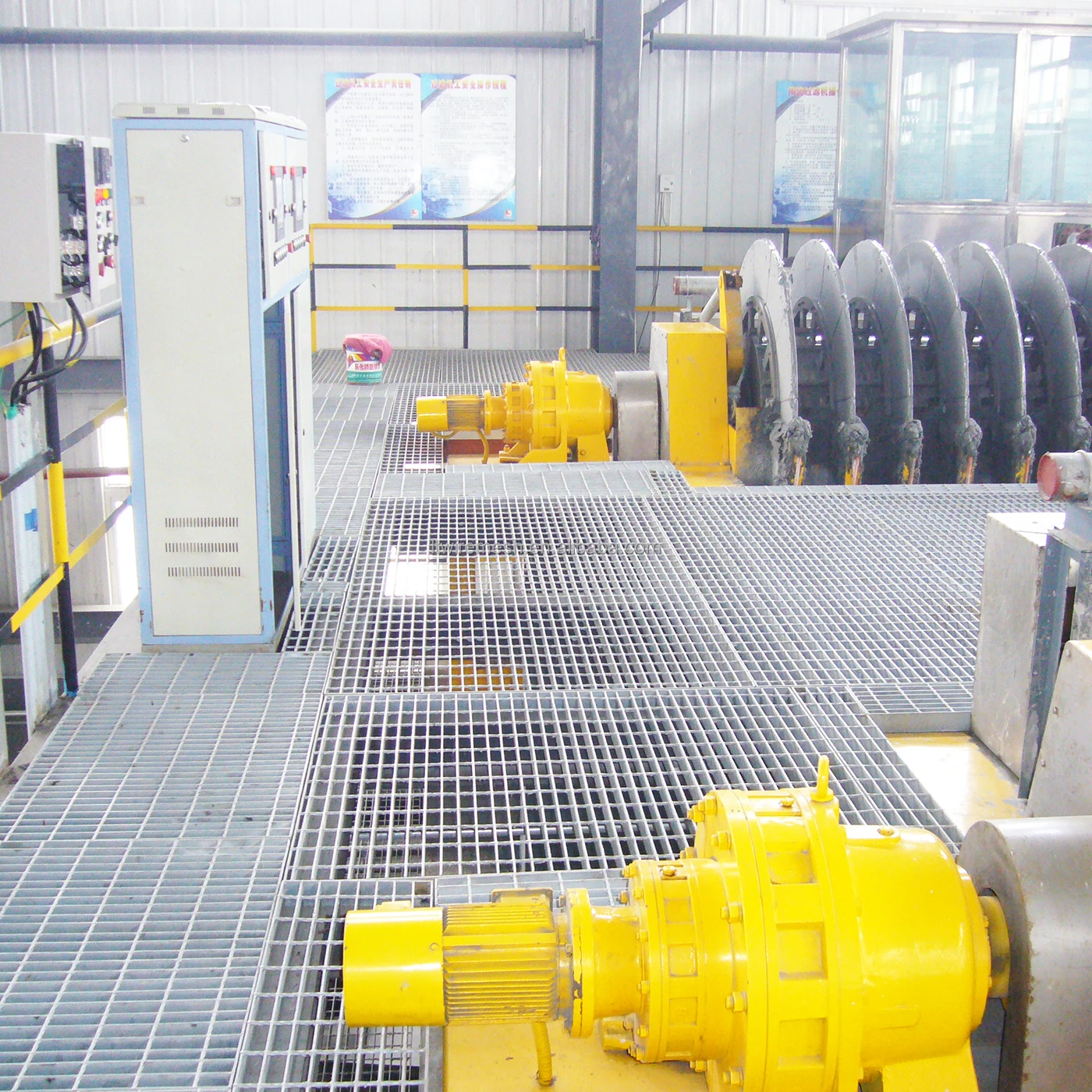

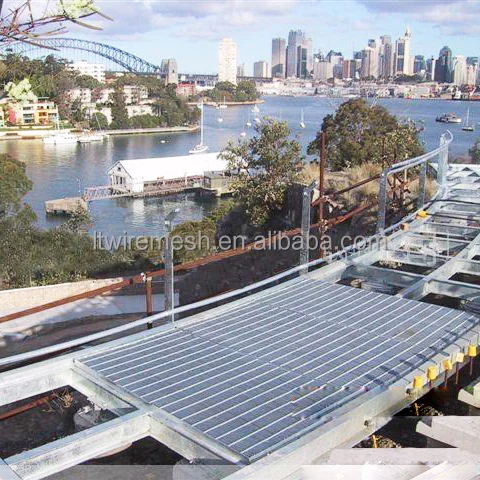

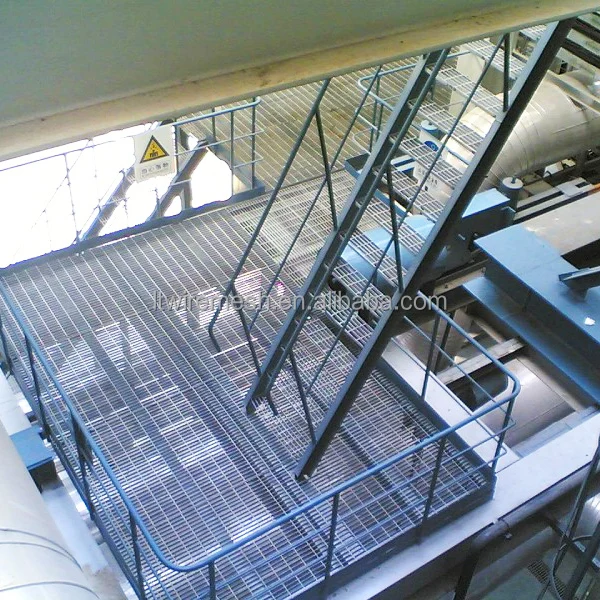

Steel Grating Application

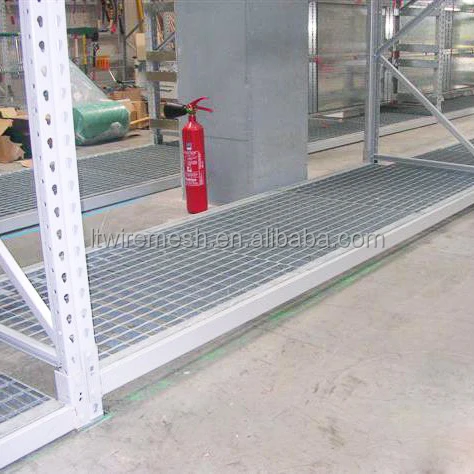

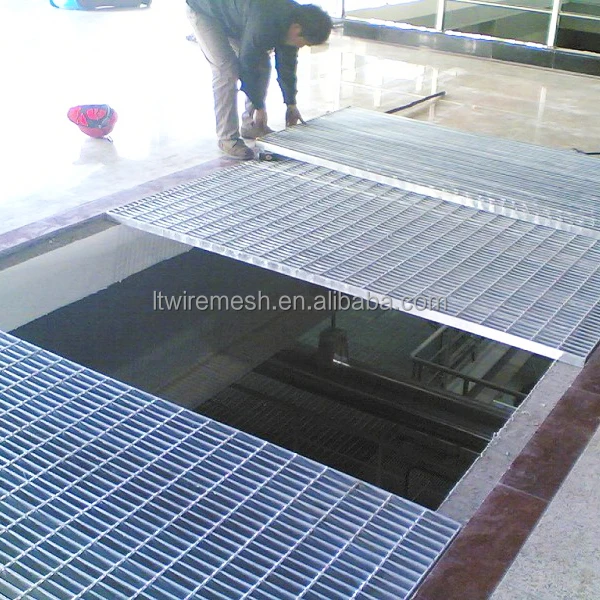

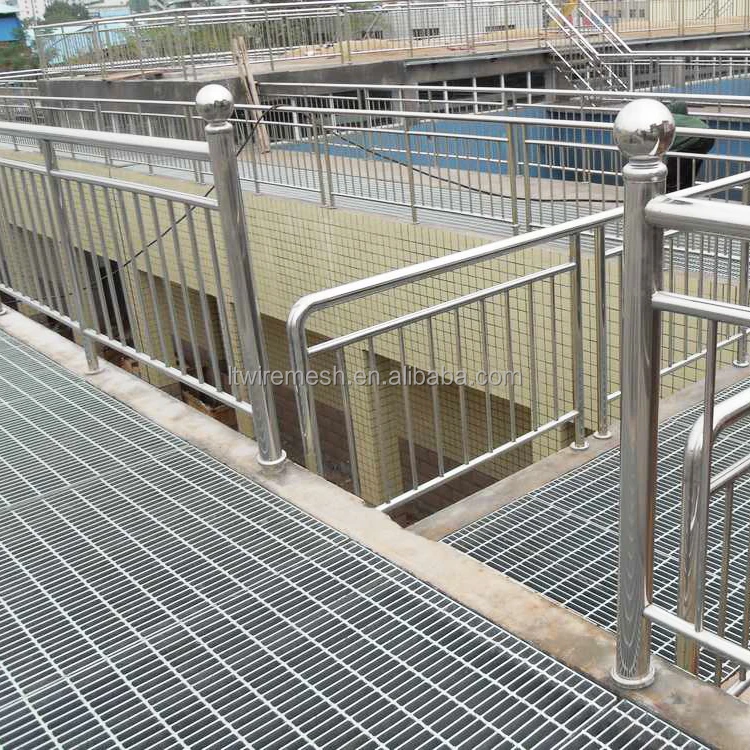

Steel Grating can use as Flooring steel gratings,stair treads,sun shades,drain covers,security screen,manhole covers,mezzanine flooring,earth mats,shelving,Stanchions (hand rails),trench covers etc.



Please contact me if you need steel grating, thank you.
