Pe150x250 Jaw Crusher Matched With Single phase 220v Voltage Small Jaw Crusher
- Category: >>>
- Supplier: Henan Shaolin Heavy Machines Co. Ltd.
Share on (1601240331623):
Product Overview
Description
Product descriptions from the supplier
Overview
Small jaw crusher is a kind of equipment used for crushing ores, rocks and other hard materials. Its main features and working principle are as follows:
1. Simple structure: small jaw crusher usually consists of fixed jaw plate and movable jaw plate, the angle between the two jaw plates can be adjusted, used to control the crushing granularity of materials.
2. Working principle: the material enters into the crushing chamber through the feeding port, the movable jaw plate makes reciprocating movement under the drive of motor, squeezing and tearing the material to make it crushed. The crushed material is discharged from the discharge port.
3.Scope of application: Small jaw crusher is suitable for laboratory, small mine and small-scale production line, commonly used in the primary crushing of medium hardness and hard materials.
4. Advantages: It has the advantages of simple structure, convenient operation and low maintenance cost. Because of its small size, it is suitable for the operation in limited space.
Notice For Price:
1.We are factory direct sales, we will give you a more favorable price
2. The configuration and price are different according to different requirements.
3. All prices on this page are auto-generated virtual prices. Please contact us for quotation!

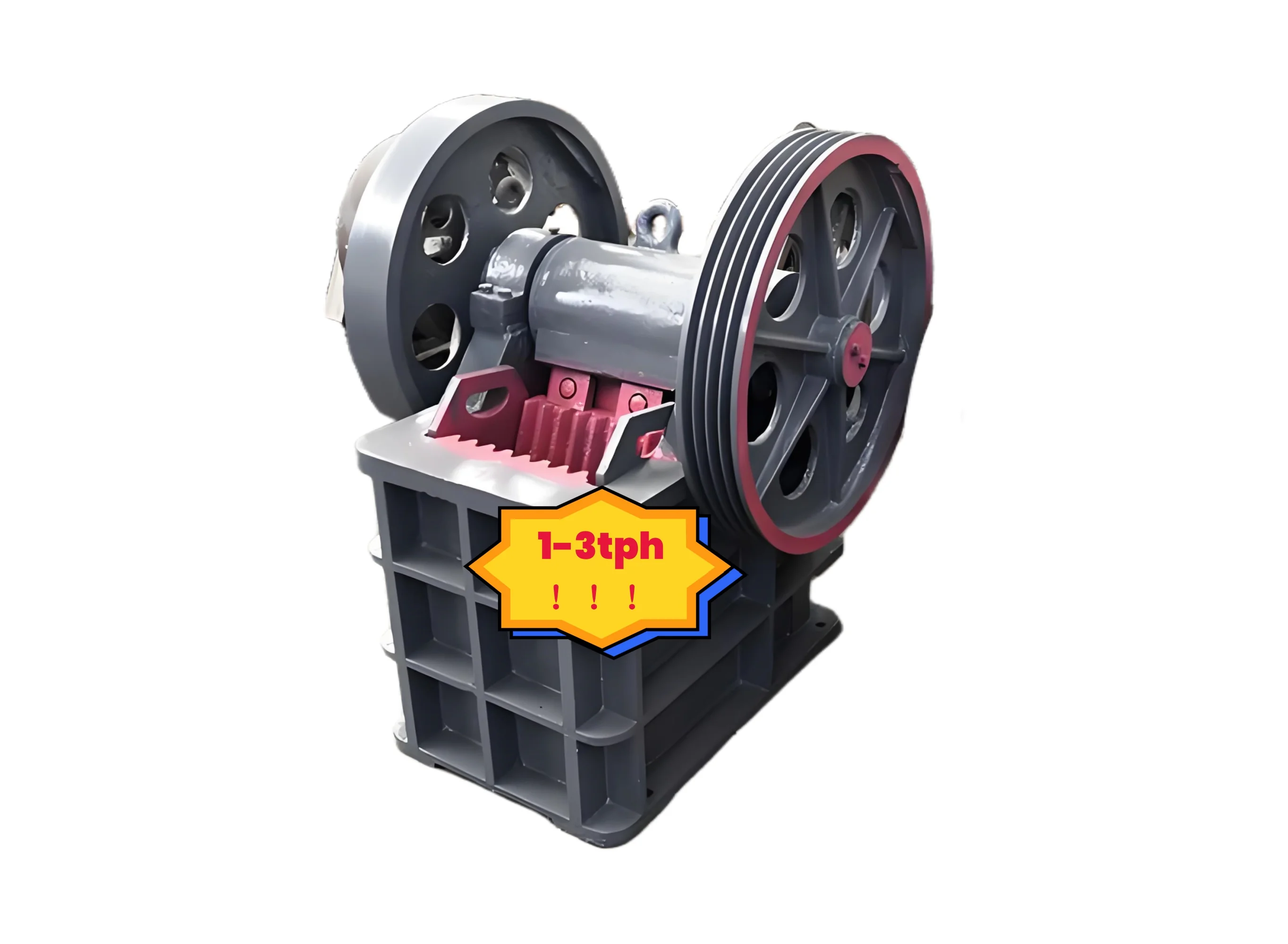

Small PE-150X250 Jaw Crusher
1. Simple structure: small jaw crusher usually consists of fixed jaw plate and movable jaw plate, the angle between the two jaw plates can be adjusted, used to control the crushing granularity of materials.
2. Working principle: the material enters into the crushing chamber through the feeding port, the movable jaw plate makes reciprocating movement under the drive of motor, squeezing and tearing the material to make it crushed. The crushed material is discharged from the discharge port.
3.Scope of application: Small jaw crusher is suitable for laboratory, small mine and small-scale production line, commonly used in the primary crushing of medium hardness and hard materials.
4. Advantages: It has the advantages of simple structure, convenient operation and low maintenance cost. Because of its small size, it is suitable for the operation in limited space.
Equipment advantage
Technical Parameters
Model number | Feed port size (mm) | Maximum feed size (mm) | Discharge port adjustment range (mm) | Processing capacity (t/h) | Motor power (kw) | Gross weight (t) | Apparent size Length x width x height (mm) |
PE-150X250 | 150X250 | 125 | 10-40 | 1-3 | 5.5 | 0.8 | 720X660X850 |
PE-250X400 | 250X400 | 210 | 20-60 | 5-21 | 15 | 2.8 | 1300X1090X1270 |
PE-500X750 | 500X750 | 425 | 50-100 | 40-110 | 55 | 12 | 1980X2080X1870 |
PE-600X900 | 600X900 | 500 | 65-160 | 50-190 | 75 | 18 | 2560X1750X2492 |
PE-750X1060 | 750X1060 | 630 | 80-140 | 110-320 | 110 | 29 | 2660X2430X2800 |
PE-1200X1500 | 1200X1500 | 1020 | 150-350 | 400-800 | 160-220 | 100.9 | 4200X3300X3500 |
PE-1500X1800 | 1500X1800 | 1200 | 220-350 | 500-1000 | 280-355 | 139 | 5160X3660X4248 |
PEX-100X600 | 100X600 | 80 | 7-20 | 3-10 | 7.5 | 1.0 | 750X1660X595 |
PEX-150X750 | 150X750 | 120 | 10-40 | 8-30 | 15 | 3.0 | 1380X1658X1025 |
PEX-250X750 | 250X750 | 210 | 25-60 | 13-35 | 22 | 5.5 | 1380X1750X1540 |
PEX-250X1000 | 250X1000 | 210 | 25-60 | 16-52 | 37 | 6.5 | 2140X1660X1500 |
PEX-250X1200 | 250X1200 | 210 | 15-60 | 18-60 | 37 | 7.7 | 1840X2912X1580 |
PEX-300X1300 | 300X1300 | 250 | 20-90 | 16-105 | 55 | 11 | 2720X1950X1600 |
