Ceiling Track Acoustic Movable Sliding Folding Wall Partitions Wood Partition Divider Office Partition For Space Division
- Category: >>>
- Supplier: Foshan Tecsus Building Material Co. Ltd.Foshan Ltd.
Share on (1601240340960):
Product Overview
Description

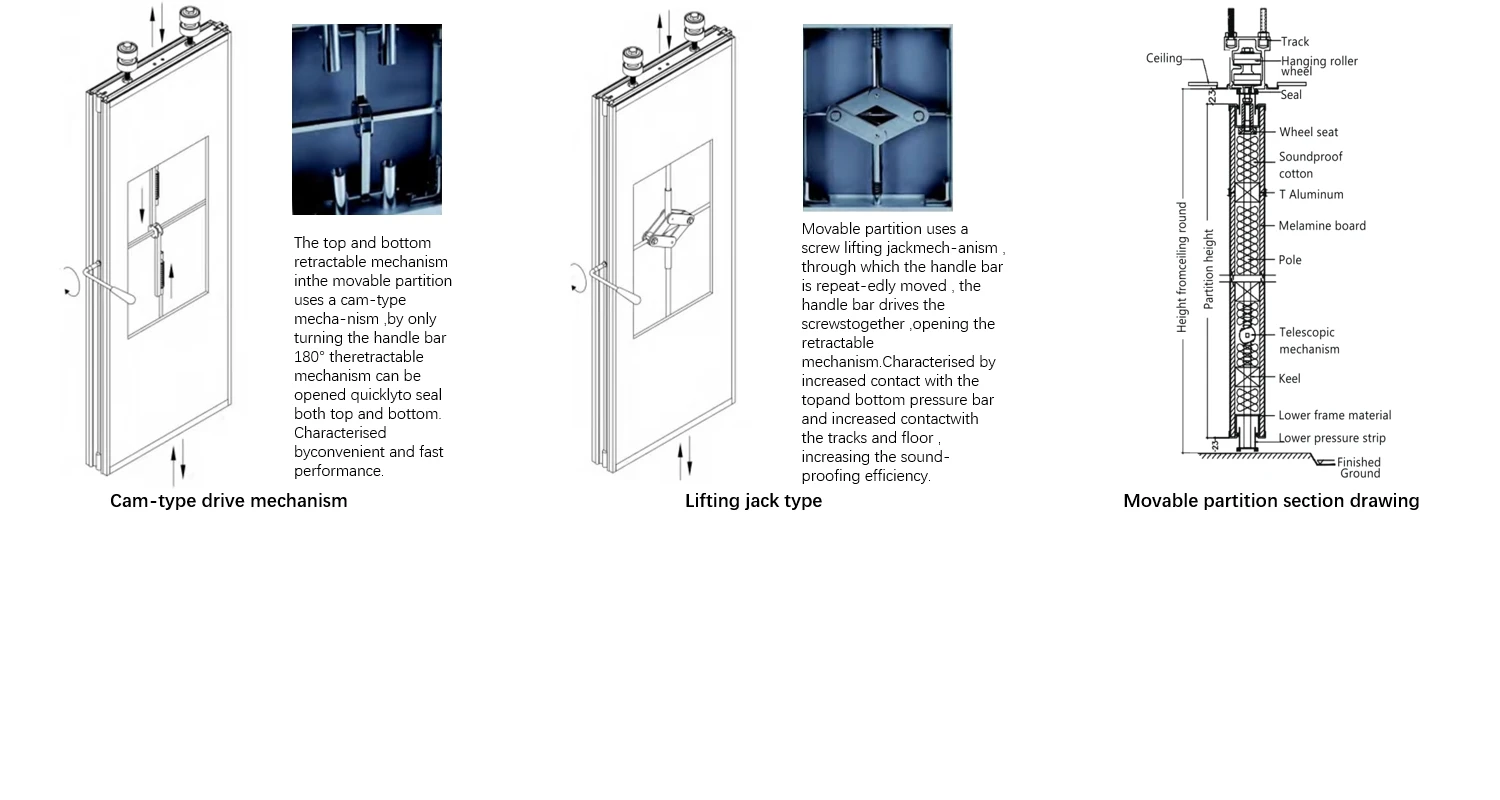

>>Different product structure
Partition system is selected based on usage.
Our partition according to different use of different systems,the panel system continuously shakes the top andbottom supports, with a large expansion and contractionrange, and the top support force reaches 180KG.

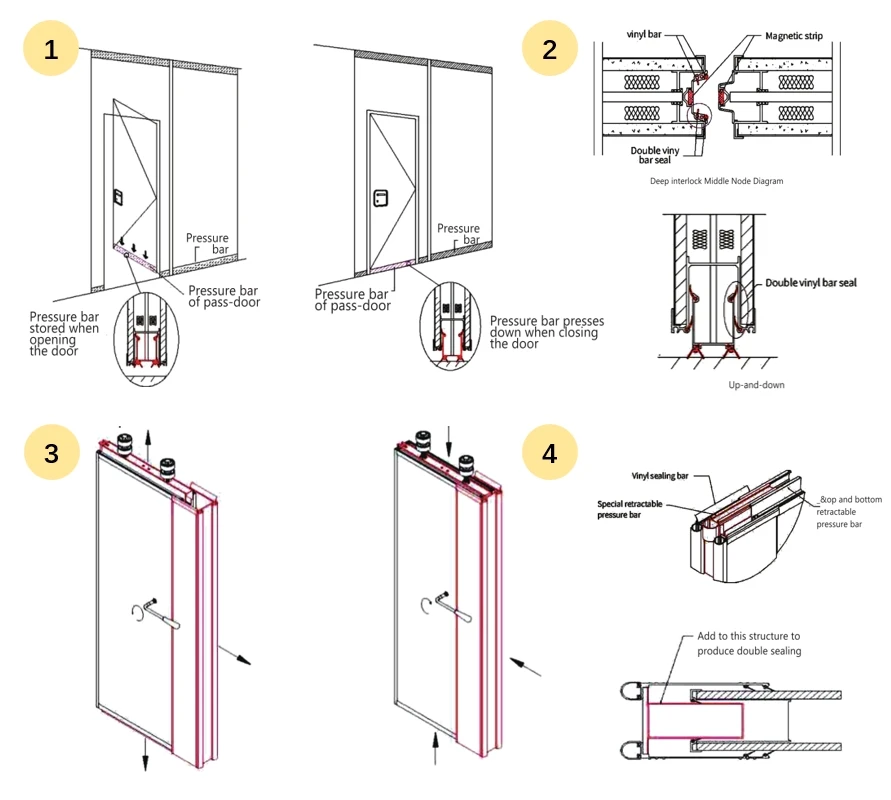

>>Leading sound insulation technology

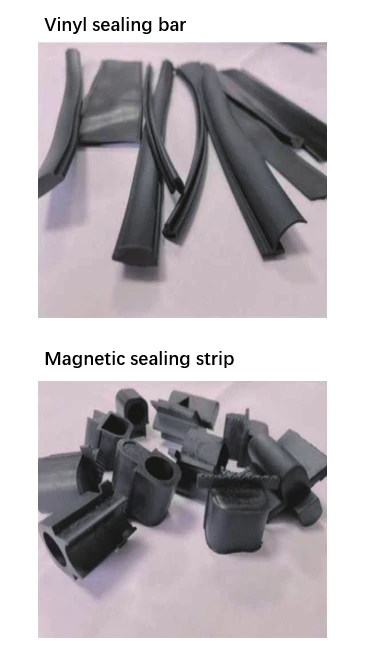

Advanced sealing systems to ensure the products with perfect sound proof.
2. Seal system of movable partition;
3.Expanding jamb‘s linking system in the movable partition;
4.Movable partition retractable panel's total sealing system(High sound insulation system).

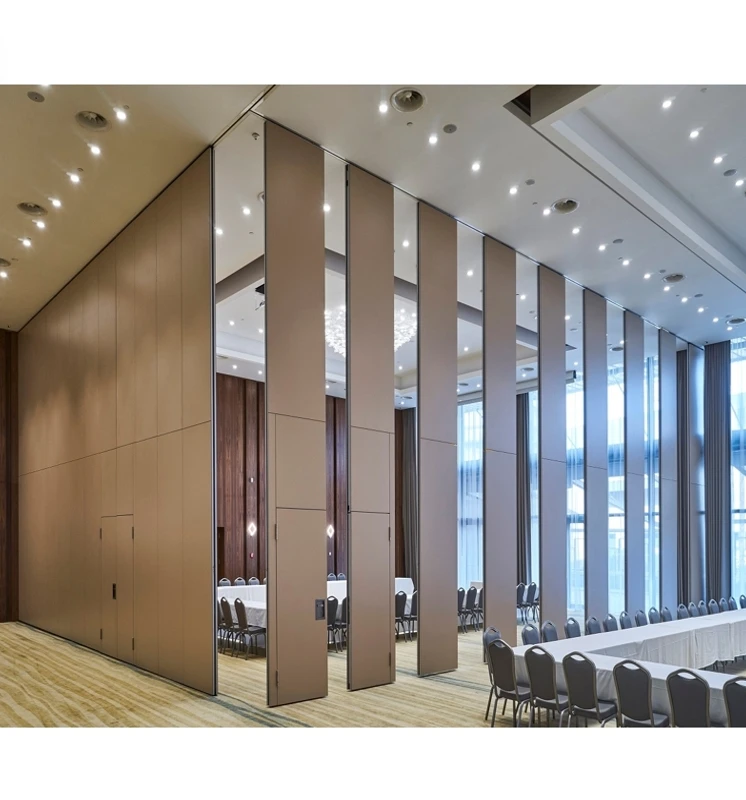

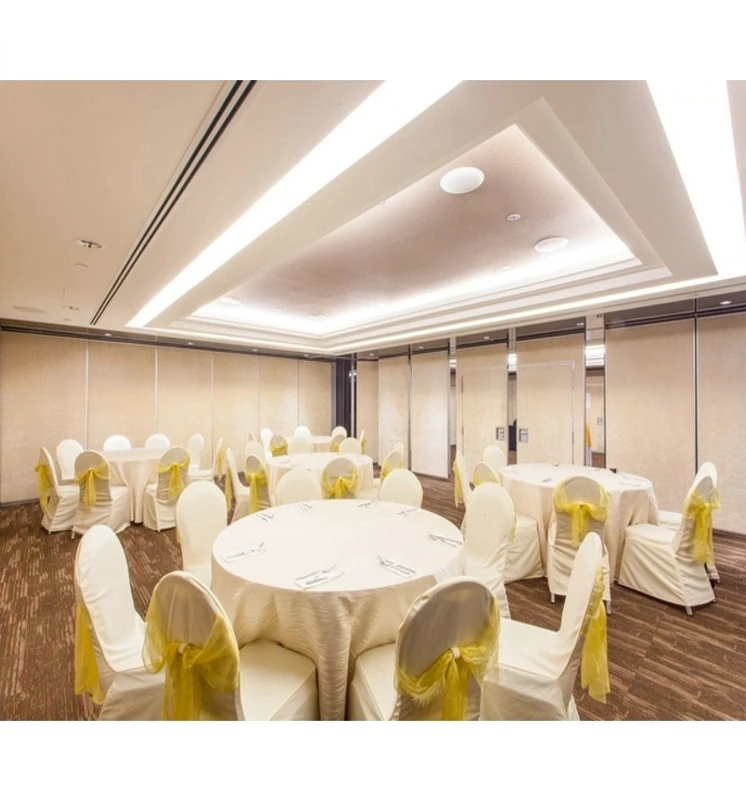

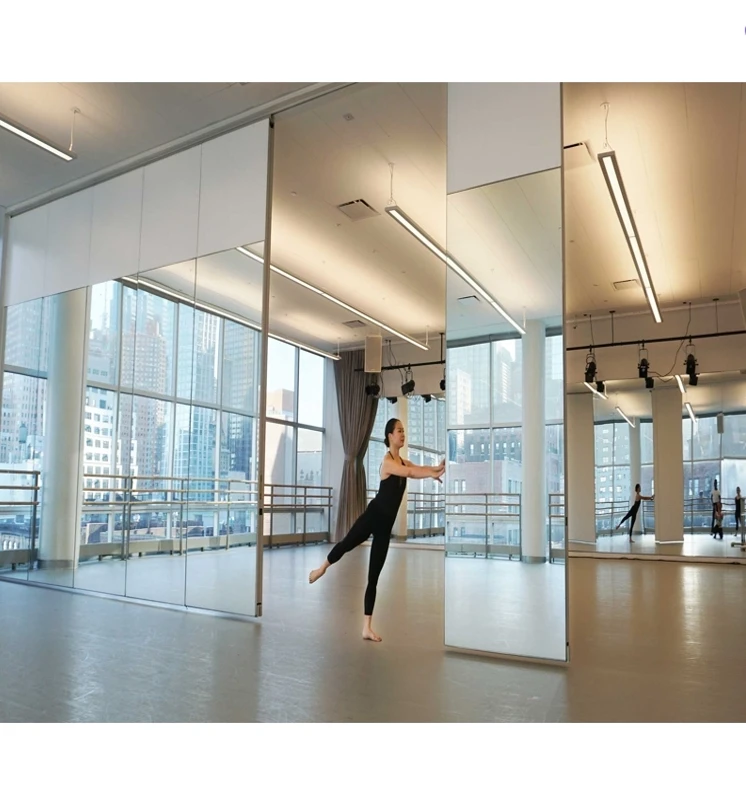

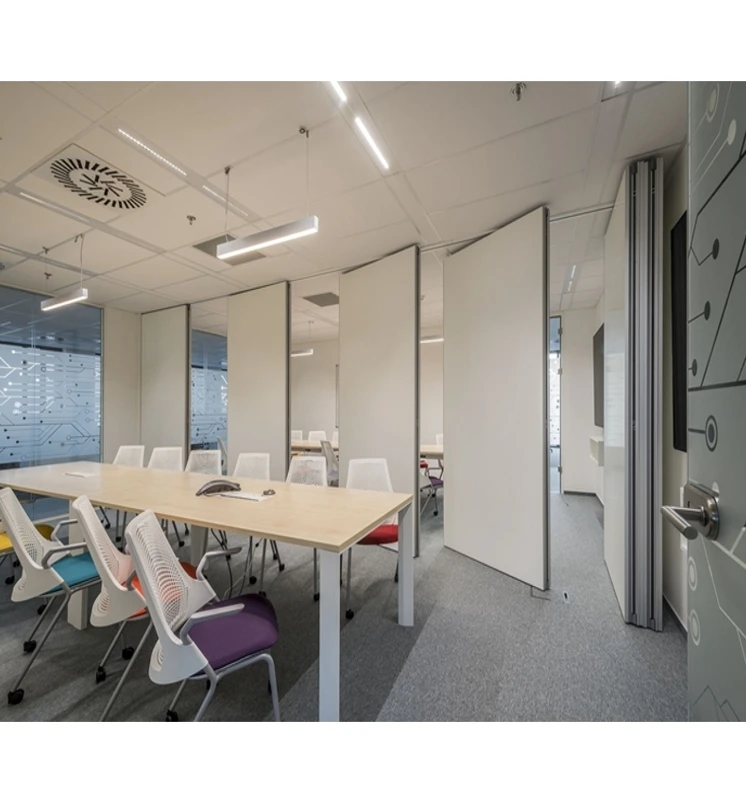

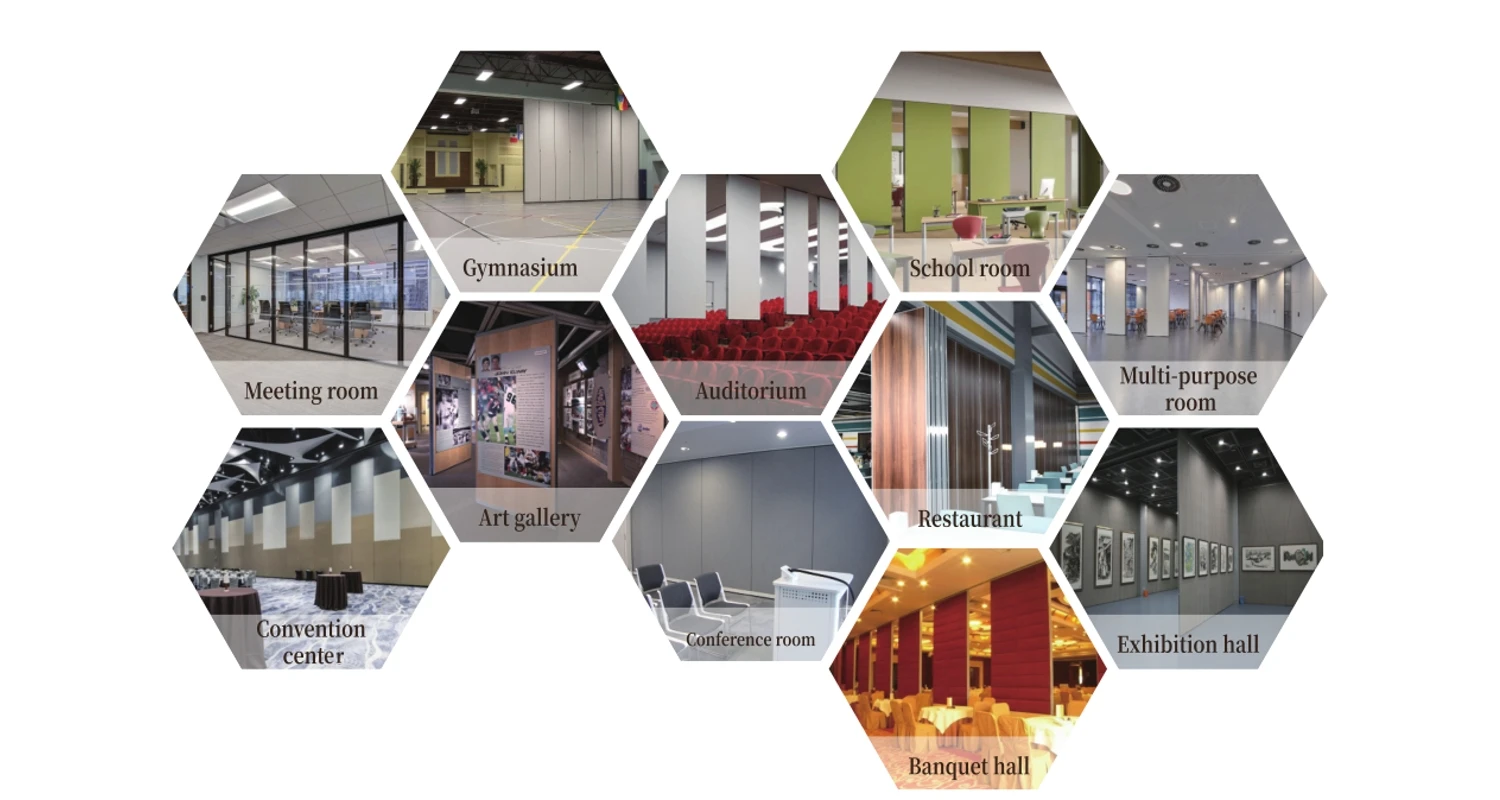

>>Suitable for multiple scenarios
>>Available in various models
Our range is differentiated according to the thickness of movable partitions in mm, while movable partitions are classified according to factors such as thickness, height and sound insulation.
Series | Thickness (mm) | Applied height (mm) | Width of panel (mm) | STC (dB) | Hanging weight | Retractable Range of Top/bottom (mm) | Surface material |
65 | 65mm | 2000-4000mm | 600-1228 | 25-32dB | 22~30kg/㎡ | 22.5 | Plywood, MDF, Laminate, Mirror, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting,etc. (Customized) |
85 | 85mm | 2000-6000mm | 600-1228 | 37-45dB | 30~40kg/㎡ | 22.5 | |
100 | 100mm | 2000-10000mm | 600-1228 | 43-55dB | 45~50kg/㎡ | 30 | |
Ultra-high | 150mm | 2000-17000mm | 600-1228 | 43-55dB | 38~50kg/㎡ | 30 |

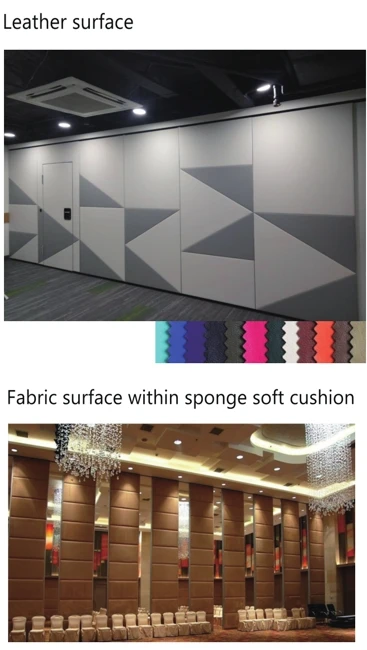

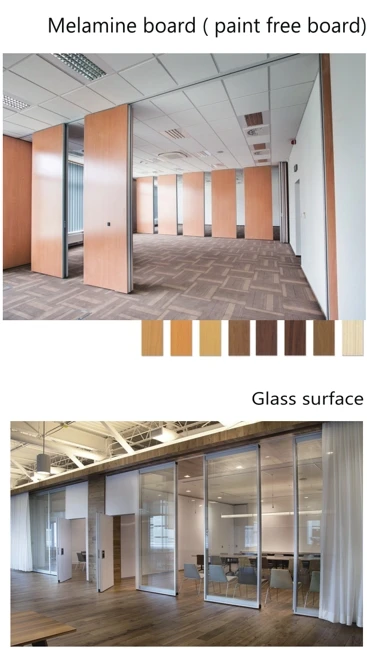

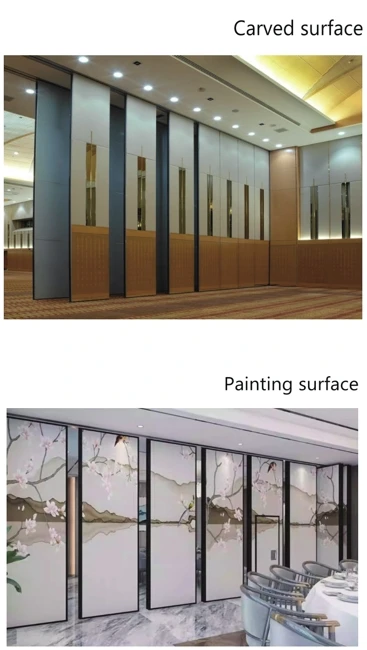

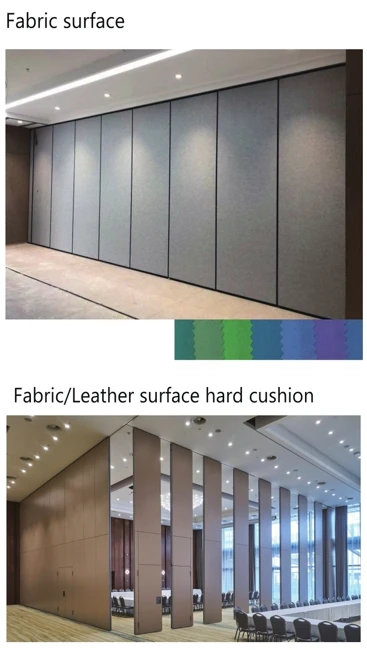

>>Choice of surface material

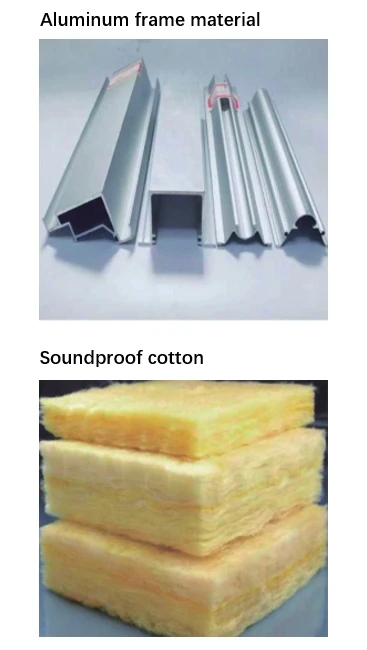

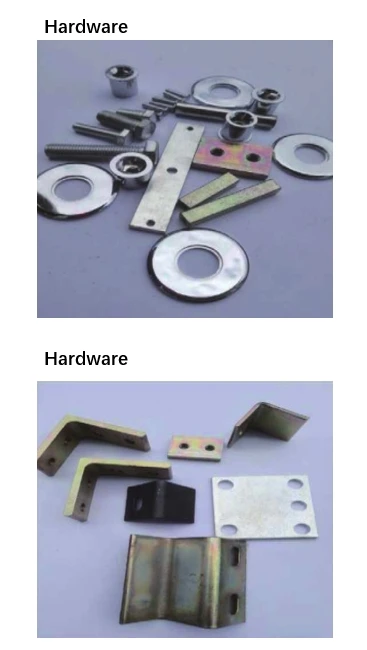

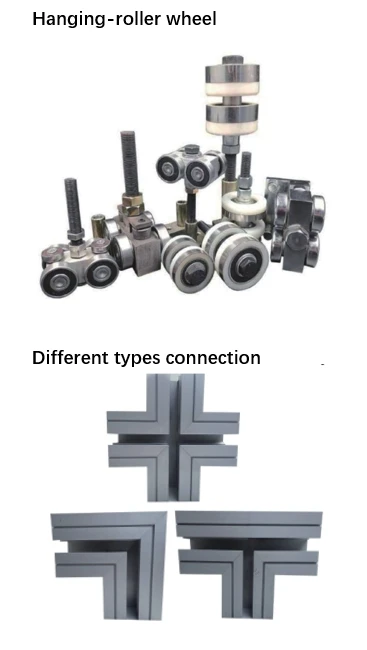

>>Complete supply of accessories
FAQ
Q1:Are you a trading company or a manufacturer?
A1:We are a factory manufacturer, not only producing office phone booths, focusing on building materials decoration products, we have more than 14 years of export experience.
Q2:How to install the partition? Will it difficult to be done?
A2:It is not difficult to install our partitions.Our partitions are top supported system without any floor track in need.So top structure will be very important.We have very detailed drawings and videos showing how to install,so your people just need to follow them step by step.
Q3:What is the price for movable wall?
A3:Our movable wall system is customized and the cost is calculated by total square meter.Different types have different prices.So we need you provide to us detailed dimensions like height by width,finish options,parking options to get a quote.We also need your layout drawing if possible.
Q4:What is lead time ?
A4:The lead time is 10 days to 25 days.Different order quantities and finish production time are different. If you have requirements for production time,please inform us in advance.

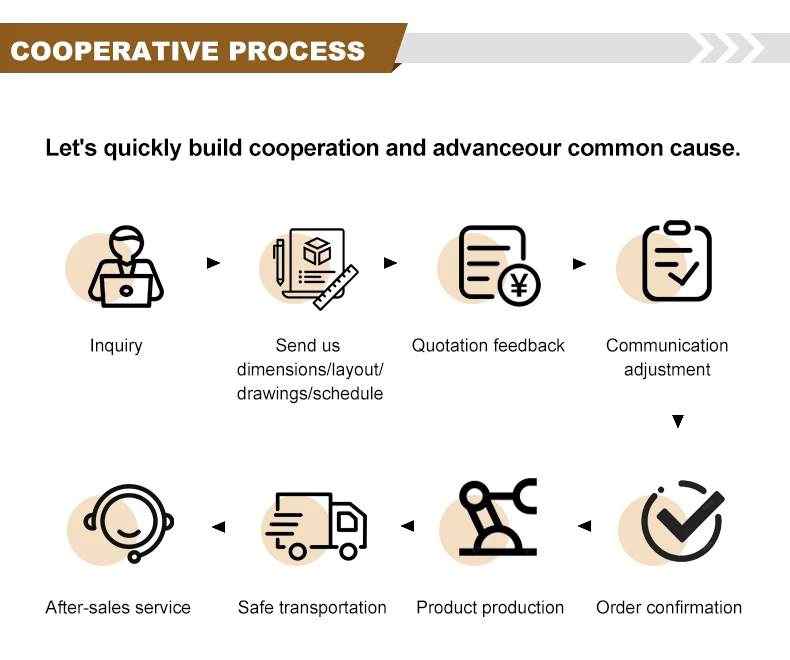

Q5:What is procurement procedure ?
A5:Firstly , send us the drawings(if the drawings is not available , you can tell us the height from false ceiling to finished floor and width from wall to wall)
Secondly , we offer you the movable wall layout drawings for your confirmation;
Thirdly , we quote the movable wall in accordance with confirmed drawings .
A5:Firstly , send us the drawings(if the drawings is not available , you can tell us the height from false ceiling to finished floor and width from wall to wall)
Secondly , we offer you the movable wall layout drawings for your confirmation;
Thirdly , we quote the movable wall in accordance with confirmed drawings .
Q6:Are your products guaranteed?
A6: Yes,all of our products carry a full 1 Year guarantee,covering all parts and defects.We can also provide an extended warranty if require and the products are expected to last a lifetime.
A6: Yes,all of our products carry a full 1 Year guarantee,covering all parts and defects.We can also provide an extended warranty if require and the products are expected to last a lifetime.
