EPEVER HP3522 AH1250P65A HP3542 AH0650P65A HP5542 AH1050P65A IP65 BMS Solar Hybrid Inverter for Home Solar Energy Storage System
- Category: >>>
- Supplier: Goland Century Co. Ltd.
Share on (1601240409839):
Product Overview
Description

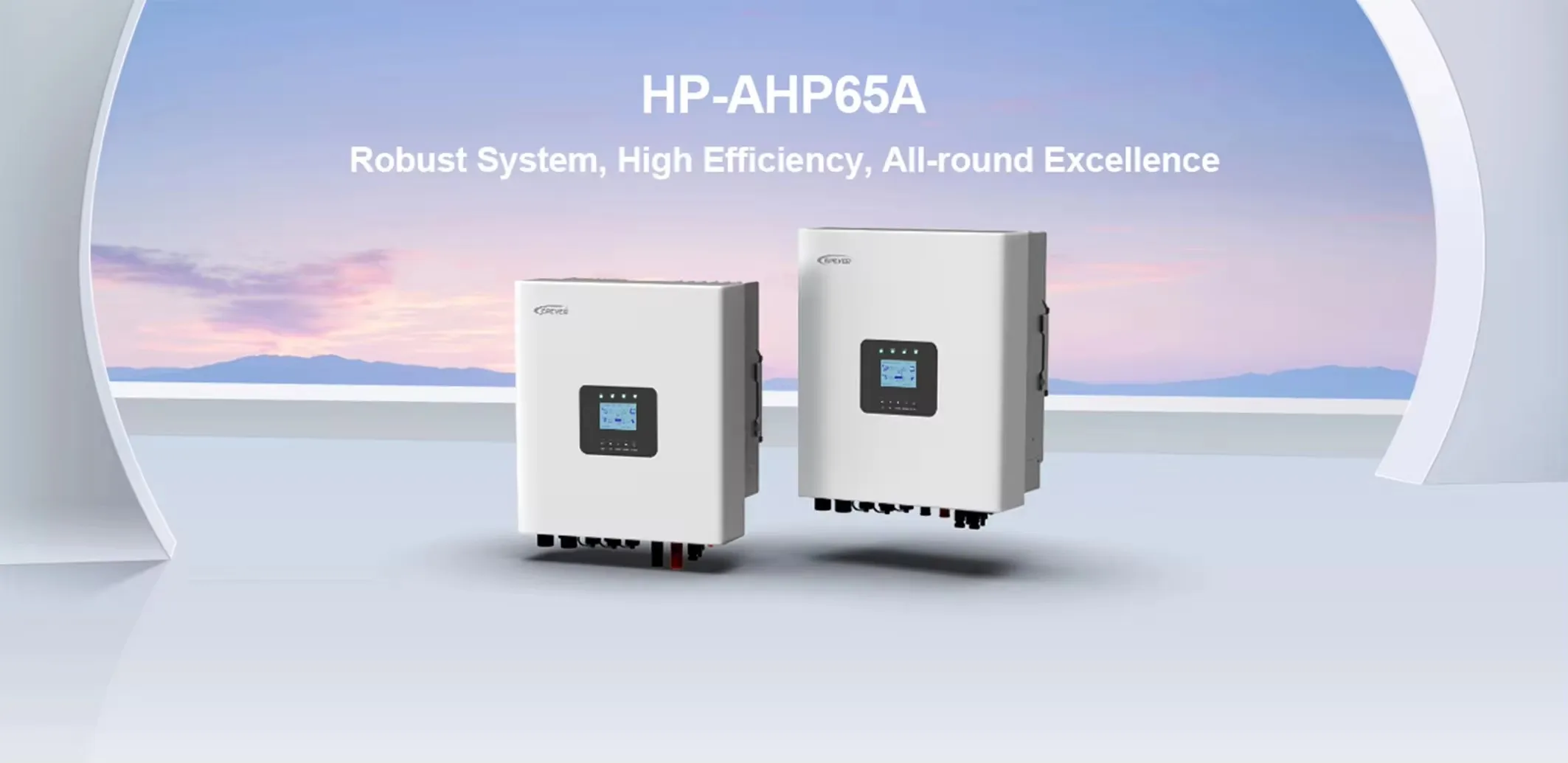

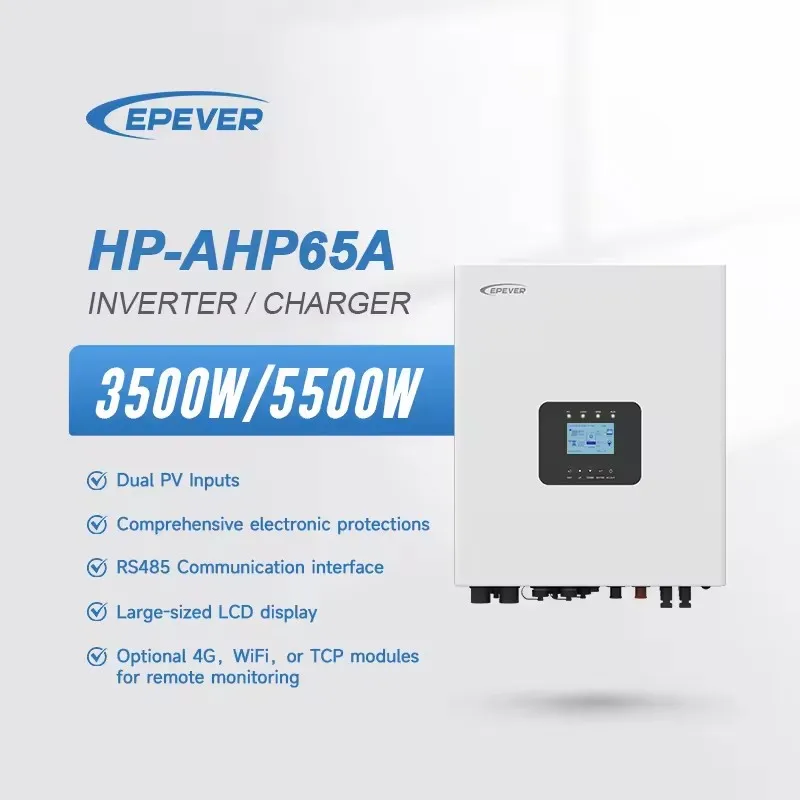

EPEVER HP-AHP65A Series 3500W 5500W 24V/48V 220V/230V
High Frequency Hybrid Solar Inverter With MPPT 60A 100A 120A
The HP-AHP65A series is a high-frequency inverter charger with an IP65 protection rating. It integrates grid power/oil generator with solar charging, supporting grid bypass power supply, inverter output, and energy management. The AC output allows for easy parallel operation in single-phase or three-phase setups. The series employs advanced DSP control technology, ensuring high quality, stability, and reliability. It stands strong in challenging conditions like salt spray and humidity, providing a dependable outdoor power solution.
Product Features:
>Pure sine wave output.>Supports battery or non-battery modes.
>High IP65 protection rating, suitable for harsh outdoor environments: salt spray and humidity
>Equipped with BMS communication interface. >Features a historical data recording function.
>PFC technology provides power factor, reducing grid capacity consumption.

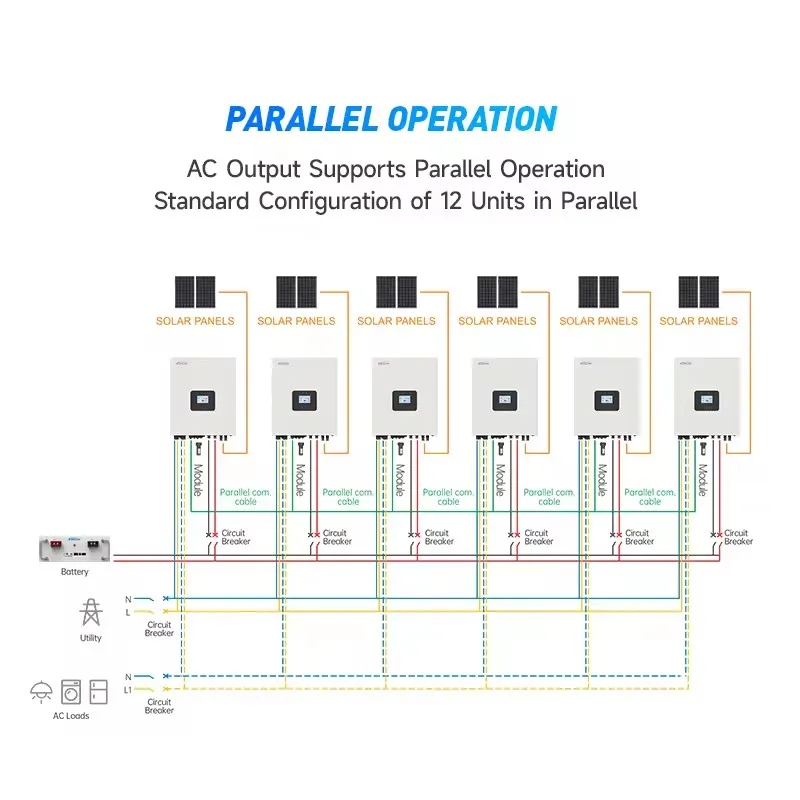

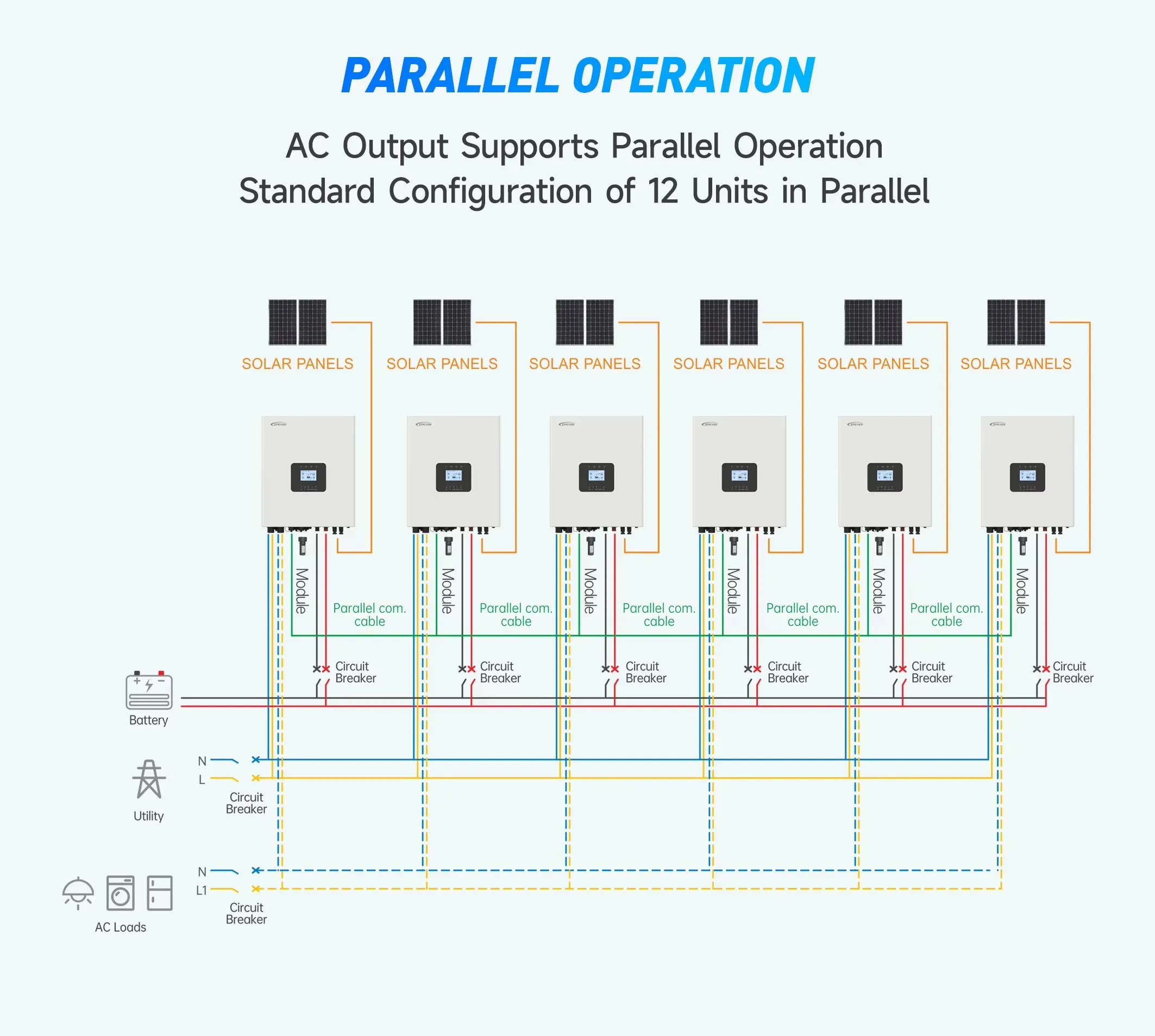

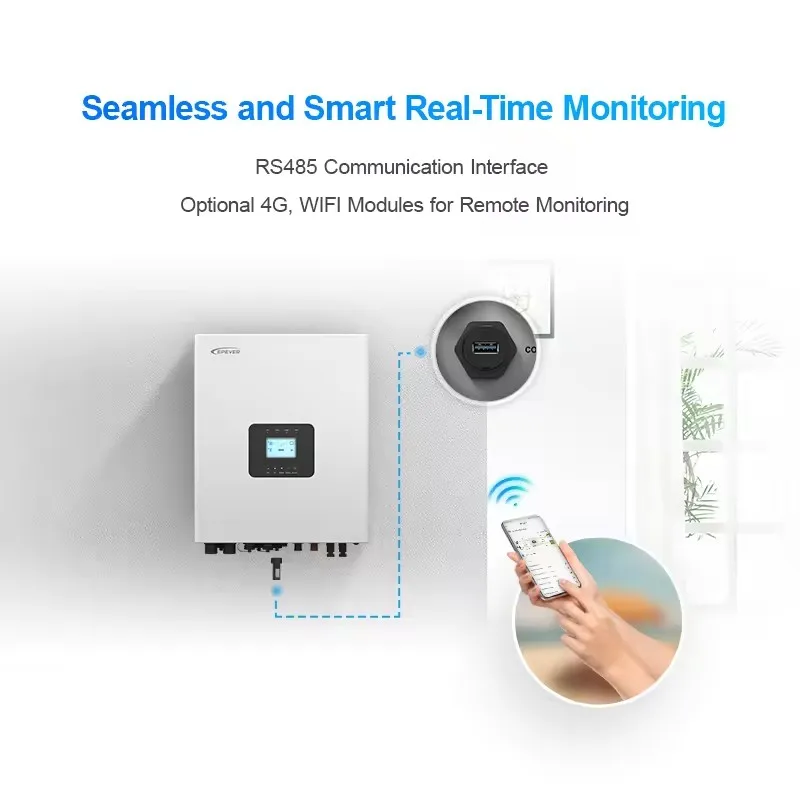

>RS485 communication interface, optional 4G, WIFI modules for remote monitoring. >AC output supports parallel operation of multiple units (configurable for single-phase or three-phase), expandable up to 12 times the system capacity
>Pure sine wave output.>Supports battery or non-battery modes.
>High IP65 protection rating, suitable for harsh outdoor environments: salt spray and humidity
>Equipped with BMS communication interface. >Features a historical data recording function.
>PFC technology provides power factor, reducing grid capacity consumption.
>RS485 communication interface, optional 4G, WIFI modules for remote monitoring. >AC output supports parallel operation of multiple units (configurable for single-phase or three-phase), expandable up to 12 times the system capacity
Model | HP3522-AH1250P65A | HP3542-AH0650P65A | HP5542-AH1050P65A | |||
Utility input | ||||||
Utility Input Voltage | 176VAC~264VAC (Default), 90VAC~280VAC (Configurable) | |||||
Utility Input Frequency | 45Hz~65Hz | |||||
Maximum Utility Charging Current | 110A | 60A | 100A | |||
Switch Response Time | Switch Response Time – Inverter to Utility: 10ms | |||||
Switch Response Time – Utility to Inverter (when the load power is higher than 100W): 20ms | ||||||
Inverter output | ||||||
Inverter Rated Power (@30℃) | 3500W | 3500W | 5500W | |||
3-second Transient Surge Output Power | 7000W | 7000W | 8500W | |||
Inverter Output Voltage | 220/230VAC±3% | |||||
Inverter Frequency | 50/60Hz±0.2% | |||||
Output Voltage Waveform | Pure Sine Wave | |||||
Load Power Factor | 0.2~1(VA ≤ Rated output power) | |||||
THDu (Total Harmonic Voltage Distortion) | ≤3% (24V resistive load) | ≤3% (48V resistive load) | ||||
Maximum Load Efficiency | 89% | 92% | 91% | |||
Maximum Inverter Efficiency | 93% | 94% | 94% | |||
Solar controller | ||||||
PV Maximum Open-circuit Voltage | 500V (At minimum operating environment temperature) | |||||
440V (At 25℃) | ||||||
MPPT Voltage Range | 85~400V | |||||
Number of MPPTs | 1 | 1 | 2 | |||
PV Maximum Input Current | One way, 20A/way | One way, 20A/way | Two ways, 2x15A | |||
PV Maximum Input Power | 4000W | 4000W | 2×3000W | |||
PV Maximum Charging Current | 120A | 60A | 100A | |||
MPPT Maximum efficiency | ≥99.0% | ≥99.5% | ||||
Battery | ||||||
Battery Rated Voltage | 24VDC | 48VDC | ||||
Battery Work Voltage Range | 21.6VDC~32.0VDC | 43.2VDC~64VDC | ||||
Battery Maximum Charging Current | 120A | 60A | 100A | |||
Others | ||||||
No-load Losses | <1.3A | <0.6A | <1.0 A | |||
Test condition: Utility, PV and Load are disconnected, AC output is ON, fan stops, @24V input | Test condition: Utility, PV and Load are disconnected, AC output is ON, fan stops, @48V input | |||||
Standby Current | <0.3A | <0.15A | ||||
Test condition: Utility, PV and Load are disconnected, AC output is OFF, fan stops, @24V input | Test condition: Utility, PV and Load are disconnected, AC output is OFF, fan stops, @48V input | |||||
Work Temperature Range | -20℃~+55℃ (When the environment temperature exceeds 35℃, the actual output power is reduced appropriately) | |||||
Storage Temperature Range | -25℃~+60℃ | |||||
Enclosure | IP65 | |||||
Relative Humidity | < 100% (N.C.) | |||||
Altitude | <4000M (If the altitude exceeds 2000 meters, the actual output power is reduced appropriately) | |||||
Mechanical parameters | ||||||
Dimension (Length x Width x Height) | 545mm × 428mm × 248mm | 537mm × 428mm × 246mm | 545mm ×428mm ×248mm | |||
Mounting Size (Length x Width) | 350mm x 130mm | 350mm x 130mm | 350mm x 130mm | |||
Mounting Hole Size | Φ10mm | Φ10mm | Φ10mm | |||
Net Weight | 25.0kg | 21.0kg | 25.4kg | |||
