OKAF Outdoor Construction Site CCTV Security Camera Mast Tower Mobile Solar Surveillance Trailer
- Category: >>>
- Supplier: Shenzhen Okaf Technology Co. LTD
Share on (1601240423945):
Product Overview
Description
Product Description

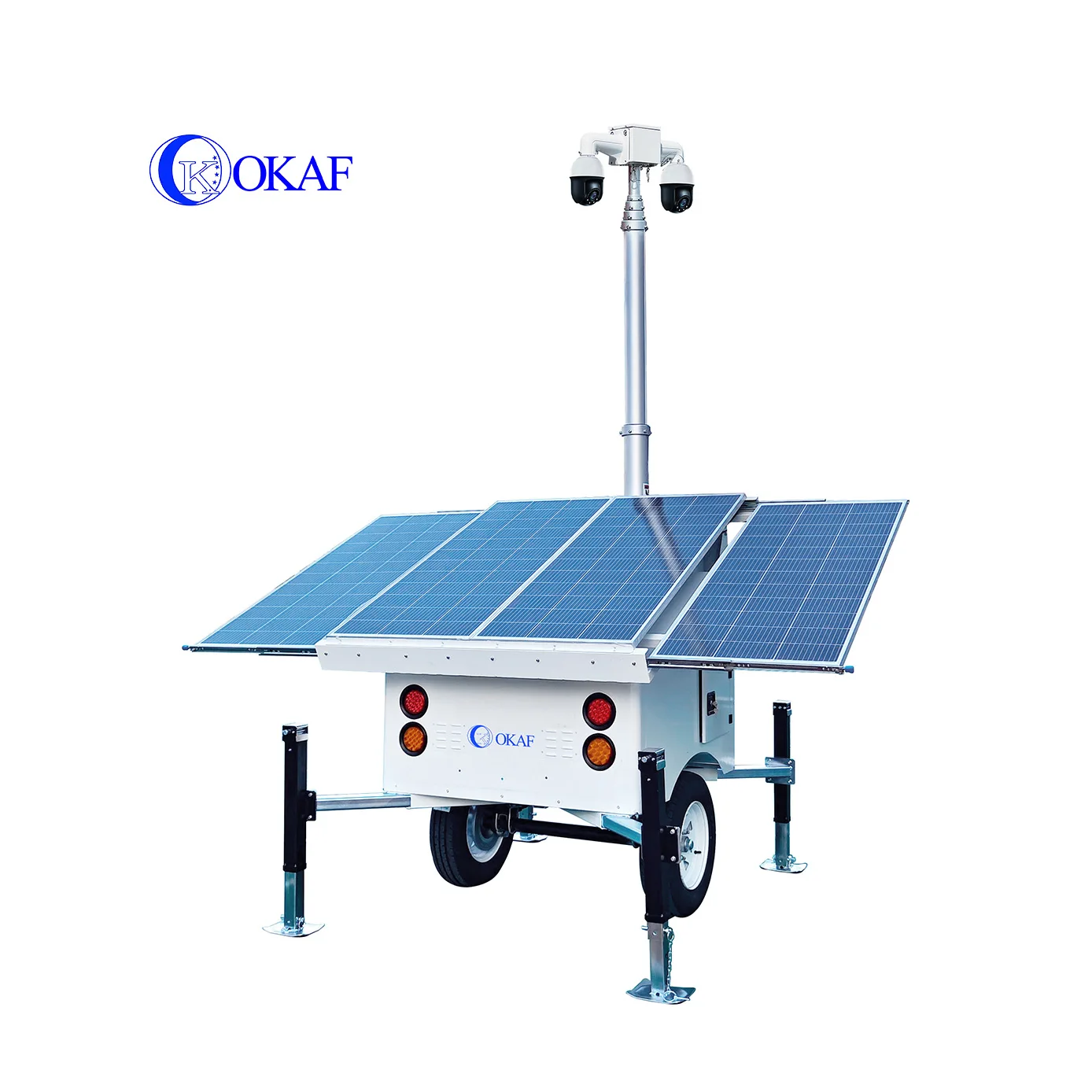

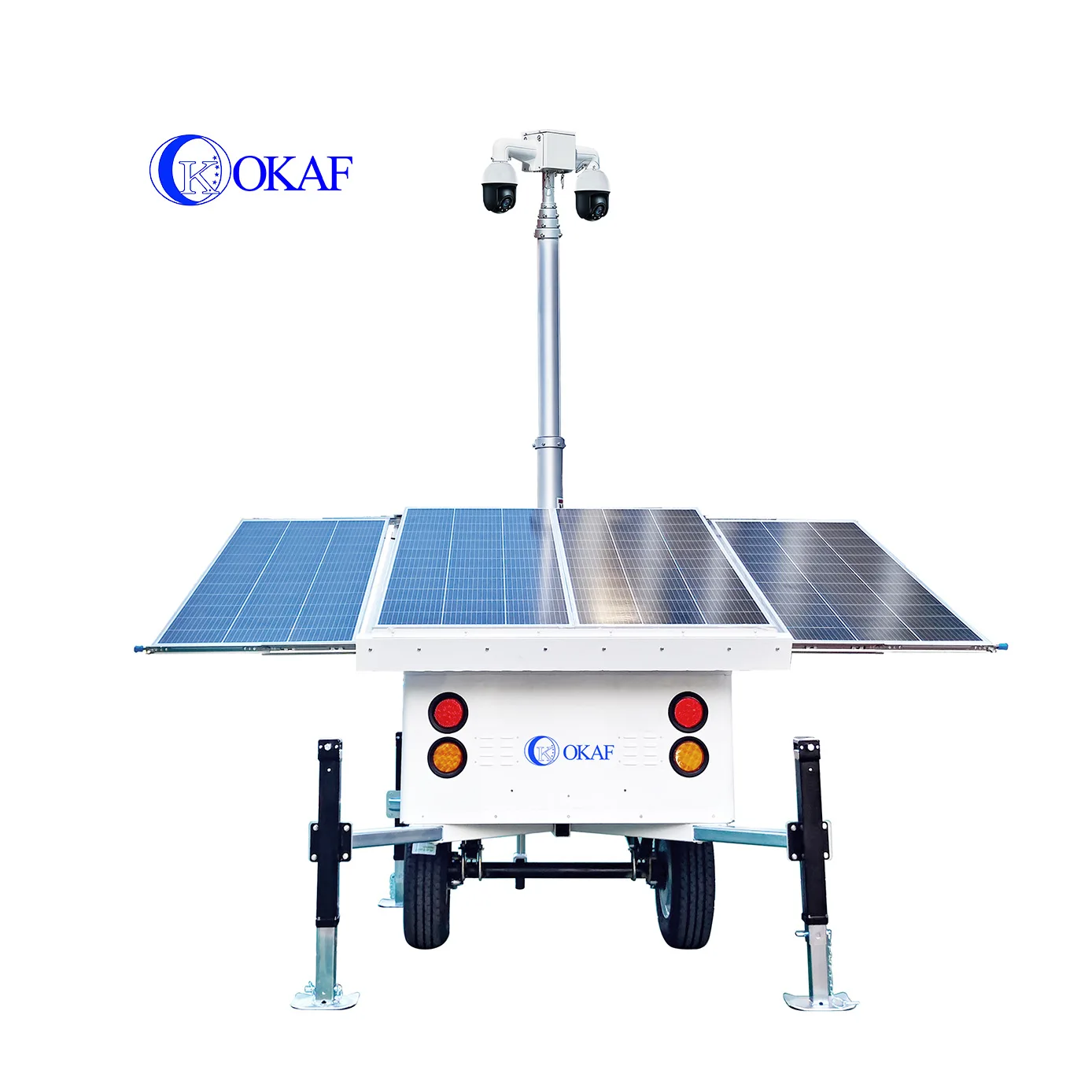

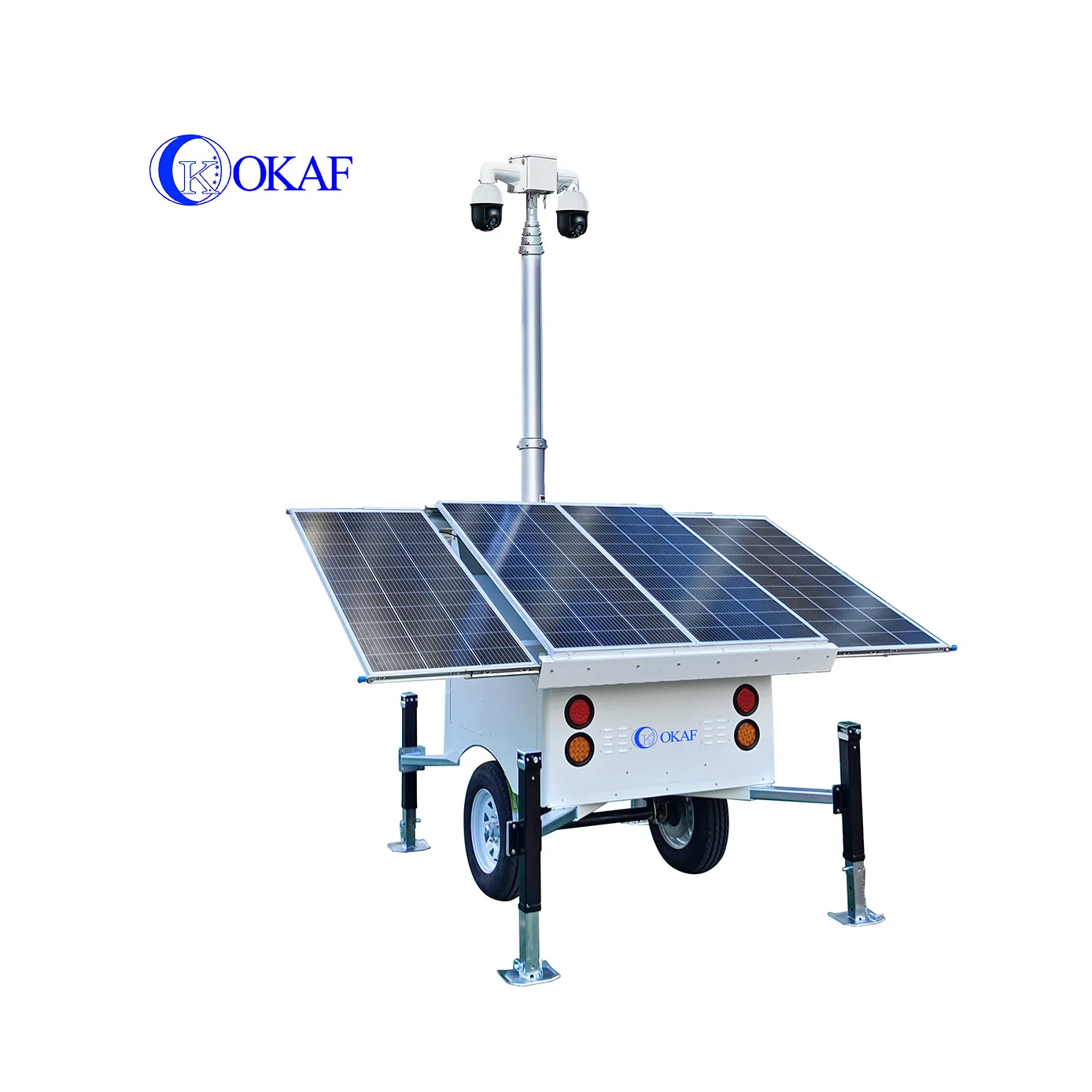

Mobile Surveillance Tower Solar

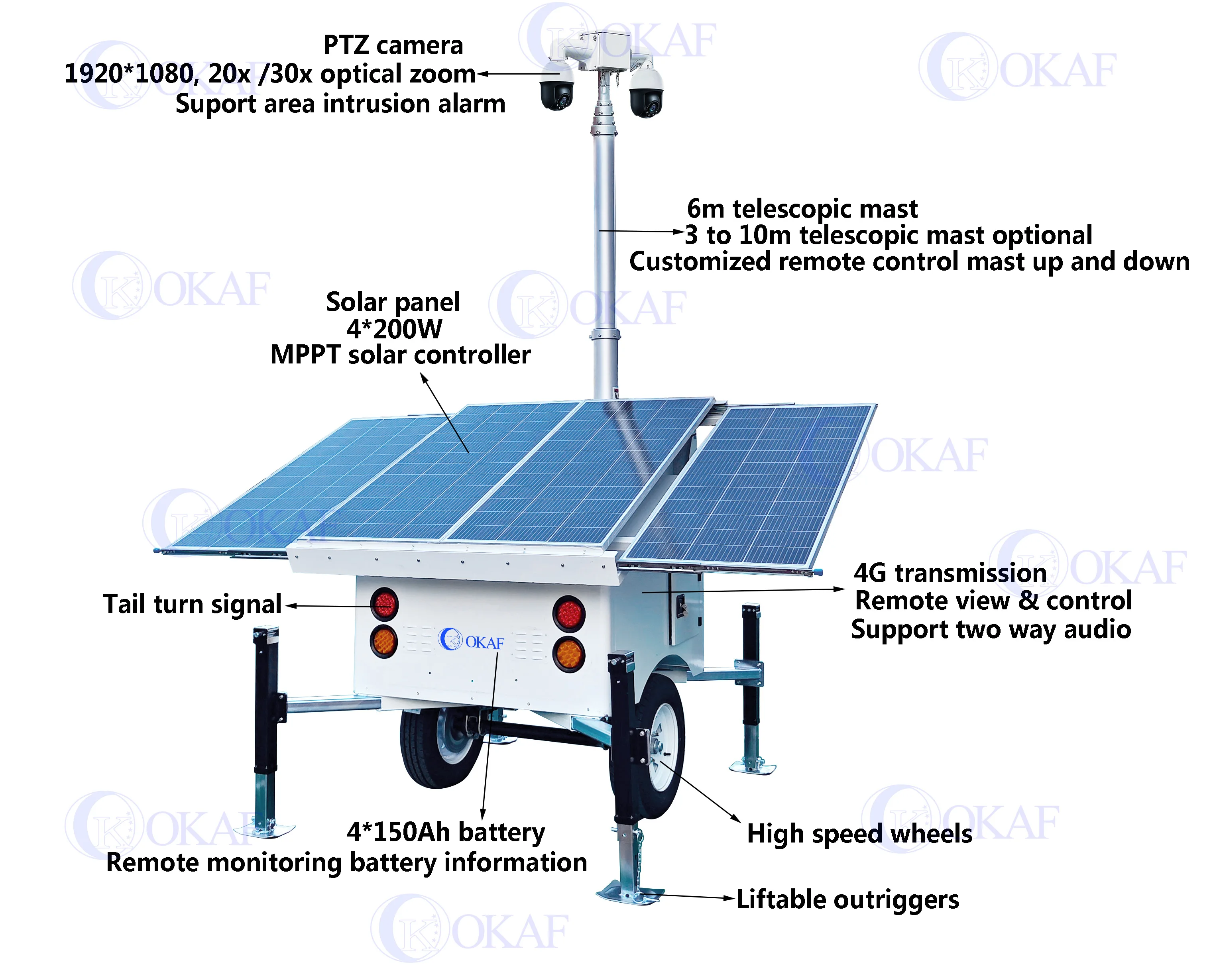

okaf mobile solar security tower compose of ptz cameras, Mast lifting system, transmission system , Solar & battery Power and trailer body. It is convenient to install, integrated design makes the operation so easy. The Mobile Solar trailer is
functional,it comes with the wheels which is ideal for rapid deployment and movement. Integrated telescopic mast with bracket, convenient to fix, the telescopic mast can be up and down. The HD 360 degree rotation cameras mounted on the telescopic mast. The system support 4G /5G /WIFI wireless network transmission.Built in battery, could work 5 to 7 days( according to the battery capacity). Support area intrusion alarm, two way audio, Customized function: support pedestrian flow control,Temperature and humidity monitoring,dust monitoring etc. Expanded AI functions such as face recognition, safety helmet detection, jacket detection, smoking detection et
functional,it comes with the wheels which is ideal for rapid deployment and movement. Integrated telescopic mast with bracket, convenient to fix, the telescopic mast can be up and down. The HD 360 degree rotation cameras mounted on the telescopic mast. The system support 4G /5G /WIFI wireless network transmission.Built in battery, could work 5 to 7 days( according to the battery capacity). Support area intrusion alarm, two way audio, Customized function: support pedestrian flow control,Temperature and humidity monitoring,dust monitoring etc. Expanded AI functions such as face recognition, safety helmet detection, jacket detection, smoking detection et
Advantages of OKAF Mobile solar Security Tower
Advantages of mobile solar security camera tower
• All in one design, no need to disassemble, easy to install and use, easy to operate.
• Rapid deployment, one person can complete the system erection in 2 minutes,meet emergency need.

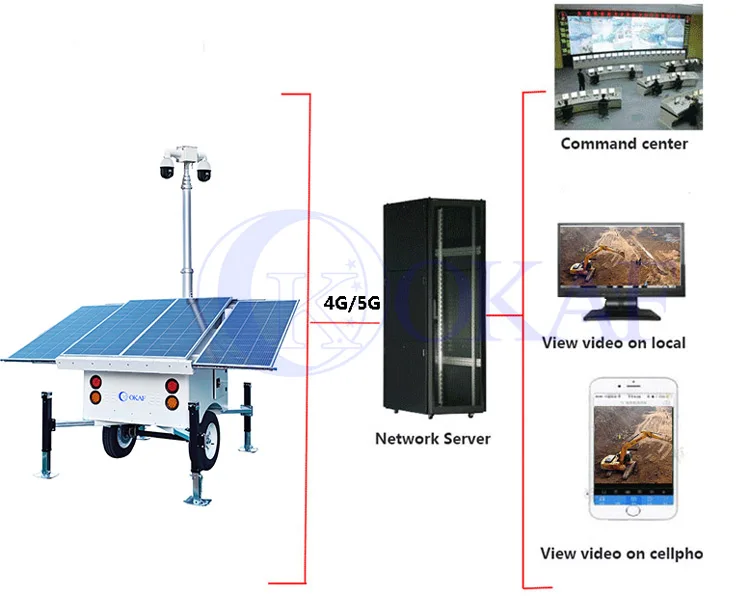

• 4G, WIFI and LTN multiple signal transmission modes, data transmission is safe and smooth.
• Real time video and voice recording.
• Automatic lifting mast, full coverage at high and low levels, eliminating monitoring blind spots.
• Powerful endurance, the system could run for 5-7 days when full charge.
• A variety of anti-theft measures, built-in GPS positioning system.
• Support PTZ control, Keep abreast of the scene environment anytime.
• Solar power supply ensure the longer life time.
• Rapid deployment, one person can complete the system erection in 2 minutes,meet emergency need.
• 4G, WIFI and LTN multiple signal transmission modes, data transmission is safe and smooth.
• Real time video and voice recording.
• Automatic lifting mast, full coverage at high and low levels, eliminating monitoring blind spots.
• Powerful endurance, the system could run for 5-7 days when full charge.
• A variety of anti-theft measures, built-in GPS positioning system.
• Support PTZ control, Keep abreast of the scene environment anytime.
• Solar power supply ensure the longer life time.
• With loud speaker, support two way audio .
• Remote real time video view and control
• Support area intrusion alarm. When people come near the tower, will automatically alarm.
• Customized AI function such as face recognition, safety helmet detection, smoking detection,jacket detection ect.
• Customized remote monitoring battery information. Remote control telescopic mast up and down.
• Support area intrusion alarm. When people come near the tower, will automatically alarm.
• Customized AI function such as face recognition, safety helmet detection, smoking detection,jacket detection ect.
• Customized remote monitoring battery information. Remote control telescopic mast up and down.
Application
Applications of mobile solar cctv surveillance tower
OKAF Solar CCTV Trailer aims to solve challenges facing security personnel, such as:
♦ Urgent surveillance for emergency rescue.
♦ Unpredictable threats.
♦ Change of incident locations.
♦ Mobile Surveillance for construction site.
♦ Mobile Surveillance for all kinds of events.
♦ Harsh environments that threaten personal safety
♦ Surveillance for unavailability of electricity, communication and lighting.
♦ Construction site security
♦ Oil and Gas site security
♦ Road construction monitoring
♦ Traffic monitoring
♦ Law enforcement mobile surveillance
♦ Ports and harbors monitoring
♦ Airports security
♦ Incident areas
♦ Vacant property management
♦ Border security
♦ Business and parking lot security
♦ Public events safety
♦ Urgent surveillance for emergency rescue.
♦ Unpredictable threats.
♦ Change of incident locations.
♦ Mobile Surveillance for construction site.
♦ Mobile Surveillance for all kinds of events.
♦ Harsh environments that threaten personal safety
♦ Surveillance for unavailability of electricity, communication and lighting.
♦ Construction site security
♦ Oil and Gas site security
♦ Road construction monitoring
♦ Traffic monitoring
♦ Law enforcement mobile surveillance
♦ Ports and harbors monitoring
♦ Airports security
♦ Incident areas
♦ Vacant property management
♦ Border security
♦ Business and parking lot security
♦ Public events safety
TECHNICAL DATA
Camera | Camera type | Network IP PTZ camera + Bullet cameras |
Pixel | 2.0MP /4MP | |
Resolution | 1920*1080 @ 30fp | |
Optical zoom | 20x /30x optical zoom optional | |
Camera rotation angle | 360° horizontal continuously rotation | |
-15°~ +90°Vertical rotation | ||
Network port | RJ45 10Base-T/100Base-TX PoE(IEEE802.3af | |
Support | People counting | |
Video Transmission & storage | Video input | 4 channel network 1080P, aviation interface |
Video output | 1 channel composite video output+1 channel VGA output, 1.0Vp-p, 75Ω | |
Preview function | Single-channel, 4-screen splicing preview, support manual / event triggered full-screen display function | |
Video resolution | Support 1080P,720P,D1,HD1, CIF optional, Max support 4ch 1080P | |
Audio input | 4channel, Aviation interface | |
Audio output | 1channel | |
Alarm Output | 2-way switch output, linked audible and visual alarm, oil and power off, etc. | |
communication interface | 2 RS232, expandable face recognition, fuel sensor, LED advertising screen, etc. | |
2 way 485 interface, can extend PTZ | ||
2-way CAN bus interface | ||
Wireless transmission | Support built-in 3G wireless transmission function, WCDMA, CDMA2000,TD-SCDMA compatible GPRS, EDGE | |
Built-in 4G wireless transmission function, TDD-LTE, FDD-LTE | ||
Position | Support built-in GPS / BD module, can report to the platform | |
Hard disk | Support large capacity 2.5-inch hard disk (maximum 4TB) | |
Power supply | Battery | 100Ah / 200Ah /400Ah /600Ah /800Ah /1200Ah or more |
Solar | 4*200W/ 4*300W /4*460W or more | |
AC Power | AC110~ AC240V | |
Trailer body & Mast | Material | Galvanized steel + Aluminum alloy |
Extended Height | 6m ( 3 to 10m available) | |
Wind power | 19m/sec | |
Lifting | Manual or pneumatic telescopic mast | |
Local viewing | With monitor for local viewing | |
Control system | With control keyboard and joystick to control PTZ cameras | |
Lound speaker | With lound sppeaker support two way audio | |
Wheels | High speed wheels |
Company Profile
About shenzhen OKAF
Shenzhen Okaf Technology Co., Ltd was established in 2005. It is a high-tech enterprise specializing in researching &
developing,producing and selling CCTV surveillance products. It is one of the most professional CCTV surveillance system developer & manufacturer in China nowadays.
Our main products apply to public security departments such as: vehicle mounted PTZ Camera, 4G deployment dome camera, long range thermal PTZ camera, telescopic mast ( Manual telescopic mast , electric telescopic mast , pneumatic telescopic mast ) , car roof mounted telescopic mast light tower, mobile solar cctv trailer, security patrol robot, dynamic forensics system, highway patrol and rescue system, fire emergency rescue system,urban management law enforcement system, mobile commanding system, operation commanding system etc.
We pay much attention on developing and researching and input a lot of money in new products. The superior performance and low price of Okaf has gained many distributors’ favorable comments, thus the original markets consolidate increasingly, new markets develop constantly. The product quality has had good reputation in domestic and abroad.
developing,producing and selling CCTV surveillance products. It is one of the most professional CCTV surveillance system developer & manufacturer in China nowadays.
Our main products apply to public security departments such as: vehicle mounted PTZ Camera, 4G deployment dome camera, long range thermal PTZ camera, telescopic mast ( Manual telescopic mast , electric telescopic mast , pneumatic telescopic mast ) , car roof mounted telescopic mast light tower, mobile solar cctv trailer, security patrol robot, dynamic forensics system, highway patrol and rescue system, fire emergency rescue system,urban management law enforcement system, mobile commanding system, operation commanding system etc.
We pay much attention on developing and researching and input a lot of money in new products. The superior performance and low price of Okaf has gained many distributors’ favorable comments, thus the original markets consolidate increasingly, new markets develop constantly. The product quality has had good reputation in domestic and abroad.
FAQ
Q1. Could your mobile solar trailer have other functions besides surveillance ?

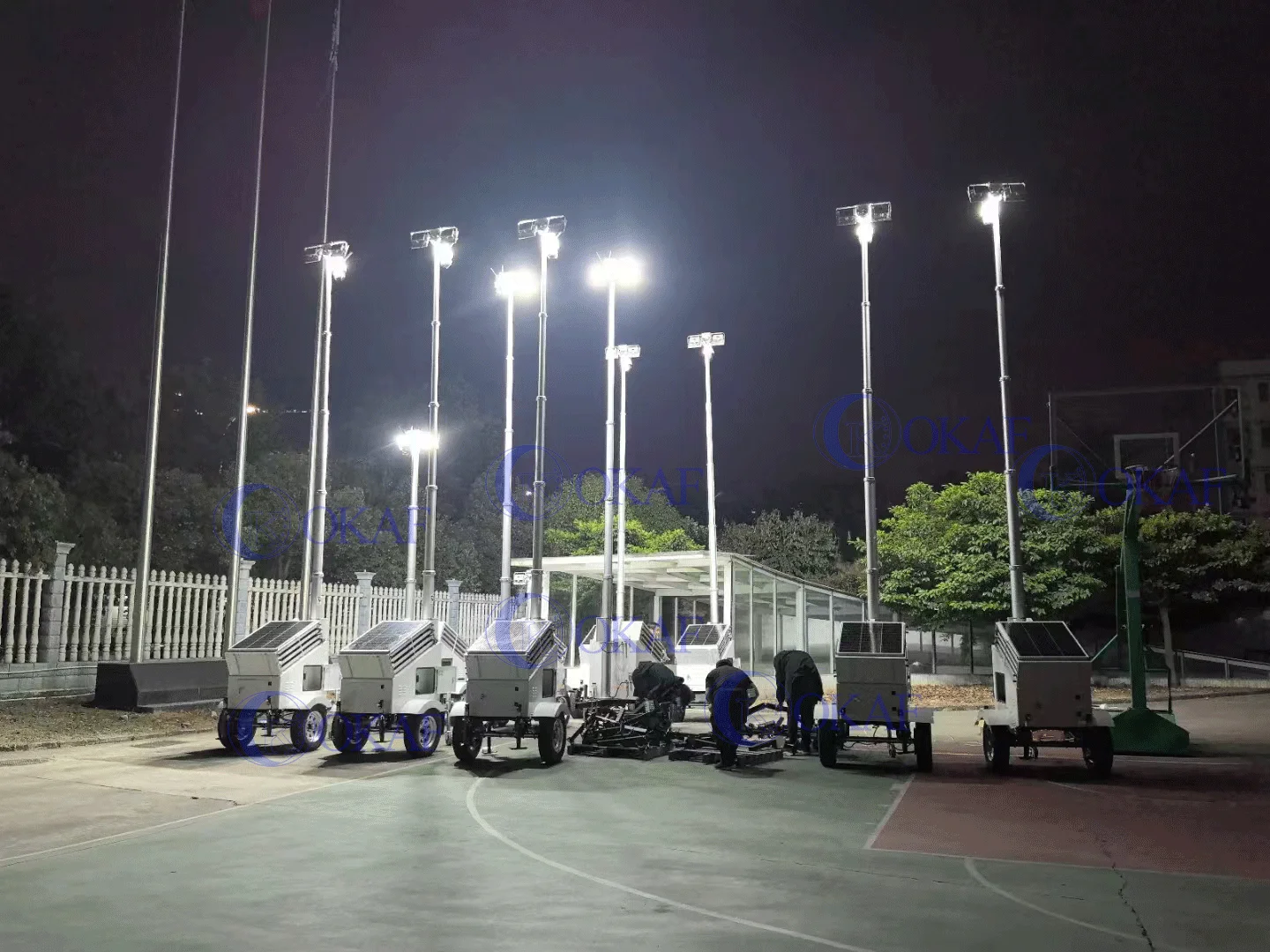

A1. Sure. Besides the surveillance, The mobile solar trailer also could be installed led lights for emergency lighting and
applied to kinds of events or sites that need temporary lighting.
Q2. Could the solar CCTV trailer use my own cameras ?
A2. Yes.You can use your own camera. We could provide the solar trailer with internal or external cable, when you receive the equipment, you just need to install your camera on it.
Q3. How long can your solar cctv trailer last after a full charge ?
A3. The running time of the mobile cctv trailer depends on the battery capacity and solar power capacity. You could tell us how many days you want the equipment last, then we would provide suitable solution with the suitable battery and solar panel.
Q4.Do you accept sample order ?
A4. Sure. Sample order is also welcome.
A1. Sure. Besides the surveillance, The mobile solar trailer also could be installed led lights for emergency lighting and
applied to kinds of events or sites that need temporary lighting.
Q2. Could the solar CCTV trailer use my own cameras ?
A2. Yes.You can use your own camera. We could provide the solar trailer with internal or external cable, when you receive the equipment, you just need to install your camera on it.
Q3. How long can your solar cctv trailer last after a full charge ?
A3. The running time of the mobile cctv trailer depends on the battery capacity and solar power capacity. You could tell us how many days you want the equipment last, then we would provide suitable solution with the suitable battery and solar panel.
Q4.Do you accept sample order ?
A4. Sure. Sample order is also welcome.
