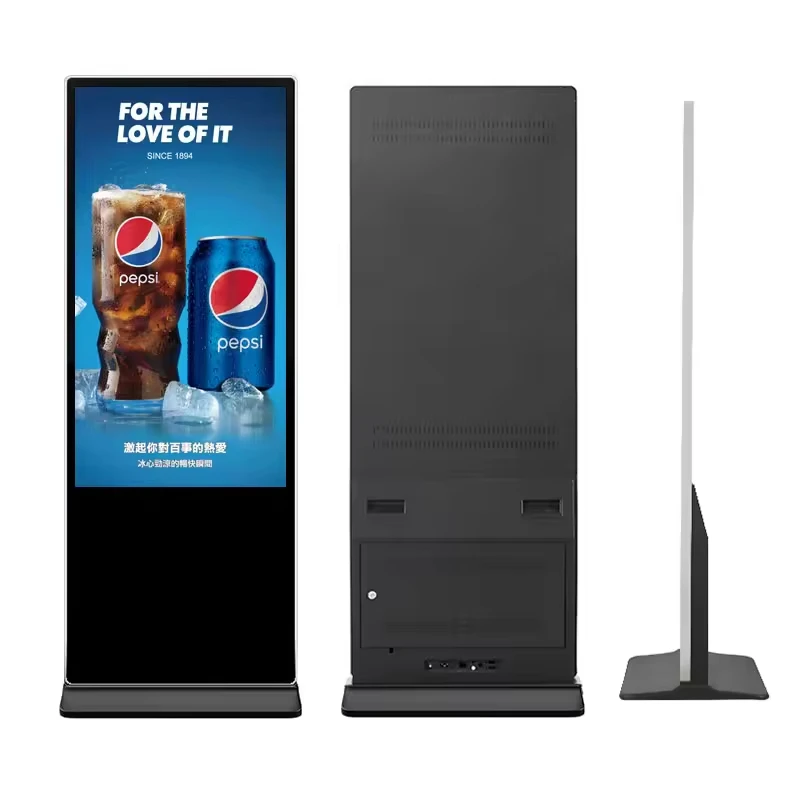

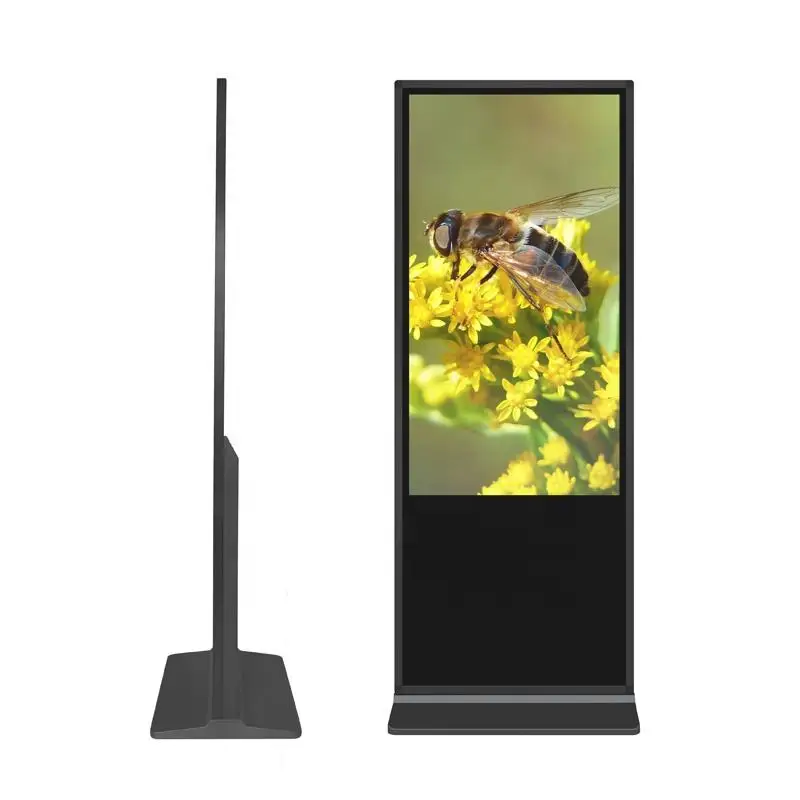

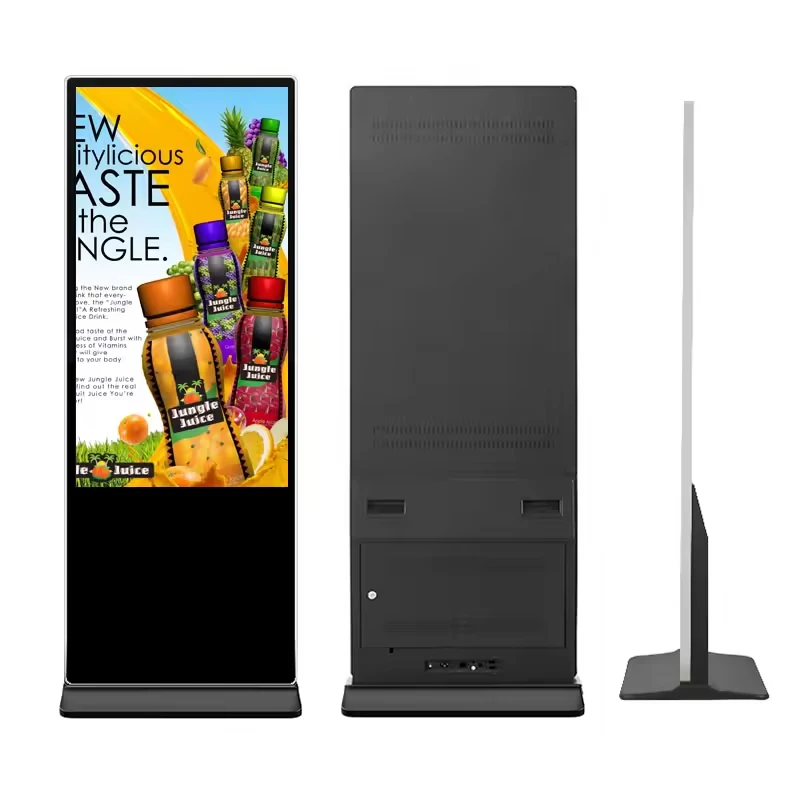

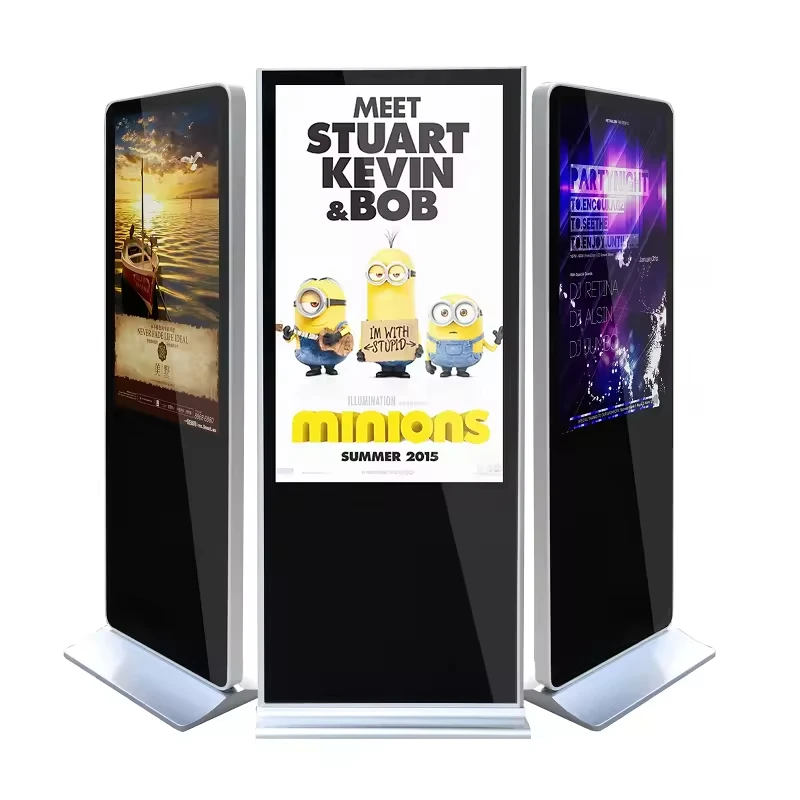

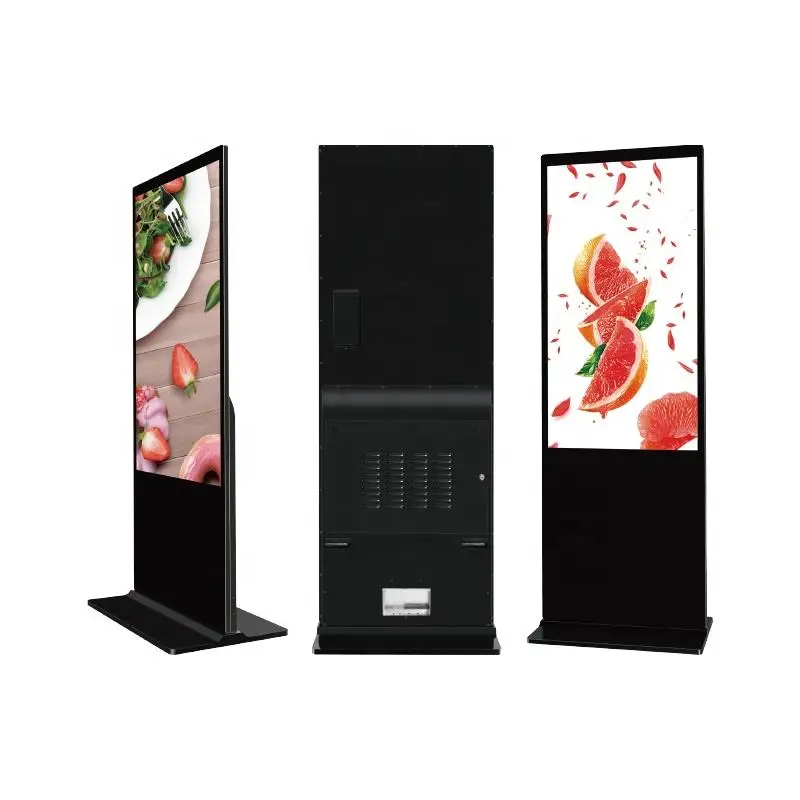

Indoor 55 Inch Advertising Player Touch Screen Floor Stand Kiosk 4K Screen Digital Signage And Display

Screen configuration

Screen size

32" (43 / 49 / 55 / 65 / 75 / 86 / 98 / 100 inch Screen can support)

Resolution

1920 (RGB) × 1080 [FHD] / 2K / 4K UHD

Display size

941.184 × 529.416 mm (H × V)

Visual size

945.18 × 533.42 mm (H × V)

Brightness (cd/m2)

300 - 450 (Typ.) (Please contact us for higher brightness requirements)

Best angle

full view

Viewing angle

89/89/89/89 (Min.) (CR ≥ 10)

Pitch

0.227mm (H) x 0.227mm (W)

Number of colors

16.7M/1.07B, 95% [CIE1931]

Screen weight

6.30Kgs (Typ./Max.)

Refresh rate

60Hz

Signal system

LVDS (2 ch, 10-bit), terminal, 51 pins

Supply voltage

12.0V (Typ.)

Maximum rating

Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 50 °C

Screen type

LCD module, a-Si TFT-LCD.

Pixel configuration

RGB vertical strip

Appearance size

975.5 × 582.2 × 10.5 (H × V × D)

Surface treatment

matte (Haze 3%), Hard coating (1H)

Contrast ratio

1100 : 1 (Typ.) [Transmission]

Optical mode

IPS, normally black display, transmissive

Response speed

6 (Typ.) (G to G) ms

Backlight type

WLED, 30K hours, no drive

Motherboard configuration(Android)

CPU

RK3568, Quad-core, the main frequency up to 2.0GHz, Android11

GPU

Mali-G52 GPU supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, and Vulkan 1.1

Internal storage

Standard with 2GB, optional 4GB

Built-in storage capacity

The eMMC is standard with 16GB optional 32GB
TF Card Extension (available for extension SSD)

Network

Support RJ45 R / A 100 trillion Ethernet, support Ethernet;
Support the 2.4GHz Wi-Fi; support the Wi-Fi 802.11b/g/n protocol;
.2Support Bluetooth 4, mobile phone Bluetooth send program.

Picture orientation

Support 0 degrees, 90 degrees, 180 degrees, 270 degrees, manual rotation; optional gravity sensing sensor, support automatic
rotation

Displays the interface

1 * LVDS interface (single / dual, 6 bit / 8 bit), support 3.3V / 5V / 12V power supply
1 EDP interface, 1 HDMI
1-way V-By-One interface and supports 1080P output
Reserve a 1-channel HDMI IN interface, which can be equipped with a small board
The onboard backlight control supports the 12V backlight power supply

Touch screen

Support USB multi-point infrared touch, multi-point capacitive touch, multi-point nanomembrane touch, multi-point sound wave
Touch, multipoint optical touch, etc...

RTC

Built-in real-time clock function

USB

1 USB-3.0 HOST, 1 USB 3.0 OTG, 5 extended USB port

Infrared

Infrared receiving seat, support for infrared remote control function

LED

1 * Power Status LED (green), 1 * System LED (green, default flashing)

Operating system

Android 11

Audio frequency

MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3 GPP and other formats

Video frequency

Support H.265,H.264,VP8, MAV , WMV , AVS , H.263, MPEG4 and other video formats


Support JPG, BMP, PNG and other picture formats

System management

Original ecological Android system, open root permission, can be customized product development

Infrared touch

Material

Glass thickness

Surface abrasion strength

strong, determined by the glass surface

Homogeneity

good

Touch the parameter

The number of times the theory is determined by the degree of glass wear

Design life

more than 5 years

Touch the fastest response speed

6ms

Touch the average reaction speed

8ms

Electrical parameters

Working voltage

4.5 ~ 5.5Vdc

Working current

≤120mA

Power

≤ 900mW
