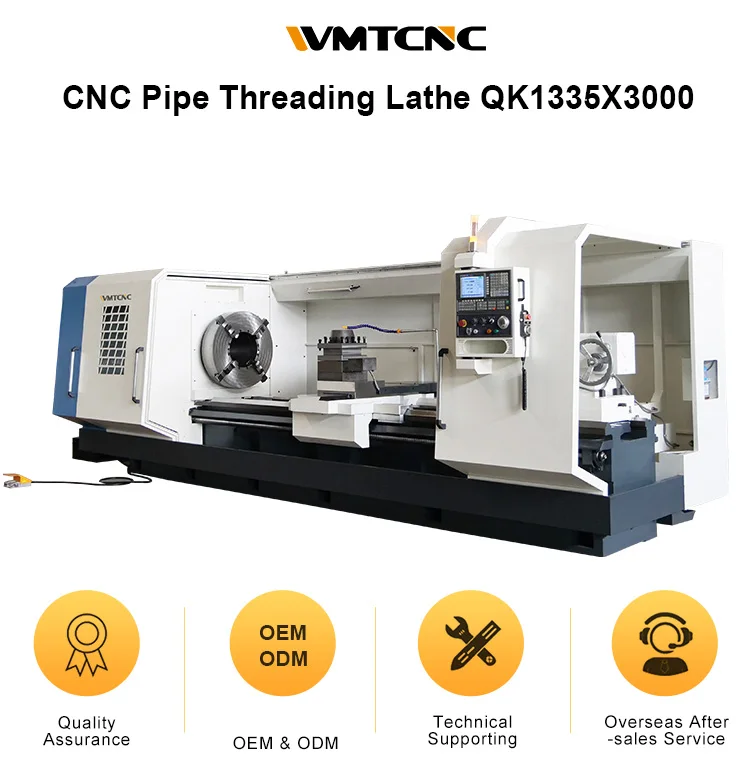

Auto oil country lathe machine QK1335x3000 cnc lathe big bore horizontal design for metal hollow pipe threading
- Category: >>>
- Supplier: WMT CNC Industrial Co. Ltd.
Share on (1601240461471):
Product Overview
Description
Product Description
Main Features:

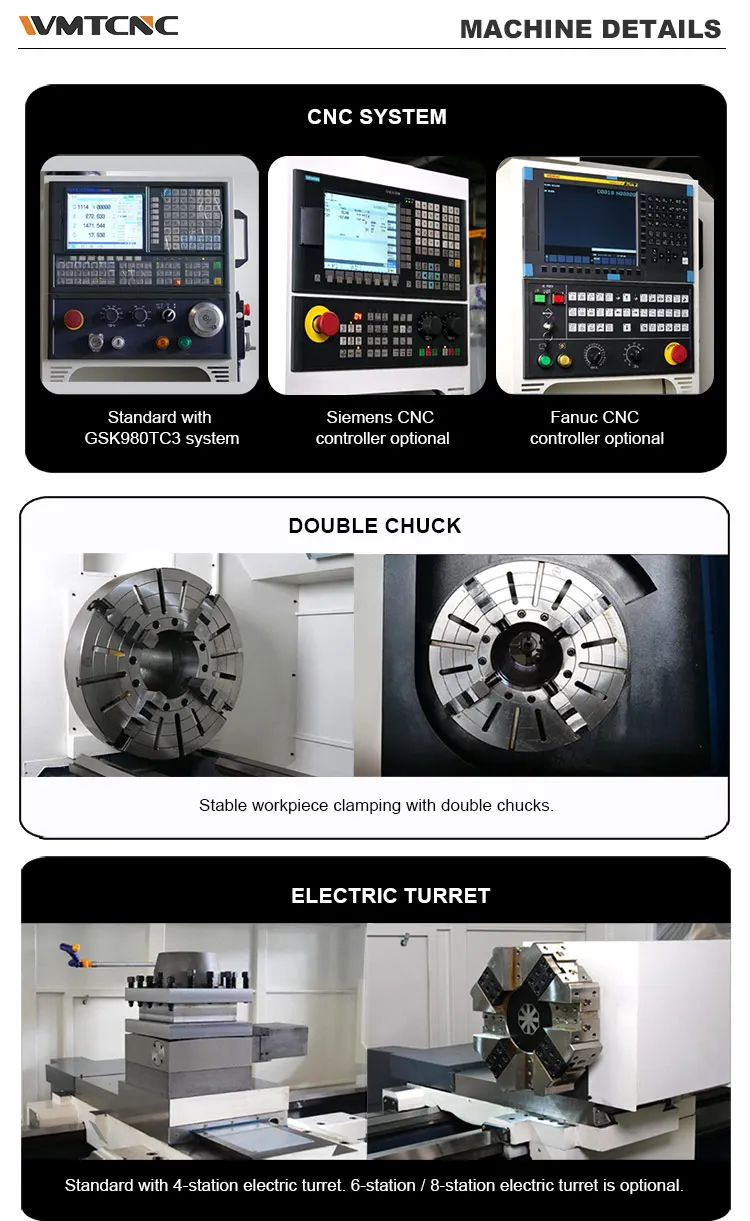

1 Large spindle aperture with high passability and stable workpiece clamping with double chucks.
2 High quality and high strength cast iron casting overall bed with good rigidity and high precision.

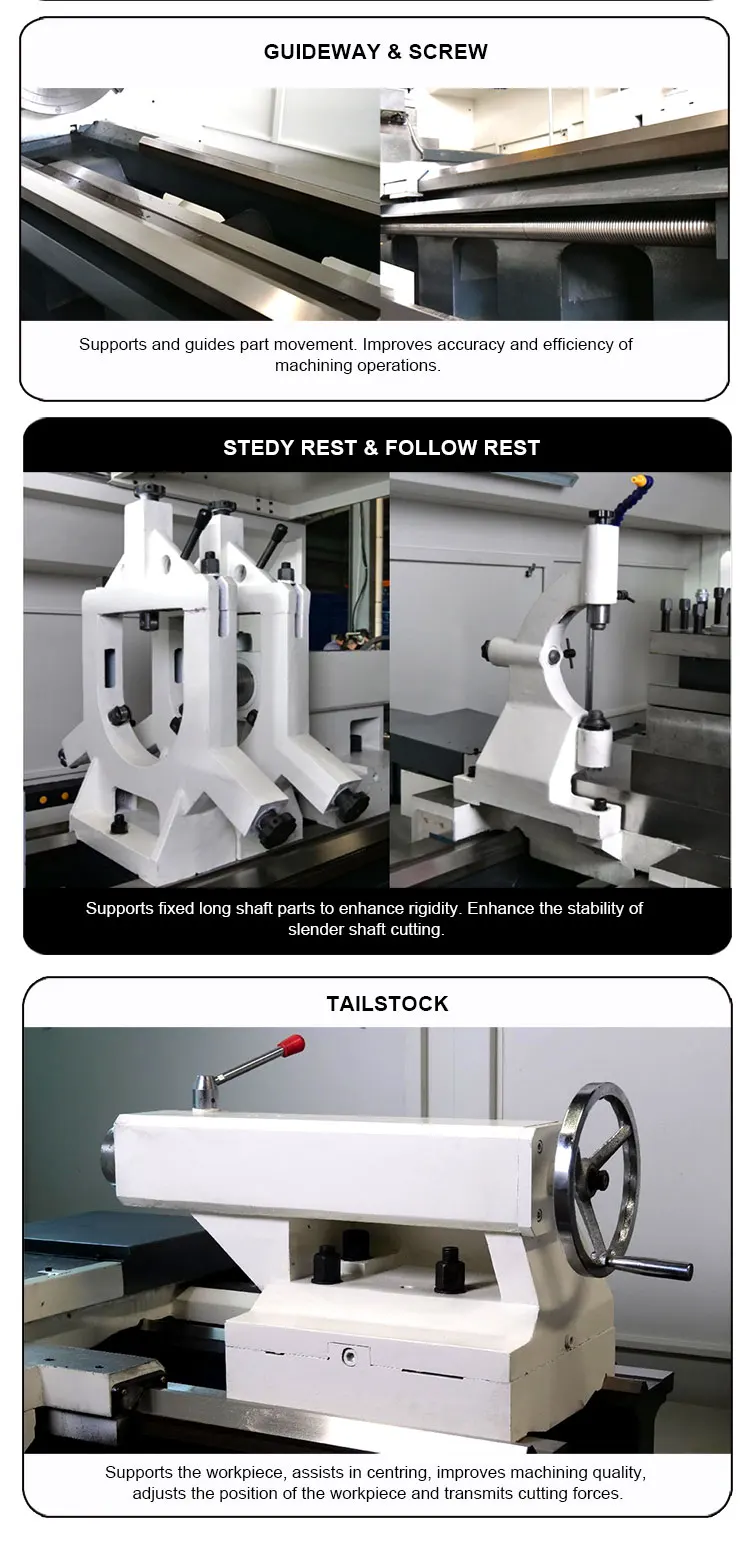

3 The surface of the guide rail is quenched by super audio treatment, with great hardness and long service life.
4 The planker adopts the plasticizing process of the guide surface, which is wear-resistant and highly accurate.
Specification | QK1335 | ||
Capacity | |||
Chuck size | 4 jaw chuck (780) | ||
Max. swing dia over bed | 1000mm | ||
Max. swing dia over slide | 610mm | ||
Max. length of workpiece | 1500mm | ||
Width of bed | 755mm | ||
Spindle | |||
Spindle bore | 360mm | ||
Spindle speed range | （L）:30-130r/min | ||
（H）:65-260r/min | |||
Power of spindle motor | 22kw | ||
Mode of spindle speed | Variable speed in 2 steps | ||
Axis | |||
Max.travers of X/Z axis | X:550mm | ||
Z:1250mm | |||
X/Z rapid traverse | 4000mm/min | ||
X-axis motor | Speed | 1500r/min | |
Torgue | 22N.m | ||
Power | 3.5kw | ||
Z-axis motor | Speed | 1500r/min | |
Torgue | 30N.m | ||
Power | 4.7kw | ||
Electric tool-post | Model | SLD170A04N | |
No.of tool stations | 4 position | ||
Dimension | 300×300mm | ||
Tool change time | 5.6s | ||
Tailstock | |||
Tailstock quill | Diameter | 160mm | |
Travel | 300mm | ||
Taper | MT6 | ||
Positioning accuracy (National standard) | |||
Positioning accuracy | 0.02mm | ||
Repositioning accuracy | 0.01mm | ||
Machine Dimensions | |||
Overall dimensions(LxWxH) | 4900×2200×2300mm | ||
Machine weight | 12t | ||
Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
