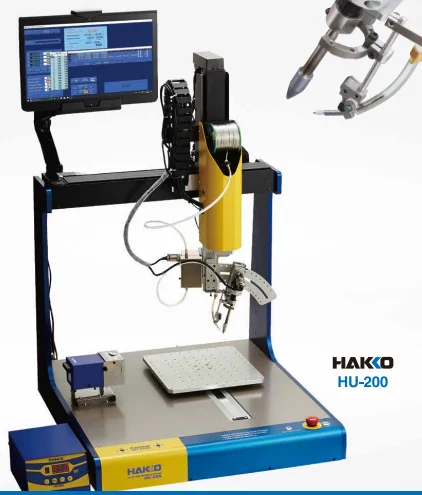

HAKKO 4-axis + 1 feeder control soldering robot system HU200

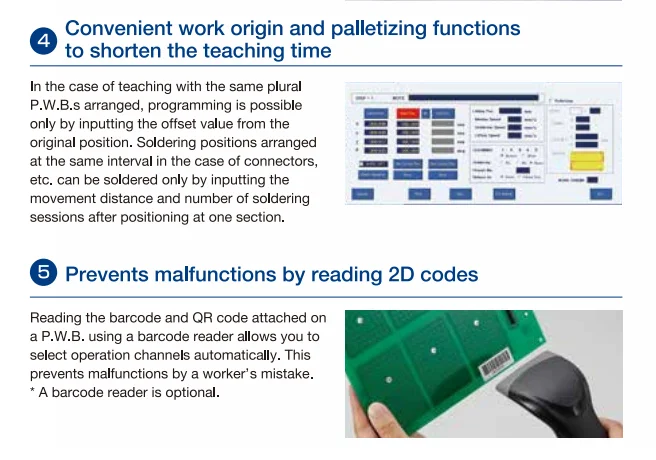

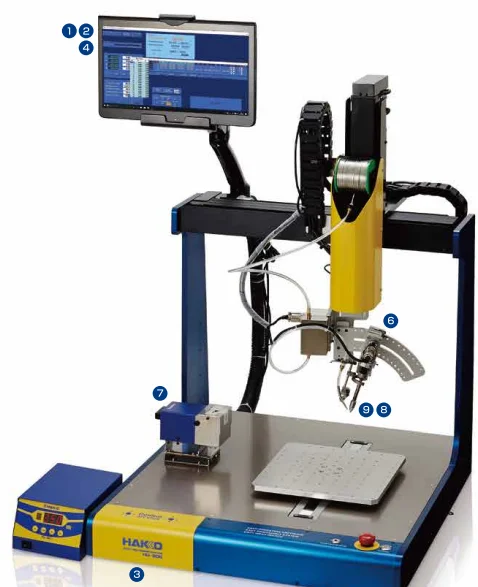

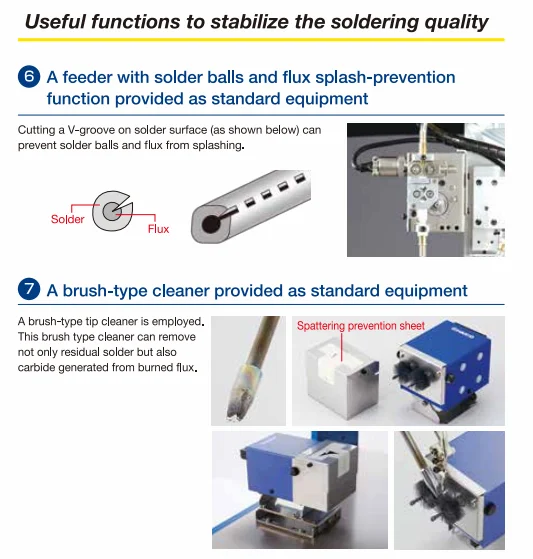

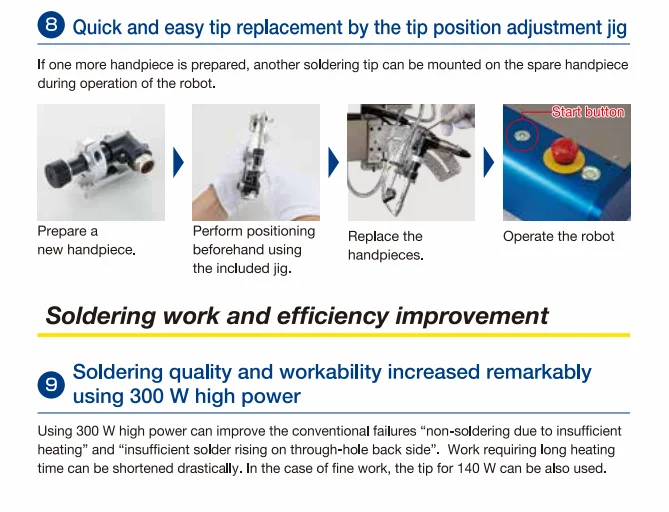

FEATURES

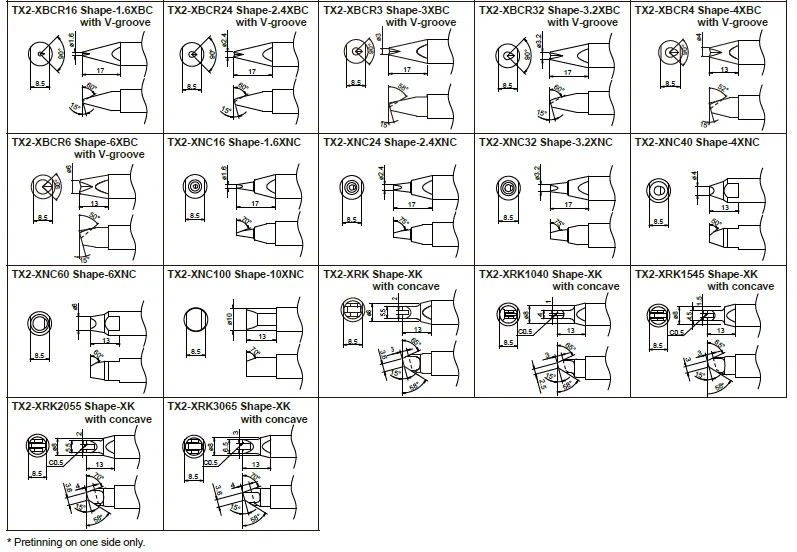

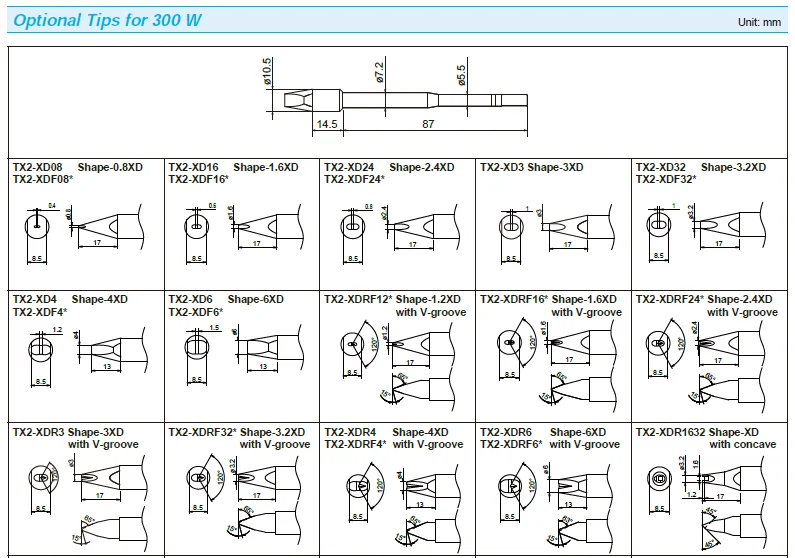

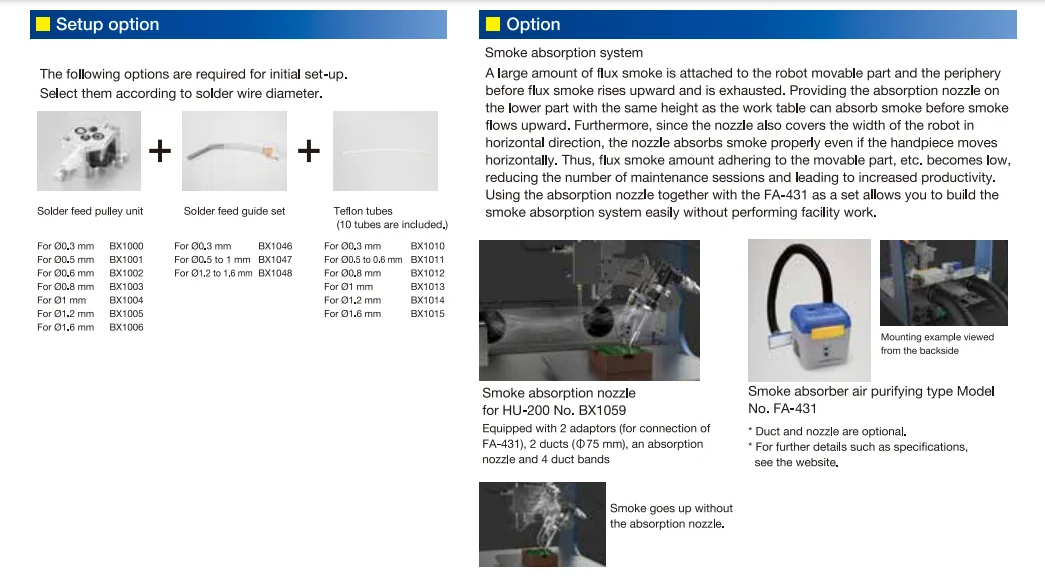

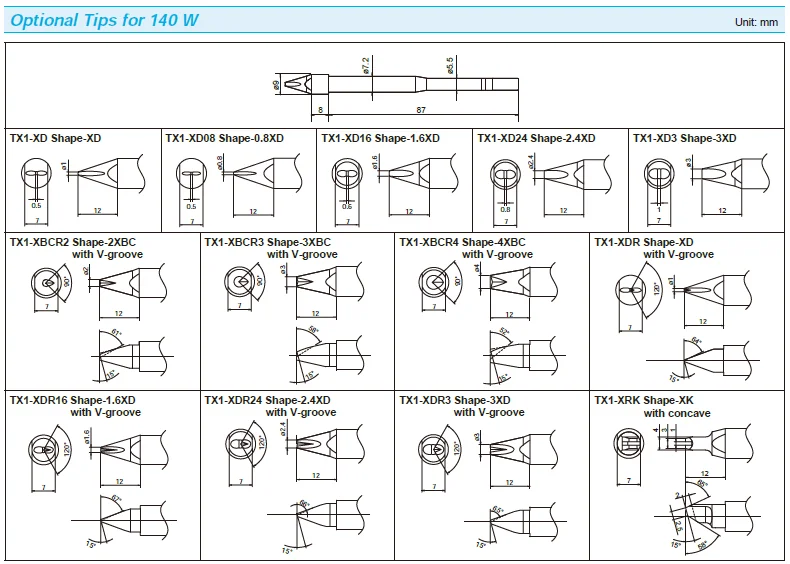

Optional parts (sold seperately)

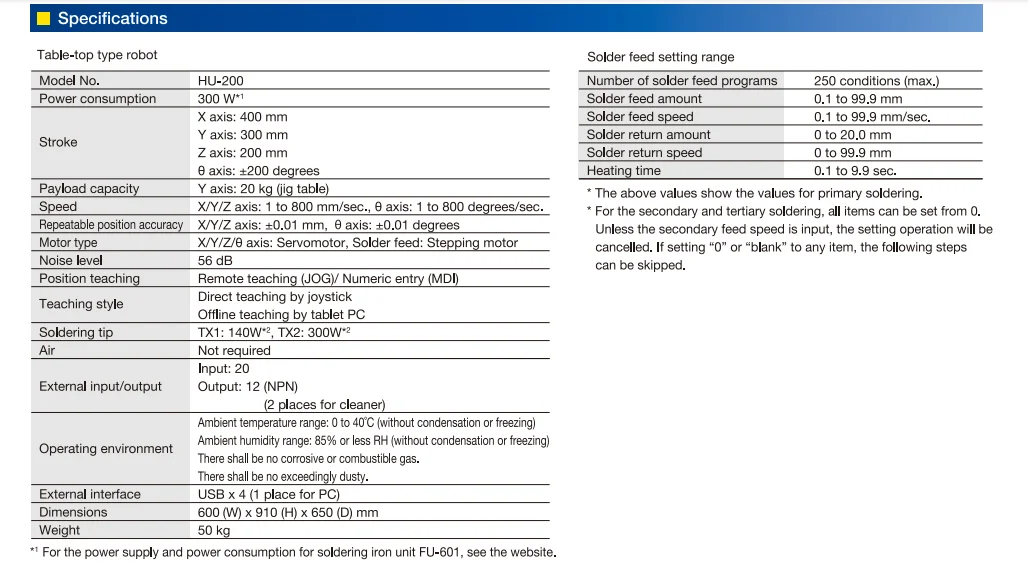

| Product Name | HAKKO HU200 auto-soldering 4-axis + 1 feeder control soldering robot system |
| Condition | New |
| Applicable Industries | Manufacturing Plant |
| Stroke | X-axis: 400mm Y-axis: 300mm Z-axis: 200mm θ-axis: +/- 200degress |
| Payload capacity | Y-axis: 20kg (jig table) |
| Speed | X/Y/Z-axis: 1 to 800 mm/sec θ-axis: 1 to 800 degrees/sec |
| Colour | Blue |
| Weight | 50kg |
| Dimension (mm) | 600 (w) x 910 (h) x 650 (d) mm |
| Repeatable position accuracy | X/Y/Z-axis: +/- 0.01mm θ-axis: +/- 0.01 degrees |
| Noise level | 50dB |
| Position teaching | Remote teaching (JOG) / Numeric entry (MDI) |

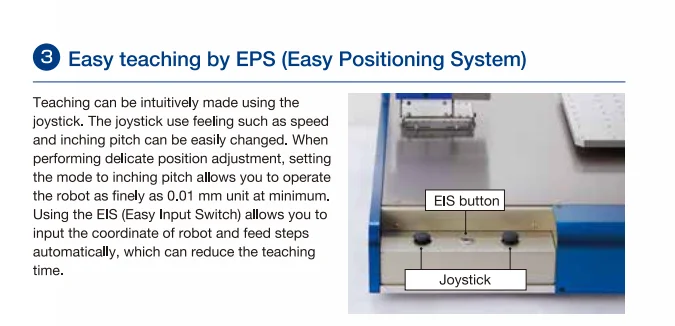

| Teaching style | Direct teaching by joystick Offline teaching by tablet/PC |
| Soldering tip | TX1: 140W; TX2 300W |
| Air | Not required |
| External input/output | Input: 20 Output: 12 (NPN) (2 places for cleaner) |
| Operating environment | Ambient temperature range: 0 - 40 degree Celsius (without condensation or freezing) Ambient humidity range: 85% of less RH (without condensation or freezing) There shall be no corrosive or combustible gas There shall be no exceedingly dusty |
| External interface | USD x 4 (1 place for PC) |

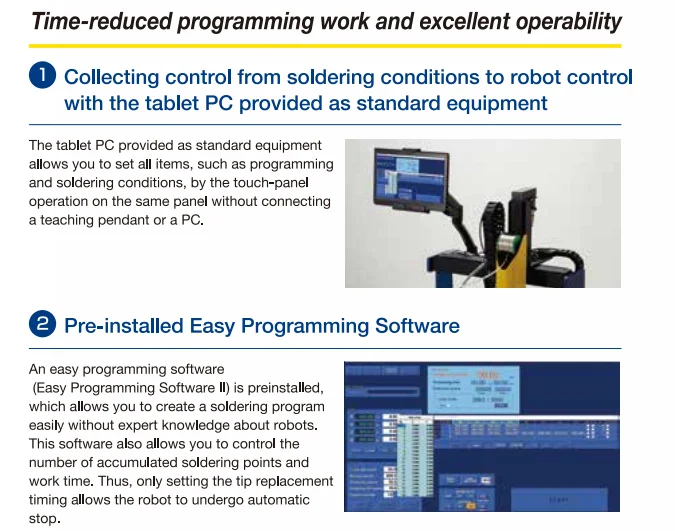

| Features/description | Easy to operate 4-axis + 1 (feeder) control soldering robot system. All-in-one soldering robot system into which the solder feed controller and the programming software are incorporated. All operations such as soldering conditions including solder feed amount and heating time can be controlled collectively by the tablet PC provided as standard equipment. |
| Solder feed setting range | |
| Number of solder feed programs | 250 conditions (max) |
| Solder feed amount | 0.1 to 99.9mm |
| Solder feed speed | 0.1 to 99.9mm/sec |
| Solder return amount | 0 to 20.0mm |
| Solder return speed | 0 to 99.9mm |
| Heating time | 0.1 to 9.9 sec |
