Shuttlesless mattress machine Automatic edging machine Automatic edging mattress packaging machine spring RN9B 1A

Share on (1601240518850):


Price:$3,131.00-3,272.00

Quantity:


Product Overview

Description


Guangzhou Oren Sewing Machine Co., Ltd.


Large supply of mattress wrapping edge machine  shuttleless mattress hemming machine   make love mattress edge machine  RN9B-1A





Basic information:




























































Customized



Yes



Type



wrapping machine



Purpose



Sewing



Degree of automation



Half-fully automatic



Stitch type



Quilting machine



Applicable thickness range



Thick material



Brand



Japan Oren



Model



RN9B-1A



Applicable place



Factory use



Target



Mattress quilt blanket



Pin number



single



Drive form



Variable frequency clutch



Thread



Single thread



Head number



single head



Product size



193*130*80 cm



Weight



553 kg



Normal table size



1550*2050 mm



Auto table size



1550*2050 mm



RN9B-1A.4


Product specification:


      This machine is mainly used for sewing simmons mattress, finishing the edge sewing between mattress fabric and wall cloth, and also for sewing other mattress, blanket, sofa cushion and sleeping bag.
The head can rise and fall automatically to suit the sewing of mattresses of various heights.
Frequency conversion clutch motor is used to drive the walking box and the head of the machine. The automatic deceleration of the corner is convenient and easy to control. The head of the machine adopts the slide rod to pick the line and the needle to hook the line without shuttle.The upper and lower shafts are driven by synchronous toothed belts;Lever needle distance adjusting mechanism.
Adopt integrated lower feeding, needle feeding and alternating pressing foot feeding, pull rod type pressing foot, and high pressure foot stroke, high pressure foot lifting clearance and large trace length, with push-pull stainless steel professional edge jig;


Can easily handle difficult to transport materials and layers of heavy leather.
Automatic induction device, frequency conversion clutch, prevent machine damage caused by load, make sewing operation more stable and convenient.
Push plate height adjustable, man-machine performance more reasonable.


 RN9B-1A.3

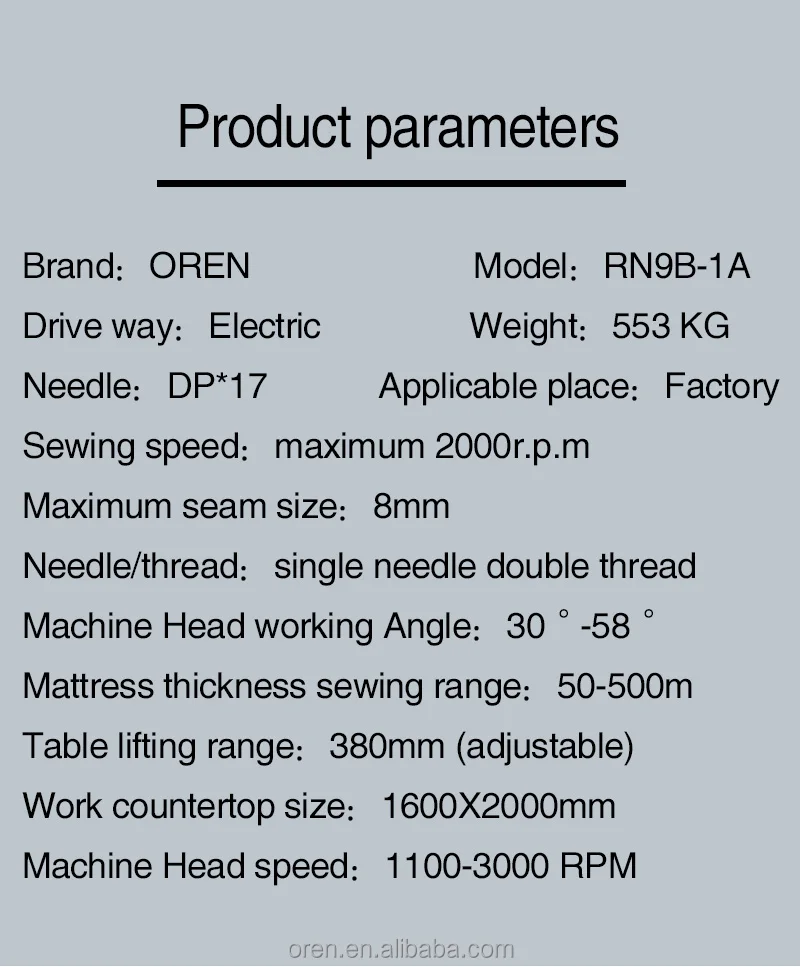

Main technical parameters:










































Head type



shuttleless



Height sewing speed



3000 rpm



Angle of nose operation



35°~85°(adjustable)



Table lift range



0 - 420 mm



Nose lift range



0 – 200 mm



Applicable mattress thickness



50 - 700 mm



Travelling box speed



2000-3000 per minute



Travel box control



Variable frequency clutch



The total power



7 KW

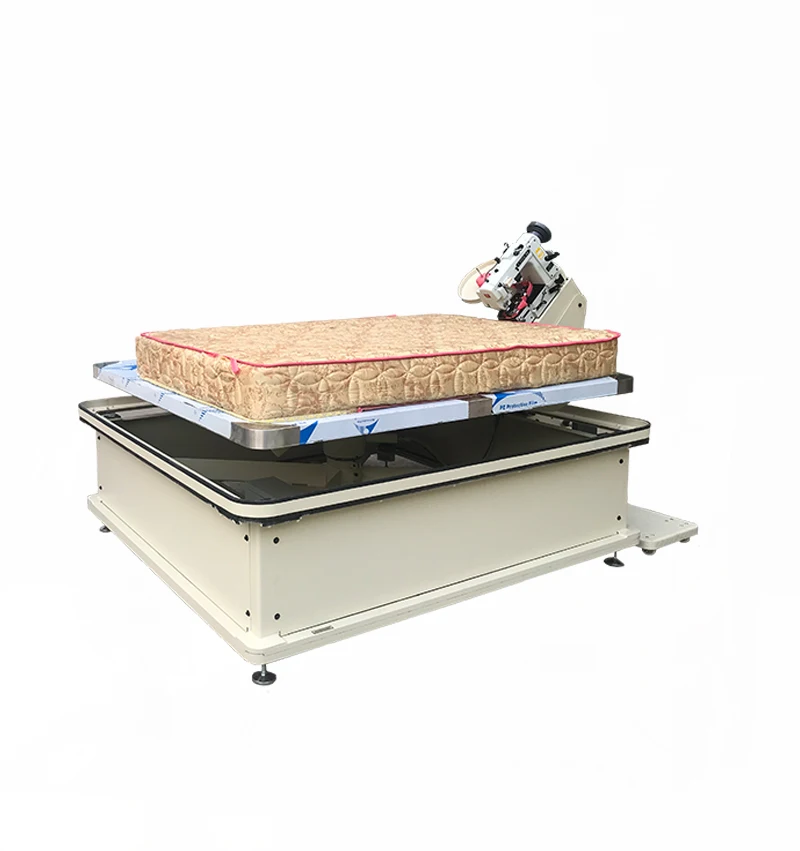

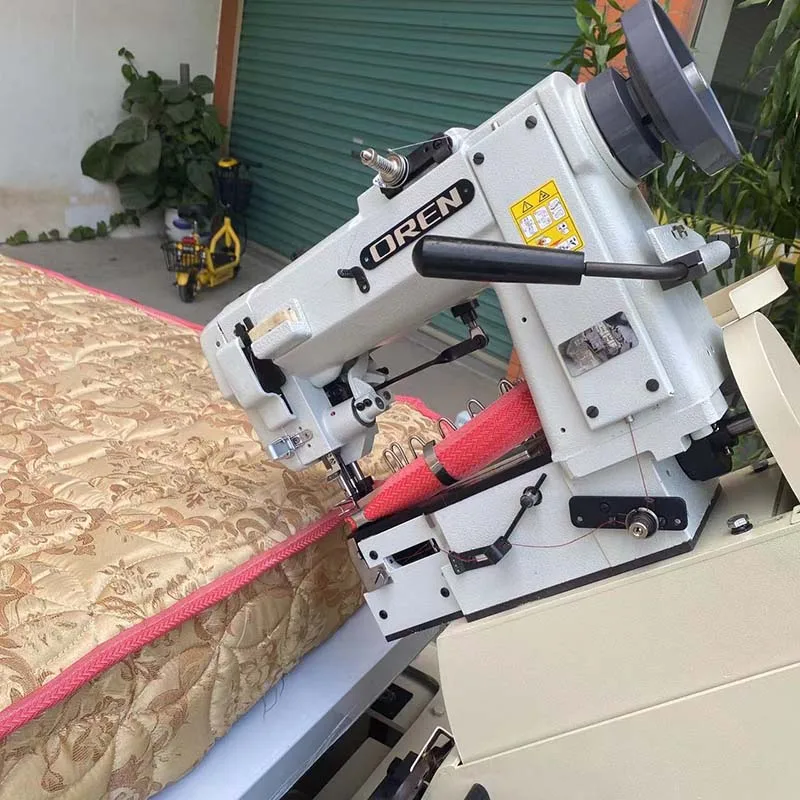

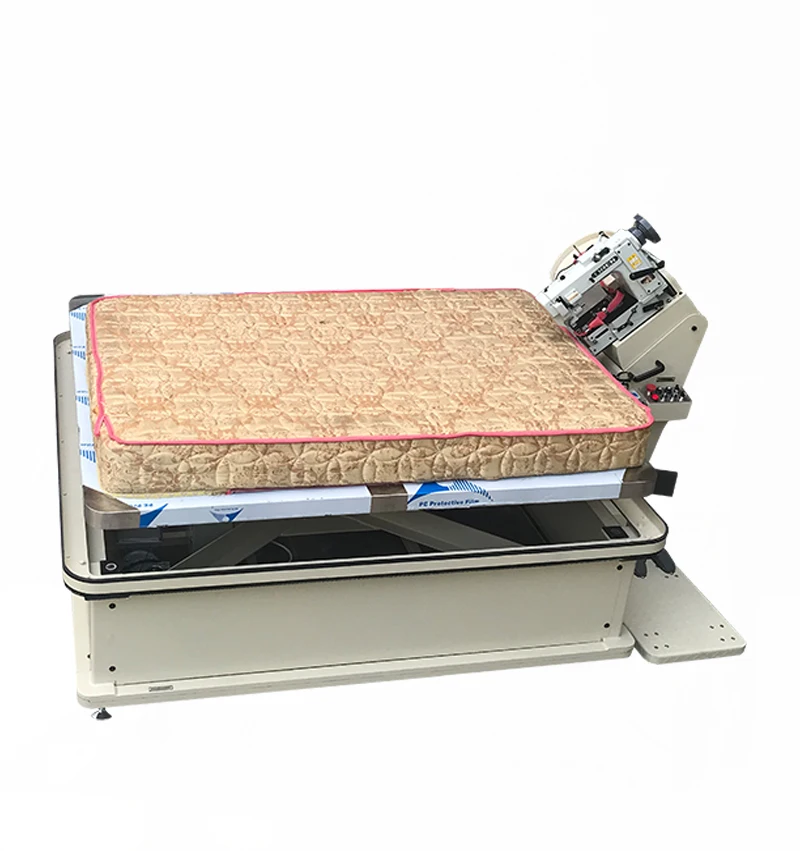

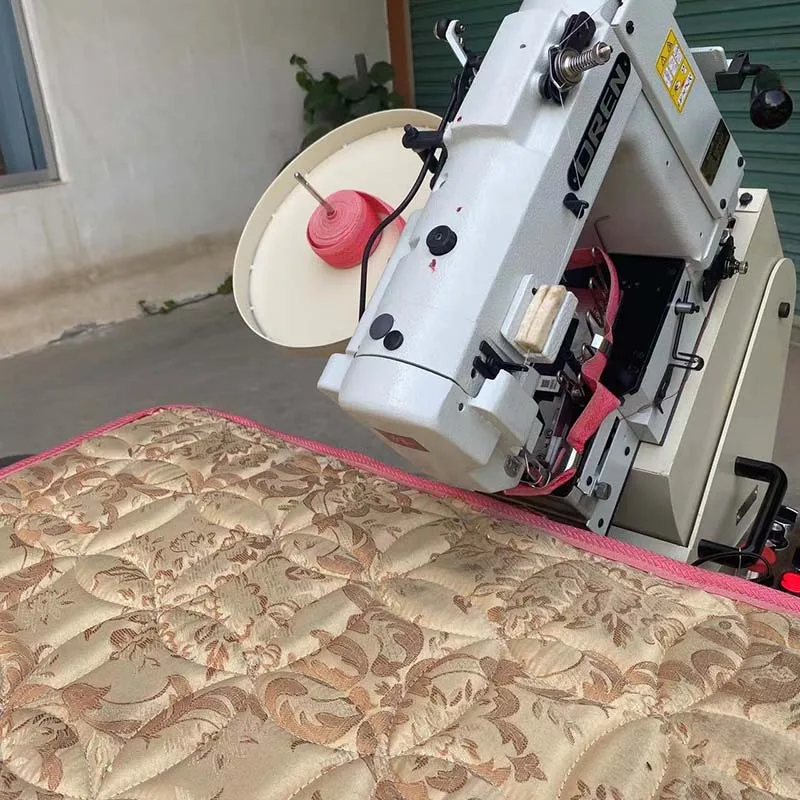

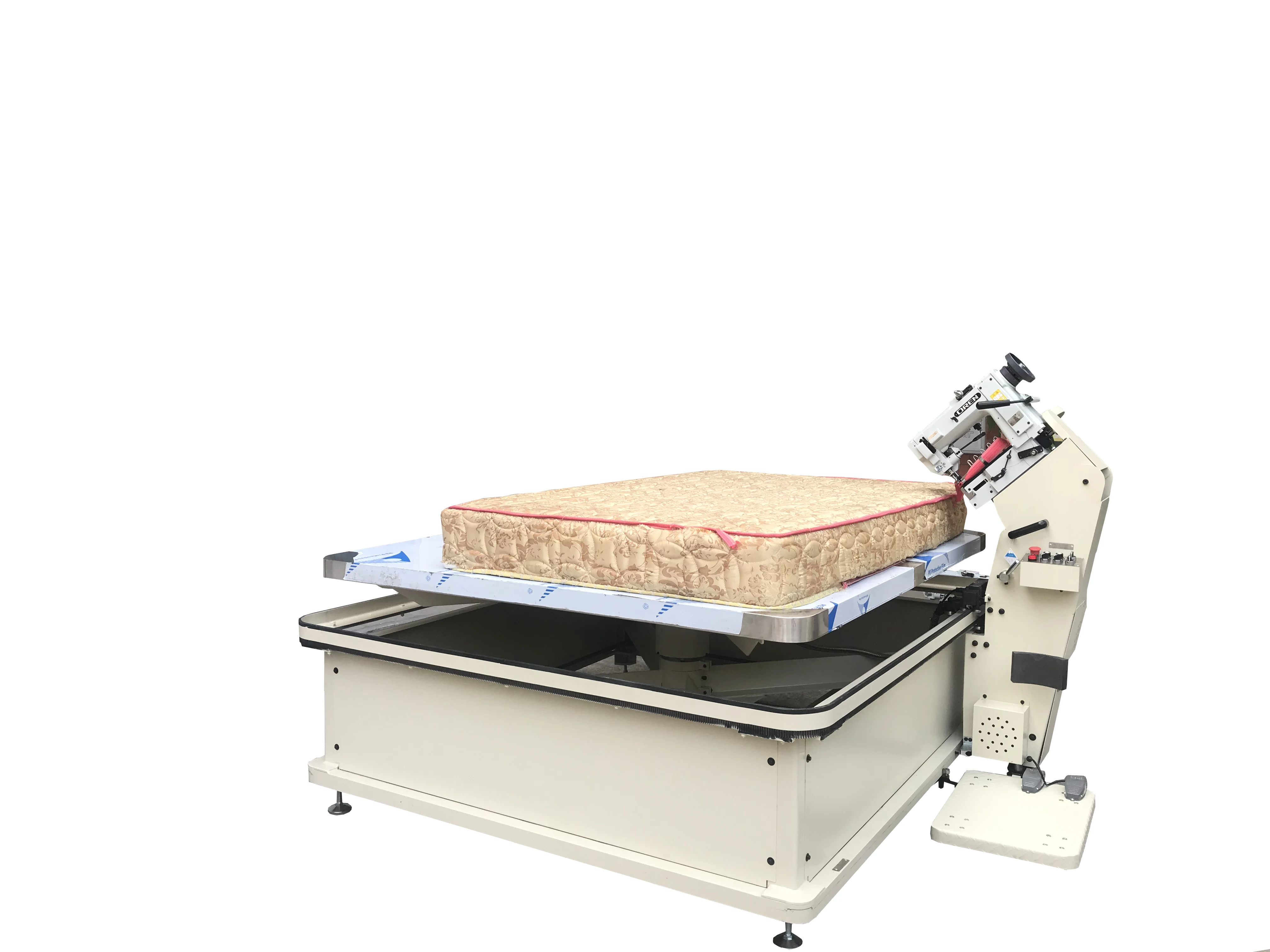

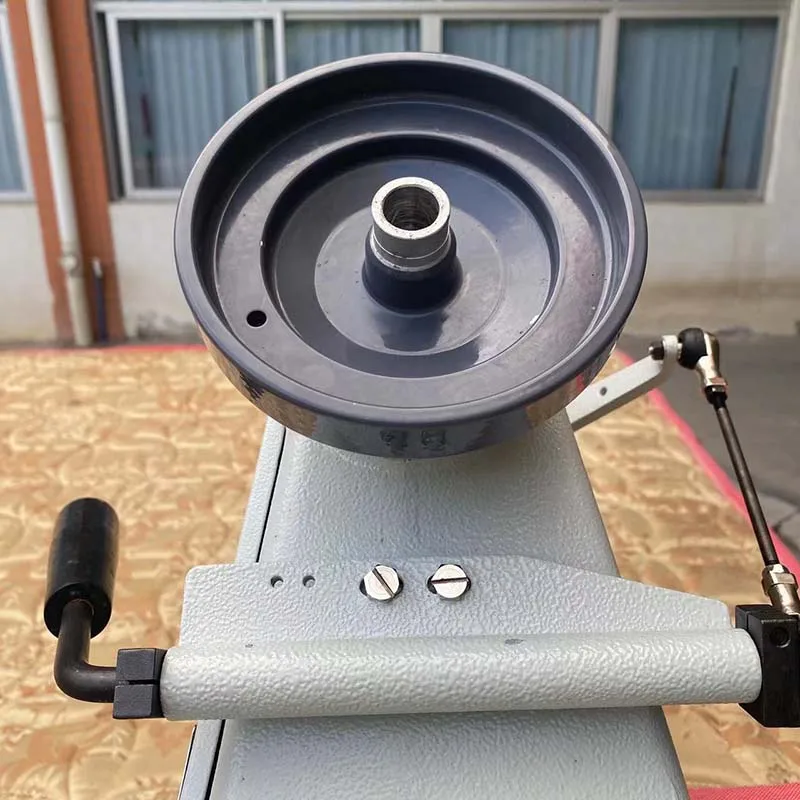

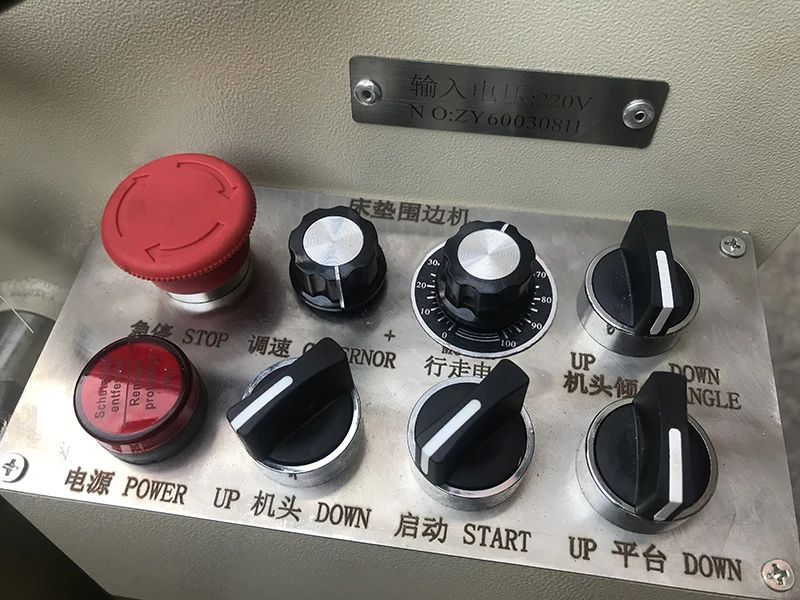

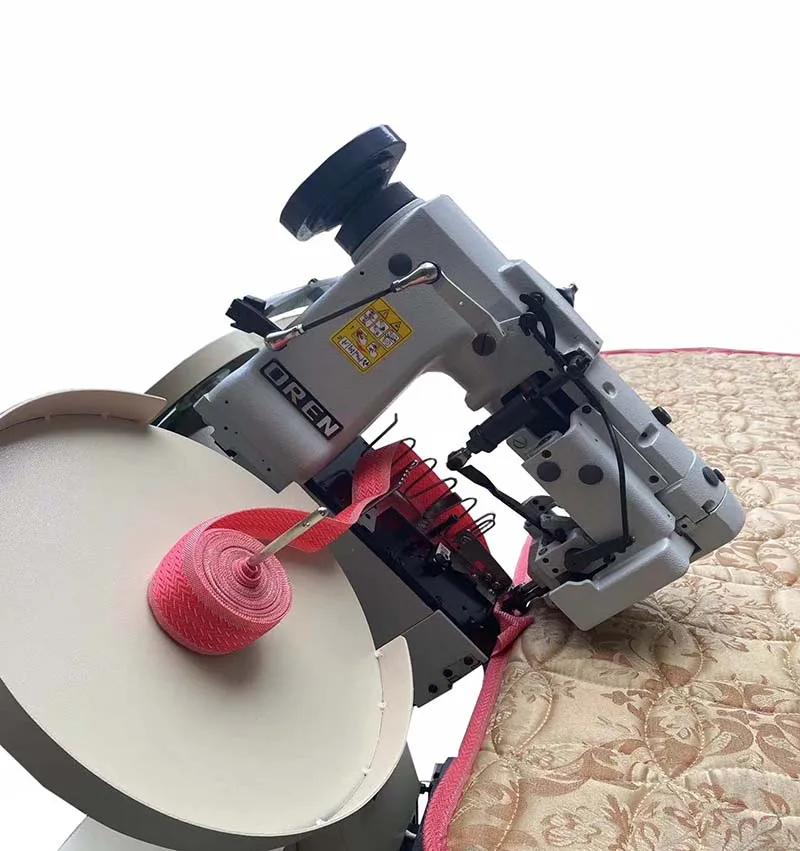

Product photos:












RN9B-1A.8





RN9B-1A.10





RN9B-1A 12





RN9B-1A_09


 RN8B-246WB 3Quality Assurance:


      Market is the lifeline of enterprise development, a successful business, perfect marketing system is the enterprise the root of the existence, therefore, to strengthen the enterprise internal management and external image propaganda, on the basis of we have been committed to the development and management of market, establish a kind of can adapt to the modern market economy and the marketing pattern, and efforts from product development, quality management to do the right things after-sales service and so on each link, make our customers can get better products and services.


      All the company's equipment have clearly priced, and have three quality guarantees (3 days for return, 7 days for replacement, 1 year for use --- back to the factory for life free maintaining) let you buy it happy! Rest assured!


Products features:


      People need maintenance, machines need lubrication. The special machine lubricant developed by OREN co., LTD. of Japan can make the machine run at a high speed of 5000 RPM for more than 4 hours with a drop. It has good lubricity and stability. Because the product is a variety of natural plant extracts of non-ionic surfactant, so in high temperature resistance and rust resistance is absolutely unparalleled other oil, in addition; We also focus on solving the machine equipment for a long time to add oil on the surface of the clean, will not produce leakage and appearance corrosion, yellow, fall off and other phenomena, make it more environmental protection, health. It is especially suitable for the special requirements of external dripping of special machines and equipment. Parts in the process of using in high speed, the physical properties caused by the friction heat, part of the machine components can produce inefficient operation or jammed, affect the normal operation of the equipment, therefore, this product USES natural plant extract inactive lubricant, with dynamic system static, heat energy for power, restrain coefficient of friction, make impeded or stuck running the machine components immediately returned to normal. Eliminate the high - speed operation of the mechanical properties of heat and noise problems.


After-sales service:


      24 hours after-sales service, leave us a message or give us a call at any time.


 CEO words:


      Precious cooperation, Honesty OREN: Let us work together to create an influential industrial sewing machine and accessories trading platform; Build a friendship bridge between manufacturers and customers!





.jpg 22





About Oren special machinery lubricating oil series explanation:


       The product is extracted from natural plants, colorless transparent liquid, no irritating odor to human body, skin without any harm, more for environmental protection, health, longer life, suitable for electronic drive, CNC machine tools, precision transmission and other high-end mechanical equipment high lubrication and maintenance.
