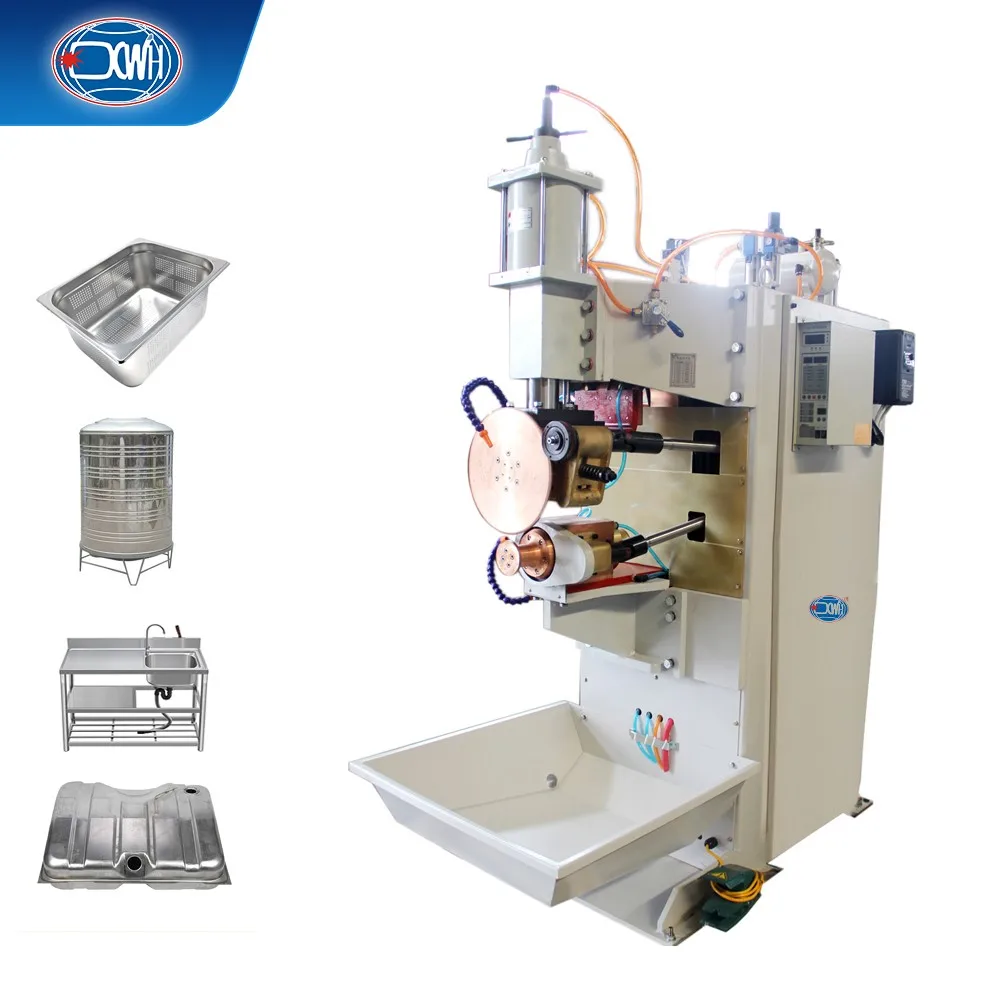

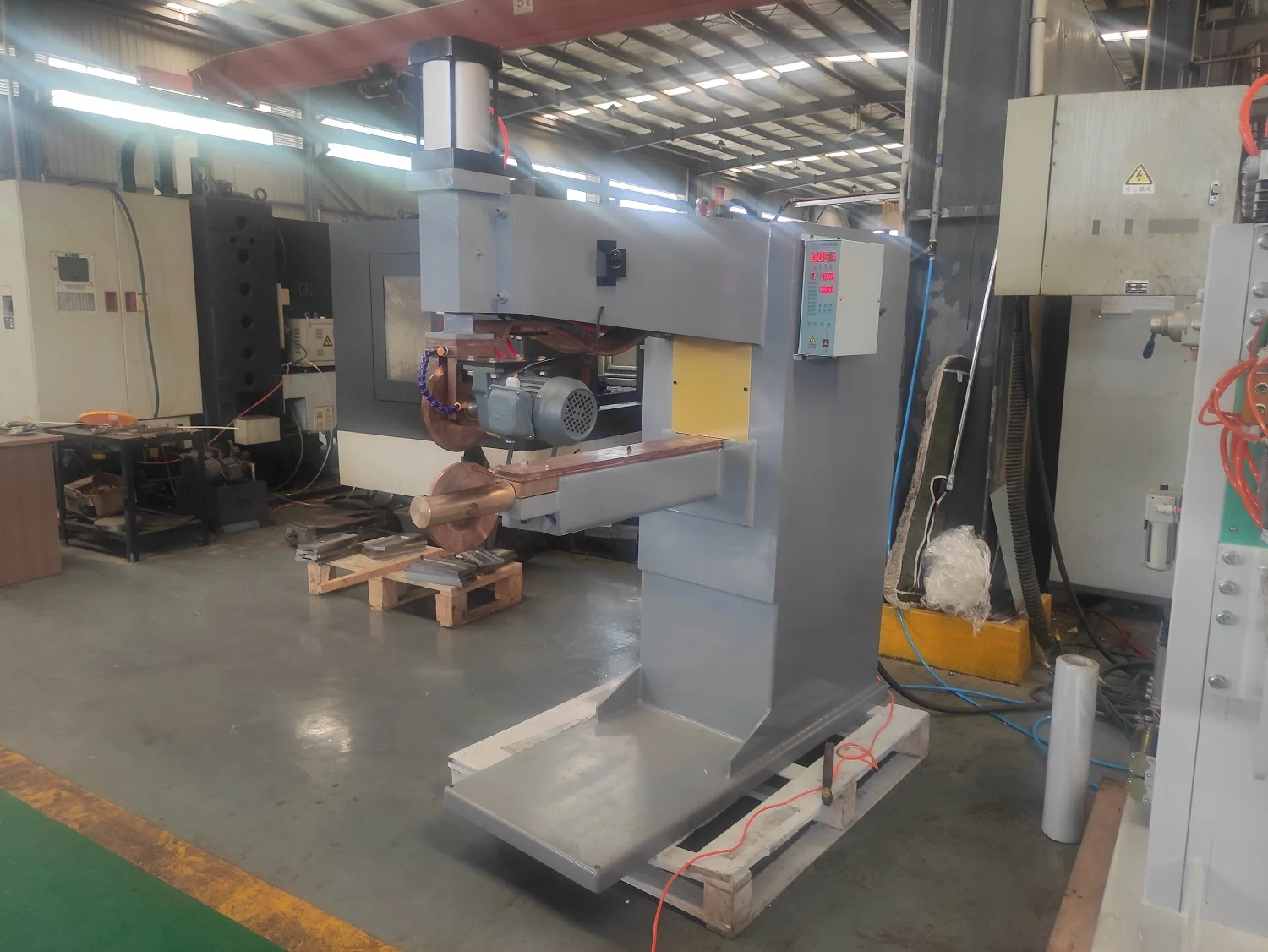

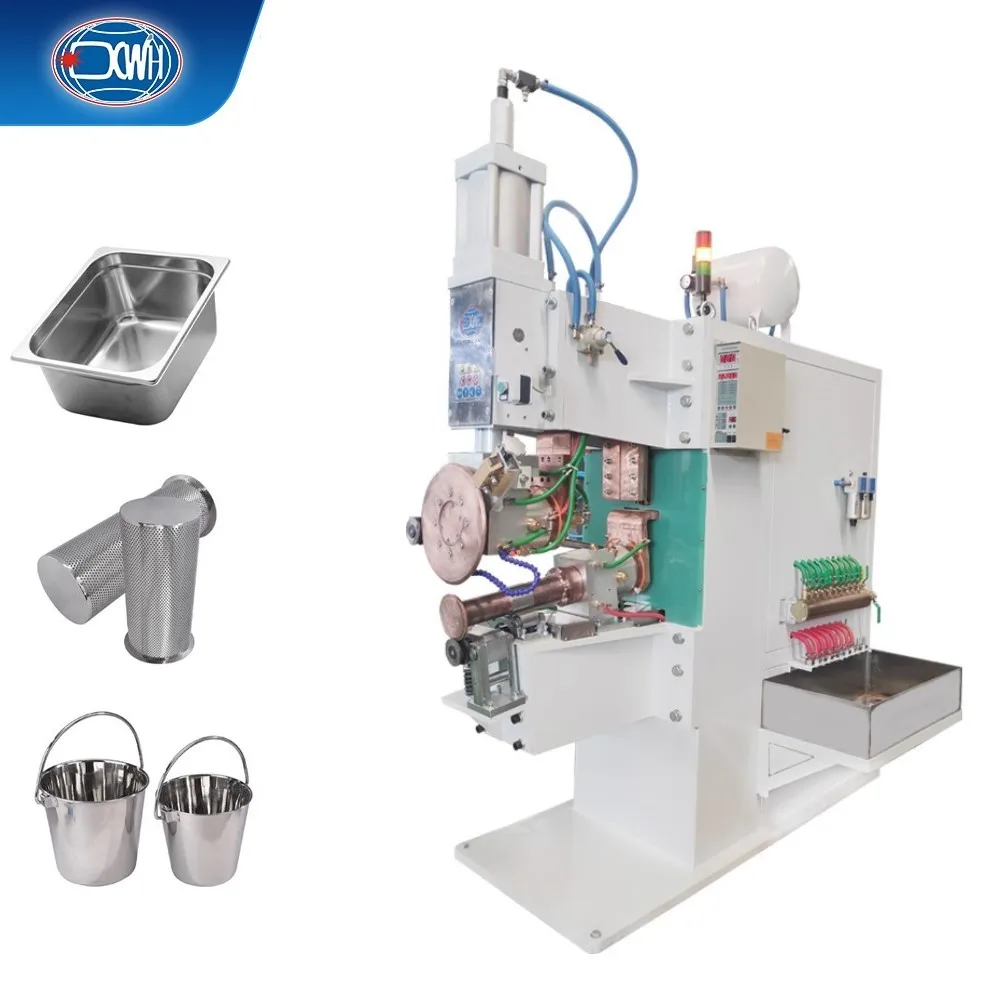

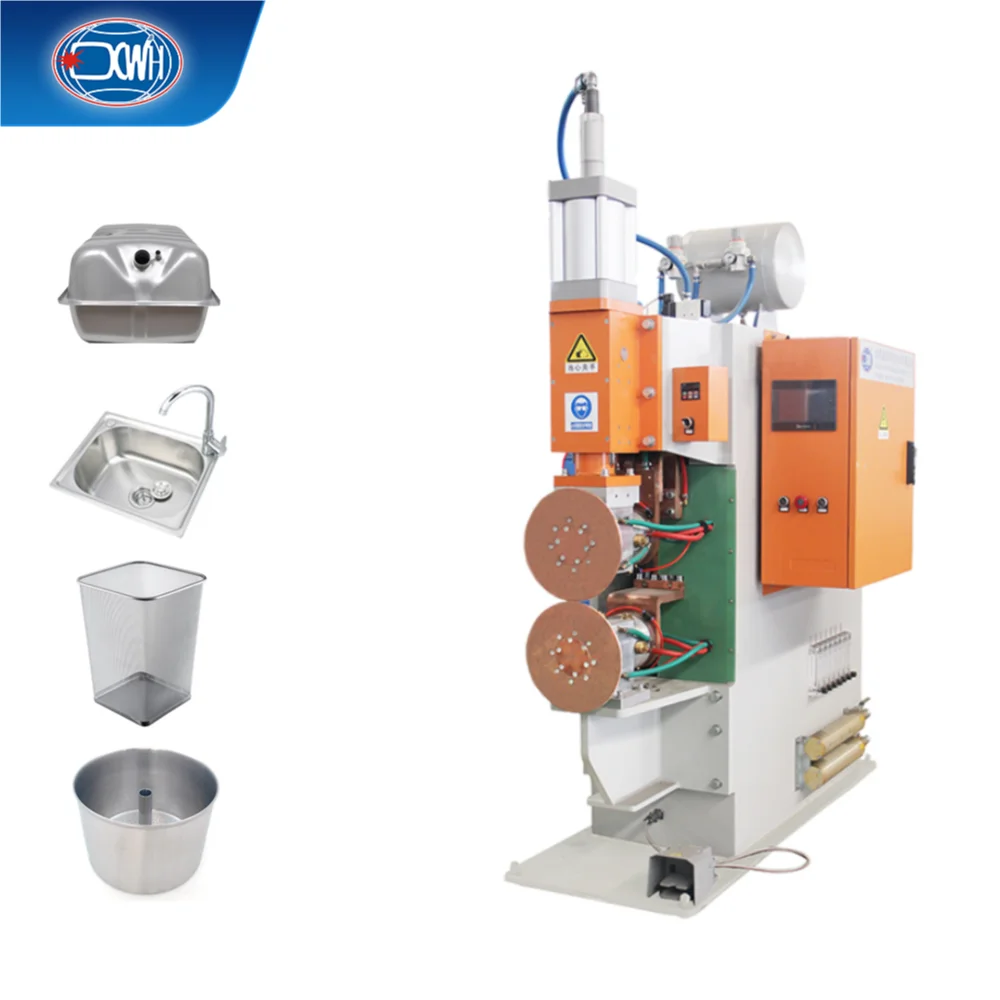

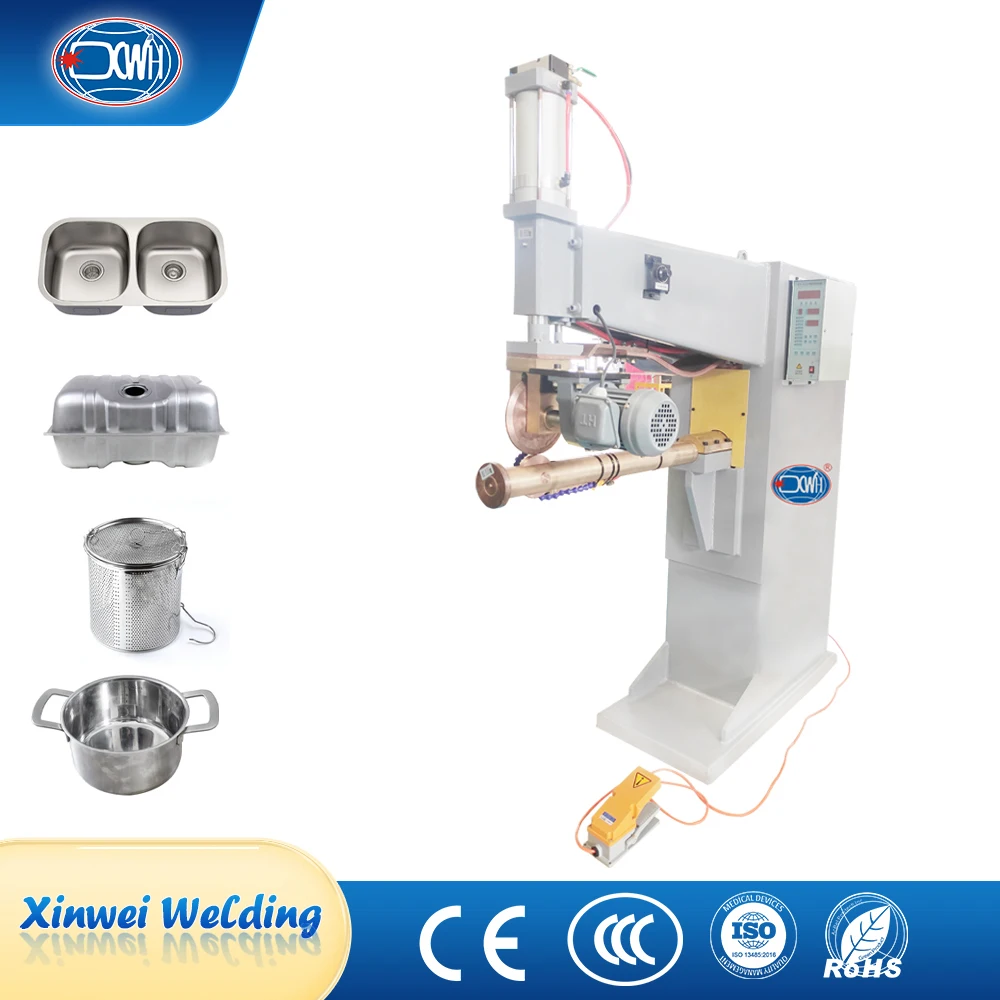

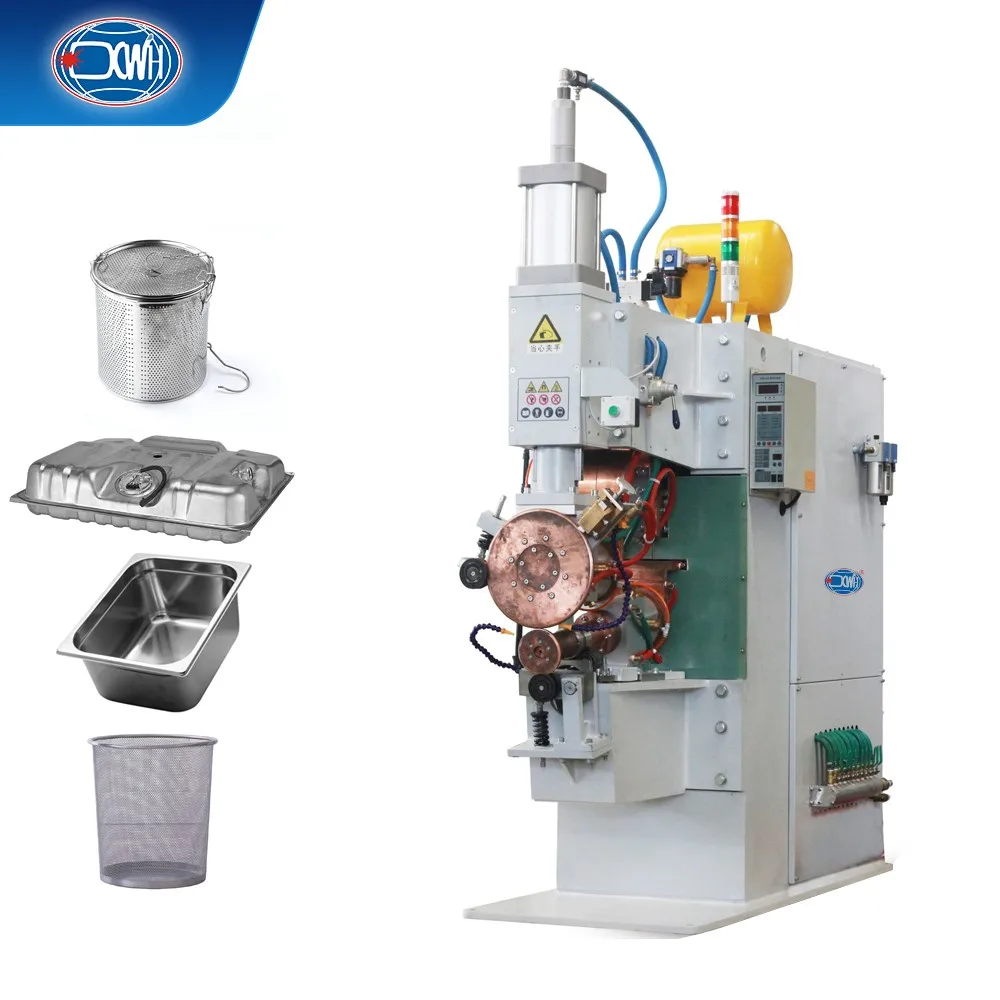

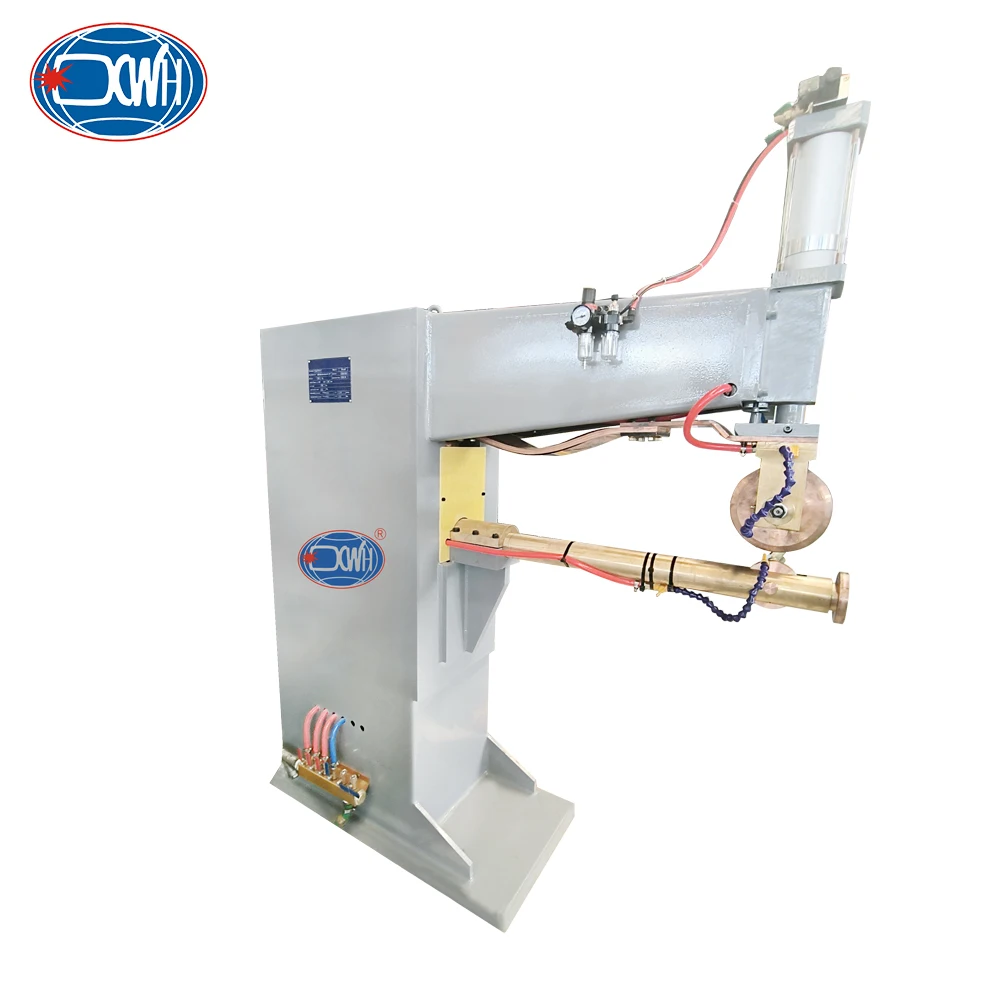

Round Steel Tube Elbow Oil Tank Vertical Circular Rolling Roller Seam Welder Welding Machine
- Category: >>>
- Supplier: Chengdu Xingweihan Welding Equipment Co. Ltd.Chengdu Ltd.
Share on (1601240600619):
Product Overview
Description
ChengDu Xinweihan is one of the leading welding equipment manufacturer in china, Specialized in manufacturing and provide customers with a complete set of welding solutions.
A R&D team of more than 20 engineers., and a 20000 sq.m manufacturer, which guarantees that we can offer customers the most professional welding advice and after-sales service.
And we have our own overseas technical service teams in many countries in Southeast Asia and South America to provide customers with on-site installation and maintenance services.（Please contact us to ask if there is a technical team in your country）
A R&D team of more than 20 engineers., and a 20000 sq.m manufacturer, which guarantees that we can offer customers the most professional welding advice and after-sales service.
And we have our own overseas technical service teams in many countries in Southeast Asia and South America to provide customers with on-site installation and maintenance services.（Please contact us to ask if there is a technical team in your country）
Product Description

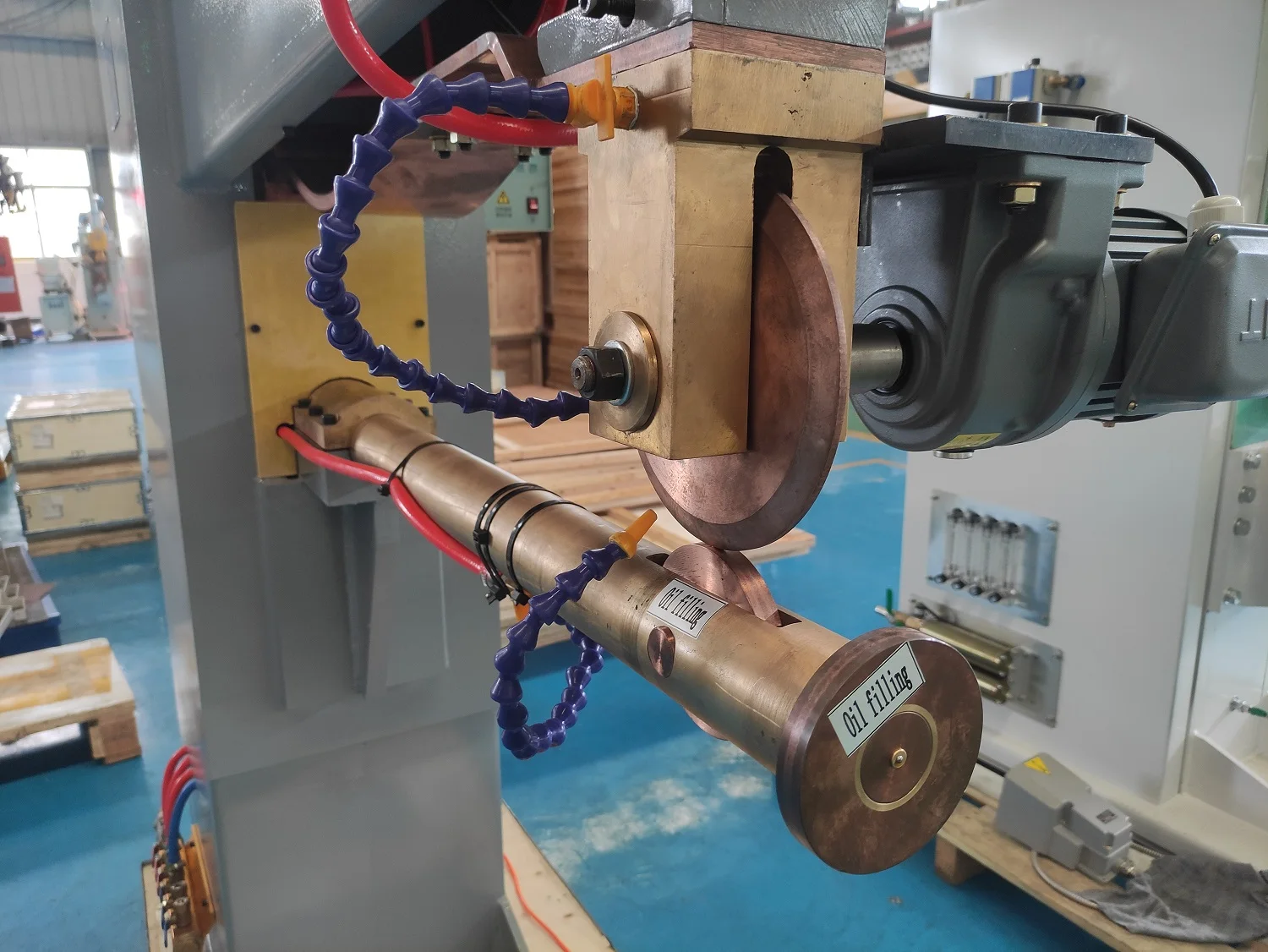

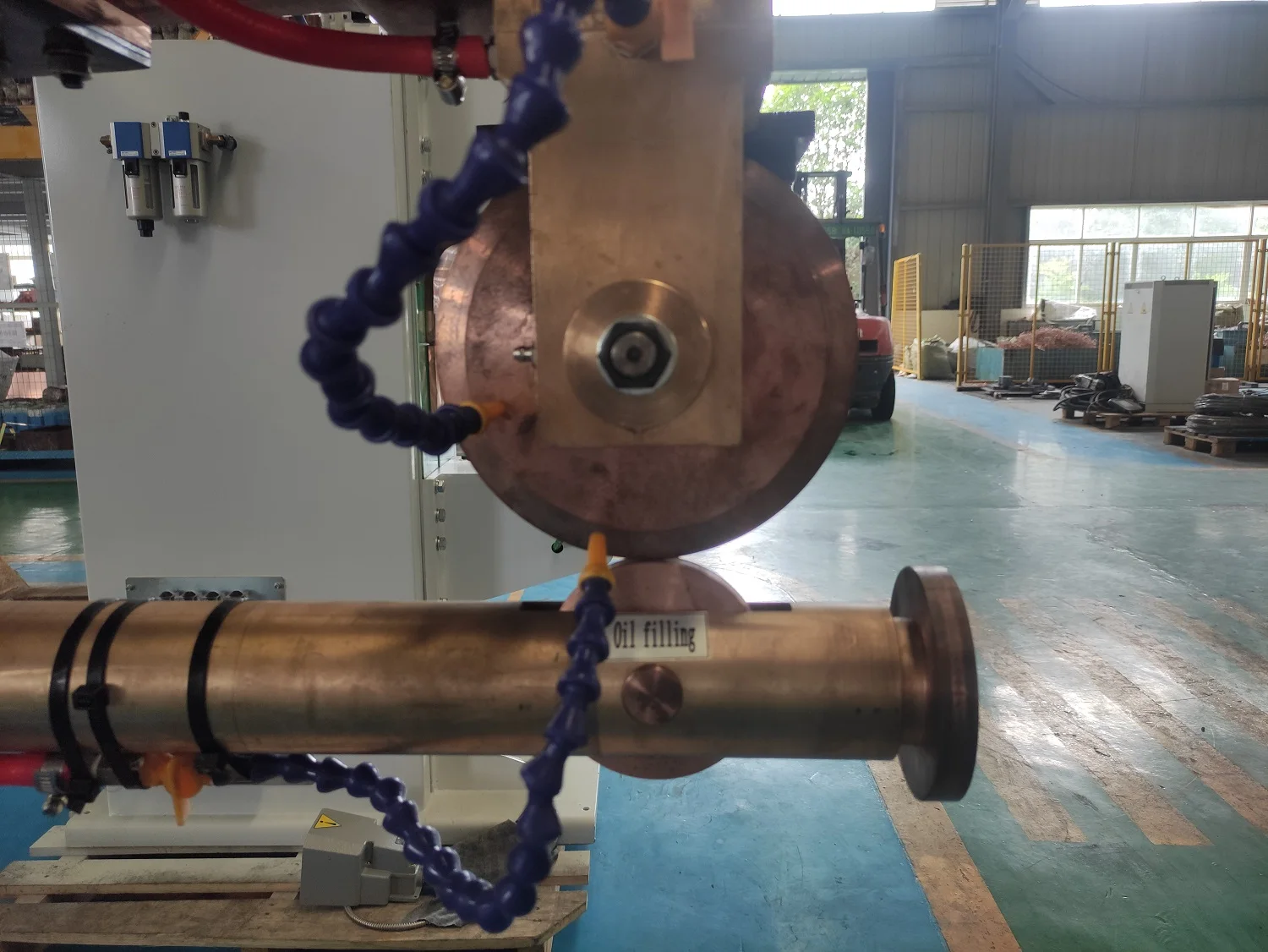

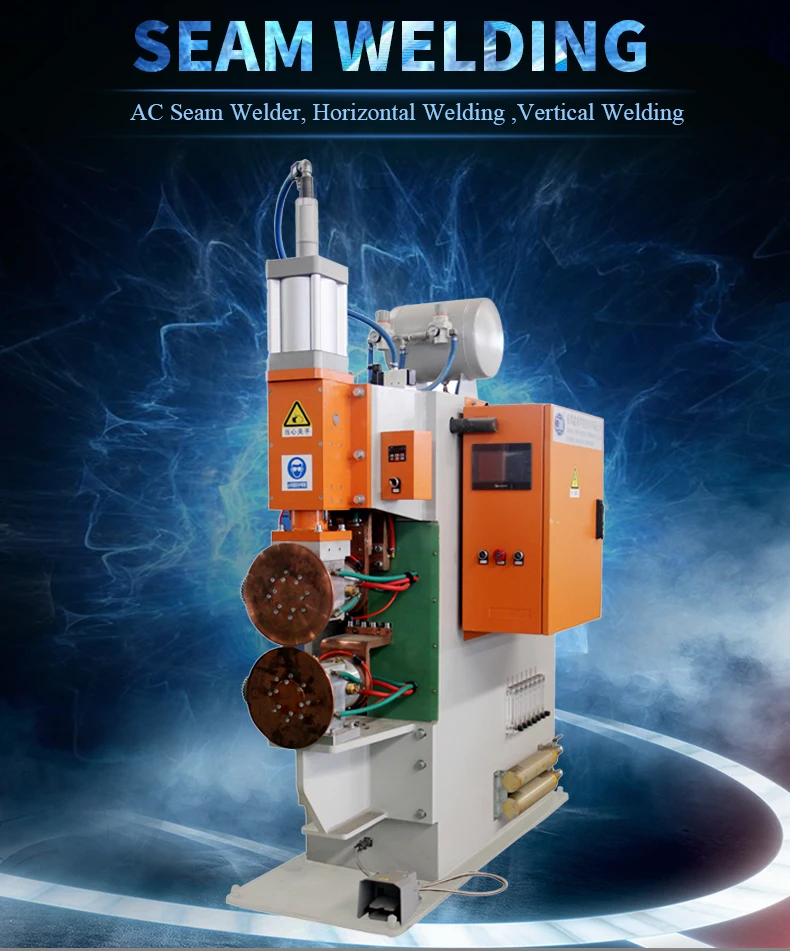

The seam welding machine has both horizontal and vertical seam welding functions. By changing the direction of the upper electrode wheel and replacing the lower electrode arm, it is easy to switch between the two welding methods.
Technical Parameters
Model/Item | Unit | FN-80-H | FN-100-H | FN-160-H | FN-100-E | FN-160-E |
Rated power | KVA | 80 | 100 | 160 | 100 | 160 |
Voltage input | V | 380 | 380 | 380 | 380 | 380 |
Frequency | Hz | 50 | 50 | 50 | 50 | 50 |
Max. short circuit current | KA | 26 | 30 | 40 | 30 | 40 |
Working stroke | mm | 100 | 100 | 100 | 100 | 100 |
Welding efficiency | m/min | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 |
Max. force | N | 6000 | 6000 | 7800 | 6000 | 7800 |
Max. welding capacity | mm | 1.2+1.2 | 1.5+1.5 | 2.0+2.0 | 1.5+1.5 | 2.0+2.0 |
Motor Power | W | 550 | 750 | 750 | 750 | 400 |
Cooling consumption | L/min | 8 | 8 | 10 | 8 | 10 |
Weight | Kg | 380 | 510 | 630 | 530 | 700 |
Main Features
1. The seam welding machine has the characteristics of reasonable equipment structure, simple operation, high automation, wide adjustment range, high accuracy, and stable speed.
2. PLC controls the operation of the entire machine, ensuring accurate and reliable control, as well as simple and convenient operation. AC frequency converter speed regulation achieves infinitely adjustable welding speed, convenient and reliable adjustment, large adjustment range, high precision, stable and reliable operation, and convenient setting of various welding process parameters.
3. High precision and high rigidity structural design ensures long-term accuracy and good stability of the equipment. Adopting precision accessories, it has high performance and stability.
4. Mainly suitable for seam welding of carbon steel, stainless steel, and other metal workpieces/ Widely used in metal manufacturing and processing industries such as hardware, home appliances, automobiles, motorcycle fuel tanks, basin making, and can making.

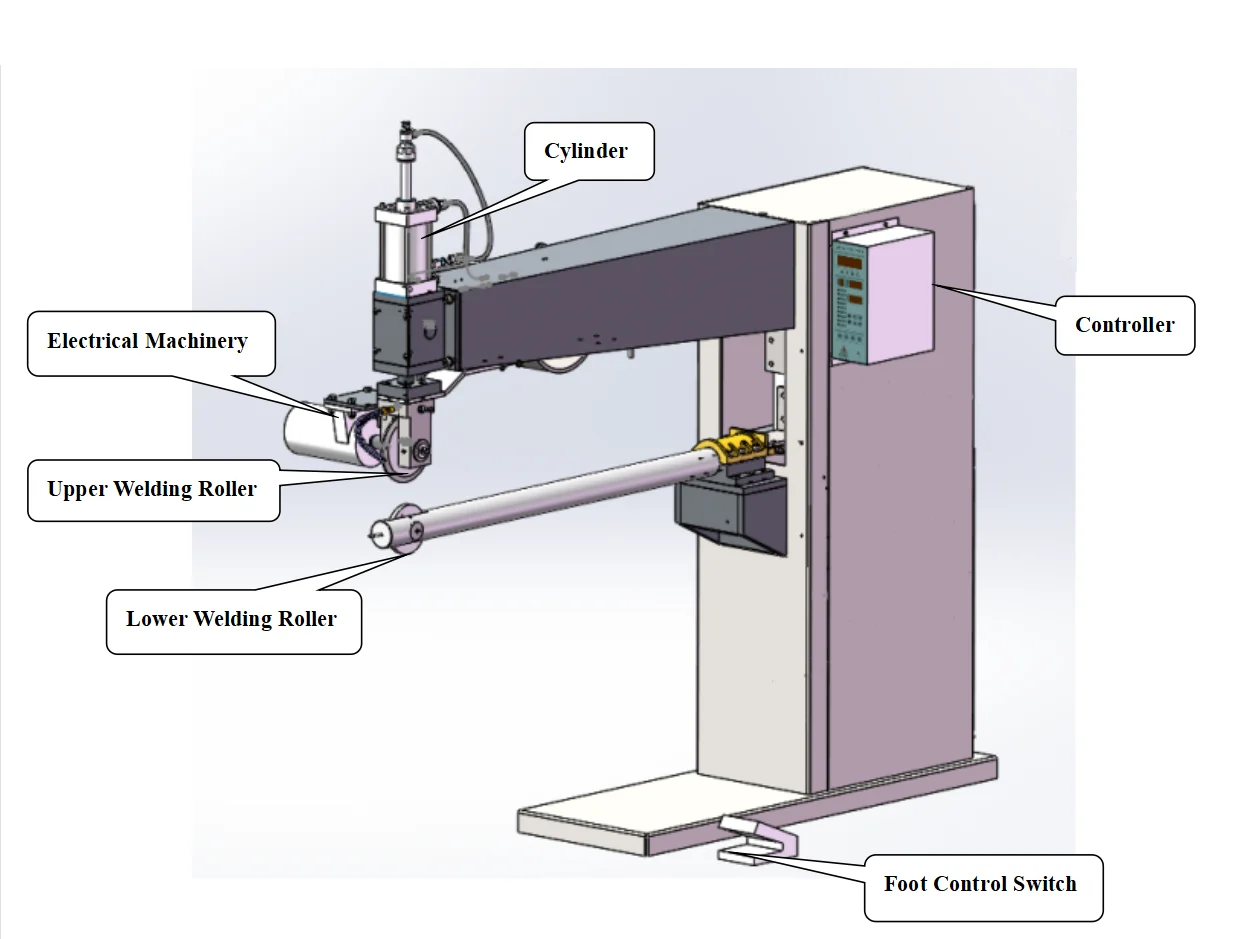

General Structures

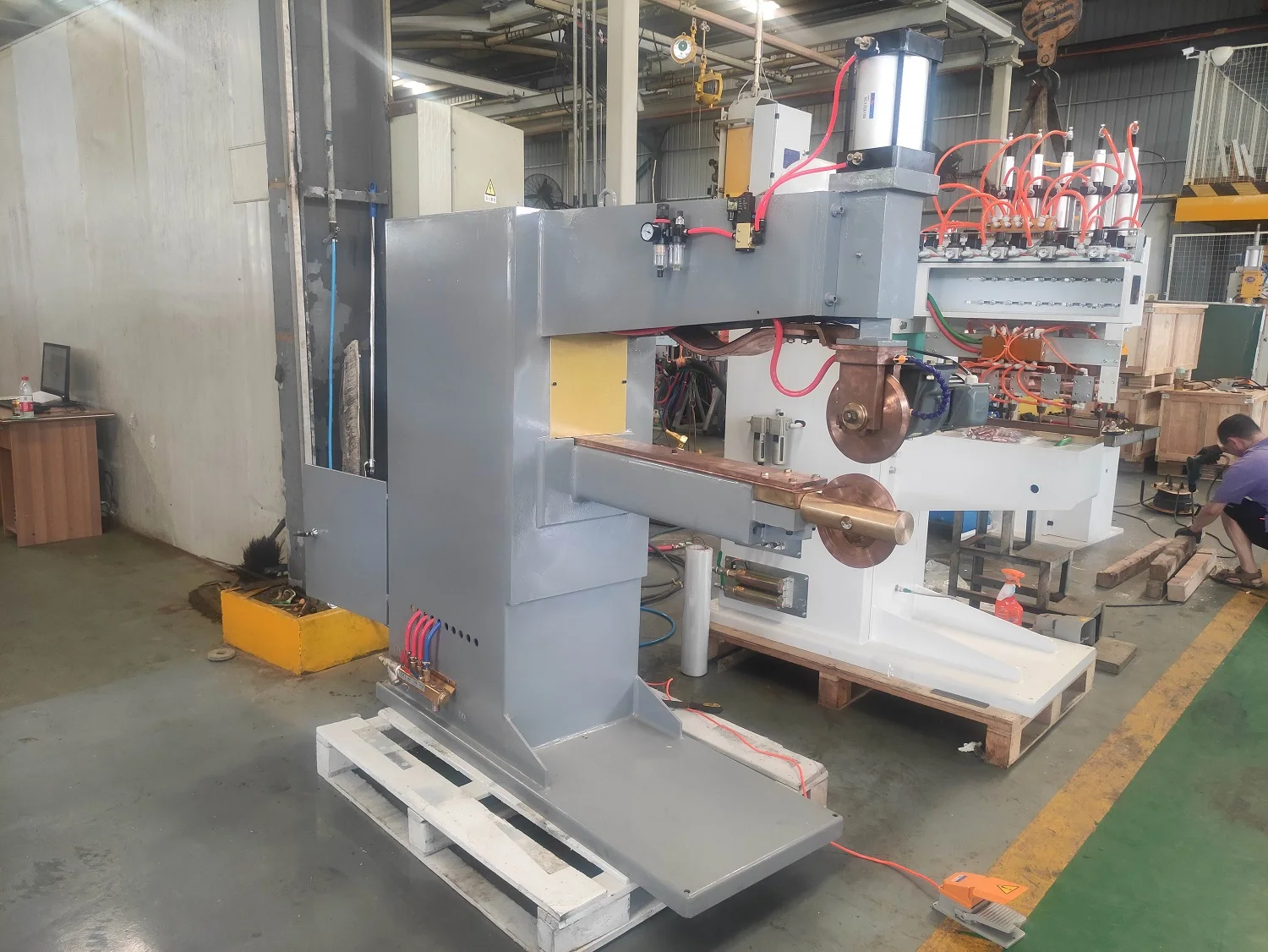

Has Both Horizontal And Vertical Seam Welding Functions, Just Making Some Changes.
More details, please contact!
Detail Images
