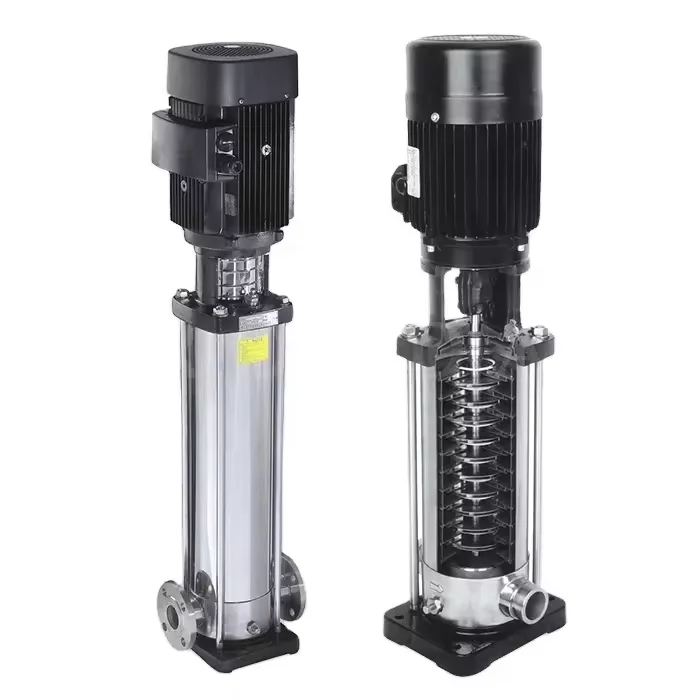

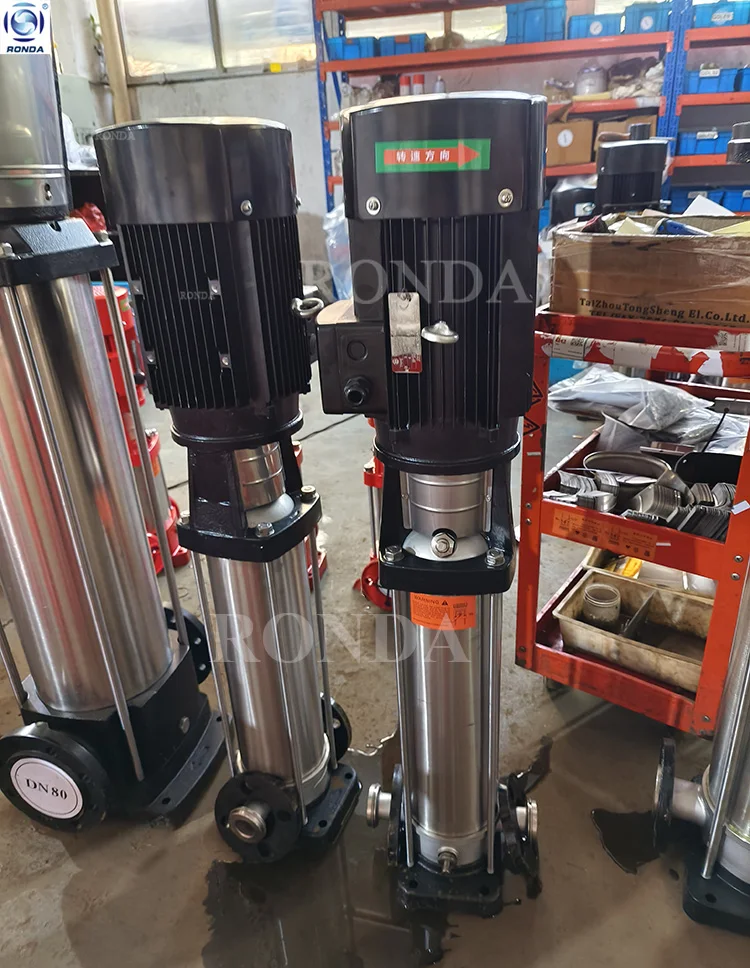

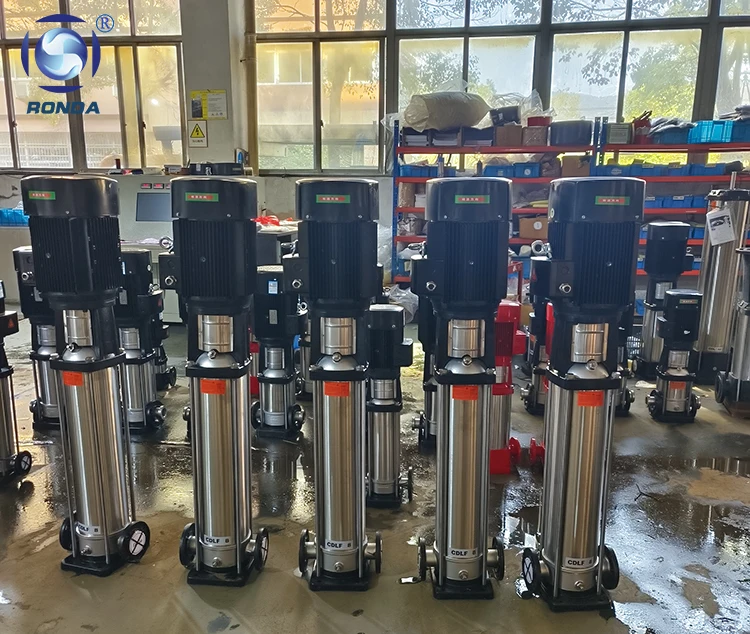

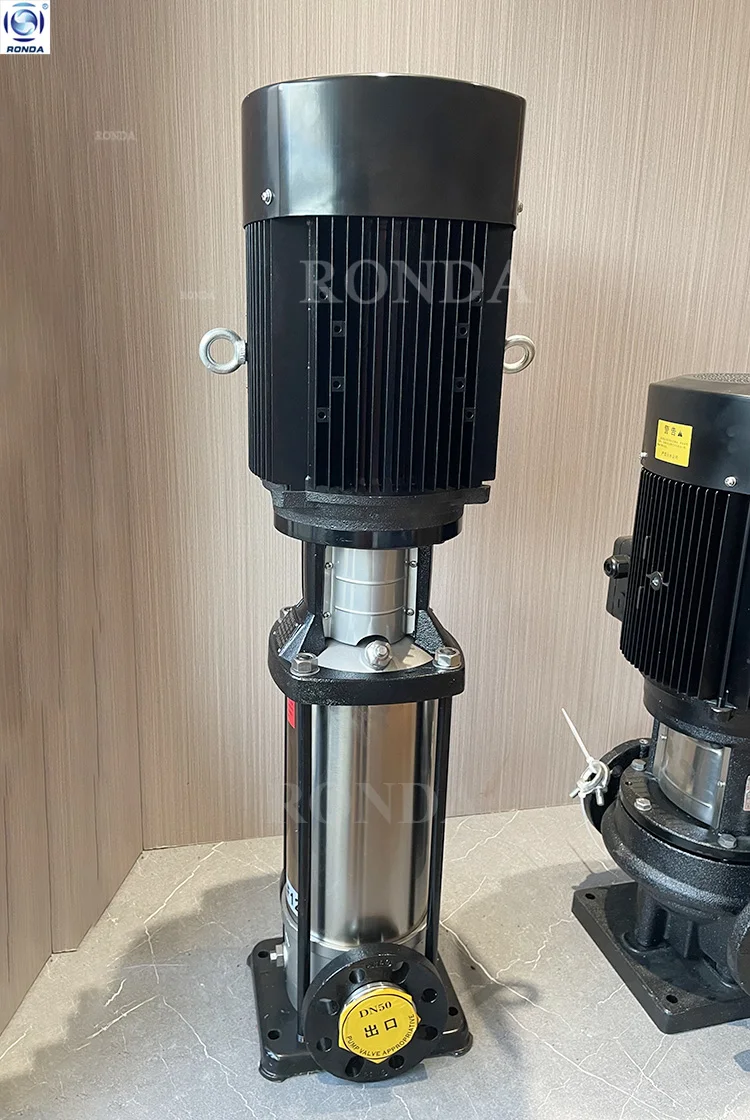

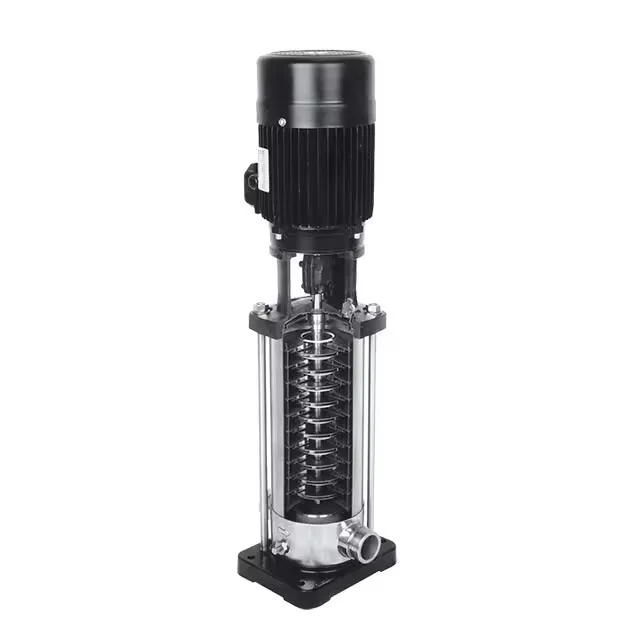

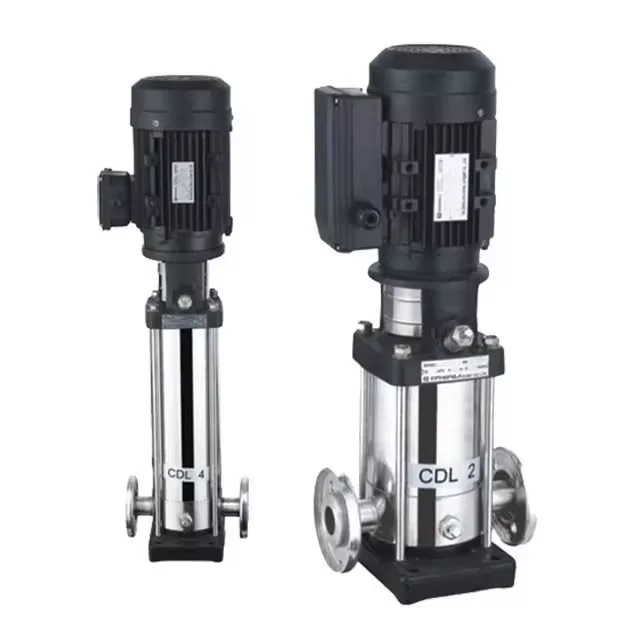

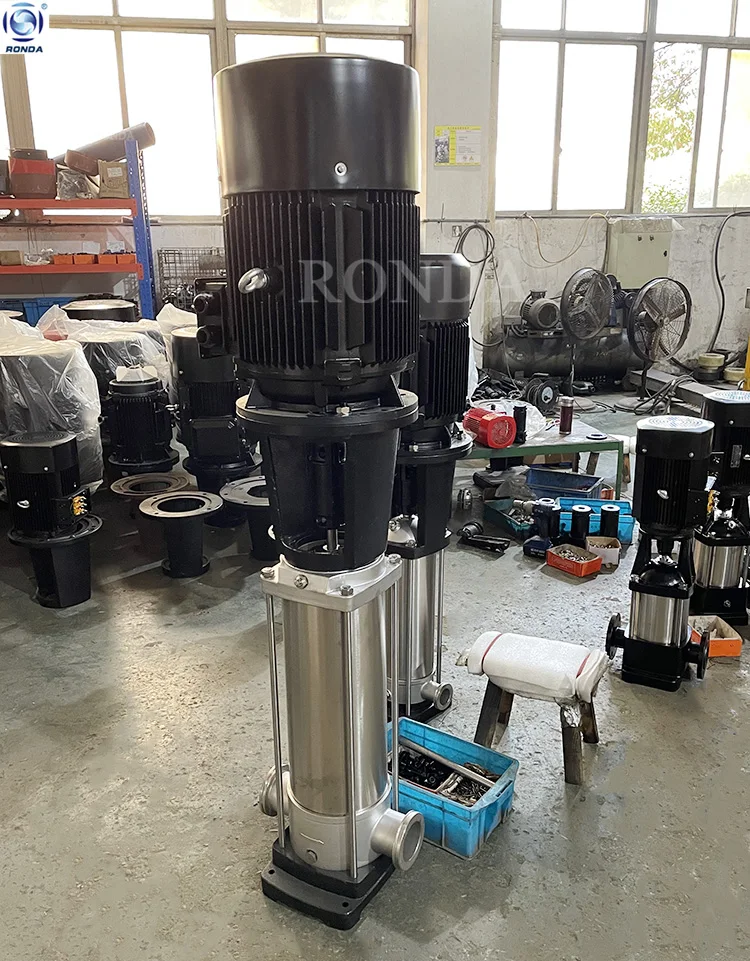

QDL/QDLF small high pressure vertical centrifugal water pump multi stage circulation pump

Product Overview

Description

QDL/QDLF small high pressure vertical centrifugal water pump multi-stage circulation pump













QDL/QDLF small high pressure vertical centrifugal water pump multi-stage circulation pump.

1. Vertical multistage centrifugal pump structure, with merits of light weight and compact, high head/pressure.

2. Used to transfer water or clean hot and cold medium without solid and fiber, no-flammable and non-explosive.

3. Widely used in RO system, high building/community/hotel water supply.





Flowrate:	1~110m3/h
Head:	6~305m
Caliber:	DN25~DN100
Material	Stainless steel
Max.permissible fluid temperature:	120°C(248°F)





QDL2/QDLF2     DN25
Model	Power (KW)	Capacity (m³/h)	1	1.2	1.6	2	2.4	2.8	3.2	3.5
QDL2-20	0.37	Head(m)	18	17	16	15	13	12	10	8
QDL2-30	0.37		27	26	24	22	20	18	15	12
QDL2-40	0.55		36	35	33	30	26	24	20	16
QDL2-50	0.55		45	43	40	37	33	30	24	20
........
QDL2-150	1.5	Head(m)	134	130	123	112	10	90	73	60
QDL2-180	2.2		161	157	148	136	121	108	91	76
QDL2-220	2.2		197	192	180	165	148	130	110	90
QDL2-260	3		232	228	214	198	179	158	130	110
QDL4/QDLF4      DN32
Model	Power (KW)	Capacity (m³/h)	1.5	2	3	4	5	6	7	8
QDL4-20	0.37	Head(m)	19	18	17	15	13	10	8	6
QDL4-30	0.55		28	27	26	24	20	18	13	10
QDL4-40	0.75		38	36	34	32	27	24	19	13
QDL4-50	1.1		47	45	43	40	34	31	23	17
........
QDL4-140	3	Head(m)	136	126	122	112	101	89	68	48
QDL4-160	3		152	144	140	129	115	101	78	55
QDL4-190	4		183	171	168	153	137	122	93	67
QDL4-220	4		211	200	192	178	160	138	108	79

More detailed specs pls contact us.

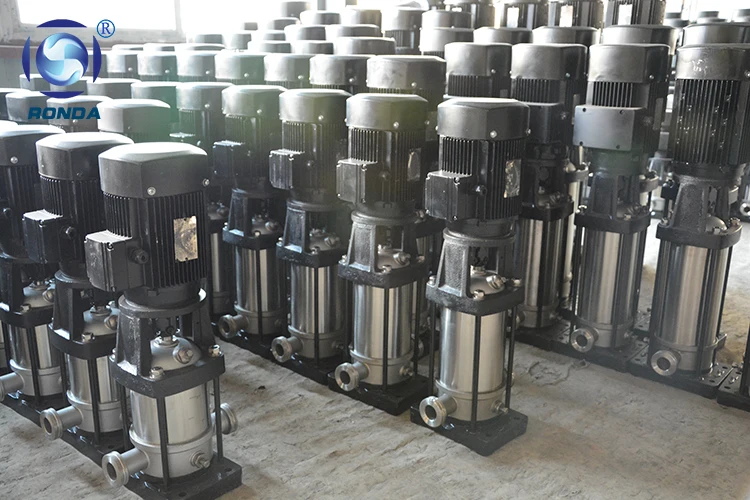

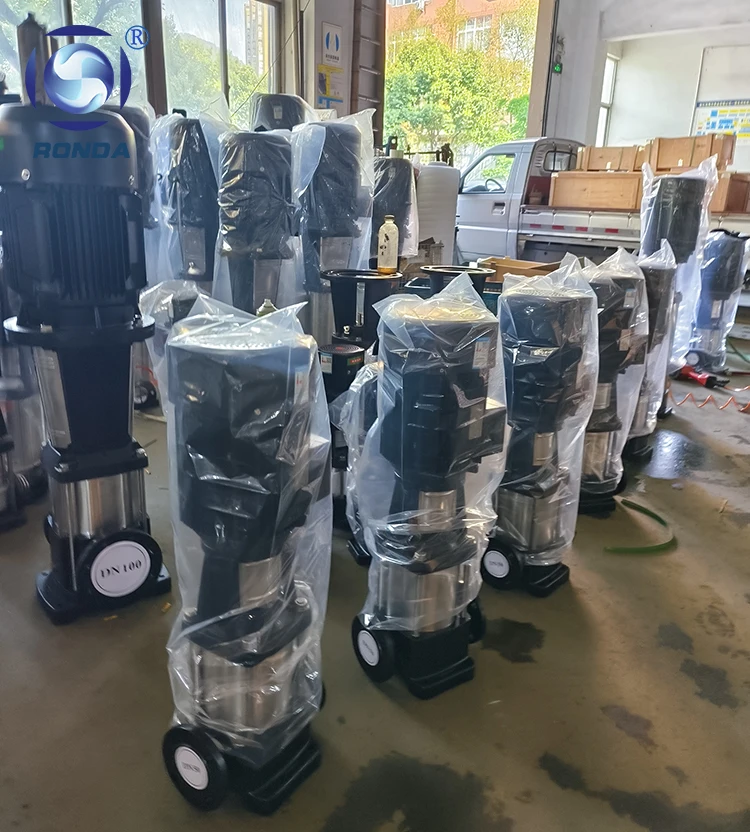

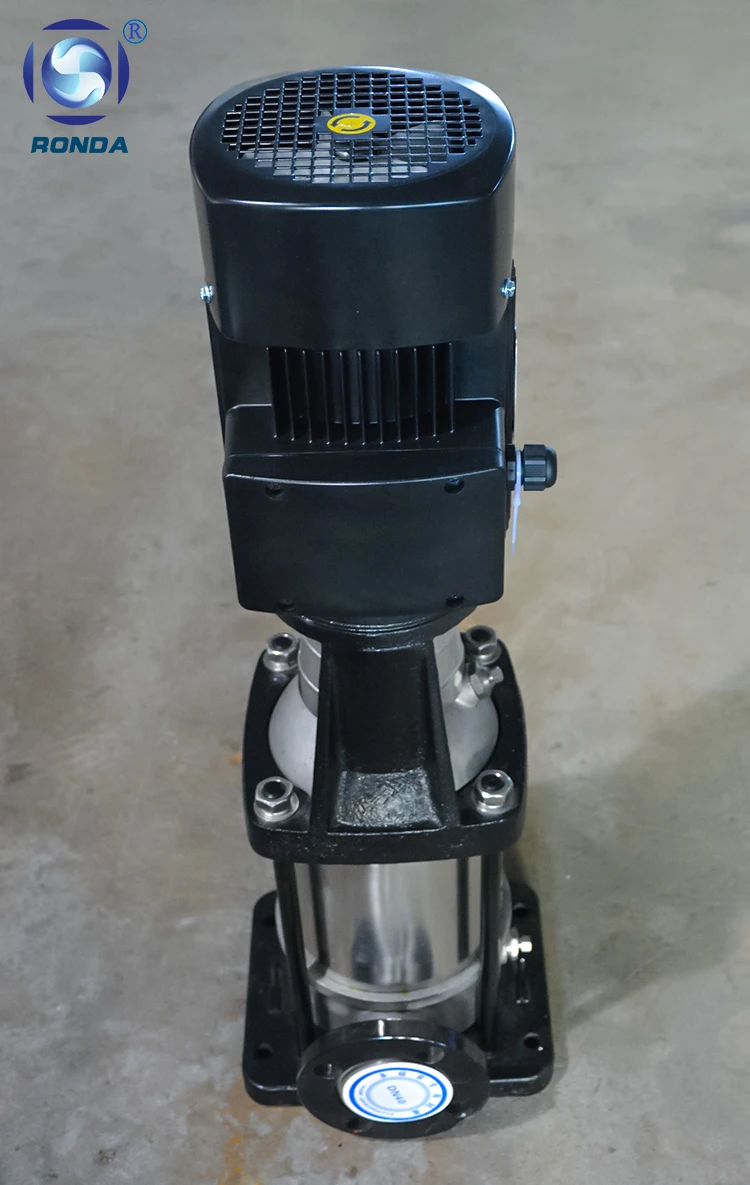

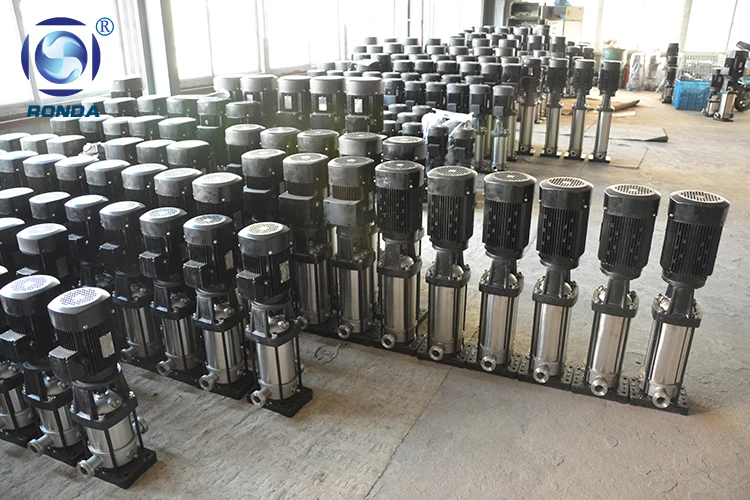

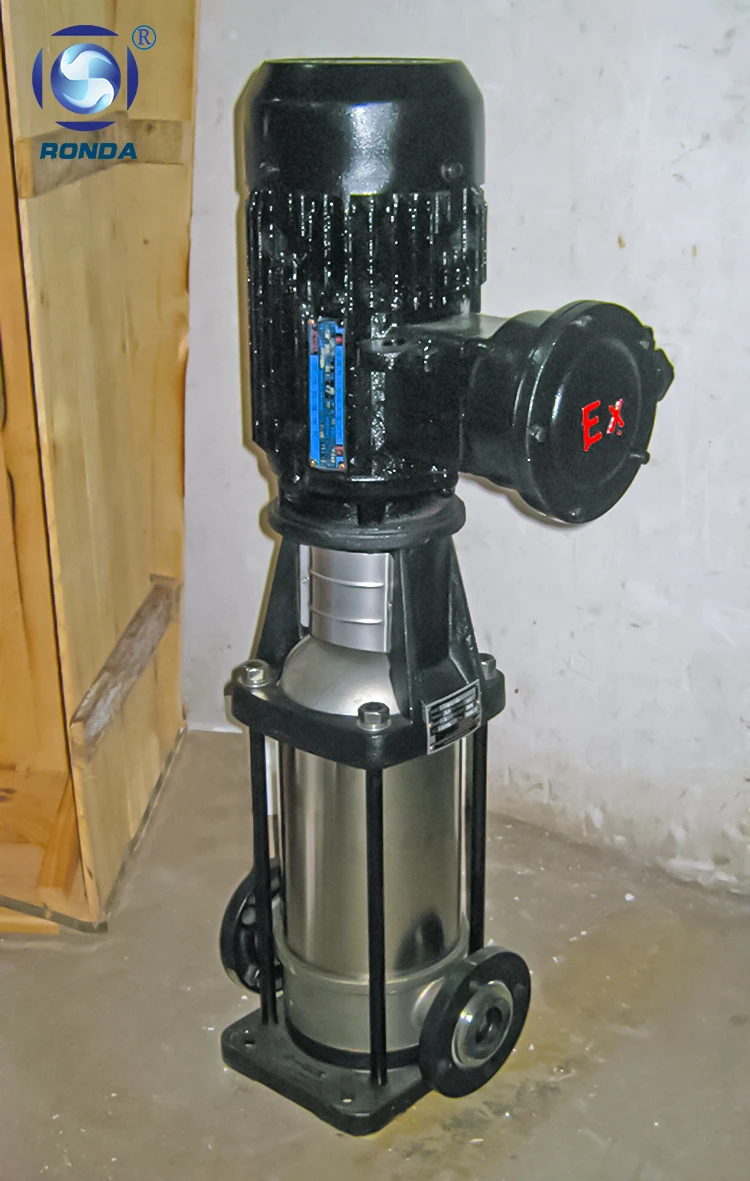

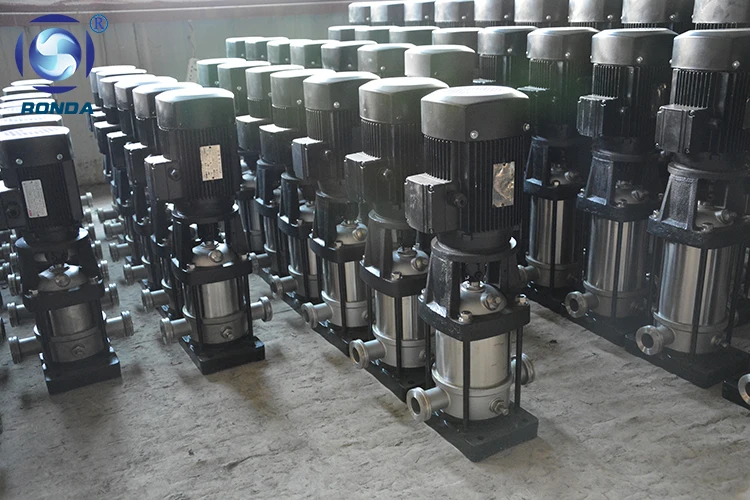

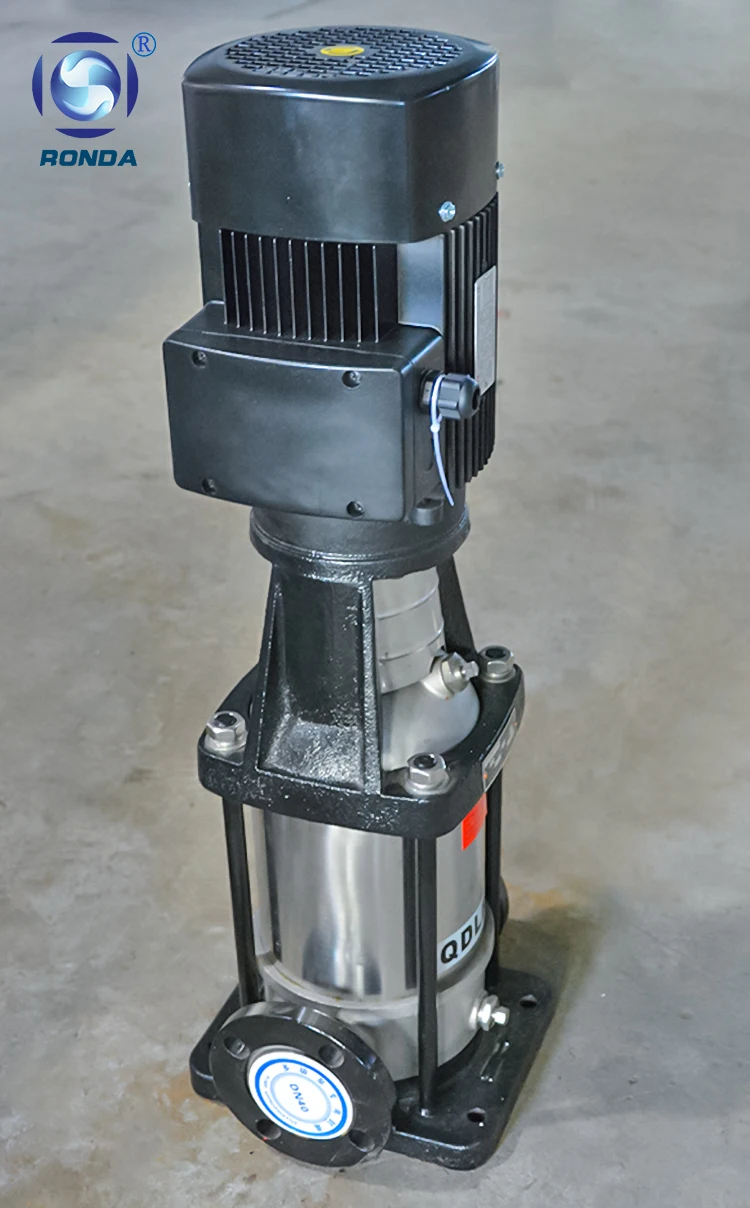

Multistage vertical pump:
