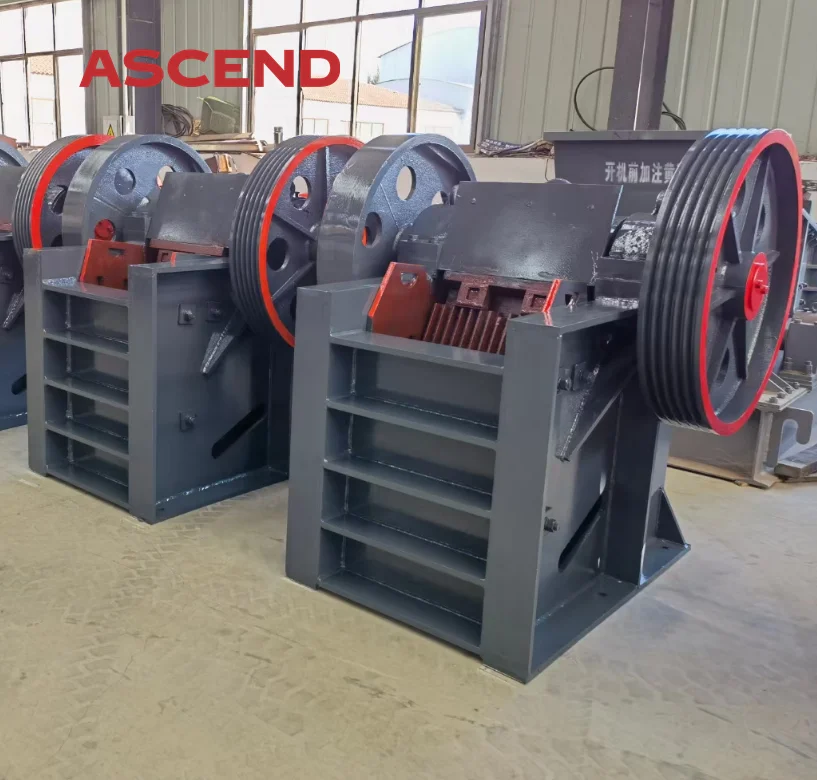

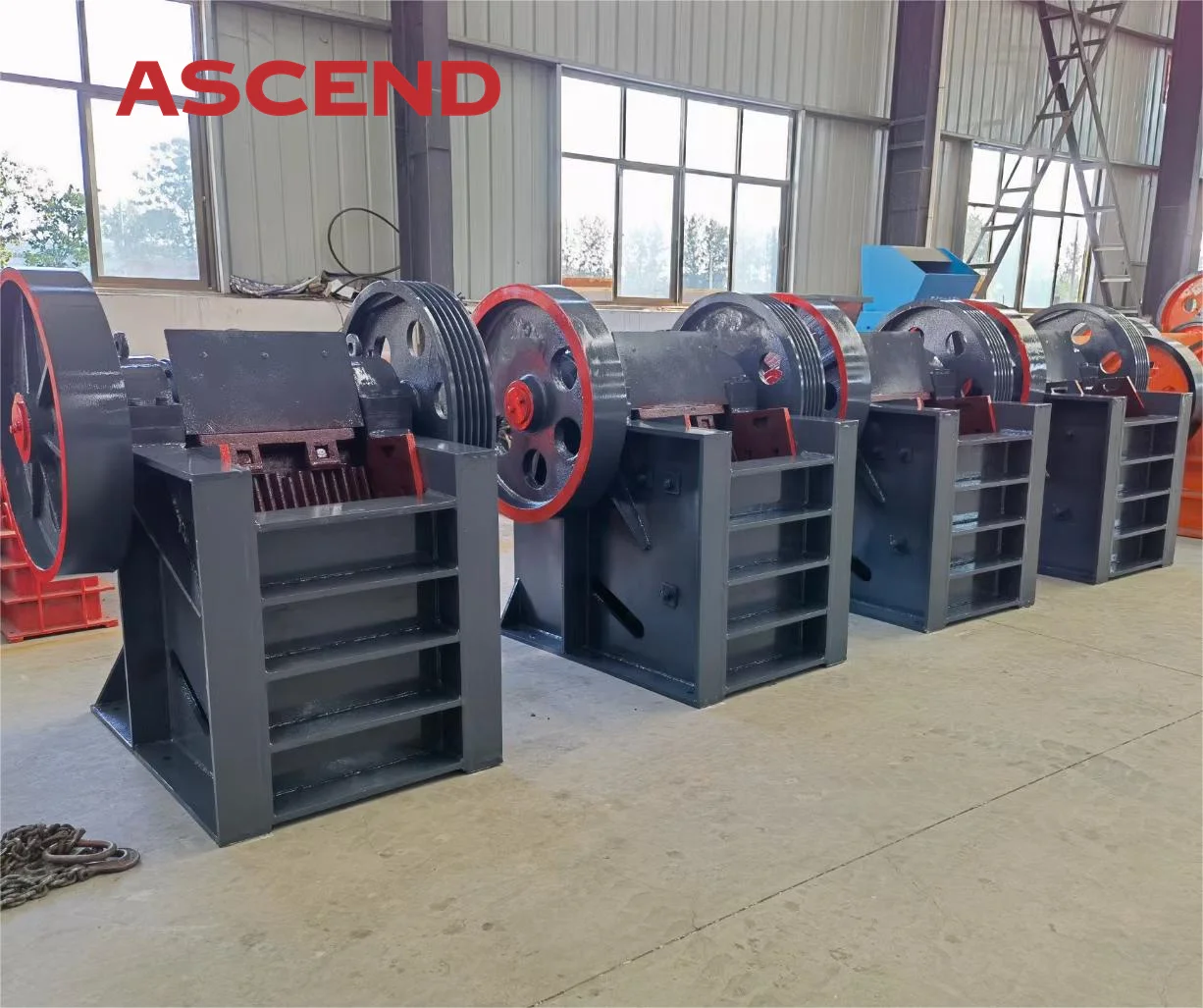

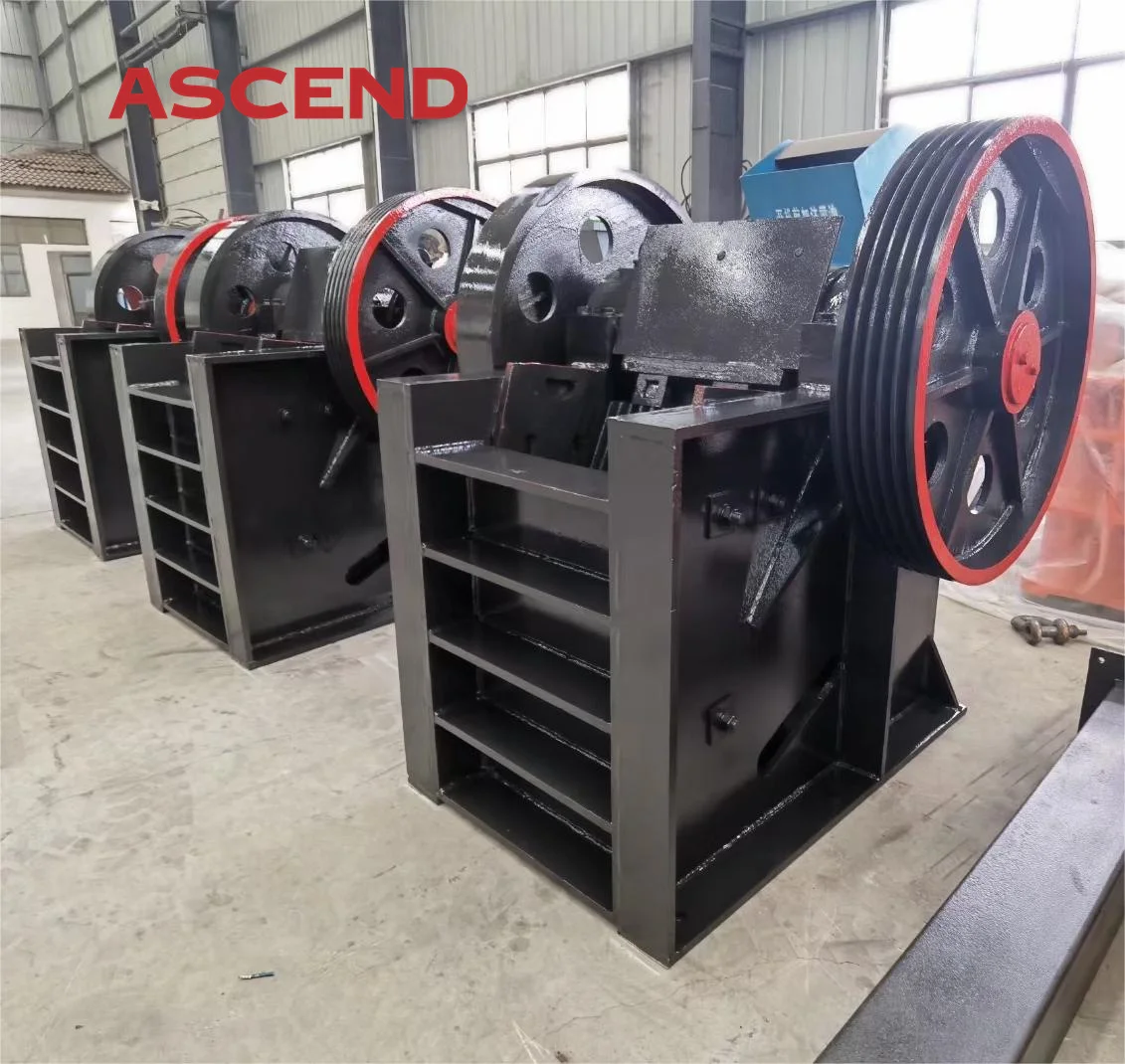

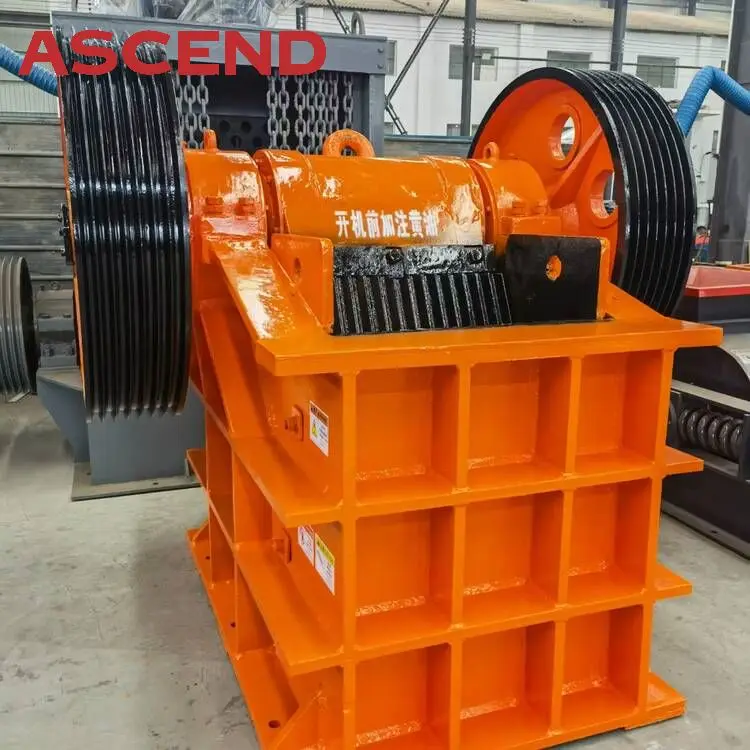

PE250x300 PE400x600 jaw crusher for ballast rock stone marble concrete slag crushing discharge size 5 10MM
PE250x300 PE400x600 jaw crusher for ballast rock stone marble concrete slag crushing discharge size 5-10MM
PE250x300 PE400x600 jaw crusher for ballast rock stone marble concrete slag crushing discharge size 5-10MM
PE250x300 PE400x600 jaw crusher for ballast rock stone marble concrete slag crushing discharge size 5-10MM
PE250x300 PE400x600 jaw crusher for ballast rock stone marble concrete slag crushing discharge size 5-10MM
PE250x300 PE400x600 jaw crusher for ballast rock stone marble concrete slag crushing discharge size 5-10MM
PE250x300 PE400x600 jaw crusher for ballast rock stone marble concrete slag crushing discharge size 5-10MM

PE250x300 PE400x600 jaw crusher for ballast rock stone marble concrete slag crushing discharge size 5 10MM

Share on (1601240651503):


Price:$3,990.00 - $4,990.00

Quantity:


Product Overview

Description



Products Introduction




ASCEND Jaw Crusher for Limestone Pebble Granite breaking to small Aggregates


Jaw Crusher is widely used in mining, building materials, chemical industry, metallurgy and so on. Jaw Crusher is suitable for primary and secondary crushing for all kinds of minerals and rocks with compressive strength less than 320 MPa.






Working Principle


Jaw Crusher Working Principle
The motor transmits through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when mobile jaw moving. So the mobile jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.

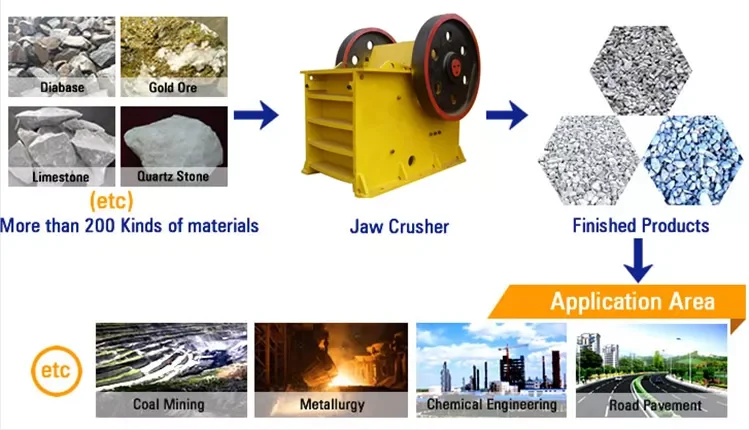

Ascend Jaw Crusher Applications




Specifications


Model
Feed openning size(mm)
Max feeding size(mm)
Discharge range(mm)
Capacity(t/h)
Power (kw)
Weight (t)
PE150x250
150x250
125
10-40
1-3
5.5
0.7
PE200x300
200x300
165
10-45
5-10
5.5
1.2
PE250x400
250x400
210
20-60
5-20
15
2.8
PE300x500
300x500
240
20-65
8-30
22
3.5
PE400x600
400x600
340
40-100
30-50
30
7
PE500x750
500x750
425
50-180
35-80
55
12
PE600x900
600x900
500
50-180
80-150
75
17
PE750x1060
750x1060
630
80-140
110-320
90
31
PE900x1200
900x1200
750
95-165
220-350
160
52
PE1200x1500
1200x1500
1020
150-350
400-800
220
100
PE150x750
150x750
120
18-48
10-25
15
3.8
PE250x750
250x750
210
15-60
15-35
30
6.5
PE250x1000
250x1000
210
15-60
16-52
37
7
PE250x1200
250x1200
210
15-60
20-60
45
9.7

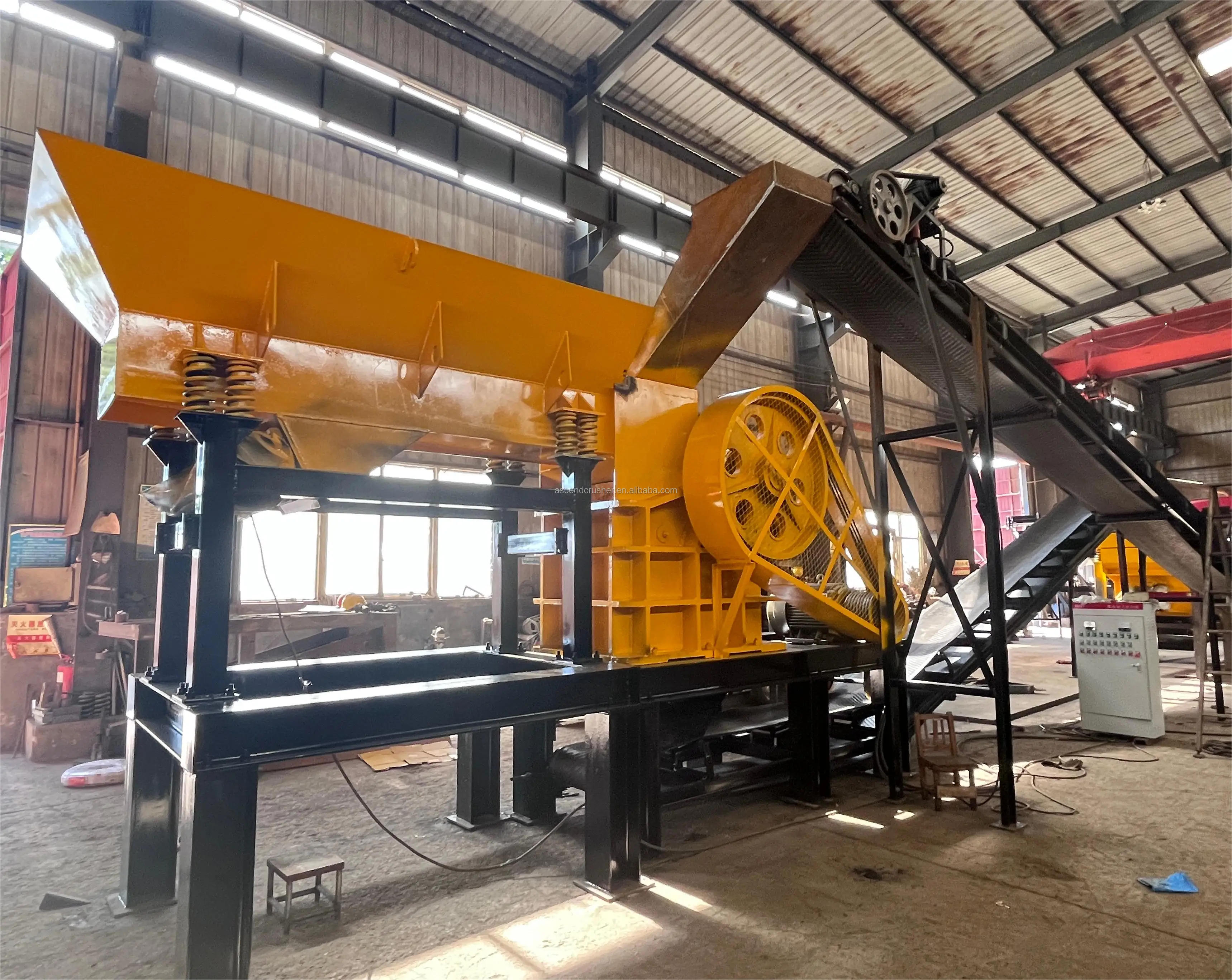

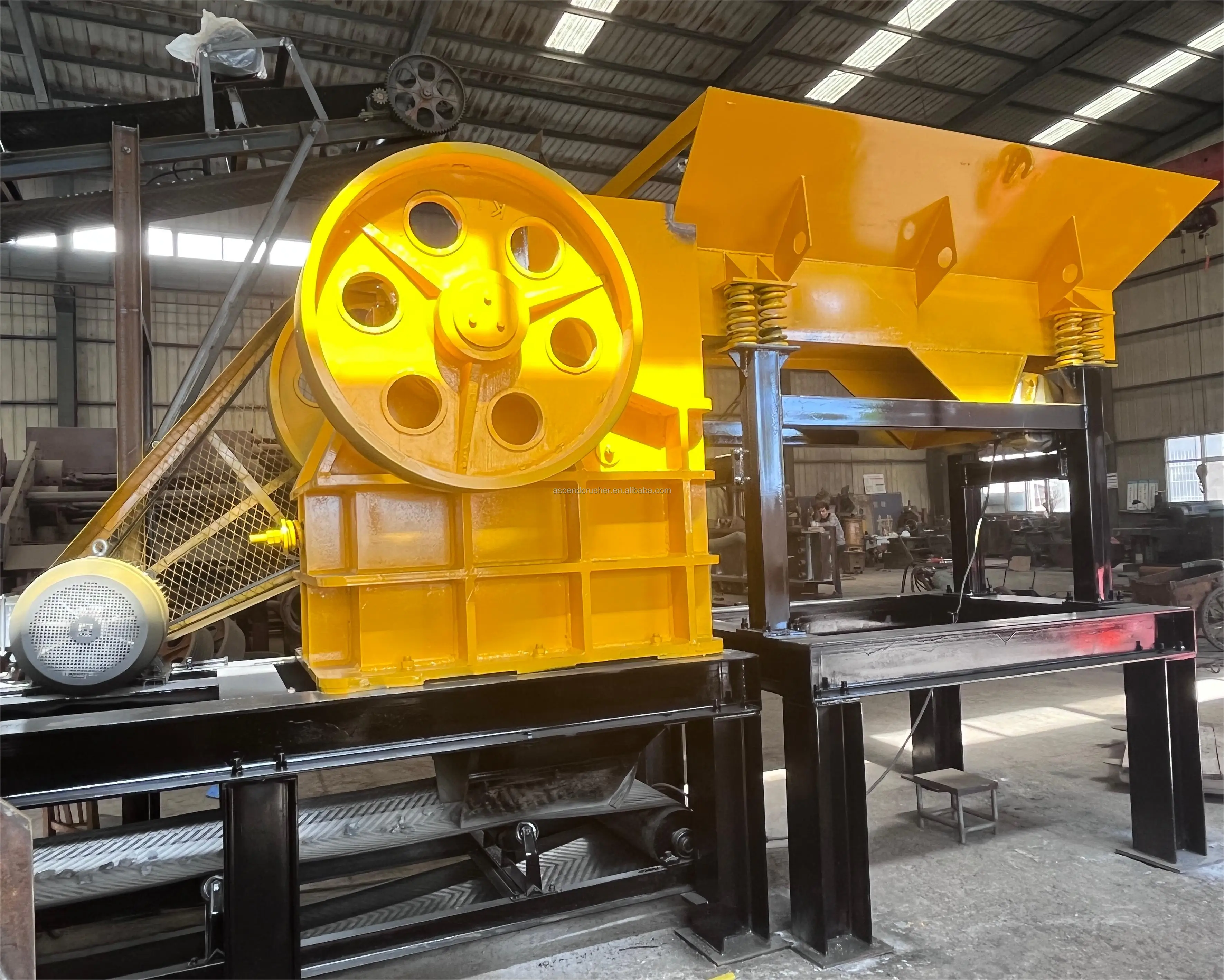

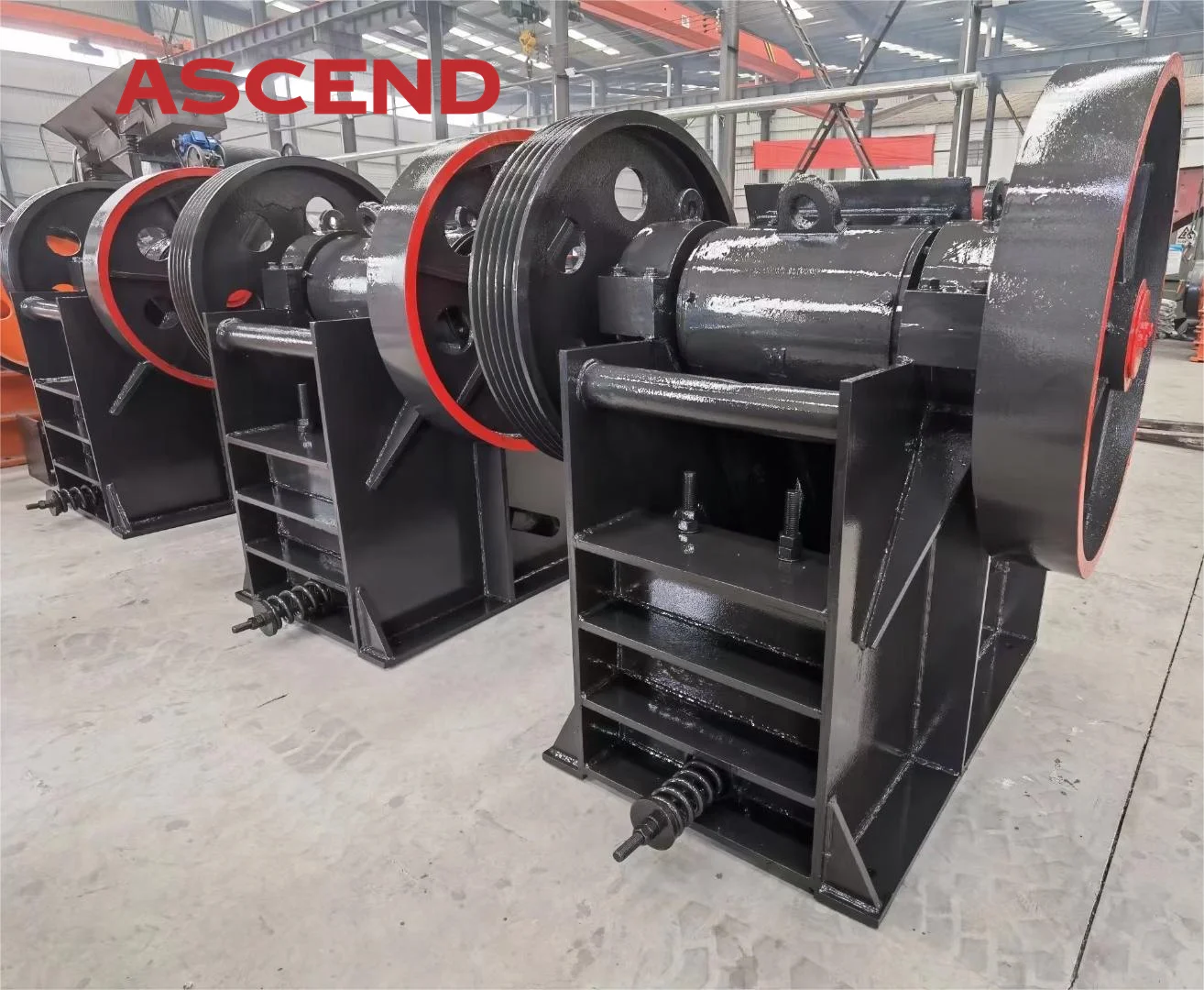

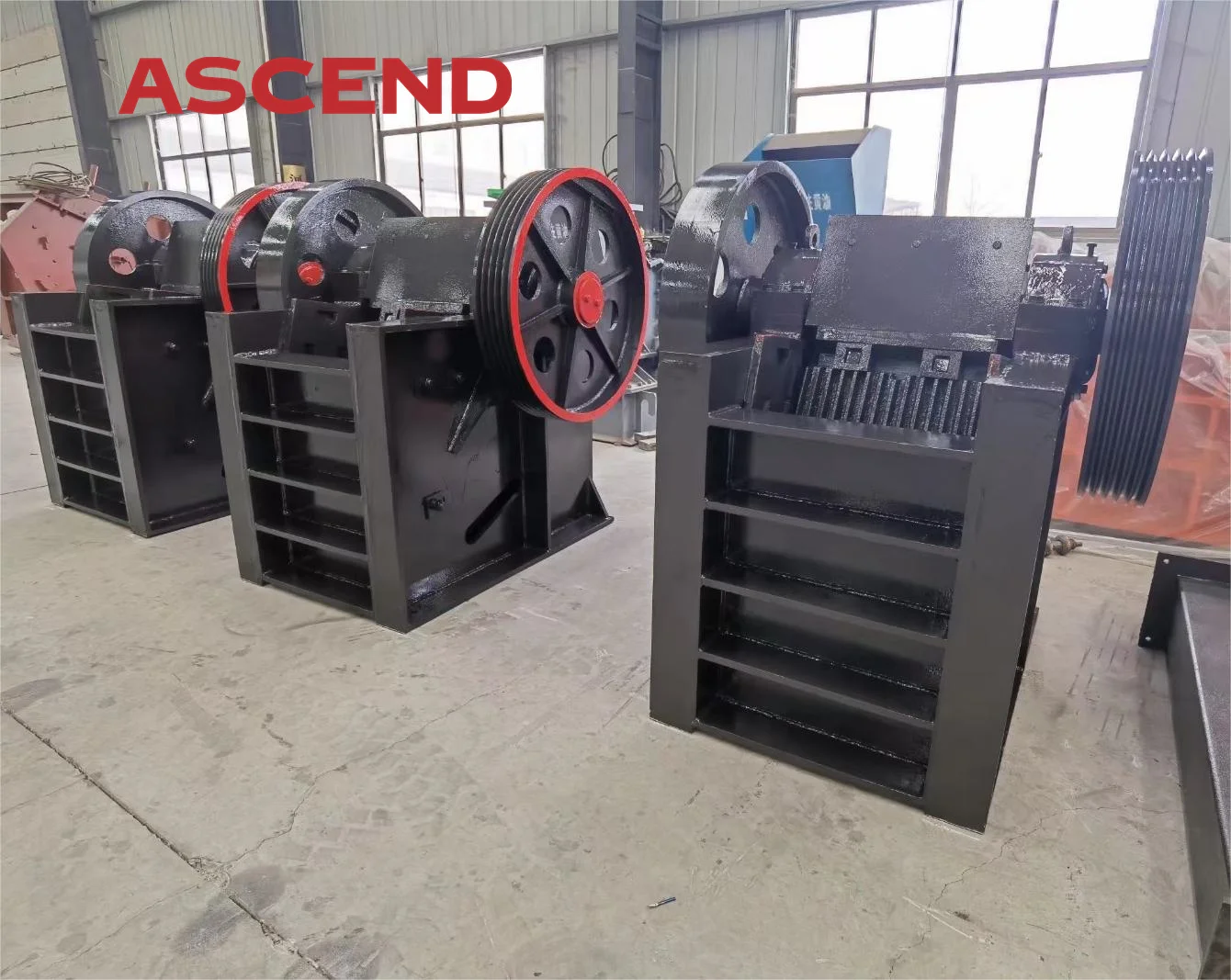

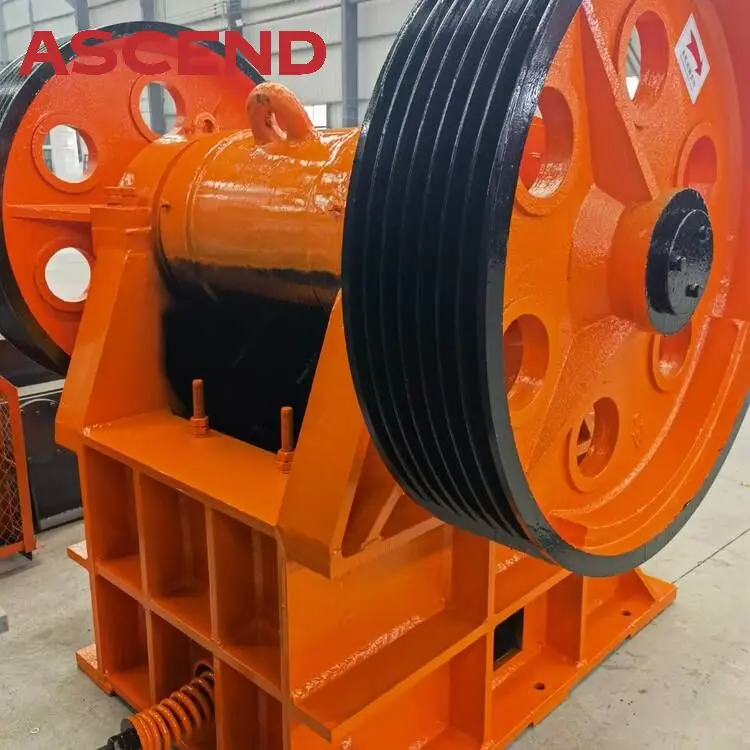

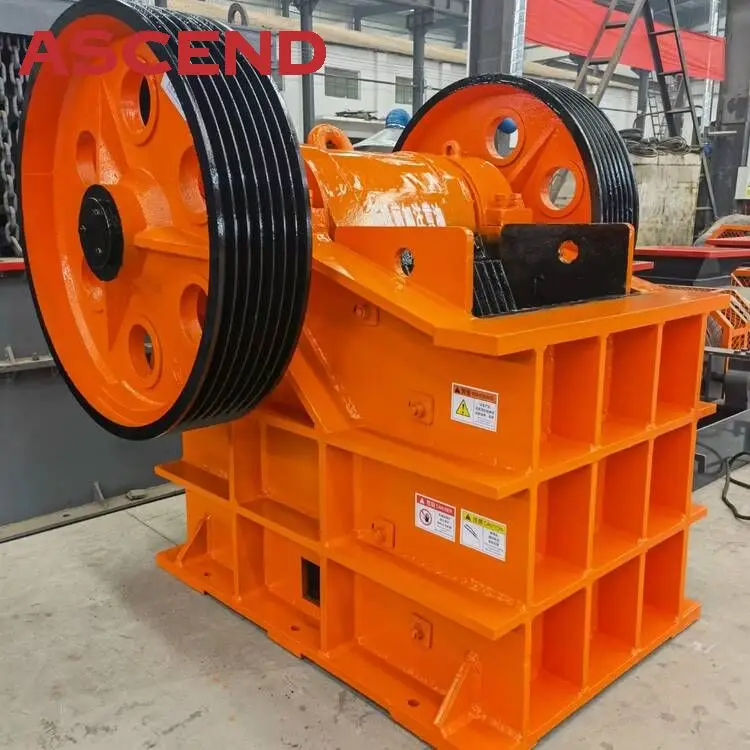

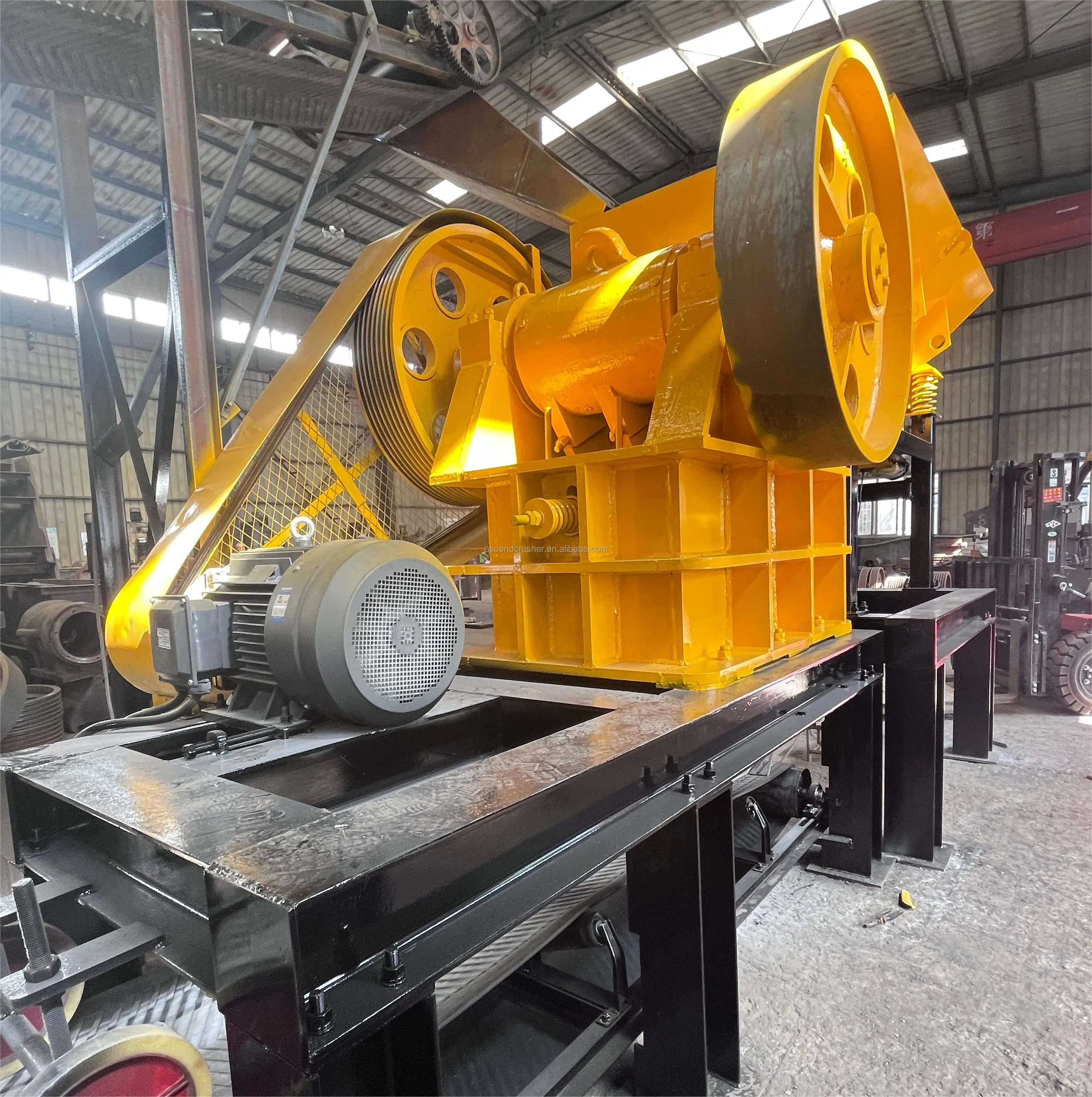

Ascend Jaw Crusher Commissioning before Delivery






Final products Aggregates after Jaw Crusher crushing

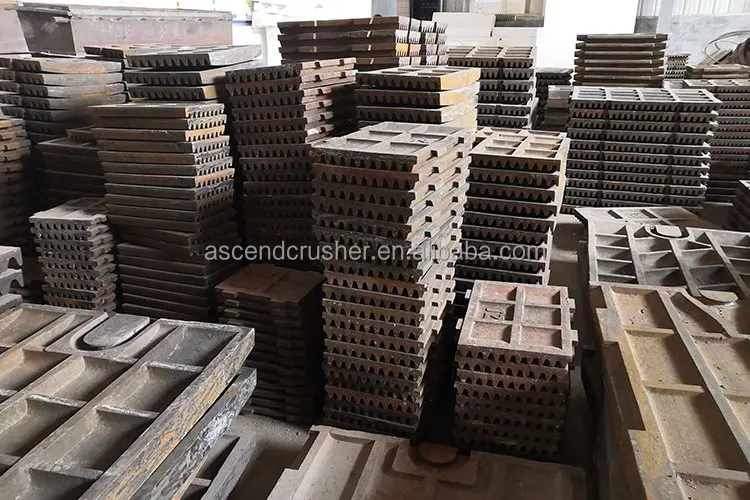

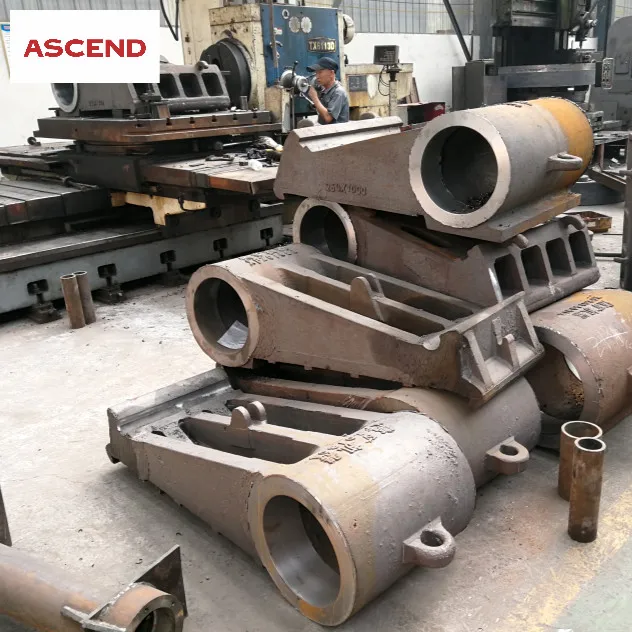

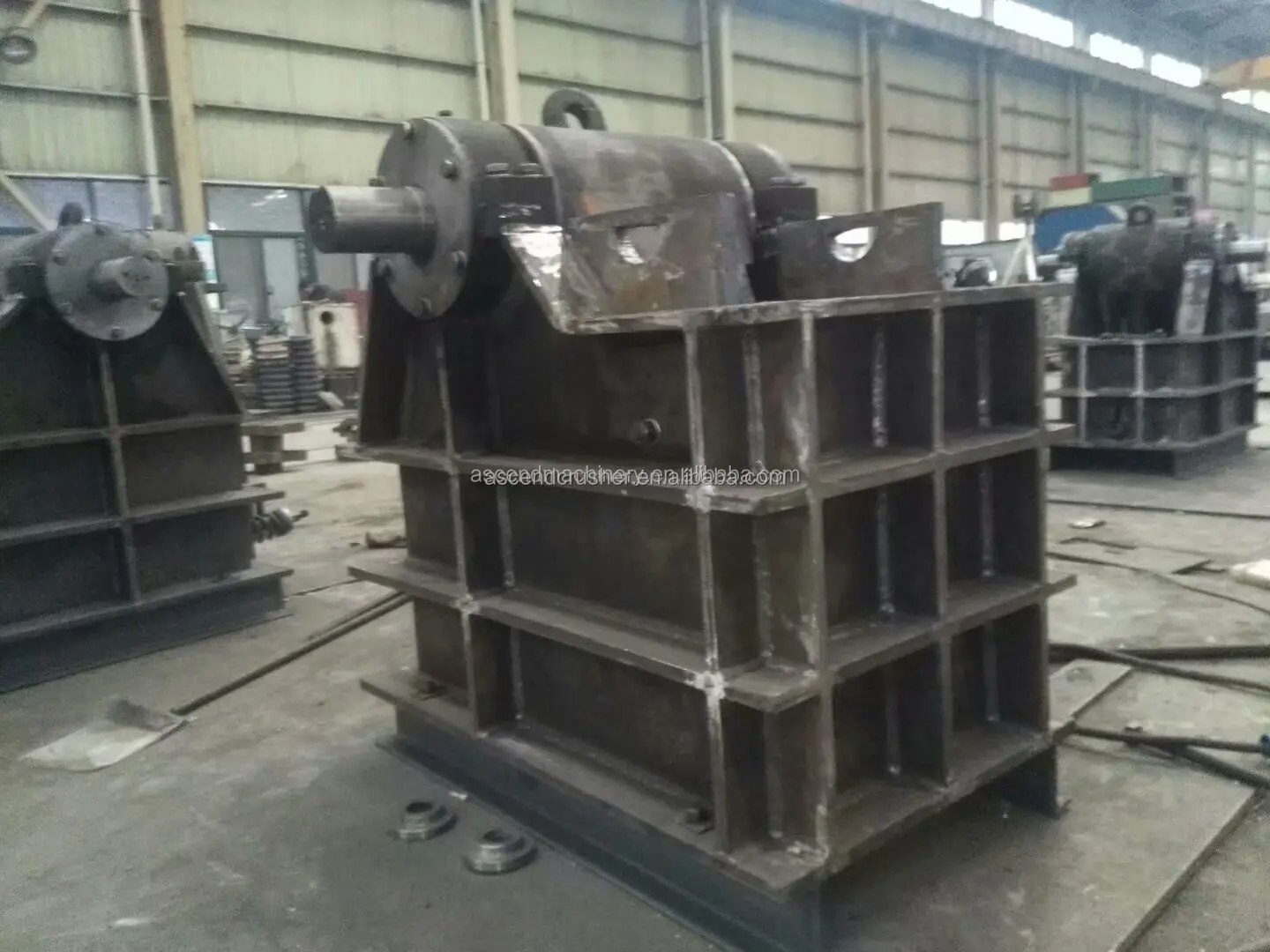

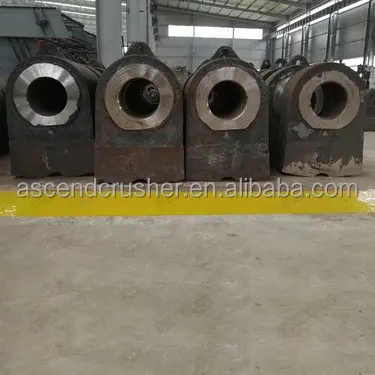

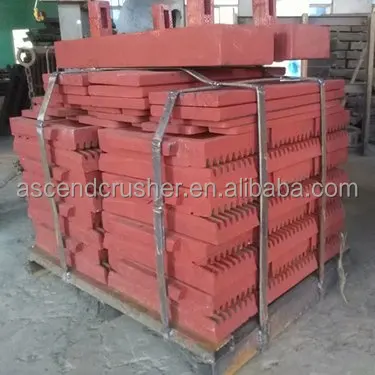

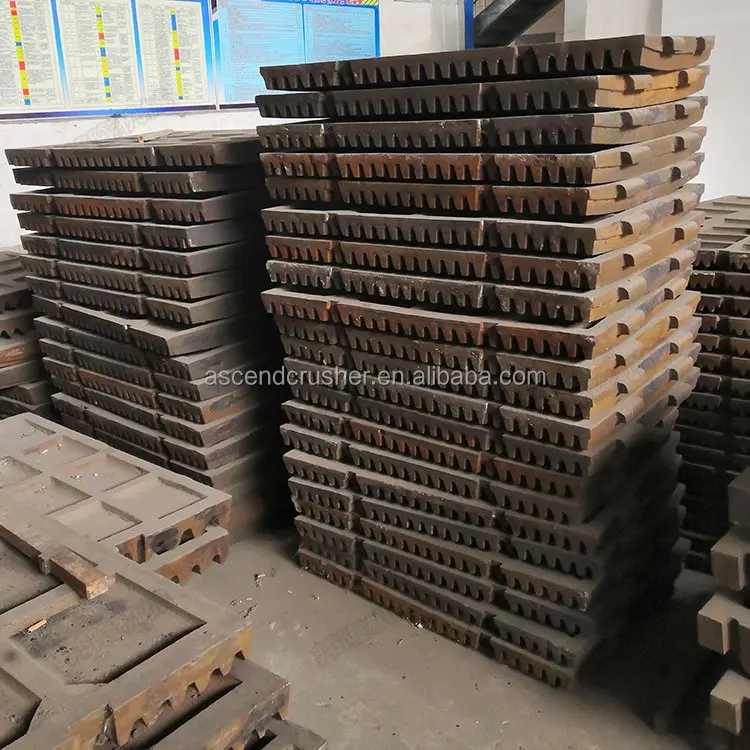

Main parts & Spare parts








Packing & Shipping

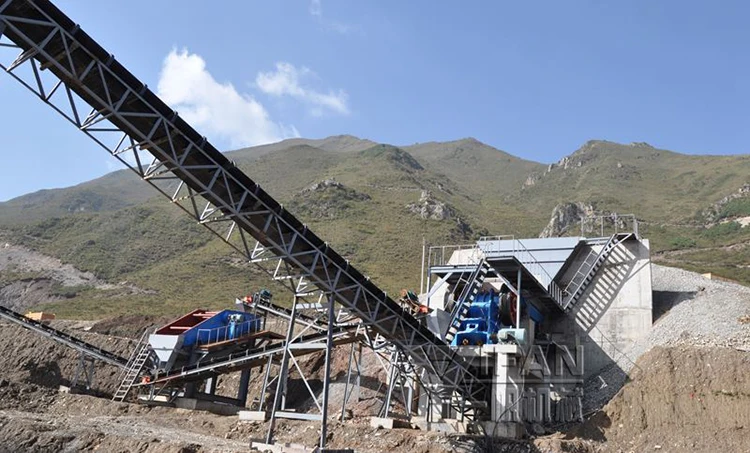

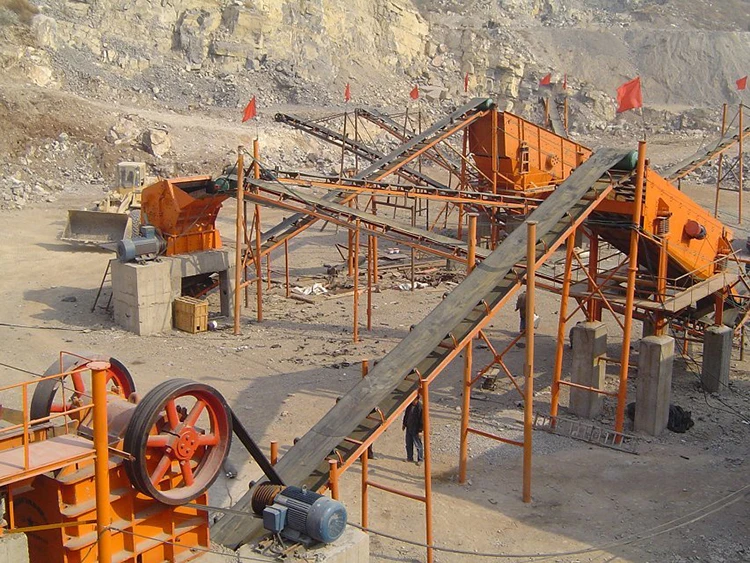

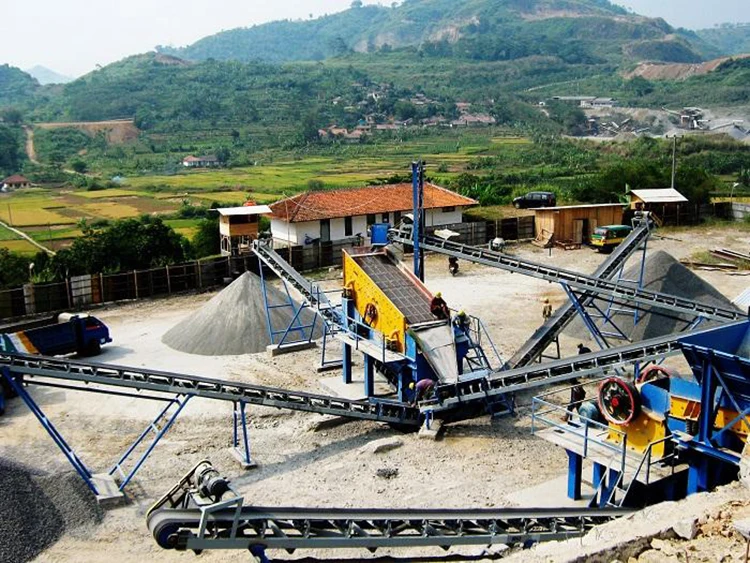

ASCEND working sites




Contact us





If you are in need of machines above, Please feel free to leave us your email or phone number. Our senior sales manager will contact you and supply you the best solution for you.

Also you will get the most competitive price first add the Wechat or WhatsApp as shown left.
