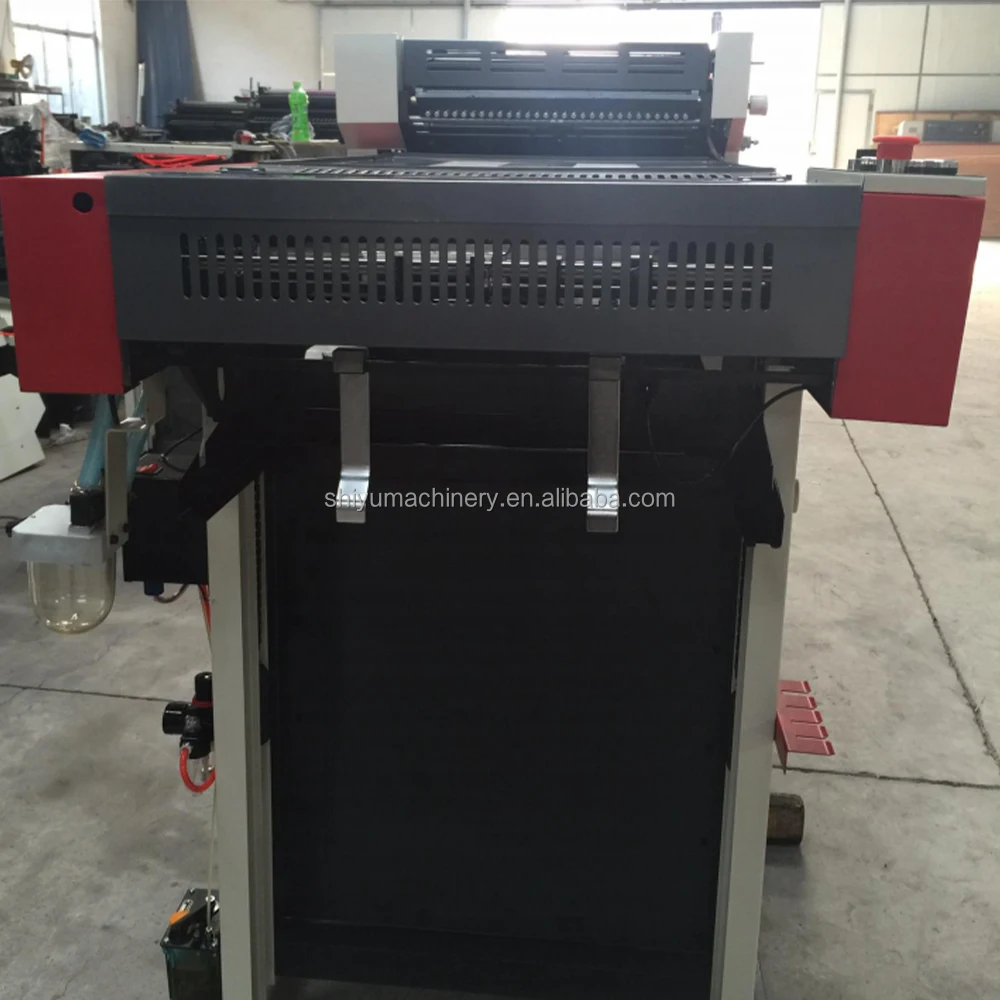

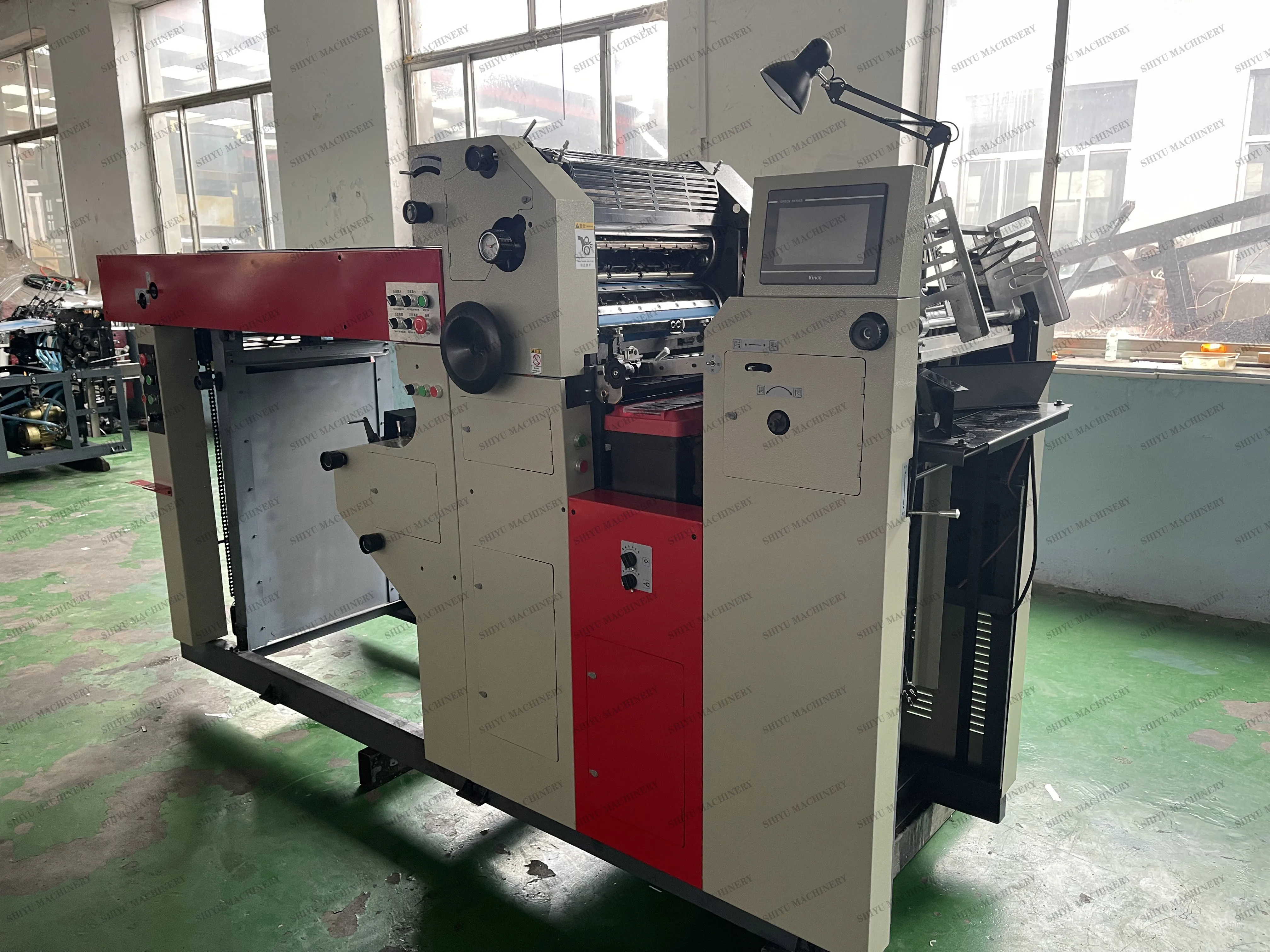

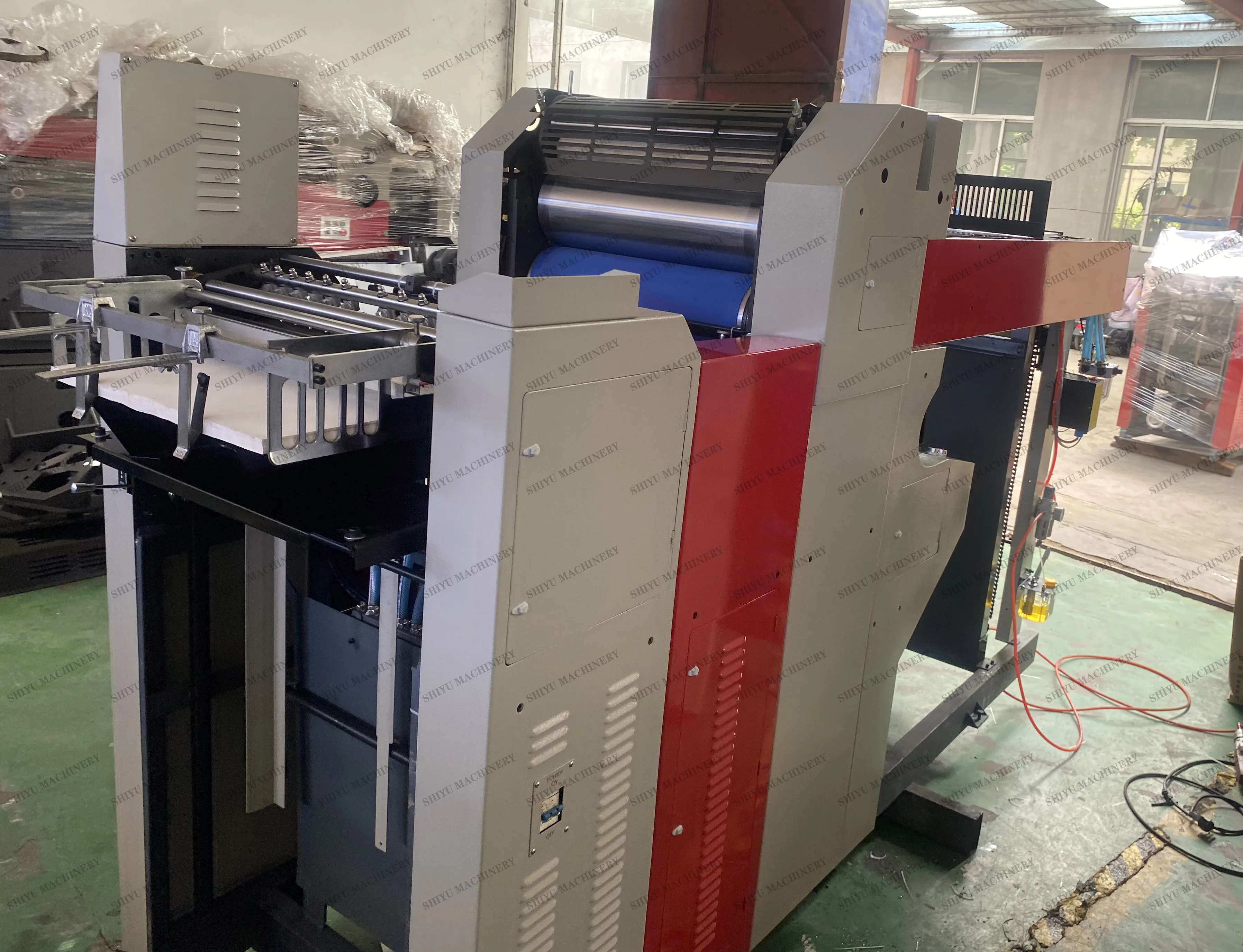

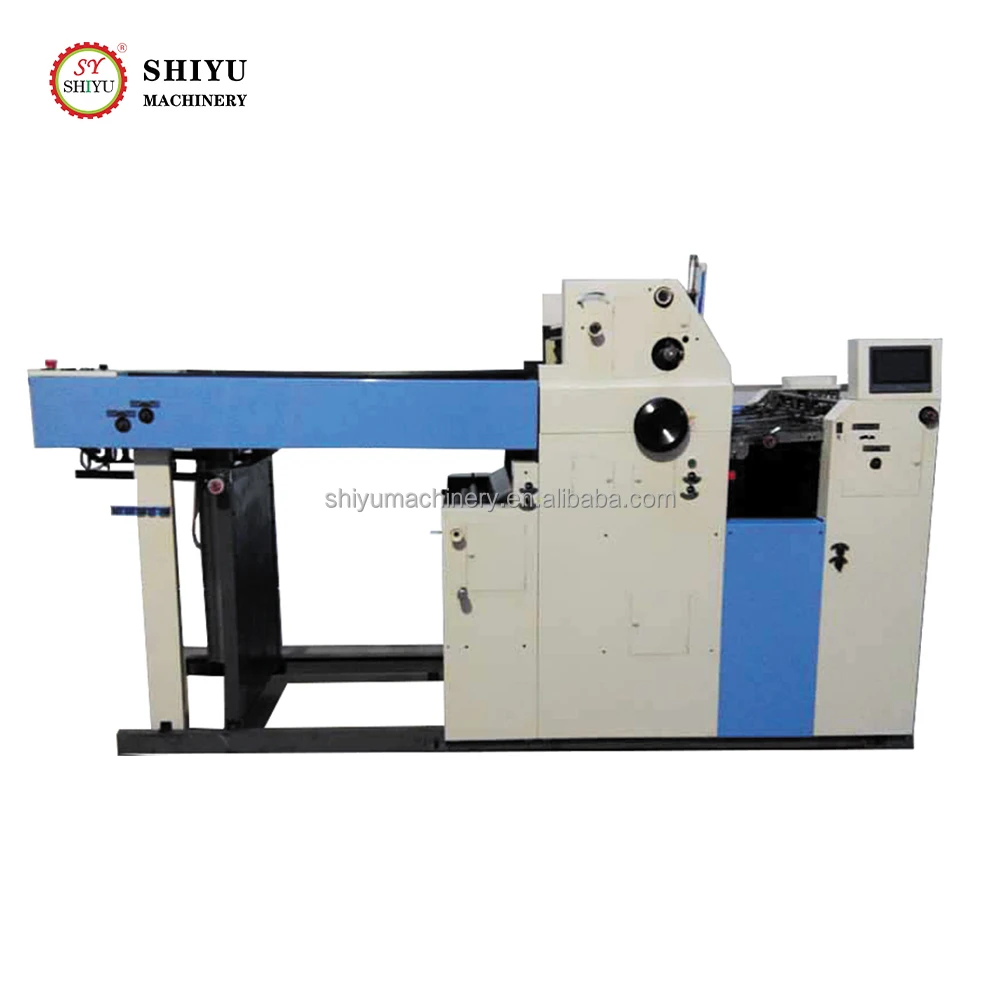

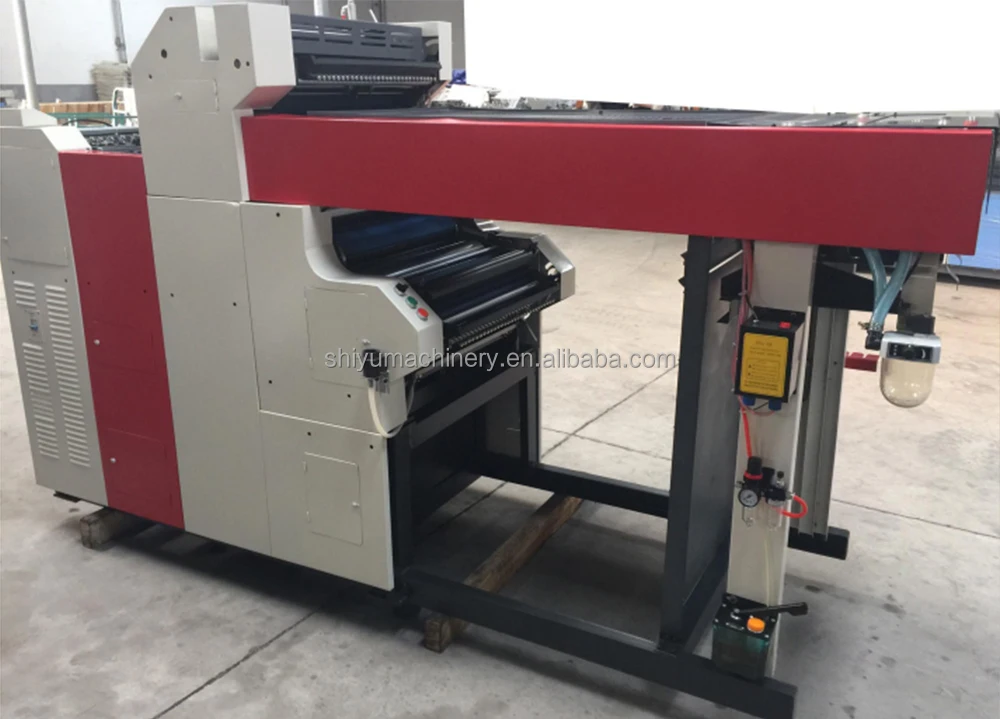

China Factory 1 2 3 4 5 6 Colors Notebook Cover Magazine Post Card label Offset Printing Machine
- Category: >>>
- Supplier: Shanghai Shiyu Machinery Group Co. Ltd.Shanghai Ltd.
Share on (1601240703448):
Product Overview
Description

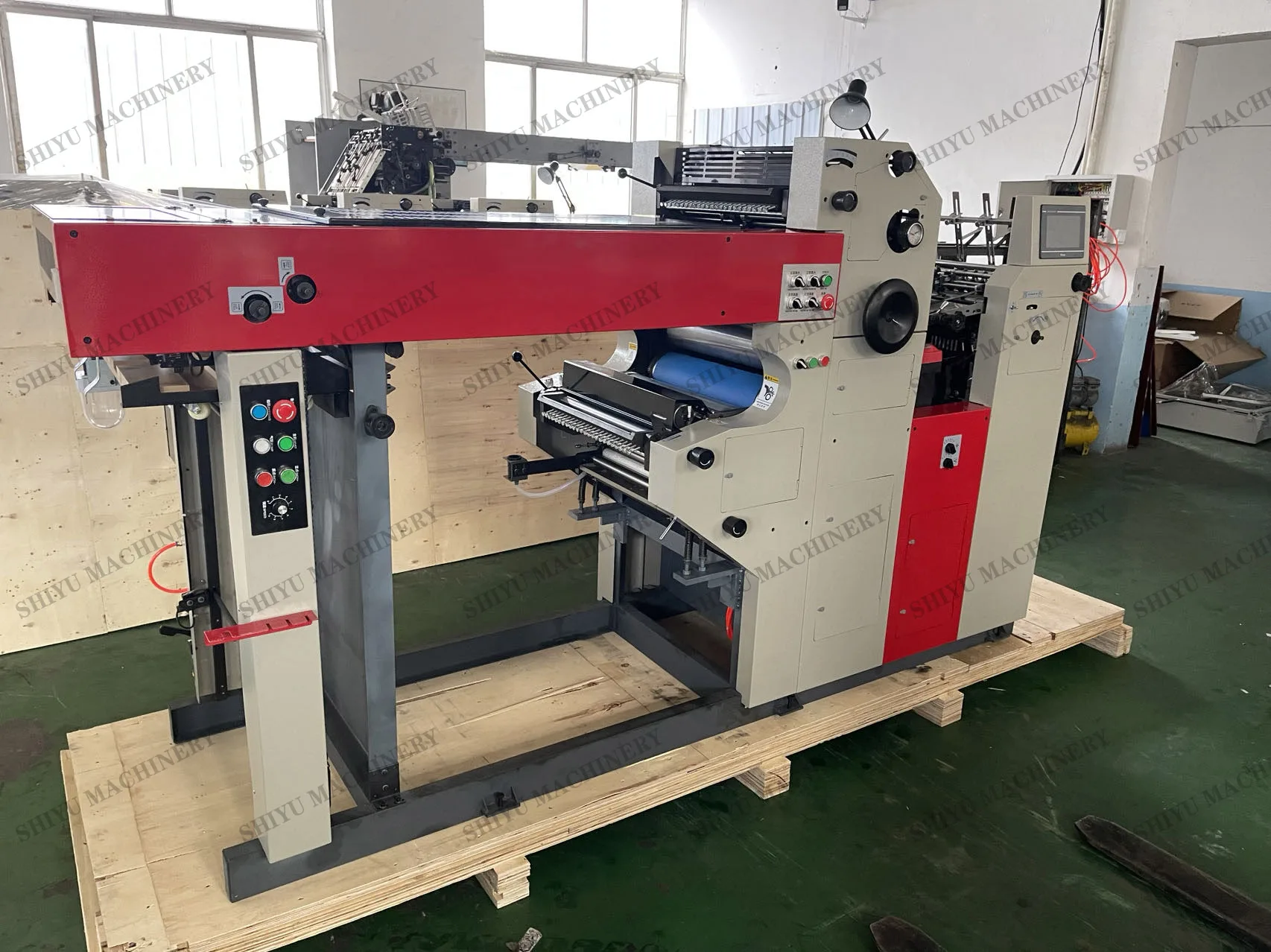

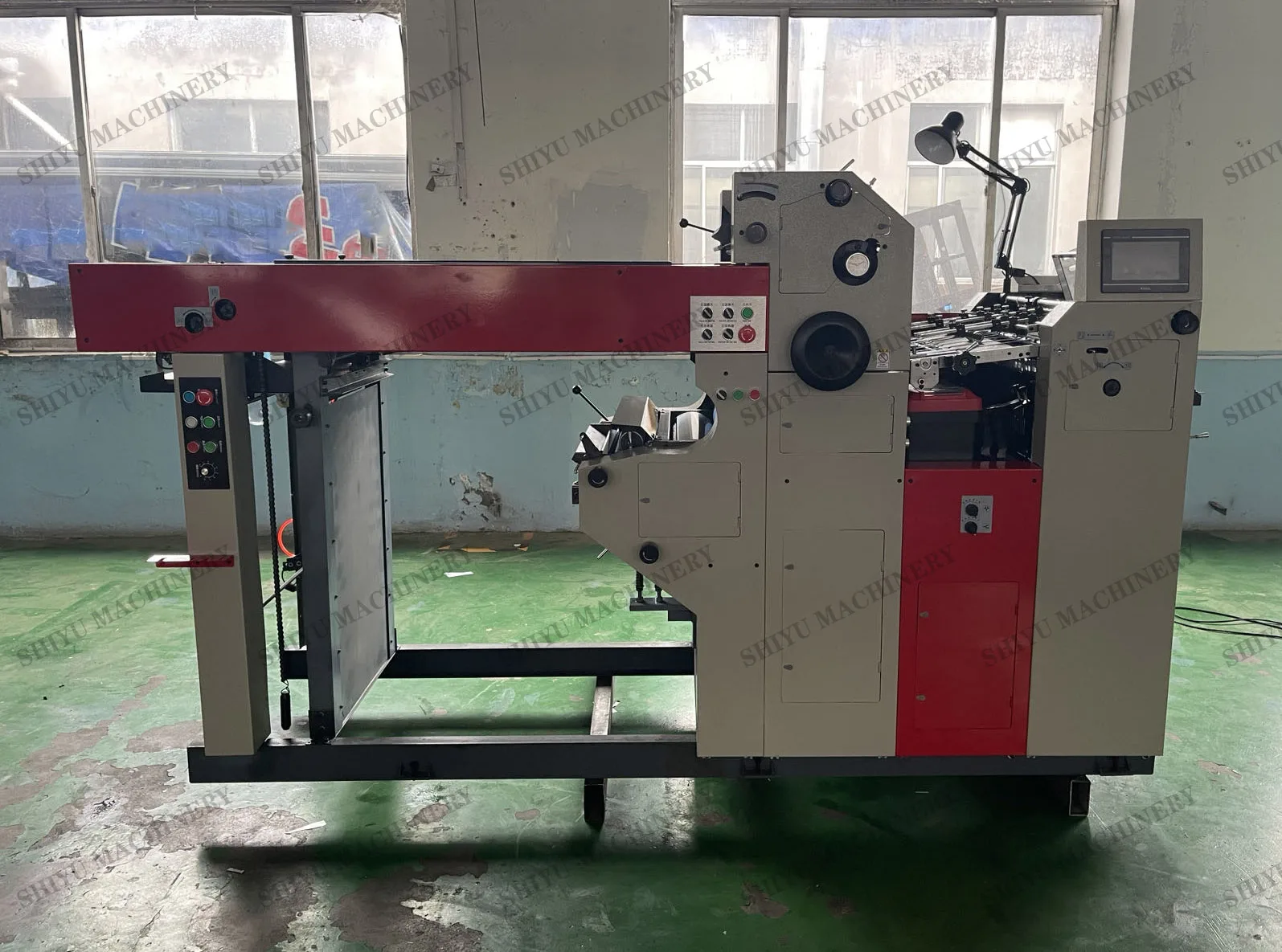

1.On the basis of a two-color offset printing press, this machine reasonably realizes the connection of multiple units on both sides, with a compact structure, smooth operation, and easy operation. Compared with other similar models, it is at the leading level in China. This machine can be used for multi-color overlay printing or monochrome unit printing, making its application more flexible.
2. The water, ink, and plate pressing are all controlled by pneumatic control, which is easy to operate and has stable performance.

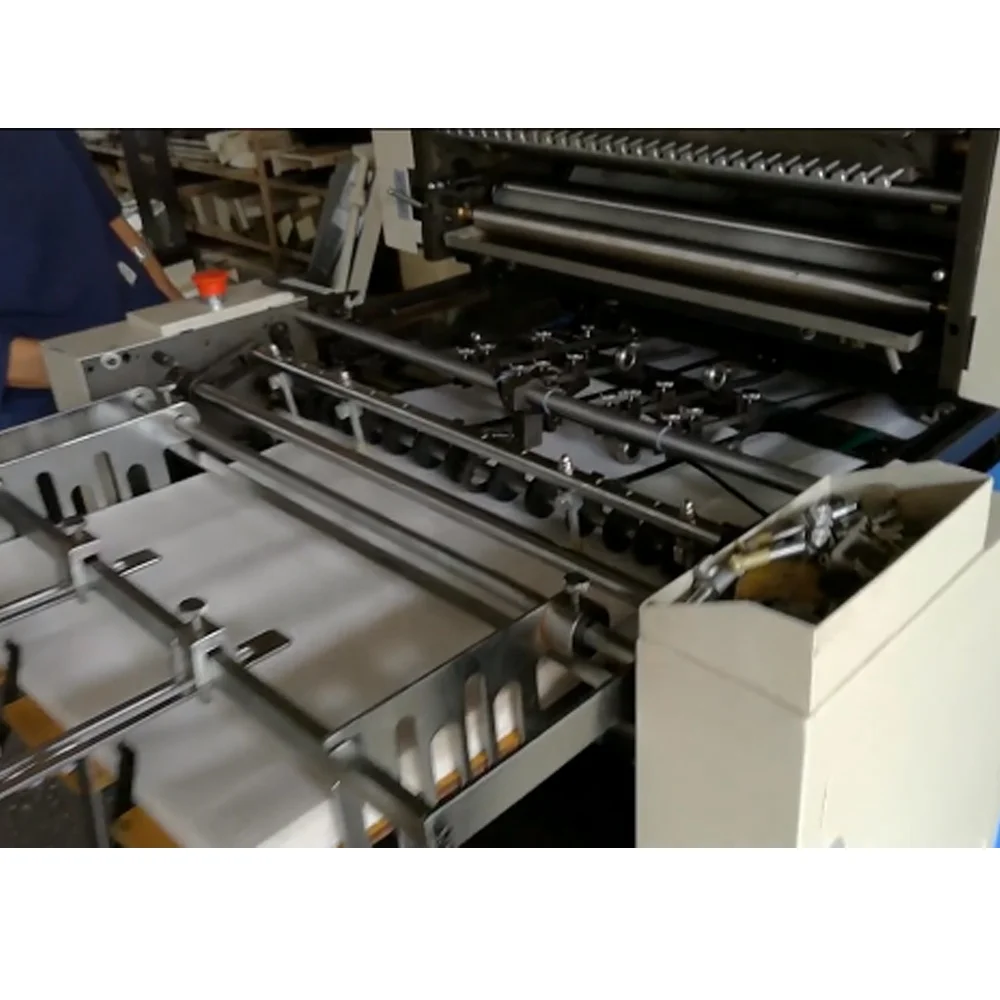

3. The paper transfer part of the unit adopts a full drum paper transfer structure, which ensures smooth paper feeding and accurate overprinting.
4. High efficiency paper delivery device with large paper inventory and high work efficiency.
5. Both units adopt a hard pressed soft structure, and the printed products are clear.
6. Equipped with a backup device for rolling out zinc oxide plates, which facilitates the use of zinc oxide plates.
7. Large space for loading and unloading plates and rubber blankets, easy to load, clean, and adjust the machine, with fine adjustment of the plate roller axis, etc
Device, quick and convenient version adjustment, high work efficiency
8. The electrical part adopts advanced PLC control system in China, with touch sensitive human-machine interaction interface and high degree of automation.
2. The water, ink, and plate pressing are all controlled by pneumatic control, which is easy to operate and has stable performance.
3. The paper transfer part of the unit adopts a full drum paper transfer structure, which ensures smooth paper feeding and accurate overprinting.
4. High efficiency paper delivery device with large paper inventory and high work efficiency.
5. Both units adopt a hard pressed soft structure, and the printed products are clear.
6. Equipped with a backup device for rolling out zinc oxide plates, which facilitates the use of zinc oxide plates.
7. Large space for loading and unloading plates and rubber blankets, easy to load, clean, and adjust the machine, with fine adjustment of the plate roller axis, etc
Device, quick and convenient version adjustment, high work efficiency
8. The electrical part adopts advanced PLC control system in China, with touch sensitive human-machine interaction interface and high degree of automation.
Model | SY47-1+1 | SY56-1+1 | SY62-1+1 |
Printing Colors | 1 color | 1 color | 1 color |
Printing sides | double sides | double sides | double sides |
Max. printing size | 460*345mm | 560*395mm | 610*440mm |
Max. sheet size | 470*450mm | 560*400mm | 620*450mm |
Min. sheet size | 130*180mm | 150*200mm | 260*180mm |
Plate size | 470*420mm*0.15mm | 560 * 395* 0.15mm | 620* 480*0.15mm |
Blanket size | 470*420mm*1.95mm | 560* 400*1.95mm | 620*480*1.95mm |
Paper Weight | 28-250g/m2 | 28-250g/m2 | 28-250g/m2 |
Ink roller | 16pcs (3 forme inking rollers) | 16pcs (3 forme inking rollers) | 16pcs (3 forme inking rollers) |
Dampening roller | 3pcs (2 forme dampening rollers) | 3pcs (2 forme dampening rollers) | 3pcs (2 forme dampening rollers) |
Printing speed | 2000-8000 sheets/hour | 2000-8000 sheets/hour | 2000-8000 sheets/hour |
Main Power Motor | 1.5KW | 1.5KW | 1.5KW |
air-pump motor | 0.55KW | 0.55KW | 1.1KW |
Gross Weight | 1360kg | 1450kg | 1660kg |

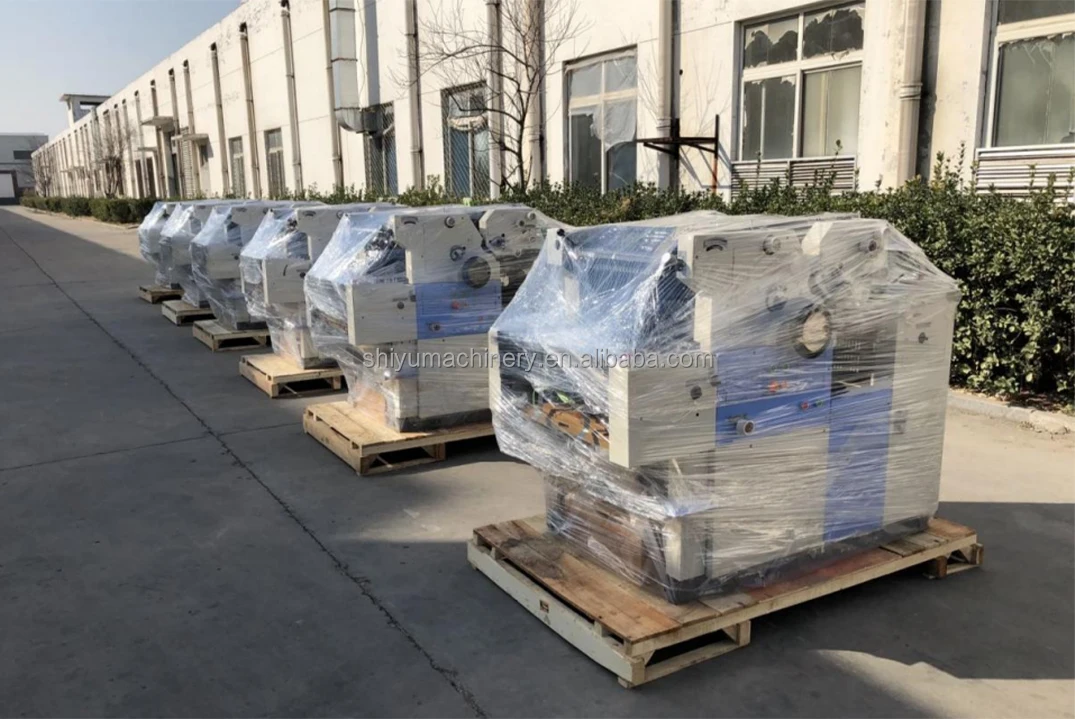

Packing size | 2850*1000*1750mm | 2800*1000*1800mm | 2950*1270*1850mm |
