Diesel Portable Water Well Drilling Rig 200m Truck Mounted Drilling
- Category: >>>
- Supplier: Shandong Huayao Construction Machinery Co. Ltd.
Share on (1601240740131):
Product Overview
Description
Product Information

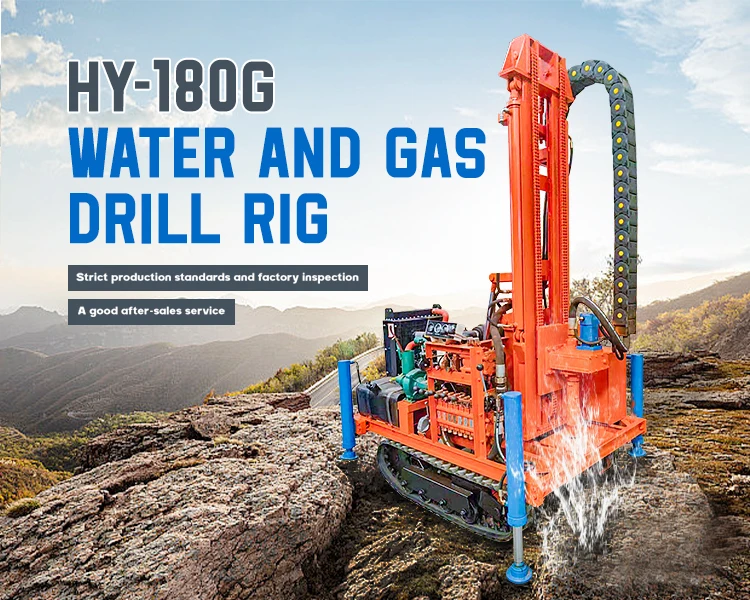

Diesel Portable Water Well Drilling Rig 200m Truck Mounted Drilling
Product Description:
✍HUAYAO Water well drilling rig is a kind of light, efficient, and multifunctional drilling equipment, which is mainly suitable for industrial, civil, and geothermal drilling.
✍The pneumatic drilling rigs have the advantages of compact structure, fast drilling, flexible movement, and wide application area.
✍It is especially suitable for taking water from mountain areas and rock stratum.
HY-180G can be used in different strata, and the diameter of the drilling can reach 130-400mm.
HY-180G adopts new hydraulic technology, equipped with large torque hydraulic motor rotation and large
✍The pneumatic drilling rigs have the advantages of compact structure, fast drilling, flexible movement, and wide application area.
✍It is especially suitable for taking water from mountain areas and rock stratum.
HY-180G can be used in different strata, and the diameter of the drilling can reach 130-400mm.
HY-180G adopts new hydraulic technology, equipped with large torque hydraulic motor rotation and large

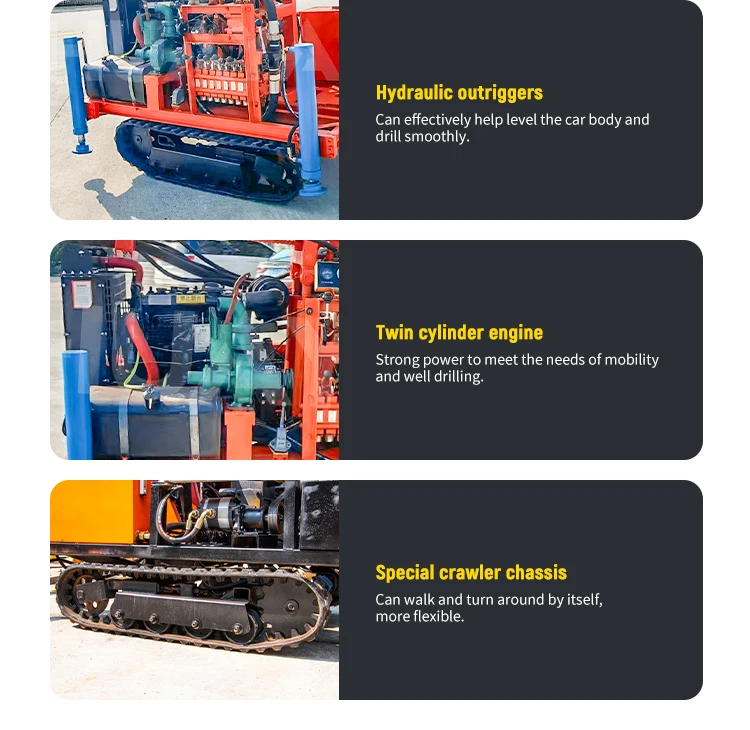

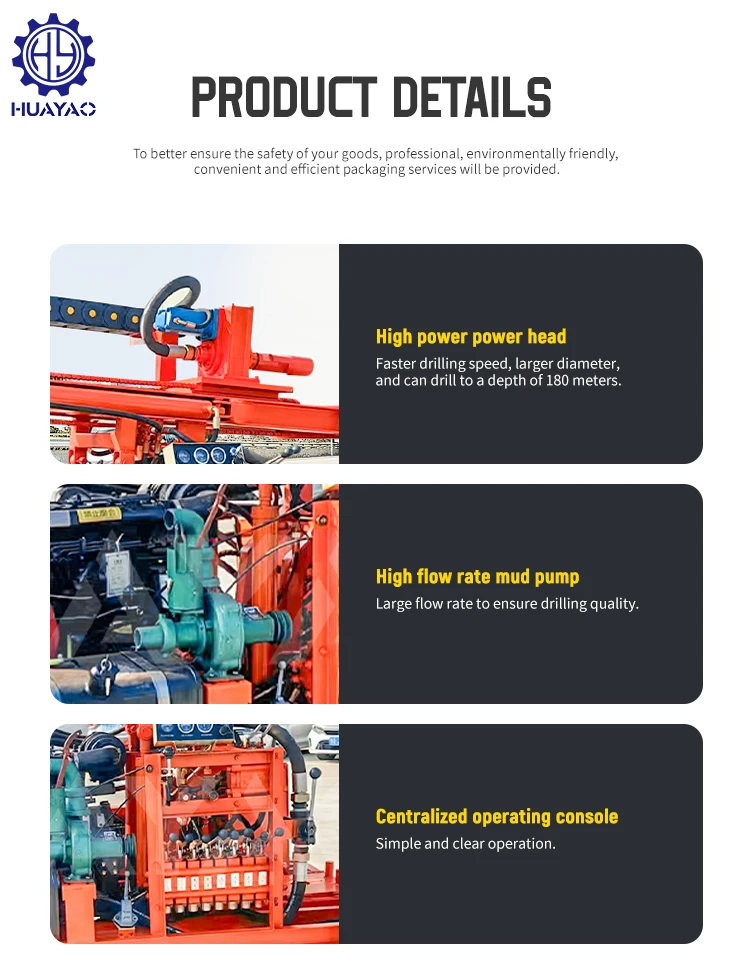

Features of water and pneumatic drilling rigs
1. High drilling efficiency, powered by a 37KW diesel engine
2. High efficiency and high rotational torque
3. Integrated automation equipment, all terrain automatic movement
4. Adopting an integrated die casting design, with a long service life
5. Self loading and unloading, easy to operate
1. High drilling efficiency, powered by a 37KW diesel engine
2. High efficiency and high rotational torque
3. Integrated automation equipment, all terrain automatic movement
4. Adopting an integrated die casting design, with a long service life
5. Self loading and unloading, easy to operate
Product Name | Water and Pneumatic Drilling Rig | |
Model | HY-180G | |
Overall Weight | 1700kg | |
Dimension | 2300mm*1400mm*2100mm | |
Drilling Diameter | Ф130-Ф300mm | |
Drilling Depth | 180m | |
Diameter of Drill Rod | Ф76mmФ 89mm | |
Maximum Drilling Length Per Time | 2m | |
Working Air Pressure | 1.2- 2Mpa | |
Engine Power | 37KW Engine | |
Lift Force | 14T | |
The applicable geology is a hard rock layer. If the geology is a loose rock layer, please use follow-pipe drilling to prevent the occurrence of hole collapse. | ||
Drilling Mode | Double Hydraulic Motor Rotor Propulsion Impactor Down The Hole Hammer or Mud Drilling | |
Impactor | China Famous Brand New Diamond Middle and High Pressure Series Impactor | |
Optional Accessories | 1.1000 hours Spare Parts 2.Mud Pumps 3.Electric welding machine 4.Foam Pump | |
If you like this water well drilling rig !
You will get VIP exclusive service and the best price !

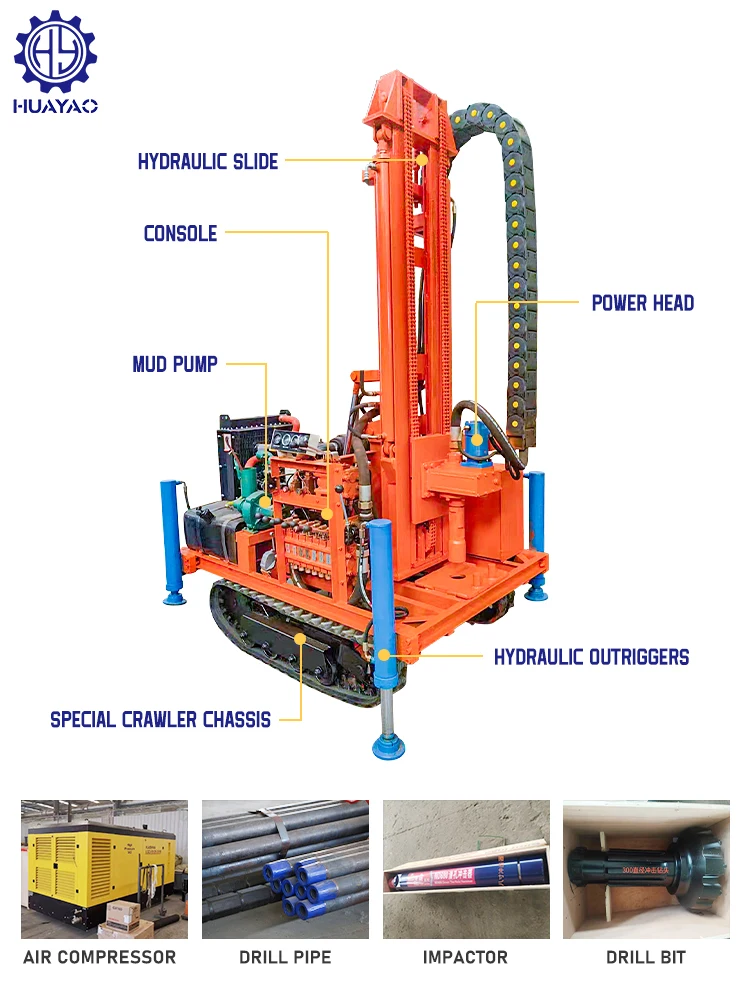

Please refer to the structure diagram of our pneumatic water well drilling rig as follows ：
Based on different depth requirements, we recommend suitable drilling rigs for you !
We will recommend the most suitable model for you.
Specification

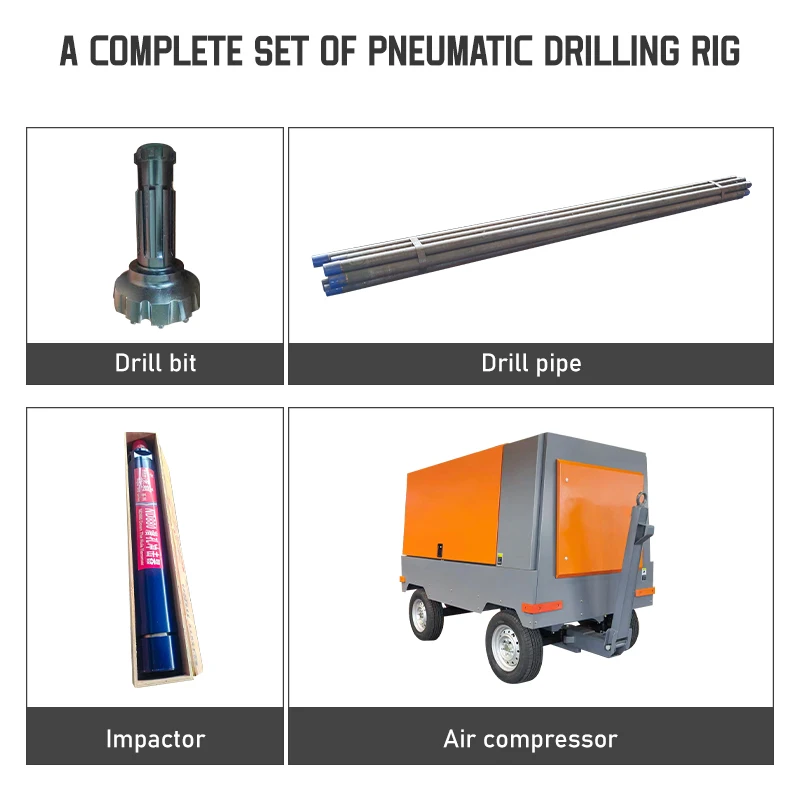

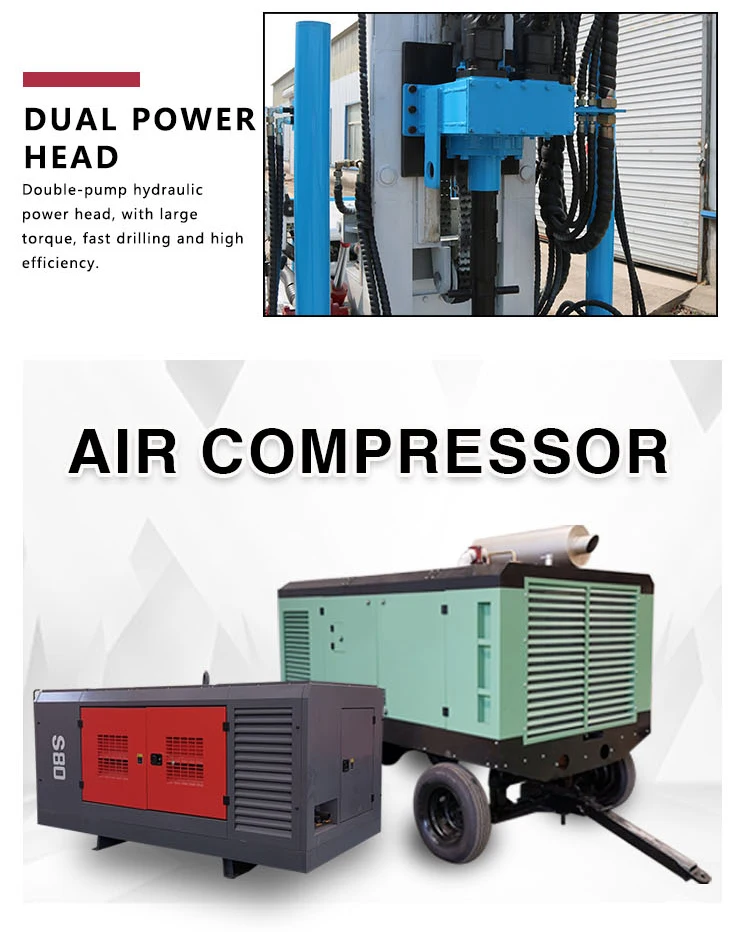

This drilling rig needs to be used with an air compressor. If you want to buy an air compressor at the same time, please tell usyour drilling depth and diameter, and we will give the corresponding recommendation.
For pneumatic drilling rig , if customer need air compressor , it can loading full container . If not need air compressor , itcanloading LCL
Drill Rig and Air Compressor Recommendation | ||||
Drill Depth/Drill Diameter | Within 219mm | 219-300mm | ||
100 Meter | HZ-160L KSZJ-18/17 | HZ-160L ZEGA-S85D（24-22) | ||
150 Meter | HZ-160L ZEGA-S85D（24-22） | HZ-160L KSZJ-29/23G | ||
200 Meter | HZ-260L KSZJ-29/23G | HZ-360L KSZJ-31/25 | ||
300 Meter | HZ-360L KSZJ-31/25 | HZ-400L LUY400-30 | ||
350 Meter | HZ-400L LUY400-30 | HZ-450L KSZJ-31/25 (2 Sets) | ||
400 Meter | HZ-450L KSZJ-31/25 (2 Sets) | HZ-500L LUY400-30 (2 Sets) | ||
450 Meter | HZ-500L LUY400-30 (2 Sets) | HZ-550L LUY400-30 (3 Sets) | ||
Air Compressor Technical Parament | ||||||||
Model | Free Air Delivery (m3/min) | Discharge Pressure (Mpa) | Power | Machine Weight(KG) | ||||
KSZJ-18/17 | 18 | 1.7 | 191KW | 3200 | ||||
ZEGA-S85D | 24 | 2.2 | 228KW | 3500 | ||||
KSZJ-29/23G | 29 | 2.3 | 295KW | 5000 | ||||
KSZJ-31/25 | 31 | 2.5 | 367KW | 6000 | ||||
LUY400-30 | 40 | 3.0 | 410KW | 5750 | ||||
Please contact the sales manager to recommend a suitable air compressor model for you! | ||||||||
Customer Feedback
FAQ
1.Are you manufacture?
Yes, we are factory with more than 20 years of manufacturing experience.
2.What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
3.What is your terms of delivery?
Ans.: EXW,FOB,CFR, CIF.
4. How about your delivery time?
Generally, it will take 7-10 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5.What is the warranty of our machine?
Our main machine enjoys a 1 year warranty, during this time all accessories broken can be changed for a
new one.And we provide videos for machine install and operation.
6.What is your terms of packing?
Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
7.Do you test all your goods before delivery?
Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
8.Do you Preferred provide wear parts for transacted clients?
Yes, we have records for your clients, and will prefer providing accessories to clients.
9.How do you make our business long-term and good relationship?
a.We keep good quality and competitive price to ensure our customers benefits;
b.We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
10.Do you have any certificates for your machine?
All of our products coming with the certificates of CE, ISO9001.
Yes, we are factory with more than 20 years of manufacturing experience.
2.What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
3.What is your terms of delivery?
Ans.: EXW,FOB,CFR, CIF.
4. How about your delivery time?
Generally, it will take 7-10 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5.What is the warranty of our machine?
Our main machine enjoys a 1 year warranty, during this time all accessories broken can be changed for a
new one.And we provide videos for machine install and operation.
6.What is your terms of packing?
Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
7.Do you test all your goods before delivery?
Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
8.Do you Preferred provide wear parts for transacted clients?
Yes, we have records for your clients, and will prefer providing accessories to clients.
9.How do you make our business long-term and good relationship?
a.We keep good quality and competitive price to ensure our customers benefits;
b.We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
10.Do you have any certificates for your machine?
All of our products coming with the certificates of CE, ISO9001.
Contact Way
Note:
The listing price just deposit price and without freight fee,please kindly note that,if you want to know the specific price,please contact us or send us inquiry,then we can give you detail quotation list,thanks.
The listing price just deposit price and without freight fee,please kindly note that,if you want to know the specific price,please contact us or send us inquiry,then we can give you detail quotation list,thanks.
