  • Solis Hybrid Inverter 10 Kw 12Kw 15Kw Three Phase 48V 5G Ginlong Pv Solar Power Inverter 8000W 10000W With Wifi Module
Solis Hybrid Inverter 10 Kw 12Kw 15Kw Three Phase 48V 5G Ginlong Pv Solar Power Inverter 8000W 10000W With Wifi Module
Solis Hybrid Inverter 10 Kw 12Kw 15Kw Three Phase 48V 5G Ginlong Pv Solar Power Inverter 8000W 10000W With Wifi Module
Solis Hybrid Inverter 10 Kw 12Kw 15Kw Three Phase 48V 5G Ginlong Pv Solar Power Inverter 8000W 10000W With Wifi Module
Solis Hybrid Inverter 10 Kw 12Kw 15Kw Three Phase 48V 5G Ginlong Pv Solar Power Inverter 8000W 10000W With Wifi Module
Solis Hybrid Inverter 10 Kw 12Kw 15Kw Three Phase 48V 5G Ginlong Pv Solar Power Inverter 8000W 10000W With Wifi Module
Solis Hybrid Inverter 10 Kw 12Kw 15Kw Three Phase 48V 5G Ginlong Pv Solar Power Inverter 8000W 10000W With Wifi Module
Solis Hybrid Inverter 10 Kw 12Kw 15Kw Three Phase 48V 5G Ginlong Pv Solar Power Inverter 8000W 10000W With Wifi Module

Solis Hybrid Inverter 10 Kw 12Kw 15Kw Three Phase 48V 5G Ginlong Pv Solar Power Inverter 8000W 10000W With Wifi Module

Share on (1601240782364):


Price:$1,695.00 - $1,811.00

Quantity:


Product Overview

Description





Product Advantages






Product Datasheet


S6-EH3P(8-15)K02-NV-YD-L
Models
8K
10K
12K
15K
Input DC (PV side)
Max. usable PV input power
12.8 kW
16 kW
19.2 kW
24 kW
Max. input voltage
1000 V



Rated voltage
550 V



Start-up voltage
160 V



MPPT voltage range
200-850 V



Max. input current
20A/40A


40A/40A
Max. short circuit current
30A/50A


50A/50A
MPPT number/Max. input strings number
2/3


2/4
Battery




Battery type
Li-ion / Lead-acid



Battery voltage range
40-60 V



Max. charge / discharge current
180 A
220 A
250 A
290 A
Communication
CAN/RS485



Output AC (Grid side)




Rated output power
8 kW
10 kW
12 kW
15 kW
Max. apparent output power
8 kVA
10 kVA
12 kVA
15 kVA
Operation phase
3/N/PE



Rated grid voltage
380 V / 400 V



Rated grid frequency
50 Hz / 60 Hz



Rated grid output current
12.2 A / 11.5 A
15.2 A / 14.4 A
18.2 A / 17.3 A
22.8 A / 21.7 A
Max. output current
12.2 A / 11.5 A
15.2 A / 14.4 A
18.2 A / 17.3 A
22.8 A / 21.7 A
Power factor
>0.99 (0.8 leading - 0.8 lagging)



THDi
< 3%



Input AC (Grid side)




Input voltage range
323-460 V



Max. input current
18.3 A / 17.3 A
22.8 A / 21.7 A
27.3 A / 26.0 A
34.2 A / 32.5 A
Frequency range
45-55 Hz / 55-65 Hz



Input Generator
Max. input power
8 kW
10 kW
12 kW
15 kW
Max. input current
12.2 A
15.2 A
18.2 A
22.8 A
Rated input voltage
3/N/PE, 380 V / 400 V



Rated input frequency
50 Hz / 60 Hz



Output AC (Back-up)




Rated output power
8 kW
10 kW
12 kW
15 kW
Max. apparent output power
2 times of rated power, 10 s



Back-up switch time
 < 10ms



Rated output voltage
3/N/PE, 380 V / 400 V



Rated frequency
50 Hz / 60 Hz



Rated output current
12.2 A / 11.5 A
15.2 A / 14.4 A
18.2 A / 17.3 A
22.8 A / 21.7 A
Max. Continuous output current
12.2 A
15.2 A
18.2 A
22.8 A
Max. Continuous AC Passthrough current
50 A



THDv (@linear load)
<3%



Efficiency
Max. efficiency
97.6%
EU efficiency
97.0%
General Data

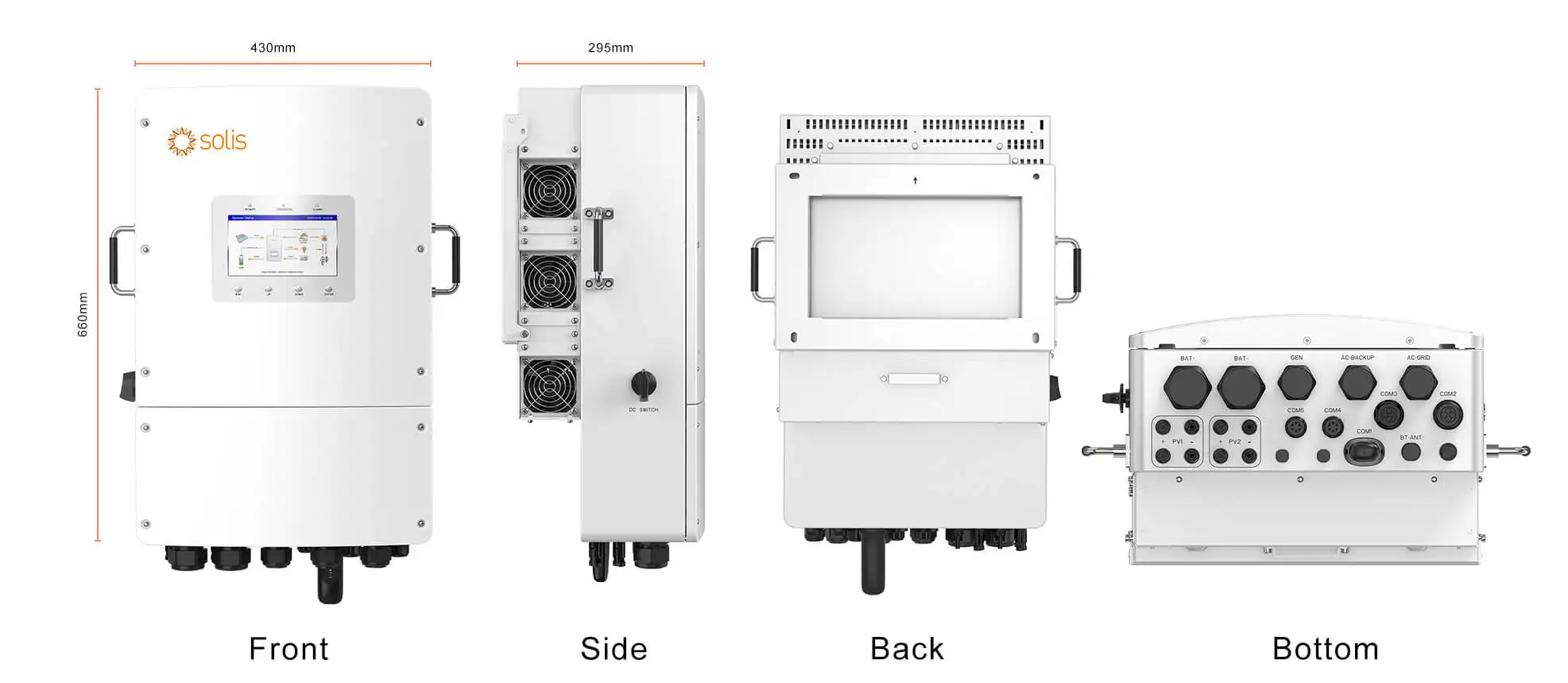

Dimensions (W*H*D)
430*660*295 mm



Weight
42 kg


Topology
Non-isolated



Operating ambient temperature range
-40 ~ +60°C



Ingress protection
IP66



Cooling concept
Intelligent redundant fan-cooling


Max. operation altitude
4000 m



Grid connection standard
NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, SriLanka, EN 50438L, Vietnam, PEA\\MEA



Safety/EMC standard
IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-3

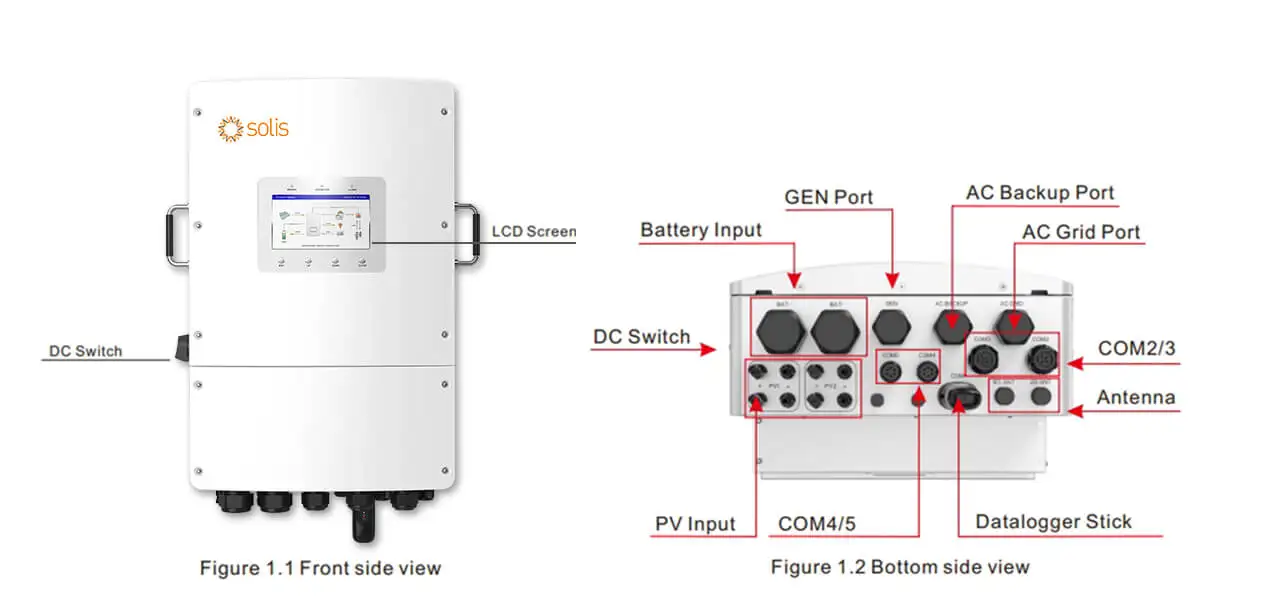

Product Details
