Price:$14,620.00 - $15,360.00

Quantity:


Product Overview

Description

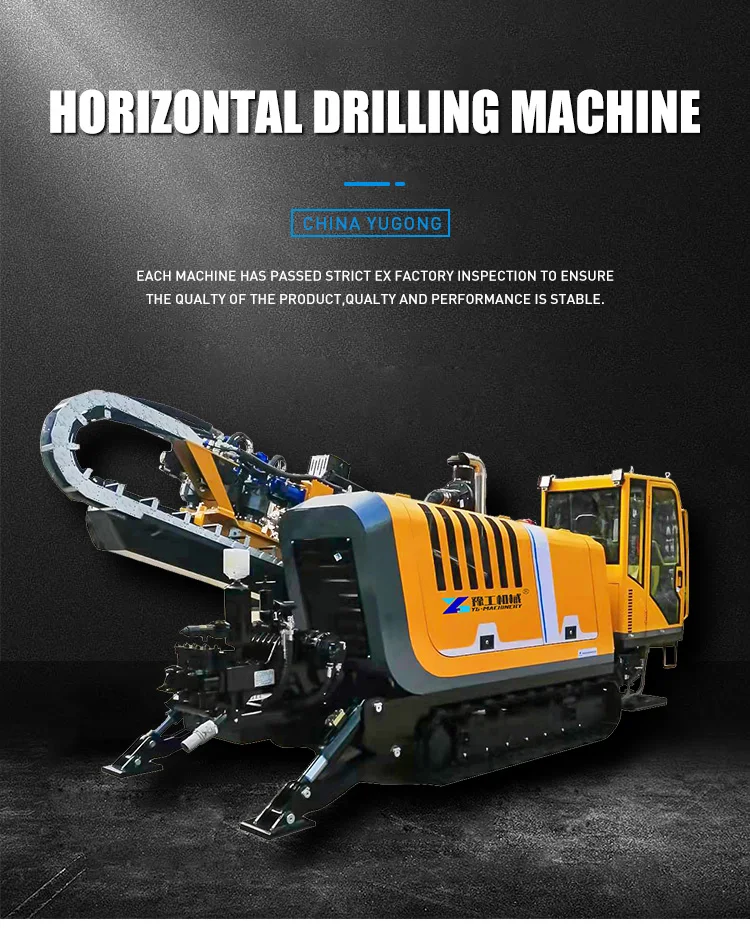

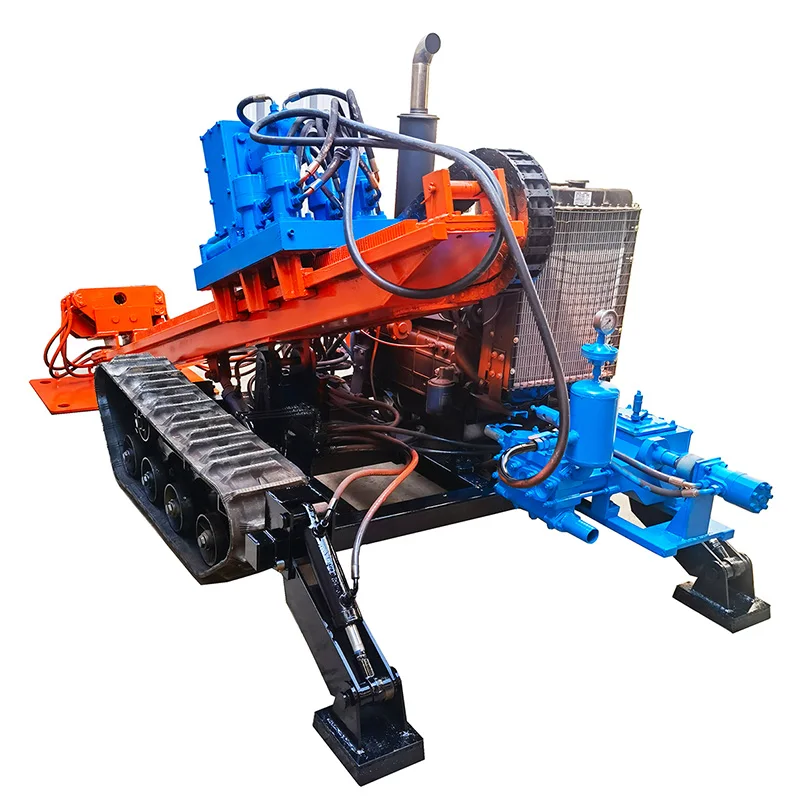

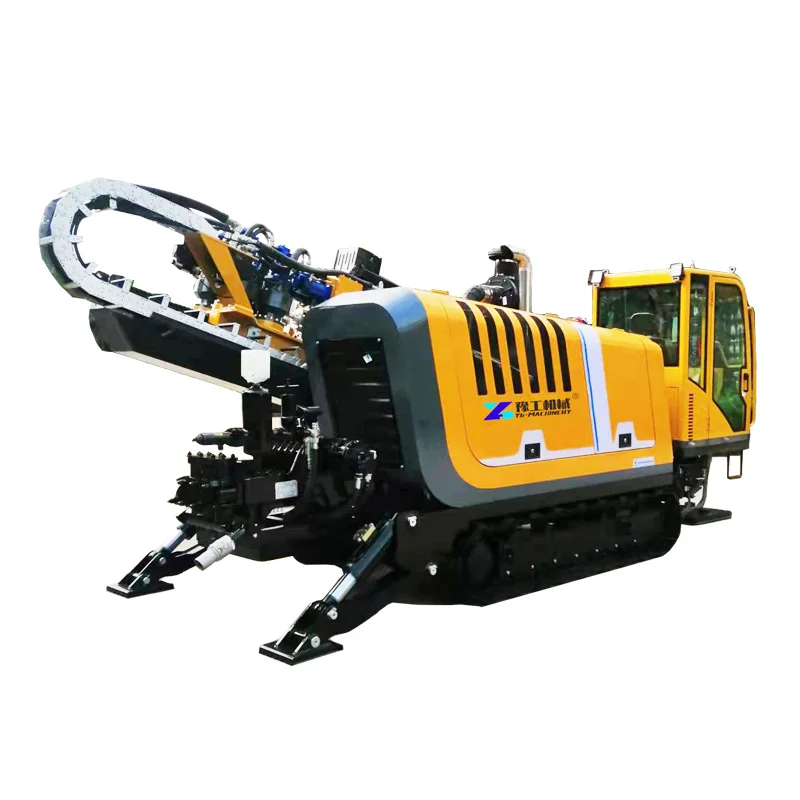

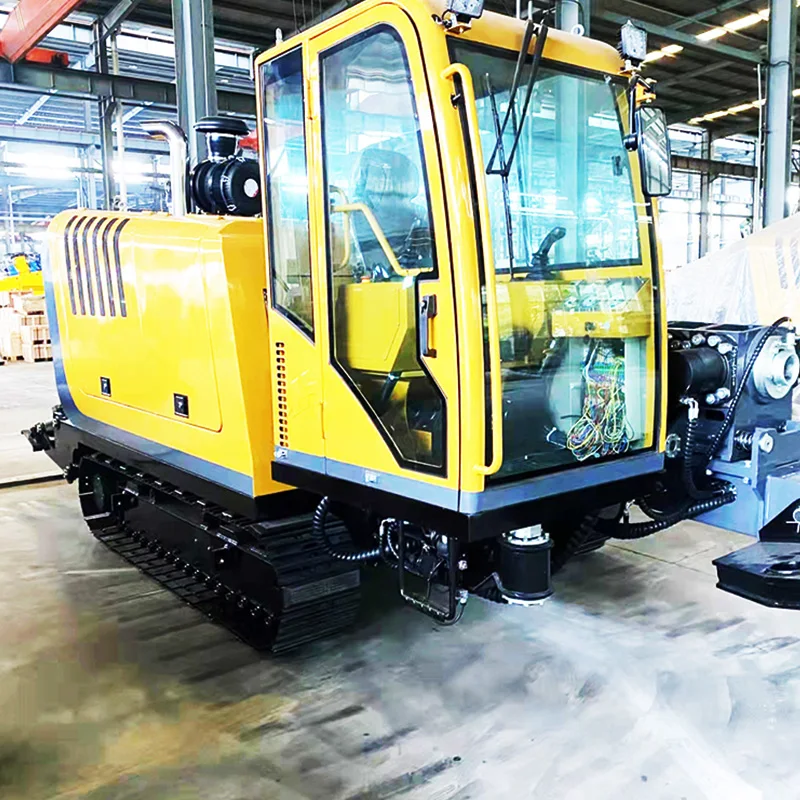

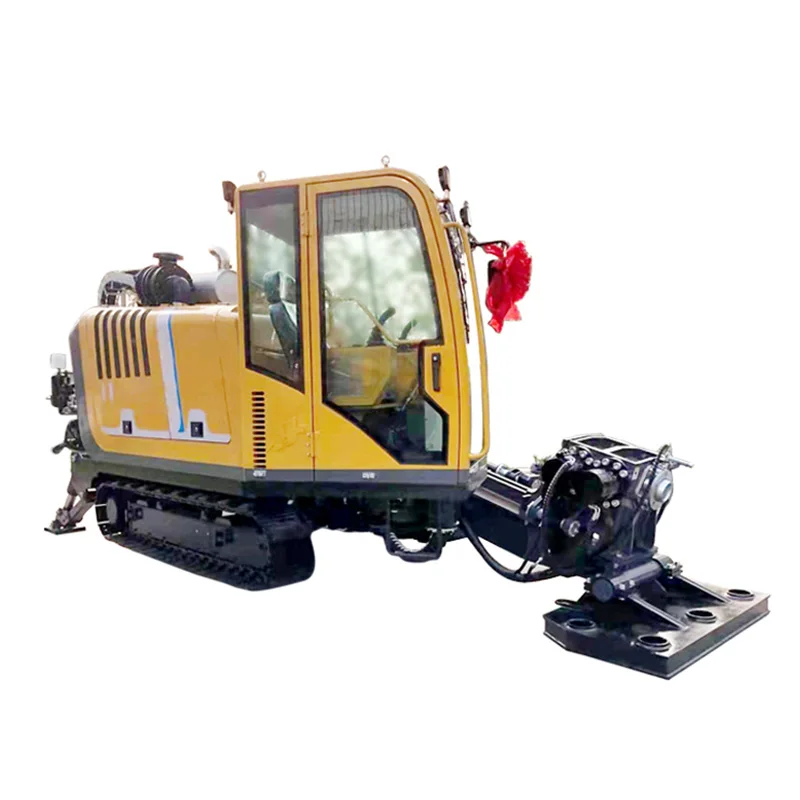

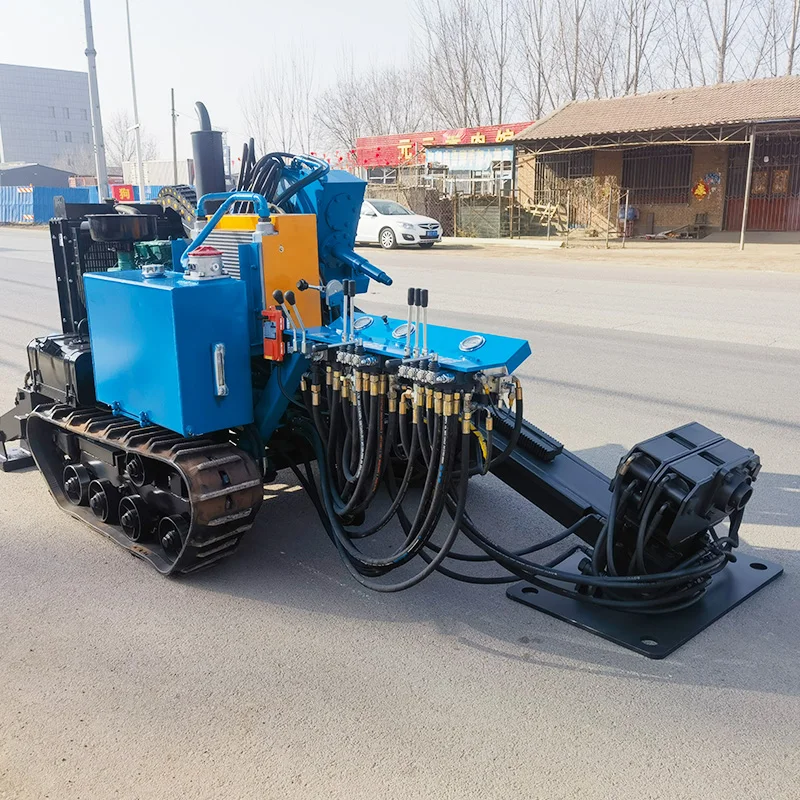

Automatic Loading Drill Pipe Trenchless Gas Conduit Installation Horizontal HDD Drilling Machine




Product Description



hdd machine horizontal directional drilling machine



















































































Model YG-320 YG-320A
Engine rated power 140KW/160KW 160KW
Push and pull Cylinder Motor
Maximum drag/feed force 320/320KN 320/320KN
Maximum torque of power head 12000N.n 12000N.n
Power head speed 0-140r/min 0-140r/min
Moving speed of power head 20m/min 20m/min
Maximum reaming hole diameter Φ800mm Φ800mm
Drill rod length (single) 3m 3m
Drill pipe diameter Φ73mm Φ73mm
Drill angle 10-20° 10-20°
Maximum mud flow 320L/min 320L/min
Maximum mud pressure 80bar 80bar
Overall quality 11500kg 11200kg
Dimensions (length*width*height)

7100*2250*2450mm

7662*2162*2450mm

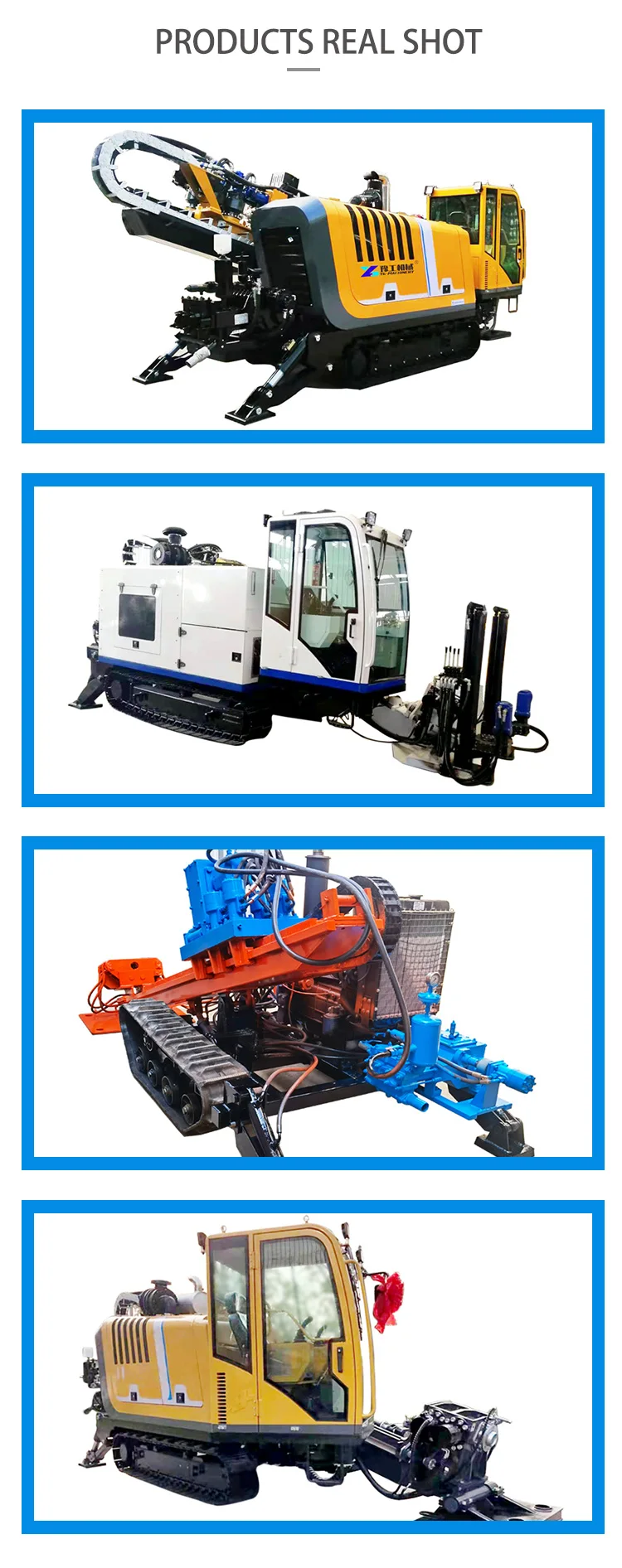

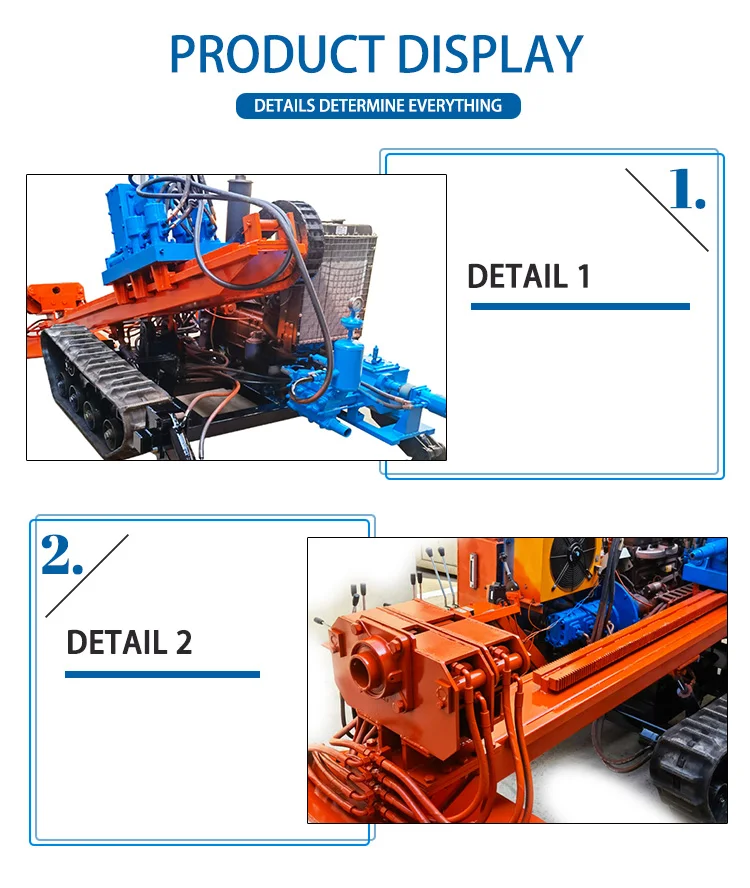

Product Display





Application:


It does not excavate the ground surface and is suitable for urban construction. It is a construction machine for laying a variety of underground utilities (pipes, cables, etc.). It is widely used in the construction of flexible pipelines for water supply, electricity, telecommunications, natural gas, gas, and oil. Some non-hard rock areas can be constructed.













Packaging & Shipping


Packaging Details


1. Out package: Standard marine export plwywood cases;


2. Innner package:Stretch film and plastic film for humidity;


3. Customized according to your requirement.


Delivery Time


Within one week


Shipping


Port: Tianjin, Qingdao, Shanghai or other ports according to your requirements.


Sea freight: FOB/CIF/DDU quotation are all available.


Transport method: By logistics; by automobile; by train; by shipping; by air etc.
